new to me 1978 KZ 1000 24 Nov 2023 19:31 #892023

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4887
  • Thank you received: 1849

Mikaw - I'm almost ready to bench sync and set float levels and I've been planning how to make a fixture.  What I've pictured in my head (an ability useful as a draftsman especially before CAD when we did it by hand on a large drafting board) is similar but I like yours better.  Do you have holes for the carb throats to set the sync from the cylinder head side ?
Thanks for the ideas.

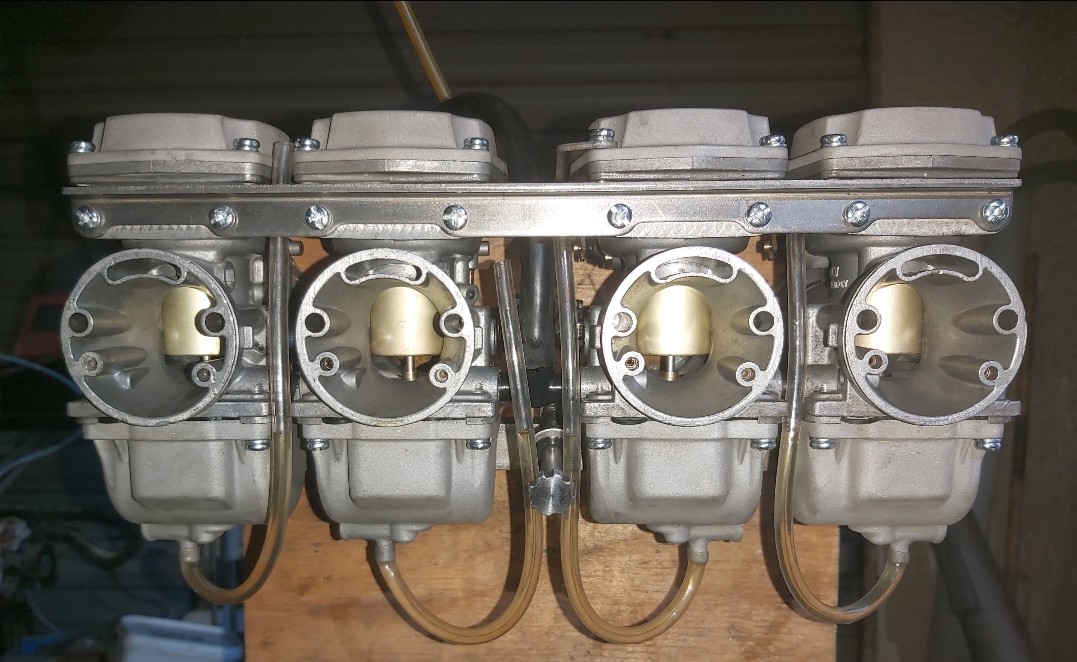

Thanks. It was a quick slap together stand. No holes but that’s a great idea. I screwed used carb holders to the horizontal. I only have one screw in each vertical to the horizontal till I plumb it based on the surface it’s sitting on, then run in a second screw on one end. Then I level it left to right. Typically after float are set I’ll just set them on the bench and do the initial sync.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 24 Nov 2023 19:44 #892025

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 396
  • Thank you received: 235
Yeah -  I had set aside 2 of my old carb holders to attach the carbs.
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 24 Nov 2023 21:31 #892027

  • Treetall
  • Treetall's Avatar Topic Author
  • Offline
  • User
  • Posts: 57
  • Thank you received: 11
Is there an initial measurement for the float?  Or is it trial and error!
I know a small adjustment goes a long way!
BTW The Nessism clear hose method works pretty good. I made a bit of a point as mentioned, and scraped the sides a bit with a utility knife to down size it a touch.
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 24 Nov 2023 22:20 #892030

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4887
  • Thank you received: 1849

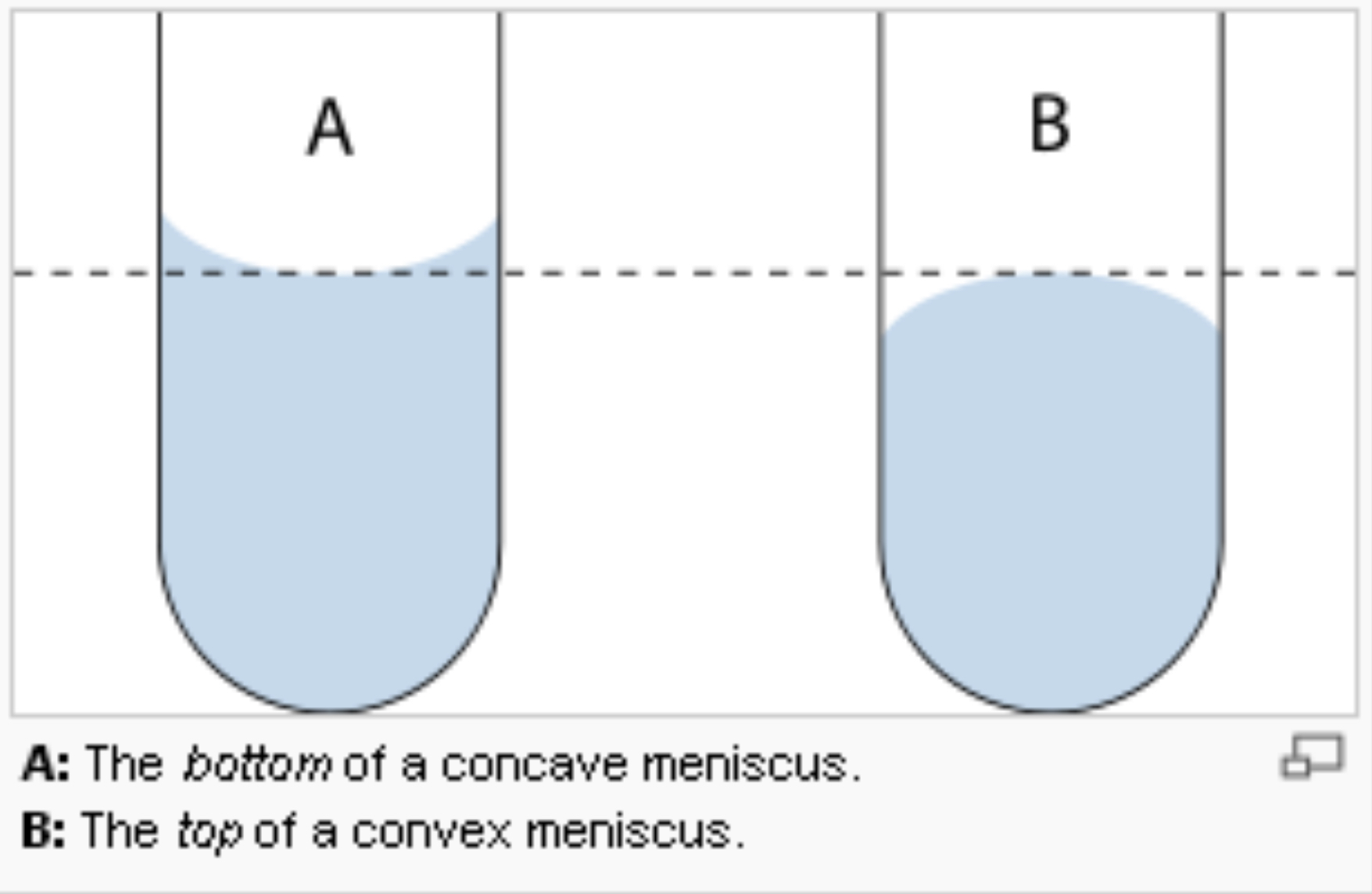

I start with eyeing the float and the bracket. Making sure all brackets come off the float at a sharp 90 deg.Then I bend the tang flat flush with the bracket. Hang all the floats, with seat and needle, and compare all to each other to make sure they all hang down the same amount. It easy to hold a straight edge across the bottom of the floats to compare. Bend individual floats as necessary. Then the fun begins. Carbs are fed as pairs. 1&2, 3&4. With bowls 1&2 held in place with two screws each, clear tube in #1 drain boss, start the fuel flow and observe. Like I said it’s not hard, time consuming so plan on a couple hours. To adjust the tab, I remove the float, set the bracket on an 8mm socket. The body of the bracket arms will rest on the OD of the socket and the tang will be in the center open area of the socket. This will allow you to press down on the tang to bend without bending the arms of the bracket. Rehang the float and rinse and repeat till the fuel in the tube is 2-4mm below the carb body. Make sure you are eyeballing the actual fuel level and not the meniscus level.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw. Reason: Added photo

new to me 1978 KZ 1000 26 Nov 2023 09:26 #892083

  • howardhb
  • howardhb's Avatar
  • Away
  • Sustaining Member
  • God, I trust
  • Posts: 428
  • Thank you received: 431
It IS time consuming.
Work in a well ventilated area.



H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 26 Nov 2023 20:19 #892106

  • Treetall
  • Treetall's Avatar Topic Author
  • Offline
  • User
  • Posts: 57
  • Thank you received: 11

I start with eyeing the float and the bracket. Making sure all brackets come off the float at a sharp 90 deg.Then I bend the tang flat flush with the bracket. Hang all the floats, with seat and needle, and compare all to each other to make sure they all hang down the same amount. It easy to hold a straight edge across the bottom of the floats to compare. Bend individual floats as necessary. Then the fun begins. Carbs are fed as pairs. 1&2, 3&4. With bowls 1&2 held in place with two screws each, clear tube in #1 drain boss, start the fuel flow and observe. Like I said it’s not hard, time consuming so plan on a couple hours. To adjust the tab, I remove the float, set the bracket on an 8mm socket. The body of the bracket arms will rest on the OD of the socket and the tang will be in the center open area of the socket. This will allow you to press down on the tang to bend without bending the arms of the bracket. Rehang the float and rinse and repeat till the fuel in the tube is 2-4mm below the carb body. Make sure you are eyeballing the actual fuel level and not the meniscus level.

Thanks Mikaw,  very nice explanation.
I was a little leery about bending the float to get them all level.  I was afraid of ending up with a float in one hand and a bracket in the other. But they're fairly forgiving.
I only had one float that needed adjusting. But I'll have to go back and check my work, because she wouldn't fire up after words.
Could be spark or I goofed some where.  The fun continues!!
If I did do everything right. Then the carbs were way out.


The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 28 Nov 2023 17:10 #892176

  • Buzz Nichols
  • Buzz Nichols's Avatar
  • Offline
  • Sustaining Member
  • Posts: 211
  • Thank you received: 105
While this subject is on the table, does anybody sell a clear hose adaptor to fit the drain plugs on the Mikuni VM26's? If not, is there a  machinist in the house who would like to make a few?
Is this thing working? Is this thing on?

1978 KZ1000 LTD

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 28 Nov 2023 18:25 #892177

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4887
  • Thank you received: 1849
Nessism mentioned and this member confirmed you can cut the tub in a pencil tip shape and screw the tube into the threaded drain hole. This member here said it works great.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Buzz Nichols

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 28 Nov 2023 20:09 #892179

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 396
  • Thank you received: 235
Also, Z1enterprises sells a fitting with a hose attached to screw into the bowl drain.
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 29 Nov 2023 05:12 #892184

  • Buzz Nichols
  • Buzz Nichols's Avatar
  • Offline
  • Sustaining Member
  • Posts: 211
  • Thank you received: 105

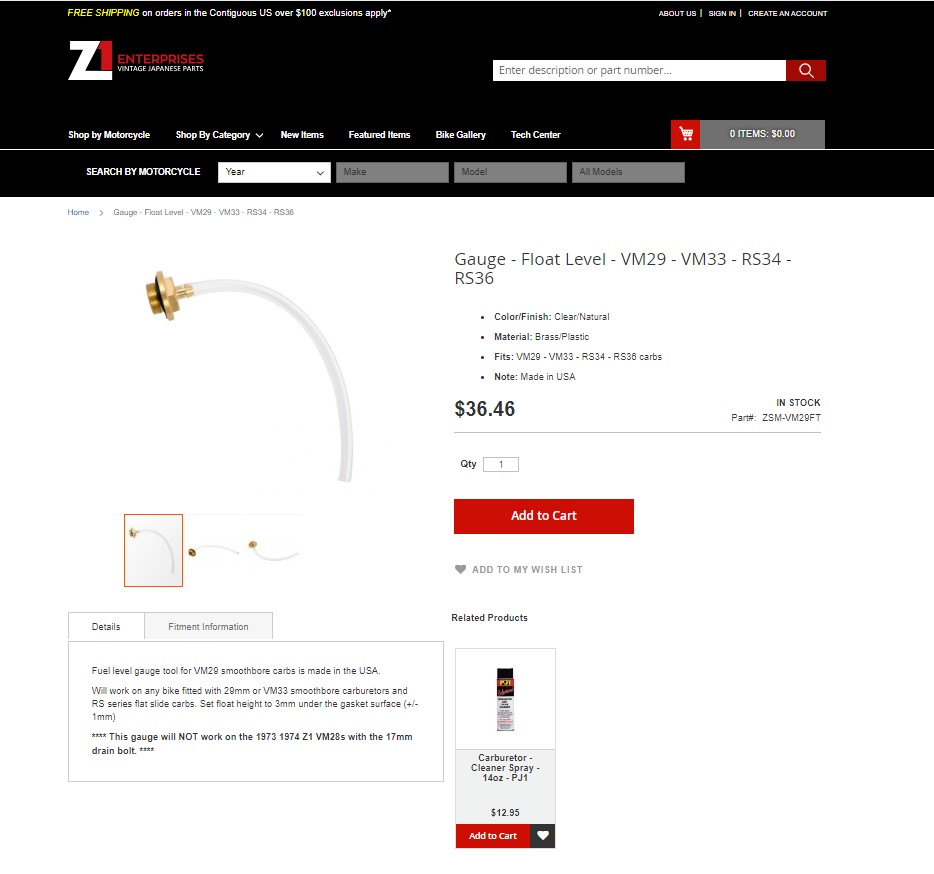

Really? All I've found there is a fitting for the VM 29 carbs that goes into the hole for accessing the main jet.

Regardless, I'm not trying to hijack this thread. Carry on.
Is this thing working? Is this thing on?

1978 KZ1000 LTD

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 29 Nov 2023 05:25 #892185

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3140
  • Thank you received: 1751

Really? All I've found there is a fitting for the VM 29 carbs that goes into the hole for accessing the main jet.

Regardless, I'm not trying to hijack this thread. Carry on.
Attachments:
The following user(s) said Thank You: slayer61

Please Log in or Create an account to join the conversation.

new to me 1978 KZ 1000 29 Nov 2023 05:39 #892186

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 396
  • Thank you received: 235
Z1E part no 200-1041
"Fits Mikuni VM-24  VM26  VM28"
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
The following user(s) said Thank You: Buzz Nichols

Please Log in or Create an account to join the conversation.
