new to me 1978 KZ 1000
- Treetall
- Topic Author
- Offline
- User
Less
More
01 Feb 2024 10:40 #894719
by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Thanks for the advice guys!
I wired up a relay for the coils and I'm getting a nice spark now.
She only runs on 2 legs though.
Looks like the coil for cyl 2-3 is toast. I'm not getting any spark and no ohm reading on the secondary windings.
Any suggestions on where to a set of coils( with decent quality and price) ? Z1 Ent. and Z1 Parts have a sets running about $95. But I don't know the quality!
What ohm rating do I need to get? I'm running points at this point.
And maybe a stupid question. Should I replace both coils, Or just the toasted one?
Thanks again for the help!
Conrad
I wired up a relay for the coils and I'm getting a nice spark now.
She only runs on 2 legs though.
Looks like the coil for cyl 2-3 is toast. I'm not getting any spark and no ohm reading on the secondary windings.
Any suggestions on where to a set of coils( with decent quality and price) ? Z1 Ent. and Z1 Parts have a sets running about $95. But I don't know the quality!
What ohm rating do I need to get? I'm running points at this point.
And maybe a stupid question. Should I replace both coils, Or just the toasted one?
Thanks again for the help!
Conrad
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4104
- Thank you received: 2342
01 Feb 2024 11:49 #894723
by Wookie58
Replied by Wookie58 on topic new to me 1978 KZ 1000
Check the FSM but I believe what you require are 3-4ohm primary and 10-15kohms secondary, given the bike is 45 years old with unknown history I would suggest replacing both (budget permitting) and keep the good one as a spare
Please Log in or Create an account to join the conversation.
- Treetall
- Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 11
01 Feb 2024 12:23 #894724
by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Check the FSM but I believe what you require are 3-4ohm primary and 10-15kohms secondary, given the bike is 45 years old with unknown history I would suggest replacing both (budget permitting) and keep the good one as a spare
That’s what I was thinking. This one quit for no reason ( it worked last fall when I had it running)
I couldn’t find it in the FSM
but then again. My wife says I look with my eyes closed! Lol
Thats the readings I got from 1,4 coil
What brand of Coil do you normally buy?
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4104
- Thank you received: 2342
01 Feb 2024 13:30 #894727
by Wookie58
Replied by Wookie58 on topic new to me 1978 KZ 1000
I think others can advise you best on brand, I know the theory and principles but have limited model specific experience
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 561
- Thank you received: 357
01 Feb 2024 15:50 #894728
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic new to me 1978 KZ 1000
Don't wanna hijack this thread, but Rolf, plug wires and terminals are cheap enough new (especially if you make your own), why would you take a chance on some else's used ones?
Same with coils, you're better off with new.
Also, don't use resistor wires with resistor plugs, you can get away with one or the other but not both. Best is solid copper core wires with non resistor plugs. (my preference is Denso non resistor plugs, but there are others).
OK, now back to Treetall's subjects.
Same with coils, you're better off with new.
Also, don't use resistor wires with resistor plugs, you can get away with one or the other but not both. Best is solid copper core wires with non resistor plugs. (my preference is Denso non resistor plugs, but there are others).
OK, now back to Treetall's subjects.
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
The following user(s) said Thank You: Rolf1976_KZ900
Please Log in or Create an account to join the conversation.
- Rolf1976_KZ900
- Offline
- User
Less
More
- Posts: 398
- Thank you received: 159
02 Feb 2024 03:45 - 02 Feb 2024 03:46 #894751
by Rolf1976_KZ900
Replied by Rolf1976_KZ900 on topic new to me 1978 KZ 1000
Don't wanna hijack this thread, but Rolf, plug wires and terminals are cheap enough new (especially if you make your own), why would you take a chance on some else's used ones?
Same with coils, you're better off with new.
Also, don't use resistor wires with resistor plugs, you can get away with one or the other but not both. Best is solid copper core wires with non resistor plugs. (my preference is Denso non resistor plugs, but there are others).
OK, now back to Treetall's subjects.
I have a new boyer bransden kit that came with new coils and wires and planning to install that ,but just want yellow or lime green plugwires for the looks.
I now have a dyna s installed ,but think it is a cheep replica. In August one coil melted when riding made bubbles underside of the coil and smelled burnt electrical. Some days before that i changed out the plugcaps to non resistor also used non resistor sparkplugs. The bike also had resistor placed on the plugwires itself. I changed to non resistor caps and plugs becuase the bike suddenly started to run bad and read that it is better to run with non resistance plugs and caps.
Then i found that the timingchain had jumped because of worn sliders rollers tensioner and chain .That has made me torn down the engine
I now have a little new problem that is when i will fire up the bike after rebuild of the engine im not sure what i will do with the ignition i mean if i will fire it up with the dyna s that sits on the bike and maybe melted the coil or if i shall install the boyer brasden kit before first start.After first start i will run the engine on road soon as possible to seat the rings not fiddling with adusting the ignition and engine idling.
Last edit: 02 Feb 2024 03:46 by Rolf1976_KZ900.
Please Log in or Create an account to join the conversation.
- Treetall
- Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 11
15 Feb 2024 19:57 #895304
by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
So I ordered steering stem bearings from Fortnine. $60 C$ and free shipping. Just in case there are Canucks price comparing.
I also learned a new word! When the bearing makes the little indents in the race, its called Brinell or has gone Brinell!
I first attempted to cut some slots in the race, to make removal easier. but there's not enough shoulder for a punch.
I think it was Mikaw mentioned on here to weld a washer to the race. Worked a charm!
Here are some pics of my playing around!

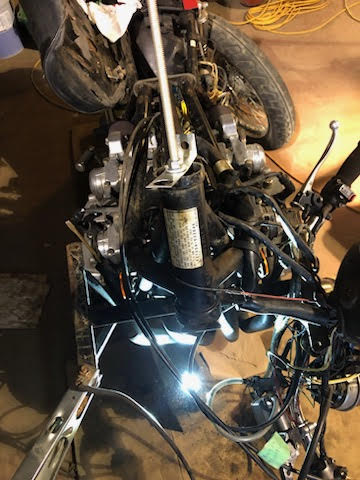

The first is a chunk of ready rod to hold the washer while I welded it in place.

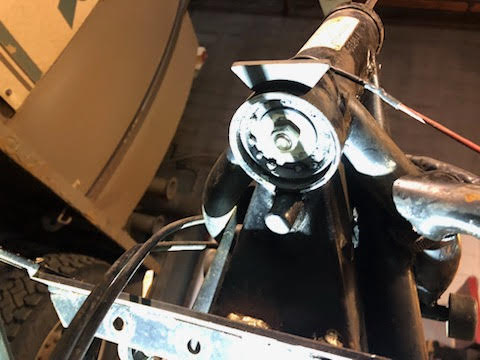

Second is laughable welding job, but it got the job done!

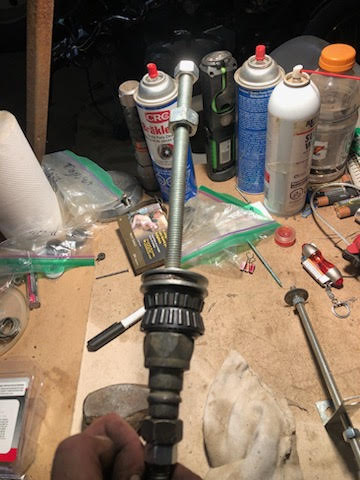

Third is my race install tool. Using the old bearings, I squeezed the new races into place. I know the thing looks like WTF! But it worked a peach. I've always had a problem with the races going cockeyed when I try to tap them in with a hammer.
I also learned a new word! When the bearing makes the little indents in the race, its called Brinell or has gone Brinell!
I first attempted to cut some slots in the race, to make removal easier. but there's not enough shoulder for a punch.
I think it was Mikaw mentioned on here to weld a washer to the race. Worked a charm!
Here are some pics of my playing around!
The first is a chunk of ready rod to hold the washer while I welded it in place.
Second is laughable welding job, but it got the job done!
Third is my race install tool. Using the old bearings, I squeezed the new races into place. I know the thing looks like WTF! But it worked a peach. I've always had a problem with the races going cockeyed when I try to tap them in with a hammer.
The following user(s) said Thank You: sf4t7, howardhb, Wookie58
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 561
- Thank you received: 357
15 Feb 2024 20:49 #895305
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic new to me 1978 KZ 1000
Thanks Treetall and Mikaw for that bearing race removal tip. I can't tell you how many punches I've had to grind square after rounding the tips trying to remove bearing races from front rotors or drums over the last 40 years. As they said in the old Guinness commercial - BRILLIANT !
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3037
- Thank you received: 1090
16 Feb 2024 04:12 #895310
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic new to me 1978 KZ 1000
Brinell is actually a hardness scale.
en.wikipedia.org/wiki/Brinell_scale#:~:t...0materials%20science .
en.wikipedia.org/wiki/Brinell_scale#:~:t...0materials%20science .
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- Treetall
- Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 11
16 Feb 2024 19:52 #895335
by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Brinell is actually a hardness scale.
en.wikipedia.org/wiki/Brinell_scale#:~:t...0materials%20science .
I looked at it after I posted it, and ya I didn't have it right.
What I should maybe said was " It's lost it's Brinell" ! But that's not exactly right either!
There I go, trying to be a fart smeller! LOL
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 561
- Thank you received: 357
16 Feb 2024 20:05 - 16 Feb 2024 20:06 #895336
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic new to me 1978 KZ 1000
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Last edit: 16 Feb 2024 20:06 by sf4t7.
