Top-End Reassembly
- zed1015
-
- Away
- User
-
Registered
- Posts: 3202
- Thanks: 1866
Re: Top-End Reassembly
24 Oct 2025 14:10It applies to any four stroke piston.Is the drawing adaptation below better suited for our DOHC motorcycle engine applications?
The cam configuration bears no influence.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5762
- Thanks: 3567
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly

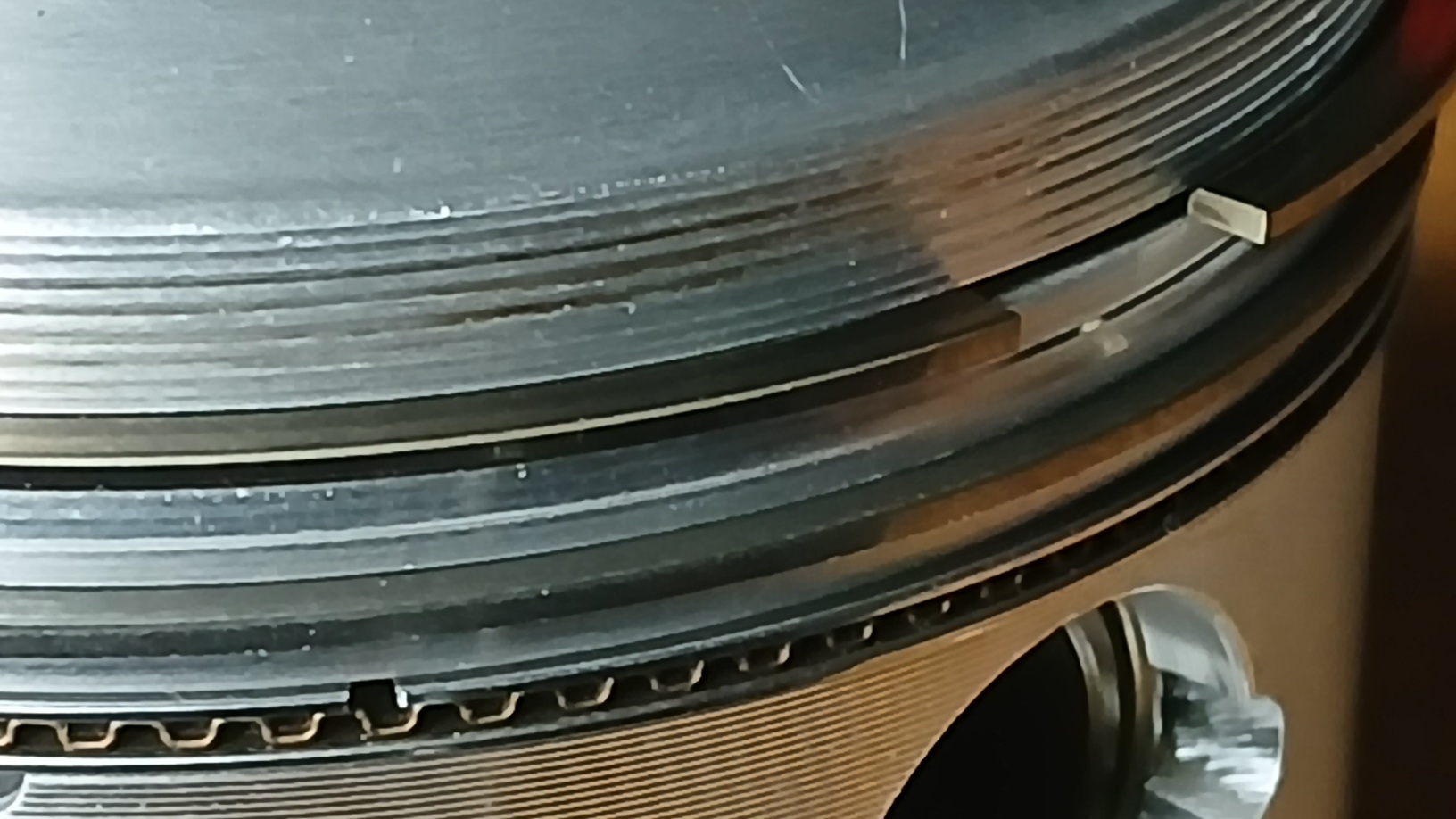

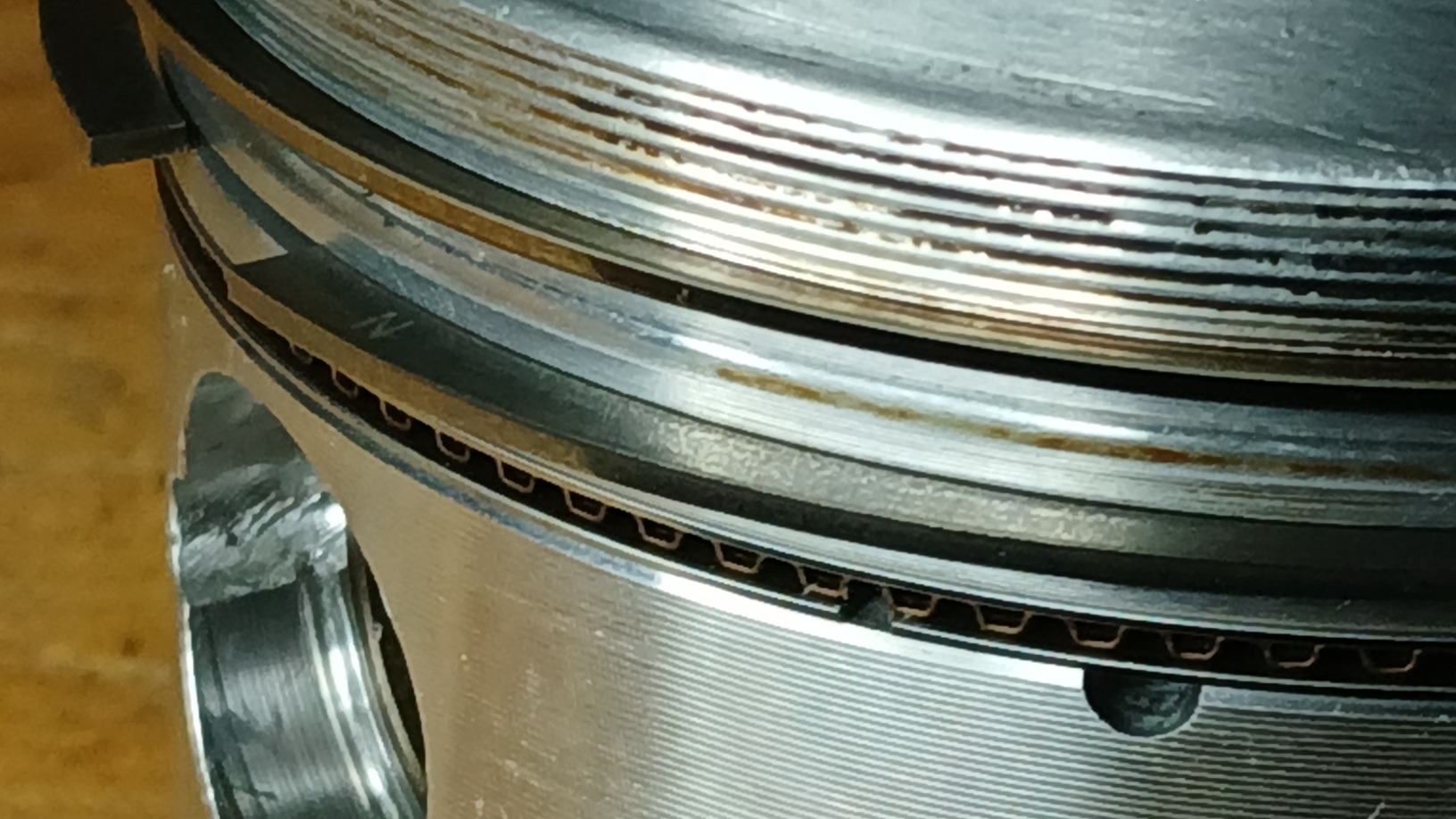

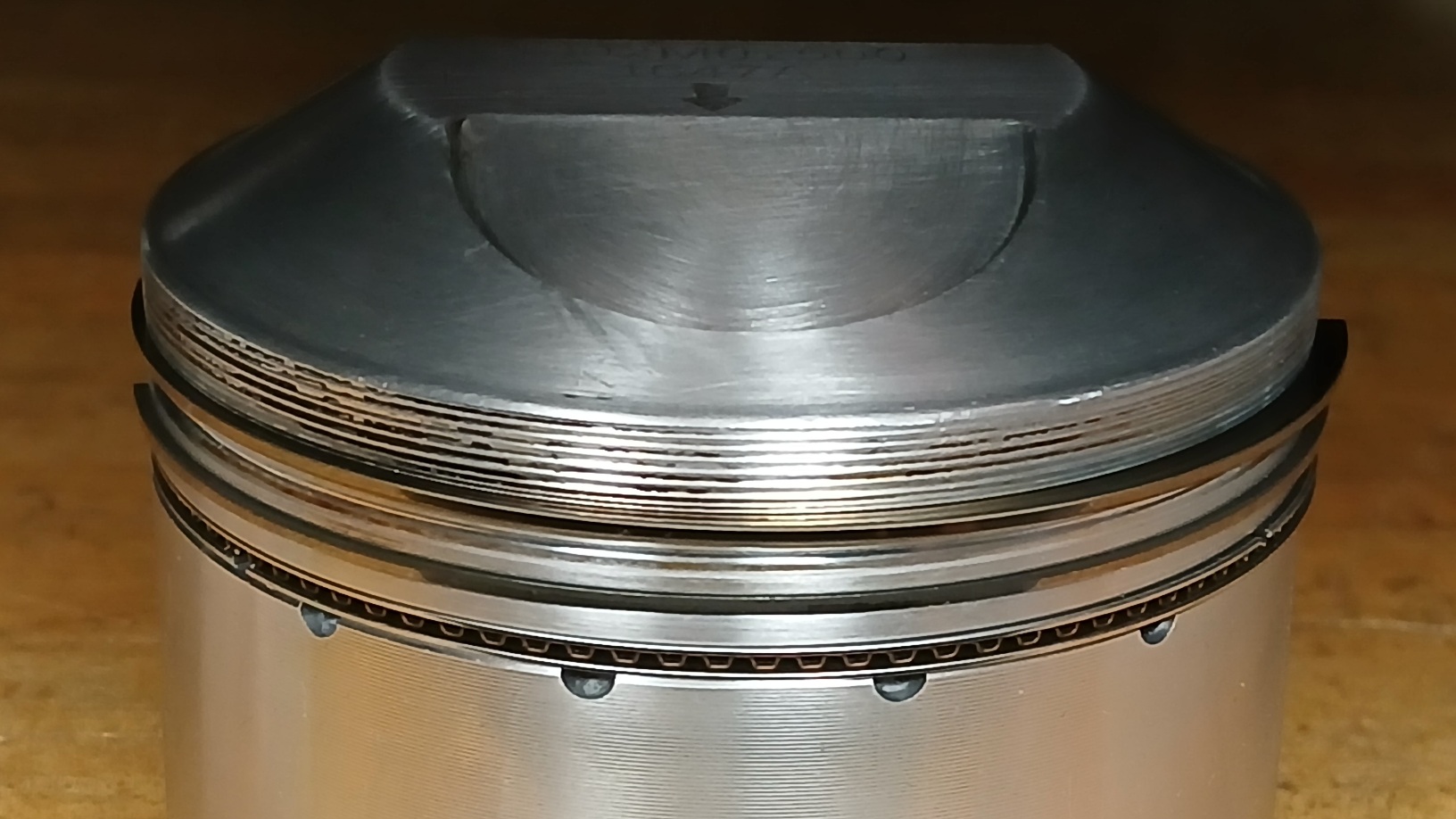

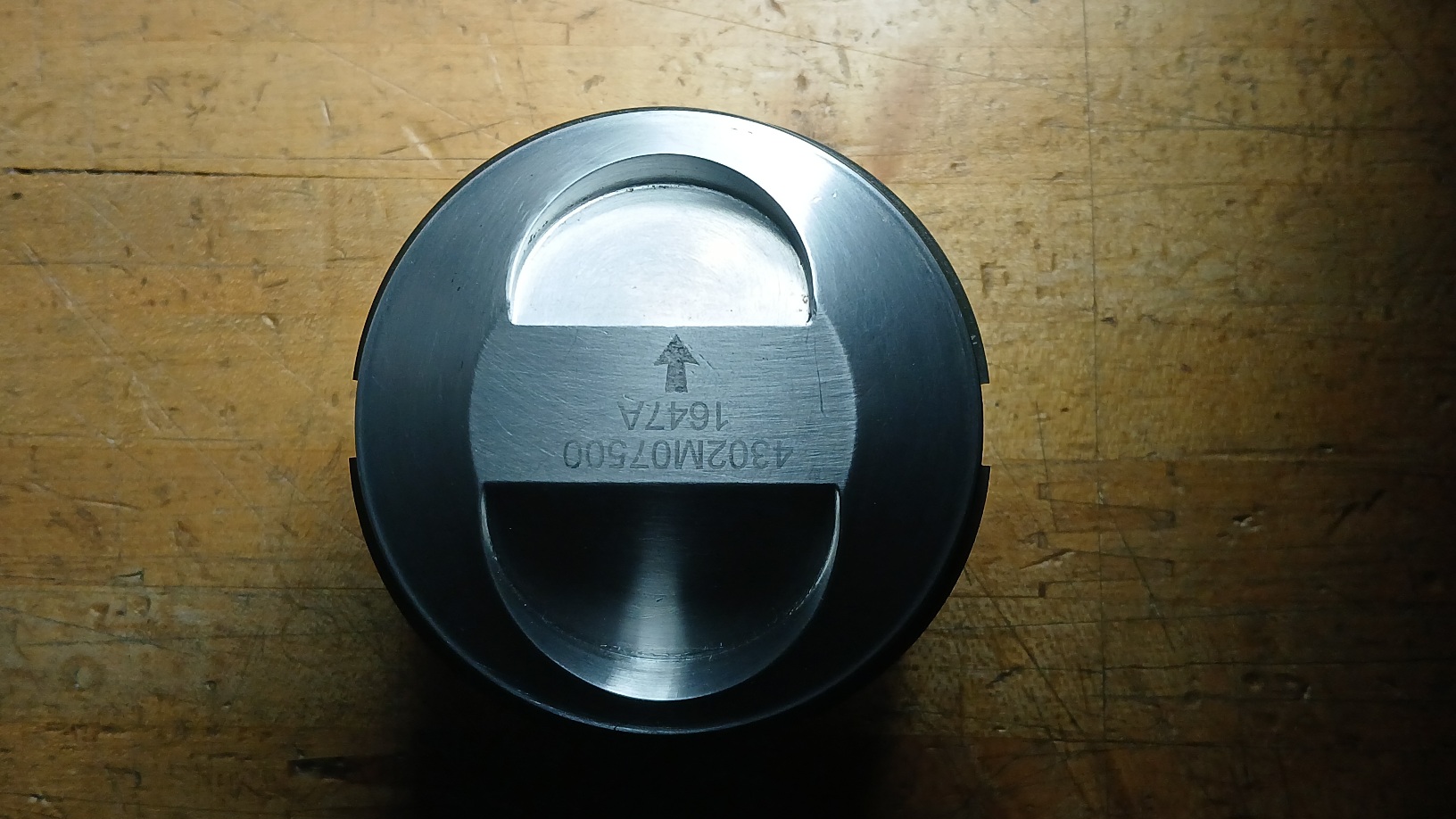

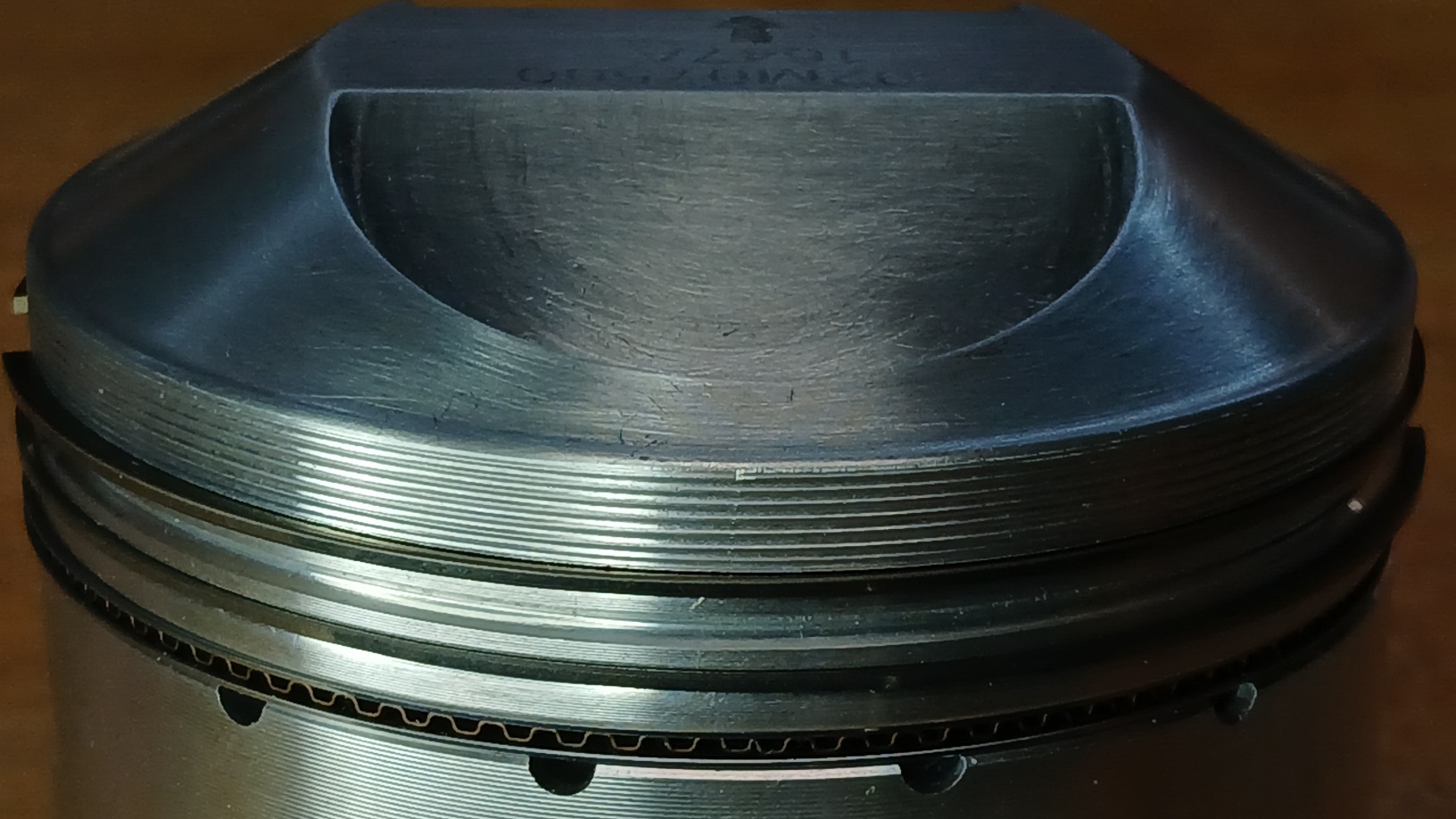

24 Oct 2025 23:19 - 25 Oct 2025 07:59Separation improves with the Top and 2nd ring gaps flipped, in relation to the Oil Rail positions noted in the illustration.
Viewed from front:
🙂
Viewed from rear:
🙄
1982 KZ1100-A2 bike powered by a 1984 ZN/ZX1100 motor since late 2024
Last edit: 25 Oct 2025 07:59 by daveo.
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5762
- Thanks: 3567
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly
27 Oct 2025 13:49 - 27 Oct 2025 14:08What are you doing with the wobbly guide ?
The head was removed and shipped to Schumann Motor Works for guide replacement...and whatever else requires attention.
Chris Schumann ported the head and installed the valve guides for this build. He also worked on the bathtub head installed on my 82' motor.
BTW, another issue was revealed after the cylinder head was pulled...an issue with potential to do irreparable damage to the motor!

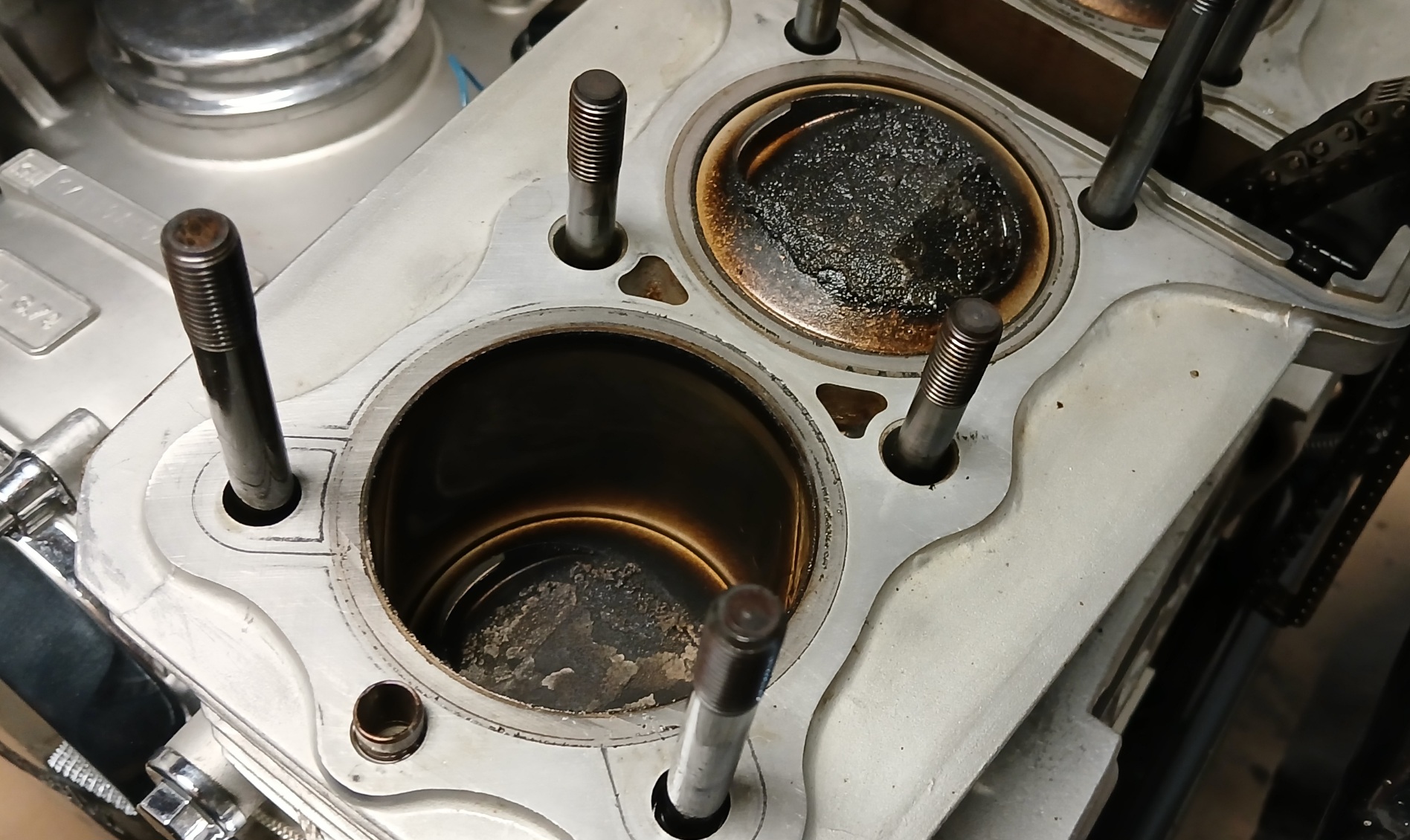

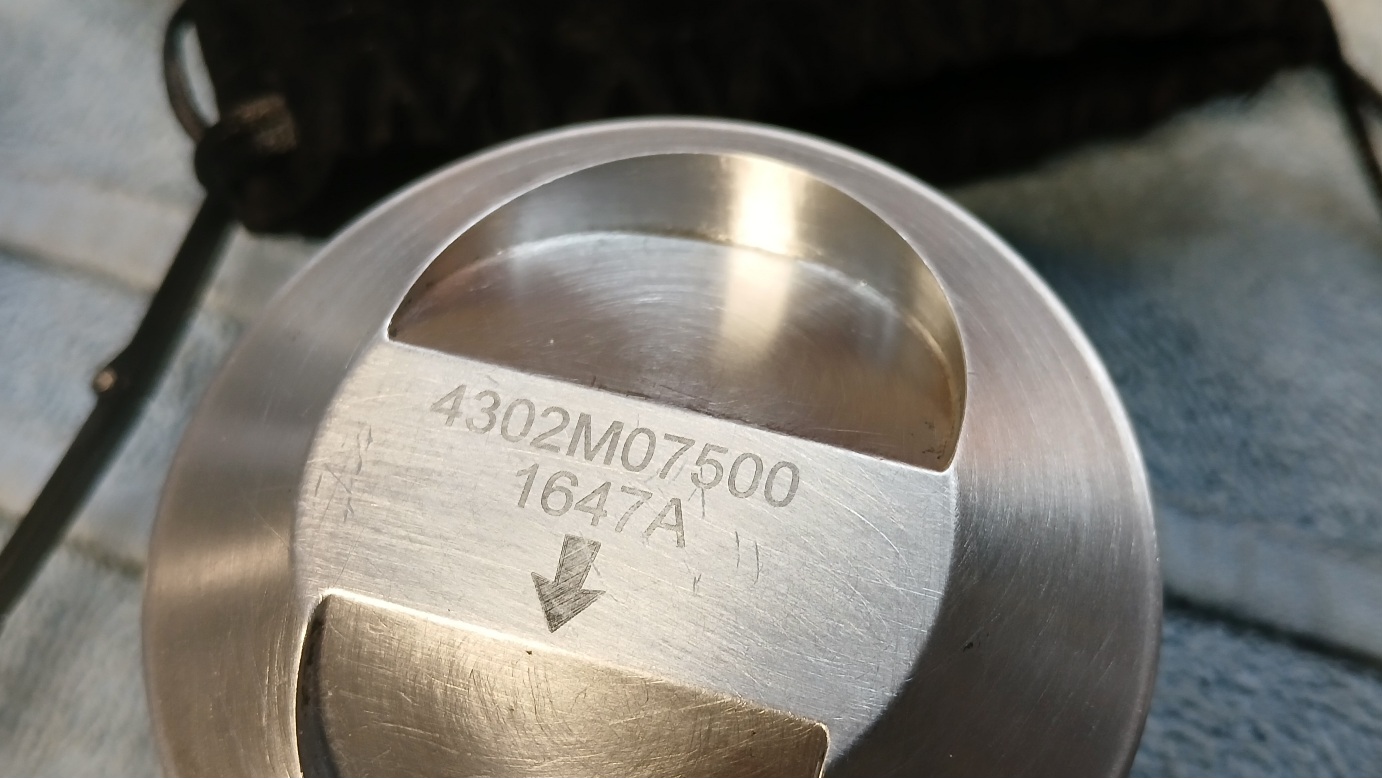

Notice anything unusual in the image below?
1982 KZ1100-A2 bike powered by a 1984 ZN/ZX1100 motor since late 2024
Last edit: 27 Oct 2025 14:08 by daveo.
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly
27 Oct 2025 15:15What are you doing with the wobbly guide ?
The head was removed and shipped to Schumann Motor Works for guide replacement...and whatever else requires attention.
Chris Schumann ported the head and installed the valve guides for this build. He also worked on the bathtub head installed on my 82' motor.
BTW, another issue was revealed after the cylinder head was pulled...an issue with potential to do irreparable damage to the motor!
Notice anything unusual in the image below?

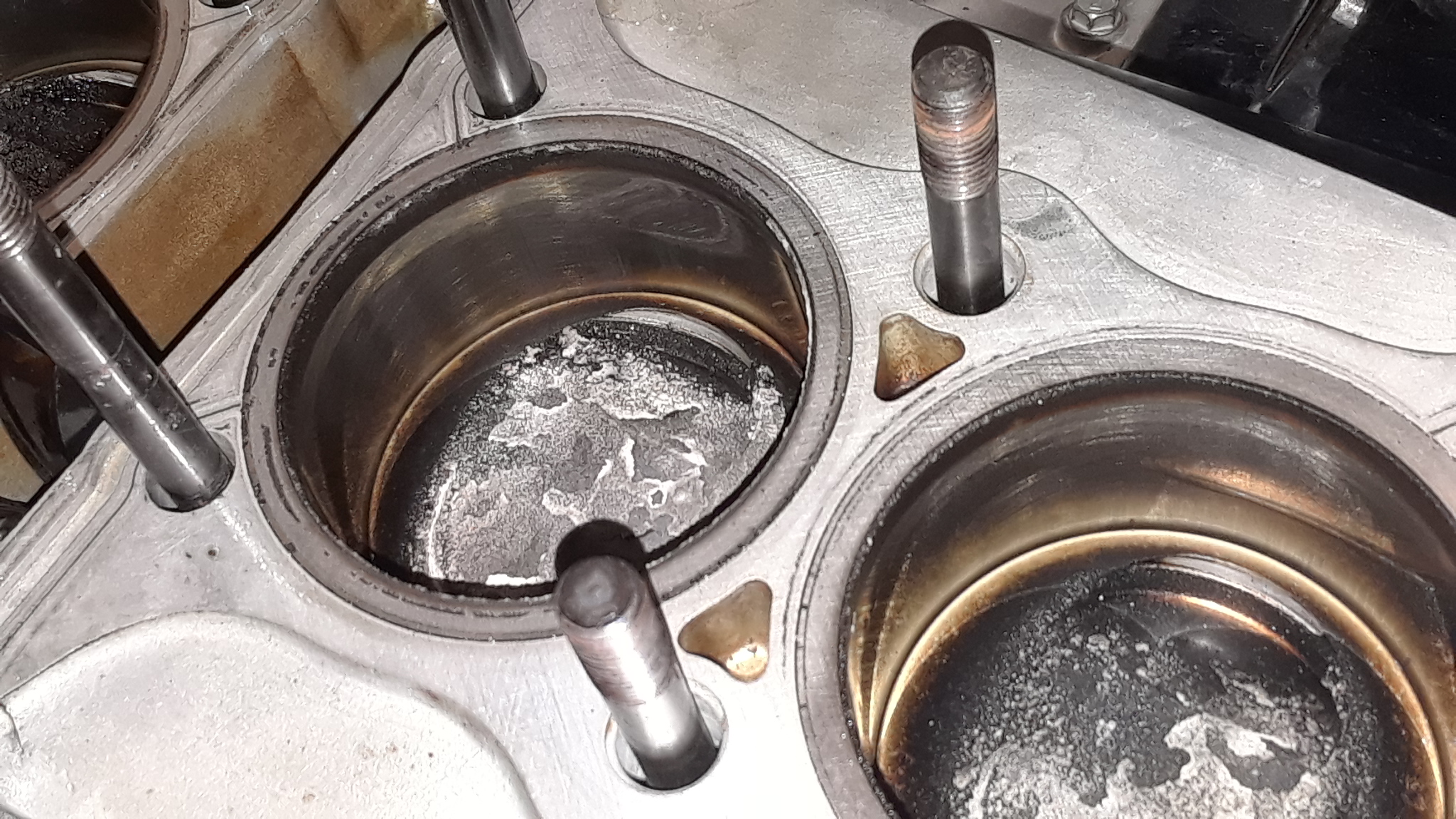

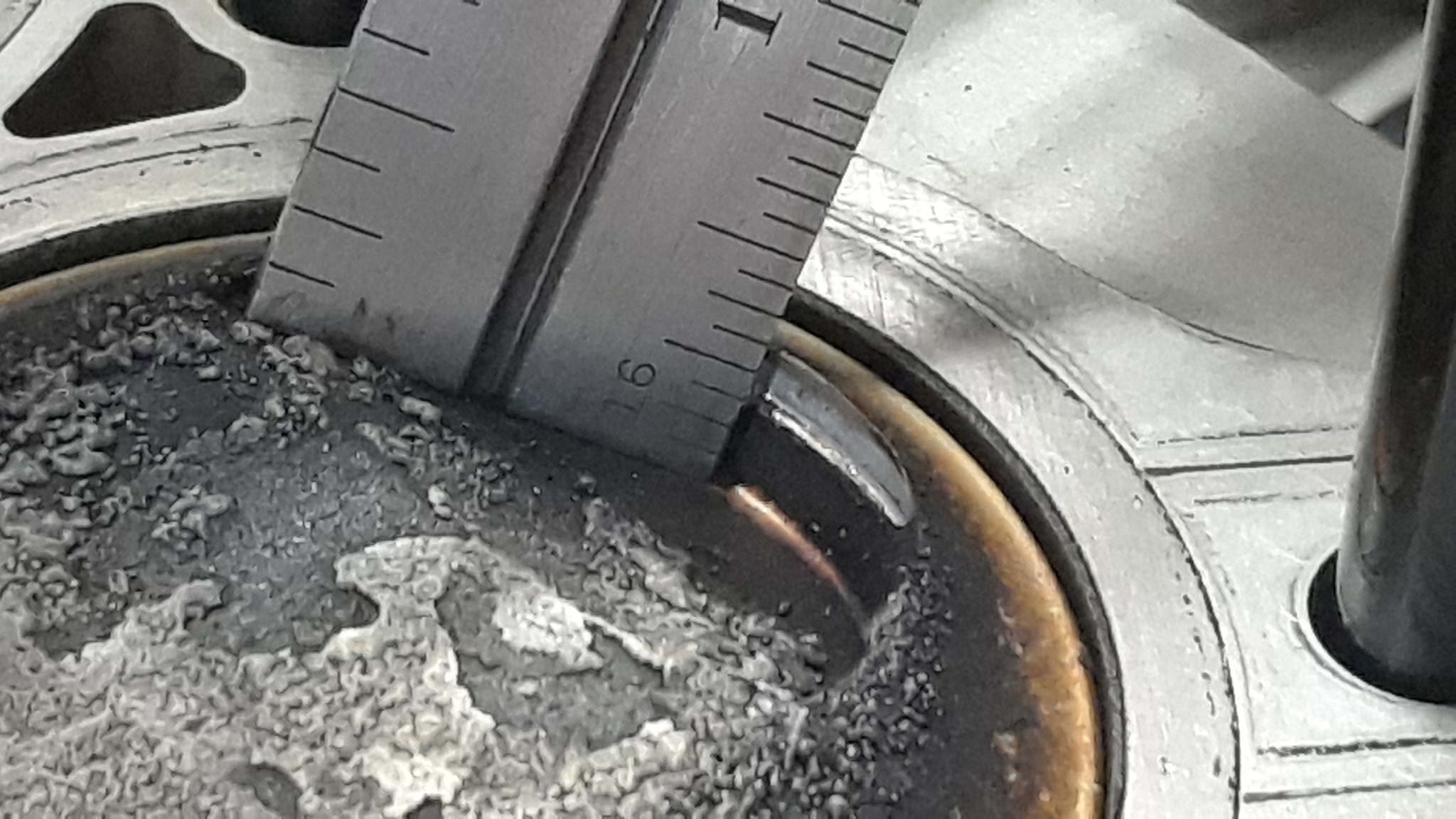

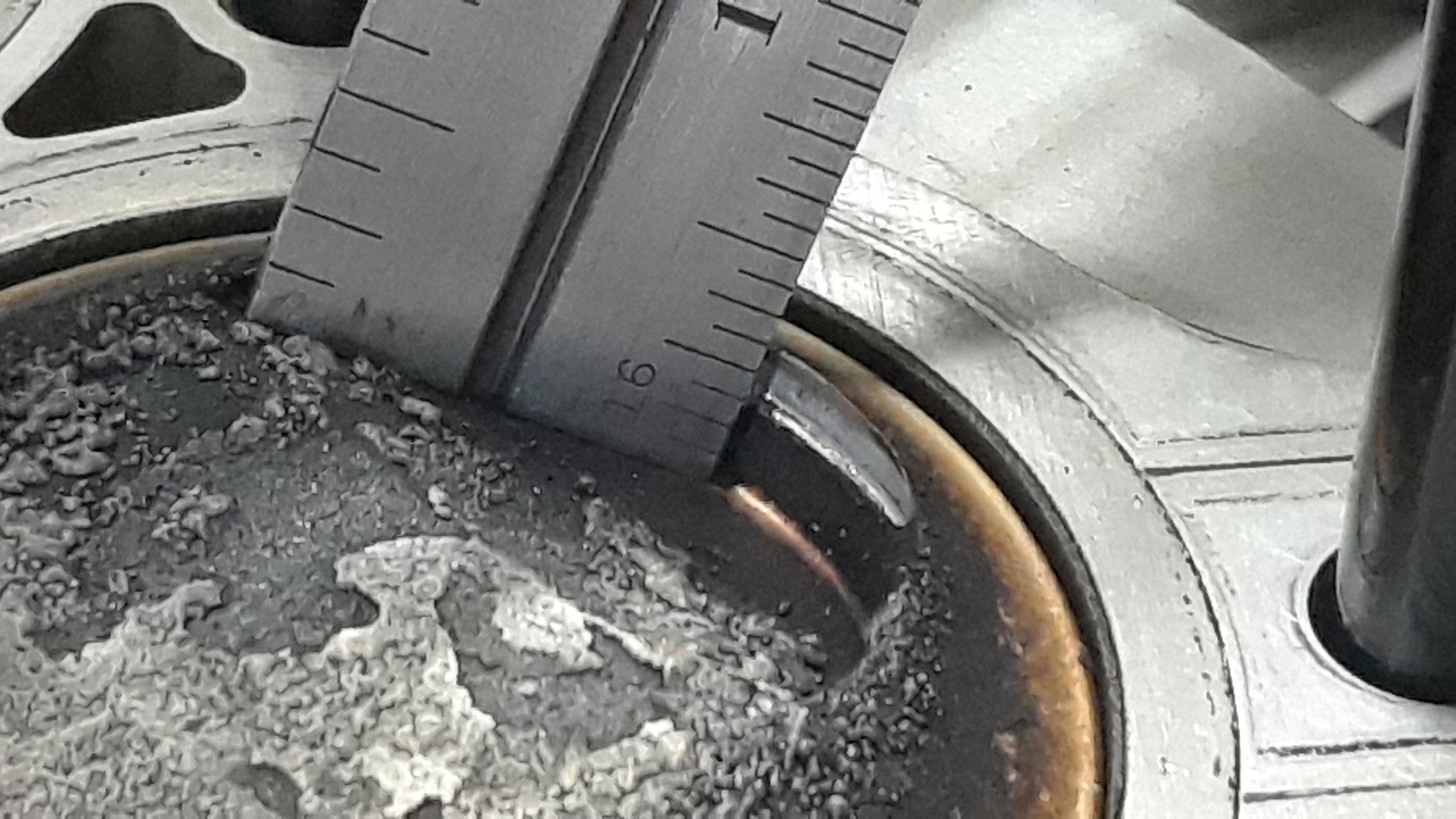

...or this one?

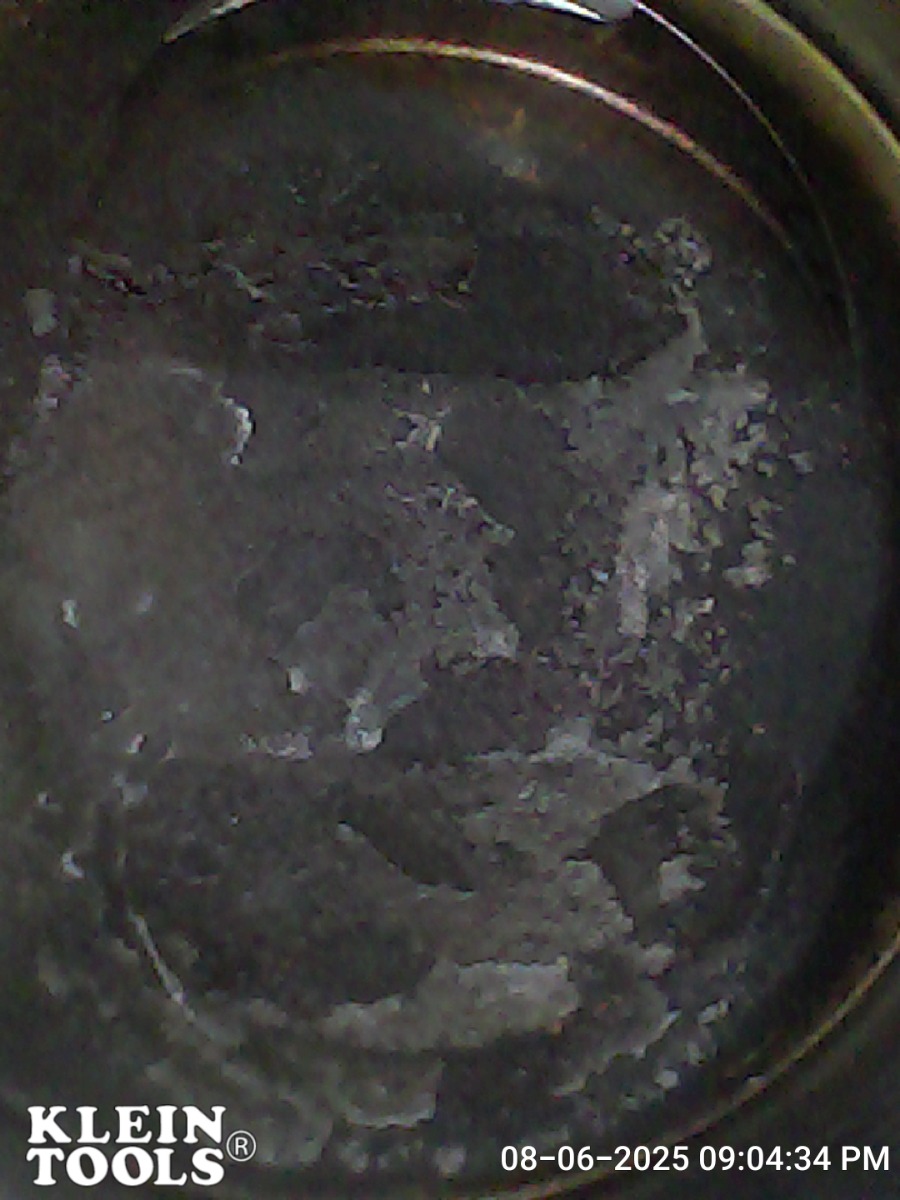

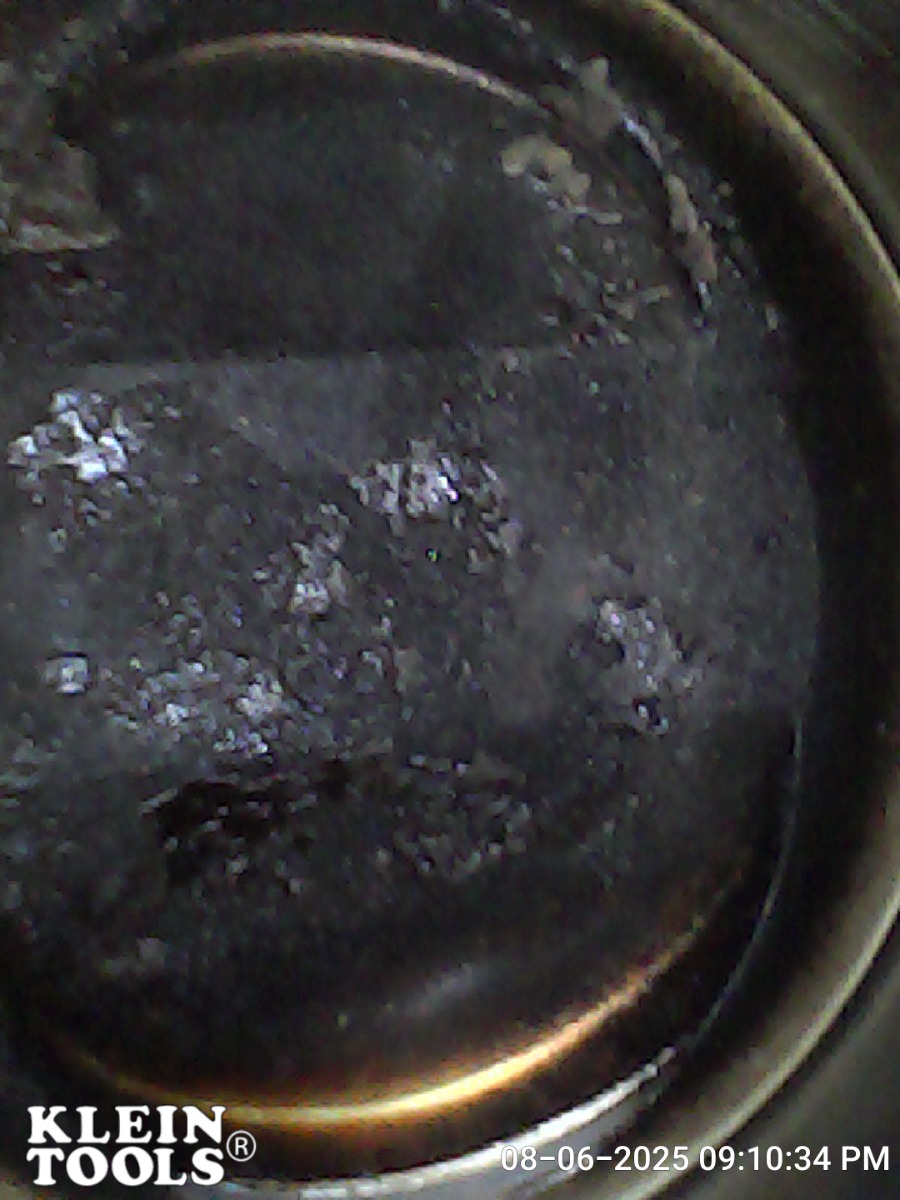

And these borescope images from August 6?
🧐
1982 KZ1100-A2 bike powered by a 1984 ZN/ZX1100 motor since late 2024
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5762
- Thanks: 3567
- Street Fighter LTD
-
- Offline
- Moderator
-
Registered
- TURBO, Its Better to be Blown than Injected
- Posts: 5030
- Thanks: 2234
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly
27 Oct 2025 17:36 - 27 Oct 2025 18:22Is that mechanical lovemaking down to the worn guides?
Those were long-term relationships confined to the intake side, between all four lovers...
All that ended for good when the head came off, and they got caught!
❤️

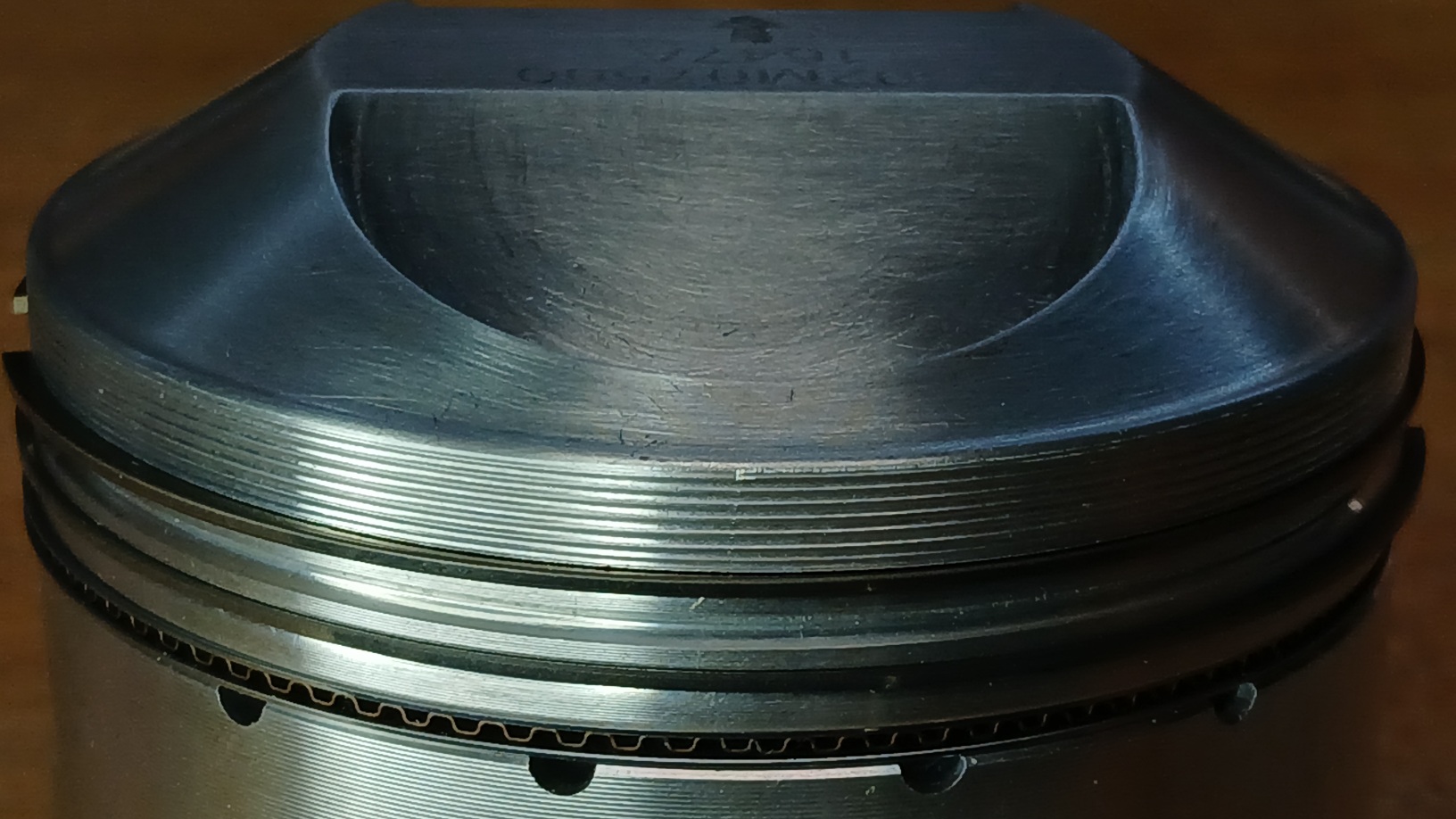

Each piston sports a bigger pocket now...
😁
1982 KZ1100-A2 bike powered by a 1984 ZN/ZX1100 motor since late 2024
Last edit: 27 Oct 2025 18:22 by daveo.
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly
27 Oct 2025 17:58Whats the valve look like ?
I don't know. The head was shipped before I thought to check.

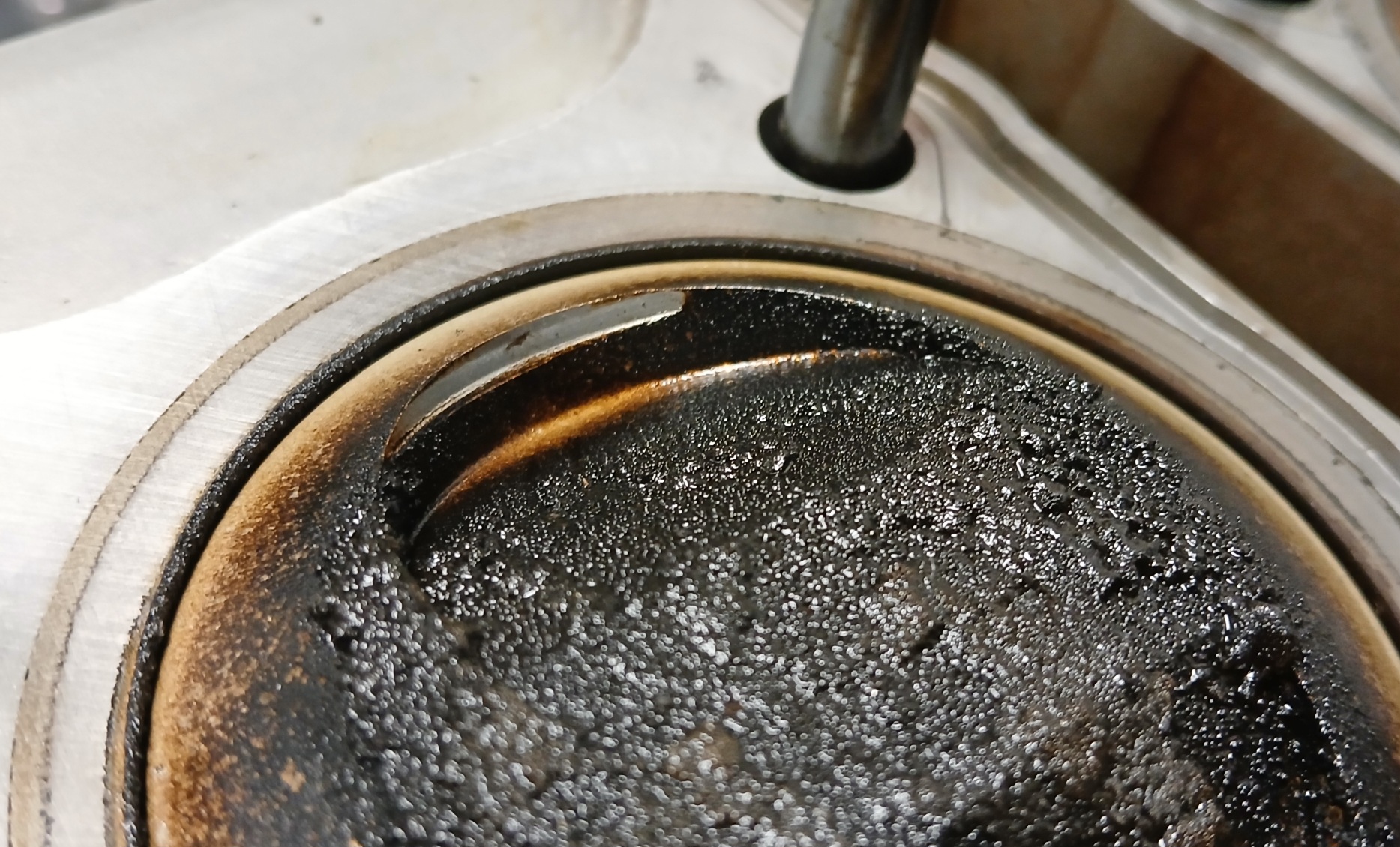

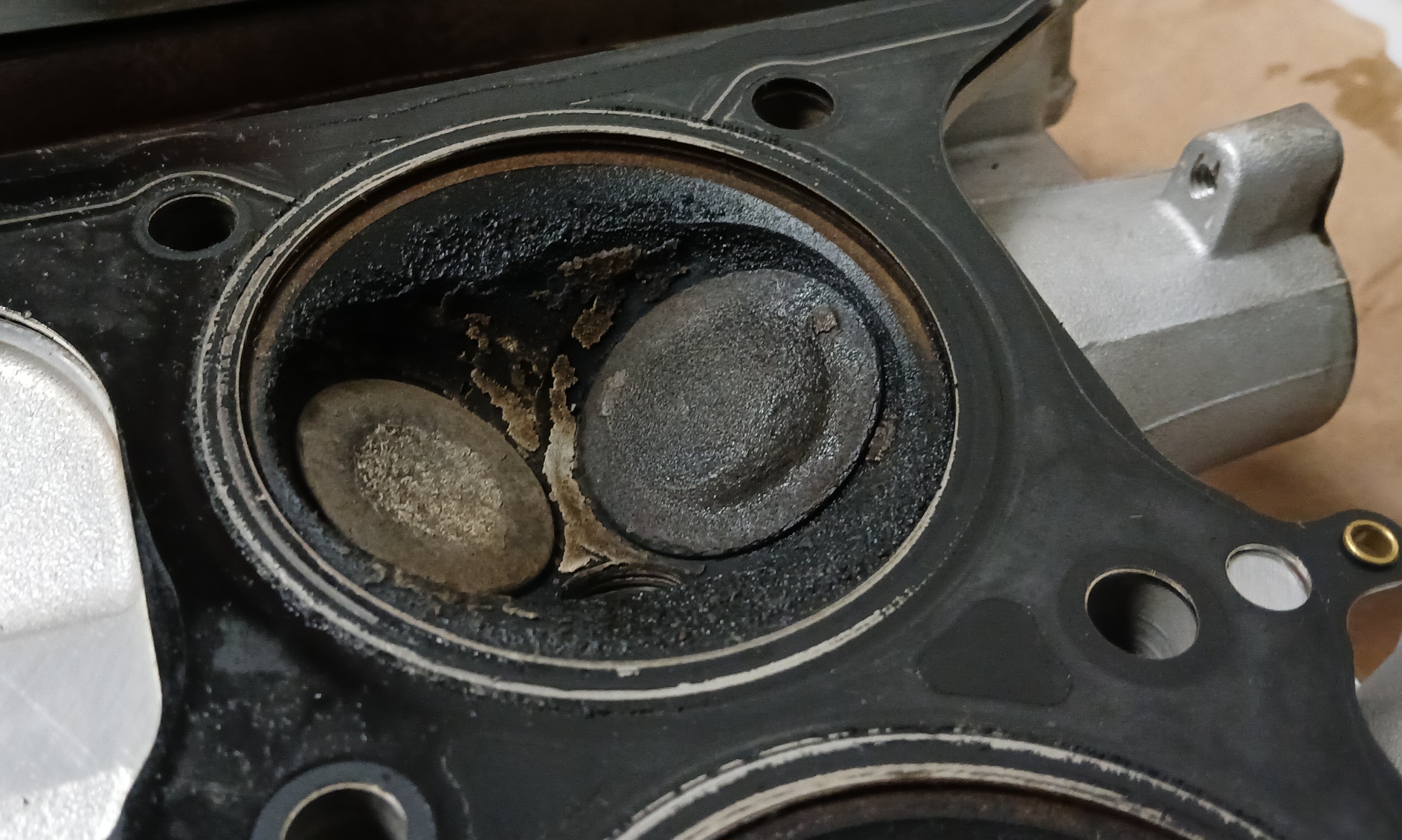

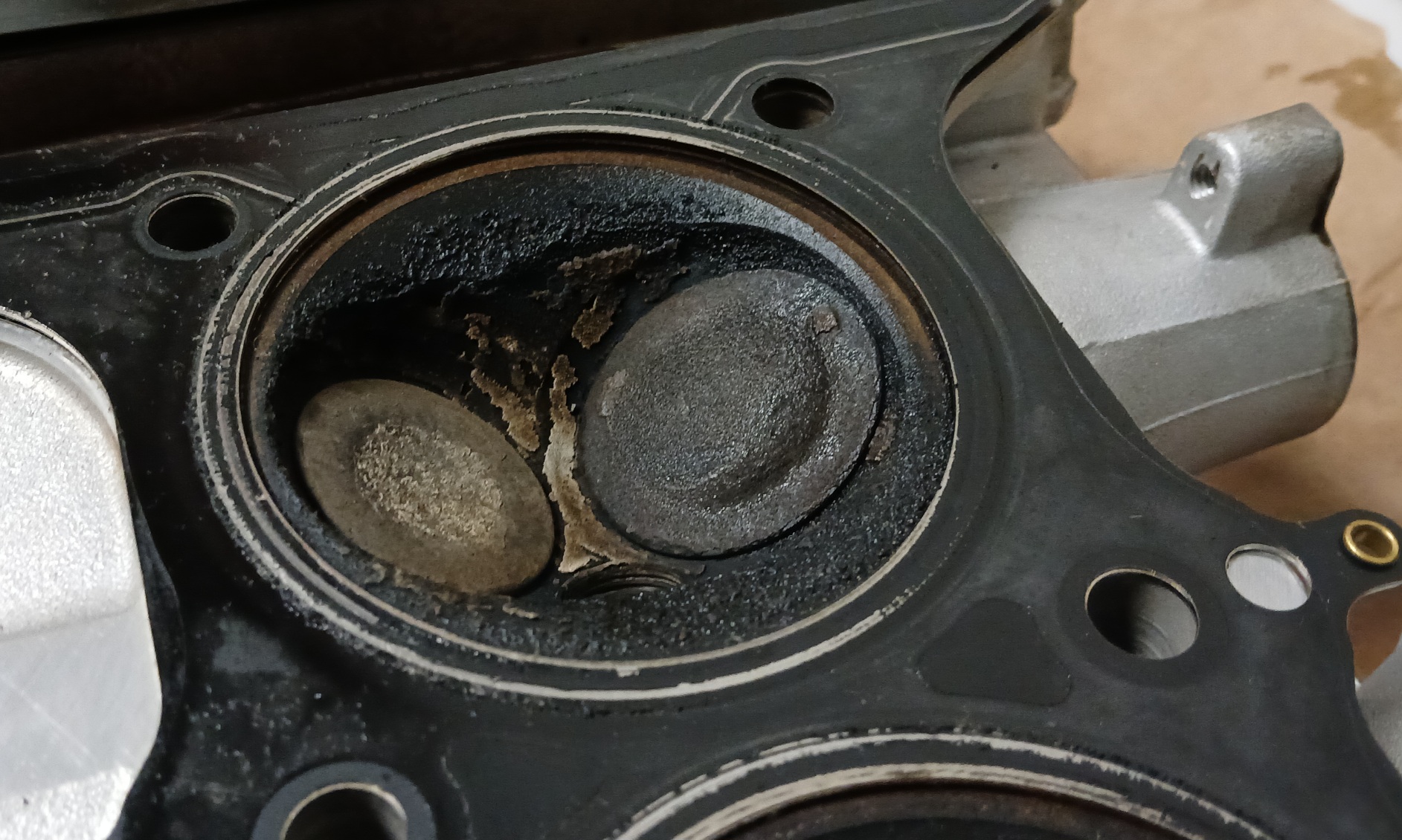

Likely escaped damage, judging by the lack of visible markings in the oily #3 combustion chamber image below:
🫤
1982 KZ1100-A2 bike powered by a 1984 ZN/ZX1100 motor since late 2024
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 3029
- Thanks: 800
Re: Top-End Reassembly
27 Oct 2025 18:55
This is my new/old wrist pin puller:
It works incredibly well!
😃
It works incredibly well!
😃
