KZ1000A1 Spare Parts Project 13 Nov 2022 14:31 #876775

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390
Thanks. I've seen that photo somewhere before but dismissed it as I didn't think the side cover would still go on. Guess I should have checked ;)

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 13 Nov 2022 14:52 #876779

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4898
  • Thank you received: 1858
Here’s my 900 project before tear down. Same routing


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

KZ1000A1 Spare Parts Project 29 Nov 2022 09:22 #877302

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390

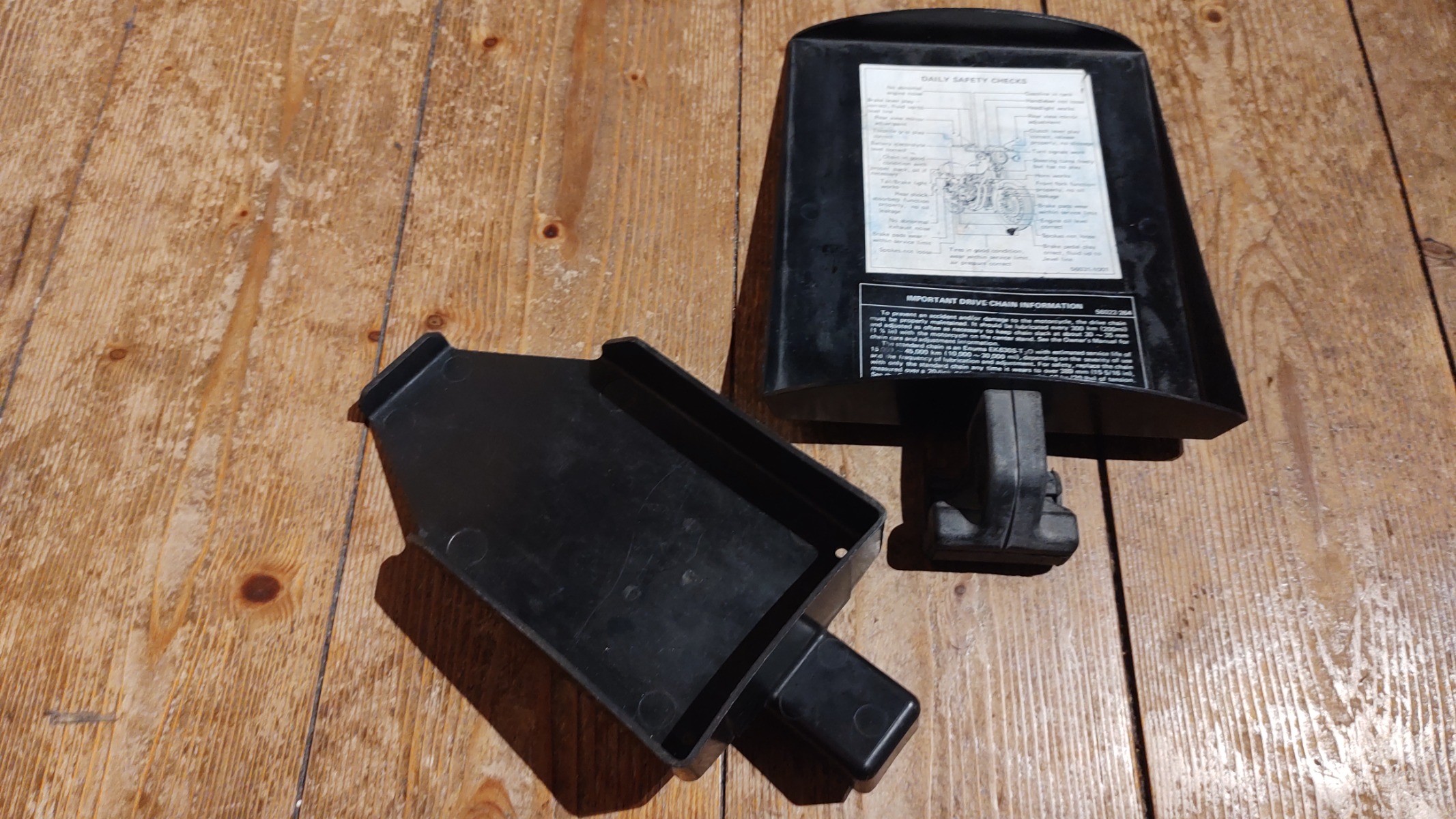

I just picked up some used parts on ebay - a tool try and a drawer for the tail section. Does anyone know how to tell if they are original or replica parts? Not really that important but it would be nice to know for when I tally up all the non-original parts when this thing is back together.


Attachments:

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 29 Nov 2022 09:49 #877304

  • Wheelhop
  • Wheelhop's Avatar
  • Away
  • Sustaining Member
  • Posts: 577
  • Thank you received: 293
I don't know much but I do know that the document trays were tailored to specific model years and sub-models like Z1, KZ, or LTD.

1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 29 Nov 2022 12:26 #877311

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390
The document tray has a picture of a KZ1000A1 or A2 on it, so if it is original it should be right...
The following user(s) said Thank You: Wheelhop

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 29 Nov 2022 14:47 #877320

  • BCScott
  • BCScott's Avatar
  • Offline
  • Sustaining Member
  • Posts: 236
  • Thank you received: 97

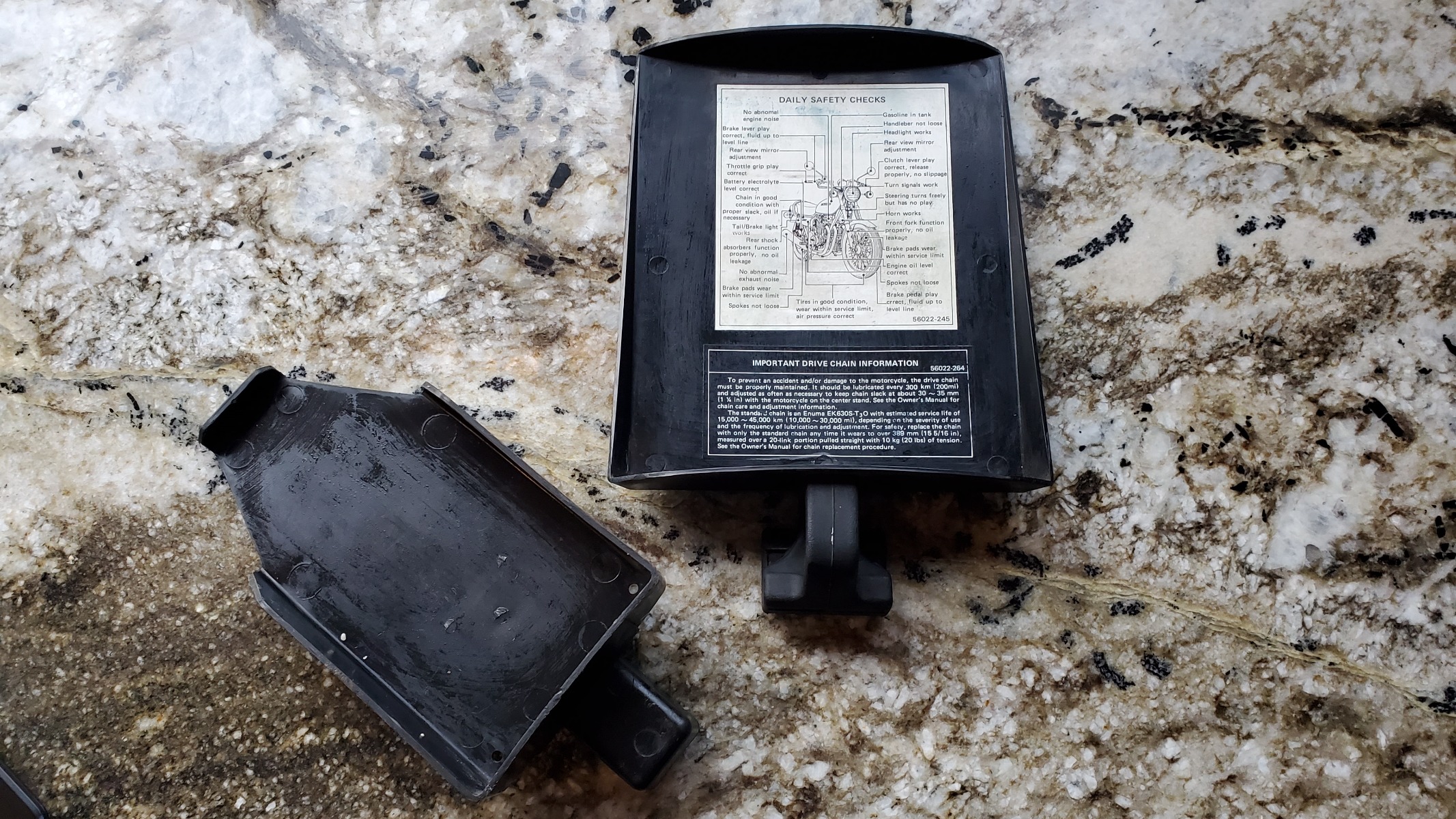

Looks original to me. Here's mine:



All of the dimples in the trays look identical.
Back in the saddle and loving it! KZ1000A1
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by BCScott.

KZ1000A1 Spare Parts Project 30 Nov 2022 04:03 #877334

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390
Thanks. The thing that got me wondering was the tool tray being asymmetrical, but it looks like that is normal (the bit at the front is slightly off to the left).

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 30 Nov 2022 04:43 #877335

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2927
  • Thank you received: 1022

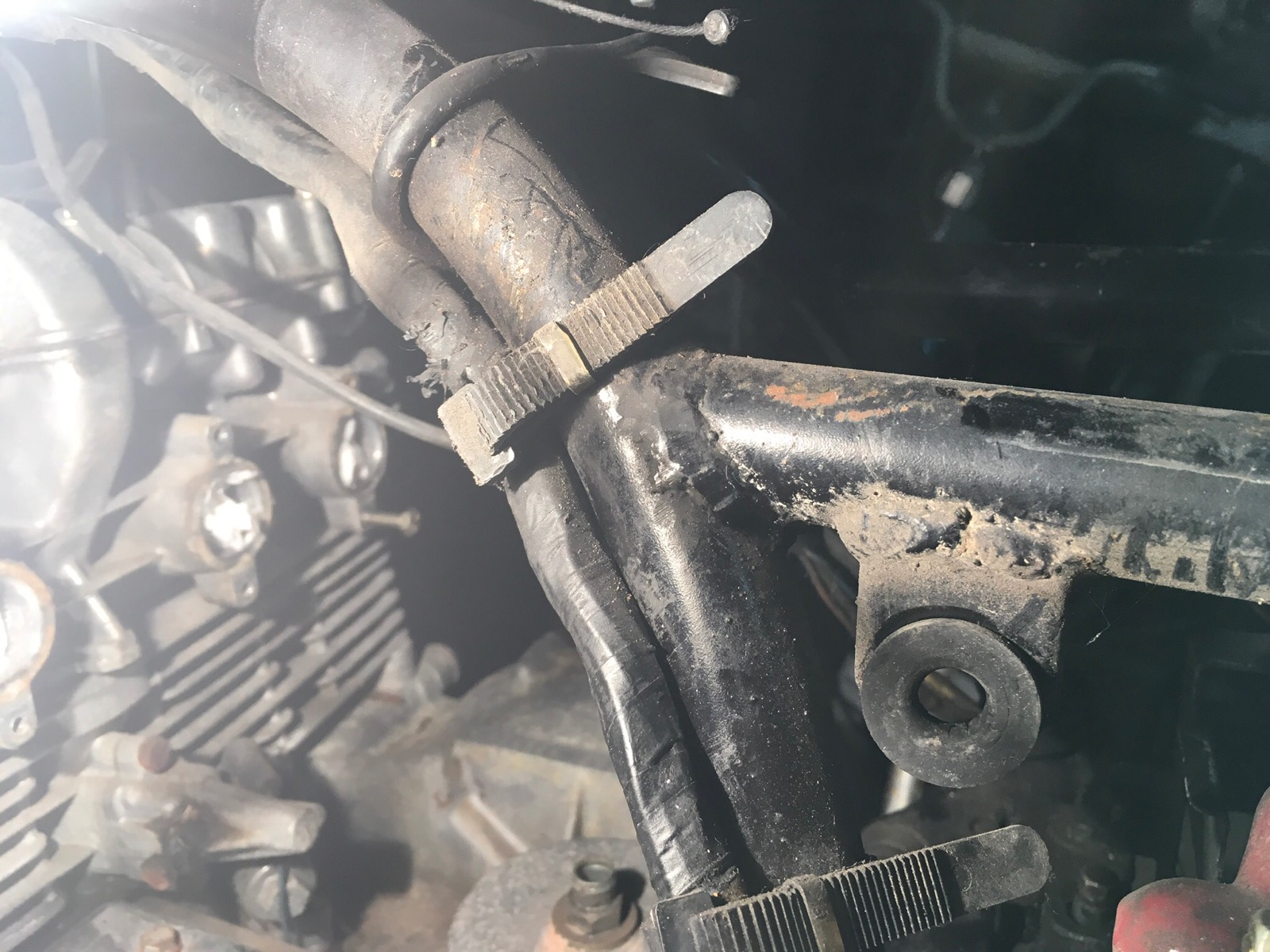

The main harness runs around the left side of the headstock and attaches to the left frame rail, underneath.  The Y in the harness sits roughly right behind the coils.  I used to have photos of how it goes, but I can't find the correct ones.

If your question on the frame brace refers to the one near the end of the tank, it's used to tuck away the ends of the carb vent holes.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 30 Nov 2022 13:36 #877365

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390

If your question on the frame brace refers to the one near the end of the tank, it's used to tuck away the ends of the carb vent holes.
Yeah, that was what I meant. There is also a nut welded to the plate - any idea what screws into that?

Next question: My kickstarter has about 10mm of play at the end. This is due to a pretty sloppy fit between the two parts of the kicker. Is this normal or did my chrome guys go a bit crazy with the belt sander?
Video:   1drv.ms/v/s!Ave4Y68f_qkhwJ9-UNmRKSwxvrn7zw?e=LzgEg7
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by calum.

KZ1000A1 Spare Parts Project 30 Nov 2022 18:18 #877377

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3926
  • Thank you received: 1899
Looks normal to me but i have to ask, how often did you have to use the "cosmetic" kicker?
Wecke keine schlafende Hunde, lass es so, man kann Perfektion auch übertreiben!
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 30 Nov 2022 22:07 #877381

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1112
  • Thank you received: 390
Thanks. It was more a question of the work the guys had done - I didn't look to closely at it before I took it apart and dropped the parts off to be plated. Now I'll just assume it was like that beforehand...

Please Log in or Create an account to join the conversation.

Last edit: by calum.

KZ1000A1 Spare Parts Project 01 Dec 2022 05:22 #877383

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2927
  • Thank you received: 1022
The kicker has an adjuster screw I think.

No idea what screws into that nut.  None of my bikes has one.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.
