06 Nov 2022 09:09 #876470
by BCScott
Back in the saddle and loving it! KZ1000A1
Replied by BCScott on topic KZ1000A1 Spare Parts Project
My nut has always been on the right side, too. Where did you find the exhaust? It looks pristine. The build looks terrific!
Back in the saddle and loving it! KZ1000A1
The following user(s) said Thank You: Mikaw, calum
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1137
- Thank you received: 405
06 Nov 2022 09:18 #876471
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Got the exhaust from a guy that deals with KZ's here in Germany. Every now and then someone comes in and swaps one out for a 4-1. It's not perfect but it's pretty good - the right hand side is really nice except for a couple of spots on downpipe #4. The left side is pretty good, I'd like to get it re-chromed but the local guy will only do mufflers with the baffles removed (not an option on the KZ1000 4-2 exhaust). It's good enough though, so I should probably just leave well enough alone...
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1137
- Thank you received: 405
06 Nov 2022 10:52 - 06 Nov 2022 10:53 #876474
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project

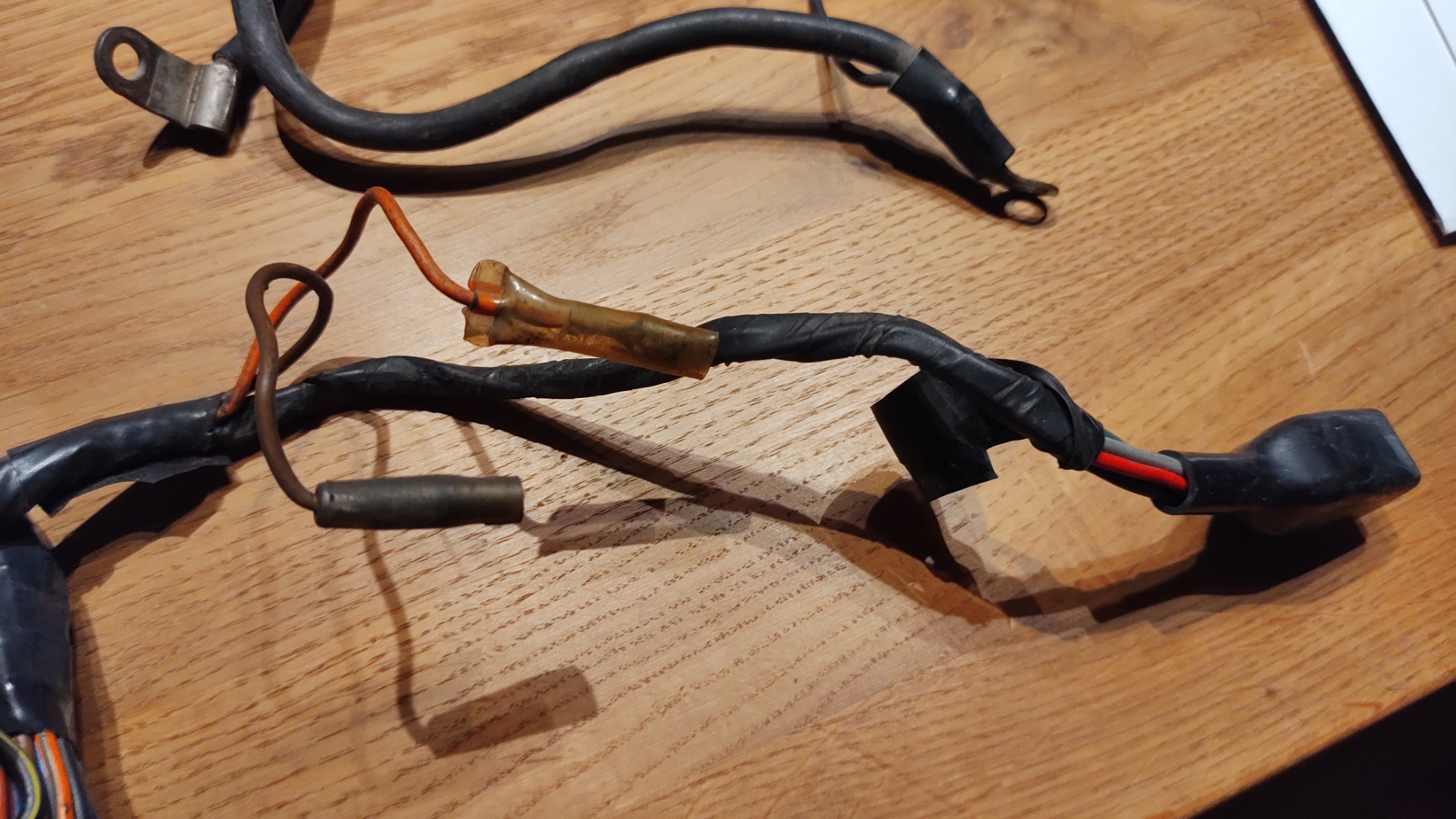

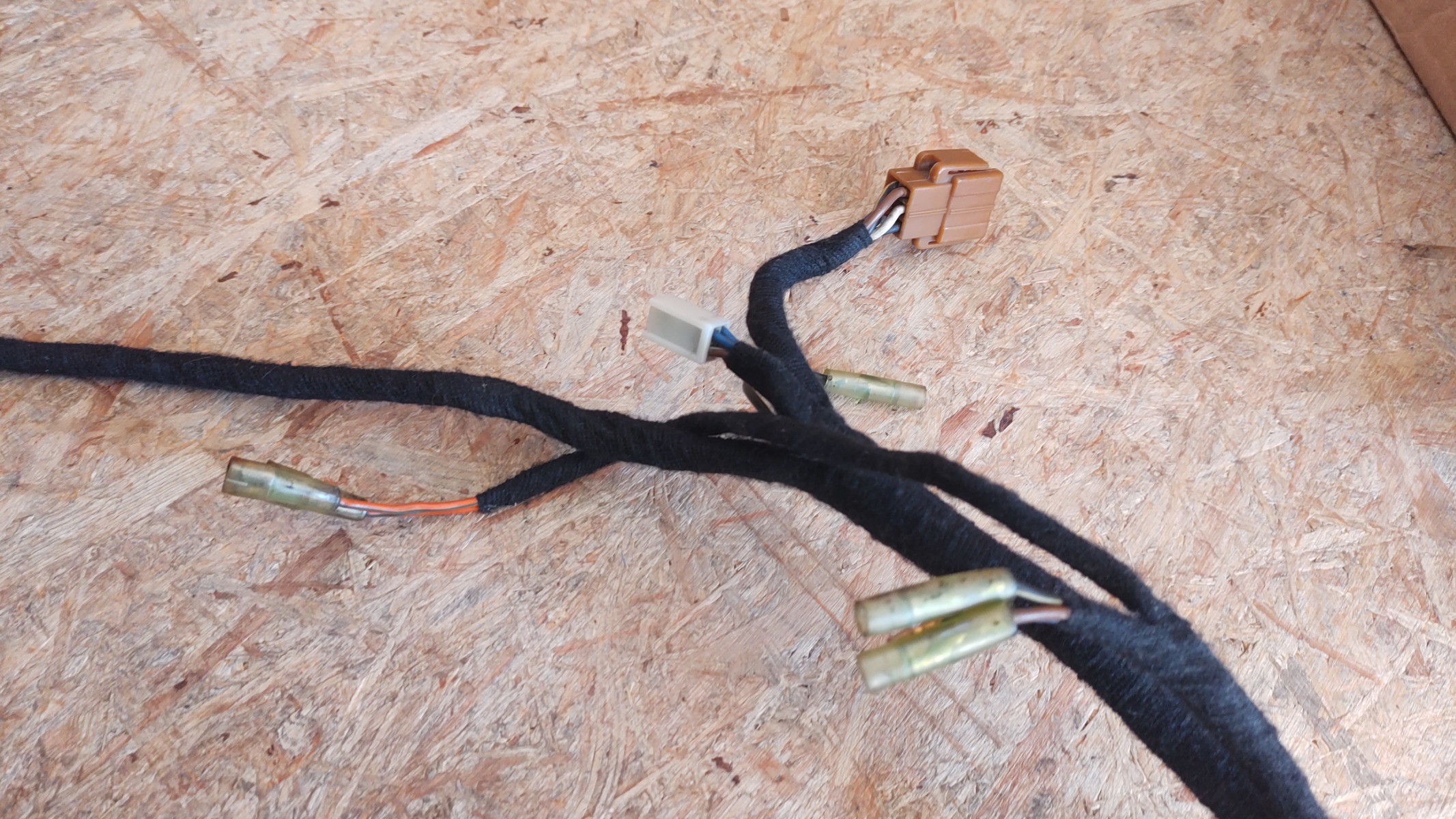

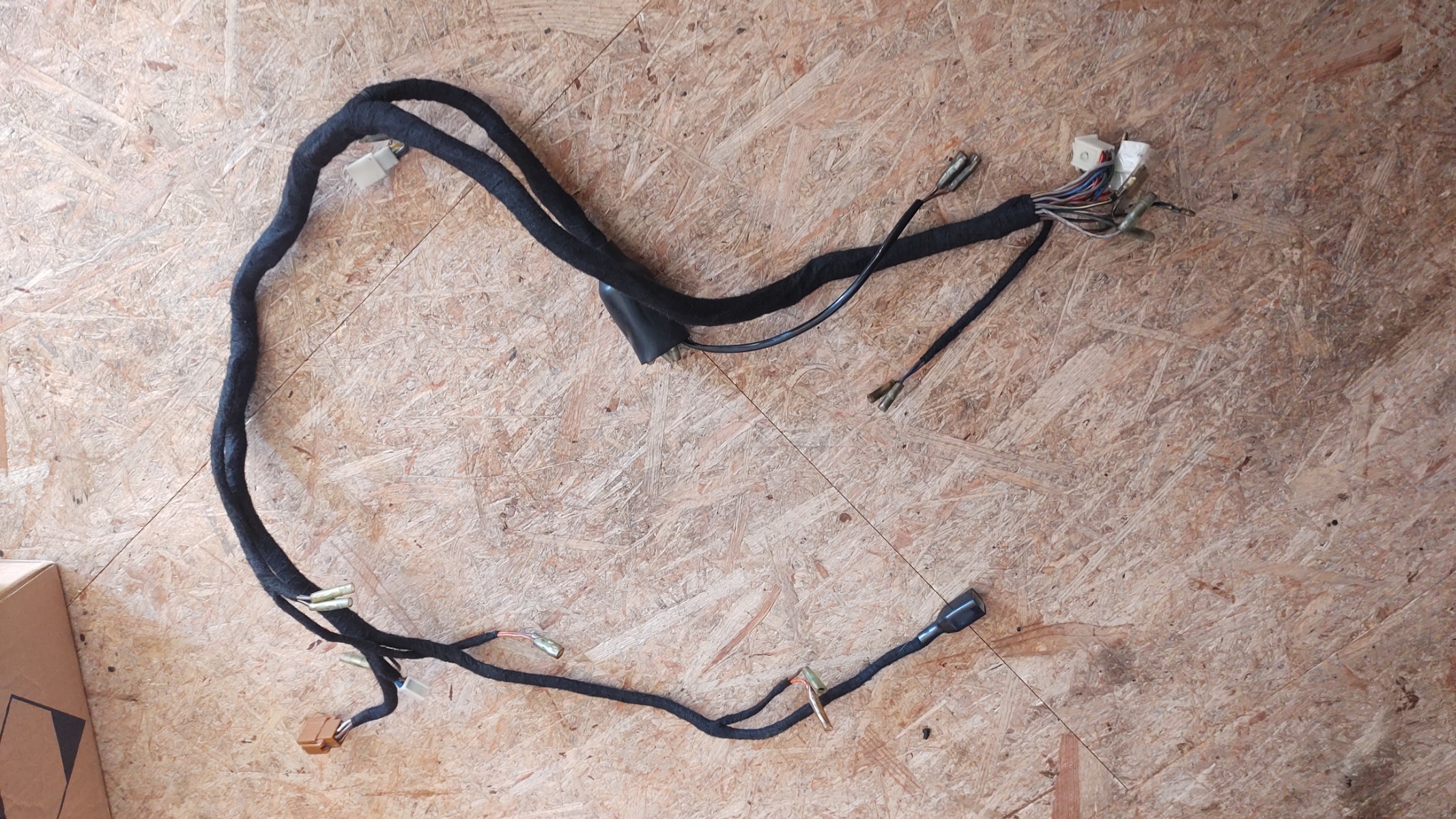

I took all of the wiring off the shelf today. Looks like it should be OK to reuse - I'll check everything when I re-wrap the main loom. After sorting though everything I have a few questions for you guys:
- I can't find this part - what is it and do I need it? www.cmsnl.com/kawasaki-kz1000a1-1977-can...or-voltage_21066026/

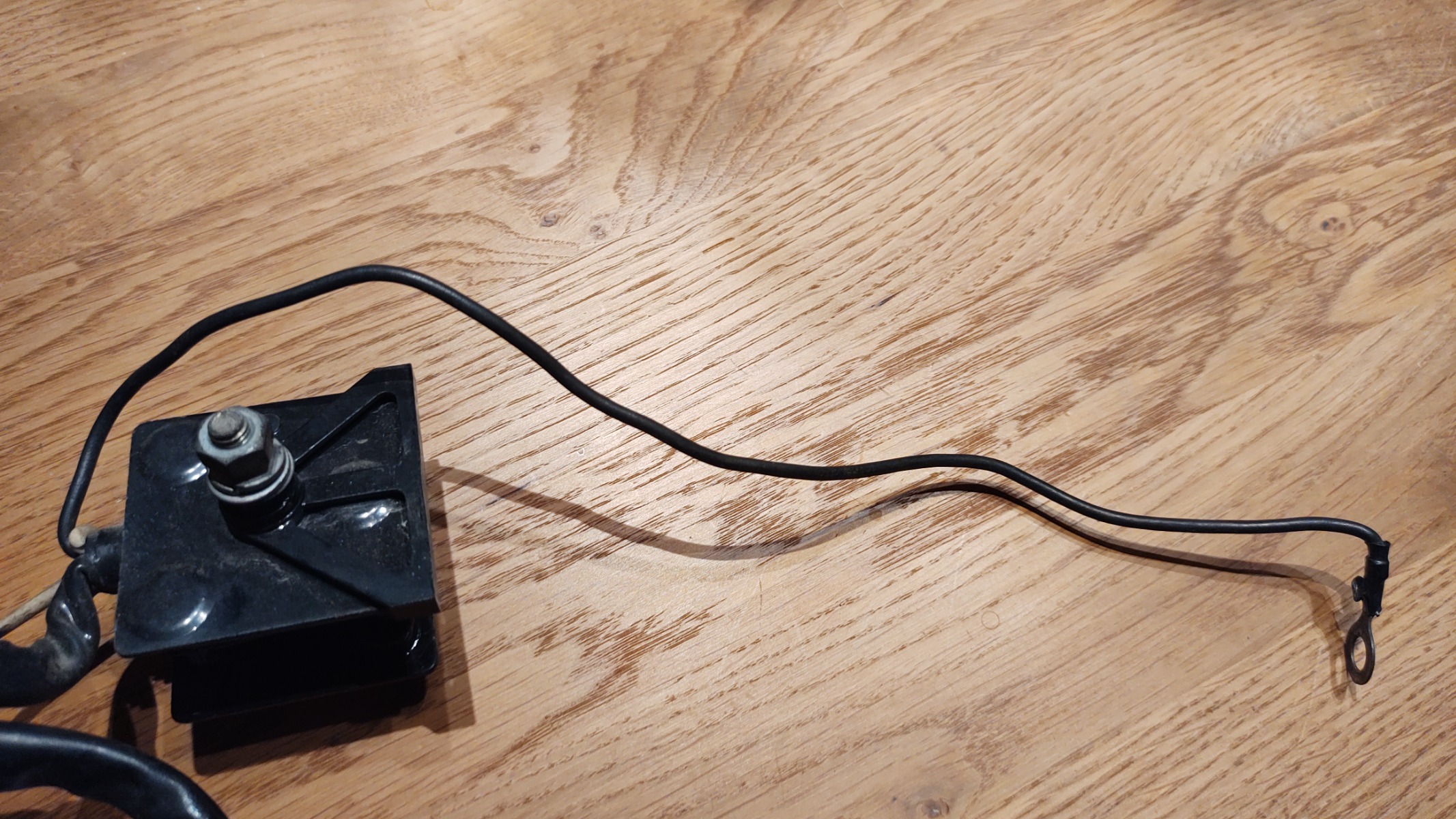

- There is a long black wire coming off the rectifier. I know this goes to ground, but where does it usually get screwed on? Directly to battery negative?

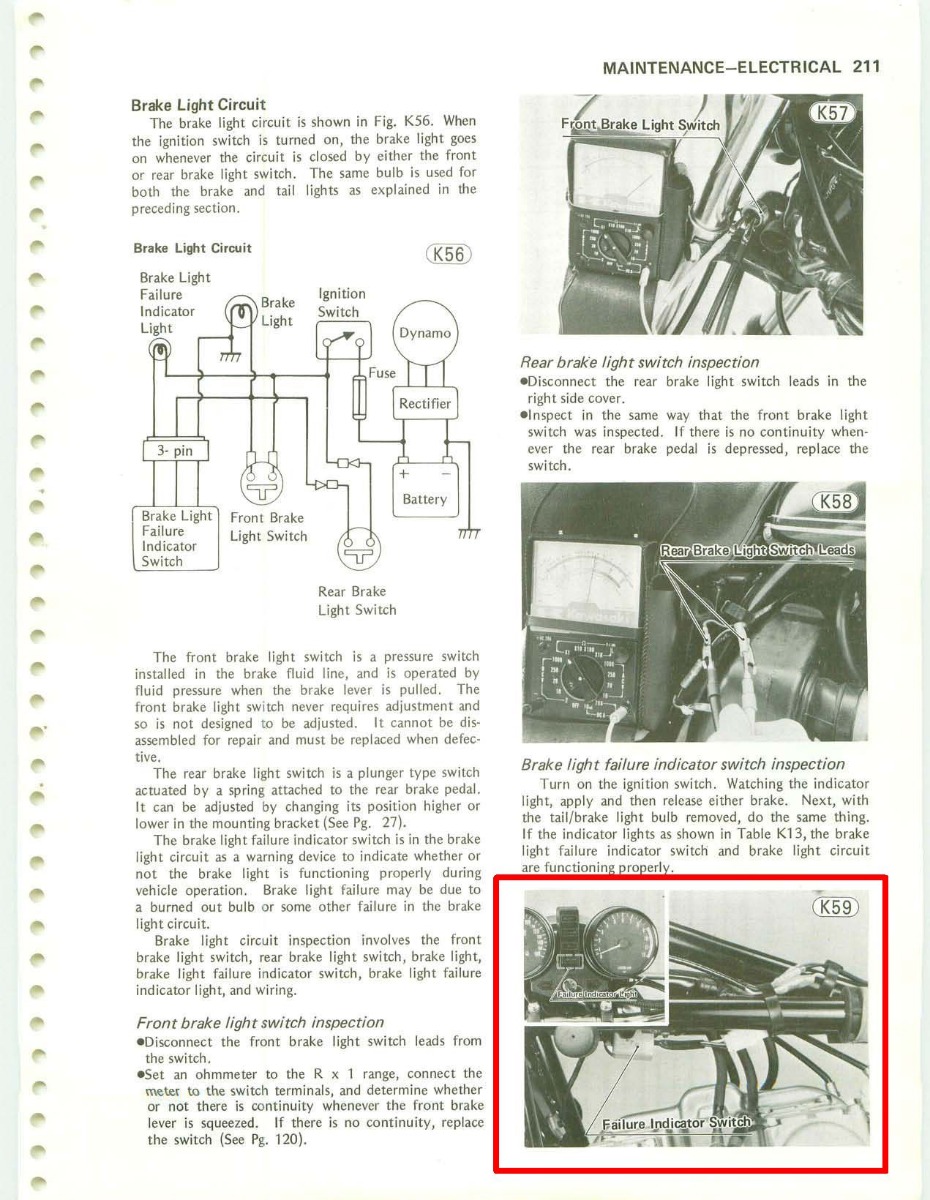

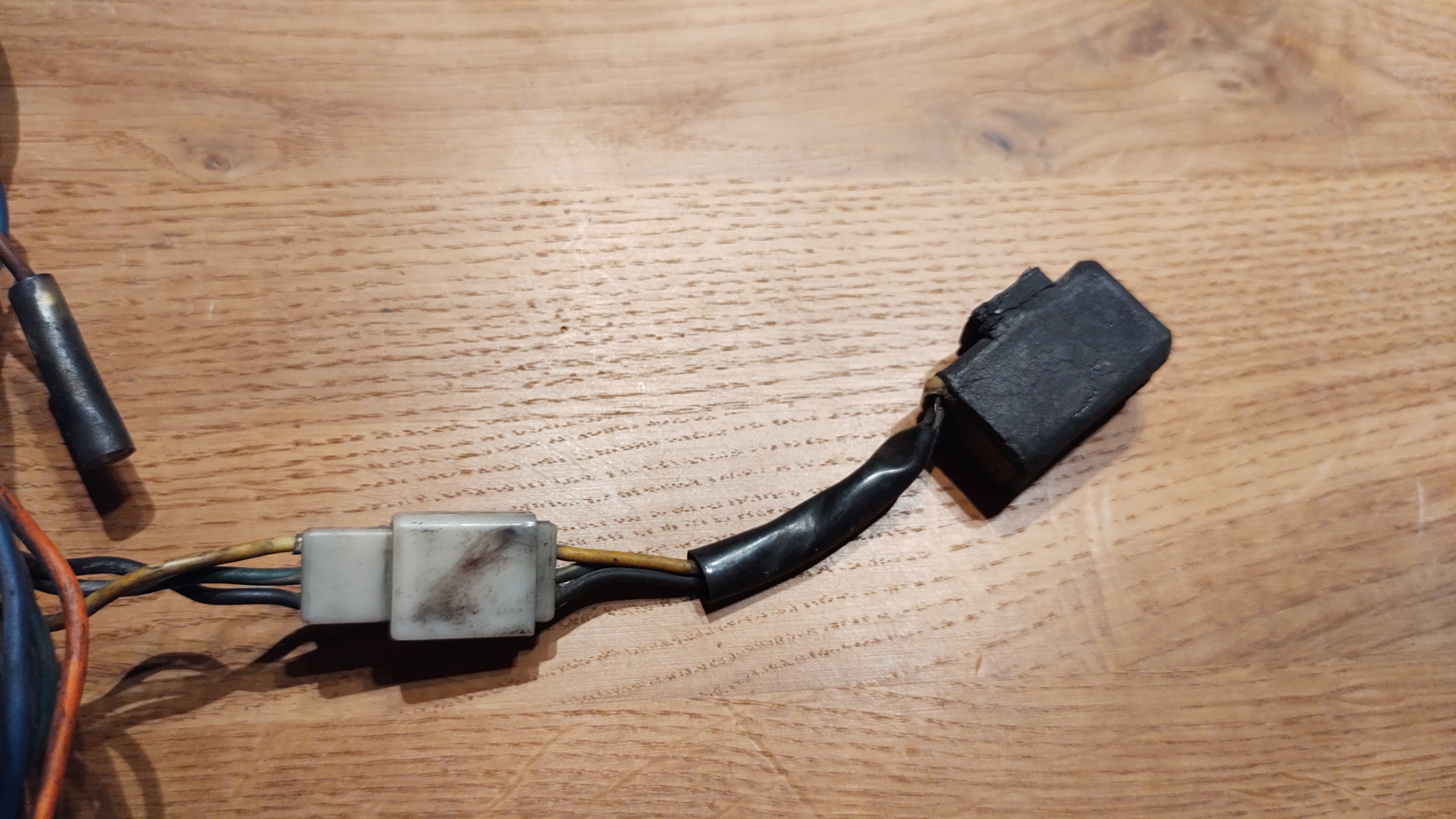

- The brake light failure indicator seems to be connected to the main harness somewhere under the tank. Does anybody know where the mounting plate for this goes?

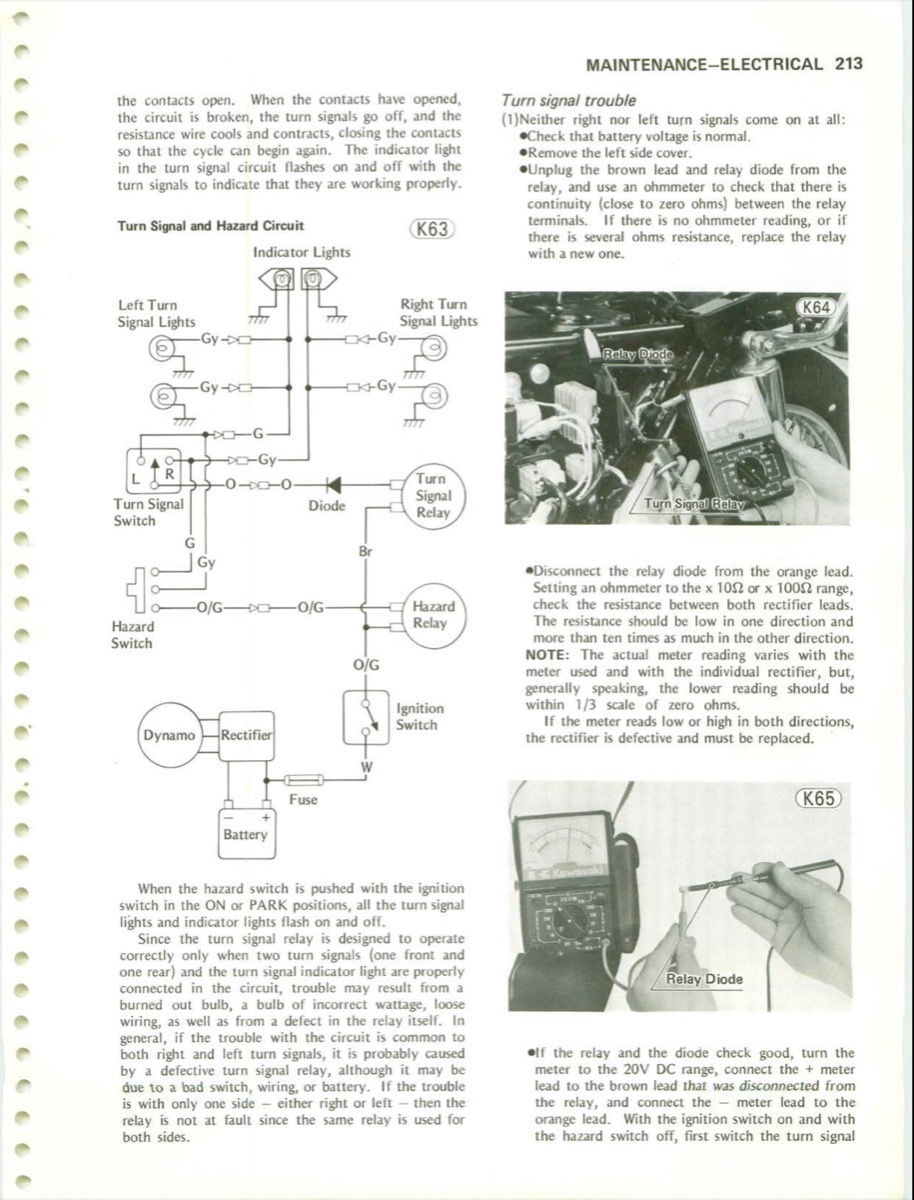

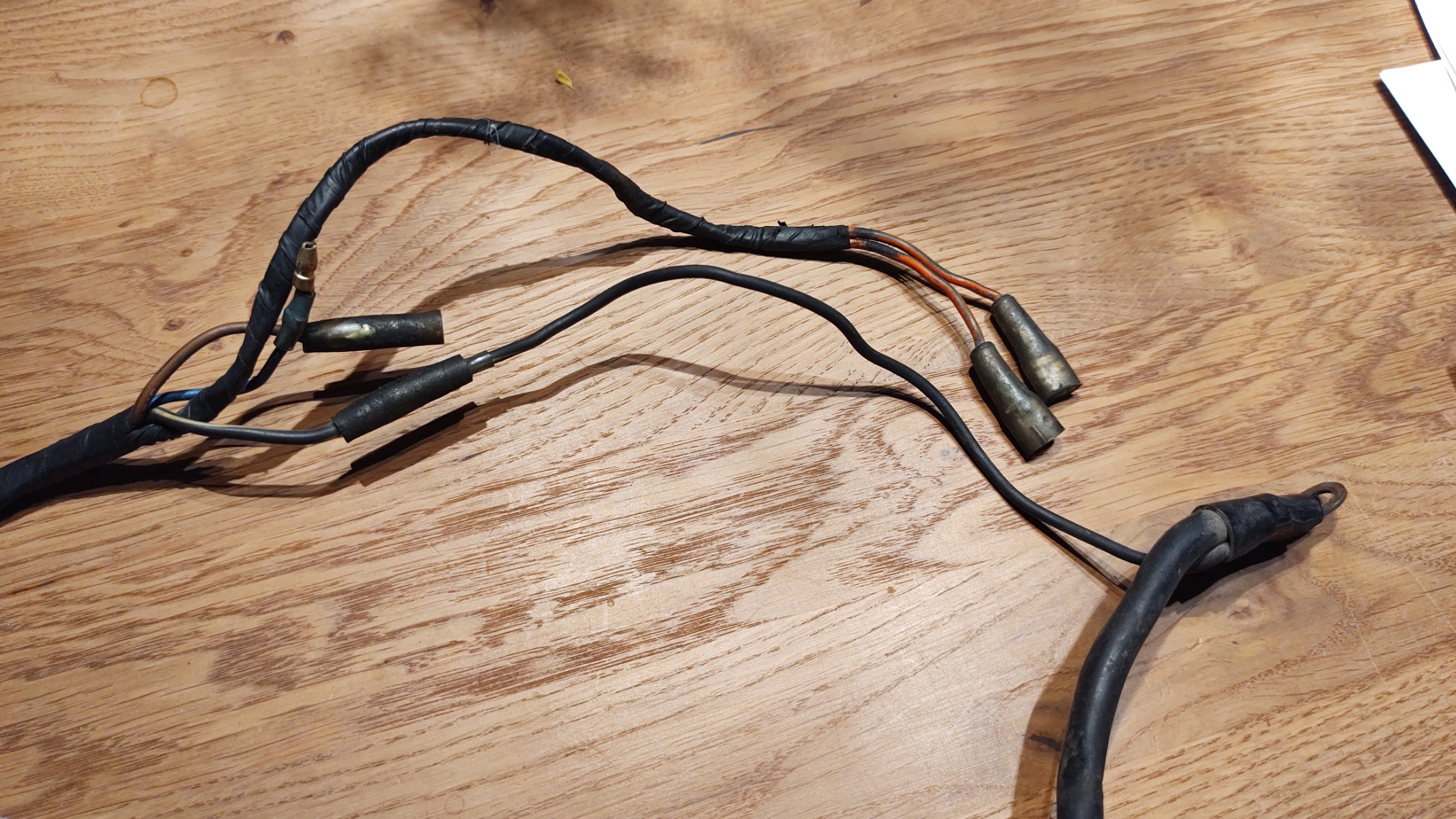

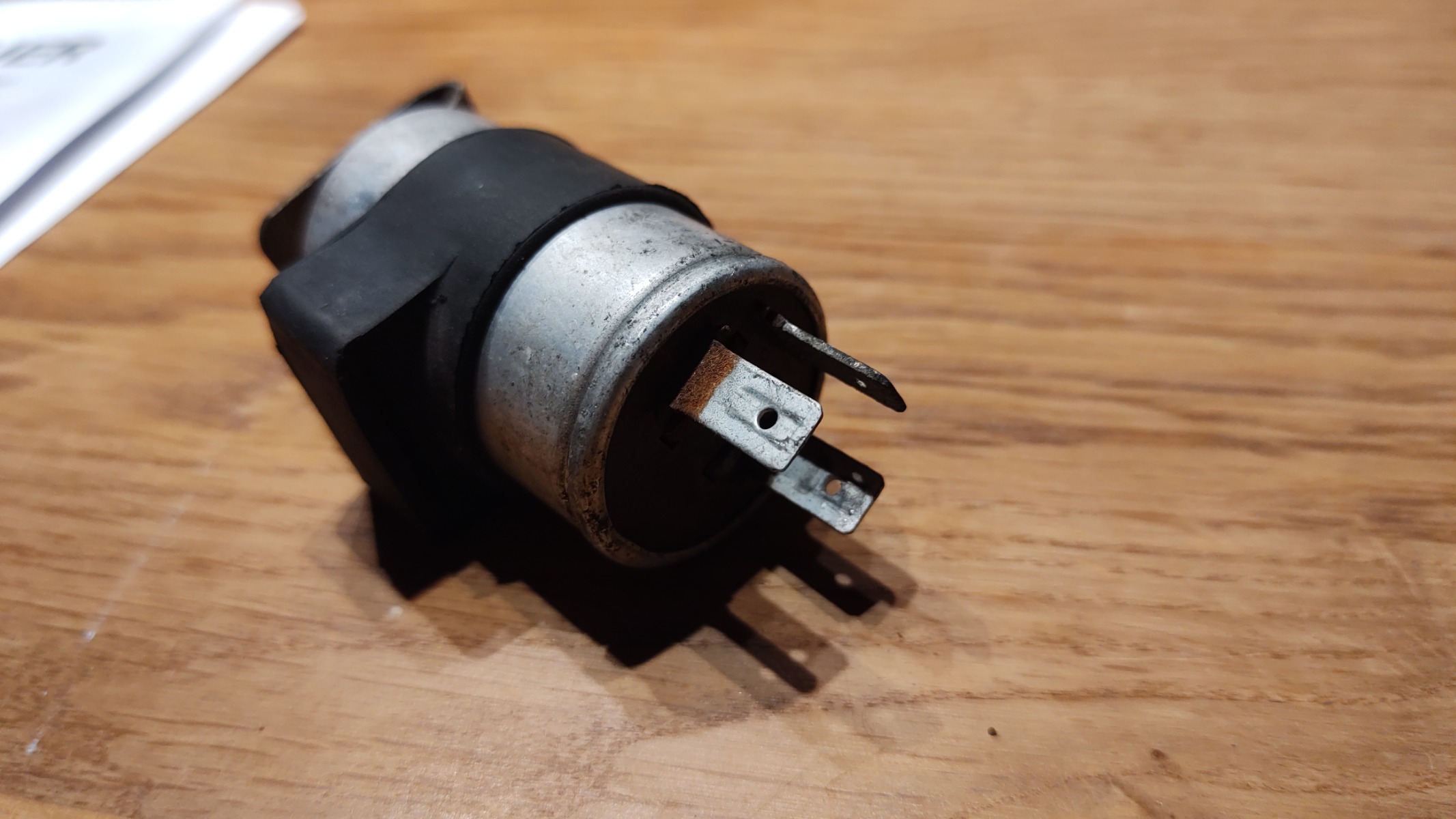

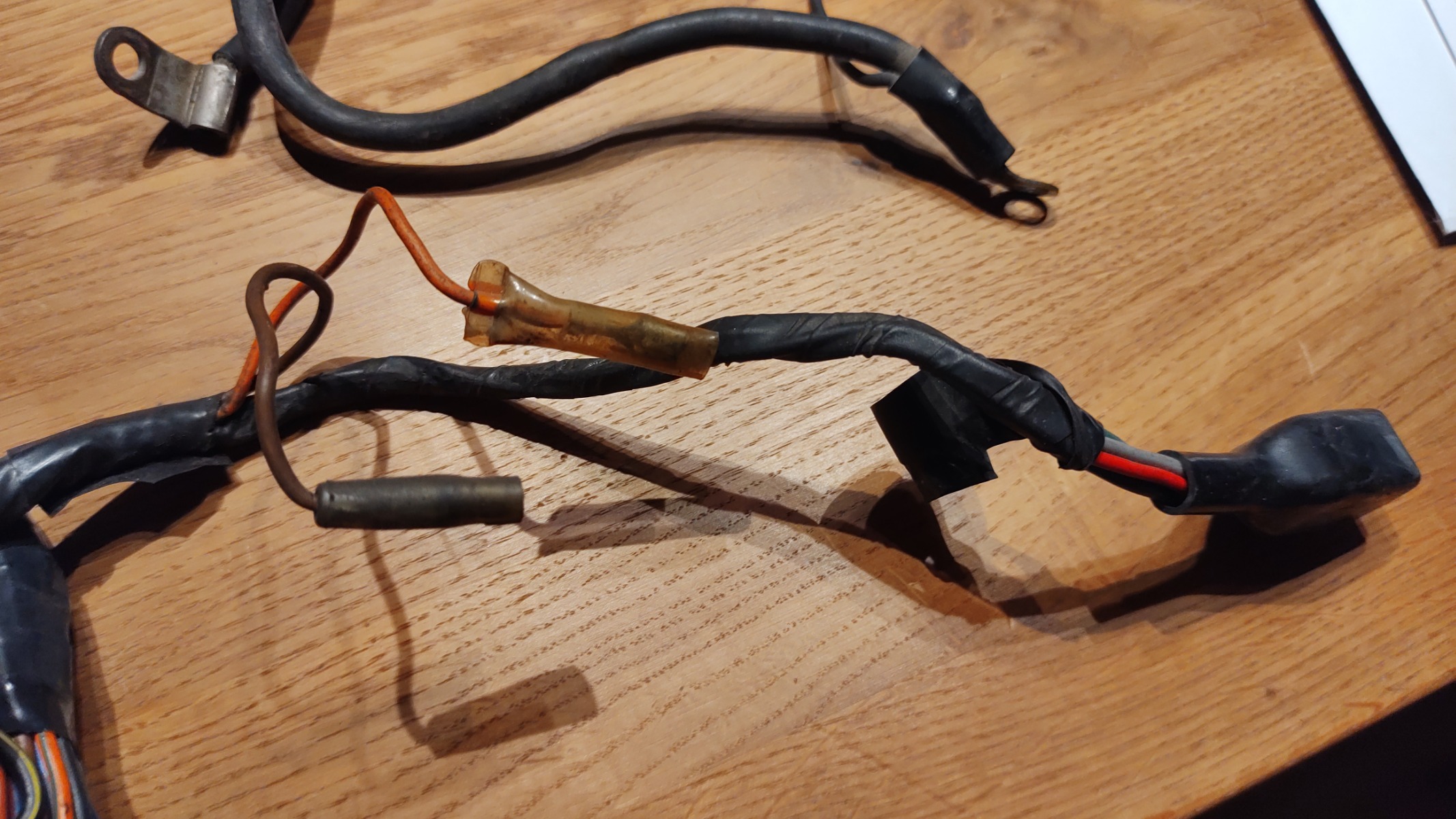

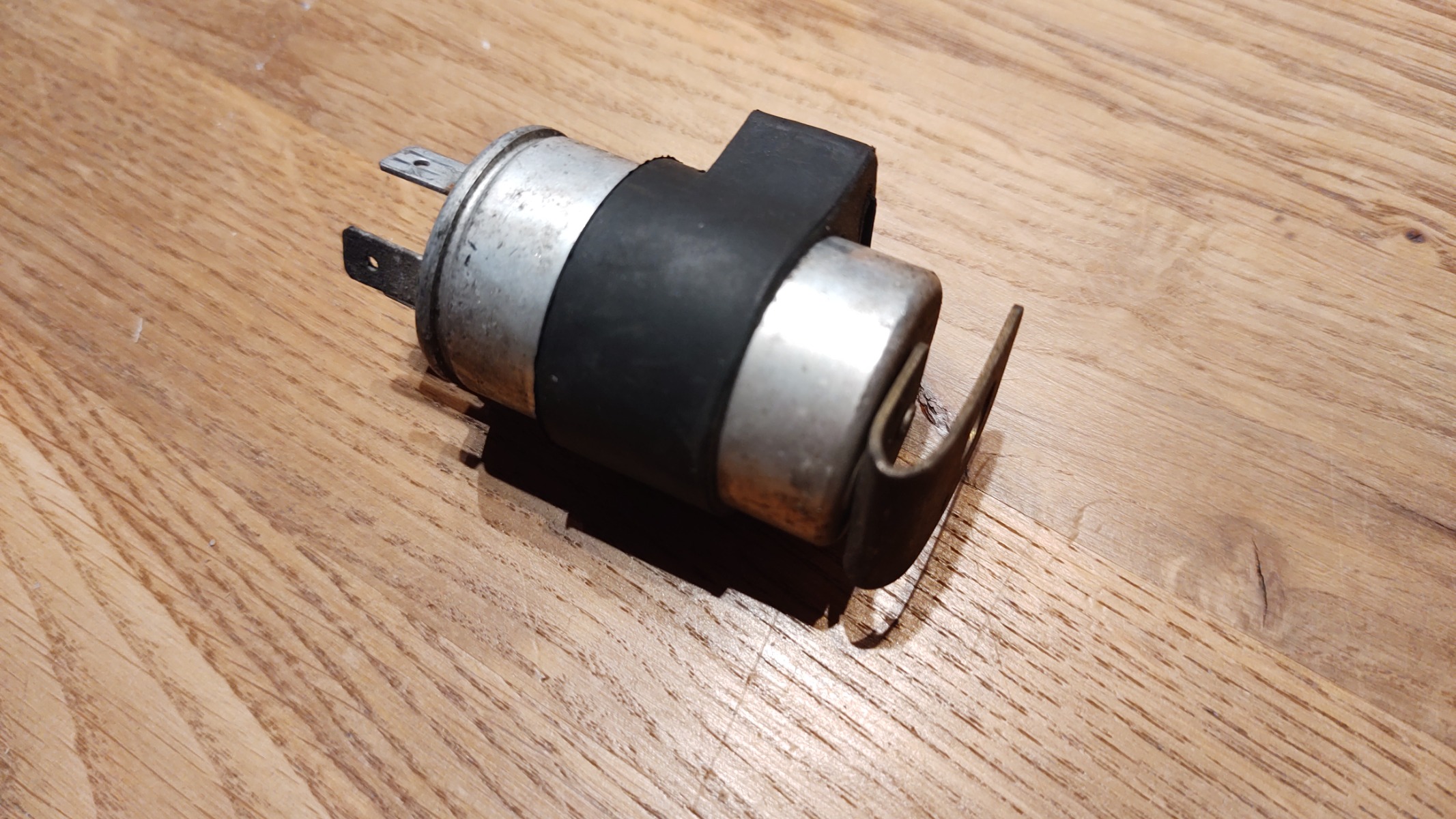

- The flasher relay has three pins. I am assuming this is a combination hazard/indicator relay with a shared positive. The problem is that there are four connectors coming off the harness (as expected with two seperate relays). The hazard relay wires are in the branch for the rear brake light switch and engine ground, the flasher relay wires come off the back section of the harness (near the connector for the tail section). I'm thinking I'll just get two standard relays as I'm pretty sure that was stock. I know that one mounts next to the fuse box, does anyone know where the second one goes?
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Last edit: 06 Nov 2022 10:53 by calum.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
06 Nov 2022 17:00 #876486
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic KZ1000A1 Spare Parts Project
I was wondering the same. To me that is the sexiest OEM exhaust KHI built. I’d love to find one in that nice of shape.My nut has always been on the right side, too. Where did you find the exhaust? It looks pristine. The build looks terrific!
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4228
- Thank you received: 2086
07 Nov 2022 02:29 #876498
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic KZ1000A1 Spare Parts Project
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: calum
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
07 Nov 2022 17:46 #876540
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic KZ1000A1 Spare Parts Project
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: calum
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
07 Nov 2022 17:52 #876541
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic KZ1000A1 Spare Parts Project
The shorter brown and blue go to the rear brake light switch.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1137
- Thank you received: 405
07 Nov 2022 21:34 - 07 Nov 2022 21:35 #876545
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project

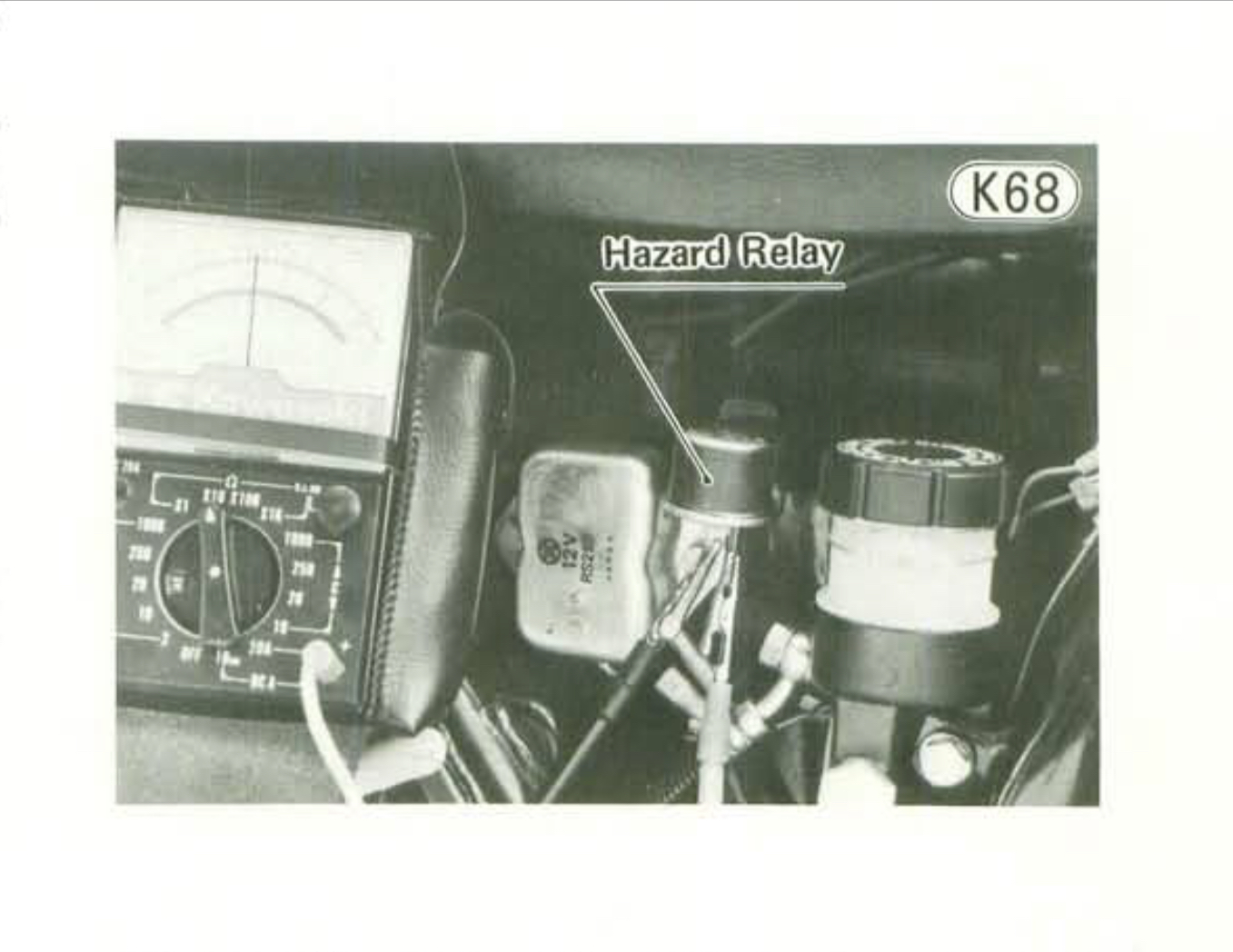

Thanks guys, I had a look in the book yesterday after scirocco's post and saw the flasher relay location. Thanks for the info on the rectifier - will see how that lines up tomorrow. Was all good on the rest, except for that wierd voltage regulator and the location of the green resistor for the headlight circuit (although I'm pretty sure it gets bolted to the left hand coil bracket).
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Last edit: 07 Nov 2022 21:35 by calum.
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1137
- Thank you received: 405
13 Nov 2022 12:05 #876764
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Got some new cam bearings and was going to put them in. They were supposed to be original Kawasaki parts but don't look the part. There a 16 shrink-wrapped together. They have STD stamped on one side and 18A on the other - AFAIK the stack bearing shells aren't stamped...
I cleaned up and wrapped the main harness today and managed to get most of the electrics in. Need some flasher relays and a few bits of hardware to get it finished up, will also replace the ground and starter cables.

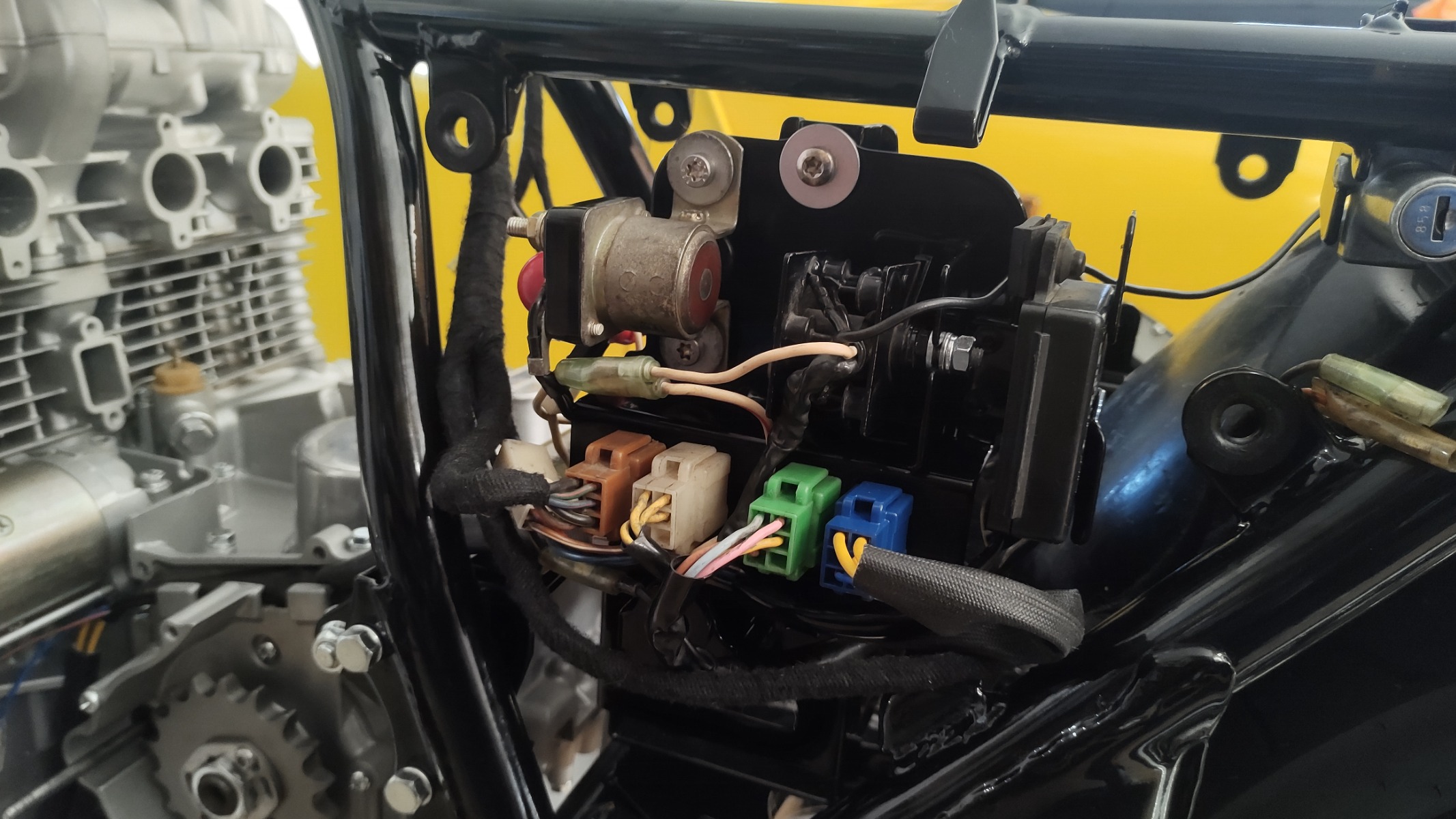

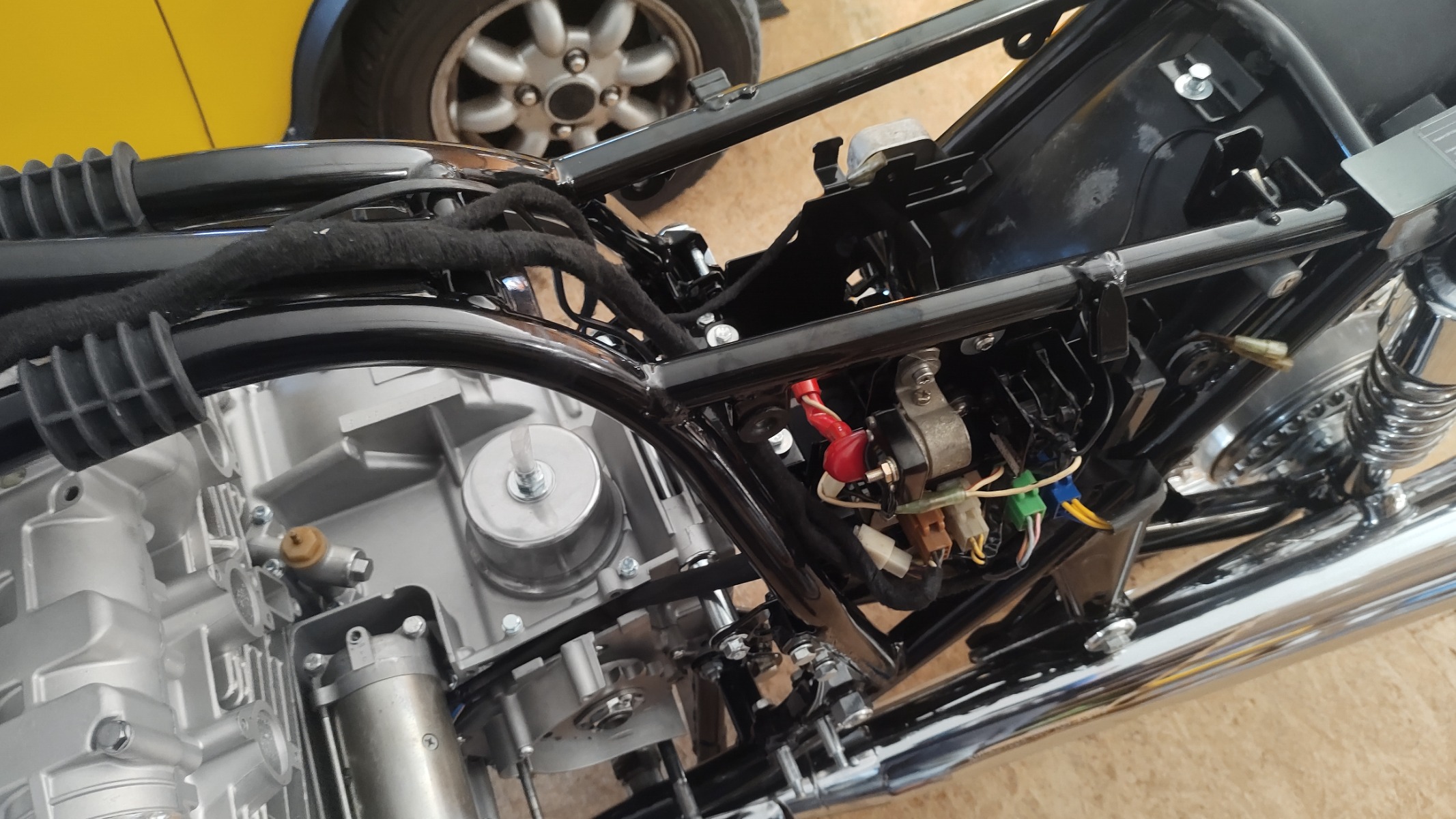

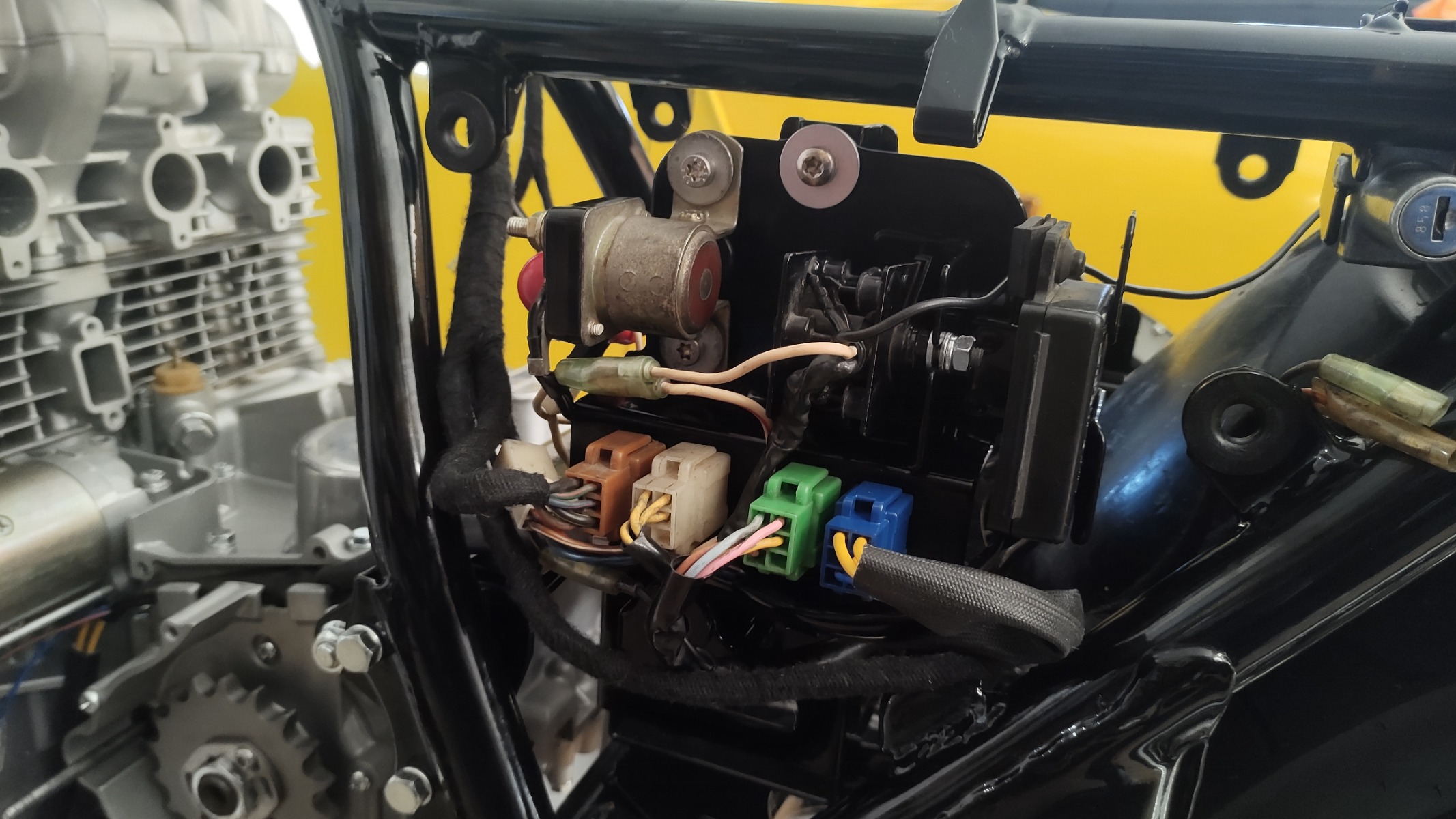

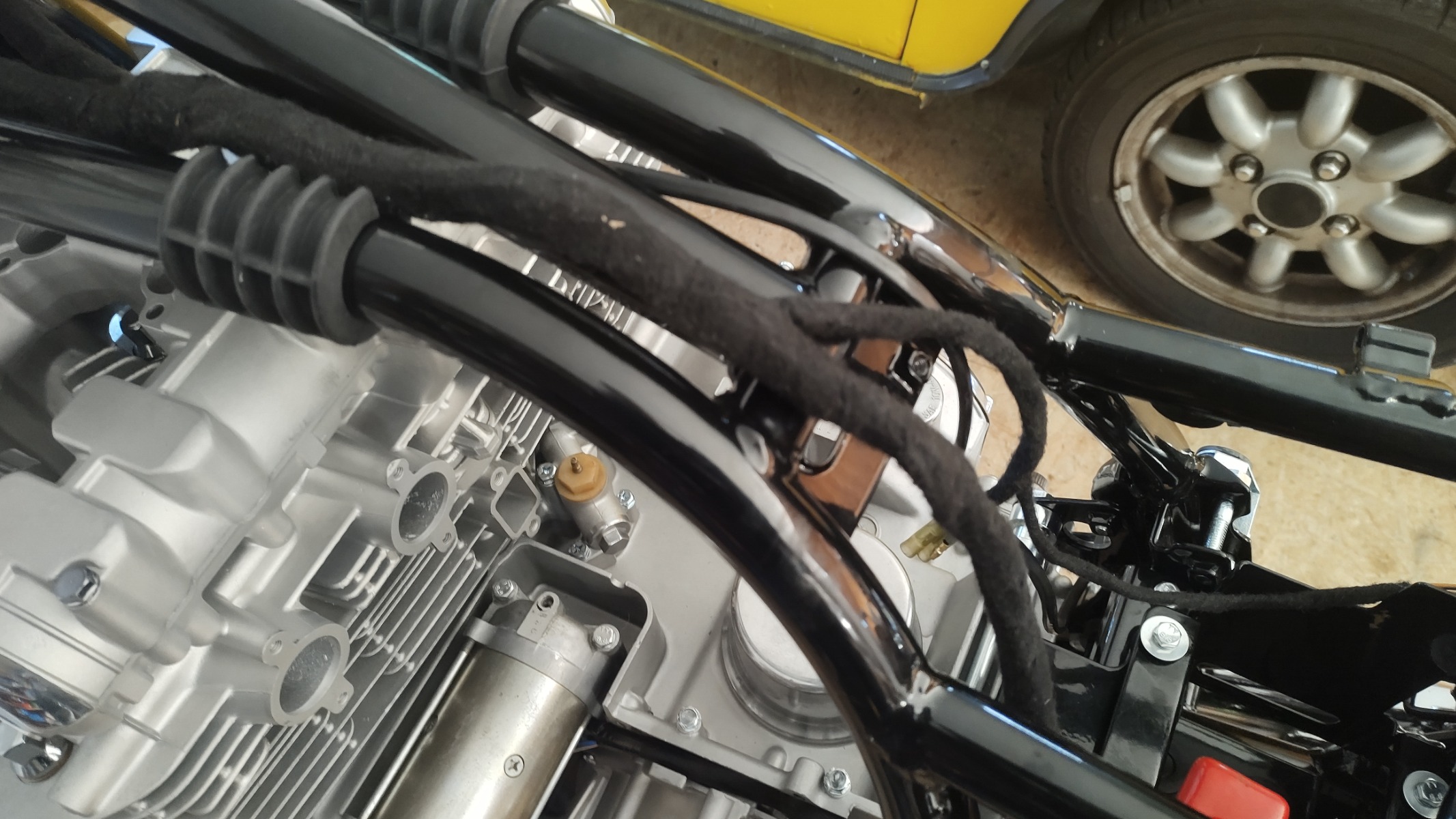

Does anyone know how the main harness is usually routed under the tank? What goes through the hole in the bracing?
I cleaned up and wrapped the main harness today and managed to get most of the electrics in. Need some flasher relays and a few bits of hardware to get it finished up, will also replace the ground and starter cables.
Does anyone know how the main harness is usually routed under the tank? What goes through the hole in the bracing?
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- Wookie58
- Away
- Moderator
Less
More
- Posts: 4207
- Thank you received: 2402
13 Nov 2022 12:17 #876766
by Wookie58
Replied by Wookie58 on topic KZ1000A1 Spare Parts Project
The following user(s) said Thank You: calum
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1137
- Thank you received: 405
13 Nov 2022 12:29 #876768
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Yeah, it's PET fleece stuff from Tesa. Holds up pretty well - has been under the hood of the mini for a few years and looks as good as new.
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
13 Nov 2022 14:04 - 13 Nov 2022 14:08 #876773
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic KZ1000A1 Spare Parts Project
The harness goes under the brace where the tank elastic goes. Then wraps around the frame to the outside to get to the relay plate. The oval hole in the center brace is for the carb vent tubes

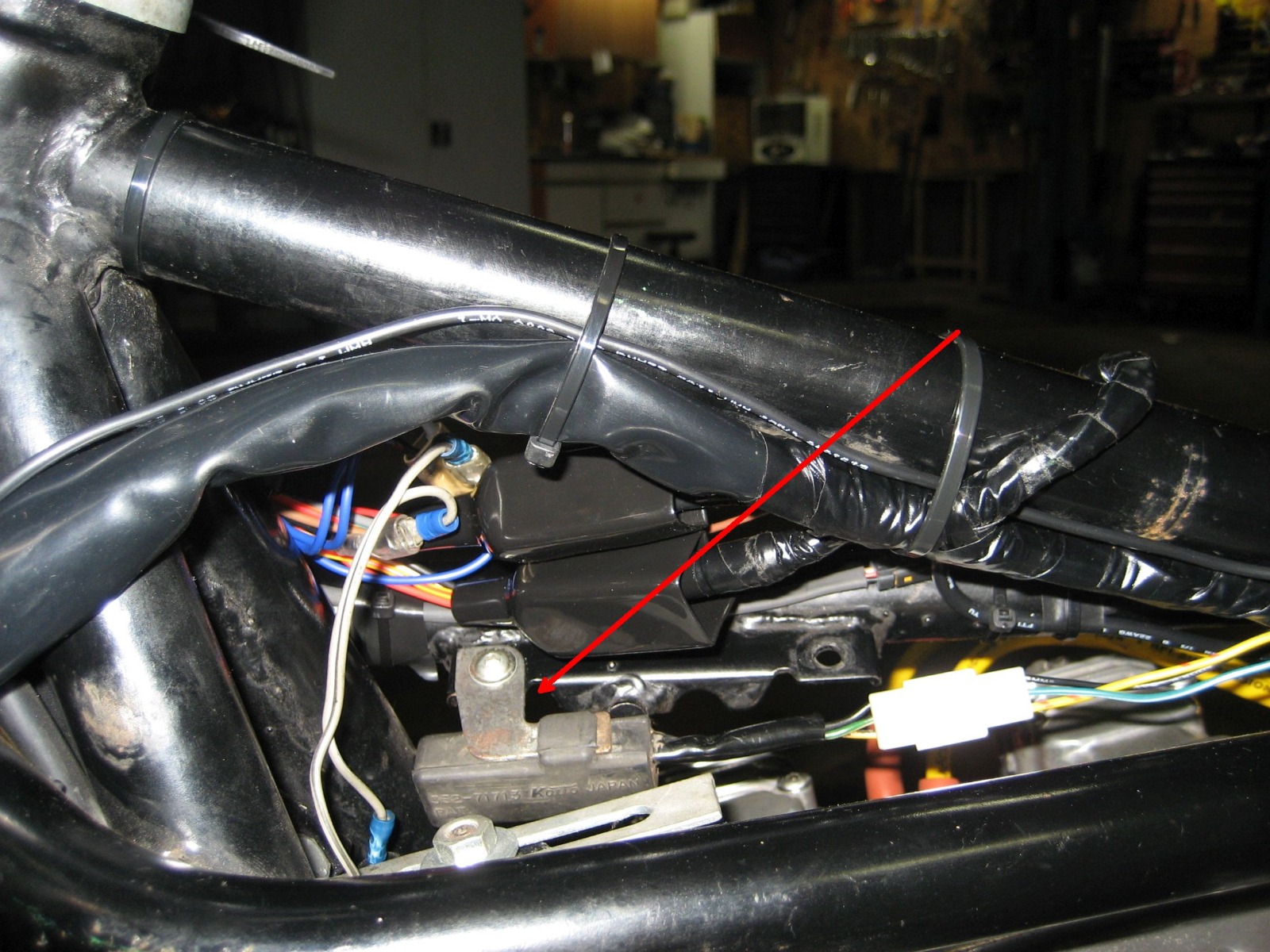

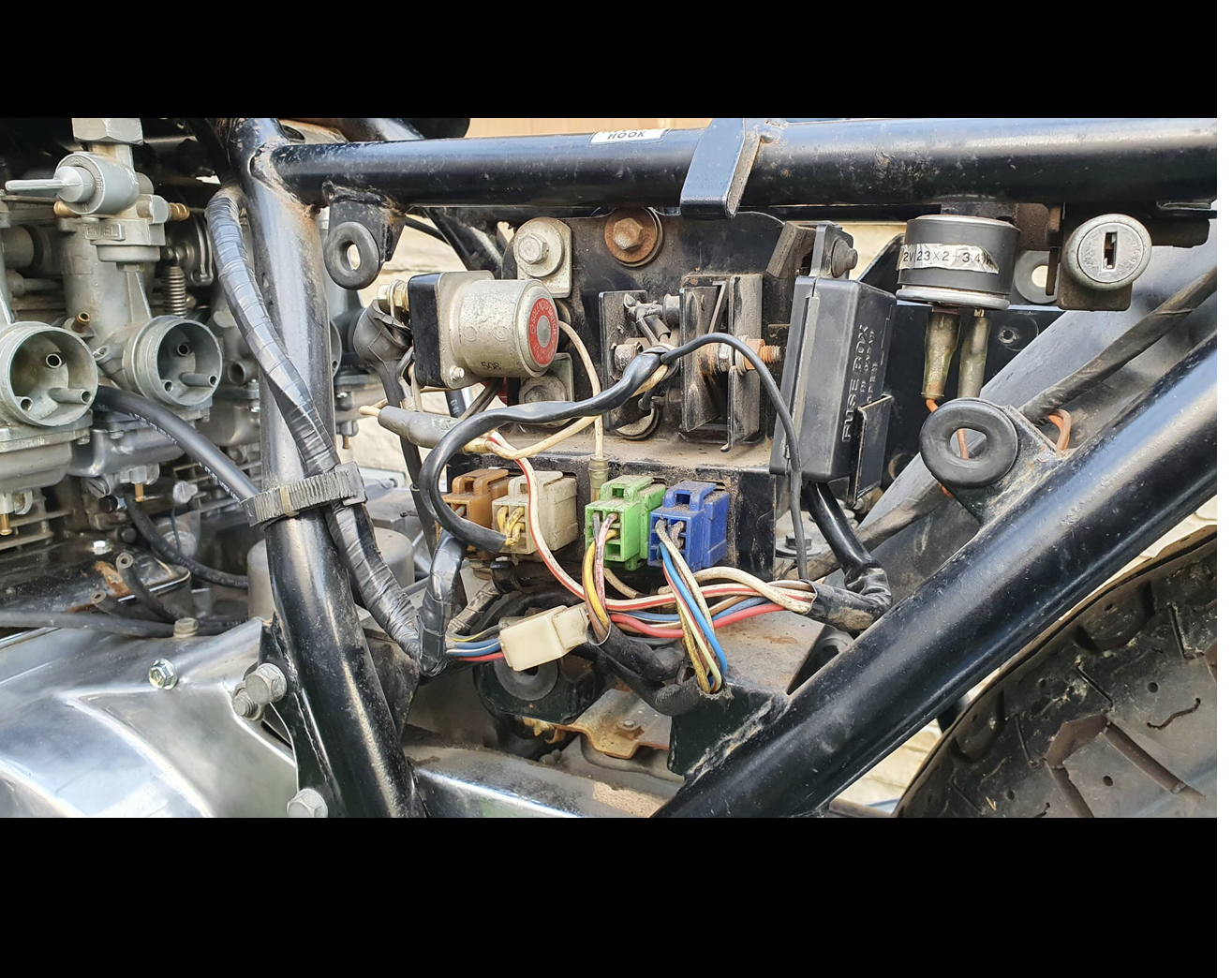

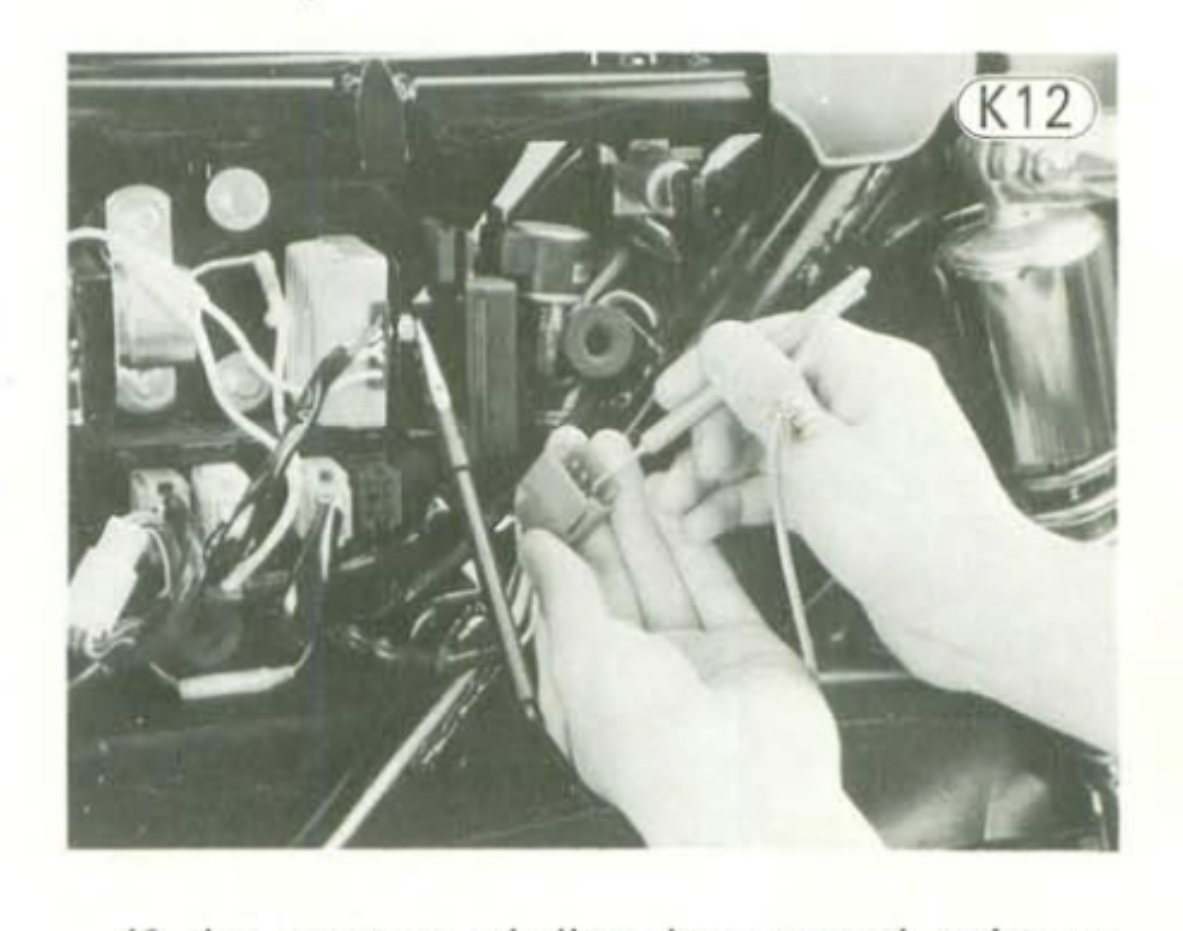

stock photo pulled from the internet
stock photo pulled from the internet
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 13 Nov 2022 14:08 by Mikaw.
The following user(s) said Thank You: calum
