KZ1000A1 Spare Parts Project 05 Jul 2022 16:06 #869942

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895
I bet  alphalaser.de  did the pics and welding job!

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 05 Jul 2022 21:54 #869953

  • calum
  • calum's Avatar Topic Author
  • Away
  • User
  • Posts: 1108
  • Thank you received: 383
I'm not sure who he gets to do the laser welding, but the photos and prepping/finishing are done by a local guy (ABP Racing). He mostly works on Supermoto and Enduro bikes but there's always quite a few z900 or z1000 heads lying around.

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 05:47 #870091

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 854
  • Thank you received: 254
I  would love to see pics when it's finished.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 12:31 #870097

  • calum
  • calum's Avatar Topic Author
  • Away
  • User
  • Posts: 1108
  • Thank you received: 383
I'll definitely post some pics when I get it back.

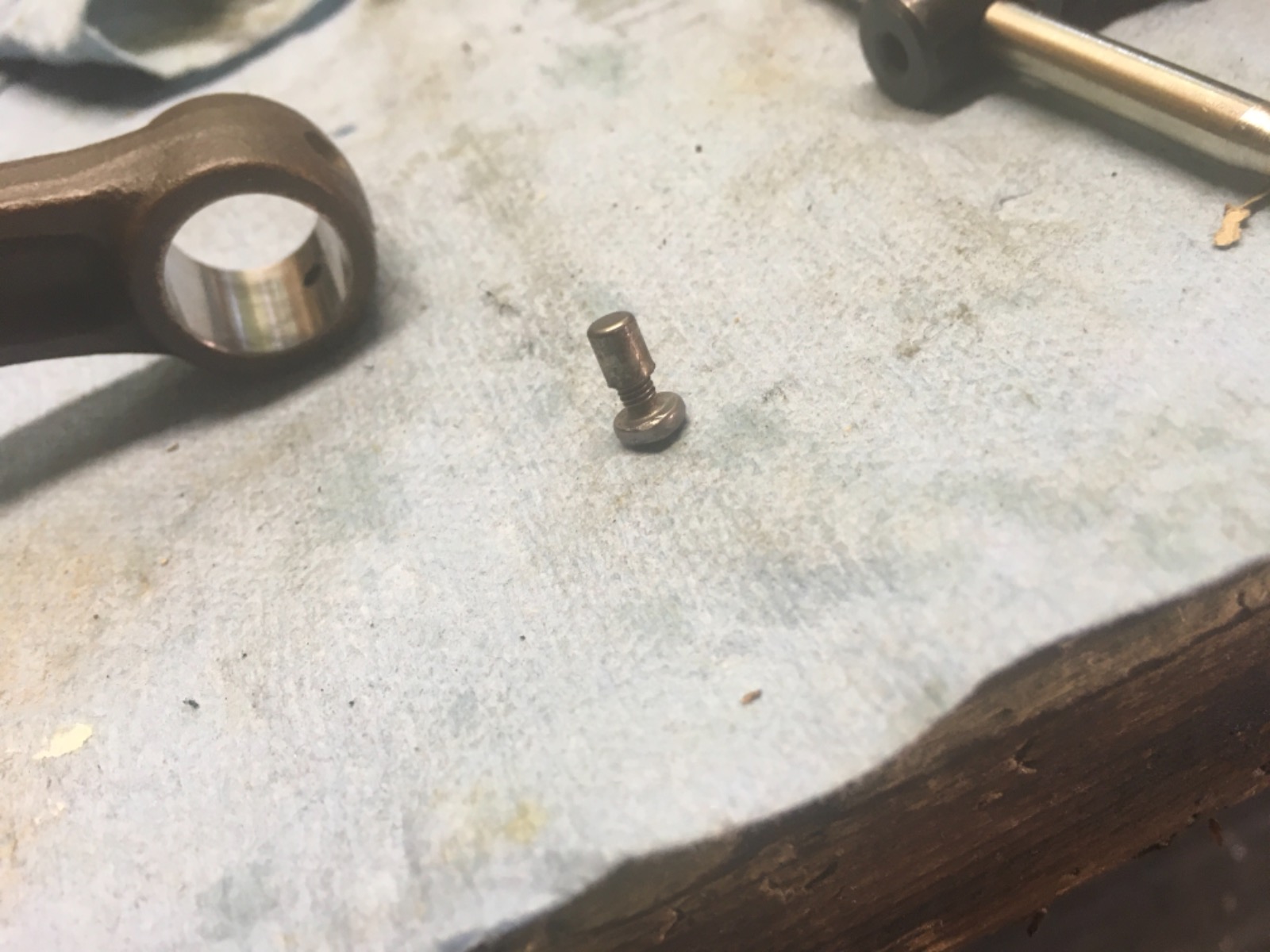

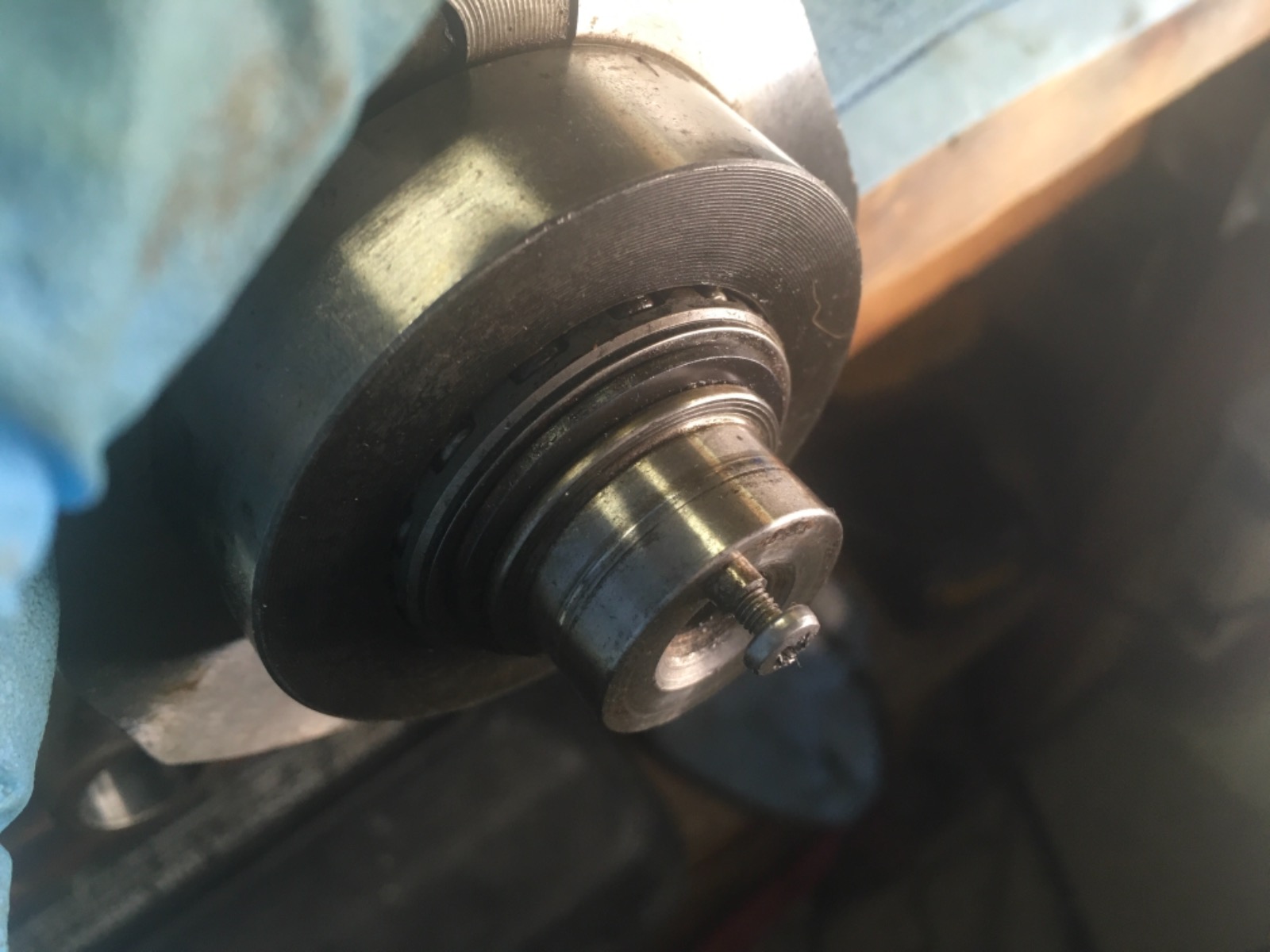

After reading Mikaws latest posts on his A4 thread I though I should take another look at the crank. I guess I have some work to do - I was so busy looking at clearances and the state of the small ends that I totally overlooked this.


Attachments:

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 12:38 #870099

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3166
  • Thank you received: 1768
 unlucky pal !

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 13:19 #870101

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895

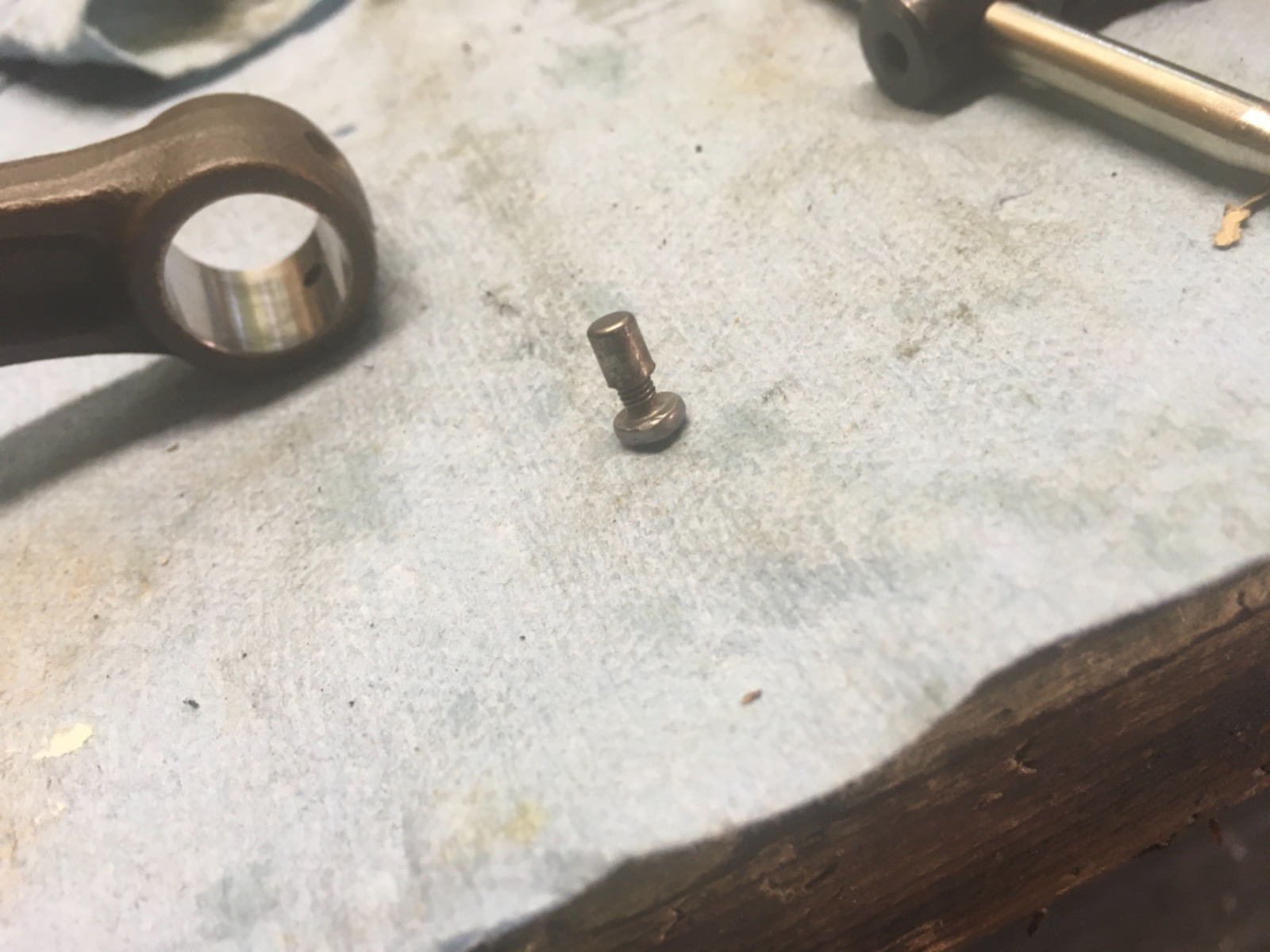

Yes, that sucks but Mikaw had a sucsess to remove the advancer locating pin. Show us your skills and do the same.

kzrider.com/forum/11-projects/613548-197...-a4?start=552#869894


Attachments:
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 15:36 #870106

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 876
  • Thank you received: 250
I also had the pleasure of removing a sheared pin about 2 months ago. Hole punch the center, use a 2mm drill bit on a slow drill speed, soon as the pin spins re punch the hohe, the metal is soft enough and will expand with the punch to become tight, repeat and repeat . Once the 2mm bit is done move up to a 3mm and same again, hole punch and drill. Takes a while but as soon as you get to 4mm or 5mm it should come out.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 16:37 #870107

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895
The more questionable part is, where to get a replacement locating pin and what it´s dimensions?

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

KZ1000A1 Spare Parts Project 09 Jul 2022 17:33 #870108

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2924
  • Thank you received: 1021
I broke one off and had a machinist pull the stub out and replace it.  I think he used an old drill bit but I've forgotten the diameter.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 19:10 #870109

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1221
  • Thank you received: 664

The more questionable part is, where to get a replacement locating pin and what it´s dimensions?

The locating pin is still available from KMC. The dimension is 4mm by 8mm.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 09 Jul 2022 19:52 #870112

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1853
Schnitz Racing also sources the timing pin.

store.schnitzracing.com/kawasaki-oem-cra...-dowel-kz900-kz1000/
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 10 Jul 2022 08:06 #870129

  • calum
  • calum's Avatar Topic Author
  • Away
  • User
  • Posts: 1108
  • Thank you received: 383

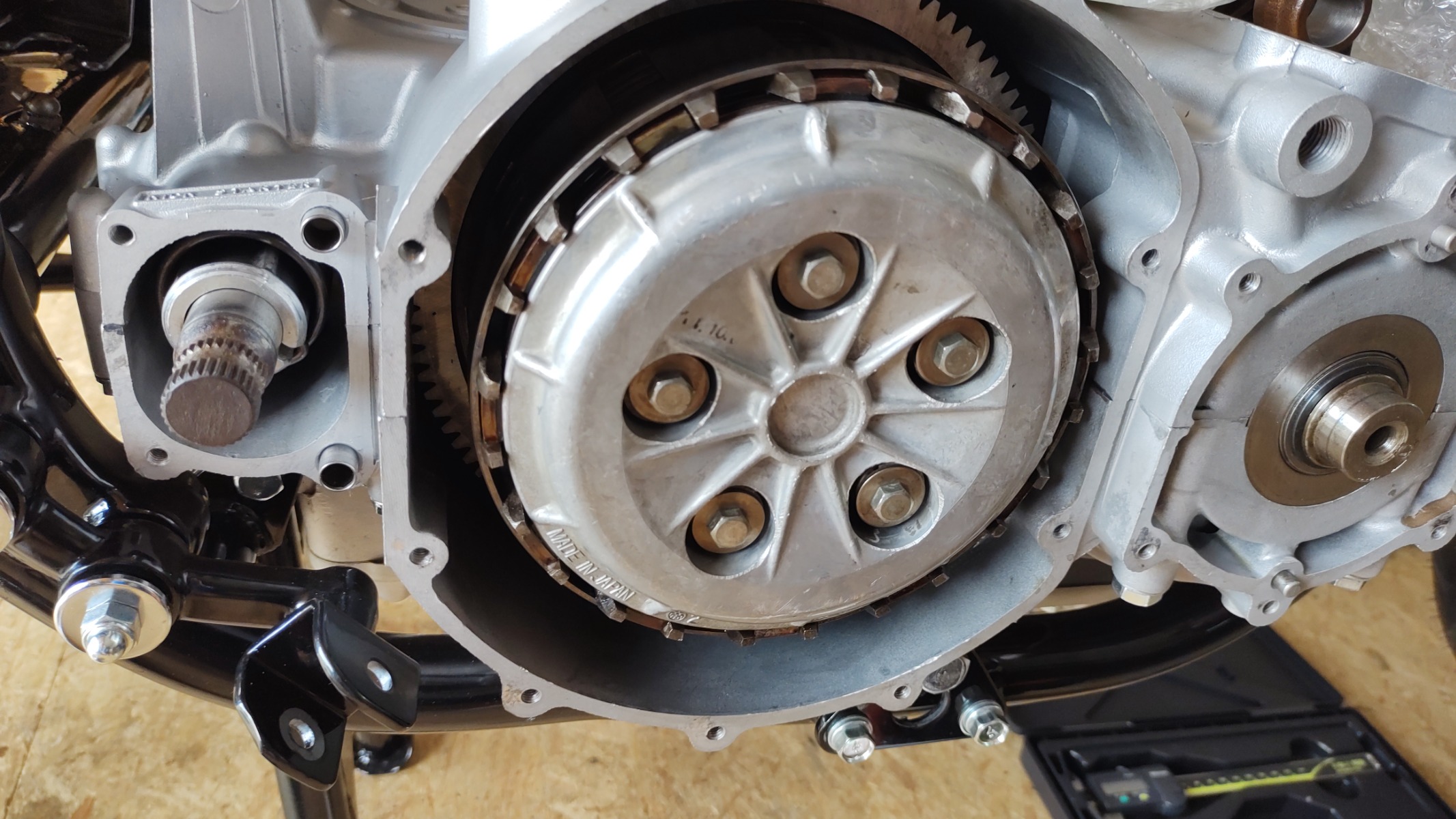

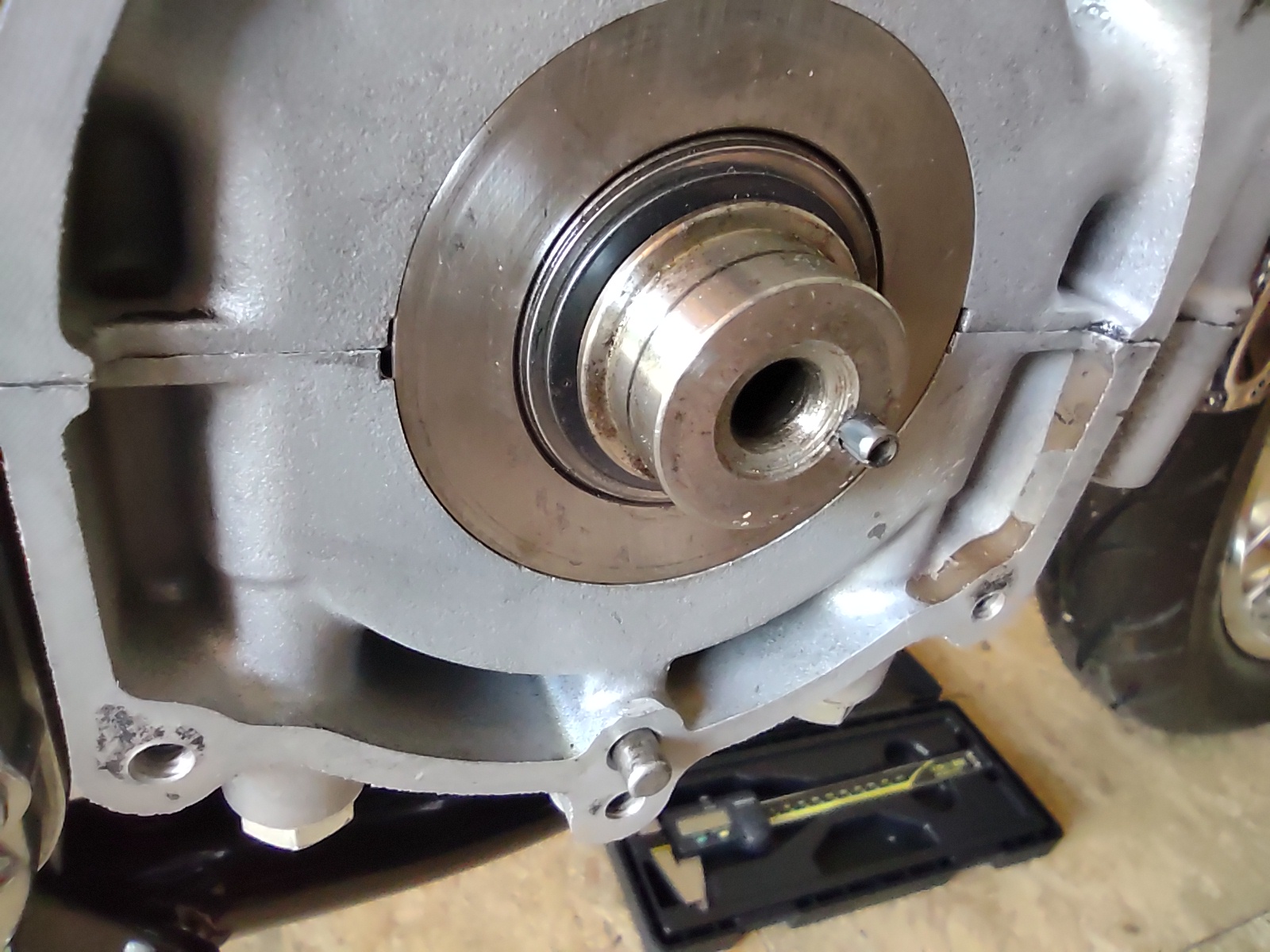

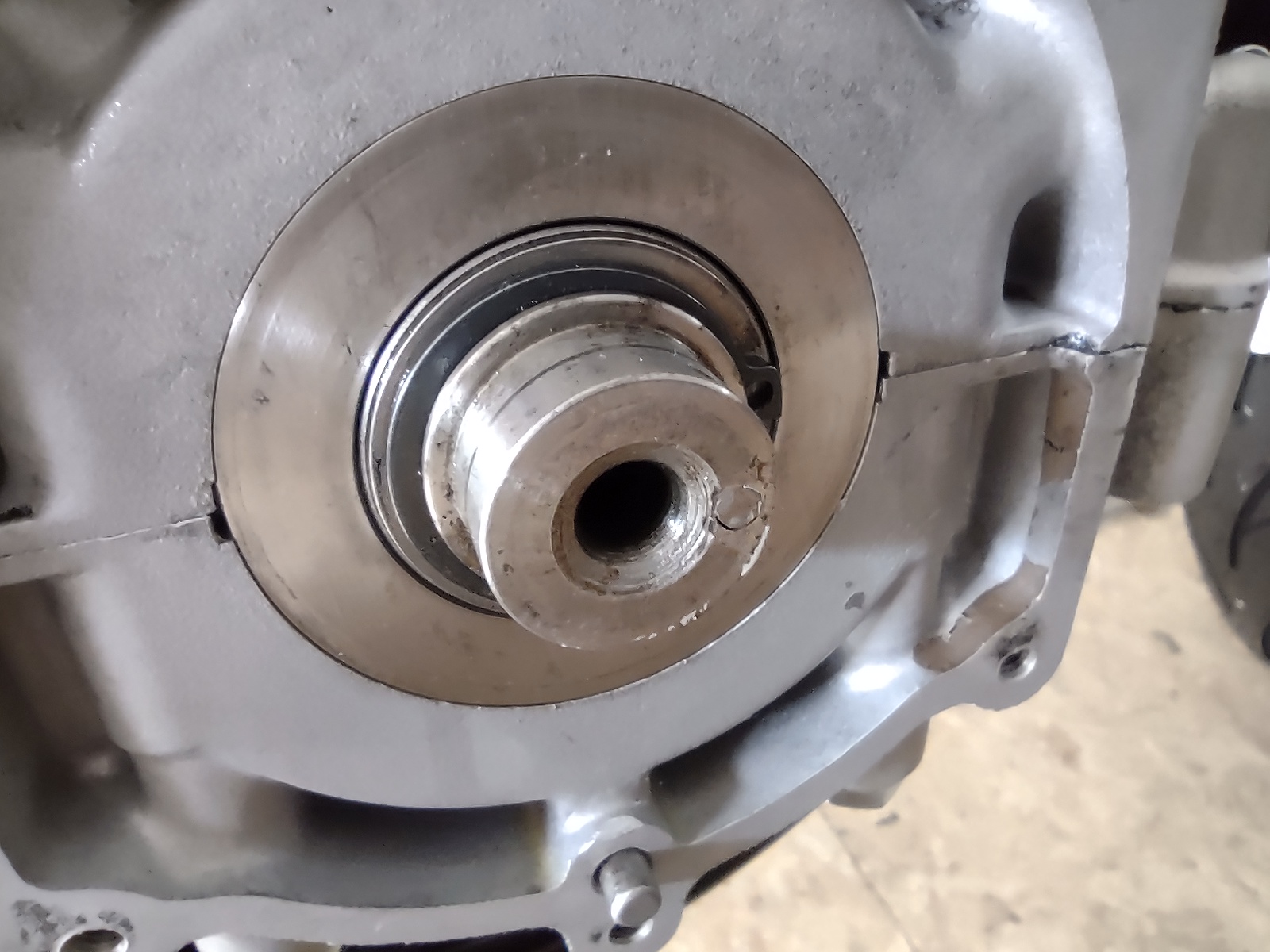

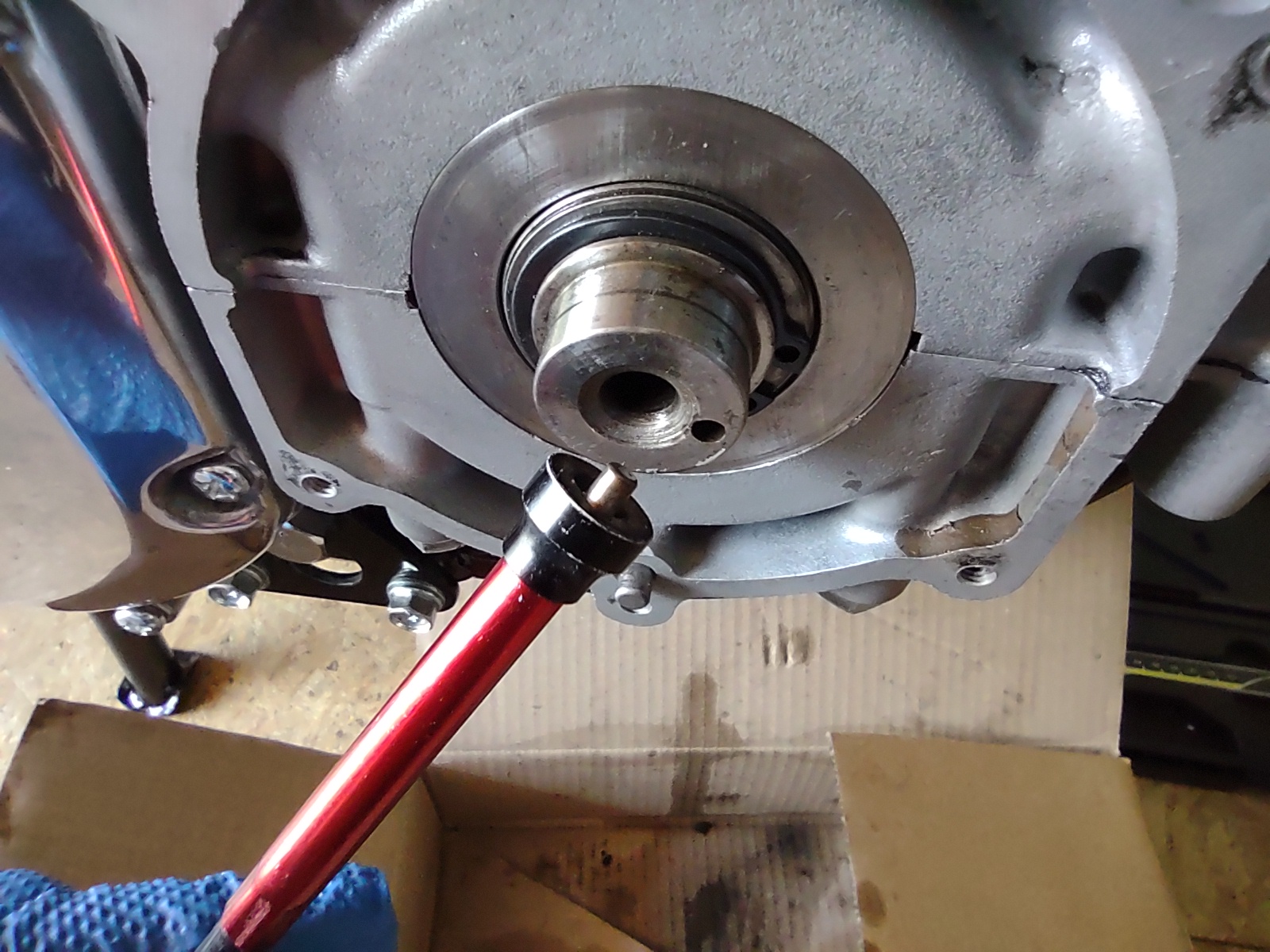

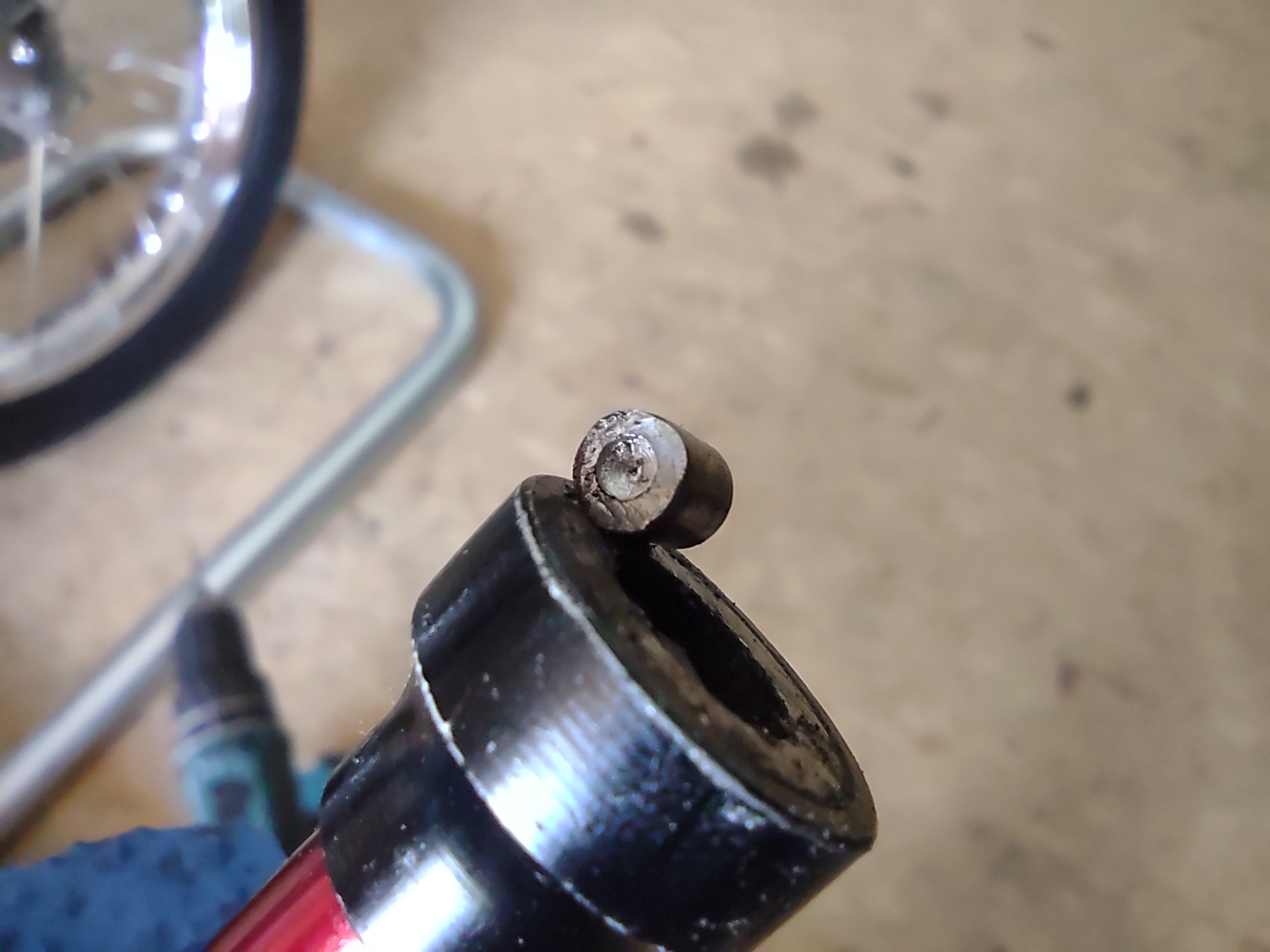

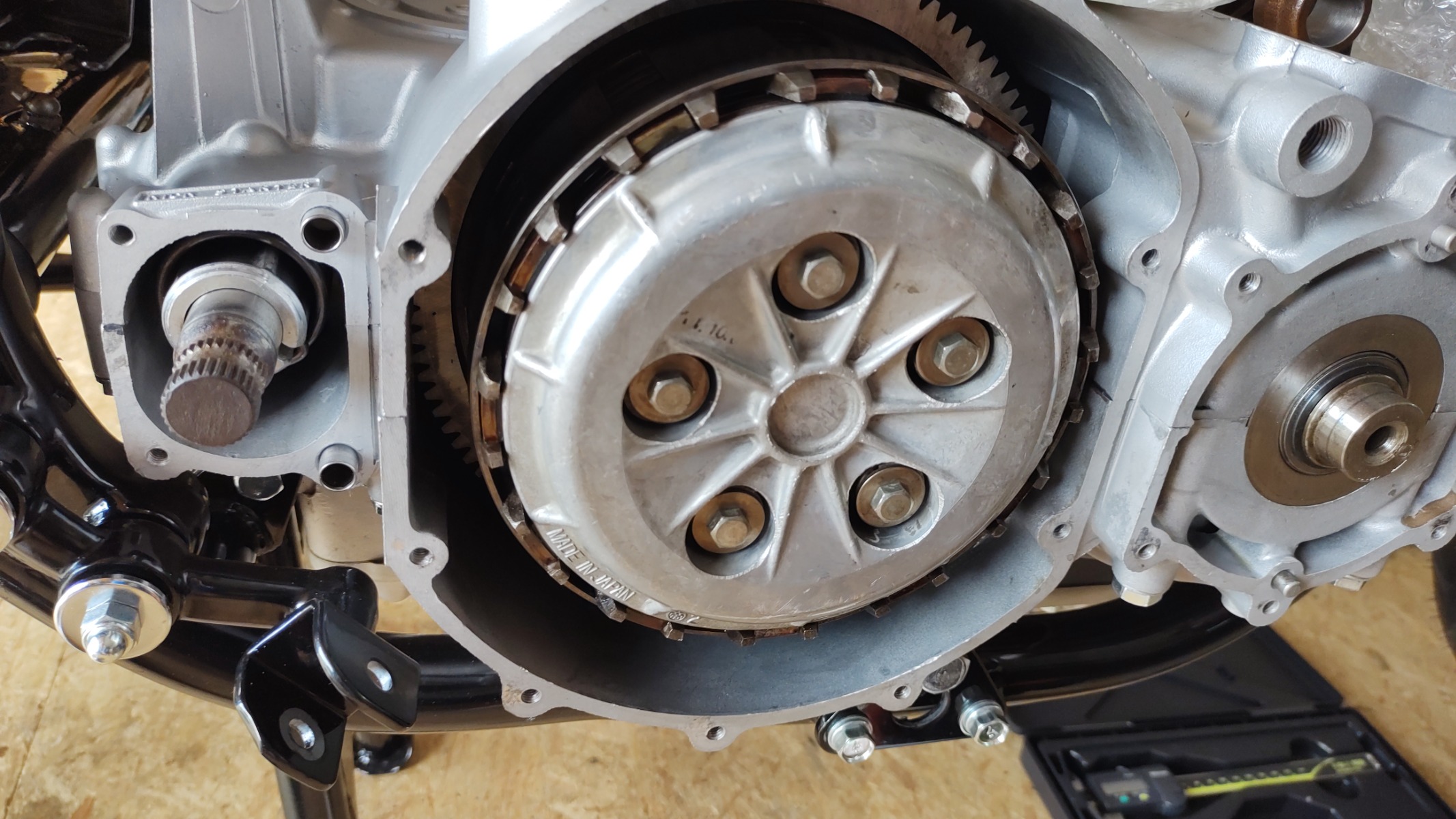

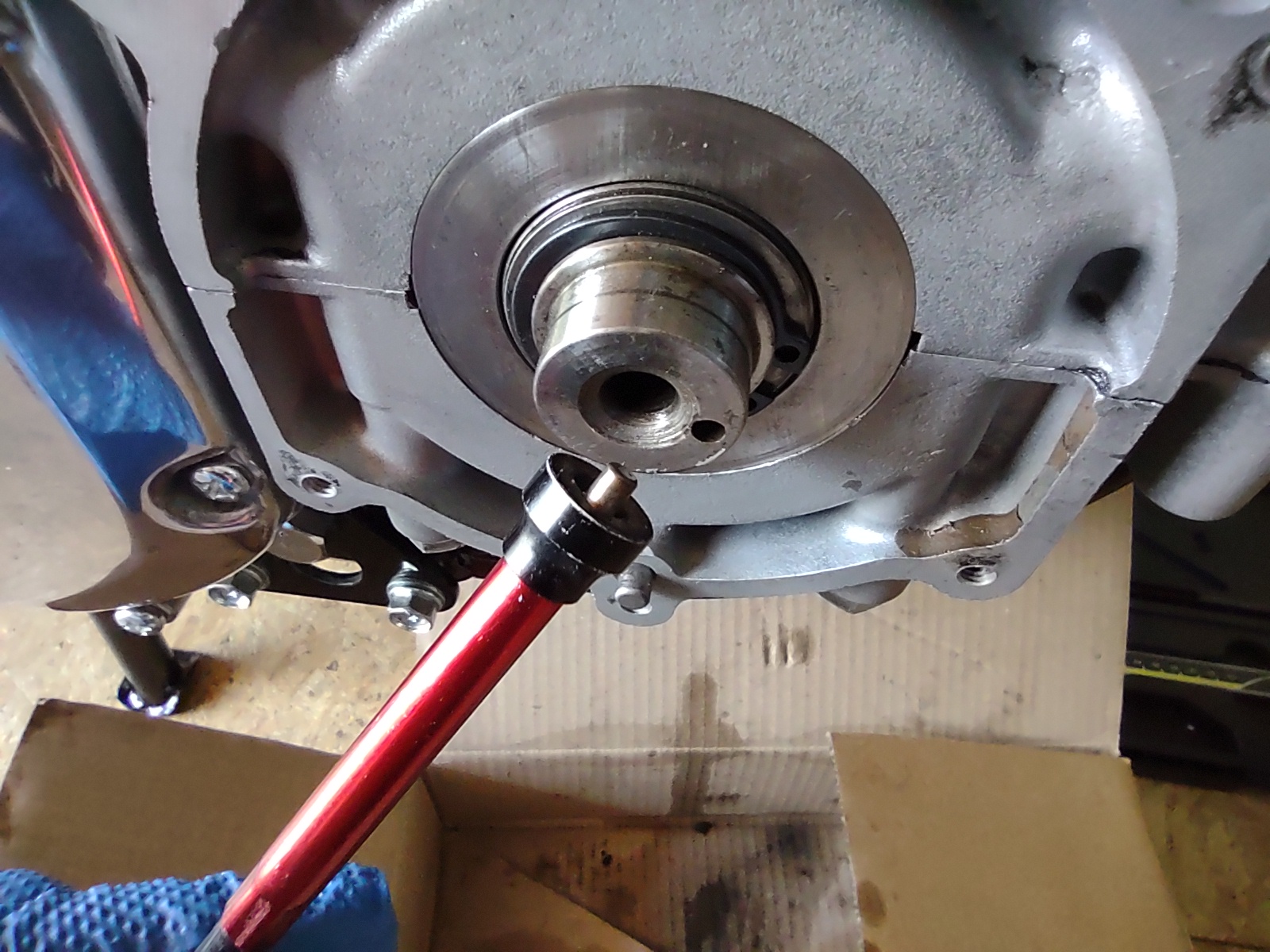

In the end it was much ado about nothing. Gave the pin a whack with the centre punch, drilled into it with a 2mm bit. Didn't even get the tip of the drill bit in before it started spinning, then it just came straight out with a magnet.
I had a spare pin on the shelf from the 750 - they use the same split pin as the 1000A1.

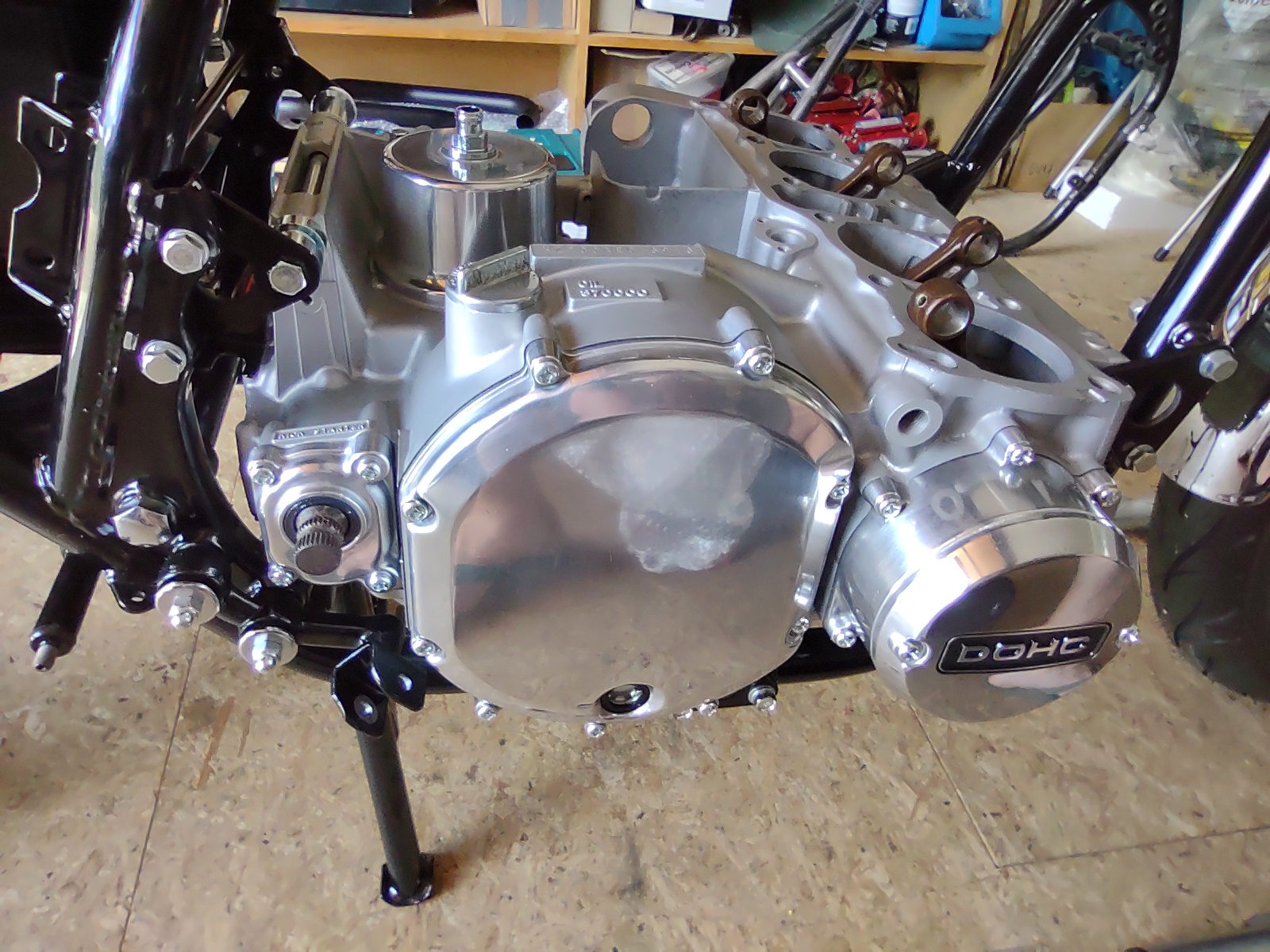

Got the clutch assembled and polished the ignition housing and breather cover. The ignition housing needs some more work, I'll do that when I polish the sprocket cover.




Attachments:
