VM26SS sync questions 31 Oct 2023 10:08 #891155

  • motomisfit
  • motomisfit's Avatar Topic Author
  • Offline
  • User
  • Posts: 122
  • Thank you received: 49
I’m near the end of my 76 900 LTD restoration and am waiting on the vacuum gauge kit to try and sync these carbs.

What I have right now for 1-2-3-4 respectively is 7 1/2, 9, 4, 11 inches vacuum. Warm motor, air corrector jets, K&N filters, Kerker exhaust.

As I’ve never done this before, are those numbers way off? My rebuild included cylinder honing and new rings. The bike runs great and idles pretty good. Spark plugs look pretty good. Takes a bit of cranking when cold to start but starts immediately when warm.

Thanks for any advice.
Chris

Please Log in or Create an account to join the conversation.

Last edit: by motomisfit.

VM26SS sync questions 31 Oct 2023 11:20 #891159

  • Moose1800
  • Moose1800's Avatar
  • Offline
  • Sustaining Member
  • Posts: 309
  • Thank you received: 271
Here's a pic I took while syncing my VM 28 carbs on my 76 LTD, high miles bike with freshly rebuilt carbs.

Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 11:42 #891161

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2935
  • Thank you received: 1496
Forget the actual vac readings and just get them all pulling the same then set the idle.
These VM slide carbs don't have a register carb ( unlike most CV's ) so just start by adjusting the one that's furthest out from the rest and work from there.
Ideally you should set all the slide adjusters halfway along their threads and bench sync ( level all the slides the same) prior to install so that you are unlikely to run out of adjustment on any individual slide.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 12:16 #891165

  • motomisfit
  • motomisfit's Avatar Topic Author
  • Offline
  • User
  • Posts: 122
  • Thank you received: 49
Oops, my bad. Yes VM26SS

I did bench sync the slides to all be the same in respect to the slide/needle positions as close as I could visually get. Zed when you say forget the vac readings, how are supposed to know what they are pulling?



Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 12:56 #891166

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2935
  • Thank you received: 1496

Oops, my bad. Yes VM26SS

I did bench sync the slides to all be the same in respect to the slide/needle positions as close as I could visually get. Zed when you say forget the vac readings, how are supposed to know what they are pulling?



Just get all the gauge readings the same which means that each cylinder is doing equal work ( pulling the same as it's neighbour) then set the idle.
Actual vac readings are an indication of engine condition and if nothing is amiss your vac readings at idle are what they are and cannot be increased or decreased to conform to a pre determined figure.
Once set the vac will only increase or decrease in line with throttle position and load conditions etc.


AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: sf4t7, Wookie58

Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 14:47 #891167

  • motomisfit
  • motomisfit's Avatar Topic Author
  • Offline
  • User
  • Posts: 122
  • Thank you received: 49
Before I put the holders and main jets in, I set the slides as best I could by measuring how far the needles stuck out past where the holders screw in. So getting all readings close to the same is done at a higher rpm?



Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 15:20 #891169

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1472
  • Thank you received: 690
Only the frequency of vacuum changes with rpm not the volume.
Sync them at slightly above idle speed to damp guage needle bounce.
Job done.

Bench set all the slides the same by using a 1mm ish drill bit under the slide on the engine side of the slide. If the drill is trapped by the slide adjust the height of the slide until the bit will just fall out under gravity. Do all four the same and they are bench set. Do this with the idle screw a few turns past touching to allow you to adjust the slides further closed if needs be to get the right idle speed when fitted.

Z1000J2 somewhat modified!

The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

VM26SS sync questions 31 Oct 2023 15:26 #891170

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4932
  • Thank you received: 1889

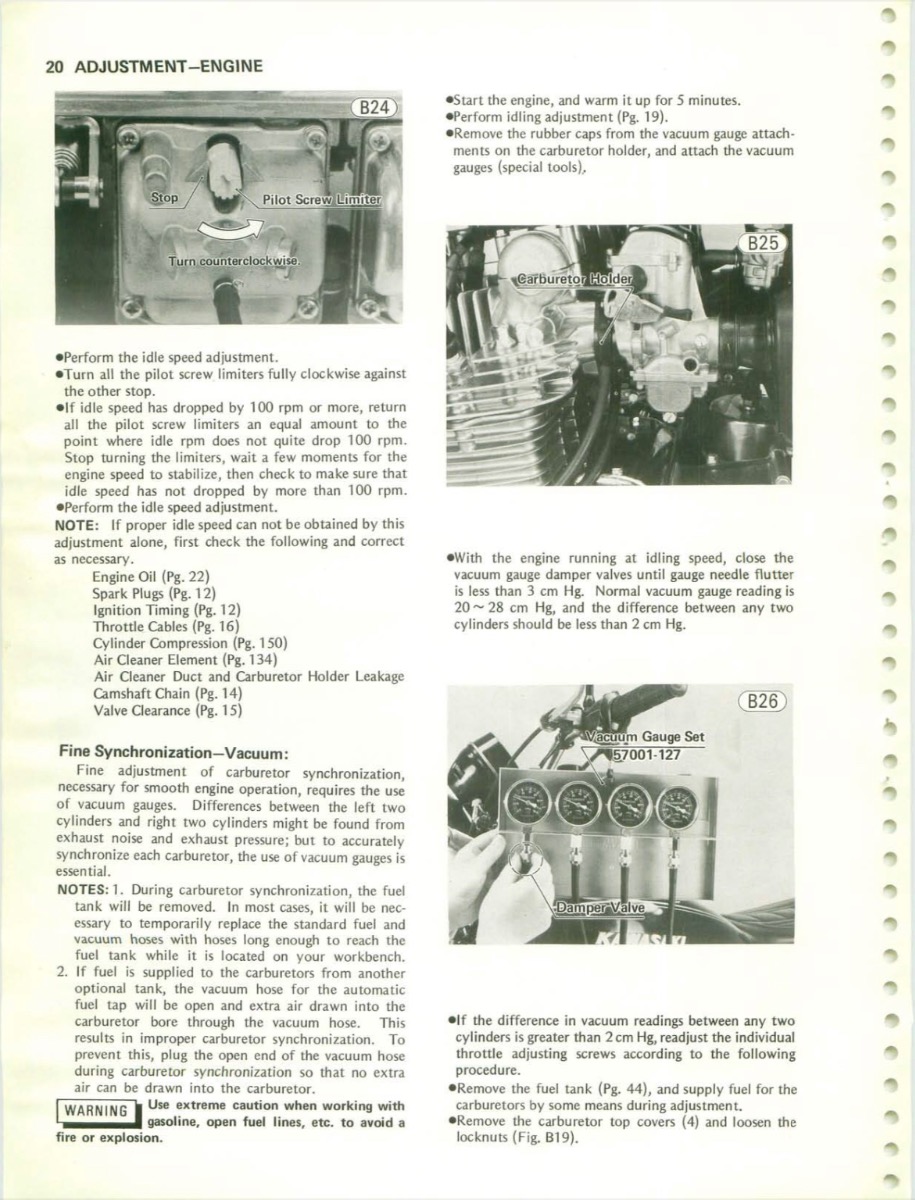

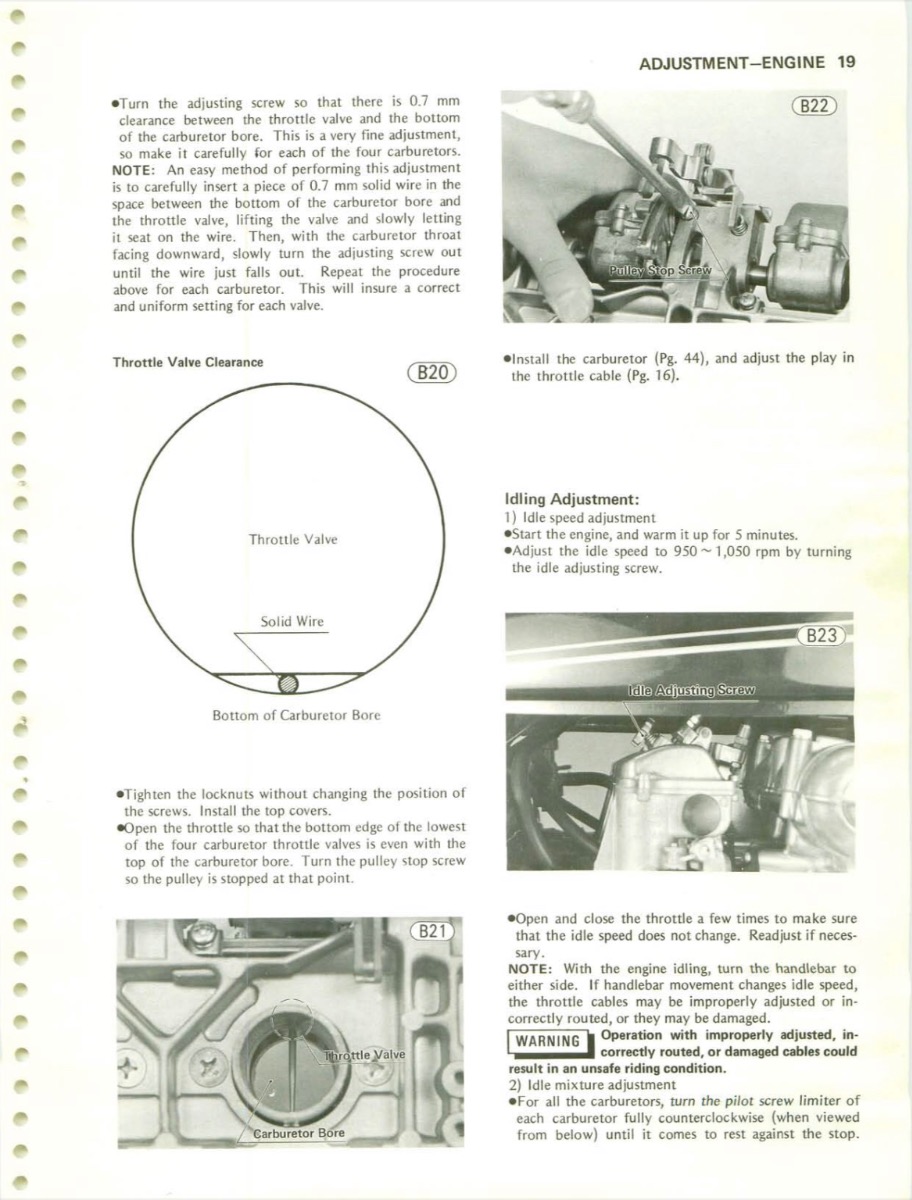

A bench sync is done using small gauge wire about .07mm but this size isn’t that important. First set the air gap of the idle adjustment screw to about 2mm. Adjusting the slides with the adjustment screw on the pivot arm inside the top chamber. Till the wire has same drag on each slide. Follow the procedure below













1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: motomisfit, Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

VM26SS sync questions 31 Oct 2023 19:31 #891175

  • motomisfit
  • motomisfit's Avatar Topic Author
  • Offline
  • User
  • Posts: 122
  • Thank you received: 49
Thanks for that Mikaw. That’s pretty much what I did but I used how much the needles were protruding out inside the carbs as reference. I only needed to adjust two of them and at that very little.

I took it for a good ride today and it blasted thru the rpm range. Just a little blubbery at idle and off idle and oddly not all the time. Took the plugs out tonight and the #1 plug was very black and sooty. I was having this same issue the last time it ran 13 yrs ago. Cylinders honed, rings new, valves and seats new, valve clearances and ignition timing spot on. Float bowl levels spot on. Scratching my head a little on this one. Will post a pic of the choke plunger for #1 carb. It looks ok to me but…..that could very well be the issue.

Please Log in or Create an account to join the conversation.

VM26SS sync questions 31 Oct 2023 19:46 #891176

  • motomisfit
  • motomisfit's Avatar Topic Author
  • Offline
  • User
  • Posts: 122
  • Thank you received: 49

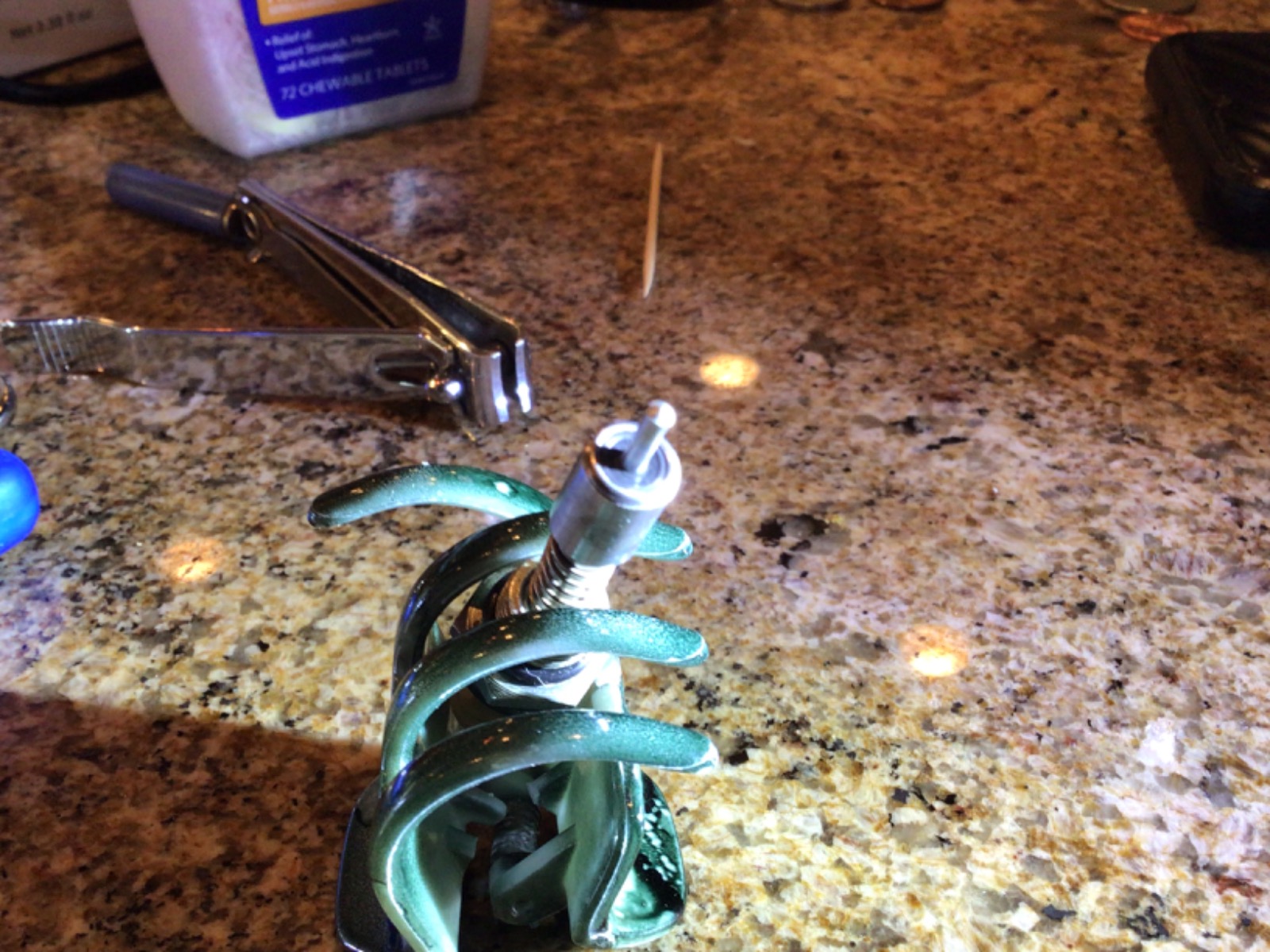

This motor hasn’t seen a lot of ethanol fuel. This seal looks ok to me but…..if that indent in the seal is supposed to be flat, that would be a problem.
