New rebuild after 10 years "deep sleep" mode 11 Jul 2017 17:26 #766720

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Yes, you are right and it will be looking better with new race flag decals and tank emblems on.
I need self adhesive emblems because i had removed the screw mounting strip and filled the recess
with tin and a soldering iron and tin plated the tank opening area for rust protection !!!
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 14 Jul 2017 16:22 #766952

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Did some little cosmetics on my Marving Race muffler.
Take some piece aluminum out of an damaged hydraulic rotary distributor.




Do some 7 mm holes in it.



after 30 minutes on the lathe


The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 14 Jul 2017 16:29 #766953

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Press in the silencer pipe



Press in to the silencer




Have to do one bore and screw to hold it in and two rivets for the model number plate.
Made it self and save some money ( 50 Euros )
Looking good ???
Attachments:
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 16 Jul 2017 16:02 #767113

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
A small update.
Take some time on the holy Sunday and install my speed sensor of my new KOSO speedo.
Have to hurry up my project,will try to drive street legal this month.


MVI_1942.mov

Attachments:

    MVI_1942.mov

The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 03 Aug 2017 16:56 #768276

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
A quick update of my delay progress.

Buy some tank emblems to tape on.



a new set of handle bar switches




Have to buy a new main wiring harness, the old one was a totally connector patchwork by the PO,
Plus a set of new throttle cables.





A new clear glass headlight

The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 03 Aug 2017 17:02 #768279

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

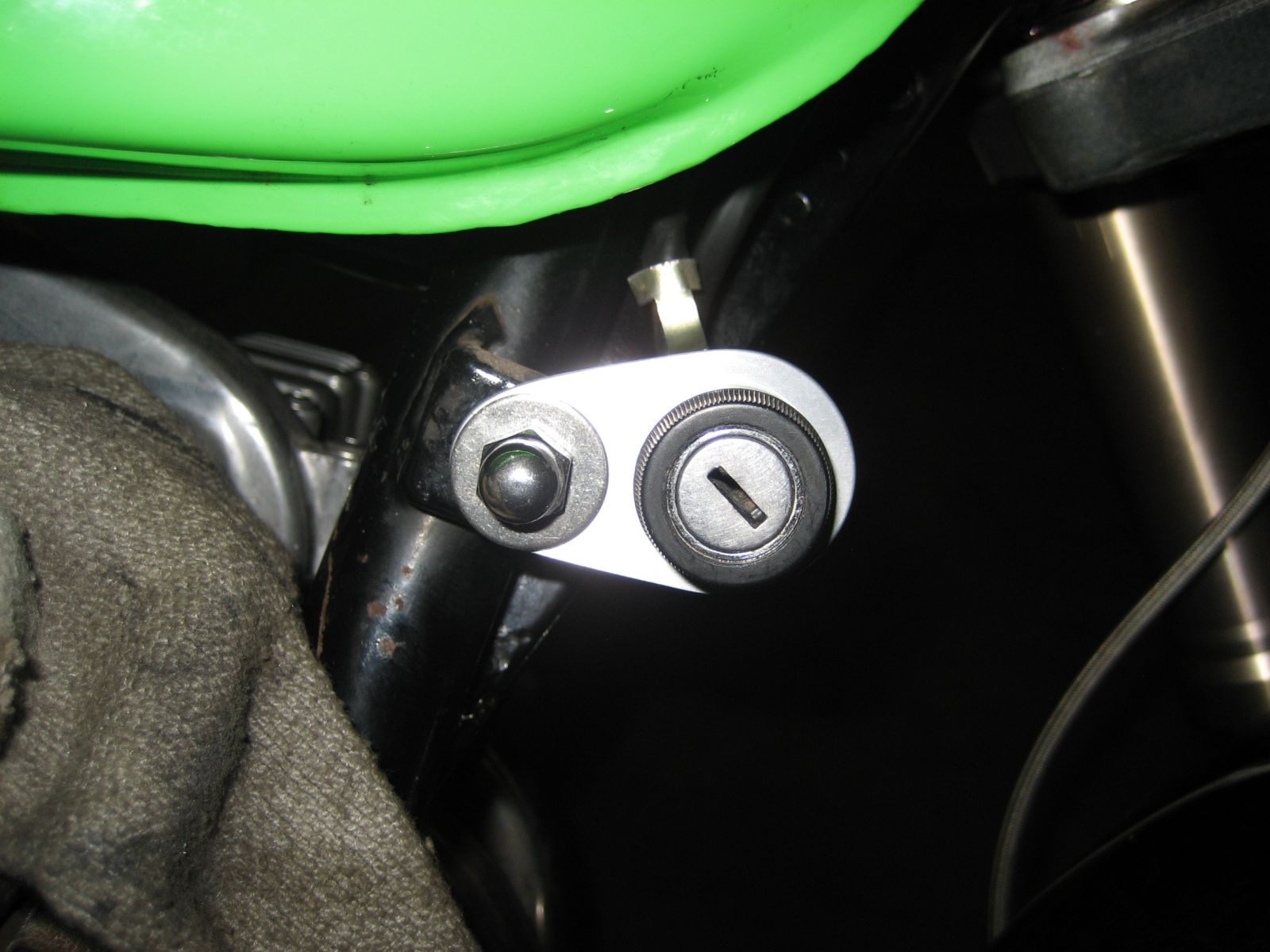

Made some brackets for my KOSO speedo and the ignition switch mod.






The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 03 Aug 2017 17:10 #768280

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
KOSO mounted and ready for the adjustments.


Attachments:
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 03 Aug 2017 17:16 #768281

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Turn signals on handle bar are missing, coming on Saturday




Attachments:
The following user(s) said Thank You: GPz550D1, gordone

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 04 Aug 2017 06:58 #768297

  • mopguy
  • mopguy's Avatar
  • Offline
  • Sustaining Member
  • Posts: 730
  • Thank you received: 168
Looking good, keep up that great work that you do.
I have a 1980 Kawasaki KZ750 Ltd. I bought new. I recently managed to get it out of my garage after 28 years and put it on the road again (2010). I feel like a kid all over again. Since I have acquired 3 78 KZ1000 Ltd, 1 1981 KZ1000 Ltd, and another 1980 KZ750 Ltd. Love the LTD's.
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 09 Jan 2018 23:55 #777138

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
First photo update in 2018, more will come.....


Attachments:

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 11 Jan 2018 00:37 #777187

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Made some bracket for the weekend man cave, cam timing need some work.
More pics will follow...

Attachments:

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 11 Jan 2018 14:07 #777205

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2543
  • Thank you received: 664
I just caught up with this thread. nice work on that muffler tip!
