TOPIC: New rebuild after 10 years "deep sleep" mode

New rebuild after 10 years "deep sleep" mode 22 Jun 2018 12:50 #785662

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2313
  • Thank you received: 257
PMC parts are great. I have a connection in Japan. Rick Degan, runs a Business there. And in California with his brother. He was getting me cool parts 10 years ago. Before anyone in the USA saw them. Rick actually married his Japanese language teacher from Buffalo State College. 20 yrs. ago. Then moved to Japan now. He can't wait to retire and come back to the USA. But, whatever. We had some good deals over the years! Shipping parts International!
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 26 Jun 2018 14:27 #785931

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
Have some time and did some long overdue maintenance on my project bike today.

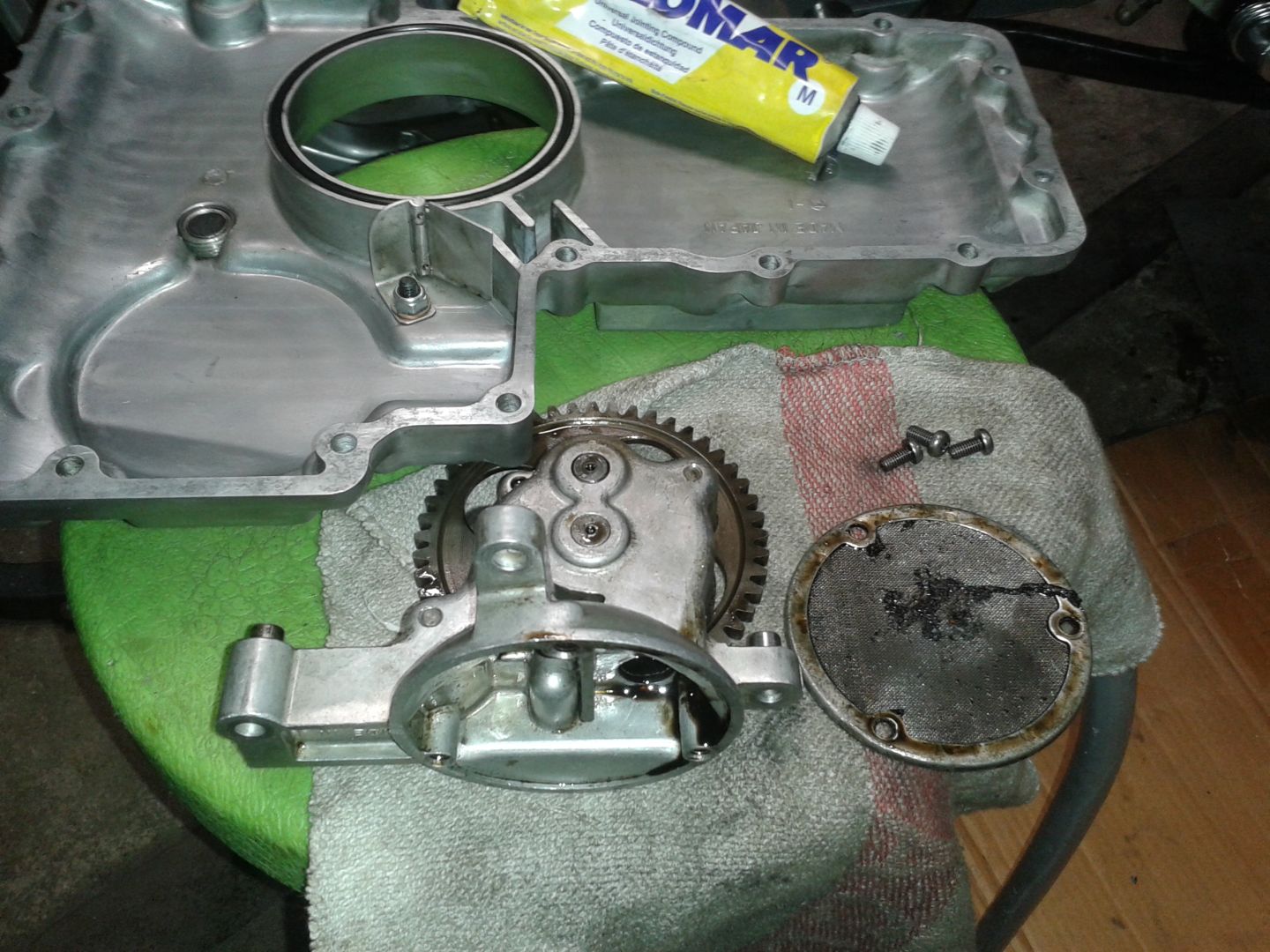

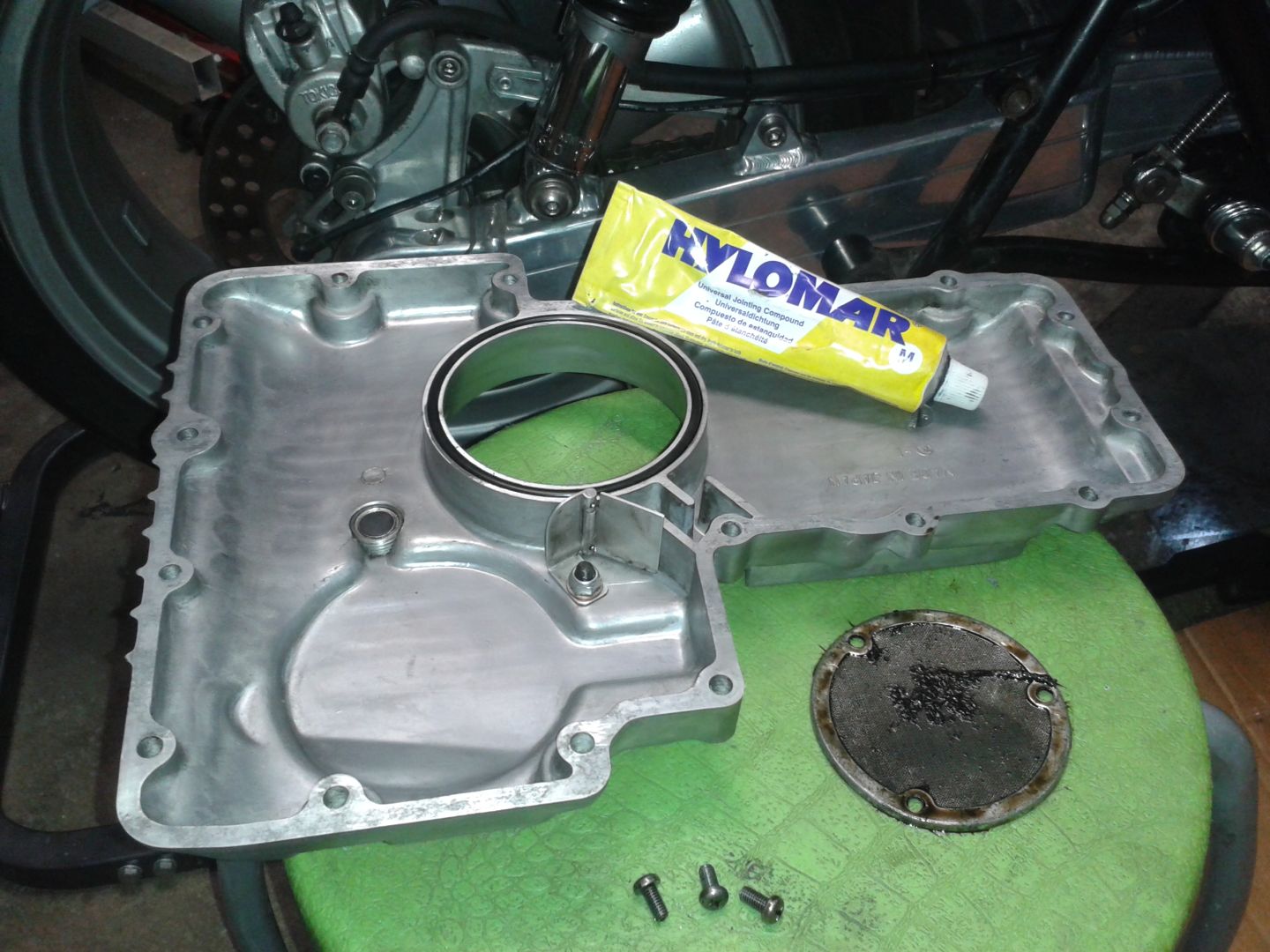

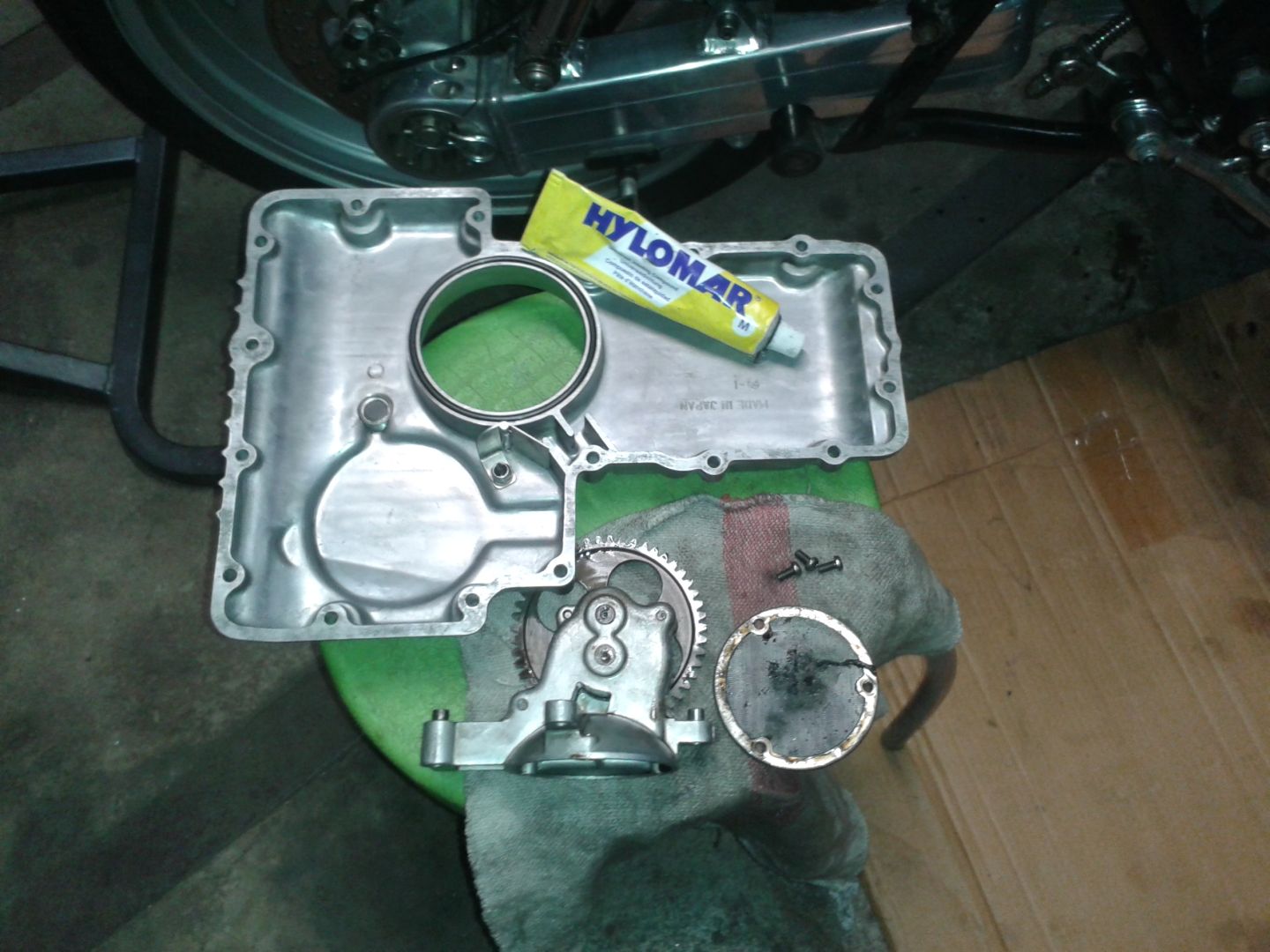

Drain the oil and pull the oil pan and oil pump for a in-depth cleaning.

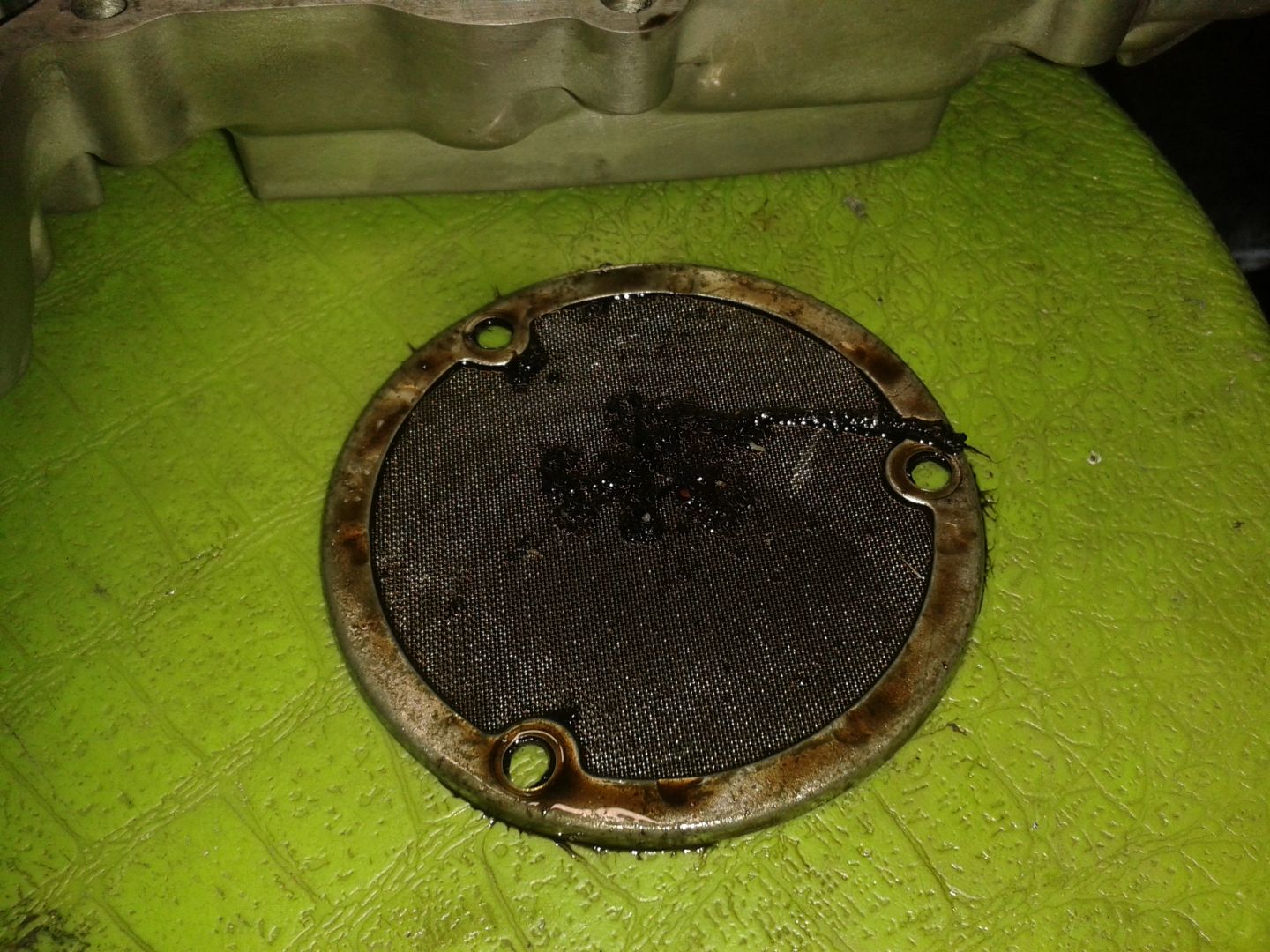

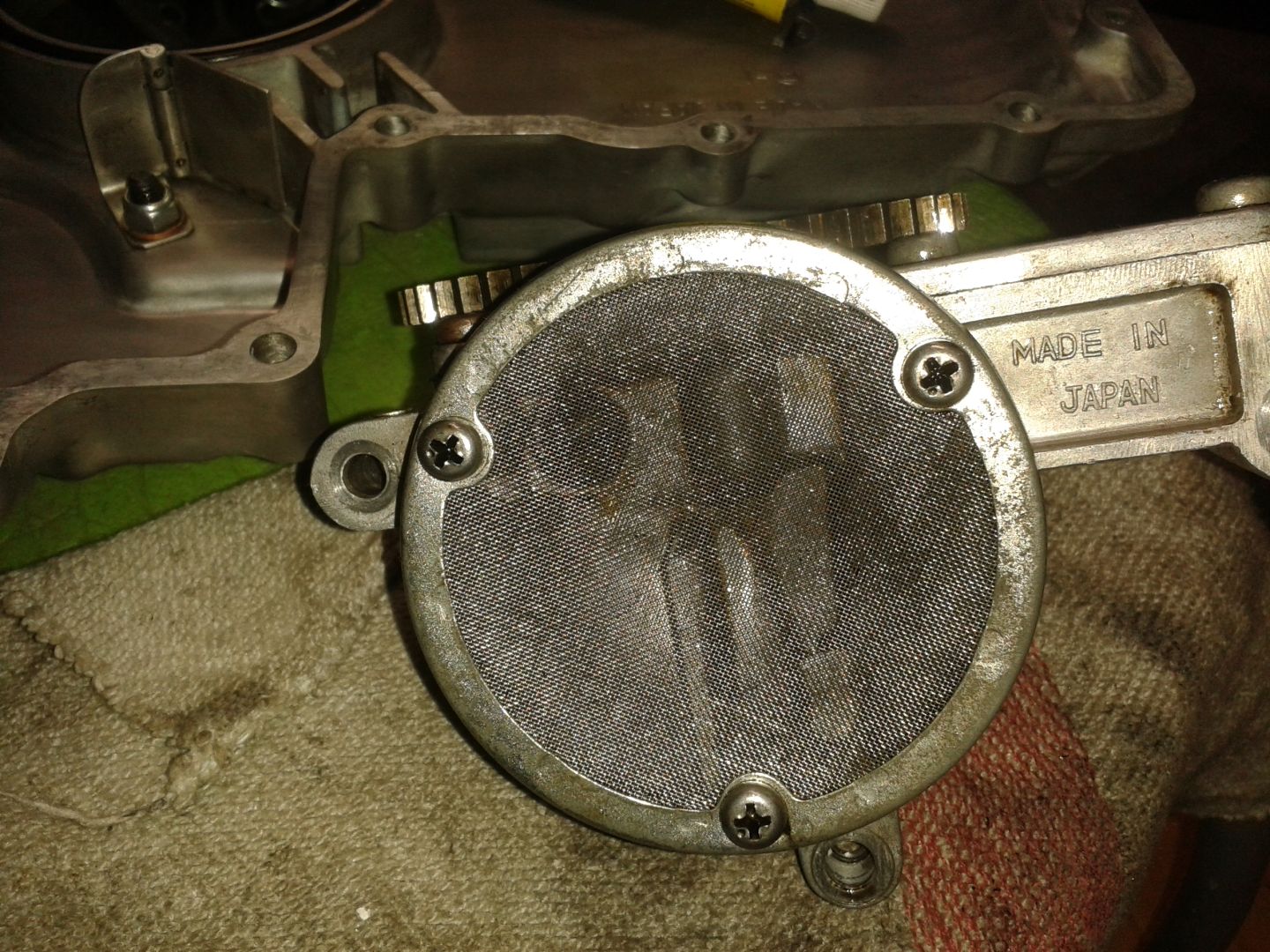

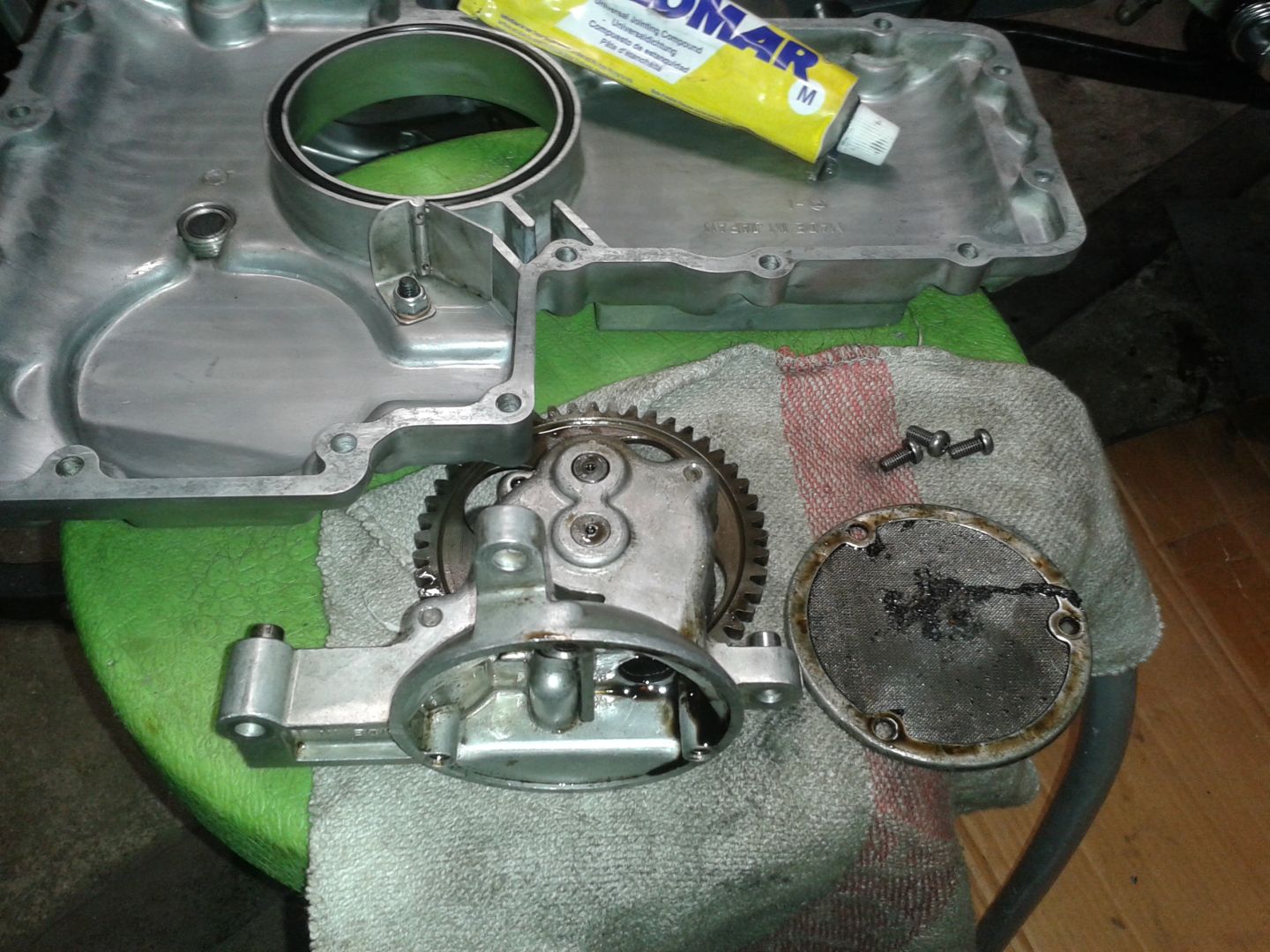

Remove the oil pump screen to remove gasket residues

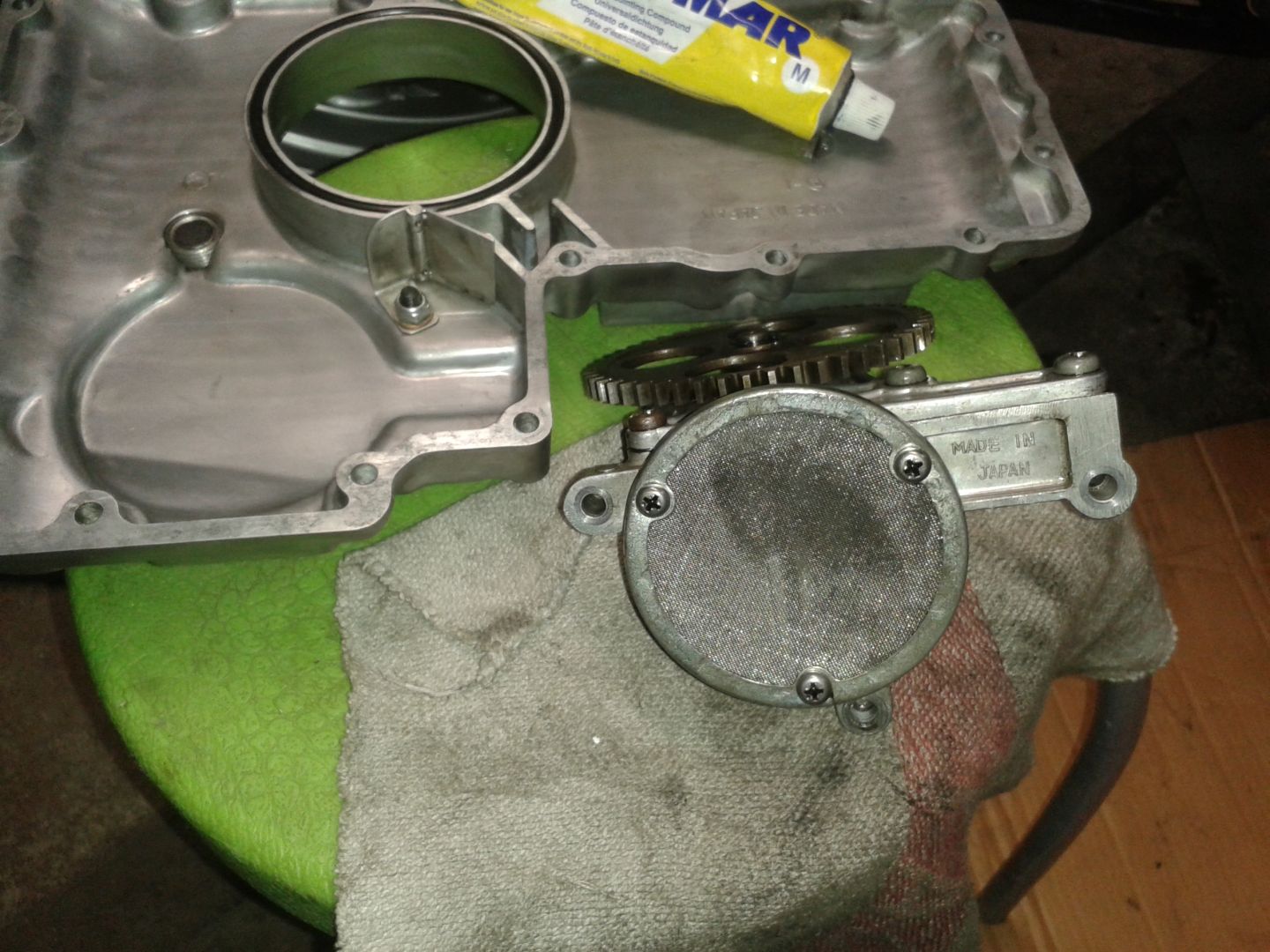

Everything clean now and ready to go back into the engine


Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 26 Jun 2018 14:33 #785932

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

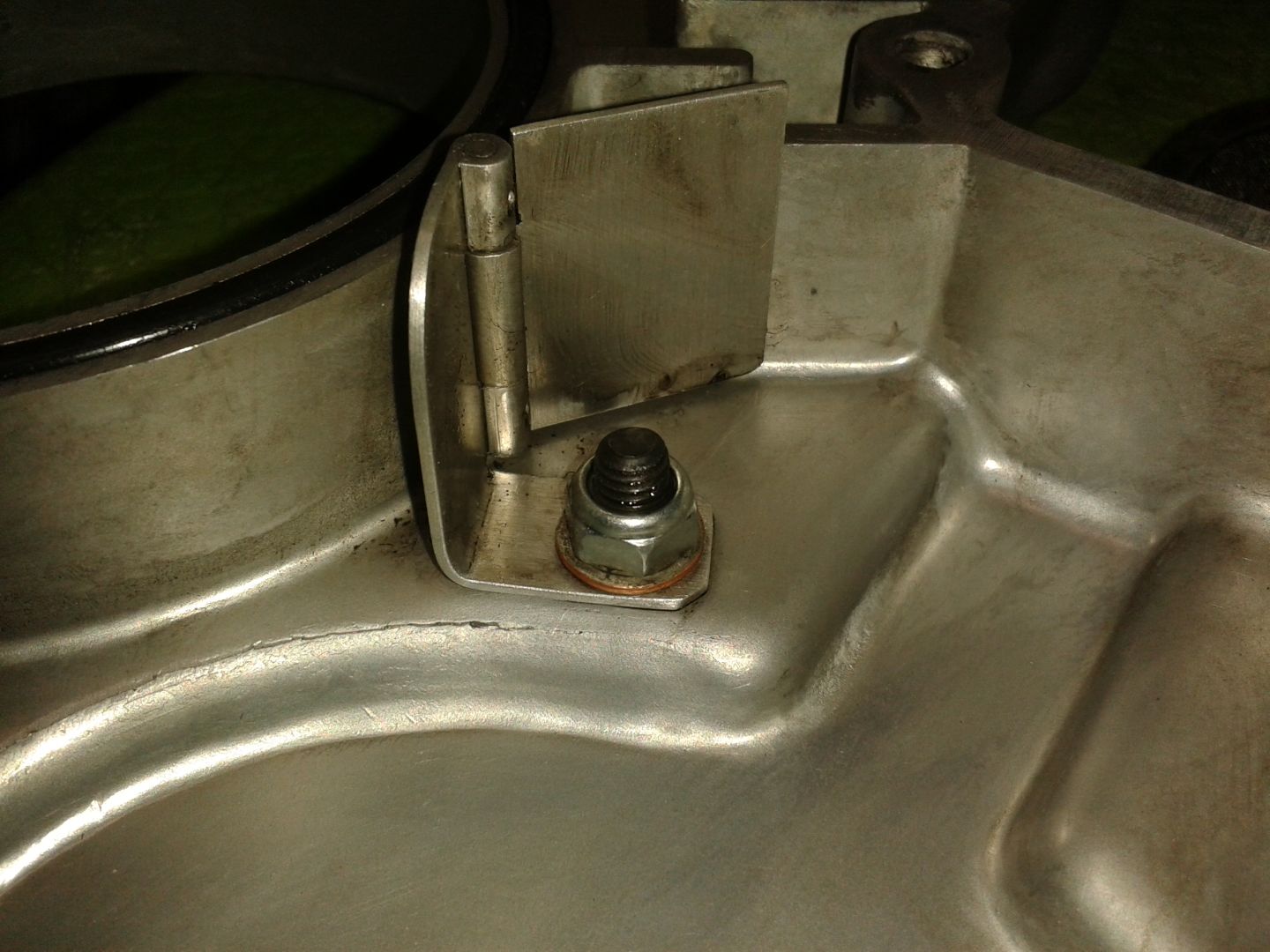

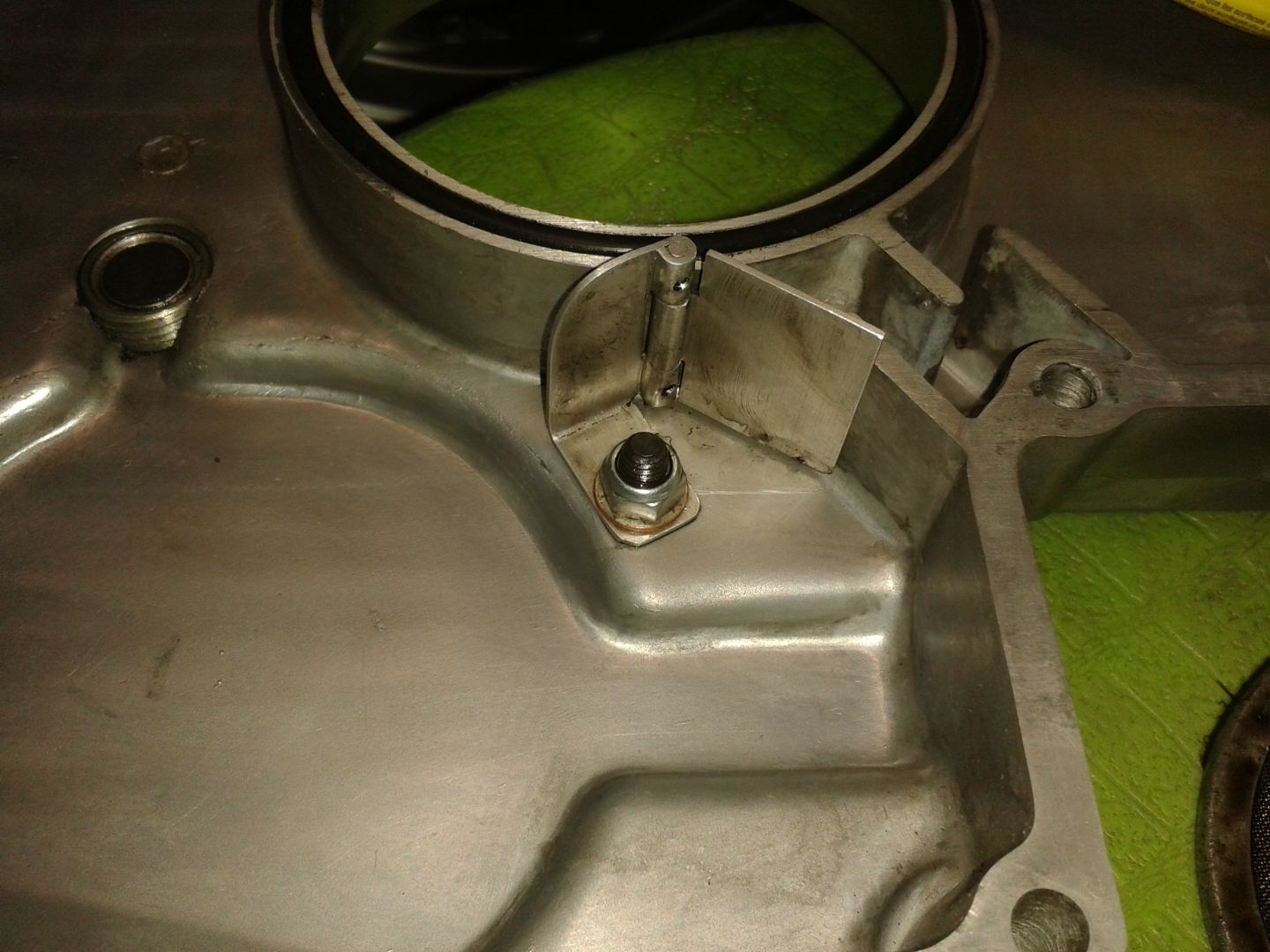

BTW, the oil pan swing door mod i have done 20 years ago.




Michael
Attachments:
The following user(s) said Thank You: loudhvx, DOHC

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 20 Jul 2018 10:39 #787272

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 788
  • Thank you received: 21

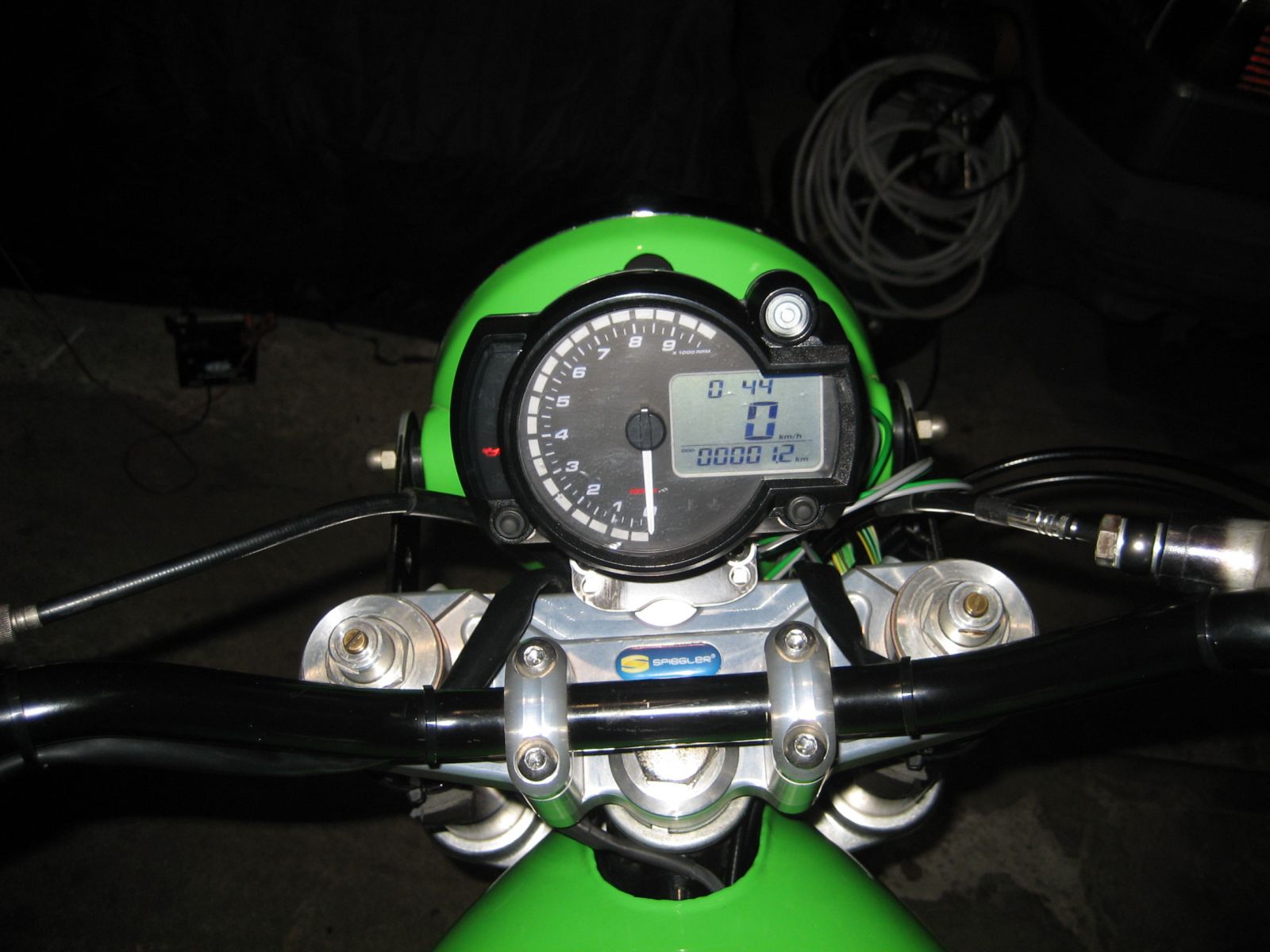

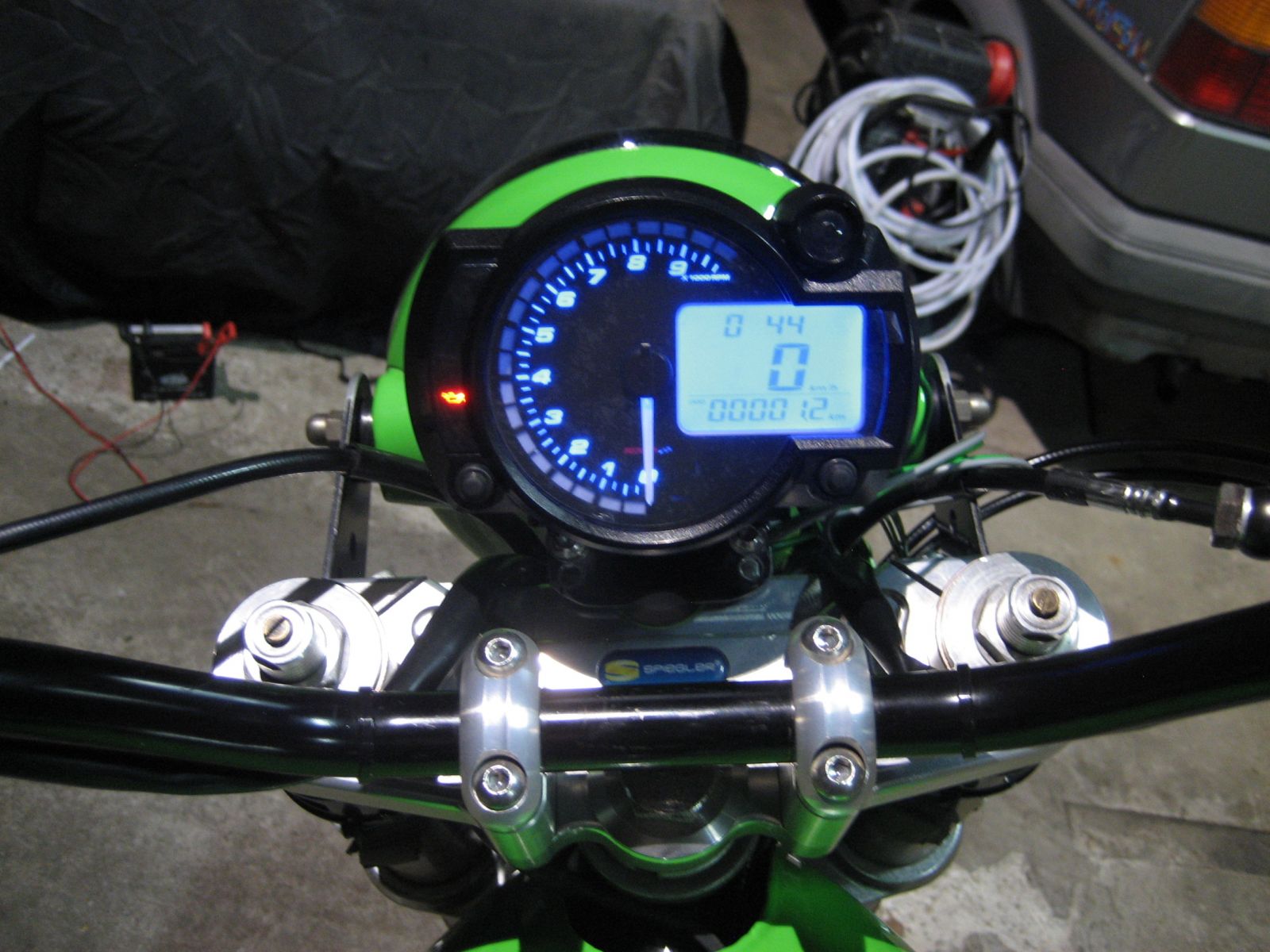

Scirocco wrote: KOSO mounted and ready for the adjustments.



Enjoy reading through your project :)

Are you happy with the spedo?
Do you have a link to where it can be purchased?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 20 Jul 2018 13:09 #787284

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
After a long try and error puzzling to get an accurate rev signal and a steady needle (DYNA III), i am very happy with my KOSO RX2N+ GP

kzrider.com/forum/4-electrical/607690-de...hometer?limitstart=0

I pay 210 EURO on evil-bay for myKOSO RX2N+ GP
You can get the  KOSO RX2N+ GP three rpm versions.
0 to 10000 rpm /  0 to 16000 rpm / 0 to 20000 rpm

A cheap Chinese copy of the  KOSO RX2N+ GP called SS182 was sold on amazon/aliexpress/ alibaba sometimes for 45 Euros but no thanks.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 29 Jul 2018 17:00 #787875

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

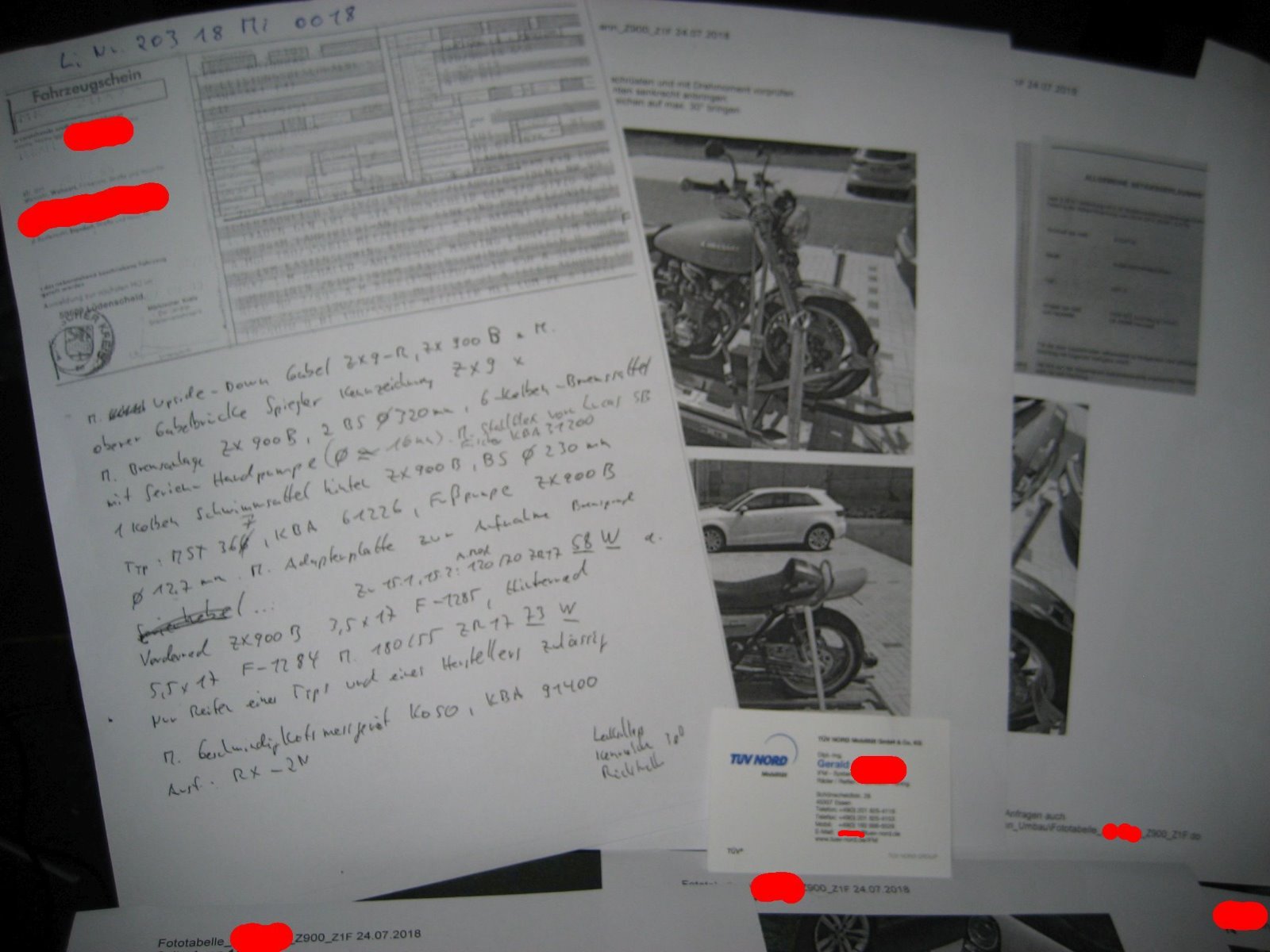

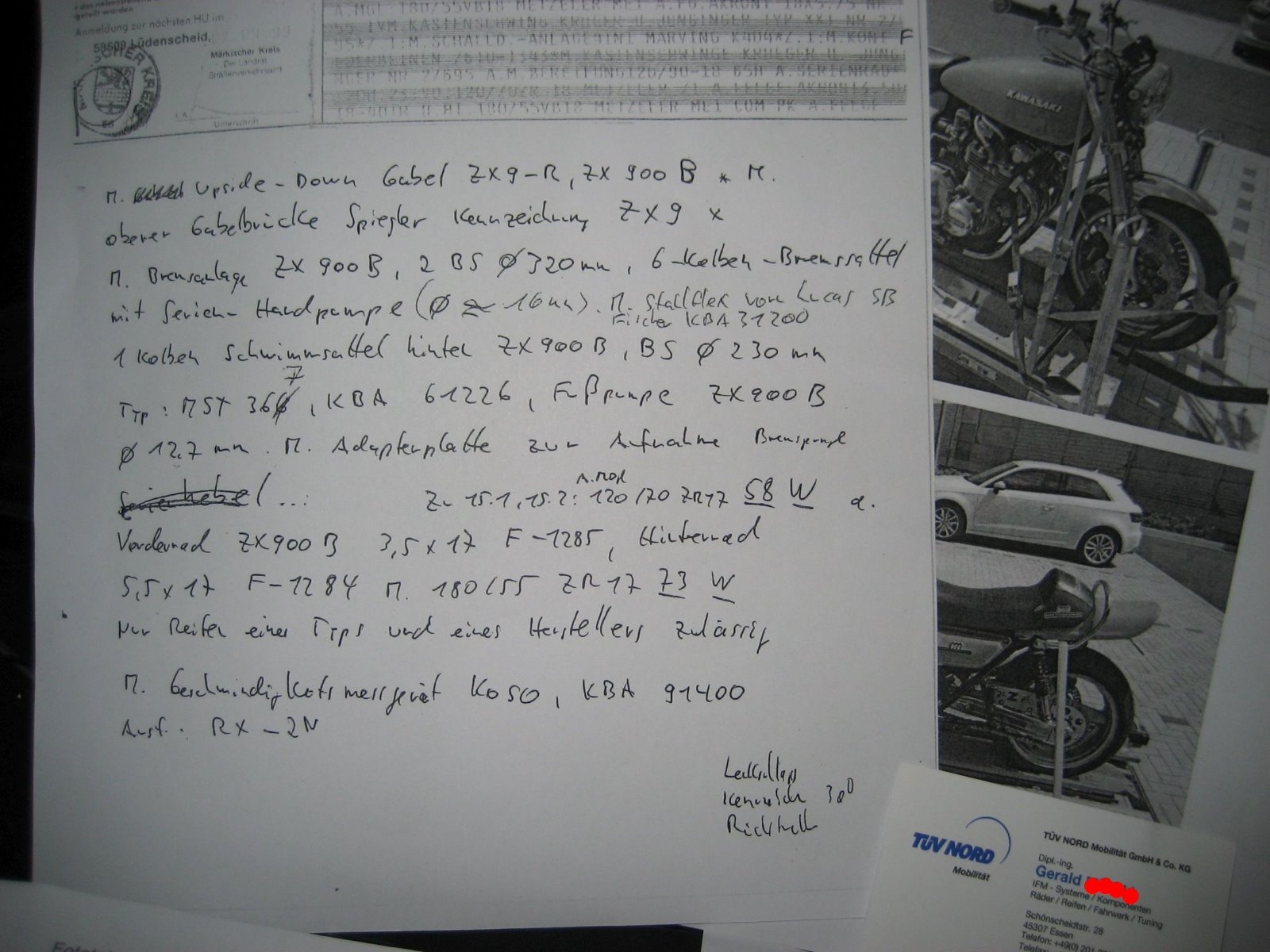

To refresh my bike build threat here some facts and paper work of my technical inspection/homologation and the technical report.
The testing engineer was impressed about the driving and cornering abilities of my bike! He said he never think about it and have driven an old modified bike like this!!!He took an 30 minutes test drive with all possible driving conditions with a full safety clothing on a +37 Celsius afternoon.I thought after 15 minutes he wrecked my bike/engine, (high speed highway was 200 meters away).
But to complete my technical inspection for street legal use i need an anti theft steering look. He made a 16 page report with pics of the ZX9R parts for the data base and say i have to come back with a steering lock to confirm my build steet legal for free of cost. It cost me 290 Euros for the 2 hour paperwork and test drive but i am happy with the result. A steering lock, a small step for me, a big step to go on the road street legal,hahahahaha!!!
Pics will follow....

Please Log in or Create an account to join the conversation.

Bike of the Month. 29 Jul 2018 18:41 #787881

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

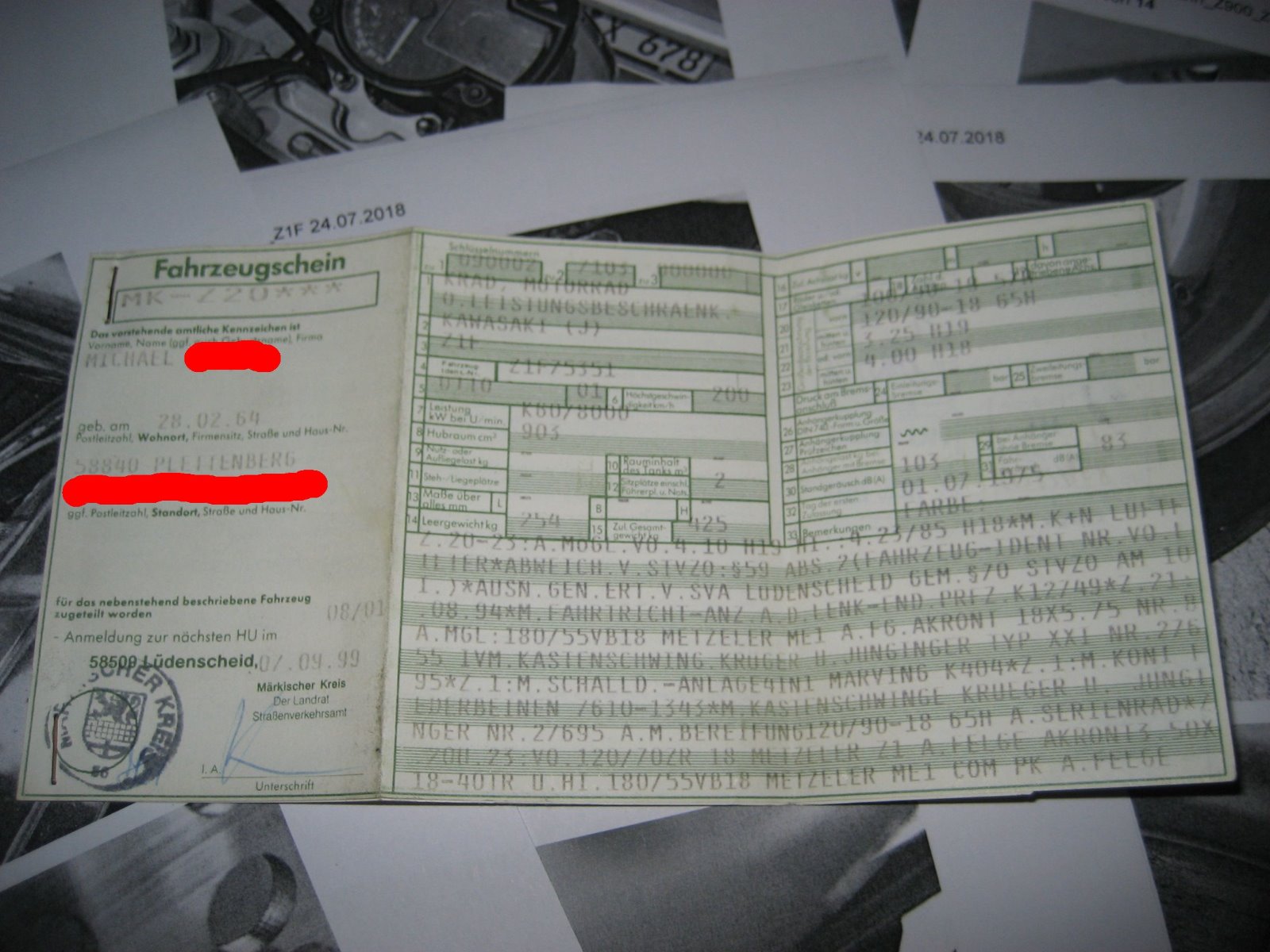

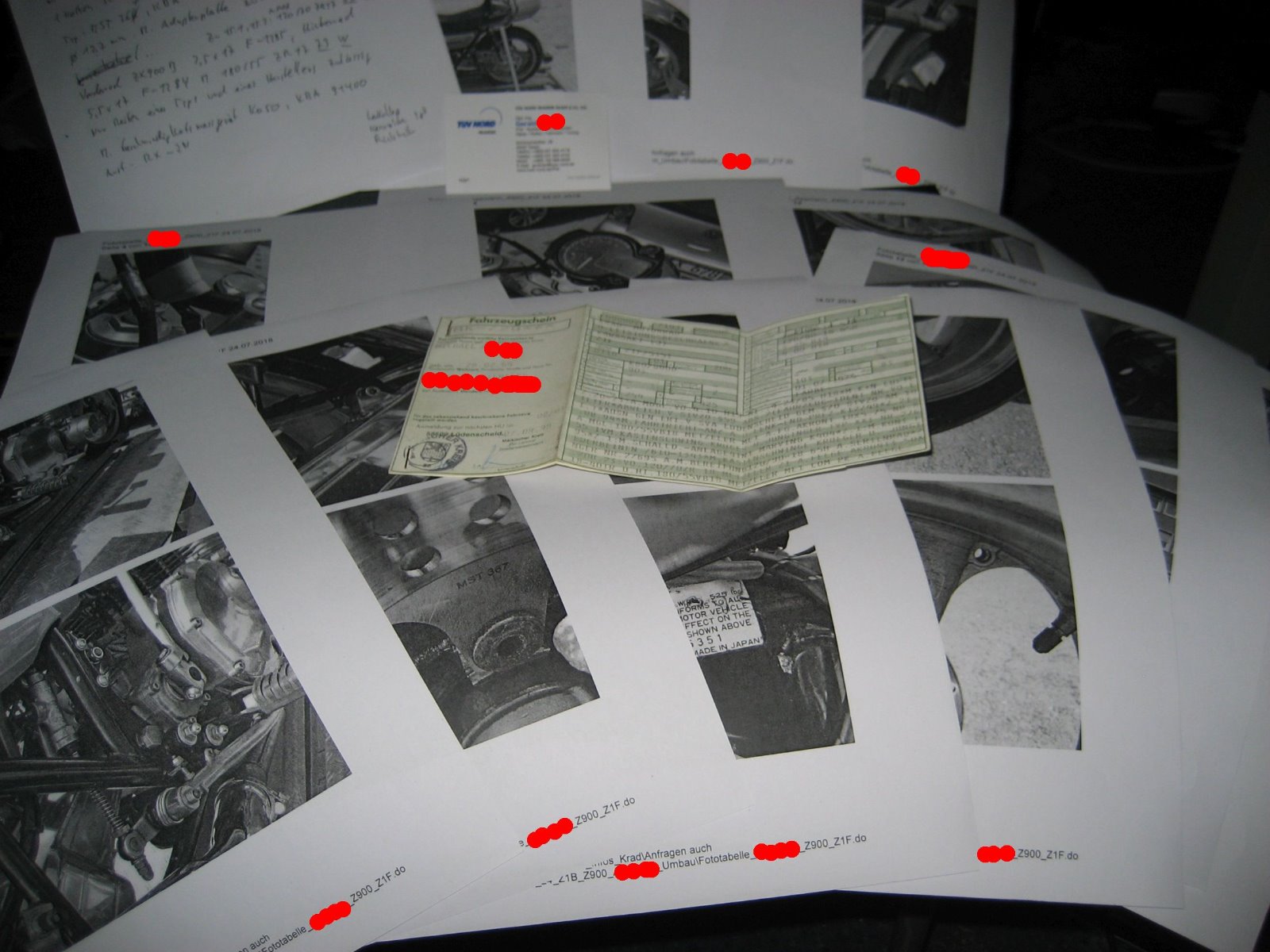

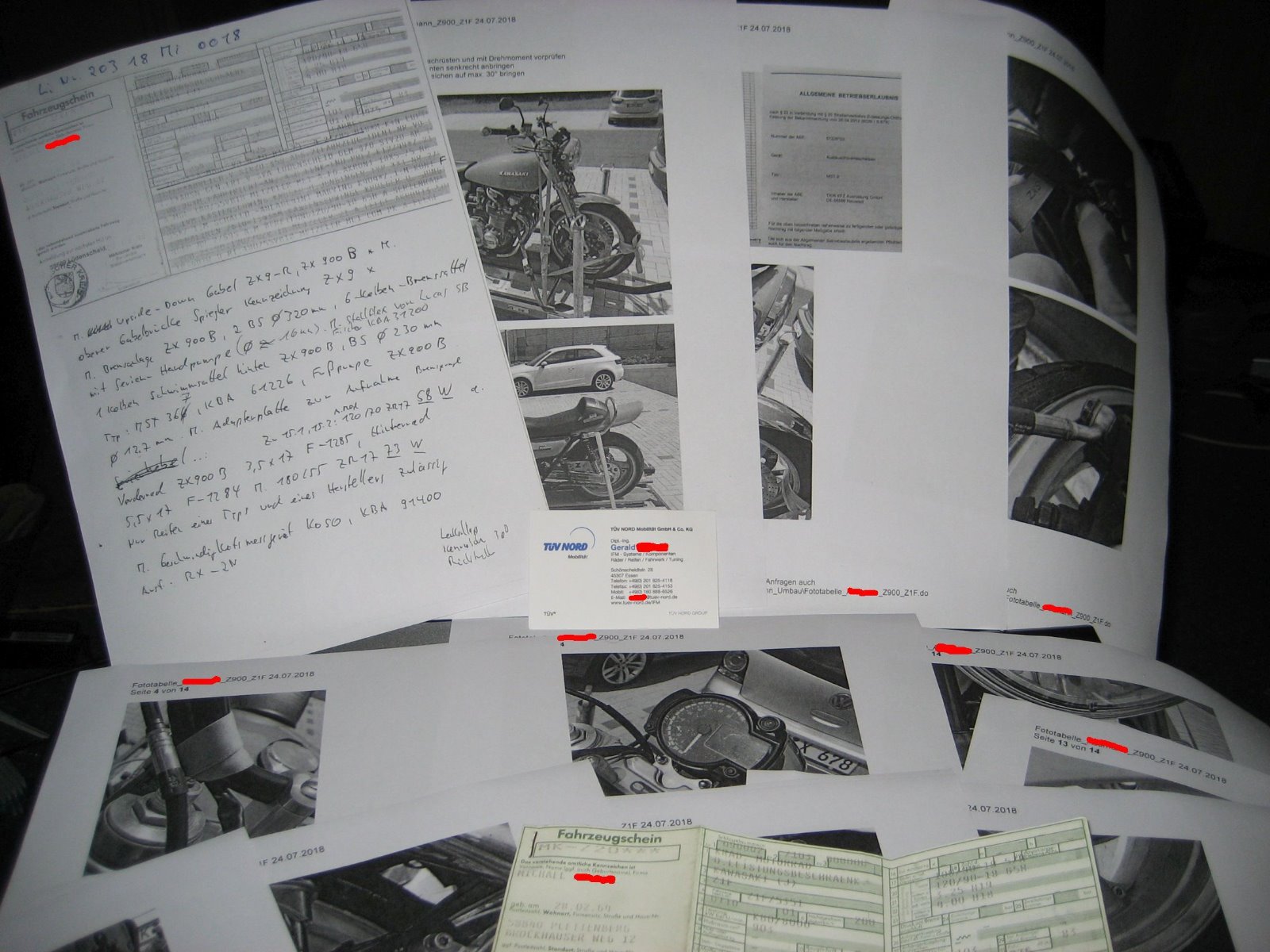

I know it´s boring for the US members but here is my paper work of the technical inspection/Homologation






Please Log in or Create an account to join the conversation.

Last edit: by SWest.

New rebuild after 10 years "deep sleep" mode 01 Dec 2018 14:29 #794452

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
Some little news to my project bike.
I could not resist and have to buy some parts for the long winter evenings.

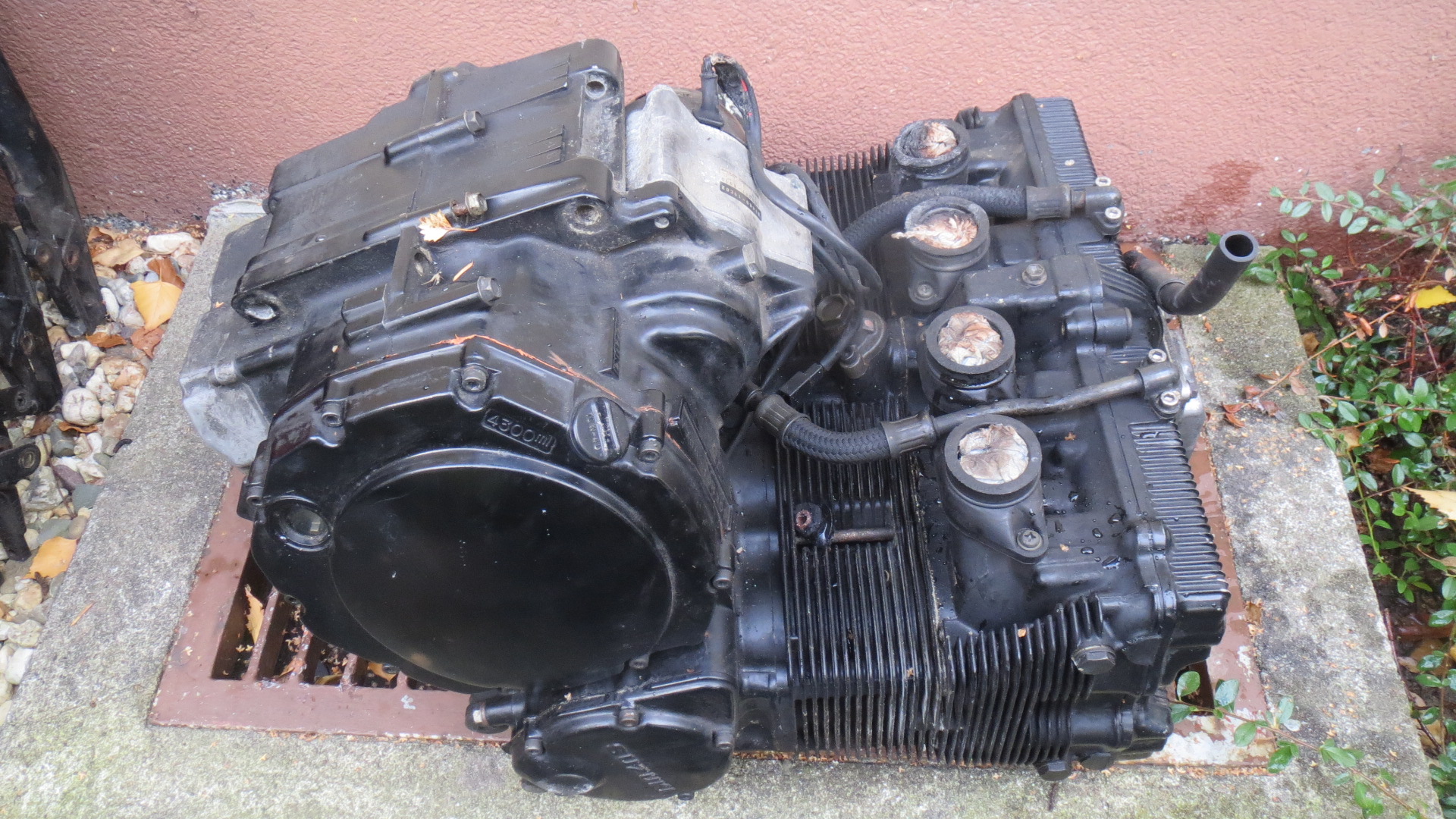

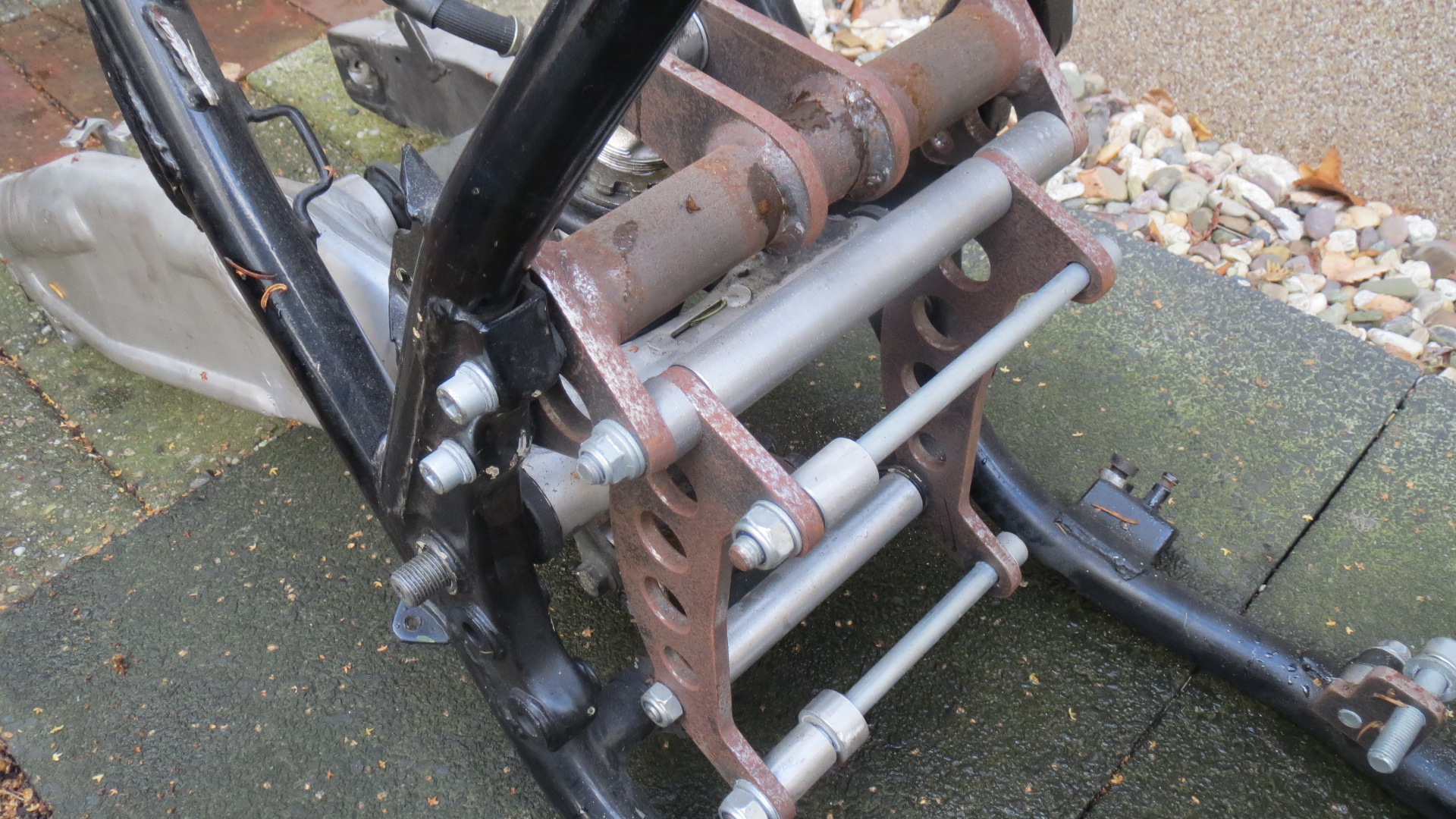

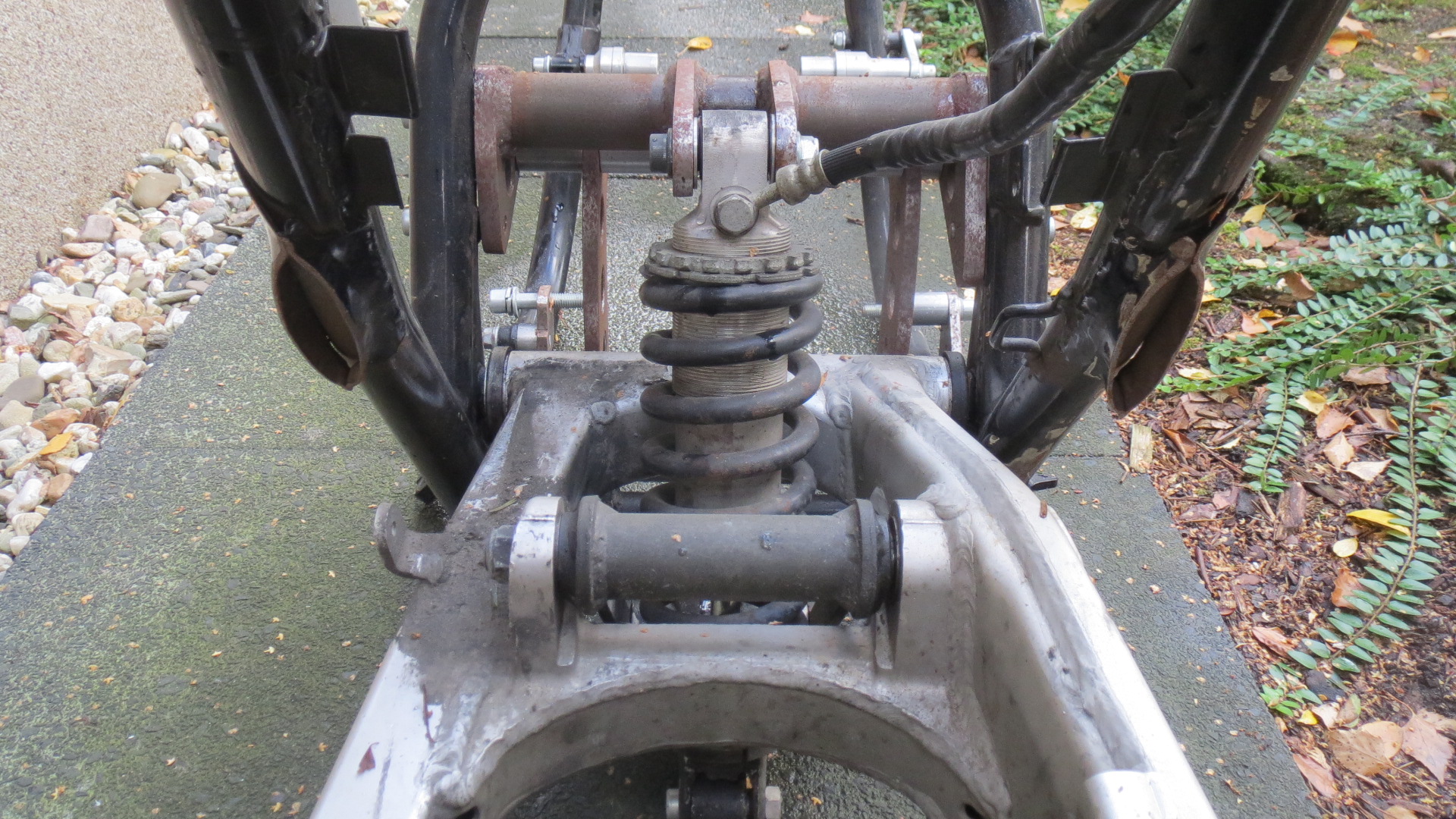

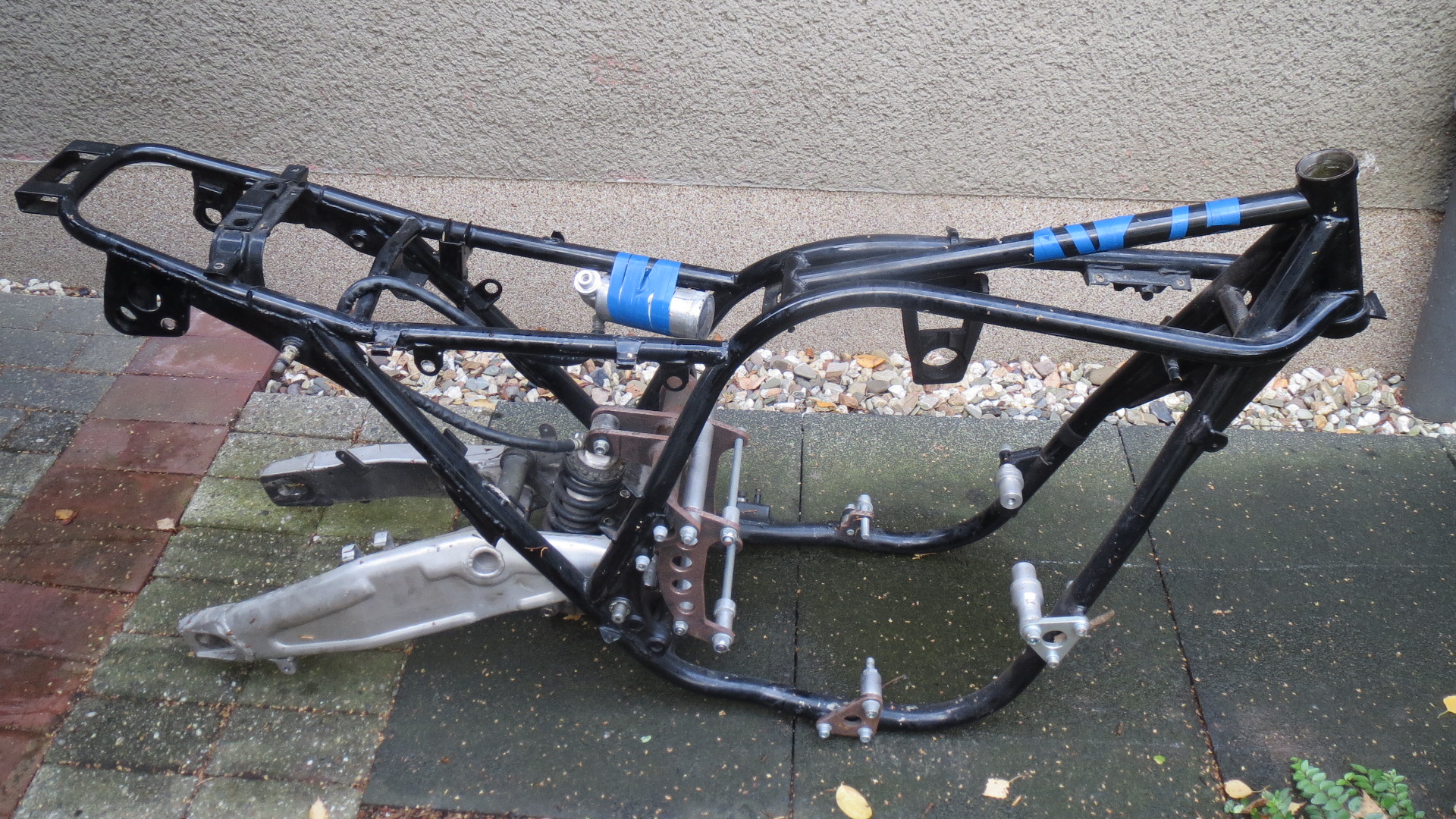

Bought a mono swing arm/Susuki motor frame conversion kit,Kawasaki frame bracing kit and a gsxr 1100 Motor for 250 Euro from Z-Fever.de.
Does anyone know if it is worth to do a engine swap like this???
I need some opinions.





Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 02 Dec 2018 12:44 #794495

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1802
  • Thank you received: 277
Thats pretty cool and a great deal. the oil cooled GSXRs are well engineered engines. With some small mods the 1100 will make a real 140hp to the wheel! I imagine the biggest problem you will run into is how the flexible KZ frame deals with that huge increase in power. Frame brace kit is a good start but i would personally would go overboard and add extra bracing. Also, if possible, oversize the engine mounting bolts to tie it all together.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

New rebuild after 10 years "deep sleep" mode 12 Dec 2018 12:17 #795028

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

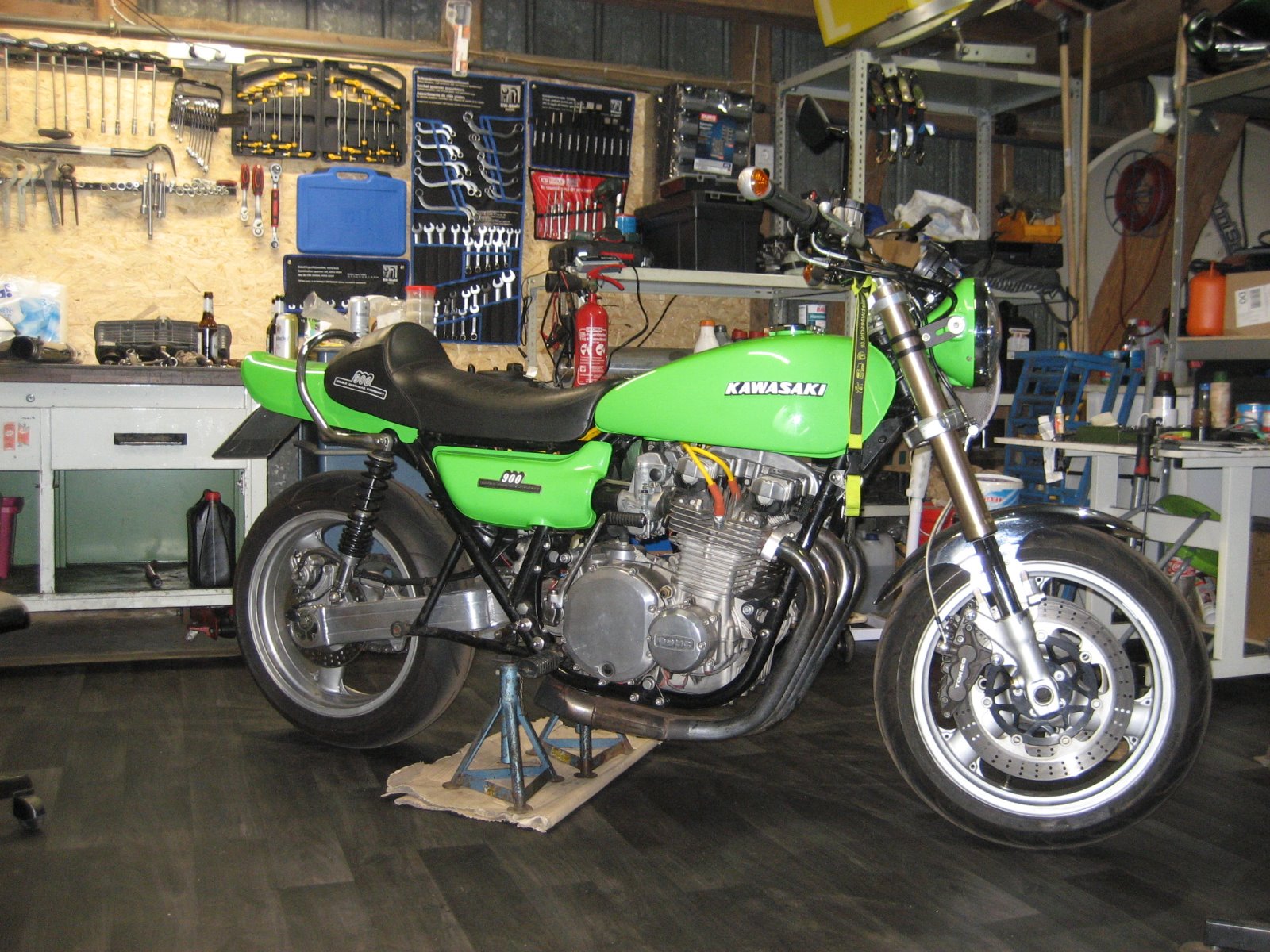

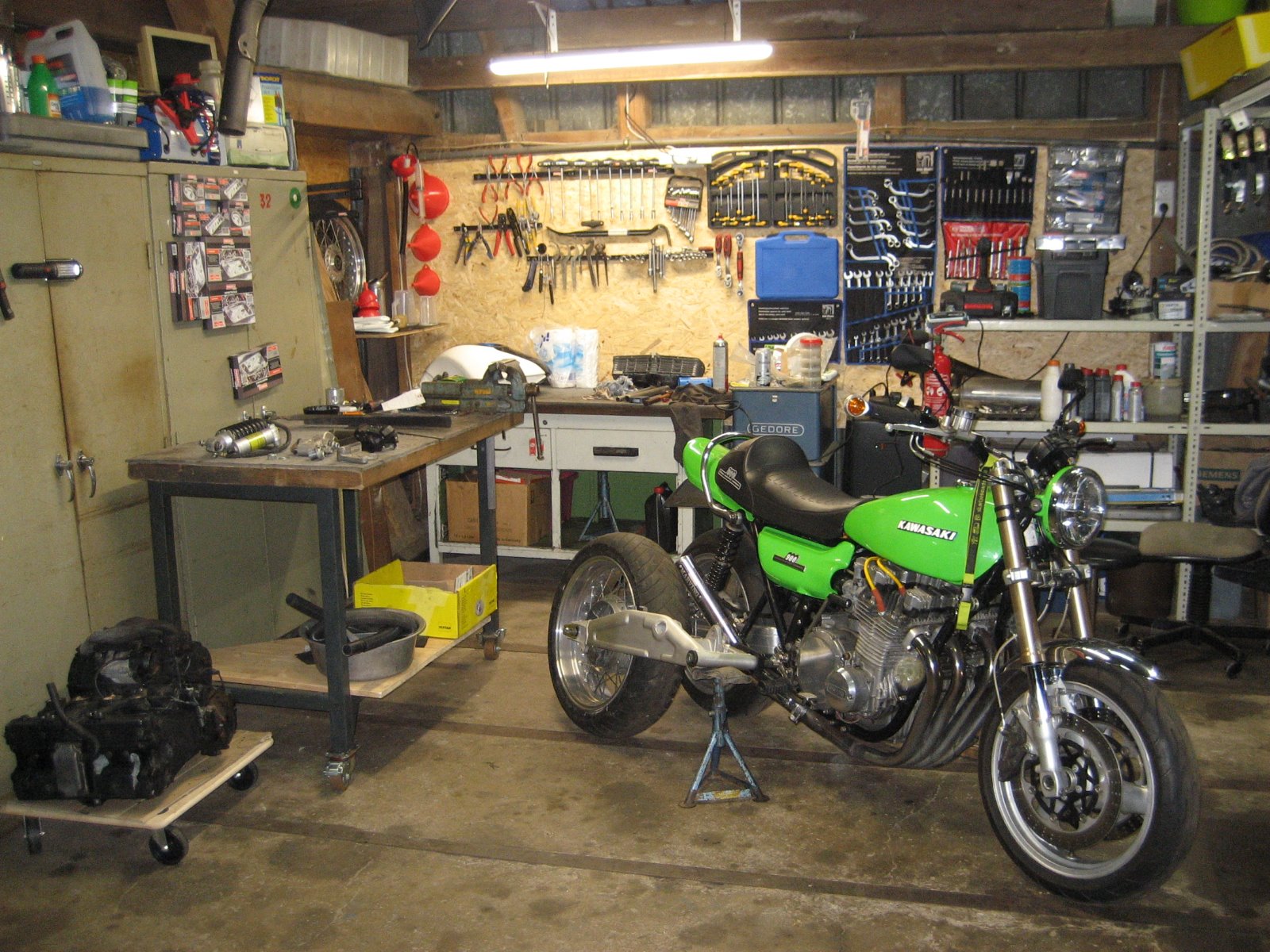

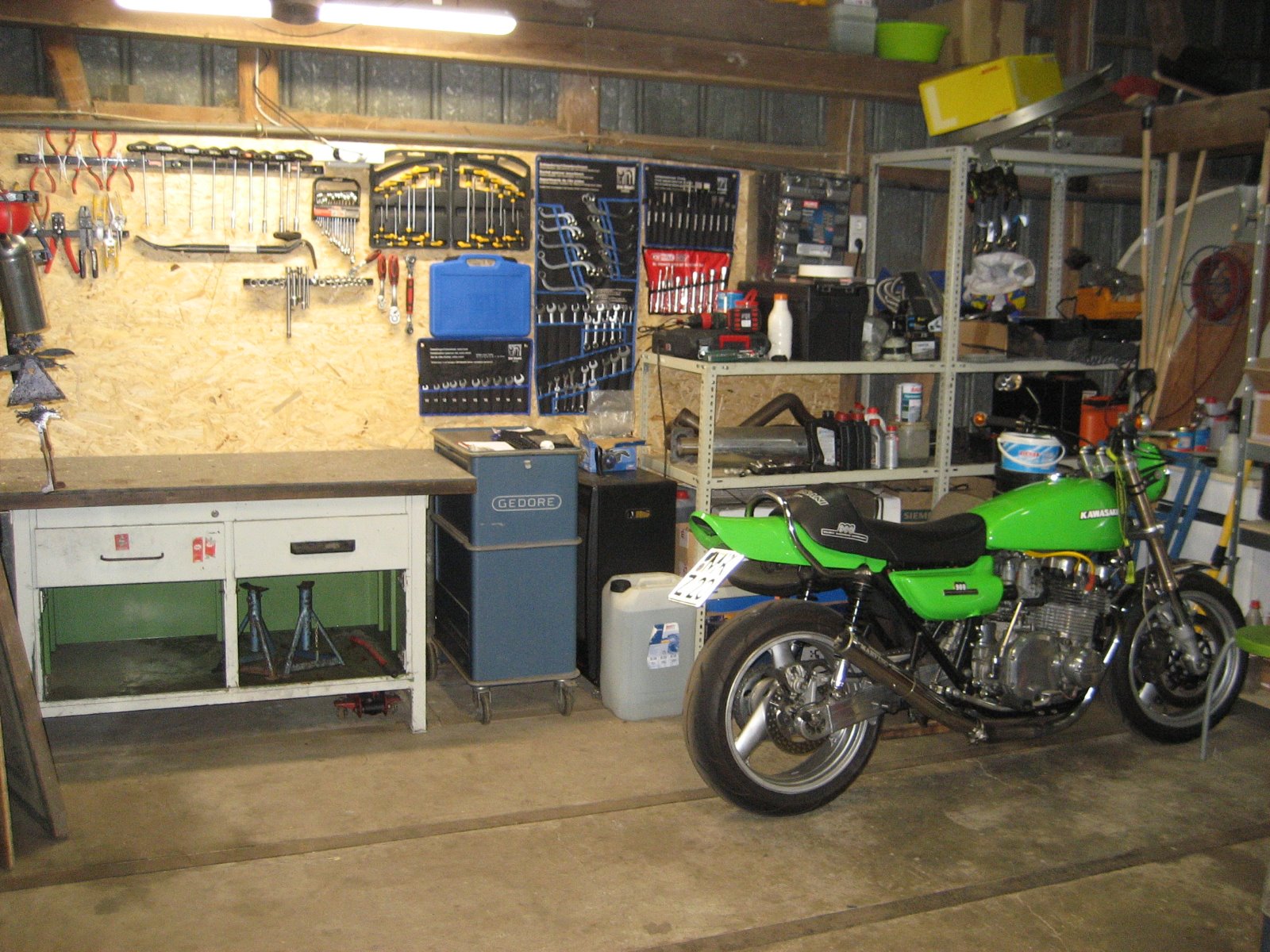

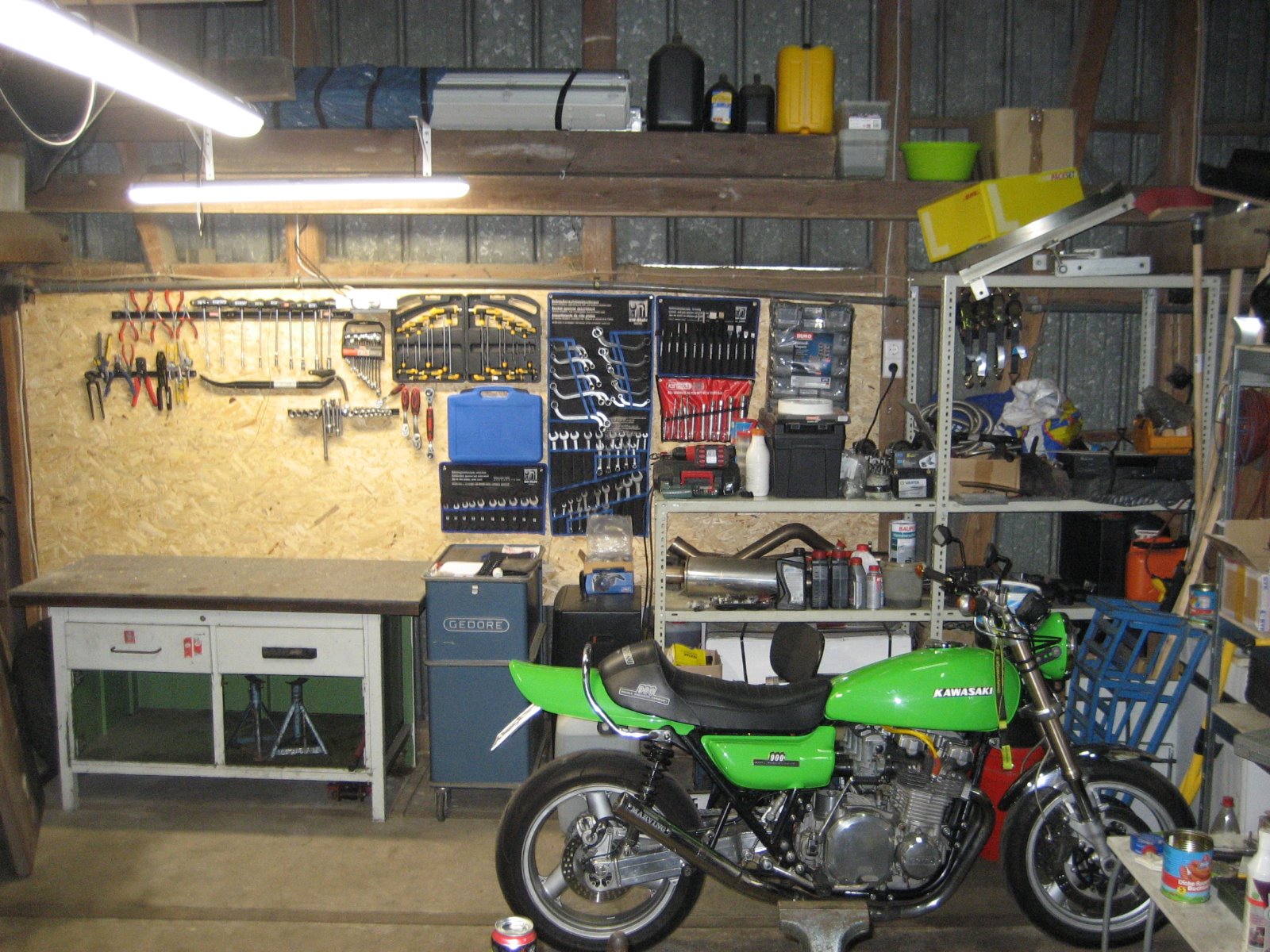

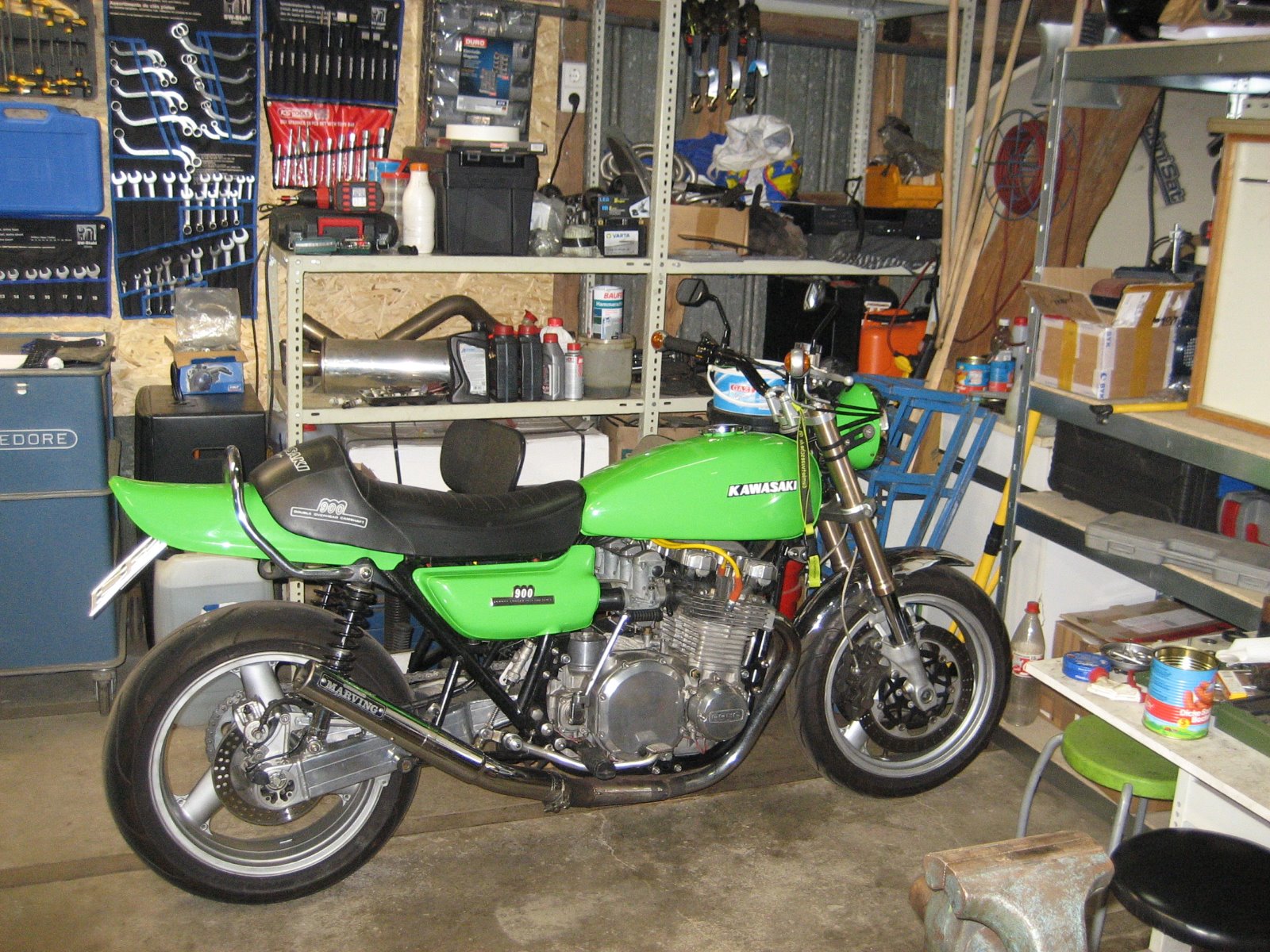

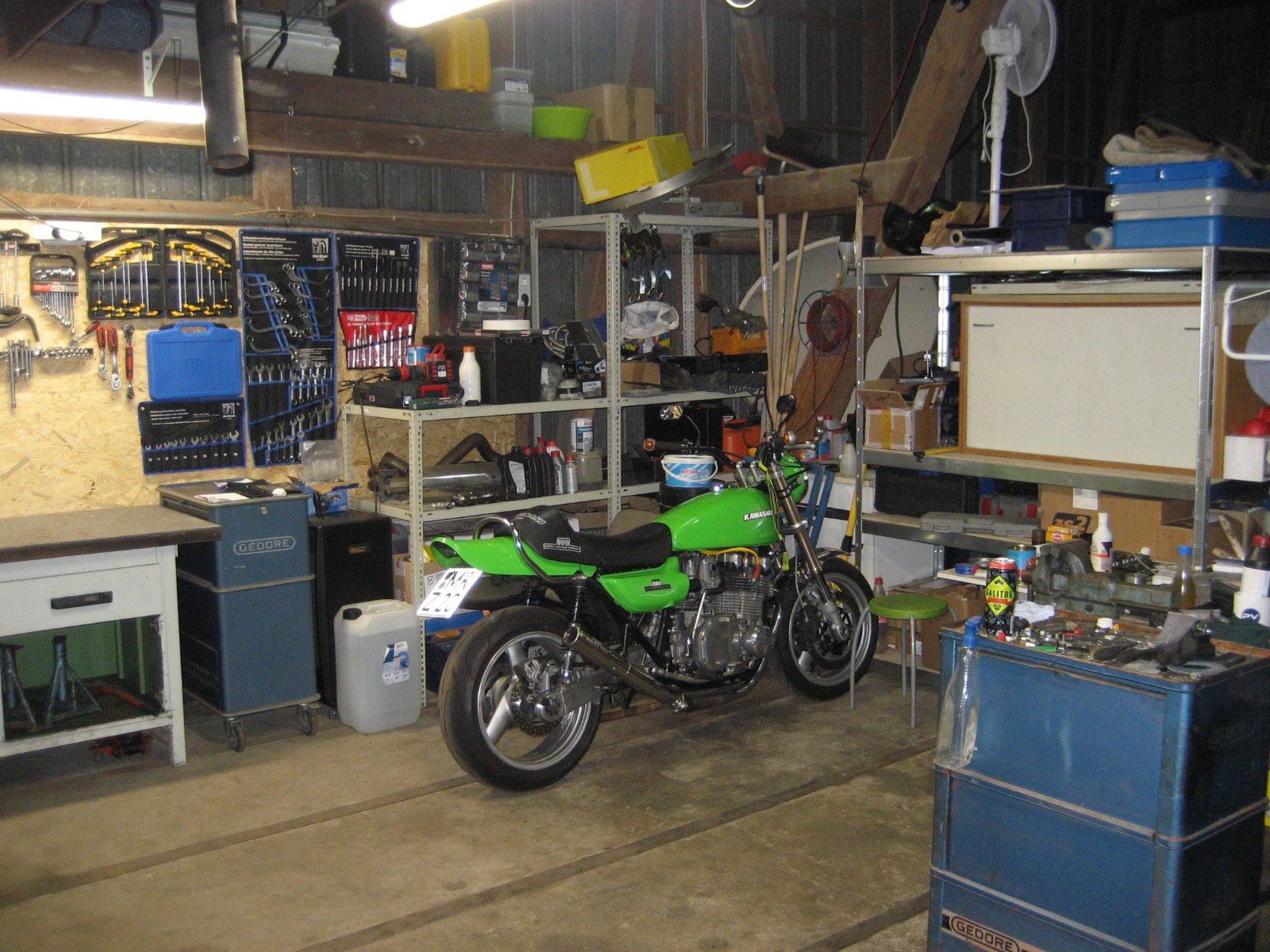

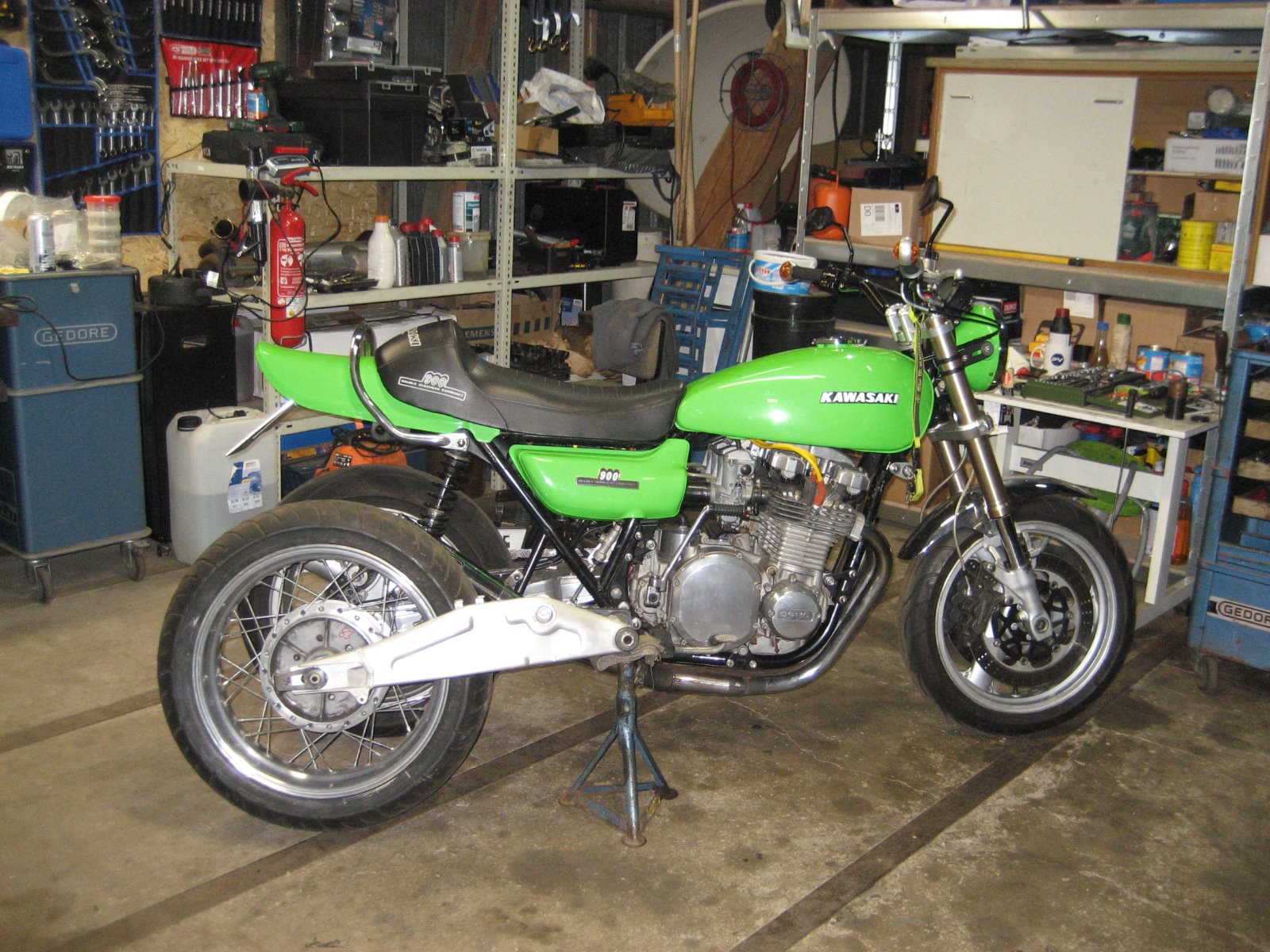

Made a big clean up and order, plus a tools upgrade for my man cave the last two weeks.




Attachments:

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 12 Dec 2018 12:25 #795030

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

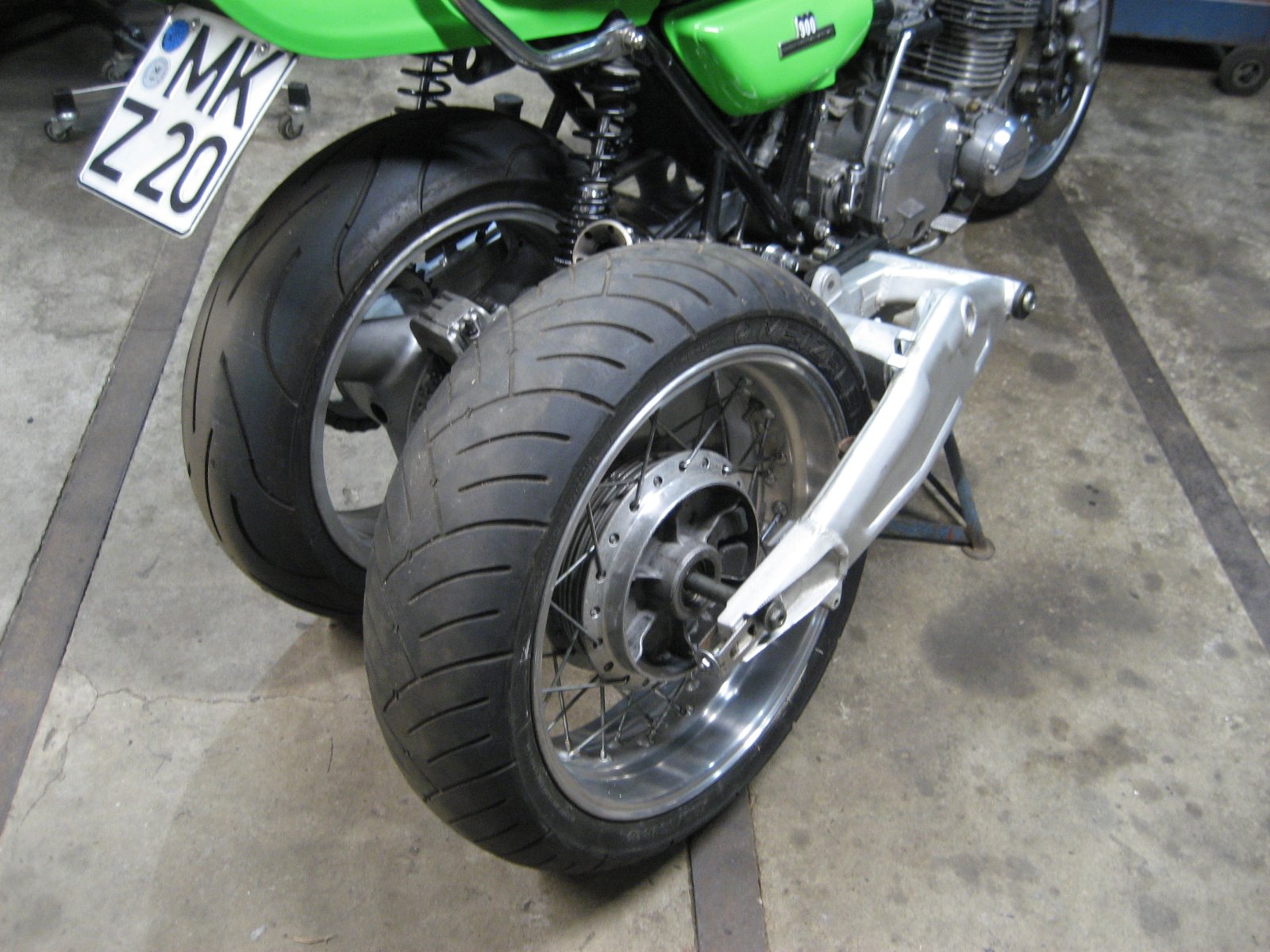

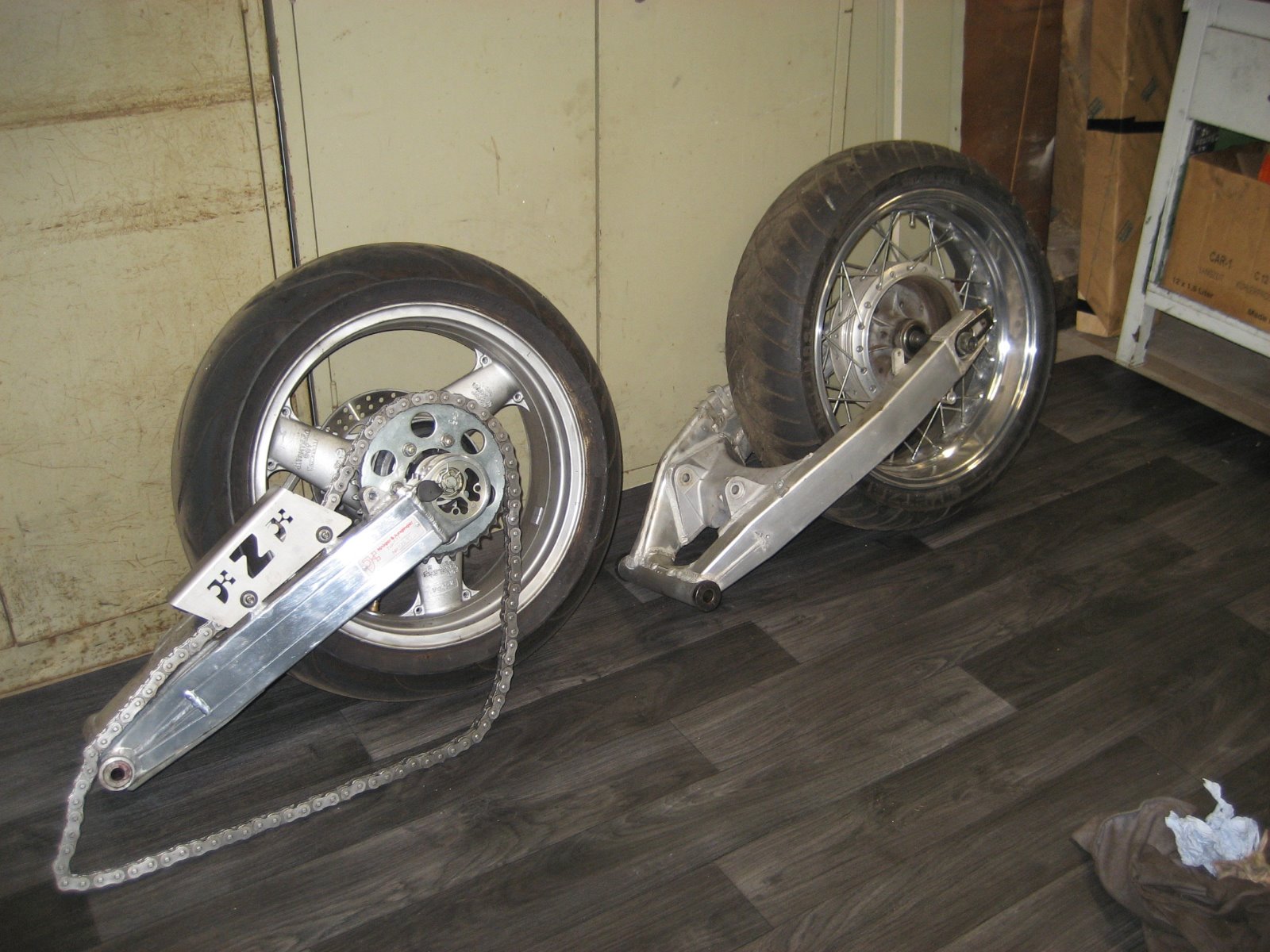

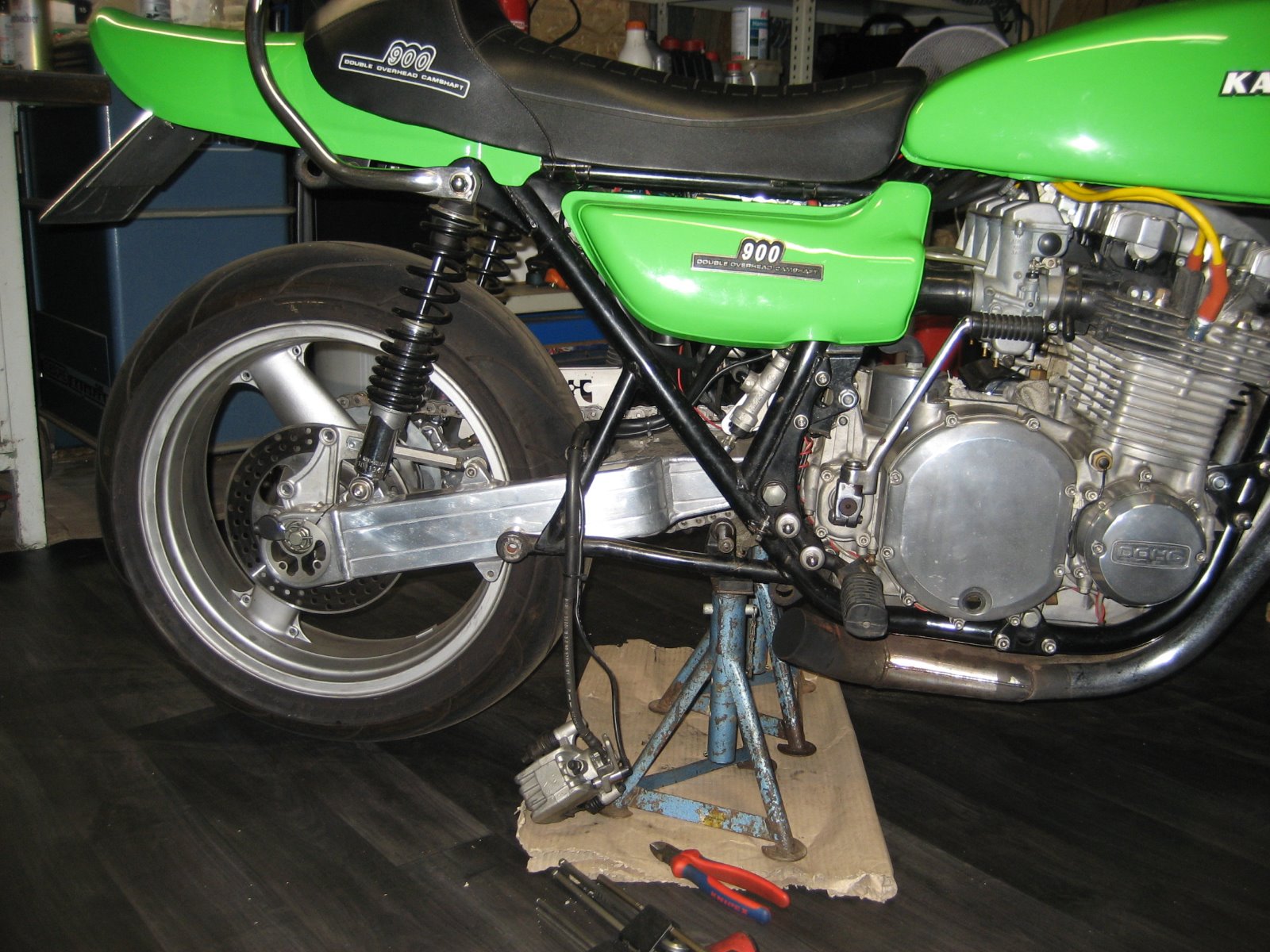

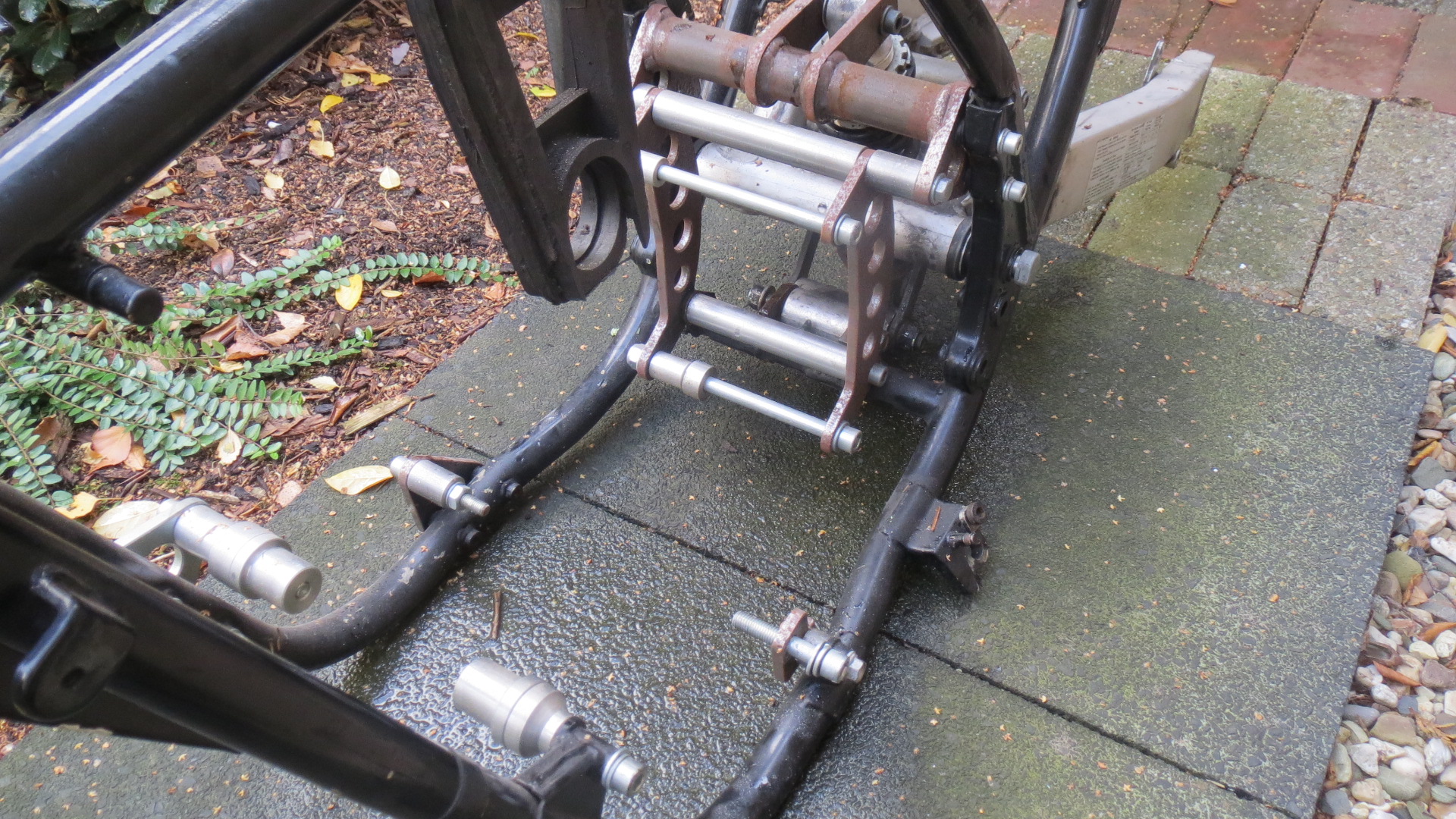

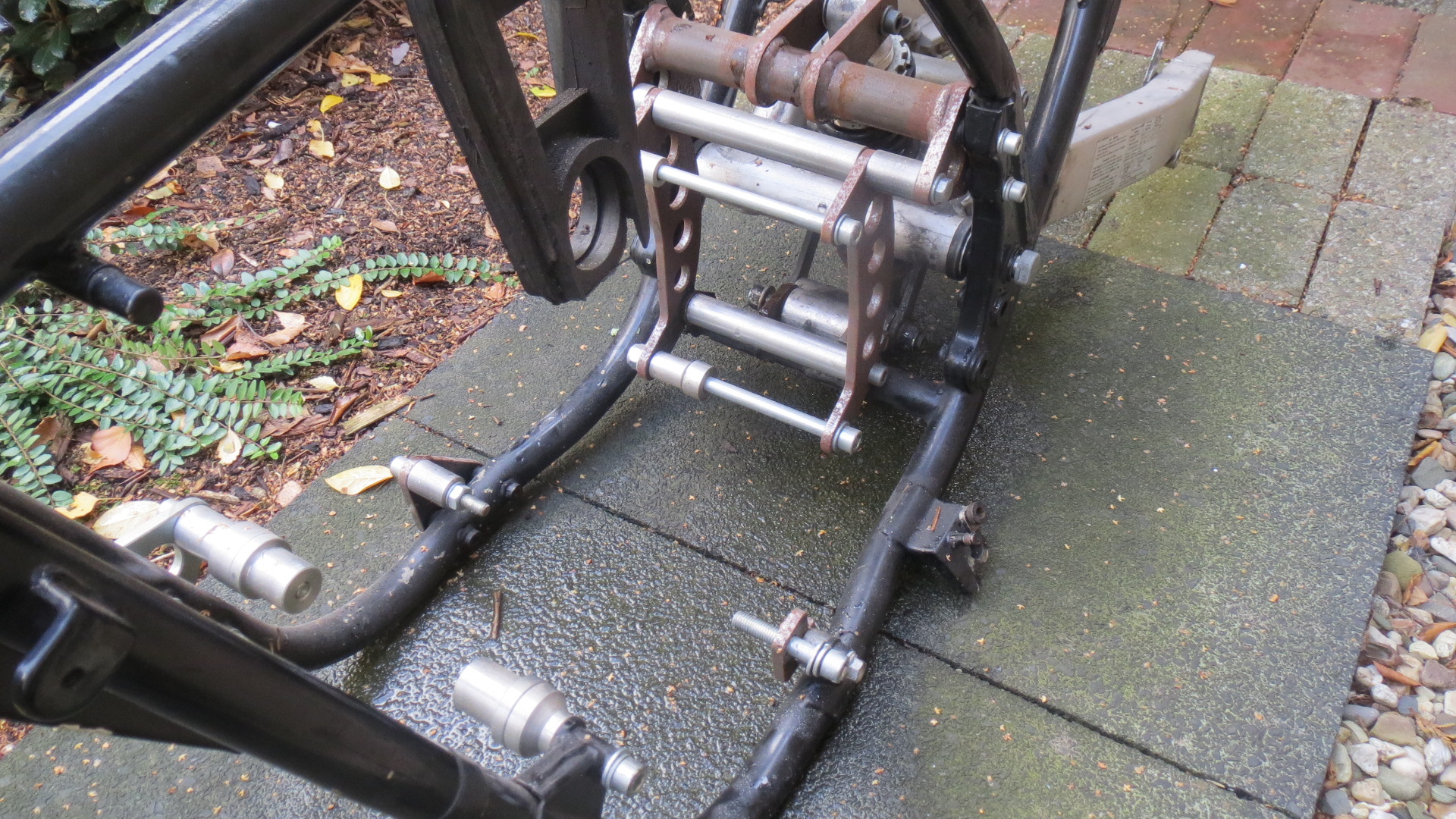

Do a quick mock up for my mono swing arm winter project yesterday.






Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 12 Dec 2018 12:41 #795033

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813

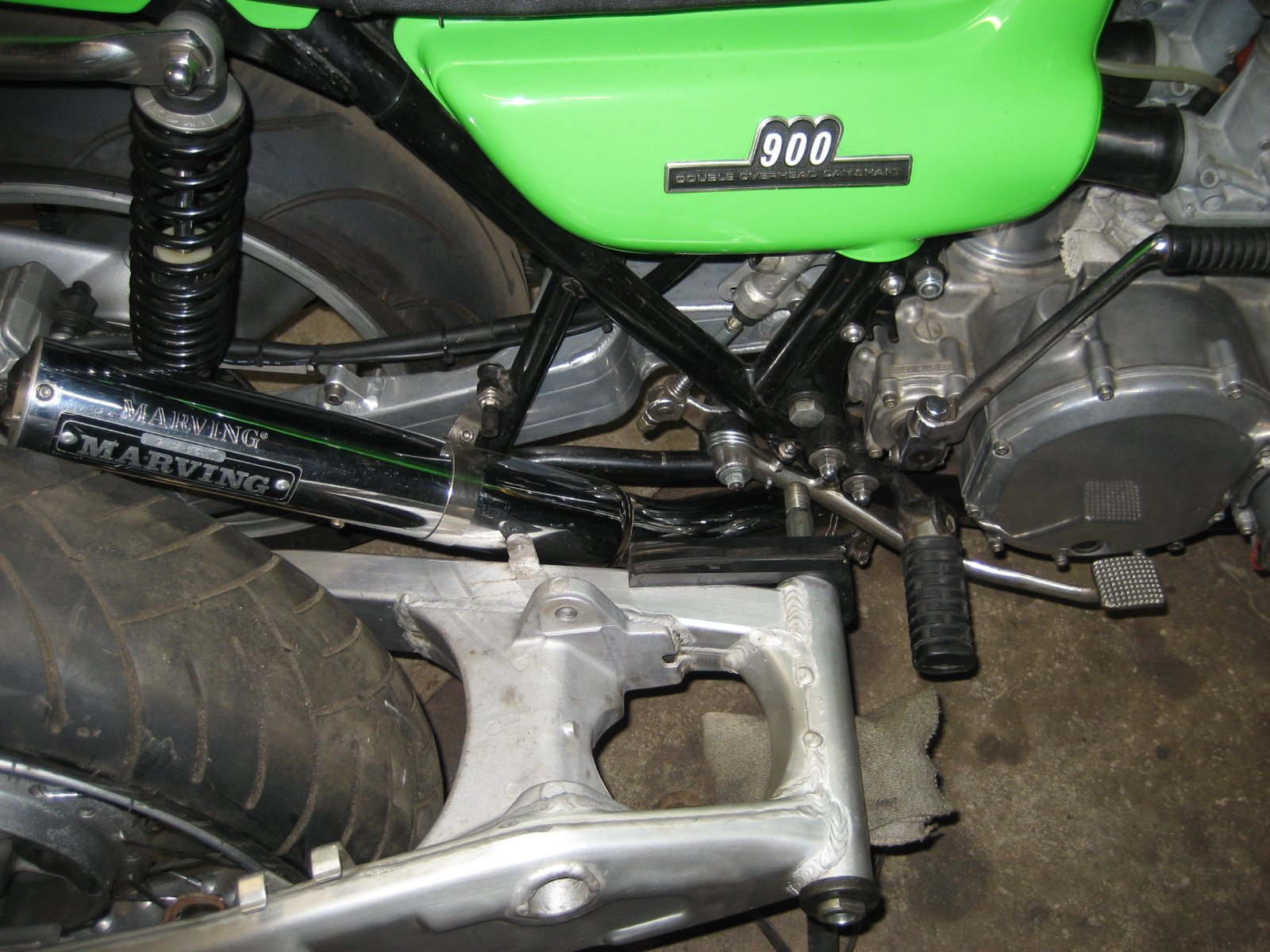

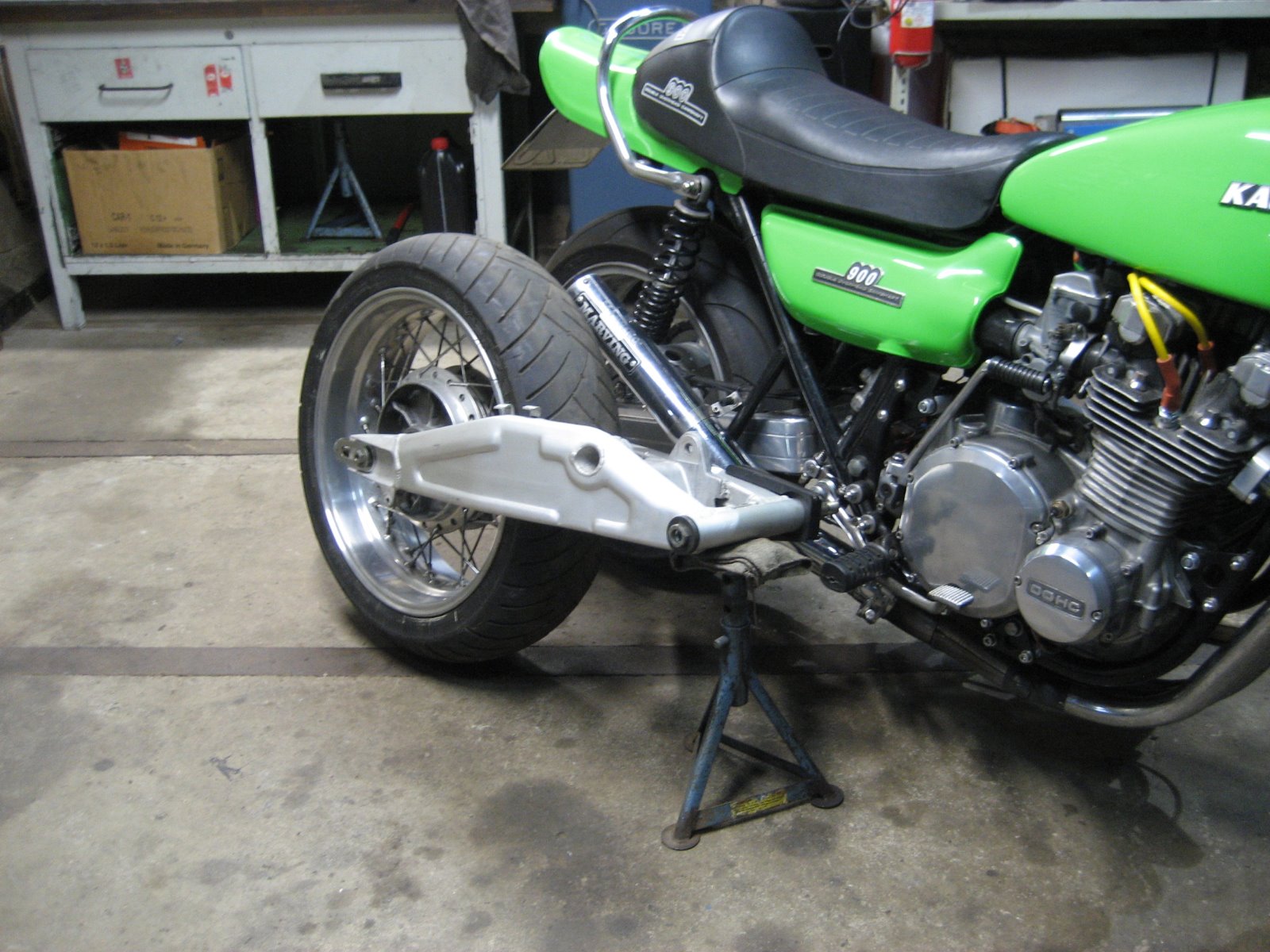

Remove my rear wheel and swing arm today.
Took me one hour to remove all necessary parts.







Should i or should i not go mono shock???

The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 12 Dec 2018 15:25 #795043

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 2639
  • Thank you received: 296
Very cool chainguard :cheer:

Nice work
1980 kz750E1, Delkevic exhaust

Please Log in or Create an account to join the conversation.

Last edit: by JR.

New rebuild after 10 years "deep sleep" mode 12 Dec 2018 15:55 #795044

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
The chain guard is not my work, and the "z K z" is the manufacturer logo of the excentric swing arm.

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

New rebuild after 10 years "deep sleep" mode 13 Dec 2018 13:15 #795100

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
I was very diligent today.
My heard was bleeding but have to do the final cut off to the hangers for the 4 in 4 and rear break pedal.

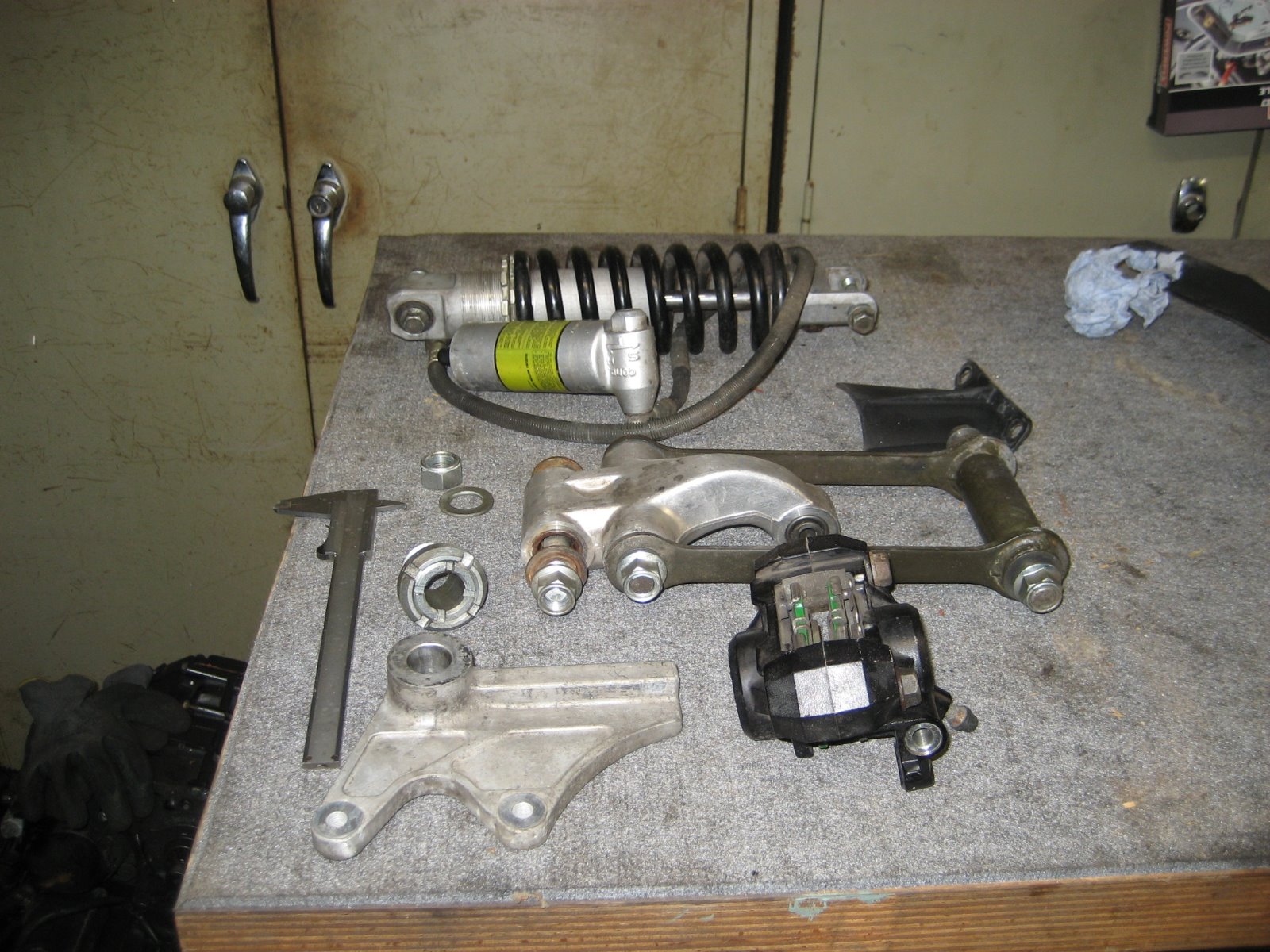

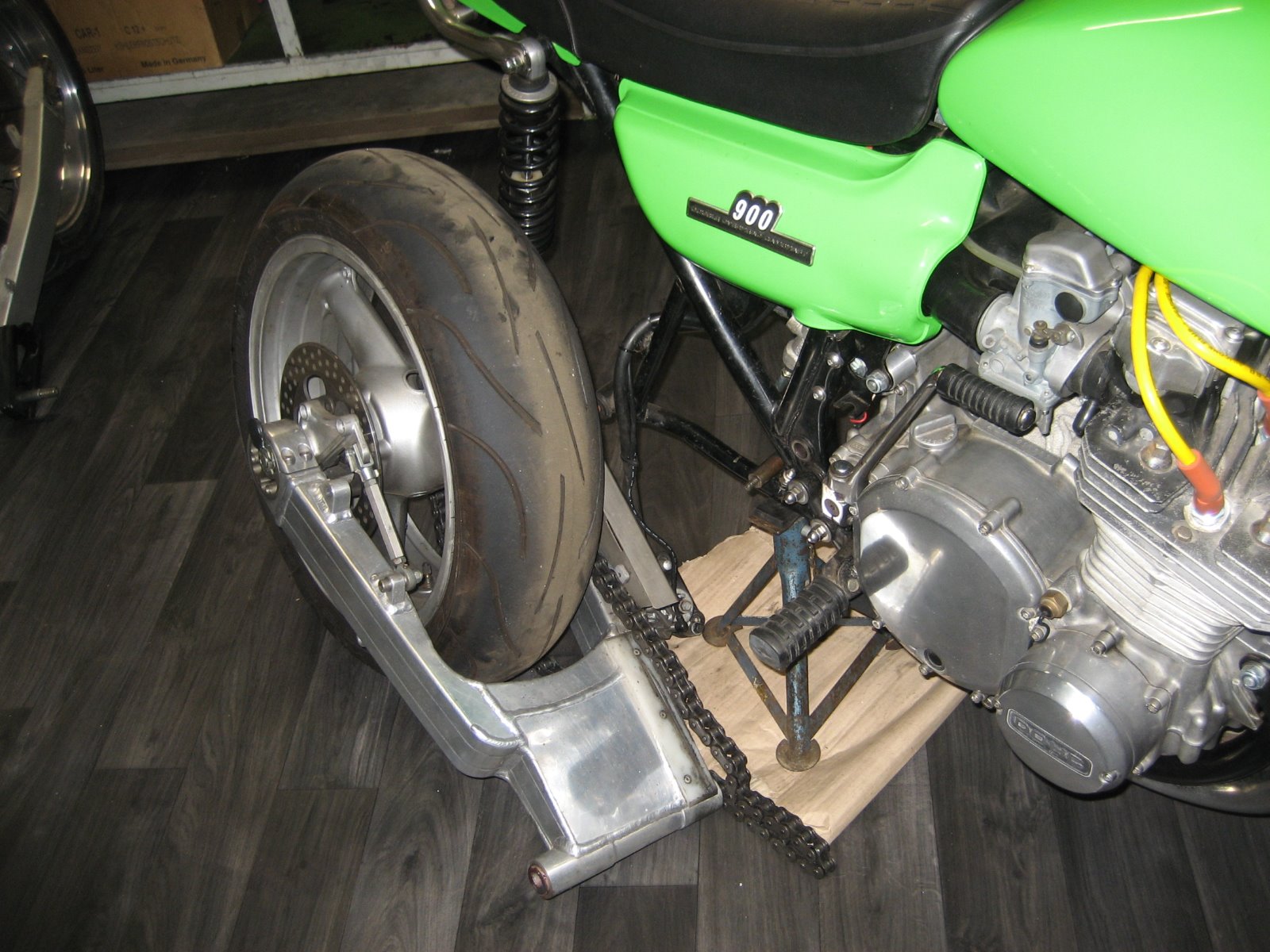

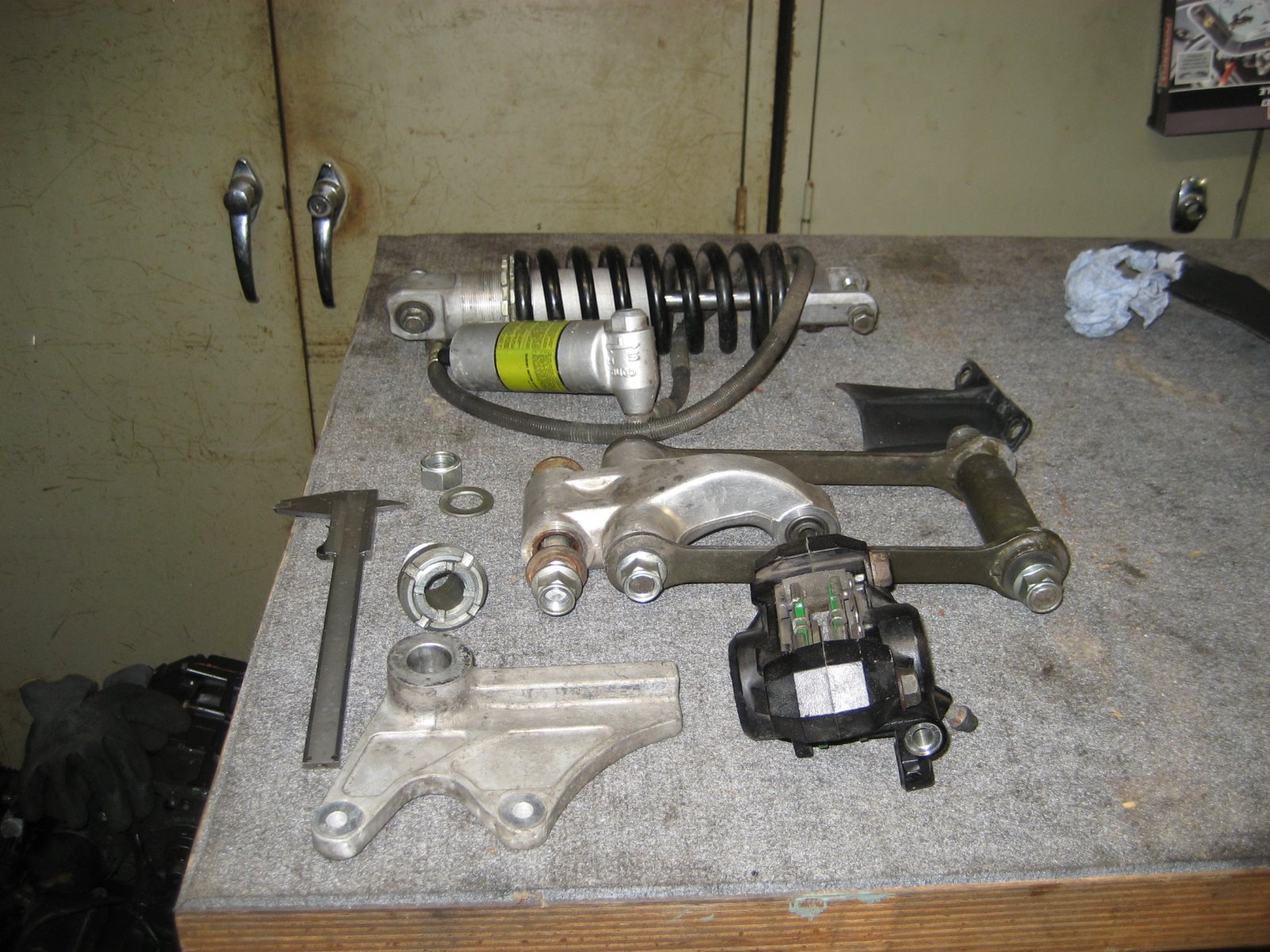

I need the space for the new GSX-R 1100 WP/WR (93-94) i have shot for 175 Euro on e-bay privat sells with all
suspention parts, wheel axis, swing arm pivot, chain gard, rear brake caliper with new brake pads.

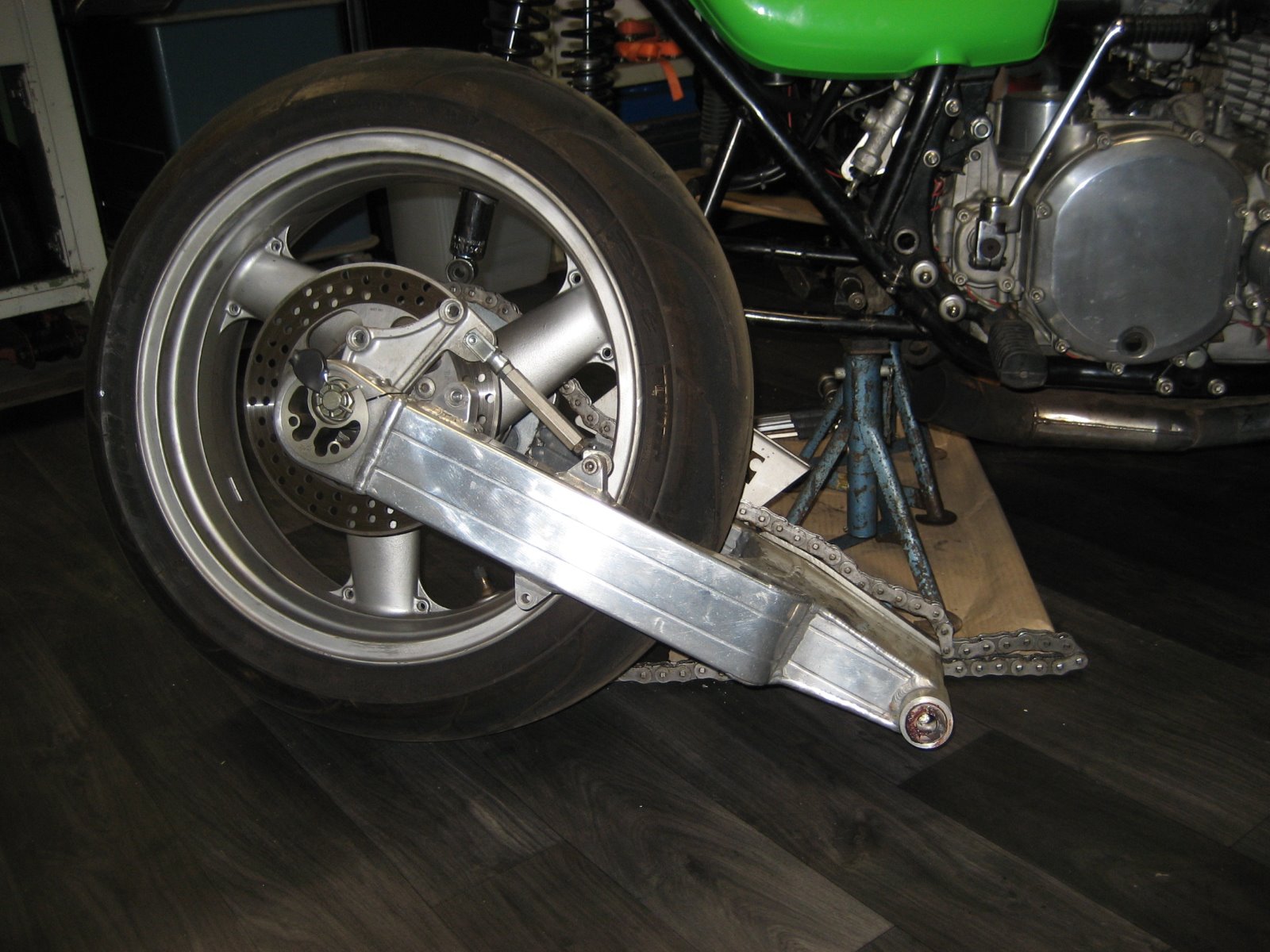

The swing arm is 600 mm long, (eye to eye) and 60 - 80 mm longer as my excentric swing arm.
The swingarm to frame width is 232 mm and is plug and play to the frame. Only the swing arm chain rubber buffer
need some some cuts. My rear wheel with sprocket hub, rear caiper hub and all spacers fits a little tight in .
My old swing arm opening width is 250 mm and i have to remove 0,50 mm on right side spacer to get an easy wheel in and out.
Wheel is in the middle and sprokets/chain alignments looks perfect. Need a longer 630 chain with 6 extra links.
Don´t want to do a 530 chain conversion now, all sprockets are like new.

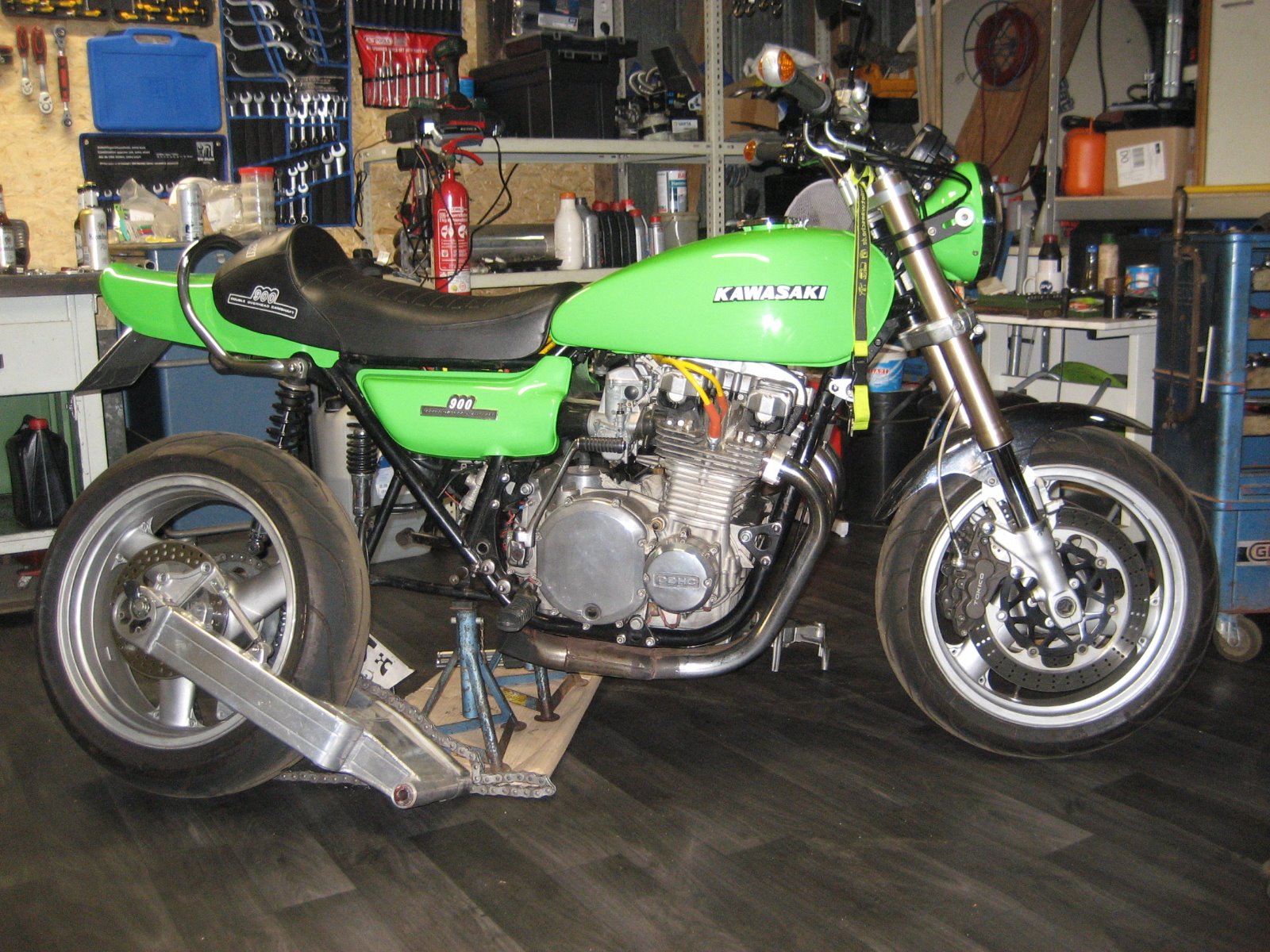

So far so good here are the pics.




........and three beers later






more coming soon

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 13 Dec 2018 13:40 #795103

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 788
  • Thank you received: 21
Cool upgrade :)
Will it increase performance/handling, or just look cool and give you a new challange?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 13 Dec 2018 14:15 #795104

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
Should increase performance/handling, just looks cool is the side effect.
a new challange? yes of course, why not, normal is boring!!!
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 01 Jan 2019 16:17 #796030

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 788
  • Thank you received: 21
Looking forward to more photos :)
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 02 Jan 2019 14:04 #796075

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1654
  • Thank you received: 813
Have to pull the needle bearings to mill the suspention linkage to the spacing of the mainstand mount brackets.
It was very difficult, i need a lot ot pressure, heat and the right bearing puller to get them out.




Had to mill 10 mm on both sides.



Made some brass tube sleeves for the Z1 16 mm OD swing arm pivot to press and glue into the 20 mm ID GSXR needle bearing tubes.



and have to shorten the stainless steel foot rest bolts to not to collide with my GSXR swing arm.



more to come later this week.....
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 05 Jan 2019 19:25 #796229

  • Jimbo302
  • Jimbo302's Avatar
  • Offline
  • Member
  • Member
  • Posts: 195
  • Thank you received: 7
Wow, nice work. That is gorgeous, love the green.
