I was very diligent today.

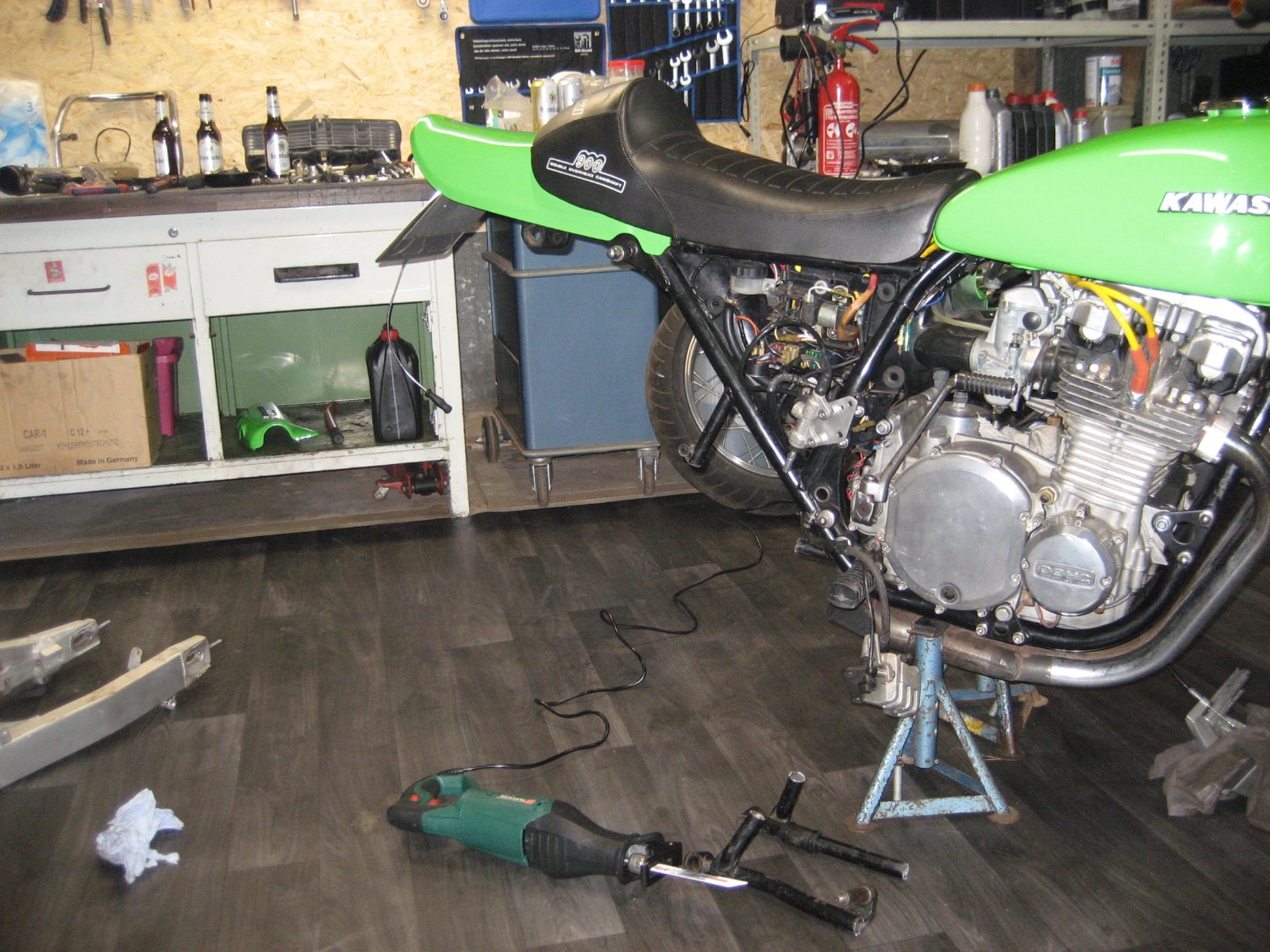

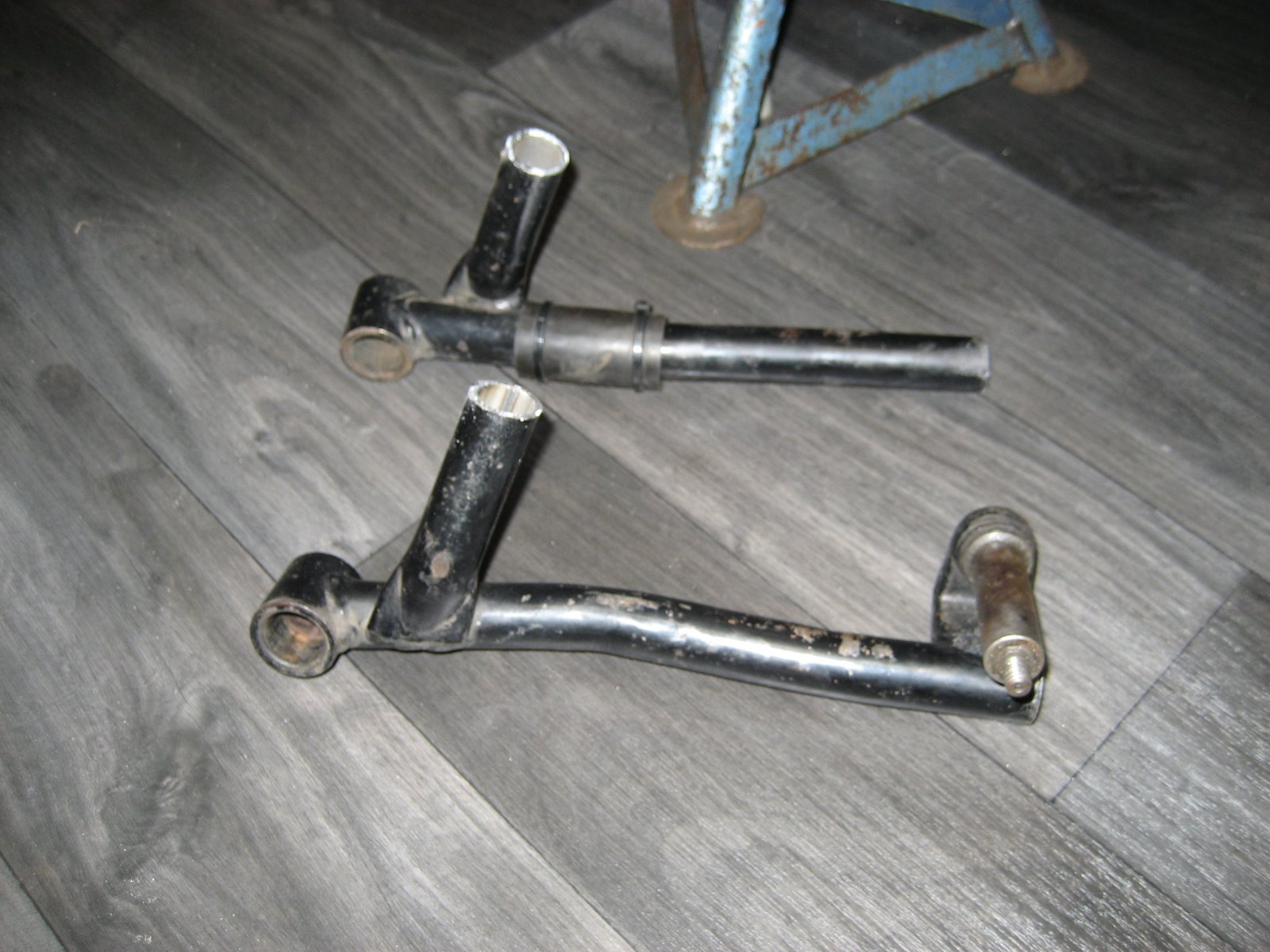

My heard was bleeding but have to do the final cut off to the hangers for the 4 in 4 and rear break pedal.
I need the space for the new GSX-R 1100 WP/WR (93-94) i have shot for 175 Euro on e-bay privat sells with all
suspention parts, wheel axis, swing arm pivot, chain gard, rear brake caliper with new brake pads.
The swing arm is 600 mm long, (eye to eye) and 60 - 80 mm longer as my excentric swing arm.
The swingarm to frame width is 232 mm and is plug and play to the frame. Only the swing arm chain rubber buffer
need some some cuts. My rear wheel with sprocket hub, rear caiper hub and all spacers fits a little tight in .
My old swing arm opening width is 250 mm and i have to remove 0,50 mm on right side spacer to get an easy wheel in and out.
Wheel is in the middle and sprokets/chain alignments looks perfect. Need a longer 630 chain with 6 extra links.
DonĀ“t want to do a 530 chain conversion now, all sprockets are like new.

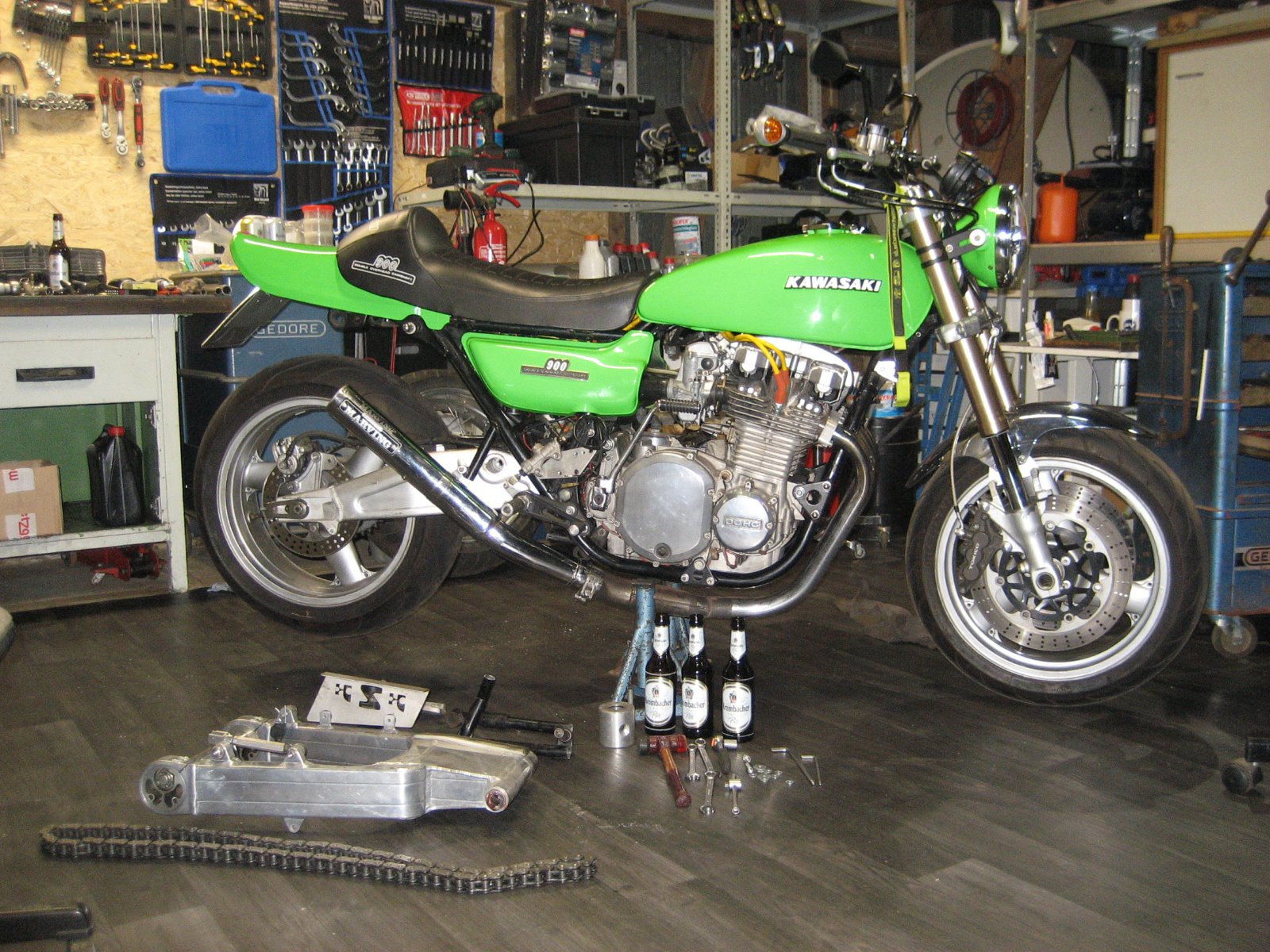

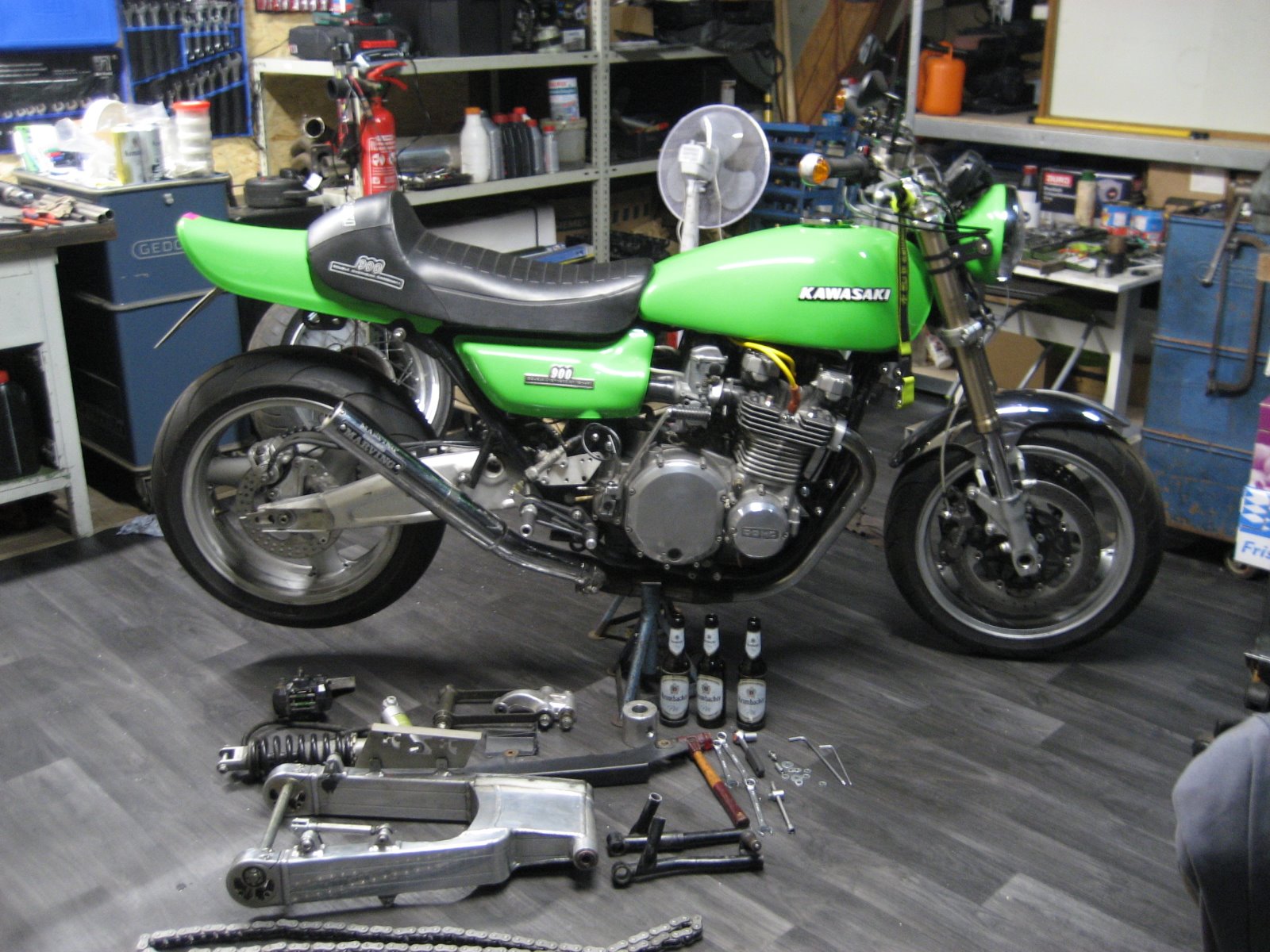

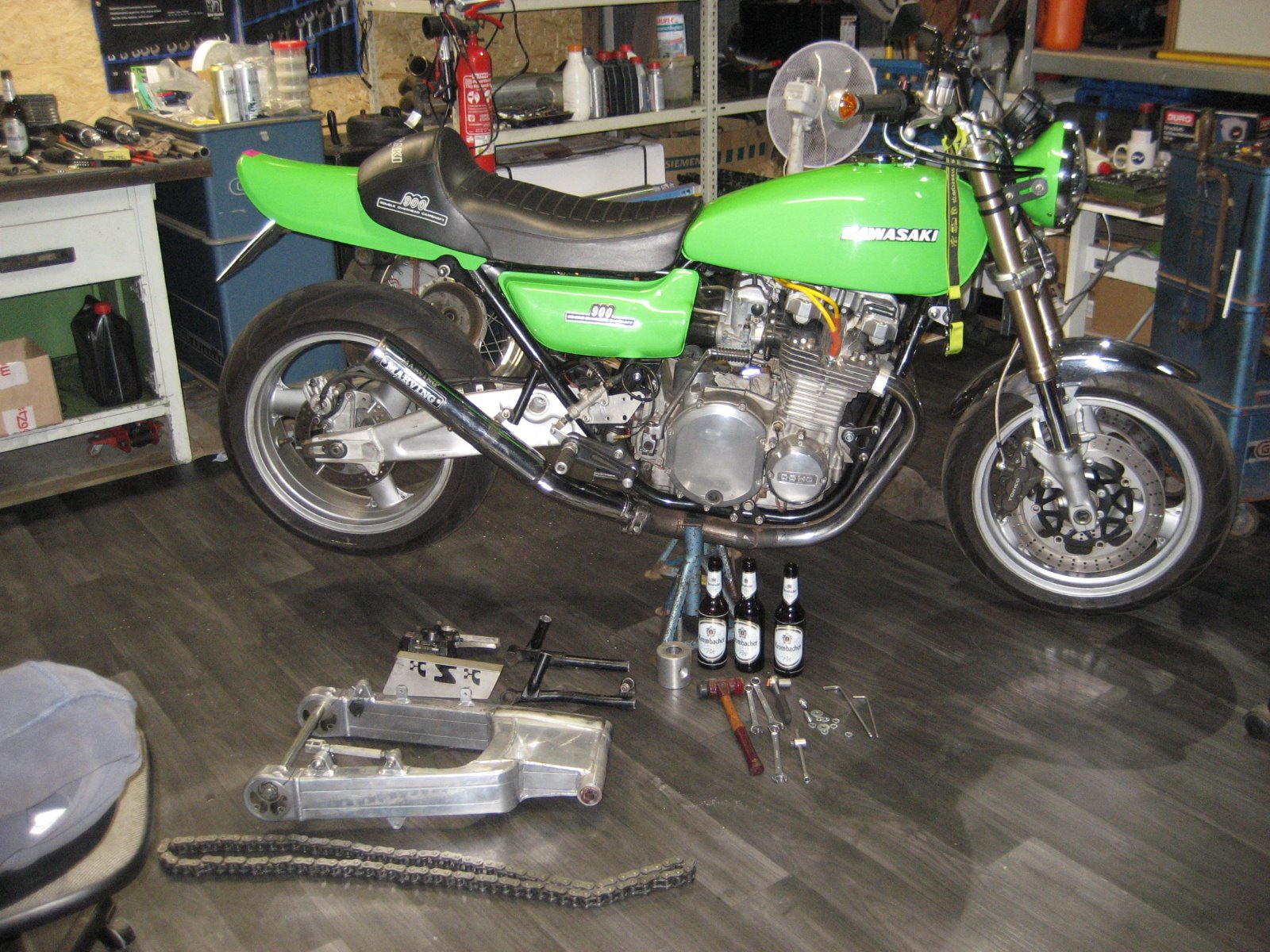

So far so good here are the pics.

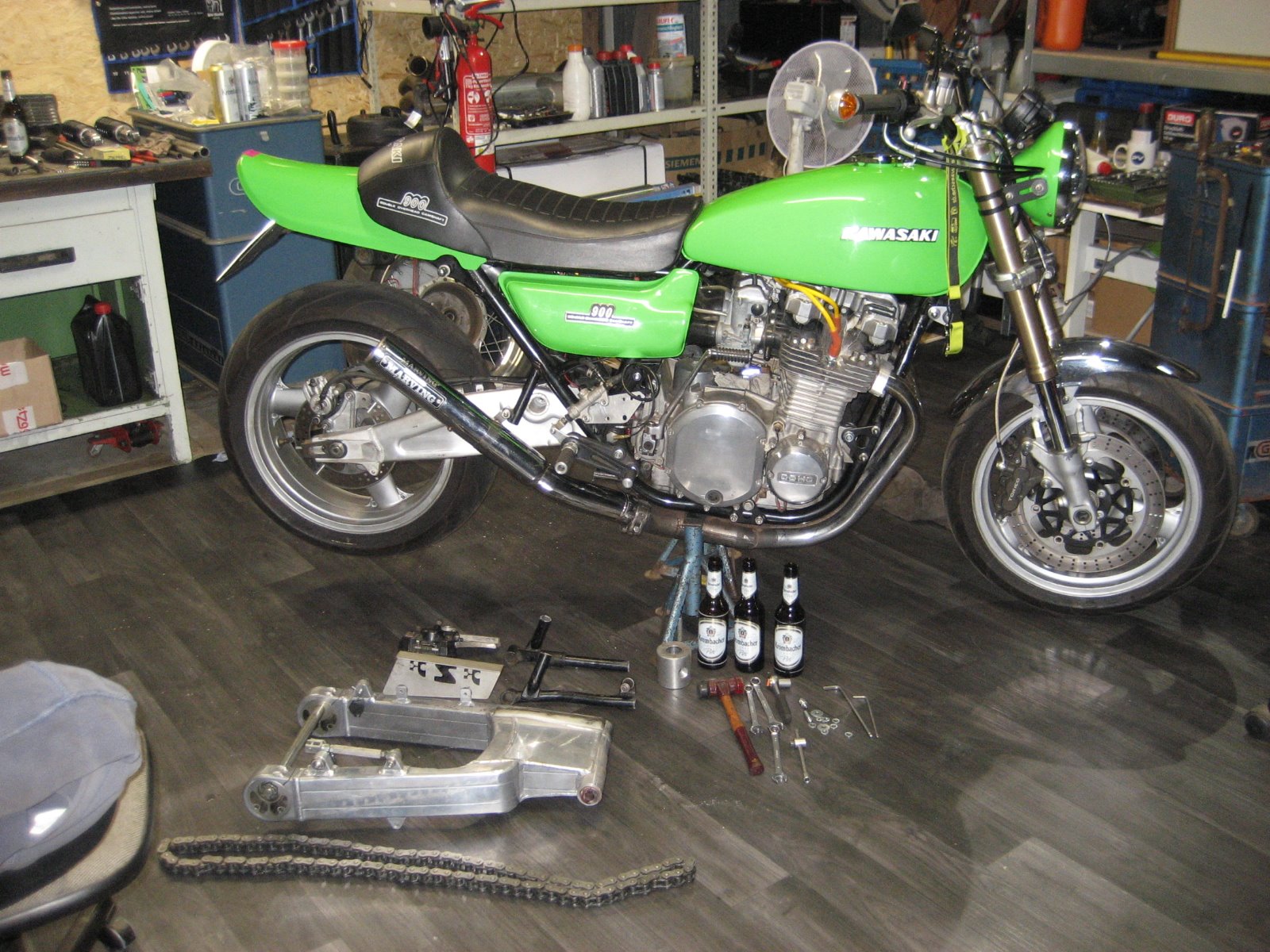

........and three beers later






more coming soon

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 13 Dec 2018 13:40 #795103

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1373
  • Thank you received: 67
Cool upgrade :)
Will it increase performance/handling, or just look cool and give you a new challange?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 13 Dec 2018 14:15 #795104

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Should increase performance/handling, just looks cool is the side effect.
a new challange? yes of course, why not, normal is boring!!!
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 01 Jan 2019 16:17 #796030

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1373
  • Thank you received: 67
Looking forward to more photos :)
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 02 Jan 2019 14:04 #796075

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

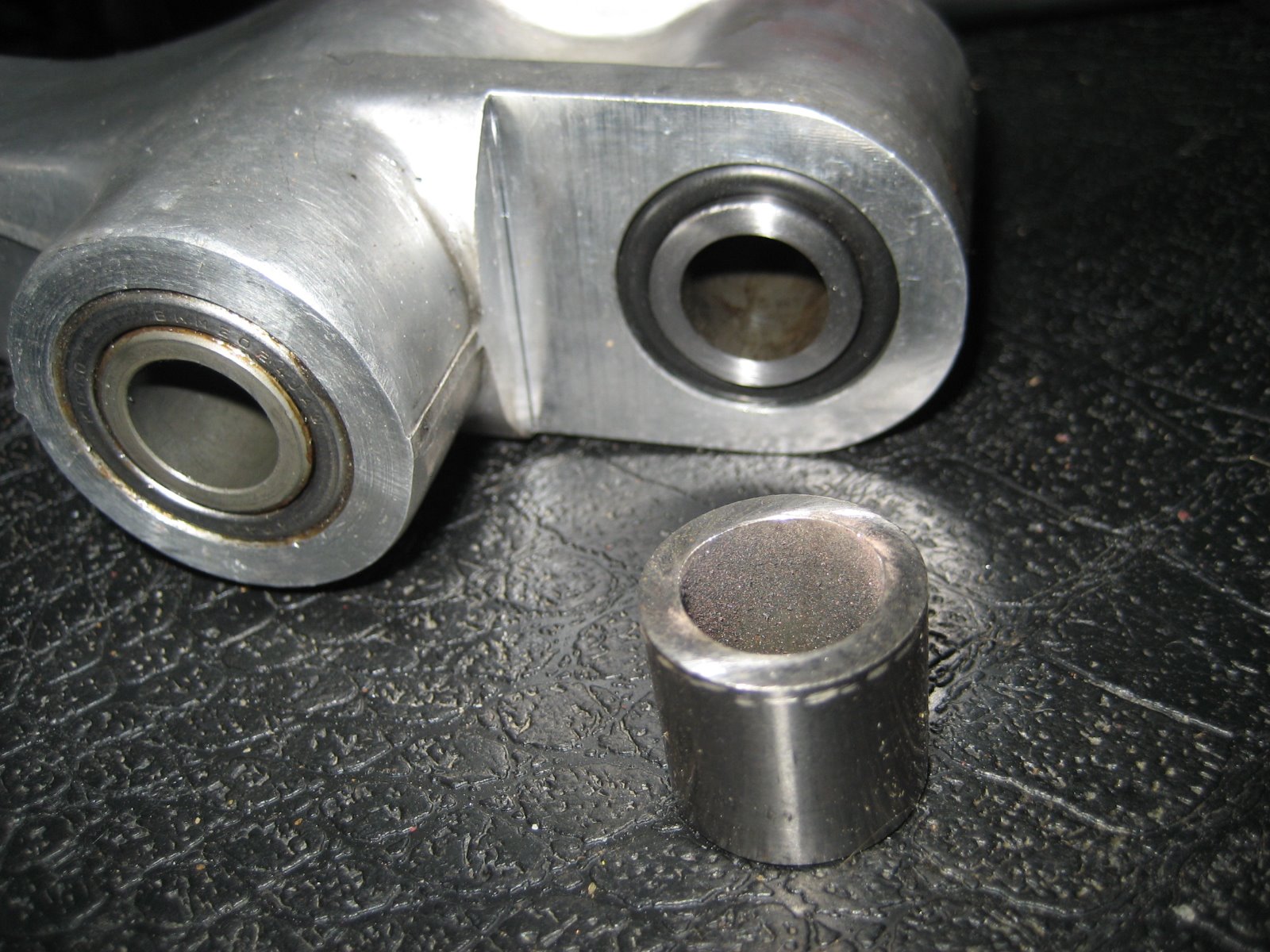

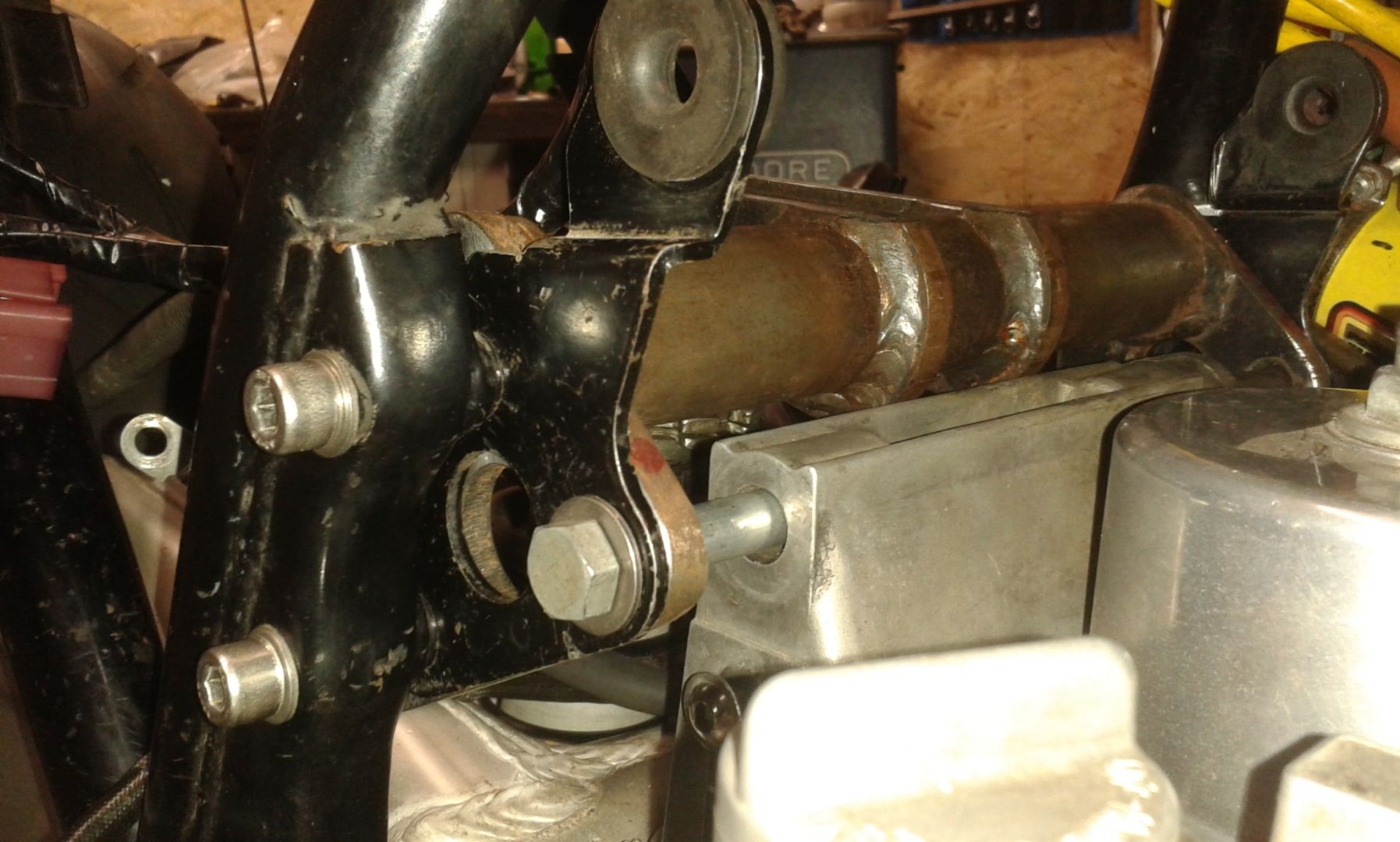

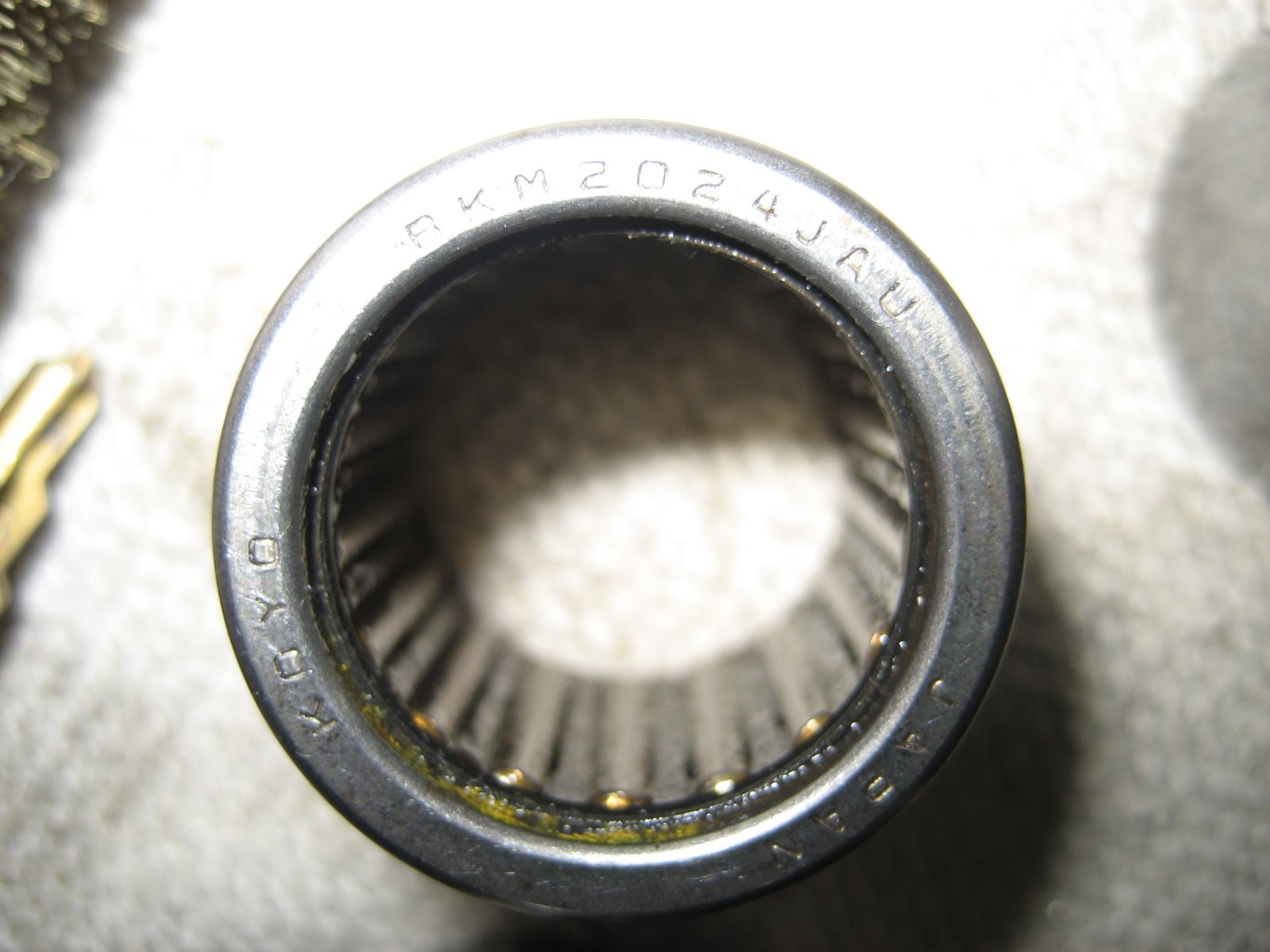

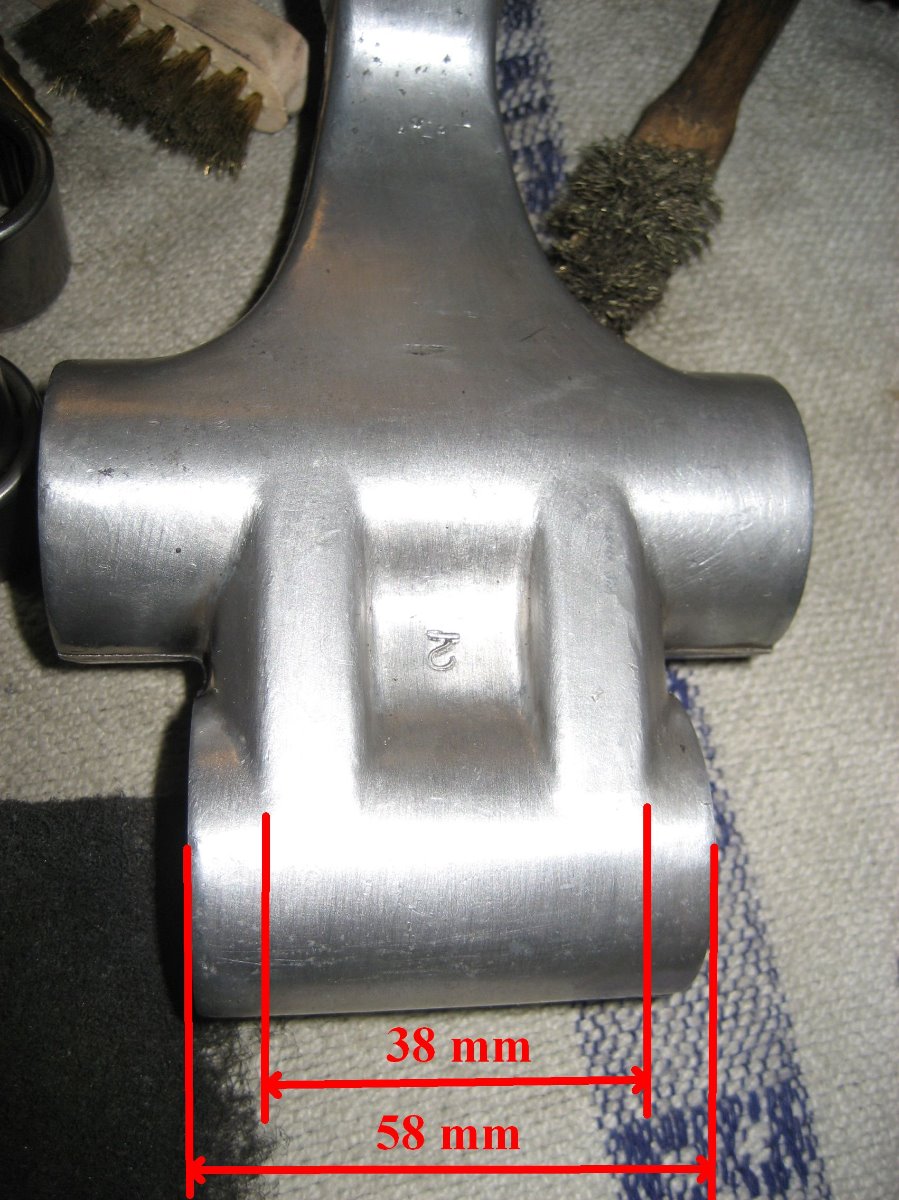

Have to pull the needle bearings to mill the suspention linkage to the spacing of the mainstand mount brackets.
It was very difficult, i need a lot ot pressure, heat and the right bearing puller to get them out.




Had to mill 10 mm on both sides.

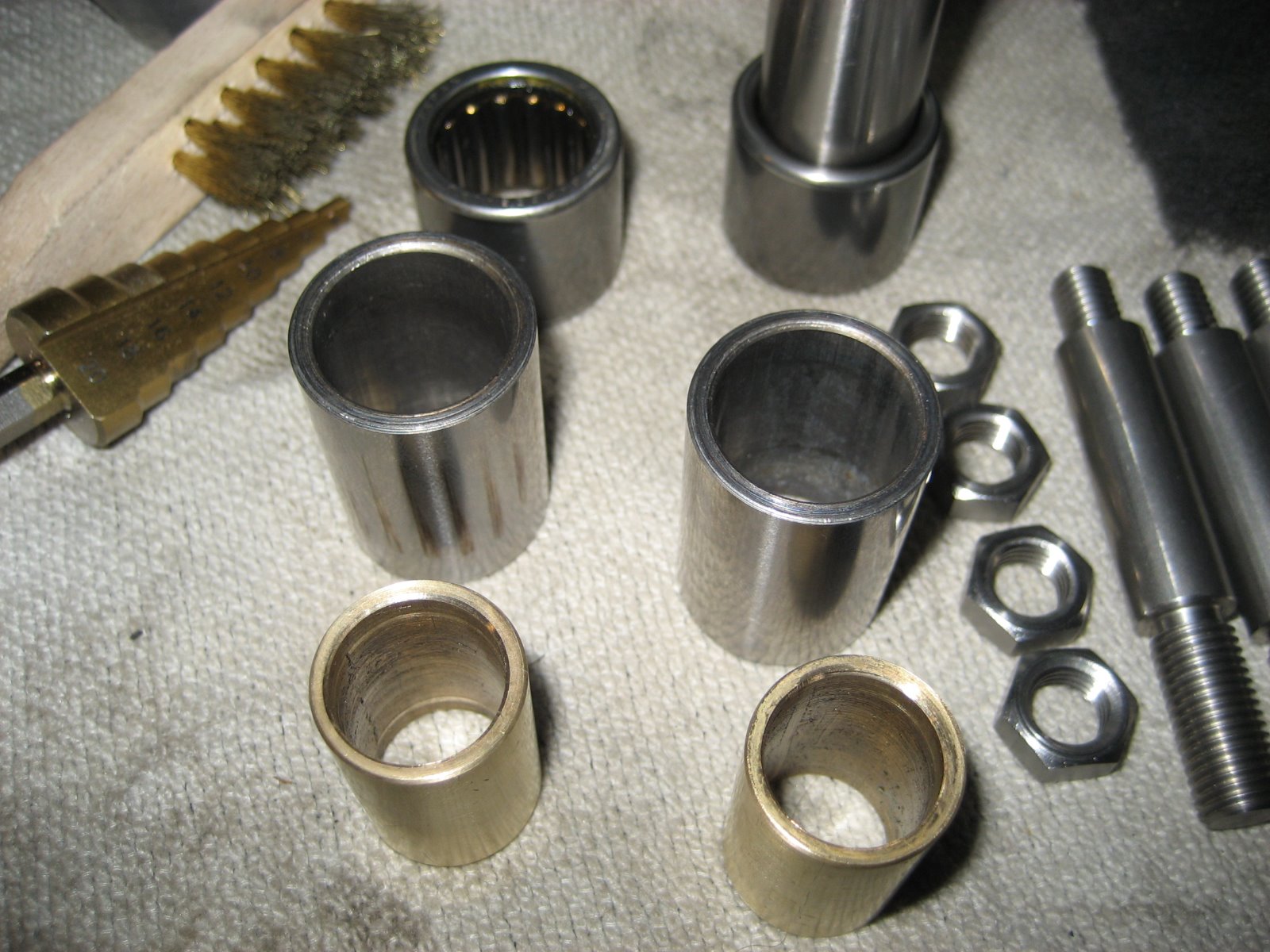

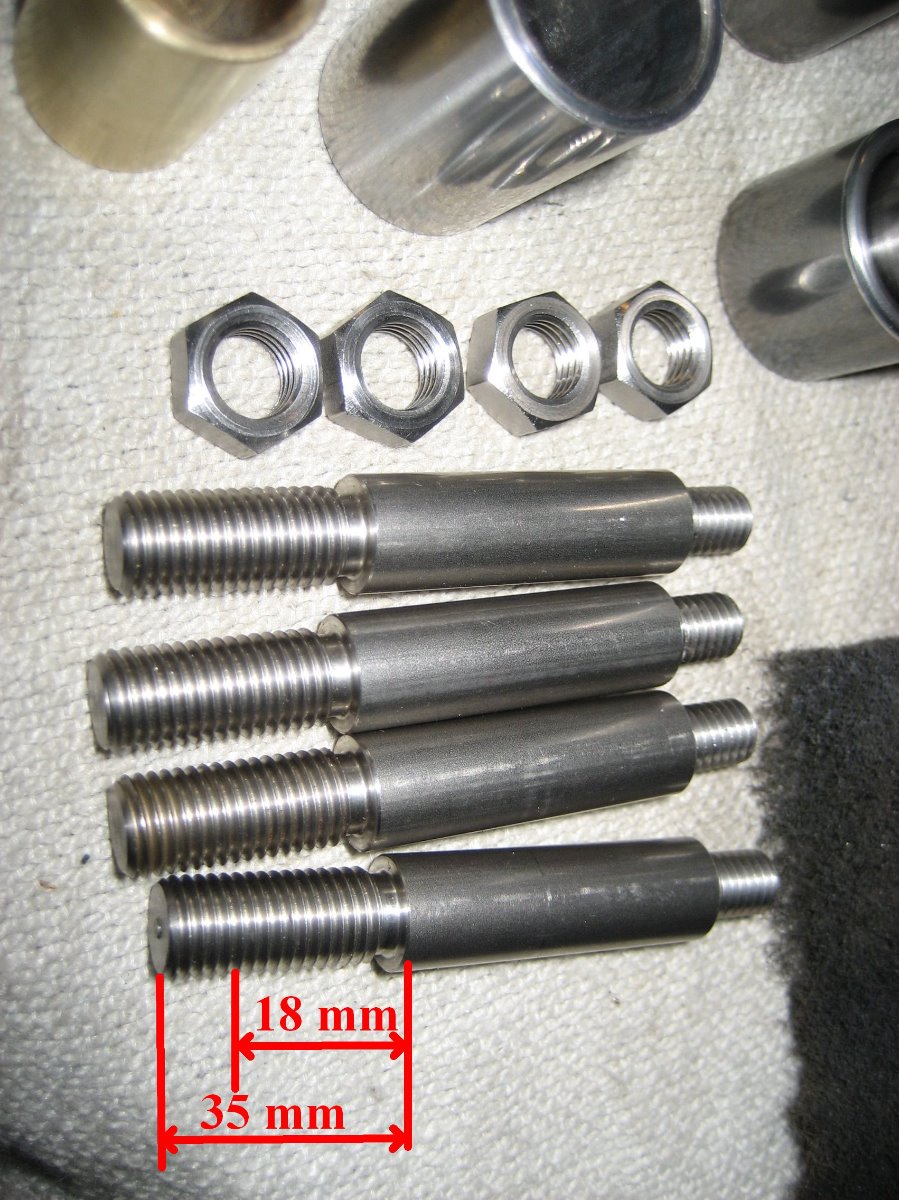

Made some brass tube sleeves for the Z1 16 mm OD swing arm pivot to press and glue into the 20 mm ID GSXR needle bearing tubes.



and have to shorten the stainless steel foot rest bolts to not to collide with my GSXR swing arm.



more to come later this week.....
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 05 Jan 2019 19:25 #796229

  • Jimbo302
  • Jimbo302's Avatar
  • Offline
  • User
  • Posts: 203
  • Thank you received: 7
Wow, nice work. That is gorgeous, love the green.

Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 22 Jan 2019 12:18 #797302

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

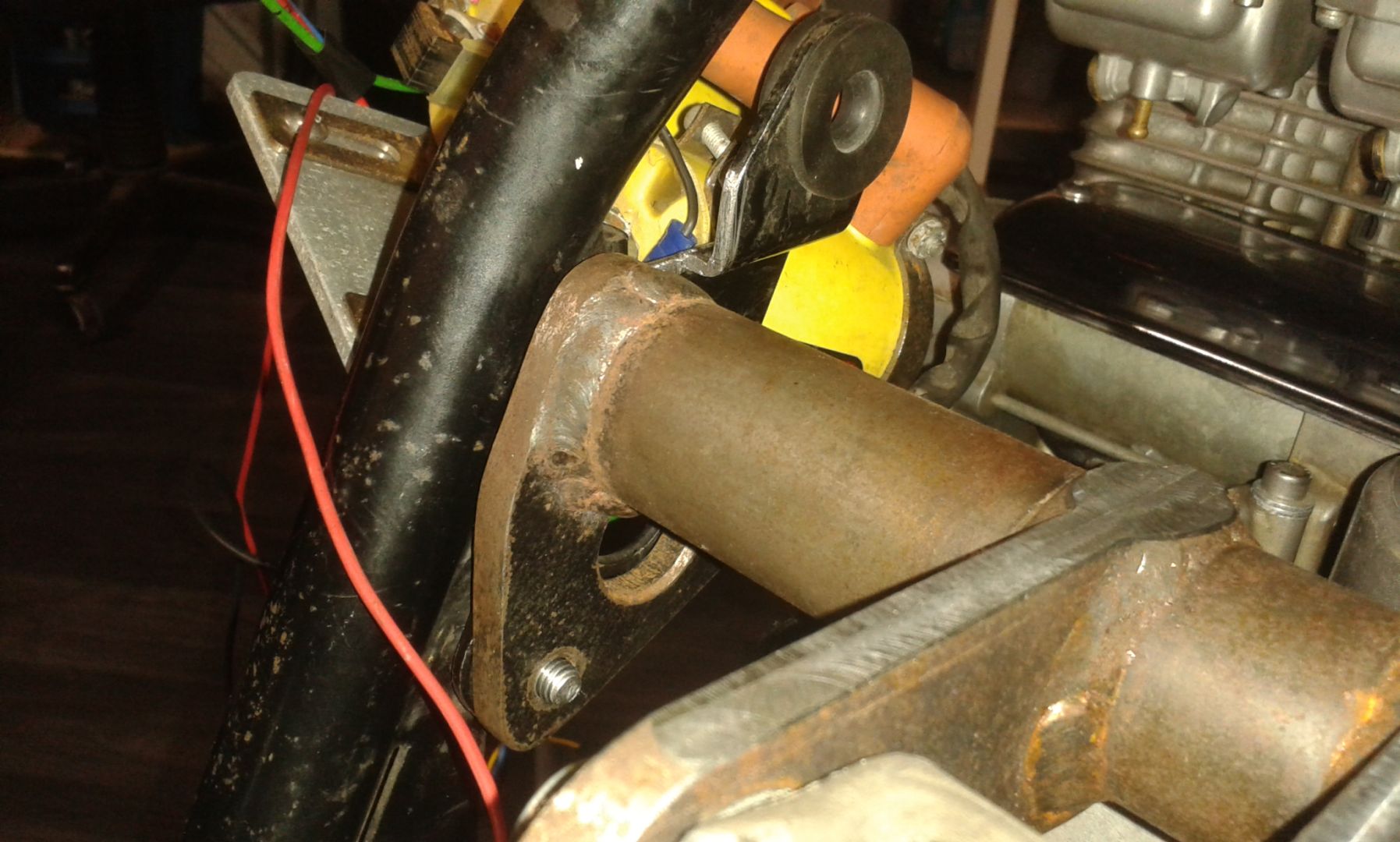

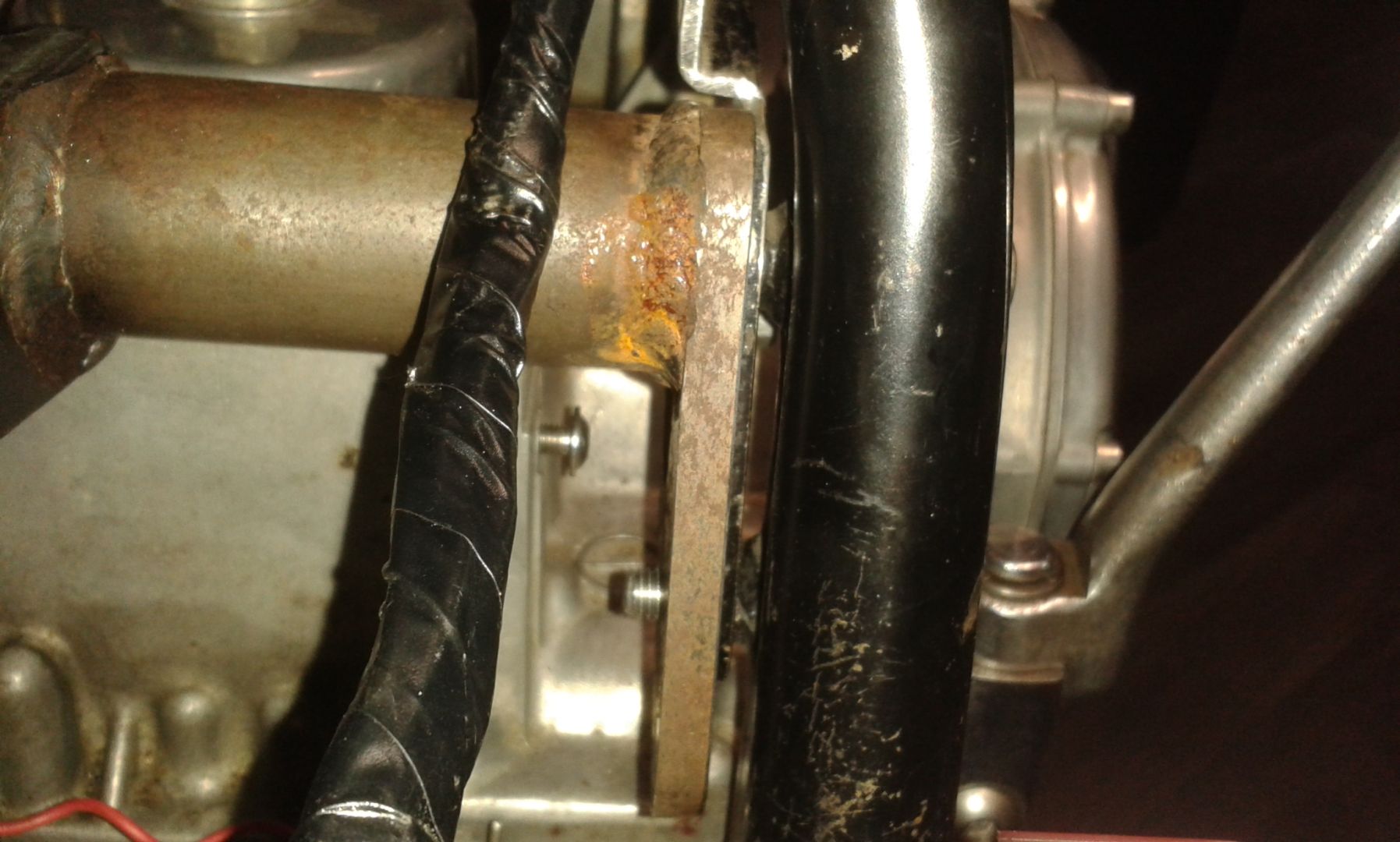

A Little Progress to my mono shock conversion

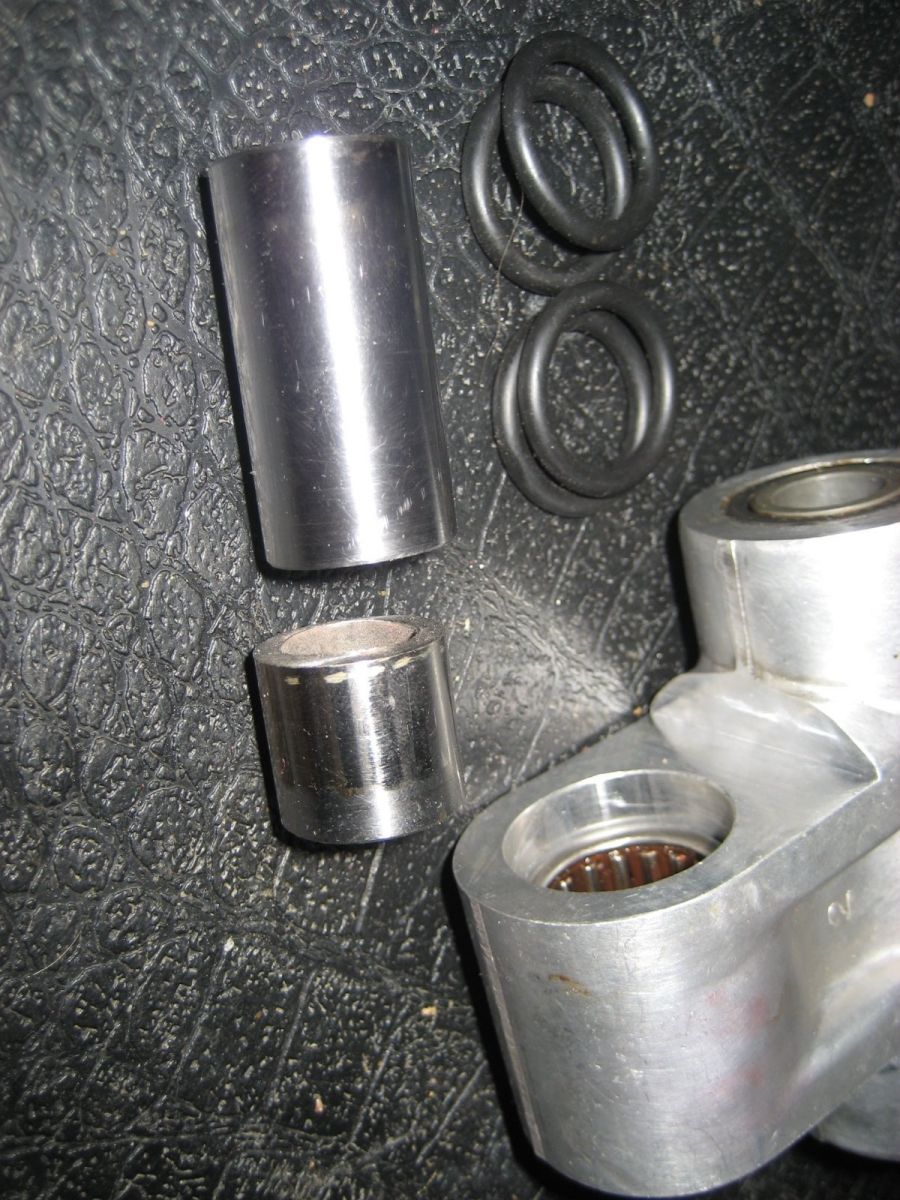

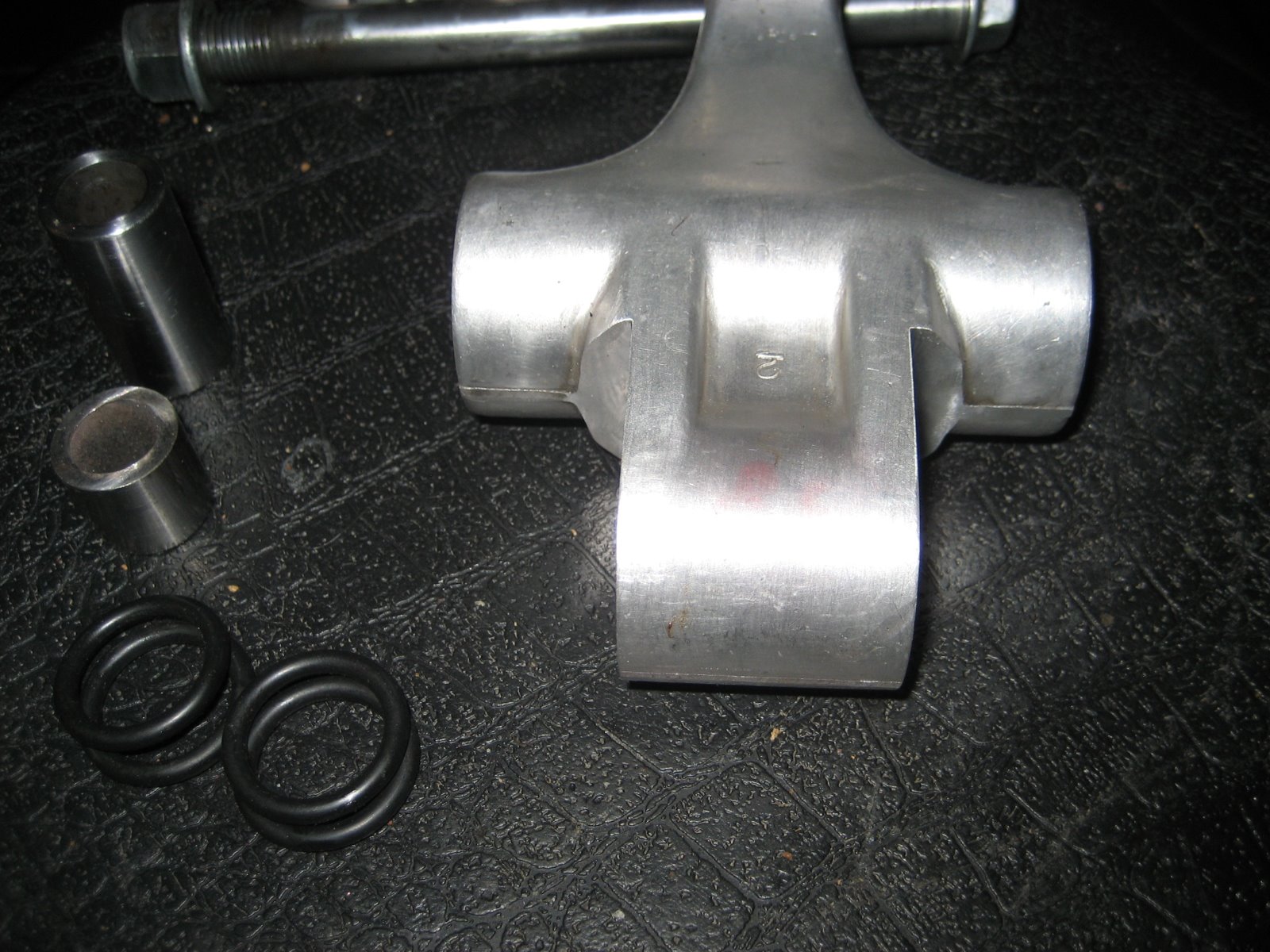

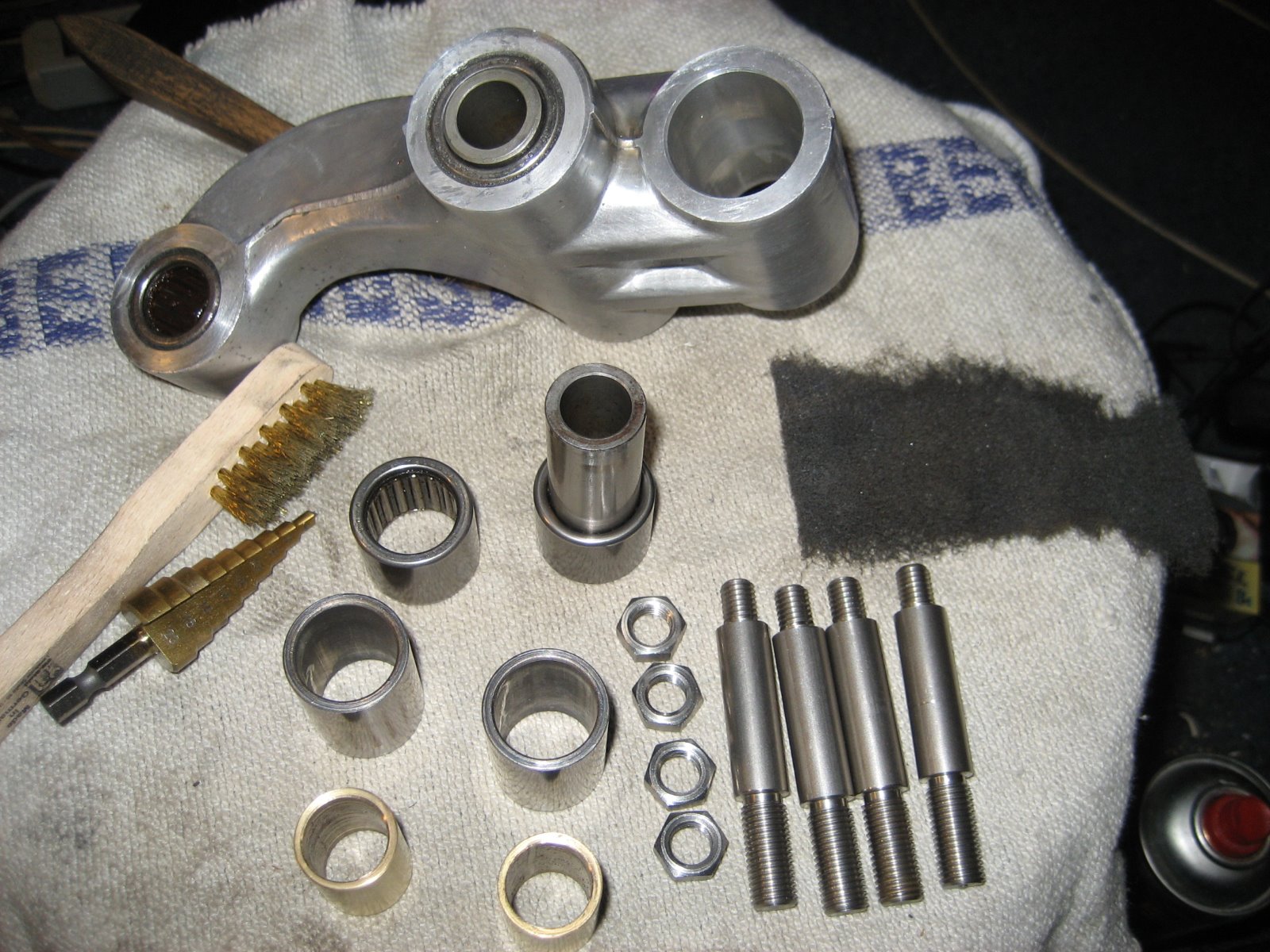

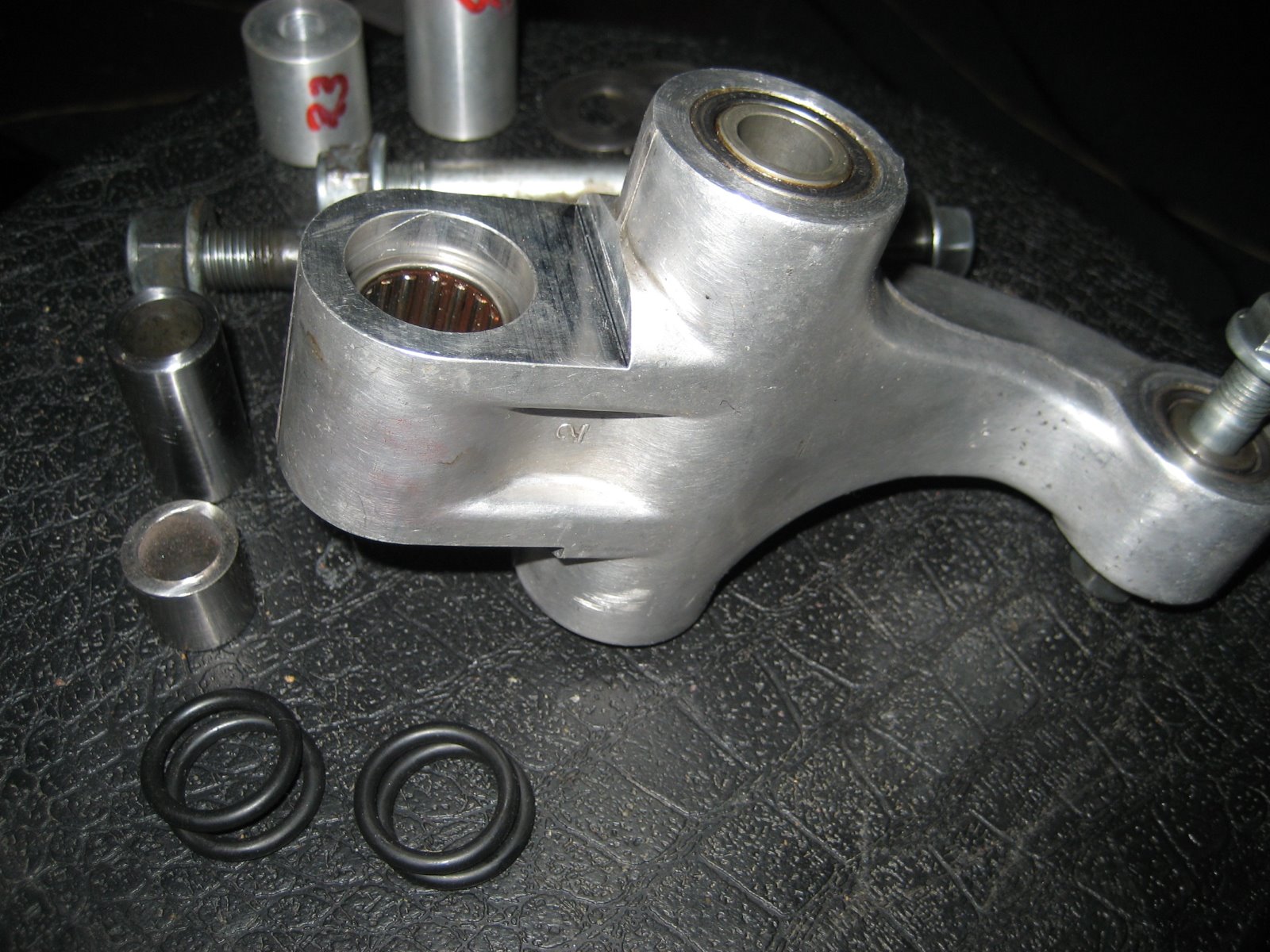

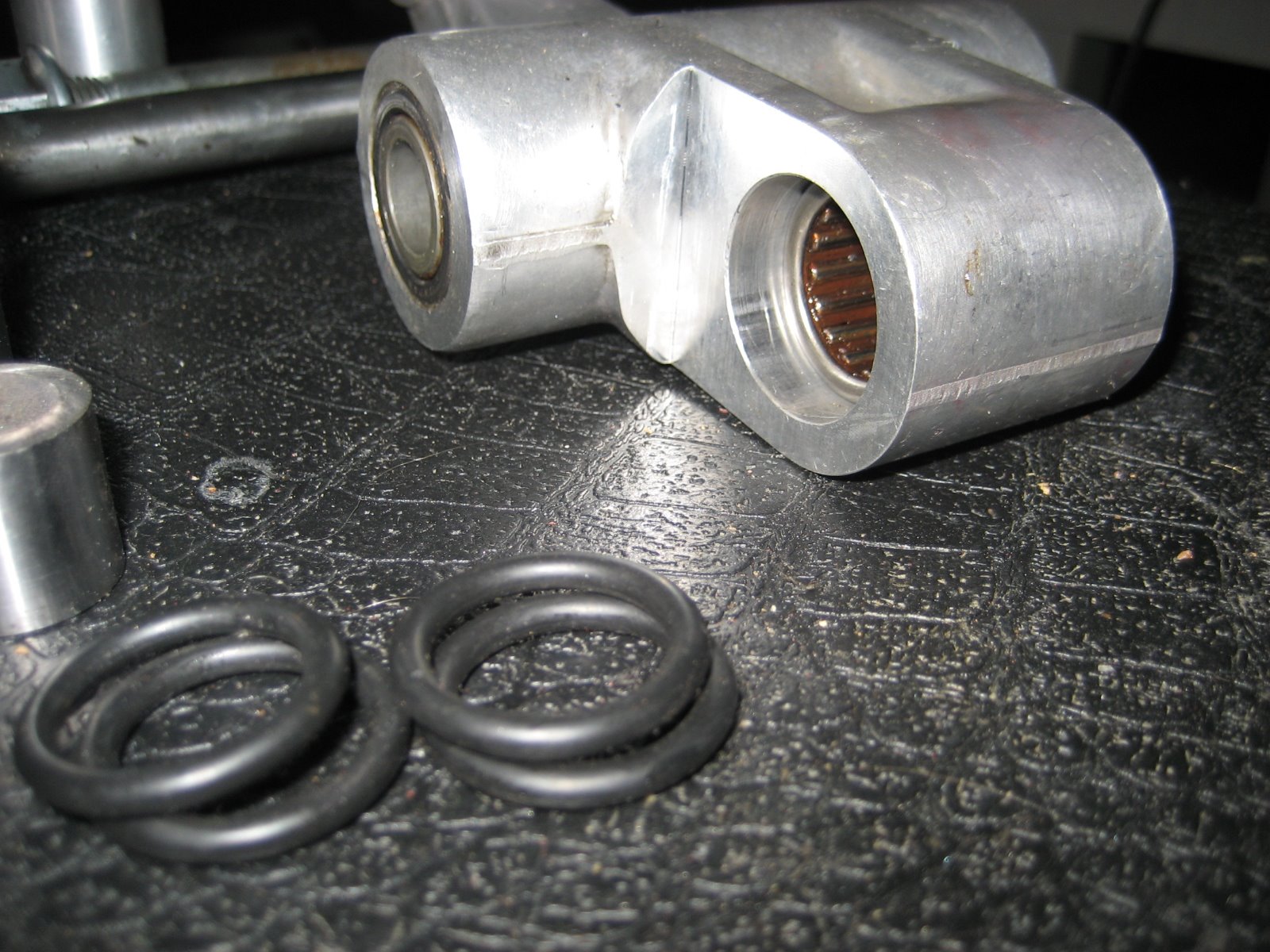

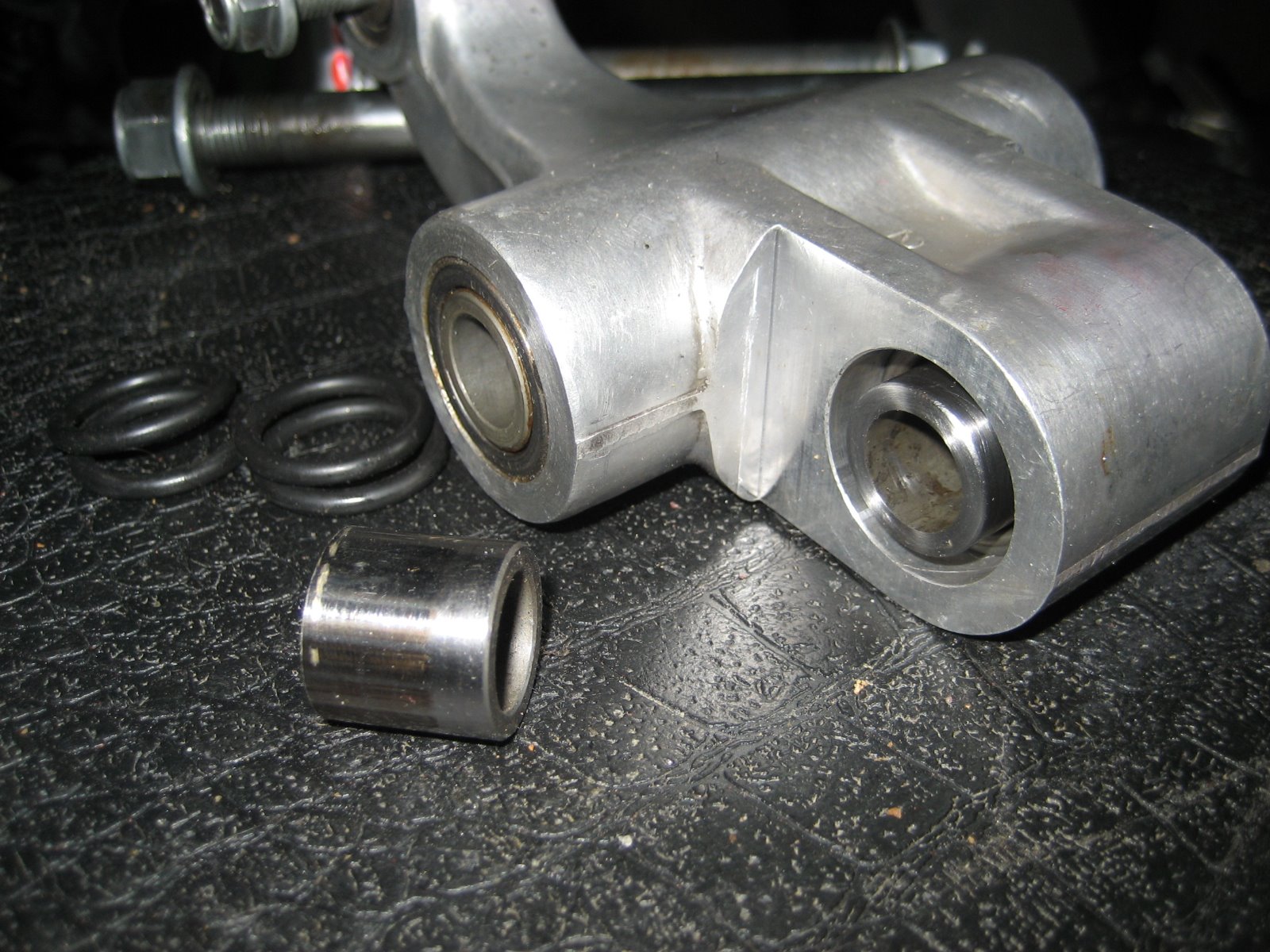

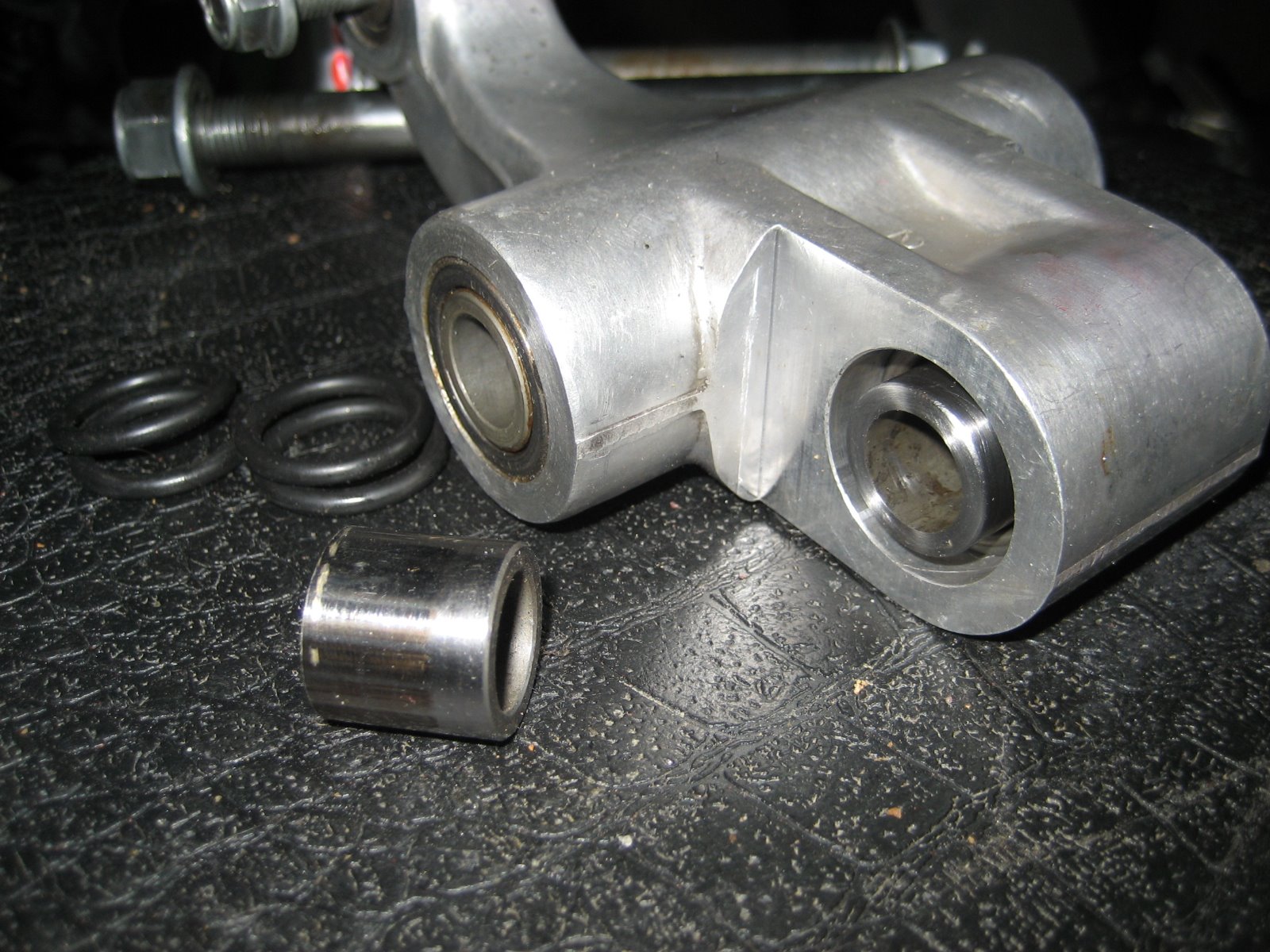

Had milled the main linkage to the frame down to 38 mm width and shorten the needle bearing sleeve to 39 mm.

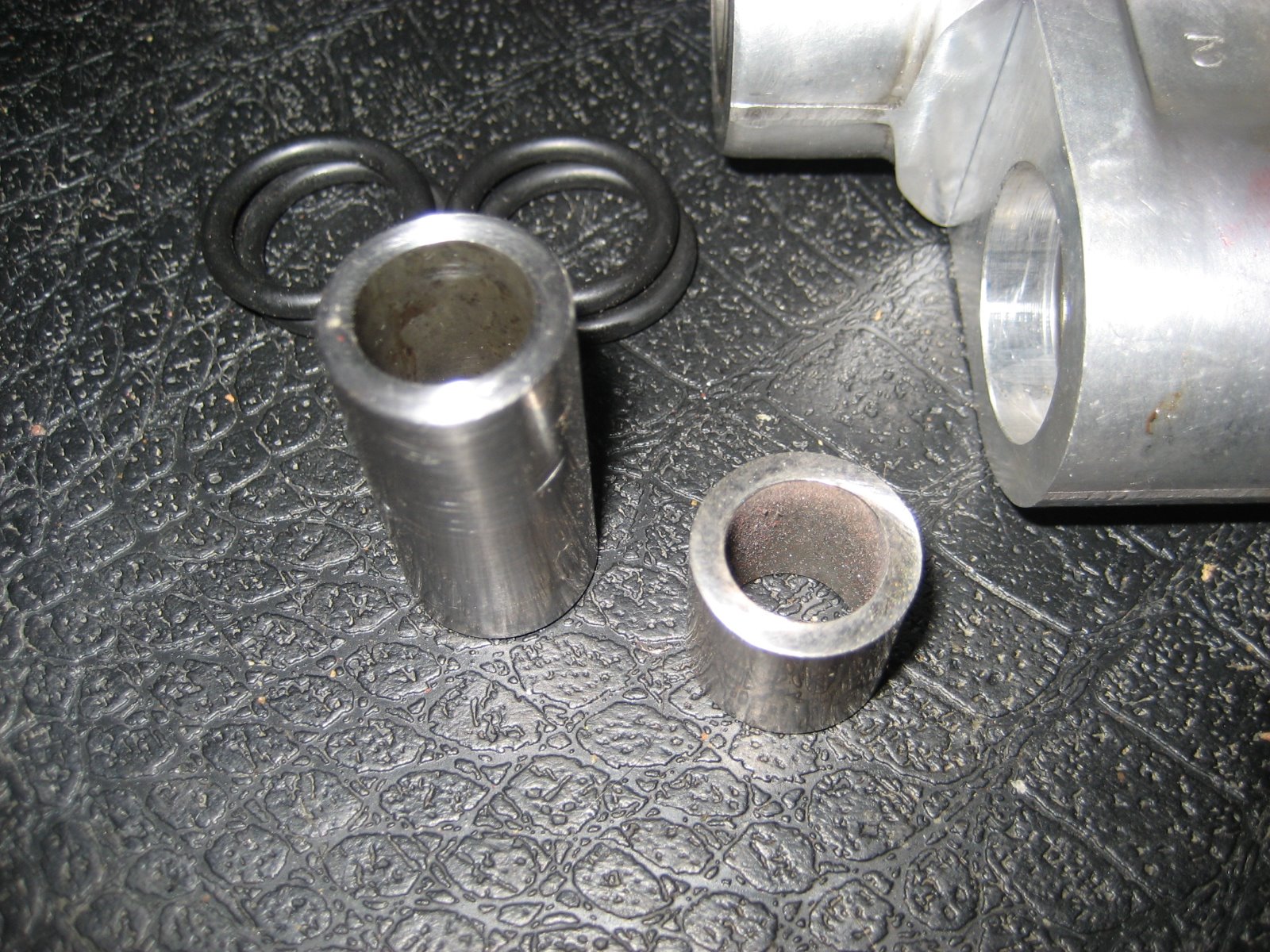

Put 2 x 20/27 mm O-Rings into the linkage bearing bore as dust seals.







Please Log in or Create an account to join the conversation.

New rebuild after 10 years "deep sleep" mode 22 Jan 2019 12:30 #797303

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

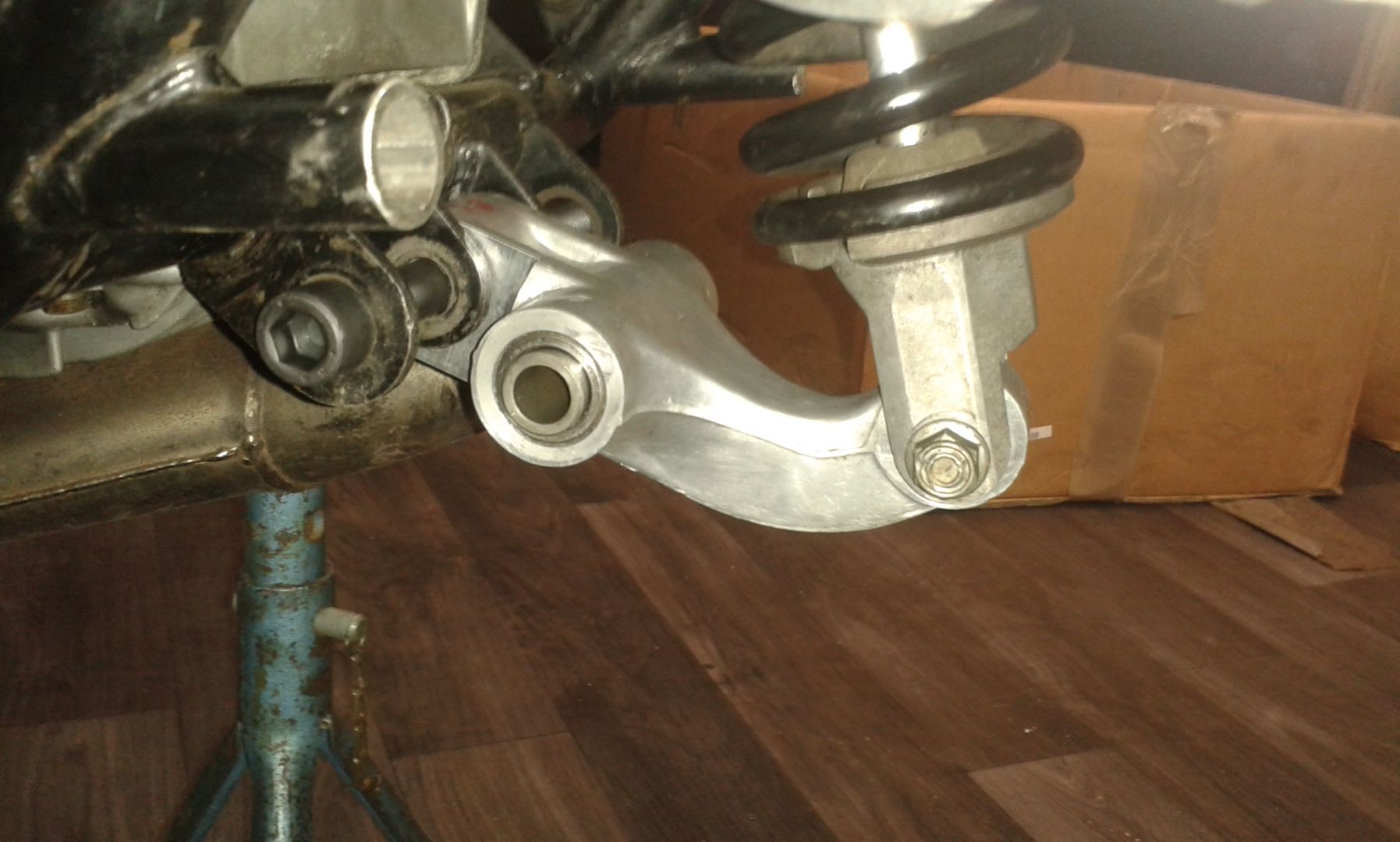

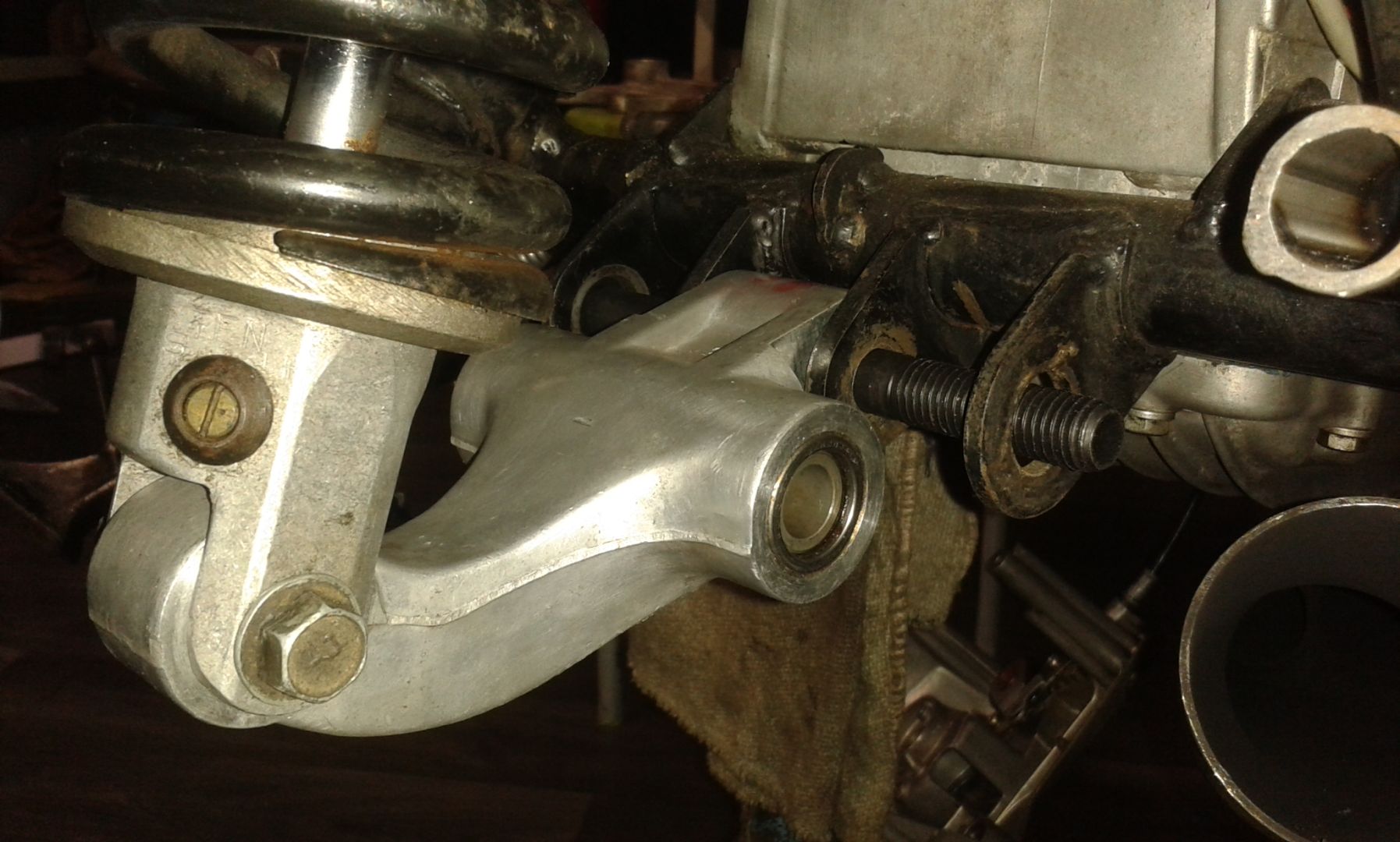

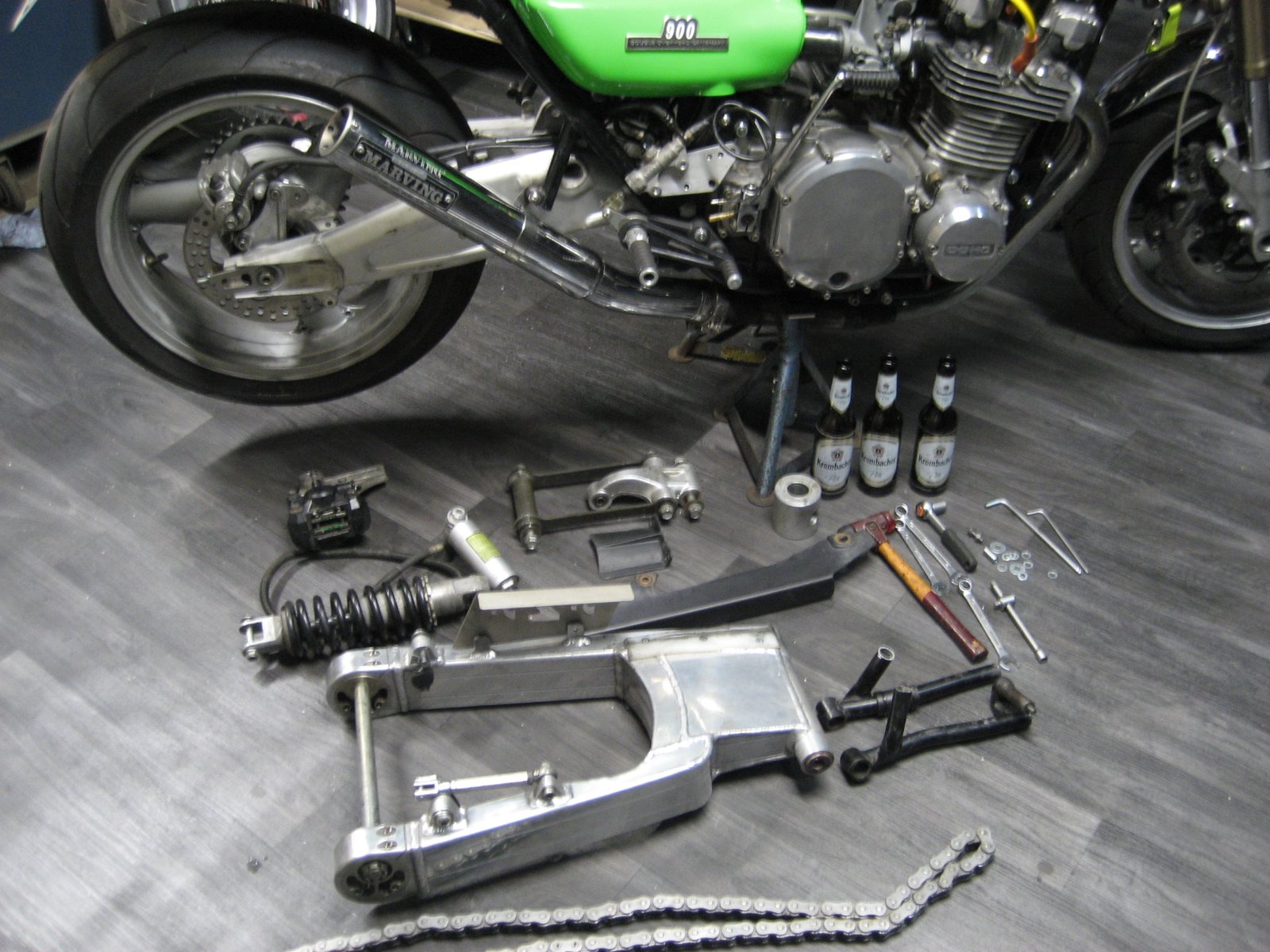

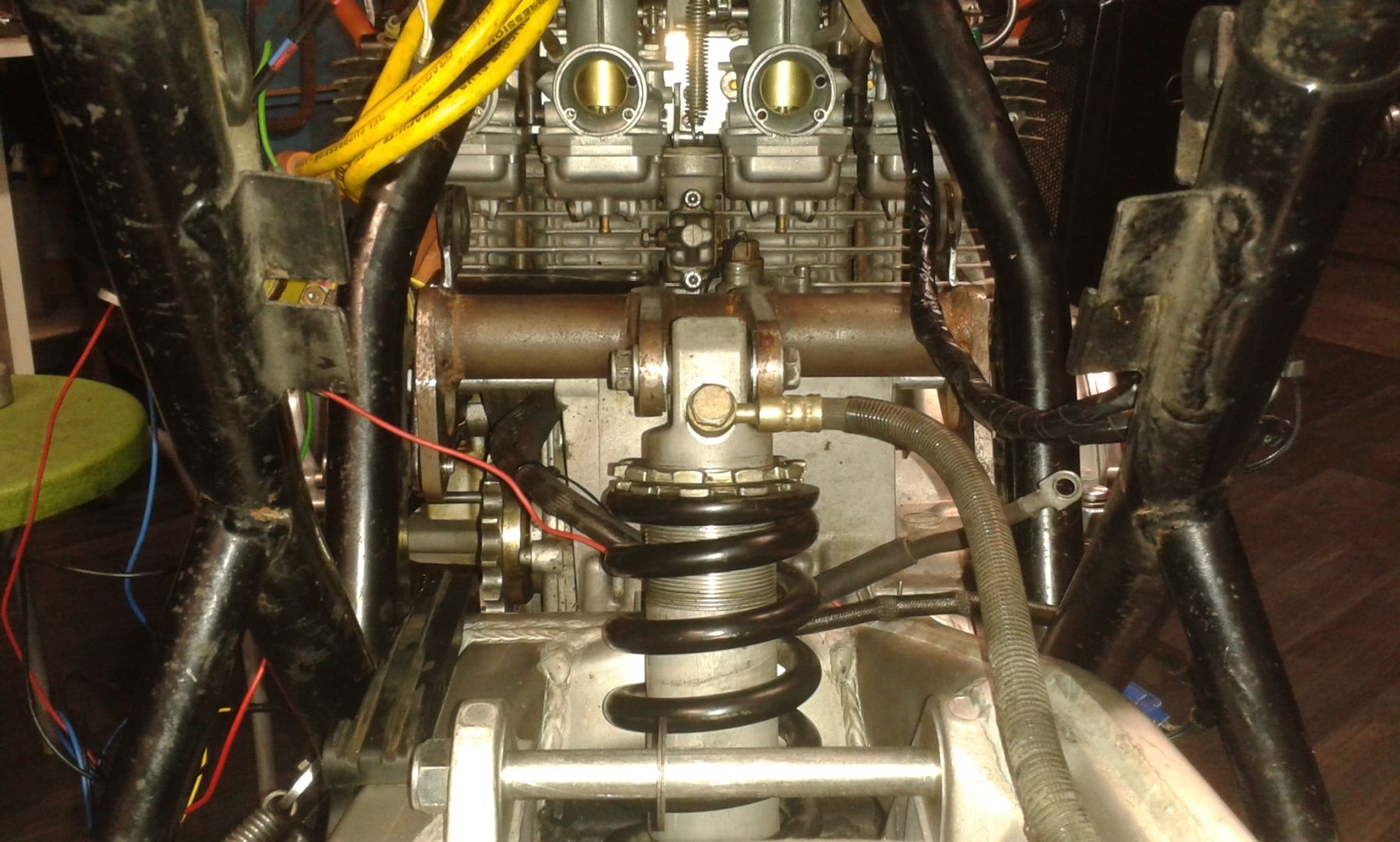

All parts execpt the dogbones assembled plug and play together into the frame.
