Triple tree custom work 09 Dec 2014 18:55 #655739

  • ramtough_63
  • ramtough_63's Avatar
  • Offline
  • User
  • Posts: 2559
  • Thank you received: 132

Attachment 100_6635.jpg not found


Bolt on gull-wing design complete with gauge mounts & steering stops
Plug-n-Play Les Holt


Attachment WP_20140519_017.jpg not found


19" wheel conversion
Plug-n-Play Les Holt

Attachment WP_20140330_001.jpg not found


1/2" 520 offset counter sprocket
Plug-n-Play Leon 531blackbanshi

Attachment WP_20140518_057.jpg not found


03 zx6 rear swing-arm
narrowed with bushings
Plug-N-Play Leon

Attachment green_2014-12-10.jpg not found


I have 100's of pics of their work
pure art!
1978 KZ1000 A2
Thrown Together To Ride Til Winter
Facebook Page
Free Range Custom Art


1982/83 750R/GPZ
1984 Goldwing 1200 Interstate
1982 Yamahopper QT50
Previous
2 79 HD sporty XLH
02 HD FLSTS Heritage
60's HD Hummer
70's Honda 550 Four
70 Yamaha 100
and various enduros dirtbikes minibikes...
Attachments:
The following user(s) said Thank You: Bad Kaw, 531blackbanshee

Please Log in or Create an account to join the conversation.

Triple tree custom work 02 Aug 2015 18:44 #683993

  • PetesPonies
  • PetesPonies's Avatar
  • Offline
  • User
  • Posts: 1
  • Thank you received: 0
I love the work shown here. Its been several years . anyone producing any of these parts now?

Please Log in or Create an account to join the conversation.

Triple tree custom work 02 Aug 2015 22:09 #684026

  • kaw-a-holic
  • kaw-a-holic's Avatar
  • Offline
  • User
  • Posts: 1808
  • Thank you received: 248
I would PM 531blackbanshee (leon) or Les Holt. Last I talked to Les was a couple of months ago, he was still moving shops not sure if he can help yet.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

Triple tree custom work 03 Aug 2015 03:40 #684029

  • Gordy
  • Gordy's Avatar
  • Offline
  • User
  • Posts: 134
  • Thank you received: 5
Cognito moto do this kind of thing.

Maybe useful for those wanting something made

cognitomoto.com/products/copy-of-copy-of...rame-conversion-stem

I've not used them as they are in the US.

Please Log in or Create an account to join the conversation.

Triple tree custom work 29 Nov 2016 19:15 #749158

  • BlackEyeCafe
  • BlackEyeCafe's Avatar
  • Offline
  • User
  • Posts: 74
  • Thank you received: 3
Great work 531blackbanshee

I apologize for bringing up an old post but it's a great read.

I have a question about how you locate the spot for the snap ring and how you go about installing it. If you have pictures that would be awesome.

Game changing work brother, glad you put it up for all to see

Thanks
1977 KZ650 C
Jets - Main 115 - Pilot 17.5 - Needles - Position 3 - NGK BR7ES

Please Log in or Create an account to join the conversation.

Last edit: by BlackEyeCafe.

Triple tree custom work 30 Nov 2016 06:47 #749170

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
everyone is a little different.but there all kinda the same if that makes any sense :whistle:
most of the ones that use the snap ring is zx9's and i never take them apart.(but the stem pushes out the bottom and the snap ring registers on a counter bore thats machined into the lower triple.)
on the zx9 to kz conversion i cut the stem off with a port-a-band saw and then mill them flat.
leaving the zx stem in the lower triple to be used as the bushing,
then machine the id (sometimes it just needs honed)of the zx stem to be a press fit for the kz stem and tig weld it.

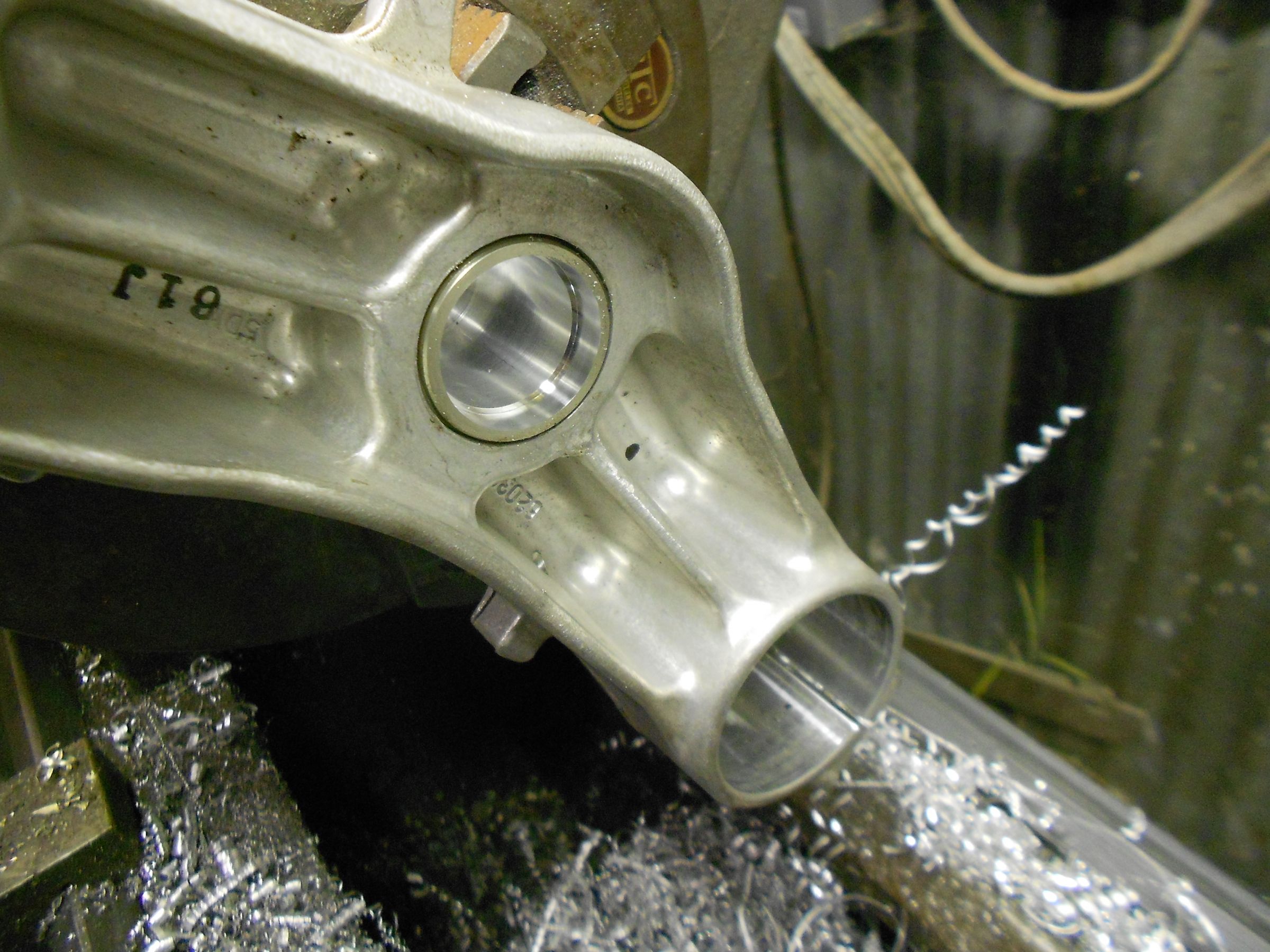

otherwise i press the stem out of the donor lower triple and machine the lower triple out with a counterbore,

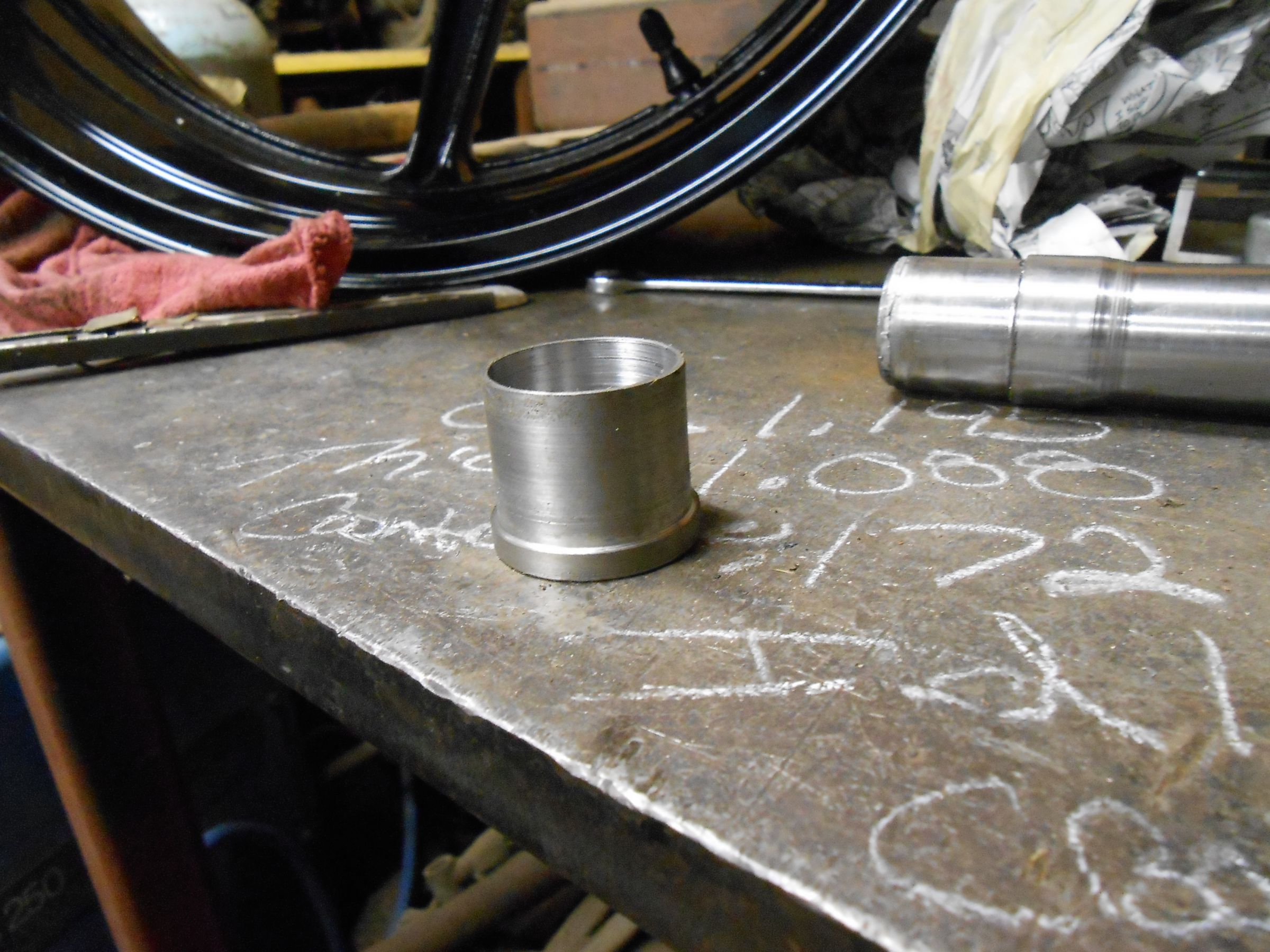

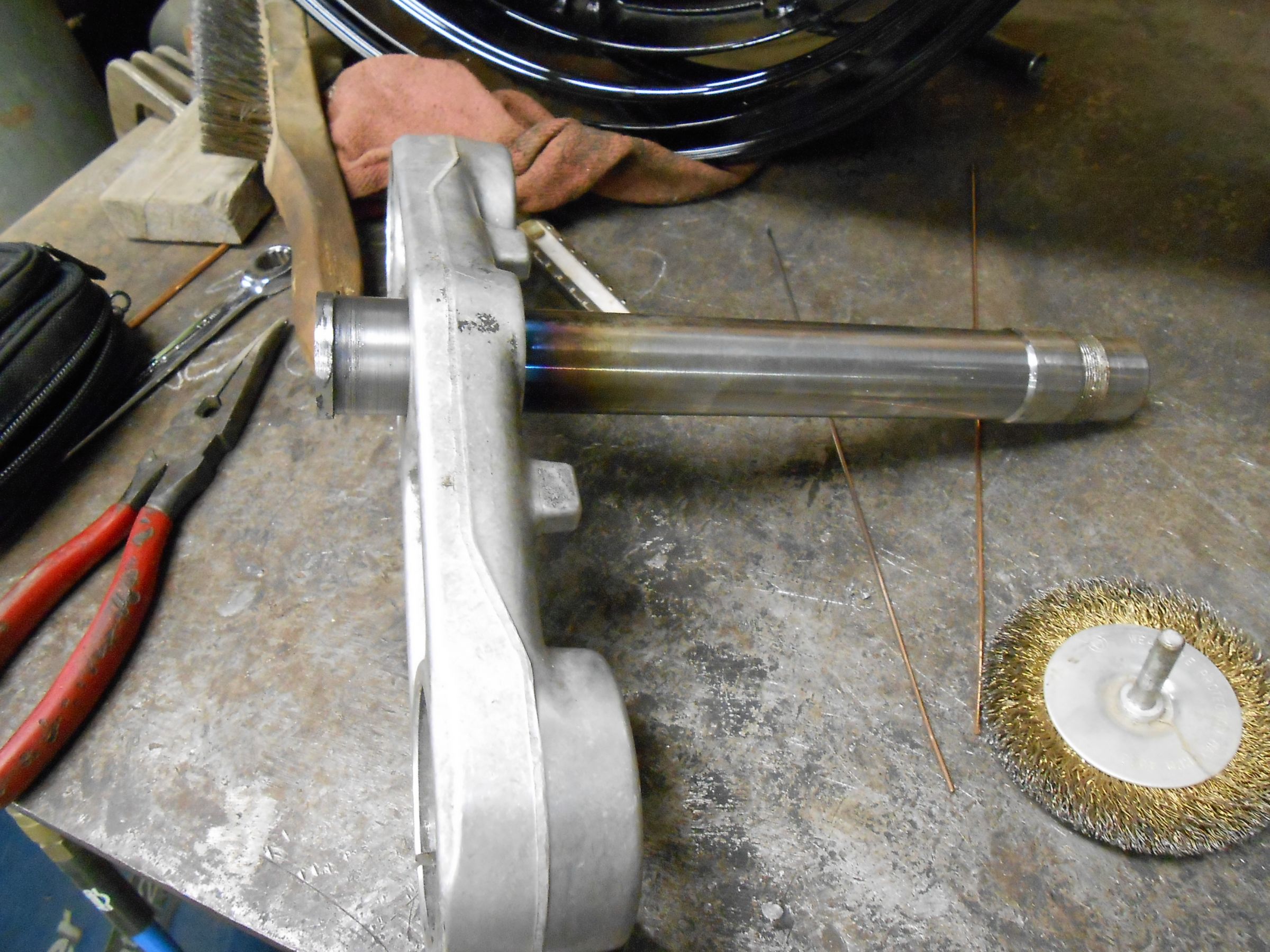

then machine out a steel bushing to be a press fit match to it and press it onto the stem and tig it.
then press the whole lot into the donor lower triple.

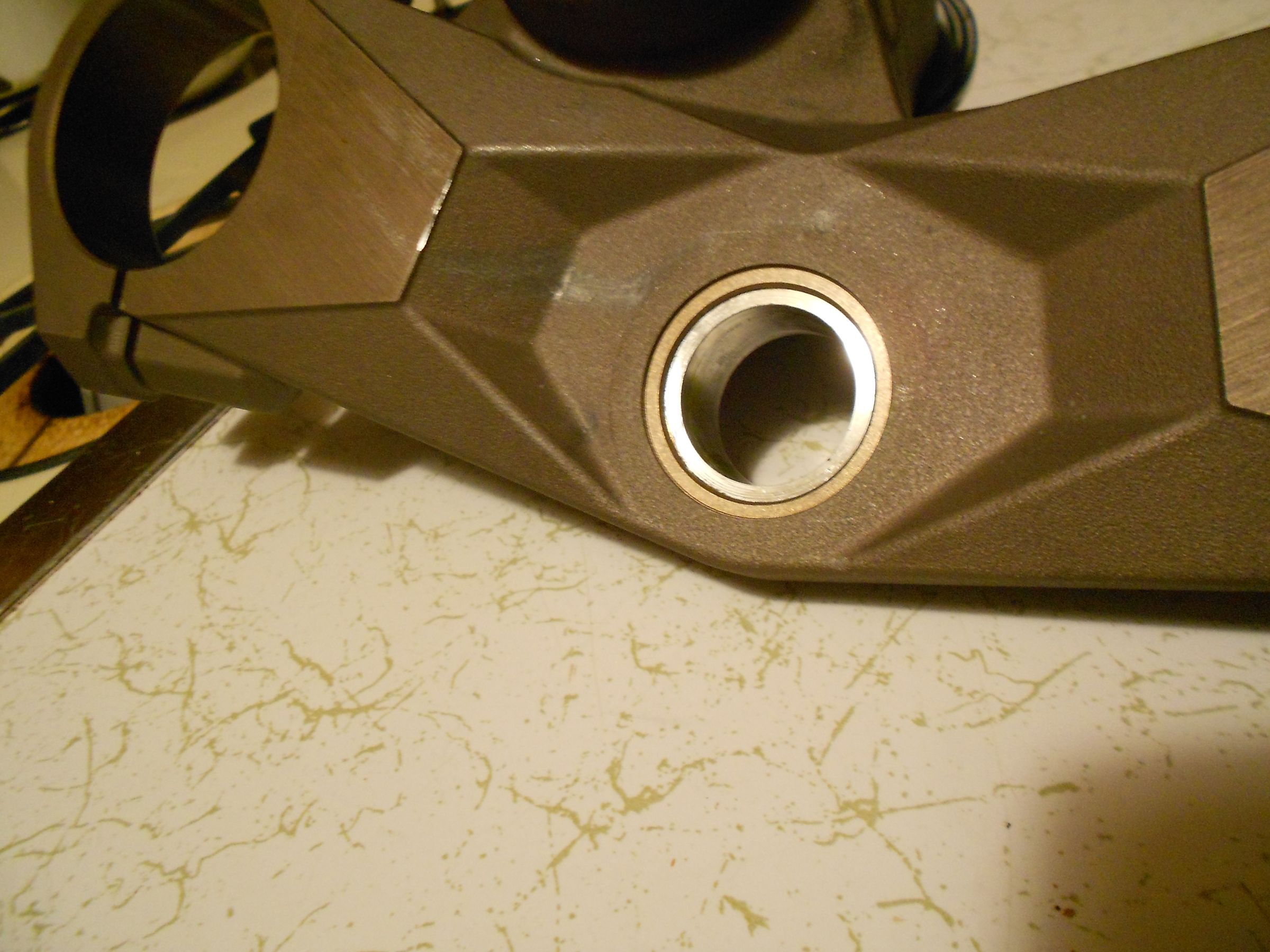

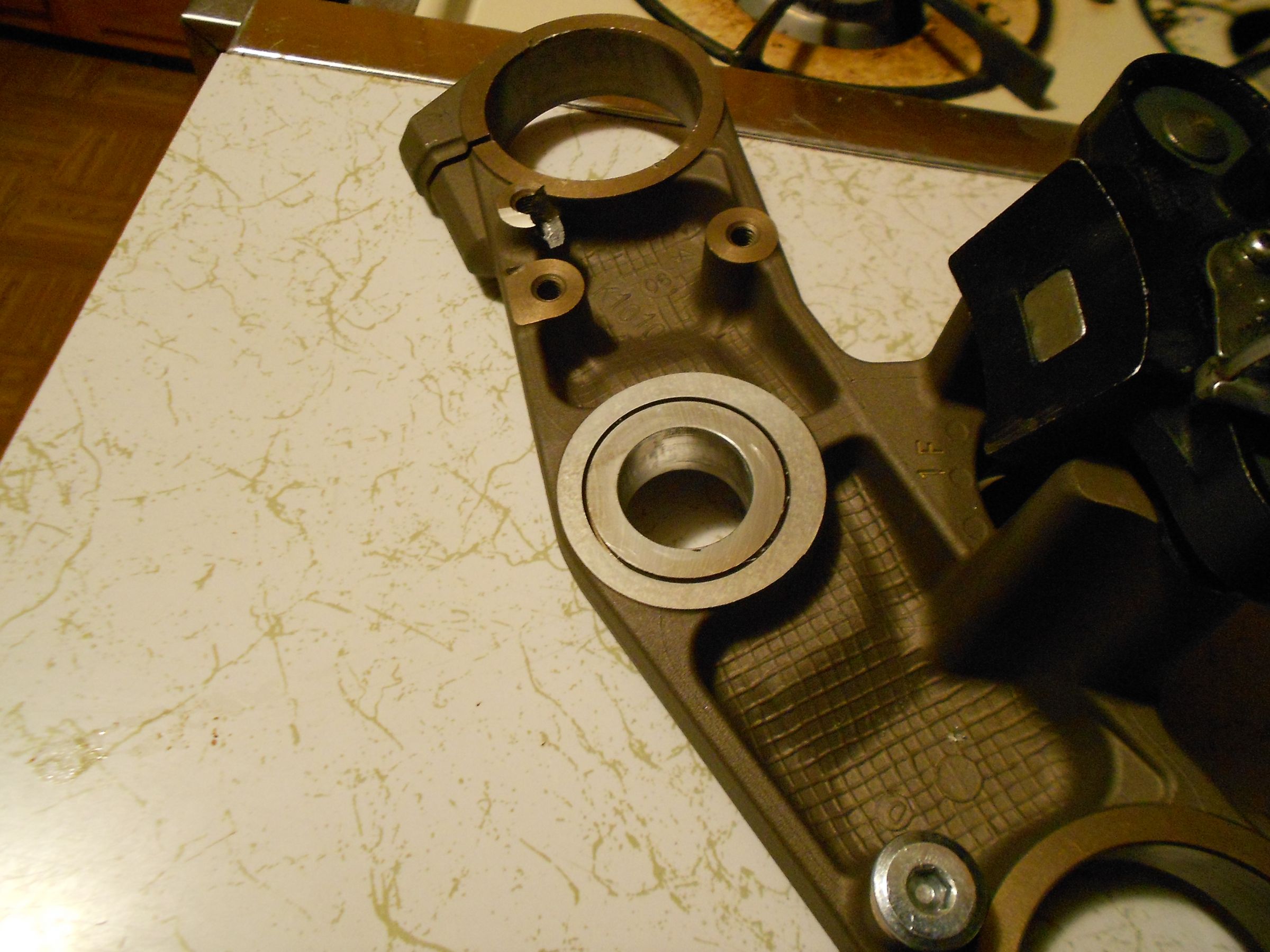

then i address the donor upper by either machining the hole larger or machining and installing a bushing to reduce the hole to match the kz stem.

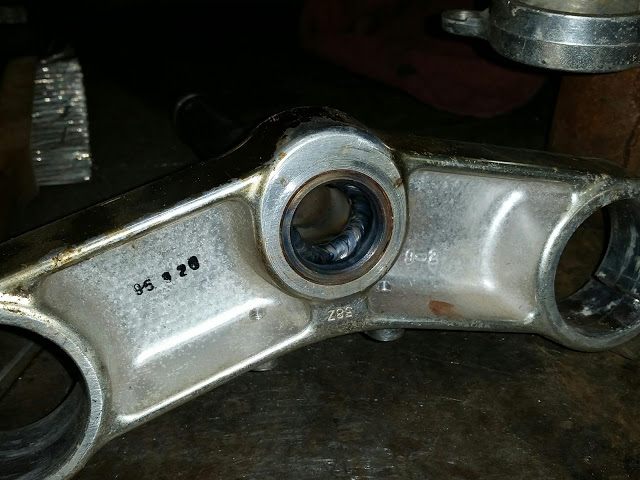

on 81 and later kz's that have the snap ring stem that presses out of the lower aluminum triple if i can i just machine the donor stem as the bushing and machine a counterbore to register the snap ring on and then cut the donor stem off mill it flat and press the kz stem in (from the bottom naturally)

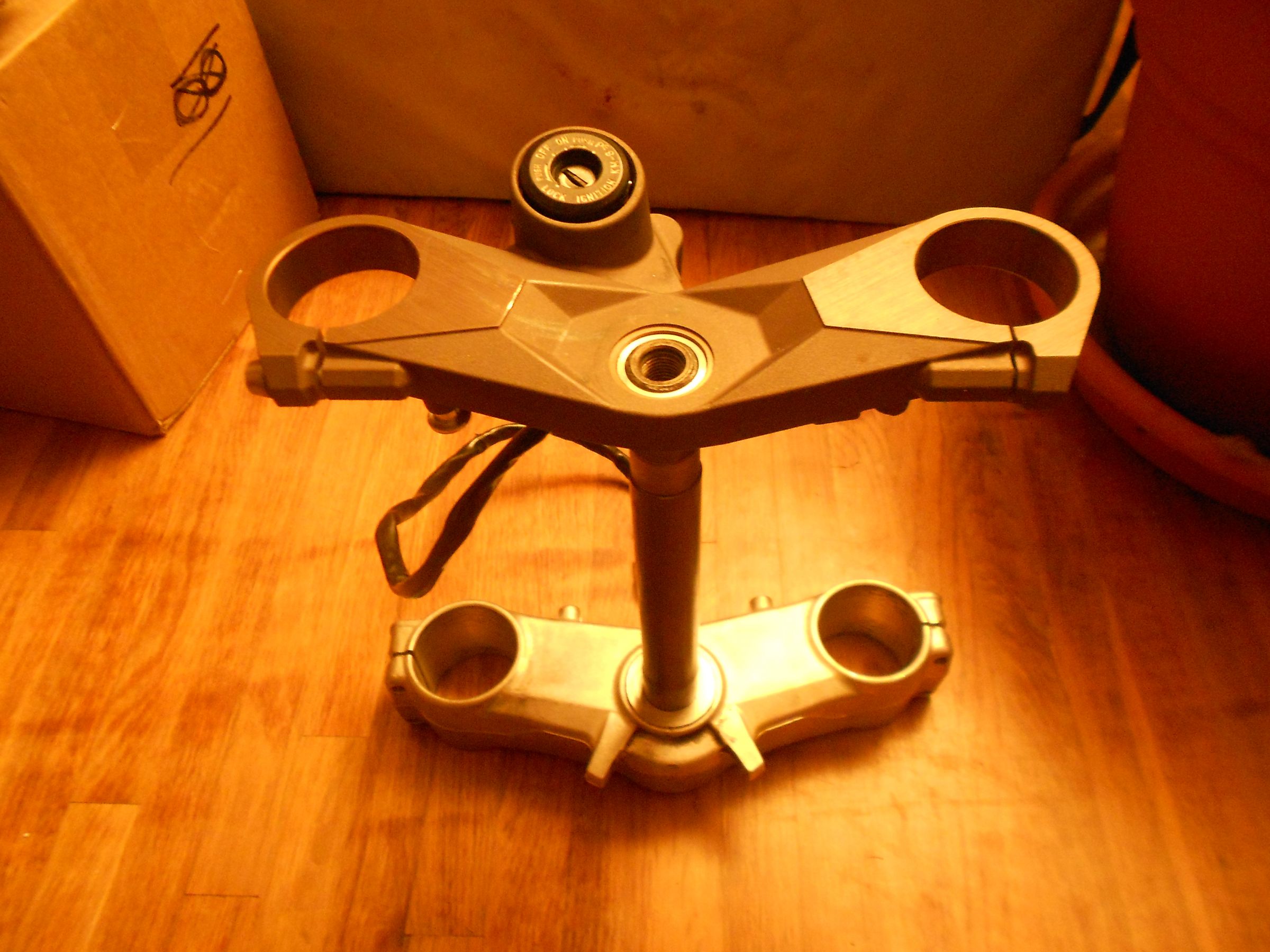

here is boostables zx10 to 81 or later kz.








hth,
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: Street Fighter LTD

Please Log in or Create an account to join the conversation.

Triple tree custom work 30 Nov 2016 14:08 #749191

  • 750 R1
  • 750 R1's Avatar
  • Offline
  • User
  • Posts: 1215
  • Thank you received: 394
Nice, tidy work..... ;)
The following user(s) said Thank You: 531blackbanshee

Please Log in or Create an account to join the conversation.

Triple tree custom work 30 Nov 2016 14:11 #749192

  • BlackEyeCafe
  • BlackEyeCafe's Avatar
  • Offline
  • User
  • Posts: 74
  • Thank you received: 3
Thanks brother, that cleared it all up. Hopefully I can post a build thread in a couple months.

Ride safe
1977 KZ650 C
Jets - Main 115 - Pilot 17.5 - Needles - Position 3 - NGK BR7ES

Please Log in or Create an account to join the conversation.

Last edit: by BlackEyeCafe.

Triple tree custom work 01 Dec 2016 05:45 #749220

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
happy to help :cheer:
definitely post up some pics of your build :evil:

thanks for the kind words.

leon
