GPZ 750 wiring

F64 wrote:

meter the g/w wire at the junction box.

put your volt meter on DC V.

black probe on the G/W wire.
red probe on the positive battery post.

what is your voltage?





F64 wrote:

ok, so the side stand switch is disabled.

meter the starter solenoid.
key on
kill switch "run"

meter on DC V
black probe on negative battery post
red probe on yellow/red wire at starter relay

push starter button.. what is you voltage?




F64 wrote:

ok.. you aren't getting +12v to the solenoid.

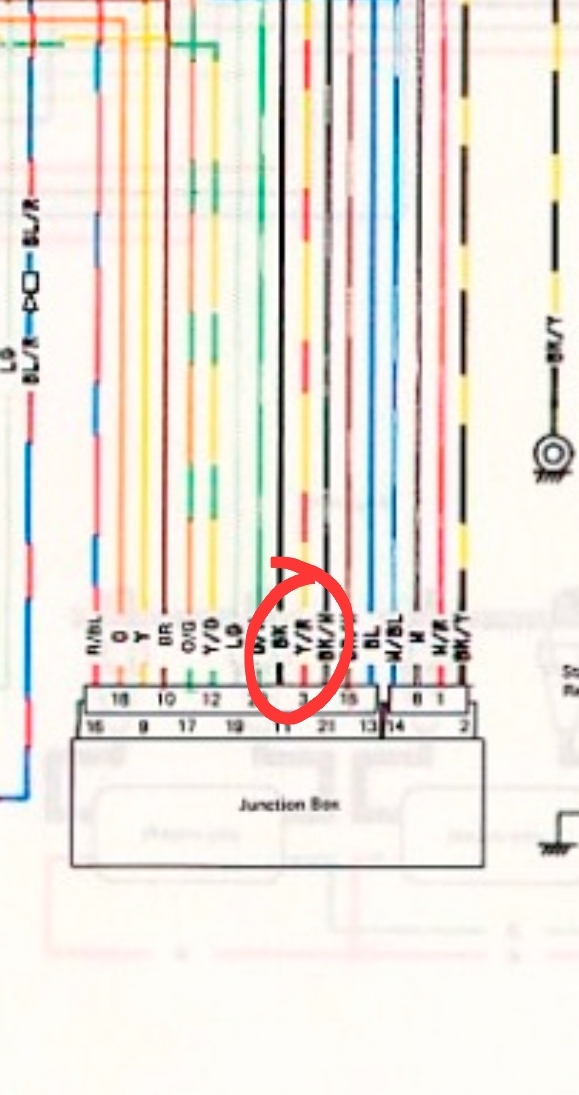

move the red probe to the yellow/red wire at the junction box
black probe still on negative battery post

press the start button
what is your voltage?

F64 wrote:

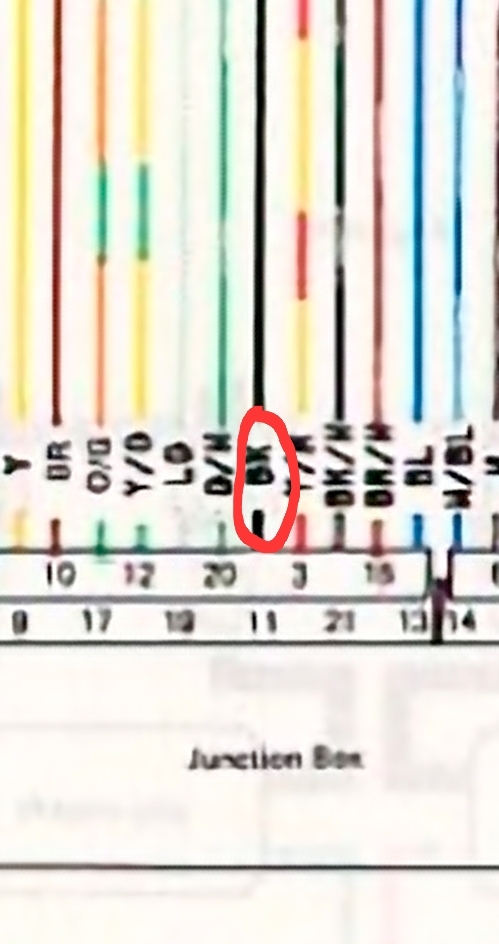

move the red probe to the black wire next to the yellow/red on the juction box

press the start button
voltage??

F64 wrote:

ok, your starter button is not sending +12v to the junction box.

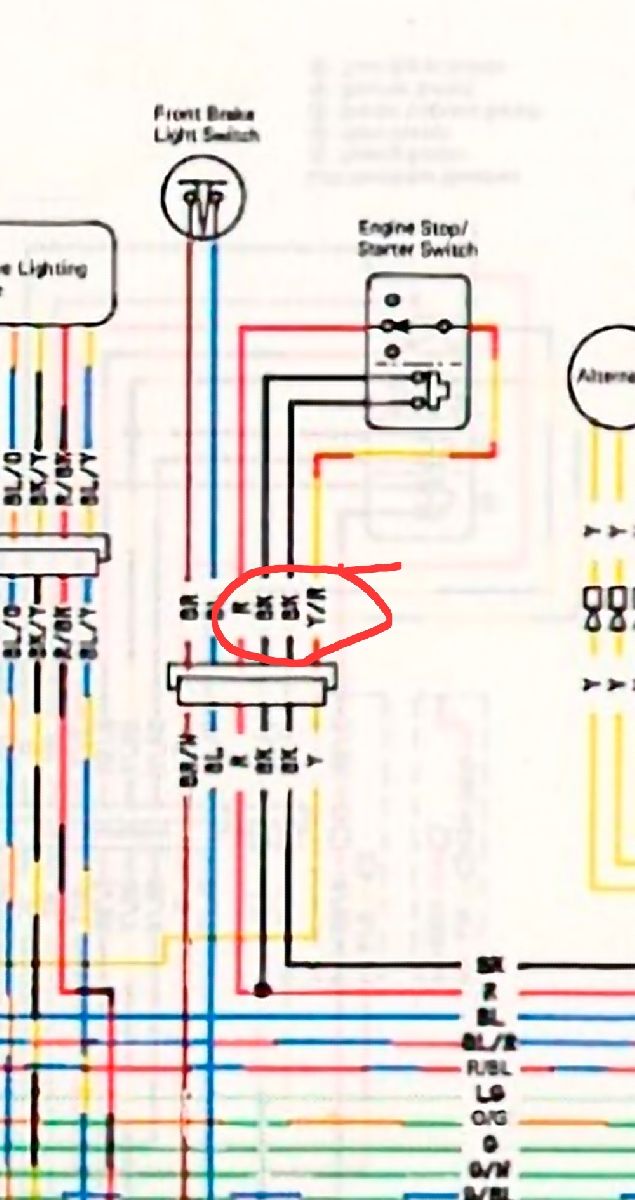

find the connector for your starter switch/kill switch..

put your red probe on each of these 4 wires with the
key set to "on"
kill switch set to "run"
do not disconnect the connector

what are your voltages?





F64 wrote:

what about the black wires?
i need the voltages on those
