Engine don't start; ideas please!

Claude.
Topic Author
Offline
User
Posts: 227
Thanks: 34

Re: Engine don't start; ideas please!

20 Jan 2023 16:52 - 20 Jan 2023 17:21

Wookie58 wrote:

...FYI there is no electrical connection between the coil and the bracket or the frame ( only "heat transfer")

Seriously? Don't the coils need to be grounded via their mounting posts?

2017 Versys 1000
1982 KZ1000J2
1983 KZ1000J3
1982 GPZ1100
1983 KZ750L
1982 KZ1000J2 (another one!)
2017 Yamaha FZ07

Last edit: 20 Jan 2023 17:21 by Claude..

Please Log in or Create an account to join the conversation.

Nessism
Offline
Sustaining Member
Posts: 7655
Thanks: 3021

Re: Engine don't start; ideas please!

20 Jan 2023 17:43

#879084

Claude. wrote:

Thinking at Nessism comment, I told myself "why not invert the coils's wires. Naah, it won't work as the right colors are on the right coils". Having nothing to loose, I did so. And the engine started RIGHT AWAY!! What a relief. I don't know why I had to invert the wires but I'm so glad that I don't really care by now.

Once again, thanks a lot for every comment!! I really appreciate!

If the coil wire colors are correct, that means the rotor is on 180 degrees off. It's easy to do.

Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

The following user(s) said Thank You: Claude.

Please Log in or Create an account to join the conversation.

Wookie58
Offline
Moderator
Posts: 4819
Thanks: 2916

Re: Engine don't start; ideas please!

21 Jan 2023 00:43 - 21 Jan 2023 00:51

#879100

Claude. wrote:

Wookie58 wrote:

...FYI there is no electrical connection between the coil and the bracket or the frame ( only "heat transfer")

Seriously? Don't the coils need to be grounded via their mounting posts?

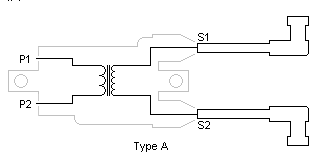

No, the primary winding grounds through the points/igniter module (switching the ground is what makes the spark) the secondary winding grounds through the spark plugs to the engine on a dual output coil or shares the ground via the points/igniter on a single out coil. The mounting tower simply dissipates the heat generated to stop the coil burning out
