Carb Cleaning Diagram?

  • kzz1king
  • kzz1king's Avatar Topic Author
  • Offline
  • User
  • Posts: 822
  • Thanks: 52

Carb Cleaning Diagram?

13 Mar 2014 19:02
#625092
Somewhere here I seen a great carb cleaning diagram. One of those if you blow air here and plug this air should come out here deals. Thought I had it book marked but cant find it. Anyone have it handy? Thanks
Wayne
74 Z1 1075, 29 smoothbores, owned and ridden since 1976
Home built KZ1000 turbo setup

www.kzrider.com/forum/11-projects/532476...s-budget-turbo-build

www.kzrider.com/forum/11-projects/532489-74-z-makeover

Please Log in or Create an account to join the conversation.

  • mopguy
  • mopguy's Avatar
  • Offline
  • Sustaining Member
  • Posts: 727
  • Thanks: 167

Re: Carb Cleaning Diagram?

13 Mar 2014 19:09
#625093
The last time I saw it , it was here. . www.kzrider.com/media/kunena/attachments/6412/pilotcirvs.jpg
I have a 1980 Kawasaki KZ750 Ltd. I bought new. I recently managed to get it out of my garage after 28 years and put it on the road again (2010). I feel like a kid all over again. Since I have acquired 3 78 KZ1000 Ltd, 1 1981 KZ1000 Ltd, and another 1980 KZ750 Ltd. Love the LTD's.

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thanks: 2100

Re: Carb Cleaning Diagram?

13 Mar 2014 19:10
#625094





Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thanks: 2100

Re: Carb Cleaning Diagram?

13 Mar 2014 19:19
#625097

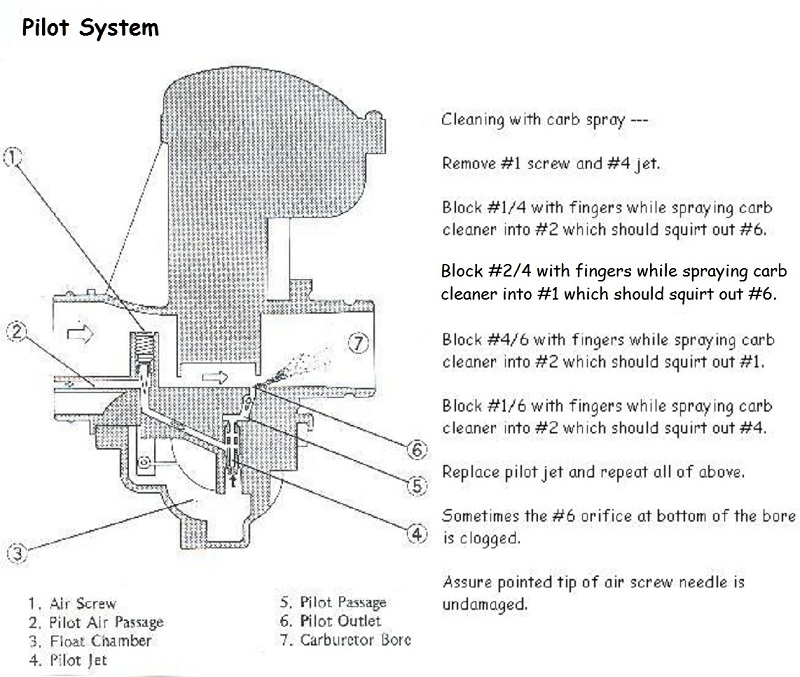

Above posted illustrations are for manual slide carbs.

CV (constant vacuum) carbs have differently designed pilot circuits. But a similar spray cleaning method may be used on CV carbs.

Mikuni 29mm smoothbore carbs are manual slide carbs.

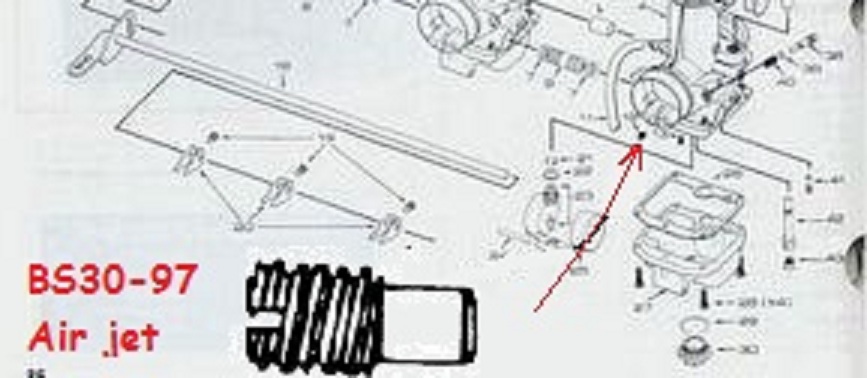

Some have a removable pilot intake air jet which may also be cleaned or replaced.
