carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:09

so what your telling me is that the carbs that measure 25.65 on intake side are 24s
the carbs that measure 28.65 are 26s
and the smoothbore carbs i have which measure 29.64 are 29s
is this what I'm understanding from this forum ??????????

Attachments:

Please Log in or Create an account to join the conversation.

testarossa
Offline
User
Attack life, it's only trying to kill you.
Posts: 3678
Thanks: 82

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:15

#475532

Left to right in your picture. VM28, VM29 smoothbore, VM24. I don't see any VM26's in the picture.

1978 KZ1000 A2 Click--->Build Thread
2004 ZX-10R
2007 Harley Sportster 1200
2020 Harley Street Glide Special
Angola, IN

The following user(s) said Thank You: motojunkey

Please Log in or Create an account to join the conversation.

motojunkey
Topic Author
Offline
User
Posts: 20
Thanks: 0

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:19 - 09 Sep 2011 23:40

#475534

what do 26 s look like ?
and what year do they come on --76 900's or later 1000s
do they look like the 28s with an up and down return spring ?

Last edit: 09 Sep 2011 23:40 by motojunkey.

Please Log in or Create an account to join the conversation.

Old Man Rock
Offline
User
Posts: 6224
Thanks: 225

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:28

#475537

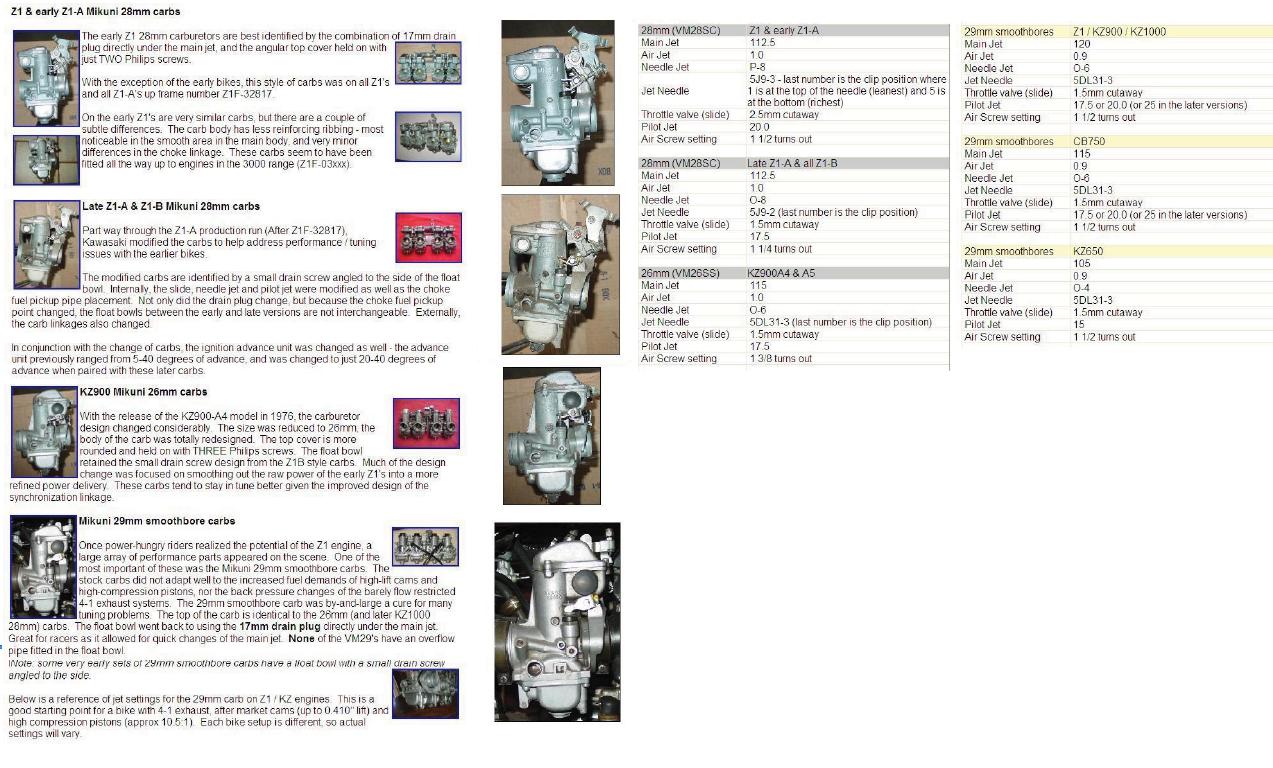

Maybe this will help....

Z1 carb identification can be found at Z1Enterprises as well....

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az

Attachments:

The following user(s) said Thank You: motojunkey

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: .

09 Sep 2011 23:37 - 22 Jan 2013 03:50

#475539

.

1981 KZ650 Competition Sports and Road

Last edit: 22 Jan 2013 03:50 by martin_csr.

Please Log in or Create an account to join the conversation.

testarossa
Offline
User
Attack life, it's only trying to kill you.
Posts: 3678
Thanks: 82

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:40

#475540

motojunkey wrote: what do 26 s look like ?

A lot like the VM29's. You will notice the differences in the number of ports on the air filter side, the size of the bore, and the large drain plug in the case of the 29's. VM26's have a small, angled drain plug.

Attachment FEB-008.jpg not found

1978 KZ1000 A2 Click--->Build Thread
2004 ZX-10R
2007 Harley Sportster 1200
2020 Harley Street Glide Special
Angola, IN

Attachments:

The following user(s) said Thank You: motojunkey

Please Log in or Create an account to join the conversation.

Old Man Rock
Offline
User
Posts: 6224
Thanks: 225

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:45

#475541

I copied to the file base a claeaner version... PDF

Carb Identification

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az

Please Log in or Create an account to join the conversation.

wireman
Offline
User
The most interesting prick in the world
Posts: 4761
Thanks: 299

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:48

#475542

those far left carbs in your picture are the 73-75 style 28 carbs,the bottem bowls on the 26s/newer 28s and 29s interchange.
the 26s look basically like the newer 28s,the bodies on 29 smooth bores are made of aluminum versus heavy ass die cast zinc for the 26/28s.

the far right carbs are 24s off a kz650

posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

The following user(s) said Thank You: motojunkey

Please Log in or Create an account to join the conversation.

motojunkey
Topic Author
Offline
User
Posts: 20
Thanks: 0

Re: carb sizes 24-26-28-29 mm see pics ??????????

09 Sep 2011 23:51

#475543

Thank you all !!!
I'm healing up after a crash at gingerman and trying to keep my spirits up while
putting together the next race bike.
With a bunch of time on my hands its great for you guys to cheer me up with a little advice.
now i Know what to look for .
