TOPIC:

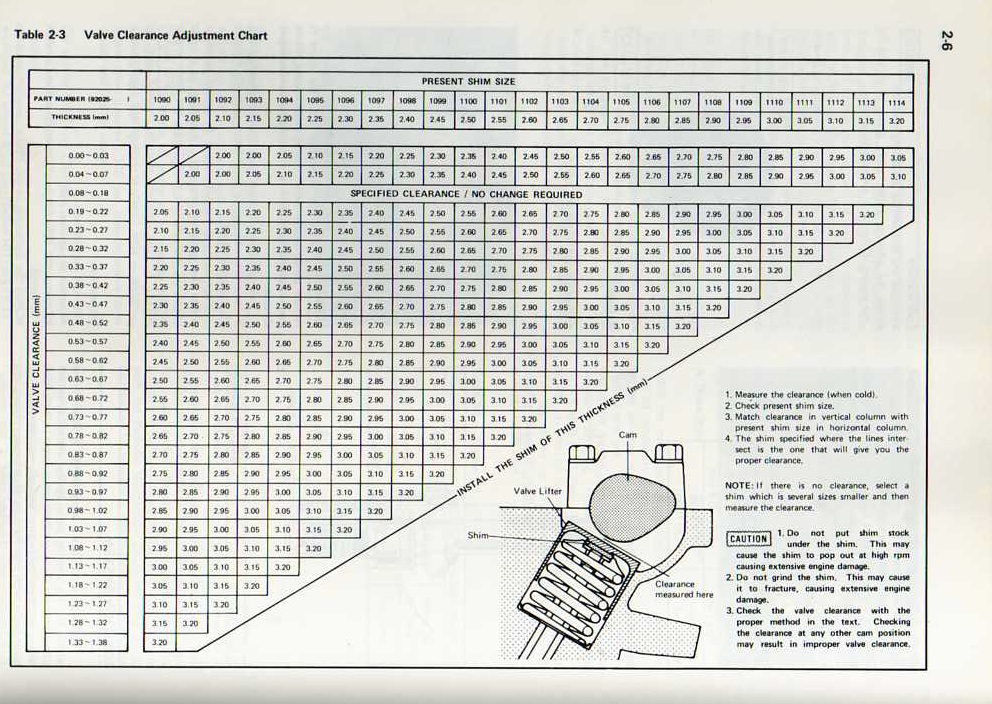

Valve shim chart 08 Jul 2017 19:41 #766448

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
Attachments:
The following user(s) said Thank You: Frank2shots

Please Log in or Create an account to join the conversation.

Valve shim chart 08 Jul 2017 21:50 #766453

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
Specific to which engine(s)?
Thanx
1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Valve shim chart 08 Jul 2017 21:56 #766454

  • Kray-Z
  • Kray-Z's Avatar
  • Offline
  • User
  • I need more power Scotty....
  • Posts: 583
  • Thank you received: 107
It is for any engine, as long as the specified clearance is 0.08 to 0.18 mm!:unsure:

Actually, Steve was likely posting to help a 550 owner, I think....
2-04 R1, 81 CSR1000, 81 LTD1000, 2-83 GPz1100, 3-79CBX, 81 CBX, 3-XS650, 84 Venture, +parts
Quote "speed costs money...how fast do you want to go?" (Which Z movie?)
Universal formula for how many motorcycles one should own = n + 1, where n is how many motorcycles you own right now....

Please Log in or Create an account to join the conversation.

Last edit: by Kray-Z.

Valve shim chart 09 Jul 2017 04:27 #766458

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
Here's how I record & save the numbers. I also keep a hard copy.

Please Log in or Create an account to join the conversation.

Valve shim chart 09 Jul 2017 06:42 #766463

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
I was asked a question last night before I went to bed so I put this up. I don't use metric so I thought it would help him. If someone has a better one, please put it up.
Steve

Please Log in or Create an account to join the conversation.

Valve shim chart 09 Jul 2017 07:17 #766468

  • KZB2 650
  • KZB2 650's Avatar
  • Offline
  • User
  • Posts: 1475
  • Thank you received: 265
A 650s range is .003 to .007.......... shims are .002.......... if you have .002 clearance and want .004 you put in one size smaller if you want .006 put in a shim 2 sizes smaller....... If you have .008 you put in one size larger to get.006..... Have .007 and want .005 same or leave it and let wear close it up......why even mess with the chart.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
The following user(s) said Thank You: Dr. Gamma

Please Log in or Create an account to join the conversation.

Valve shim chart 29 Apr 2019 06:50 #802977

  • axel
  • axel's Avatar
  • Offline
  • User
  • Posts: 23
  • Thank you received: 0

SWest wrote:


Can this chart be applied to a KZ550?
1981 KZ550 (carburetor tuned for pod filters)

Please Log in or Create an account to join the conversation.

Valve shim chart 29 Apr 2019 08:56 #802987

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
It's possible the chart for the 550 is the same, but probably best to use the 550 chart just in case.
I have a bunch of manuals you can download for the 550. You should get them all. The factory manual will have the shim chart. for a 550.
s3.amazonaws.com/gpzweb/Mnls/Mnls.html

Also, before doing anything with the valve cover, read the warning for details about the valve cover related to the timing chain.
This is the same link in my signature. It also has details on the way to measure valve lash clearance, and better images for valve timing.
s3.amazonaws.com/gpzweb/CamsKZZXZR550500...KZZXZR550500400.html

Also, if you follow the links in my signature, you will see a website specifically about your carburetors.
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Valve shim chart 30 Nov 2022 10:54 #877350

  • Cfoux85
  • Cfoux85's Avatar
  • Offline
  • User
  • 1982 Kawasaki kz 750e
  • Posts: 68
  • Thank you received: 4
I'm so confused on how to do this.  So I measure my clearances, find it on the left side of the chart. Then slide to whatever shim that's in it which would be at the top of the chart and that will tell me what size shim to put in?

Please Log in or Create an account to join the conversation.

Valve shim chart 30 Nov 2022 11:12 #877352

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
Shims go up in increments of 5 thou. If yo need to increase the gap then you reduce the shim size. If you need to decrease the gap then you increase the shim size.
Eg if the gap is 8thou and you want to make it 18thou then reduce the shim size 2 sizes from what you have.
You don't need a chart. Just remember if you want a smaller gap increase the shim if you want a bigger gap decrease the shim.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Valve shim chart 30 Nov 2022 11:20 #877353

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659

Shims go up in increments of 5 thou. If yo need to increase the gap then you reduce the shim size. If you need to decrease the gap then you increase the shim size.
Eg if the gap is 8thou and you want to make it 18thou then reduce the shim size 2 sizes from what you have.
You don't need a chart. Just remember if you want a smaller gap increase the shim if you want a bigger gap decrease the shim.

Actually, shims go up in increment of .05mm, which is about .002"
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

Valve shim chart 30 Nov 2022 11:40 #877354

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648
Type in haste, repent at leisure

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.
