KZ1000A1 Spare Parts Project
- calum
- Topic Author
- Offline
- User
Less
More
18 May 2023 12:37 #884857
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project

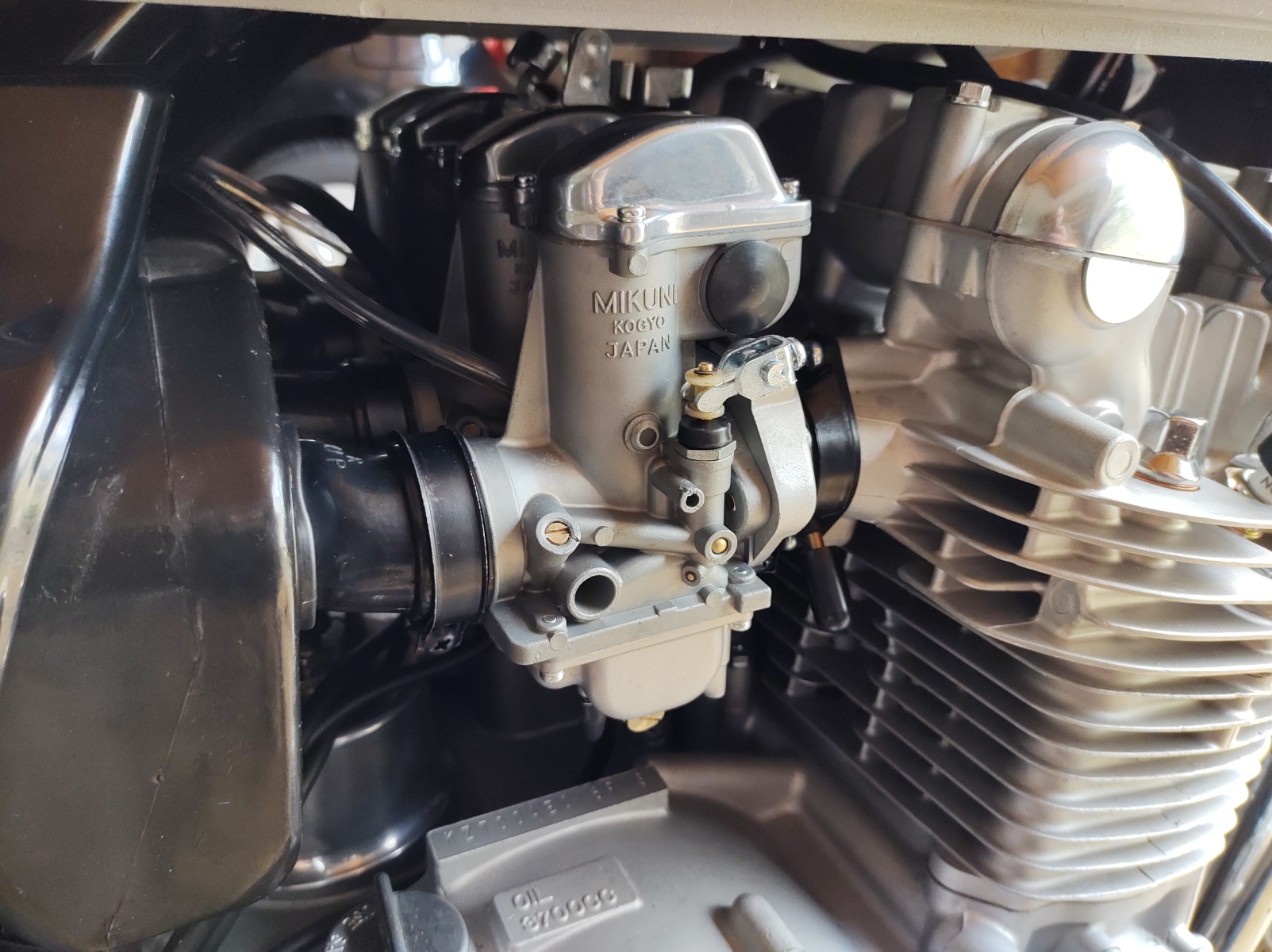

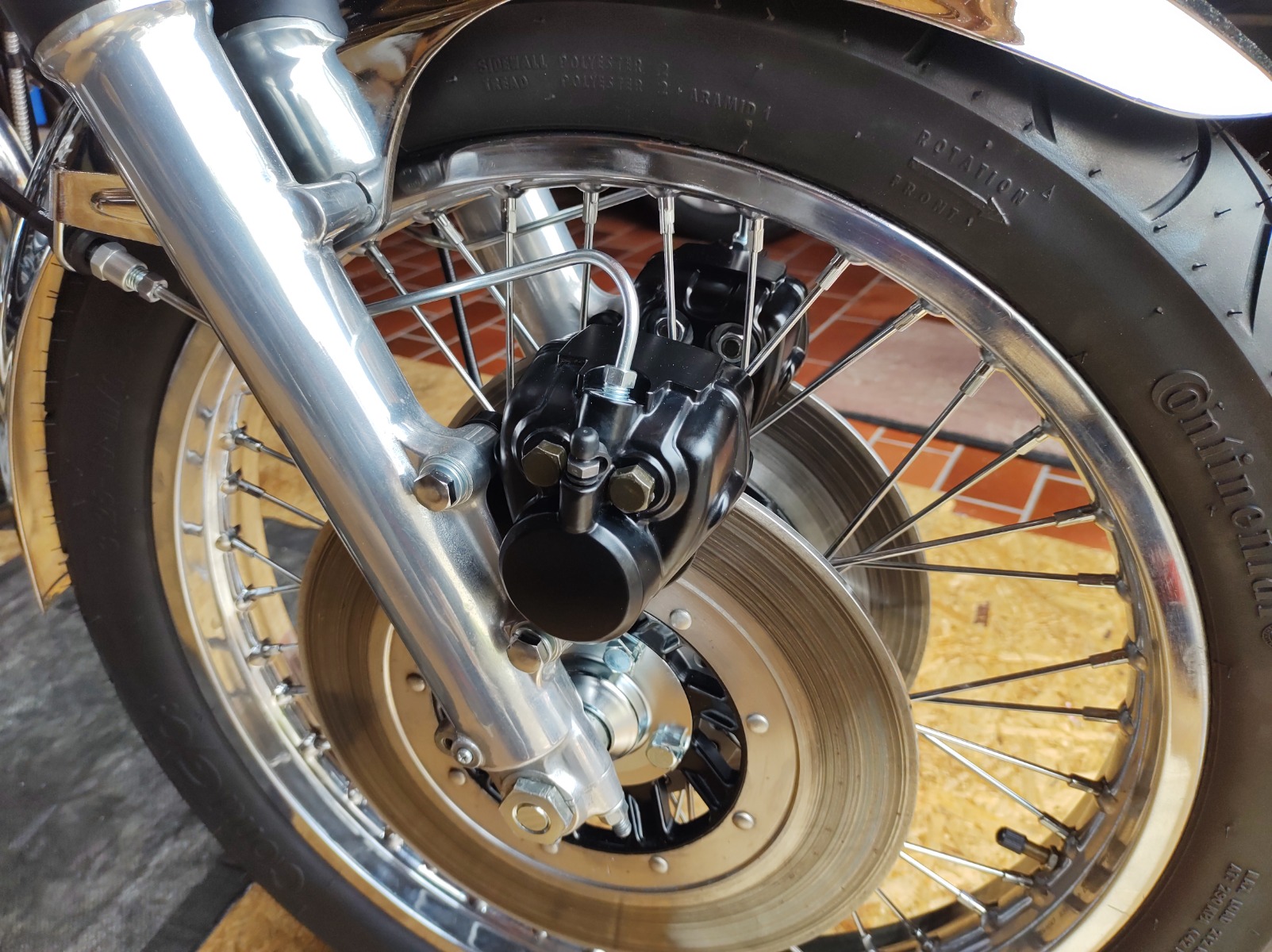

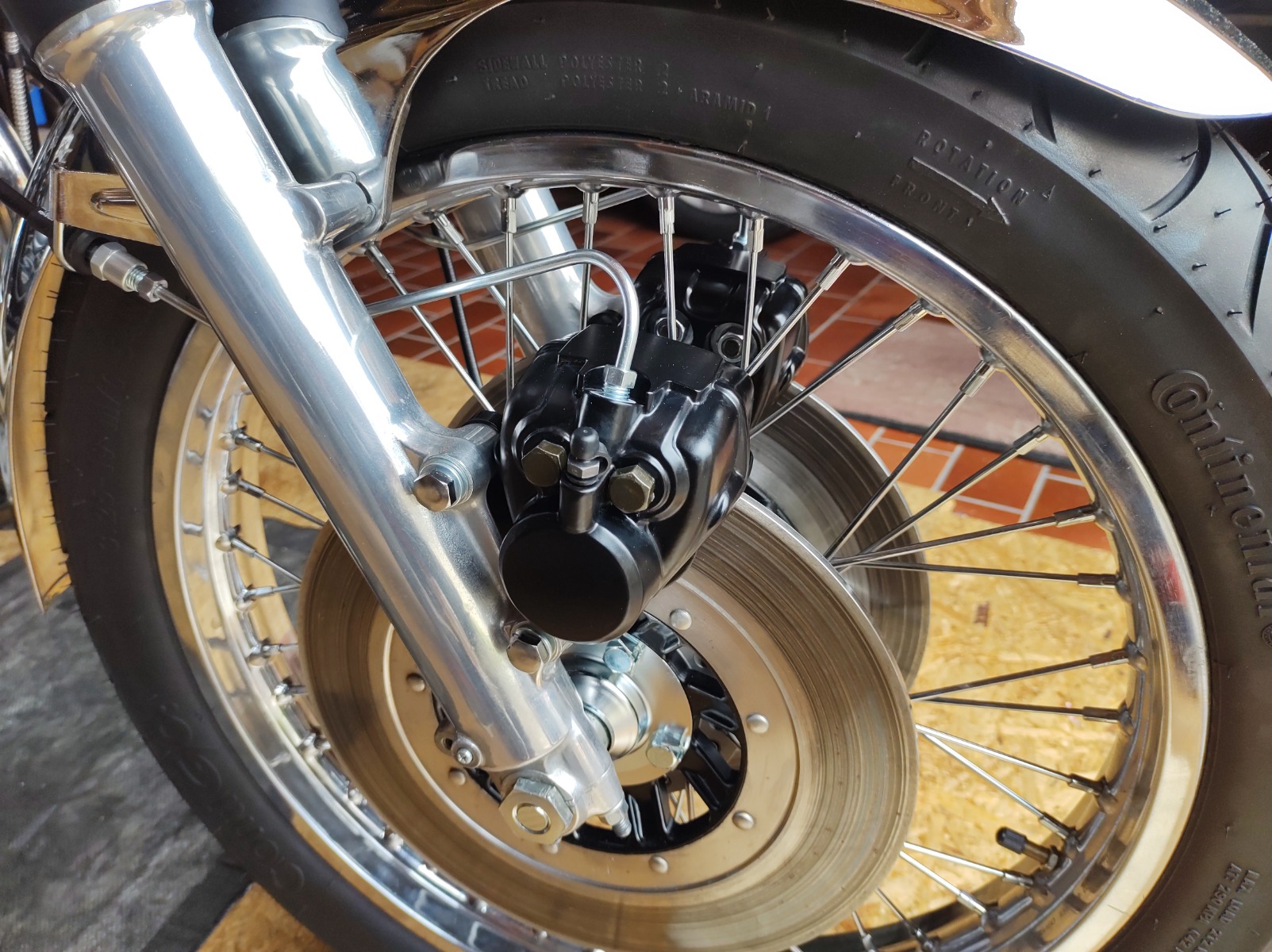

Well, the choke plunger levers disappeared at the platers so I've got the spares on. At least he did a good job on the brake caliper brackets so the front brakes are on as well.
Getting the carbs in was a major PITA. The 750 is so much easier.
Getting the carbs in was a major PITA. The 750 is so much easier.
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
The following user(s) said Thank You: Scirocco, Wookie58
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
21 May 2023 04:55 #885019
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Just thought I'd post here that I'm in Exeter until Thursday. Just in case any of you UK guys are nearby and in the mood for a beer or two...
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4233
- Thank you received: 2424
21 May 2023 10:25 #885032
by Wookie58
Replied by Wookie58 on topic KZ1000A1 Spare Parts Project
Bit far unfortunately (especially on a school night) shame as it would have been good to catch upJust thought I'd post here that I'm in Exeter until Thursday. Just in case any of you UK guys are nearby and in the mood for a beer or two...
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
22 May 2023 03:17 #885060
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Figured as much but thought I should let you know - not really sure where anyone's based over here.
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
25 Jun 2023 07:17 #886380
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Been slowly working away at this. I now have everything except the bodywork and switch blocks done. Will get into the painting as soon as I've got the dent in the tank sorted and the tail sanded back down to the plastic..
No pictures today...
No pictures today...
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
The following user(s) said Thank You: Wheelhop, Wookie58
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
28 Jun 2023 08:33 #886569
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project

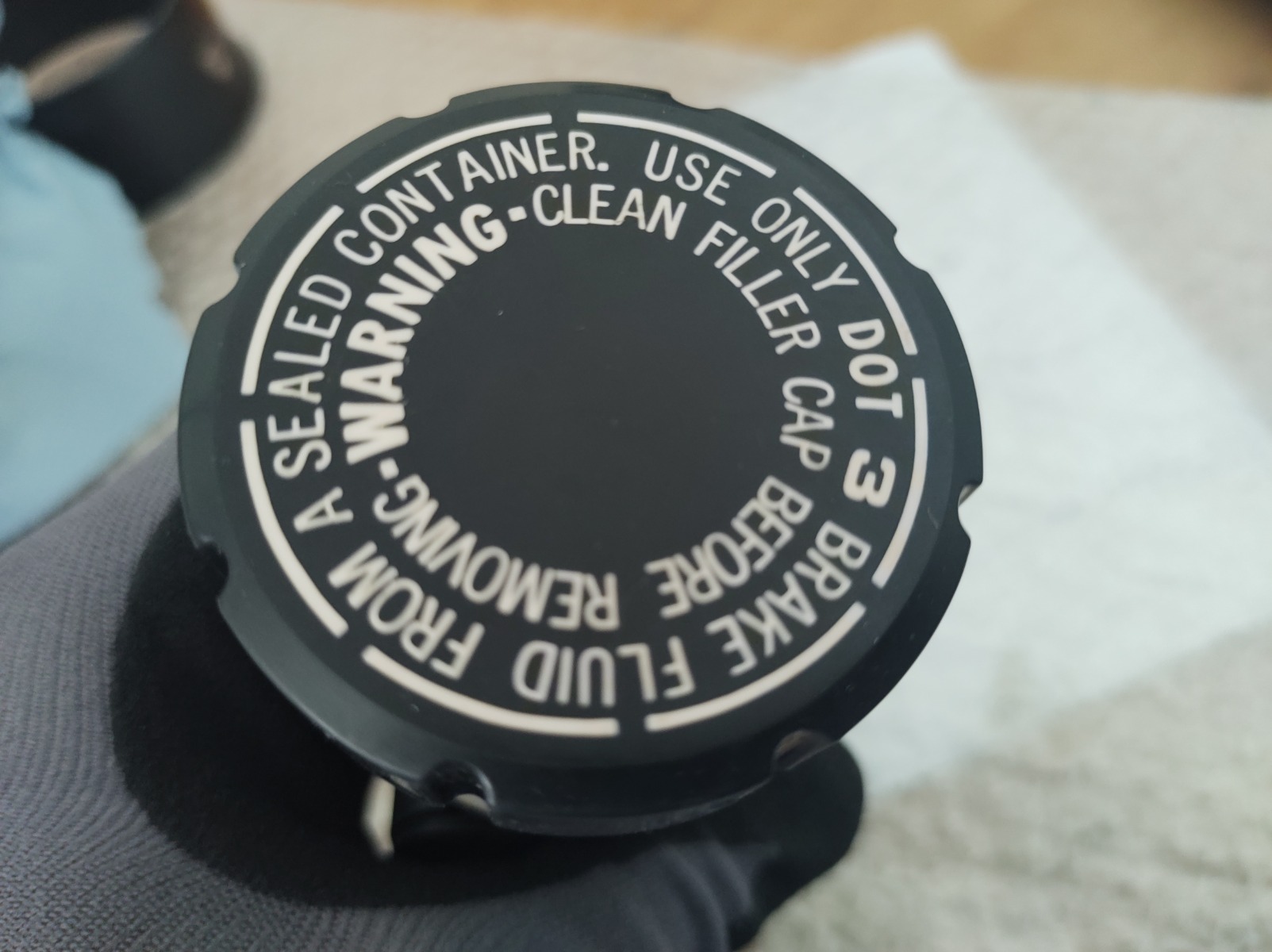

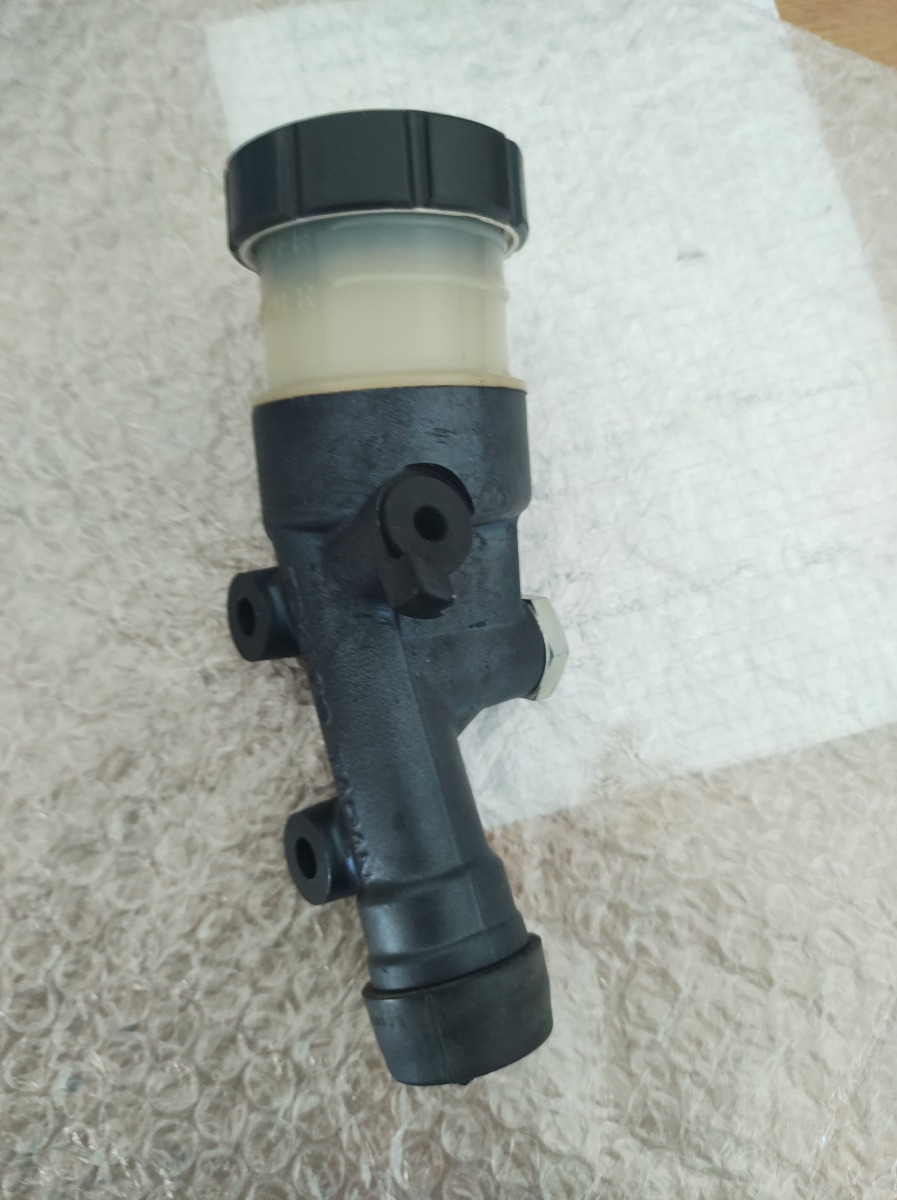

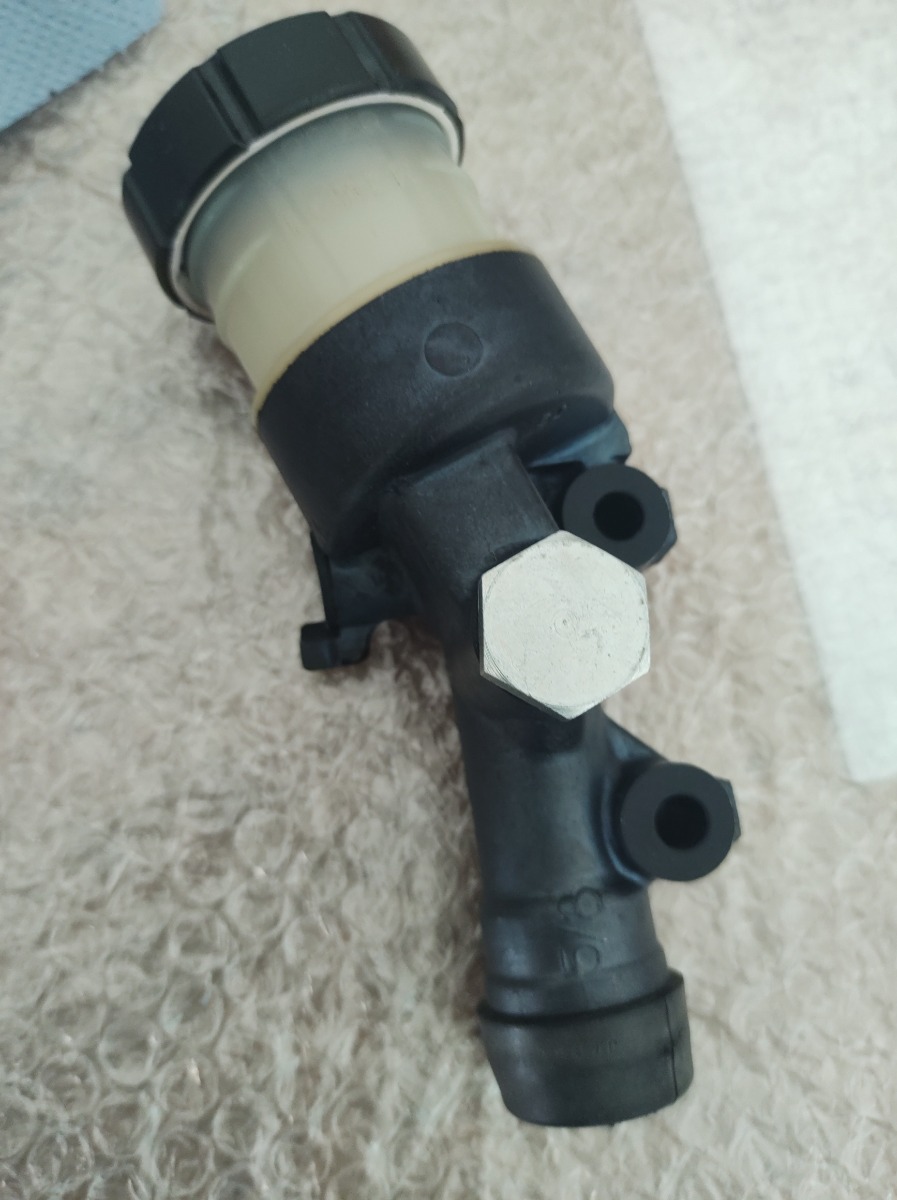

Scored a NOS rear master cylinder for cheap. Actually don't think it'll end up on the bike, though - it should really be put on an all-original build.
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
01 Jul 2023 11:36 #886699
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project

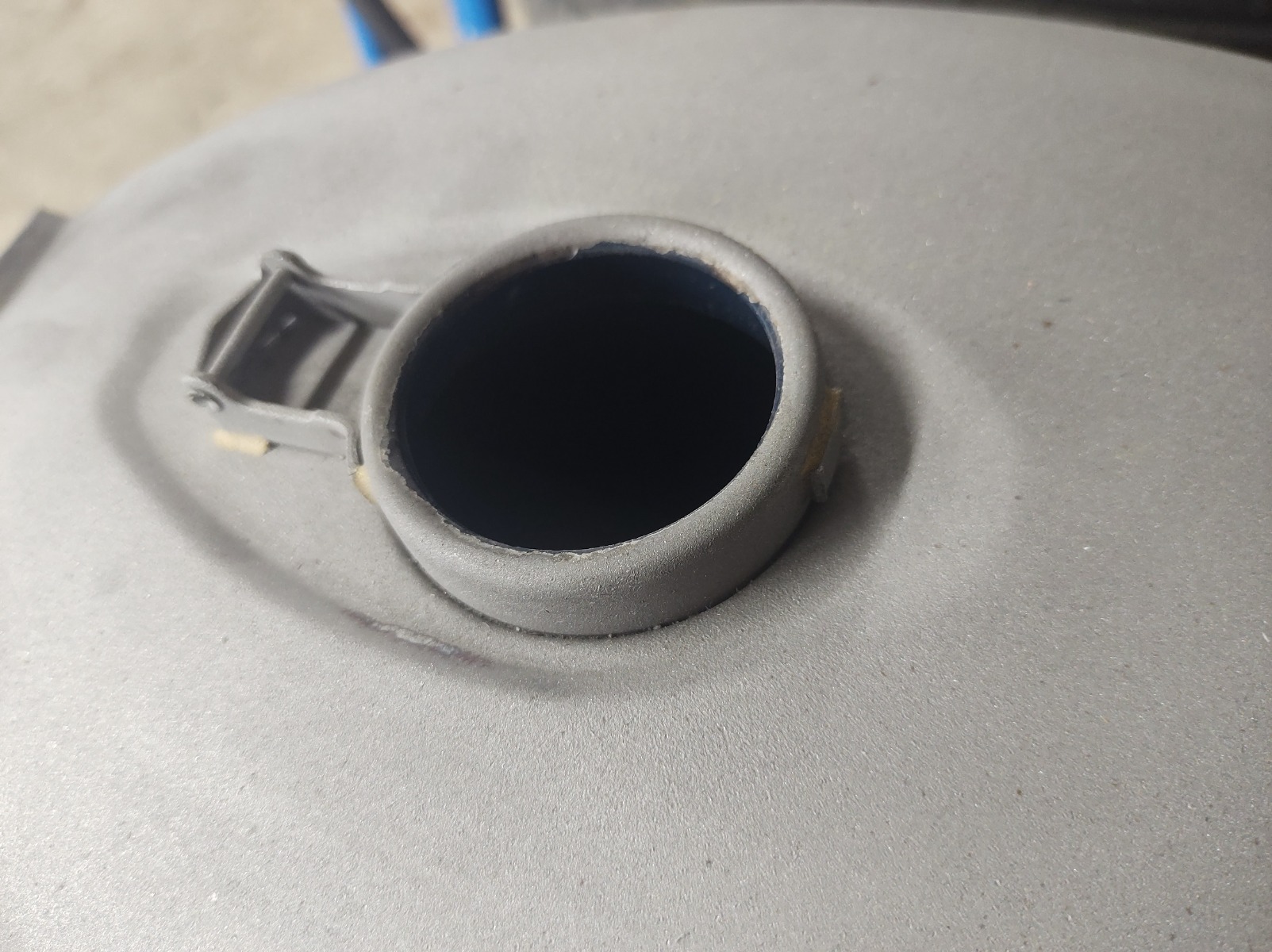

Took the tank down the road to get a couple of dents pulled yesterday. When I was packing it up I noticed that the bracket for the tank cap is missing. Not sure why I never noticed before, must not have been paying attention.
If anyone has some scraps lying around from switching out the cap on an A1, A2 or 900A4 tank I'd be very grateful...
If anyone has some scraps lying around from switching out the cap on an A1, A2 or 900A4 tank I'd be very grateful...
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4233
- Thank you received: 2424
01 Jul 2023 12:01 #886700
by Wookie58
Replied by Wookie58 on topic KZ1000A1 Spare Parts Project
Please Log in or Create an account to join the conversation.
- sf4t7
- Offline
- Sustaining Member
Less
More
- Posts: 578
- Thank you received: 378
01 Jul 2023 15:27 #886709
by sf4t7
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Replied by sf4t7 on topic KZ1000A1 Spare Parts Project
Scotty
1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1128
- Thank you received: 400
02 Jul 2023 03:15 #886726
by calum
KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1977 KZ1000A1 ( www.kzrider.com/forum/11-projects/616901...-spare-parts-project )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic KZ1000A1 Spare Parts Project
Yeah, glad I noticed it - after painting would have been a nightmare.

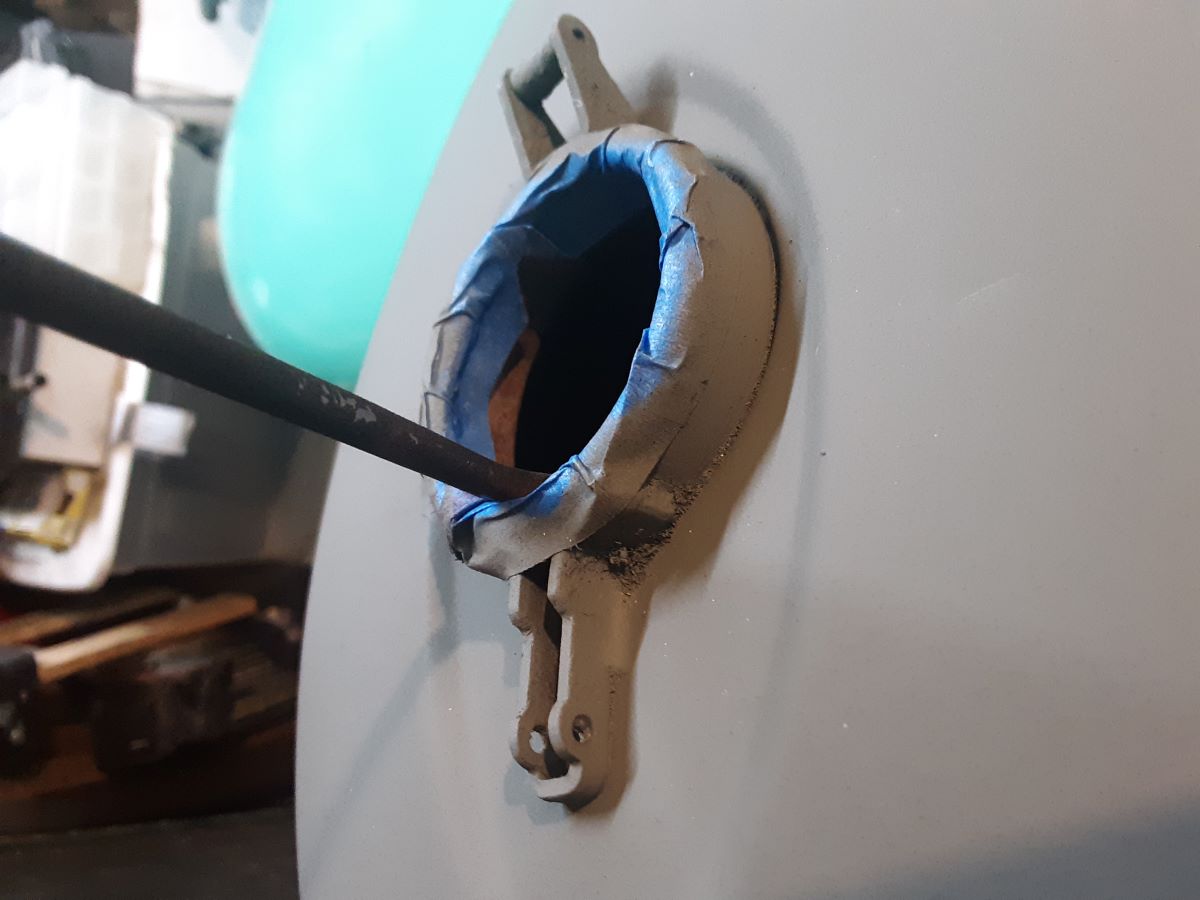

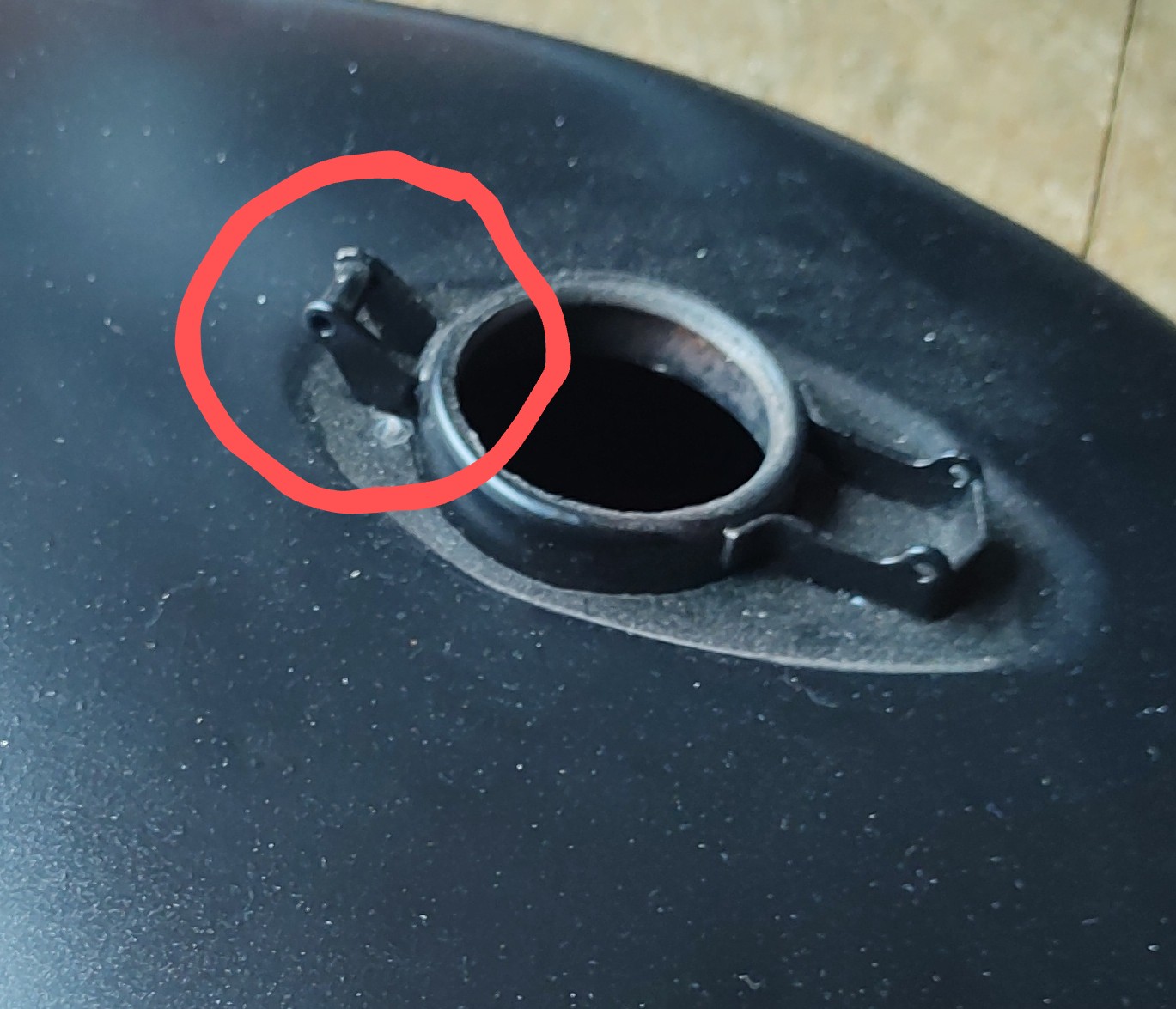

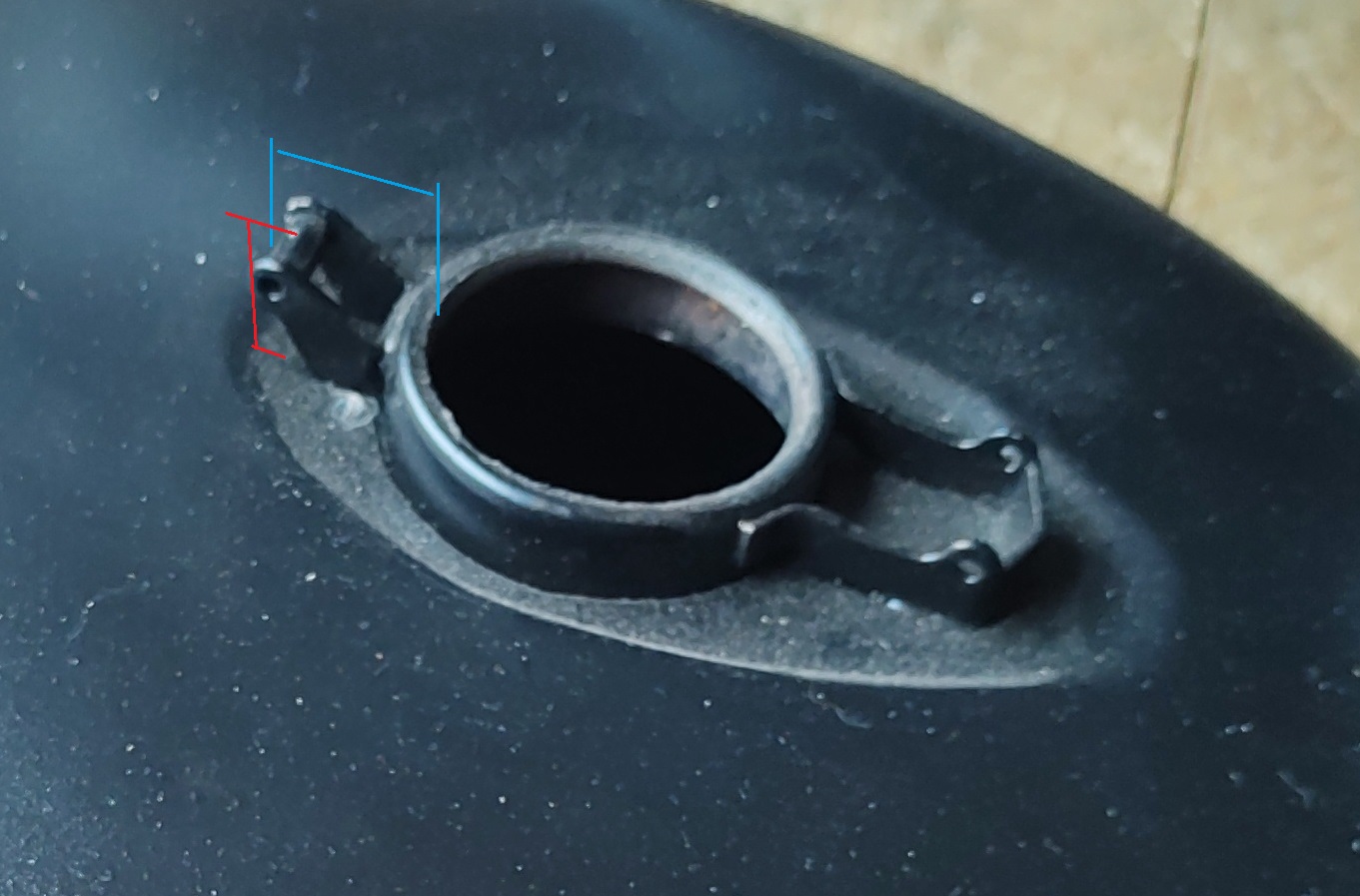

Could someone out there please take the time to measure the following for me:
