Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

23 Mar 2013 00:57
#578261
531blackbanshee wrote: what is up with the engine in the bottom pic?
looks like 650 bottom with a 900/100 top end :blink: .

leon

Frame is modified, look no bottom engine support. Also look at those rubber mounts on the the sides..(drool). That or it isn't a kz frame.
- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Please Log in or Create an account to join the conversation.

  • Hollywoodmx
  • Hollywoodmx's Avatar Topic Author
  • Offline
  • User
  • Posts: 562
  • Thanks: 16

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

24 Mar 2013 21:00
#578628
Ok now I need some help. 3 items.



1. First is feedback on chopping the seat. I want it to be a single seater. I used black tape to show where I will cut. How does it look? should I modify such an old kit?

2. Rear set placement. Still not sold on my card board template placing them in a good place. I think they need to go back further.. Thoughts?

3. My shock mounts on the frame are not wide enough because the clutch side shock will hit the chain using the stock mounts. Is it ok to extend them with some kind of custom insert or something?


Seat chop:

Attachment 20130324_165147.jpg not found



Attachment 20130324_165153.jpg not found



Attachment 20130324_165159.jpg not found



Attachment 20130324_165248.jpg not found



Attachment 20130324_165255.jpg not found




Rear sets:

Attachment 20130324_144644.jpg not found



Attachment 20130324_144649.jpg not found

- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Attachments:

Please Log in or Create an account to join the conversation.

  • les holt
  • les holt's Avatar
  • Offline
  • Vendor
  • Posts: 1635
  • Thanks: 288

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

24 Mar 2013 21:03
#578629
;) You got vision! I like.

Les
www.facebook.com/PdmCustomFabrication
76 kz 900 turbo
77 LTD 1000 turbo
2 78 Z1R's
72 H2
kzrider.com/forum/13-bike-related/491552...one-followed-me-home
accelerate.presspublisher.us/issue/issue-6-2012/article/ltd
www.cycleworld.com/2013/09/04/2013-cycle...-concours-bike-show/

Please Log in or Create an account to join the conversation.

  • Hollywoodmx
  • Hollywoodmx's Avatar Topic Author
  • Offline
  • User
  • Posts: 562
  • Thanks: 16

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

24 Mar 2013 21:04
#578630
My shock issue:

Attachment 20130324_165314.jpg not found



Attachment 20130324_165338.jpg not found



Attachment 20130324_165402.jpg not found



Attachment 20130324_165410.jpg not found



Attachment 20130324_165446.jpg not found



Attachment 20130324_165452.jpg not found

- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Attachments:

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3122
  • Thanks: 1728

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

24 Mar 2013 21:18
#578638
Hollywoodmx wrote:
531blackbanshee wrote: what is up with the engine in the bottom pic?
looks like 650 bottom with a 900/100 top end :blink: .

leon

Frame is modified, look no bottom engine support. Also look at those rubber mounts on the the sides..(drool). That or it isn't a kz frame.[/quote

It's a 750 ZEPHYR engine AND frame.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 798

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

25 Mar 2013 11:16 - 25 Mar 2013 11:18
#578697
i had to space my upper shock mounts out to clear my 200mm rear tire,no biggie.
i just machined out some aluminum spacers and washers.
the shortened tail looks good the way you have it "taped"out,i might want a little radius at the front instead of cutting it square tho.
the complete underside of the seat/tail might need a radius that went up a lil towards the tail instead of just being straight.
kinda like the underside of a kz tail.

i wouldn't hesitate to make the mods to the body kit if it was mine.

the pegs look like they are plenty far enough back and up.
but,

you can sit on it and test it.
so,
make it fit you.

hth,

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Last edit: 25 Mar 2013 11:18 by 531blackbanshee.

Please Log in or Create an account to join the conversation.

  • Hollywoodmx
  • Hollywoodmx's Avatar Topic Author
  • Offline
  • User
  • Posts: 562
  • Thanks: 16

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

25 Mar 2013 14:26
#578708
531blackbanshee wrote: i had to space my upper shock mounts out to clear my 200mm rear tire,no biggie.
i just machined out some aluminum spacers and washers.
the shortened tail looks good the way you have it "taped"out,i might want a little radius at the front instead of cutting it square tho.
the complete underside of the seat/tail might need a radius that went up a lil towards the tail instead of just being straight.
kinda like the underside of a kz tail.

i wouldn't hesitate to make the mods to the body kit if it was mine.

the pegs look like they are plenty far enough back and up.
but,

you can sit on it and test it.
so,
make it fit you.

hth,

leon

Awesome thanks for the feedback and assistance.

I get what you mean about the rounding of the fender. Its a good idea.

I know what you mean about the spacers. So for your shocks did you maintain the original bolt length and had enough threads for the bolt to grab?
- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 798

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

25 Mar 2013 16:06
#578715
Hollywoodmx wrote:
531blackbanshee wrote: i had to space my upper shock mounts out to clear my 200mm rear tire,no biggie.
i just machined out some aluminum spacers and washers.
the shortened tail looks good the way you have it "taped"out,i might want a little radius at the front instead of cutting it square tho.
the complete underside of the seat/tail might need a radius that went up a lil towards the tail instead of just being straight.
kinda like the underside of a kz tail.

i wouldn't hesitate to make the mods to the body kit if it was mine.

the pegs look like they are plenty far enough back and up.
but,

you can sit on it and test it.
so,
make it fit you.

hth,

leon

Awesome thanks for the feedback and assistance.

I get what you mean about the rounding of the fender. Its a good idea.

I know what you mean about the spacers. So for your shocks did you maintain the original bolt length and had enough threads for the bolt to grab?

after moving it out i could get about 5-6 threads.so far that has been enough.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

  • Hollywoodmx
  • Hollywoodmx's Avatar Topic Author
  • Offline
  • User
  • Posts: 562
  • Thanks: 16

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

25 Mar 2013 23:13 - 25 Mar 2013 23:44
#578785
531blackbanshee wrote:
after moving it out i could get about 5-6 threads.so far that has been enough.

leon

Ok, how strait is the shock mounted from the frame to swing arm cause on my last pic, its not strait and that's with one or two threads..I think I will need an extension.. :(
- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary
Last edit: 25 Mar 2013 23:44 by Hollywoodmx.

Please Log in or Create an account to join the conversation.

  • Haybus
  • Haybus's Avatar
  • Offline
  • User
  • Big Al
  • Posts: 346
  • Thanks: 42

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

26 Mar 2013 01:23
#578809
Make a spacer that slides over the shaft part of the shock mount to space out the shocks. Then make a nut the same OD as the shock mount with an internal thread and a hex head. The nut would be ~1mm short of bottoming so it can clamp the shock eye. Yeah, it's going to be a thin wall nut. Seems like you're too far along to cut off the mount to weld on a new one.
1976 KZ900 LTD (sort of)
2005 FJR
2009 Hayabusa
www.kzrider.com/forum/11-projects/557845...-streetfighter-build

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 798

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

26 Mar 2013 10:58
#578864


they are straight and square :) .

you could drill and tap the center of the stud,and spin out a sleeve/spacer that covered the threads and made them the same size as the rest of the stud then a little custom washer and allen head and bam yer done!

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Attachments:

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 798

Re: HollywoodMX's Drouin Supercharged 77 KZ1000!!

26 Mar 2013 11:19
#578867

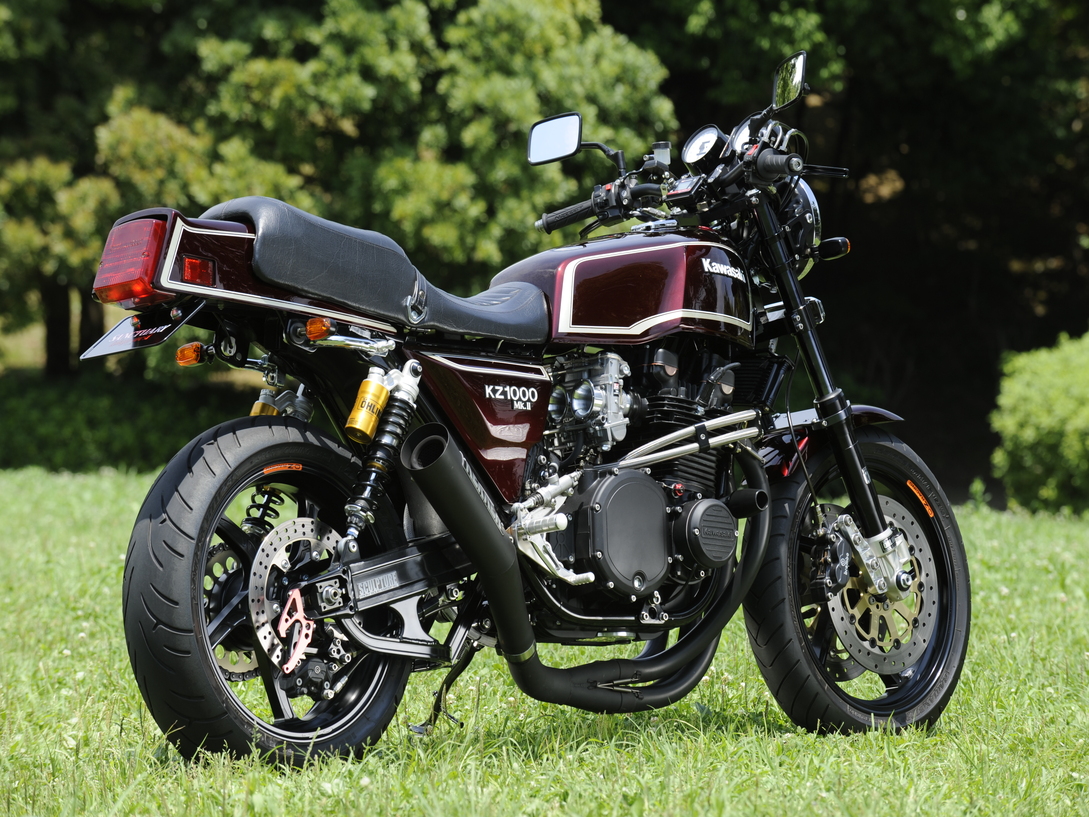

if i could draw your attention to the upper shock mount on this bike to illustrate what i am talking about with a bolt and countersunk washer.






leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Attachments:
