Hi Folks,
Please indulge me while I start a thread that doesn't perzactly deal with KZs.
I'm fortunate in that as a part of the my full time job I'm part of the company's Innovation Group. A couple of years ago I built a CNC Router that can accept a 4' by 8' sheet of plywood.
Last year I imagined a new type of wood joint that could be used to join sections of wood in a manner that engages the faces of the boards in compression and tension. I'm thinking that this new joint will have structural advantages over more traditional methods of joining two boards such as doweling or mortise and tenon joints, which typically join the boards at the neutral axis.
When I imagined this new joint, which I call a "Bulb Joint", I didn't think I'd invented something new but rather just combining existing technology in a different manner. As a matter of fact my IT guy, found a similar joint on one of the Do It Yourself CNC websites. My joint is different in that each board has both male and female parts and that each side of the joint is machined exactly like the other side. When joined together the boards grasp their mates just as ancient Romans used to shake hands by grasping each others forearms.

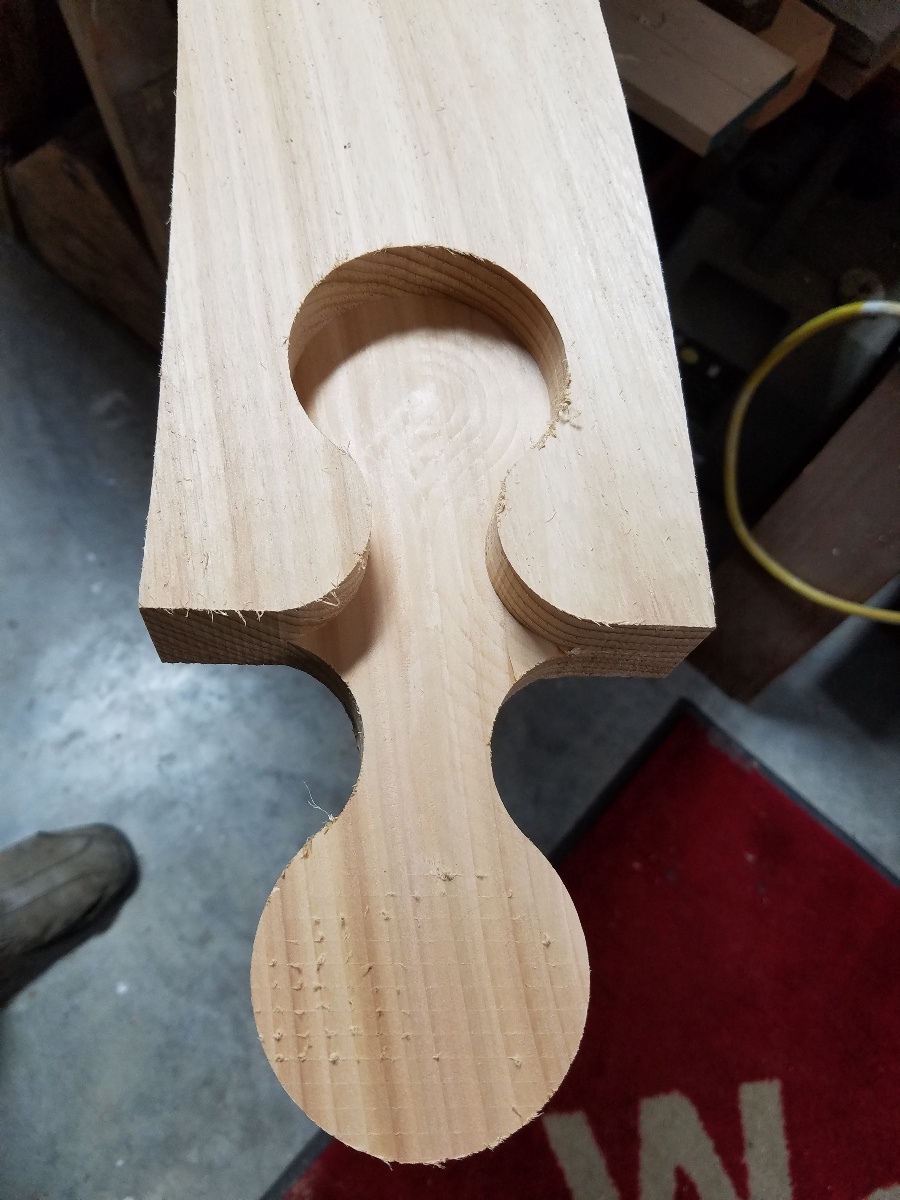

Here's a picture of two boards, one of which must be flipped end for end to be joined.


Until now I'd only used bulb joints to make picture frames and various cabinet / fixture types of projects. This fall I decided to venture out into the realm of structural applications by building an 11' by 16' shed that will have a barrel shaped roof. The picture above is of two 2" by 8" pieces of Douglas Fir that will join four other pieces to make one complete arched rafter.

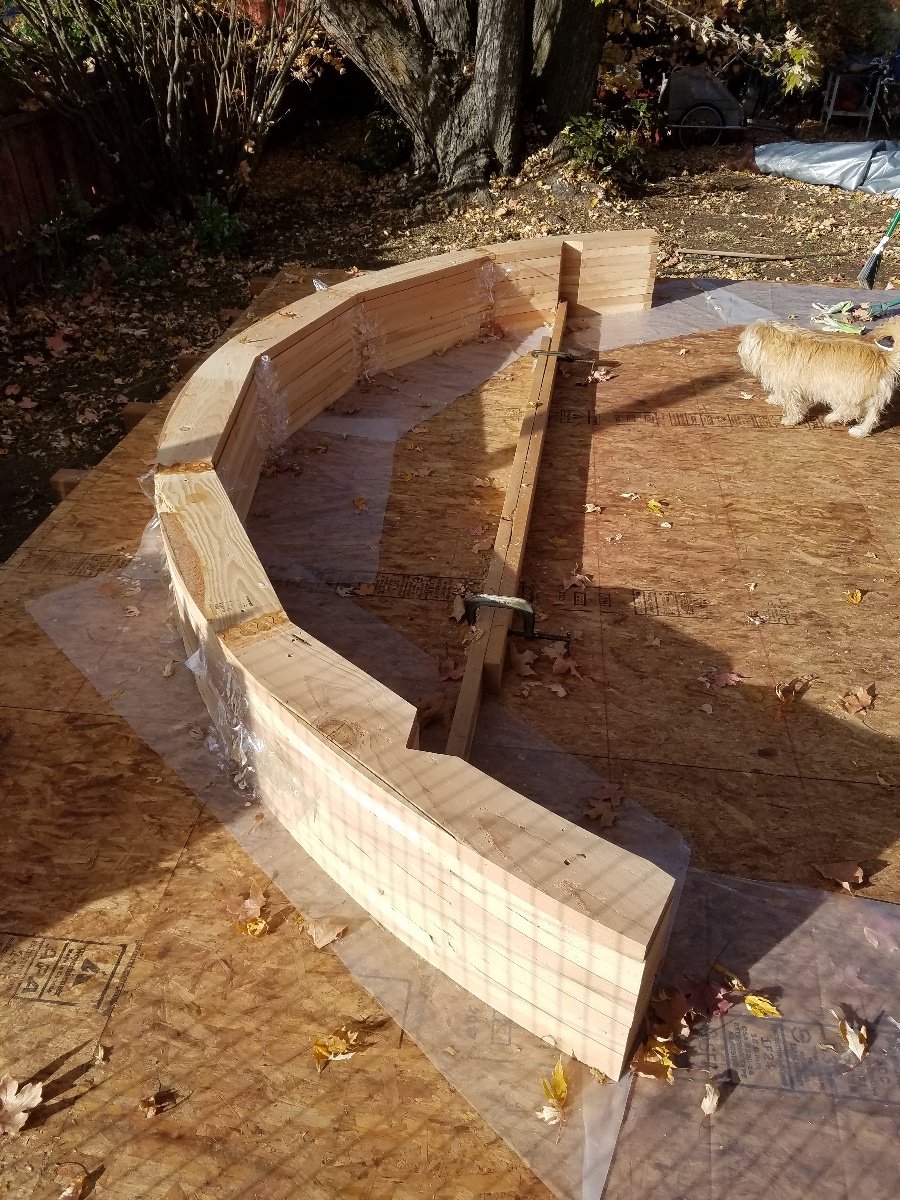

Here are the rafters joined together and stacked on the floor of the shed.

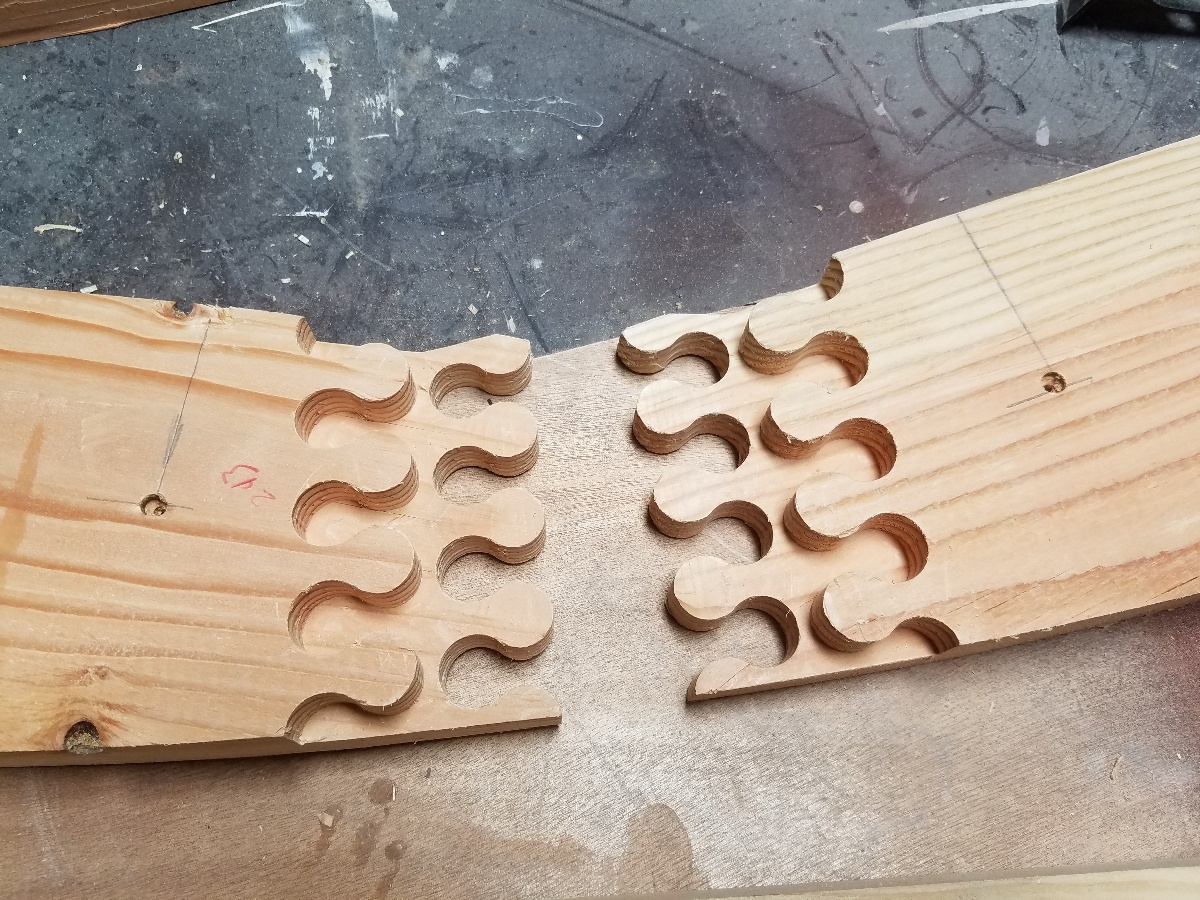

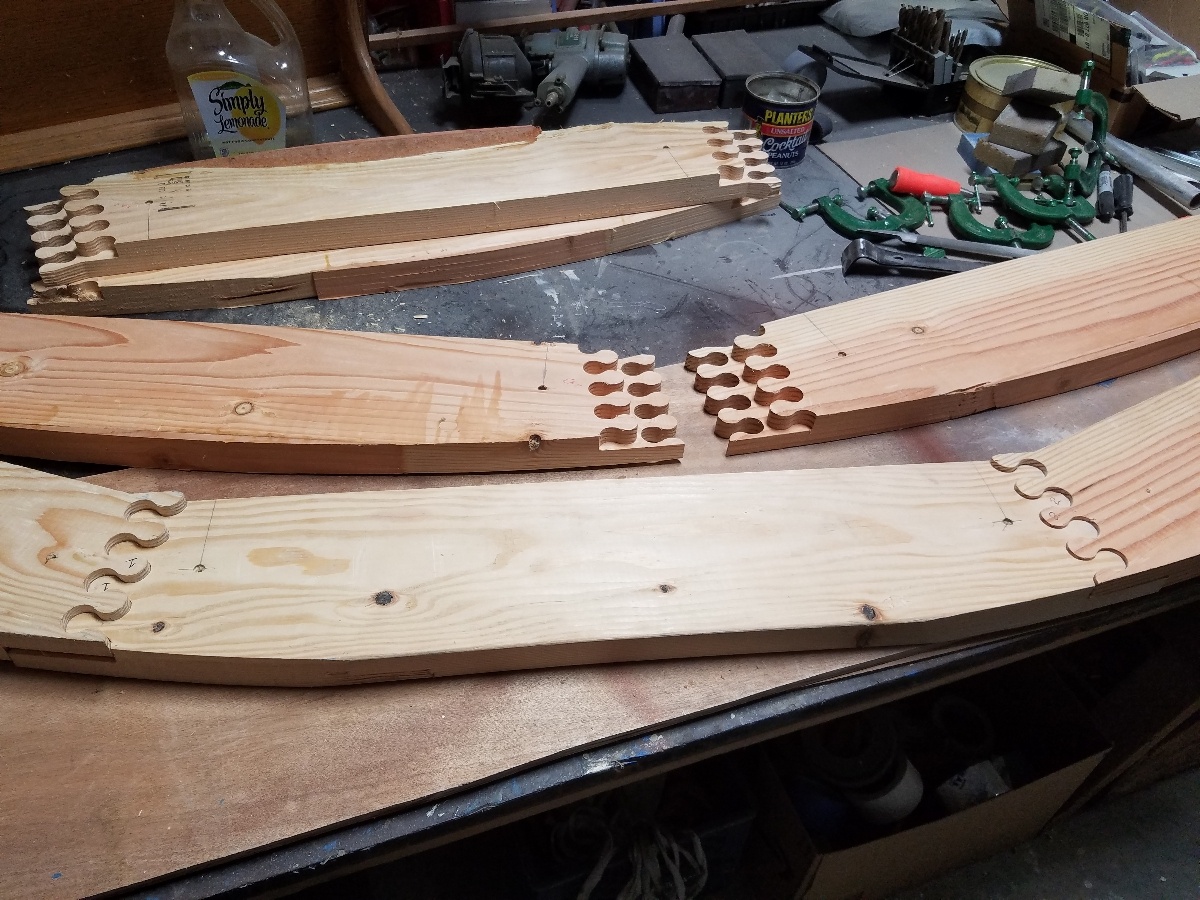

Here's another picture of a few sections joined together on my work bench.



Now that I've assembled the rafters I'm going to frame the walls and then stand up the rafters. I'll be adding more pictures as I go along.
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Another Shed for my Kaws 07 Dec 2017 10:49 #775704

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4631
  • Thank you received: 1108

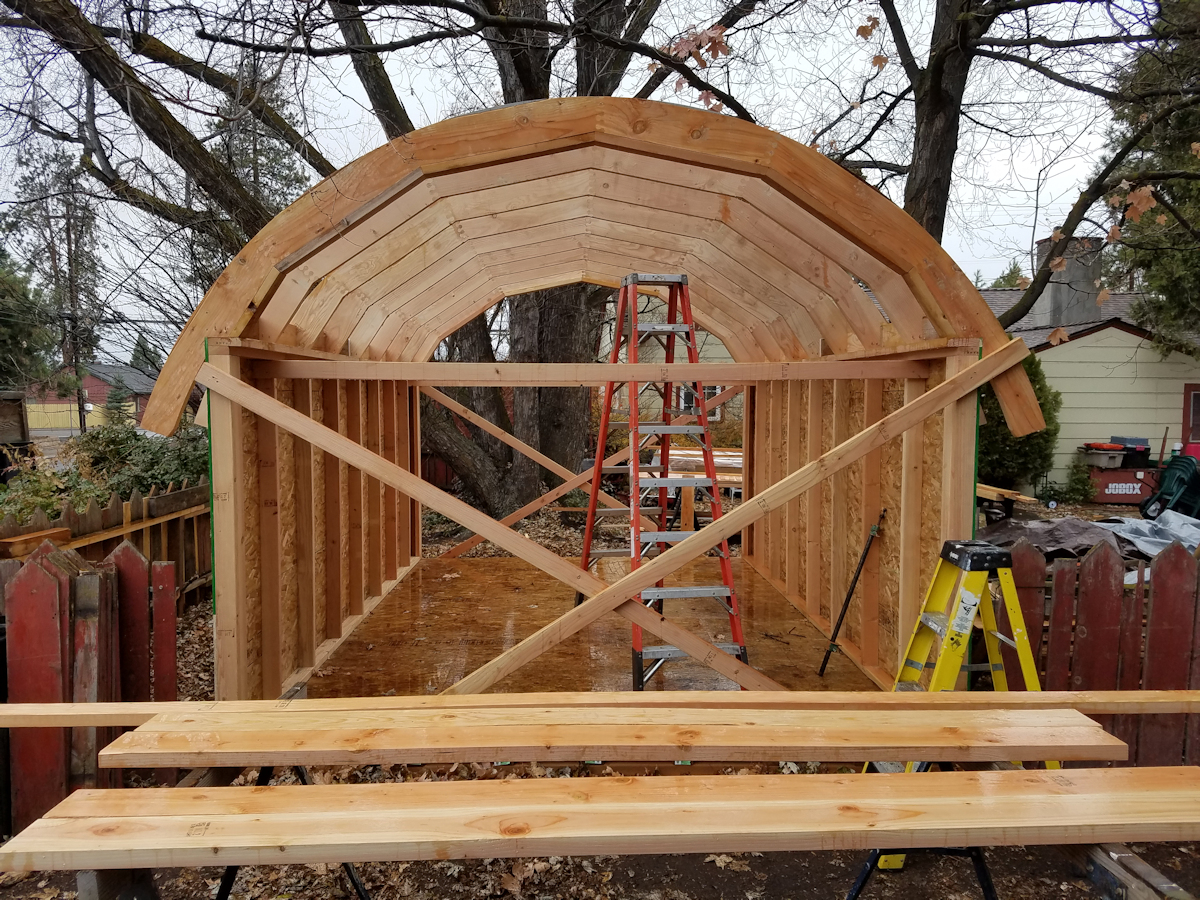

I've been working my butt off to try to get under roof ahead of the winter weather. Didn't make it. No snow yet but it can't be far away. I did get all the rafters up today and managed to pull a tarp over the whole thing. Still got to add the barge rafters (Gable Facias) before I can sheet the roof.


What do you think?
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300
Attachments:

Please Log in or Create an account to join the conversation.

Another Shed for my Kaws 07 Dec 2017 16:50 #775720

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2483
  • Thank you received: 505
A modern Quonset hut,
That's a great idea for a joint Bill.
Are you using a urethane glue?
78 KZ1000 A2A
The following user(s) said Thank You: KZQ

Please Log in or Create an account to join the conversation.

Another Shed for my Kaws 07 Dec 2017 17:46 #775722

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4361
  • Thank you received: 1530
Nice Bill
Has the potential to be a very marketable idea.
Does away with the need for gang nail plates , so you save cost and probably longer fire resistance .
Great innovation
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: KZQ

Please Log in or Create an account to join the conversation.

Another Shed for my Kaws 07 Dec 2017 20:08 #775730

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4631
  • Thank you received: 1108

Nice Bill
Has the potential to be a very marketable idea.
Does away with the need for gang nail plates , so you save cost and probably longer fire resistance .
Great innovation
Dave

Actually I doubt that it'd ever be a marketable idea given that each section took 45 minutes to machine out on a CNC router. Even if I optimized the the code, I doubt that I could shorten the time to less than 30 minutes. There are nine rafters with six sections per rafter. Fifty-Four times Thirty minutes each is still Twenty-Seven hours just to cut out the parts. No I did it just because I imagined it and I imagined that I could do it. That's not meant to diminish your compliment. Thank You!

A modern Quonset hut,
That's a great idea for a joint Bill.
Are you using a urethane glue?

I considered using urethane glue but I've had issues with it foaming up and separating the pieces. In the end I used TiteBond Type III, which is supposed to be water proof. I called Franklin Industries about their "Not for Structural Applications" disclaimer and was told "Why should we accept any structural liability for a two dollar bottle of glue." When he turned, with the other side of his face he said that folks use their glues for structural applications every day but if I wanted to I'd best hire an engineer.
I also checked on resorcinol glues only to find that they're hard to get, with manufacturers wantin to only let certified users purchase them.
I've got a plan for the barge rafters that relies on one three inch bulb in a two by six section that I hope will be attractive.

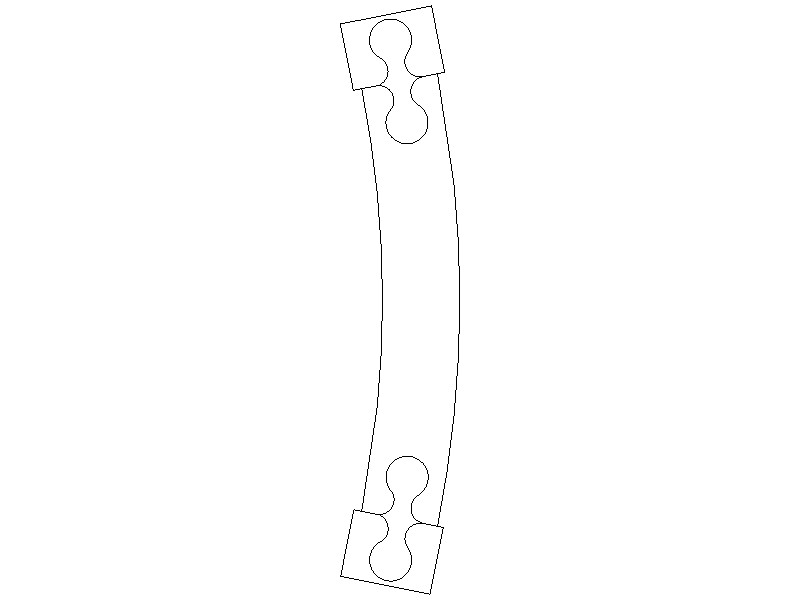

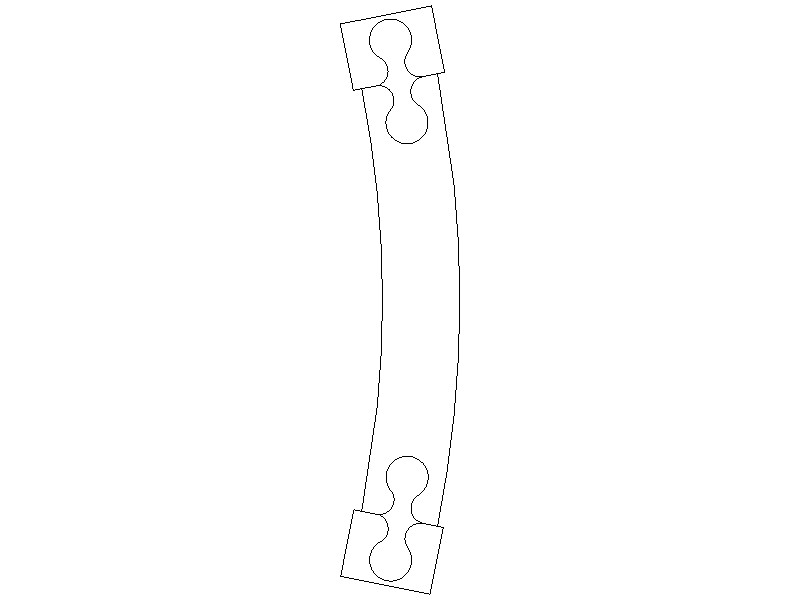

It'll look something like this:

www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300
Attachments:
The following user(s) said Thank You: Street Fighter LTD

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Another Shed for my Kaws 09 Dec 2017 10:31 #775770

  • bluezbike
  • bluezbike's Avatar
  • Offline
  • Sustaining Member
  • Posts: 598
  • Thank you received: 104
That's an unbelievably cool idea.....I am always interested by thought processes like that and as a professional modelmaker I have been building models of stuff like this for a while. I can only imagine what that might do if one were able for example to transfer what you did in wood into metal, braze the joint and leave it visible....etc. etc....?

edit: It would also make that joint stronger by interlacing the metal and not relying on a weld for strength.
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)

Please Log in or Create an account to join the conversation.

Last edit: by bluezbike.

Another Shed for my Kaws 13 Dec 2017 13:27 #775985

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4631
  • Thank you received: 1108

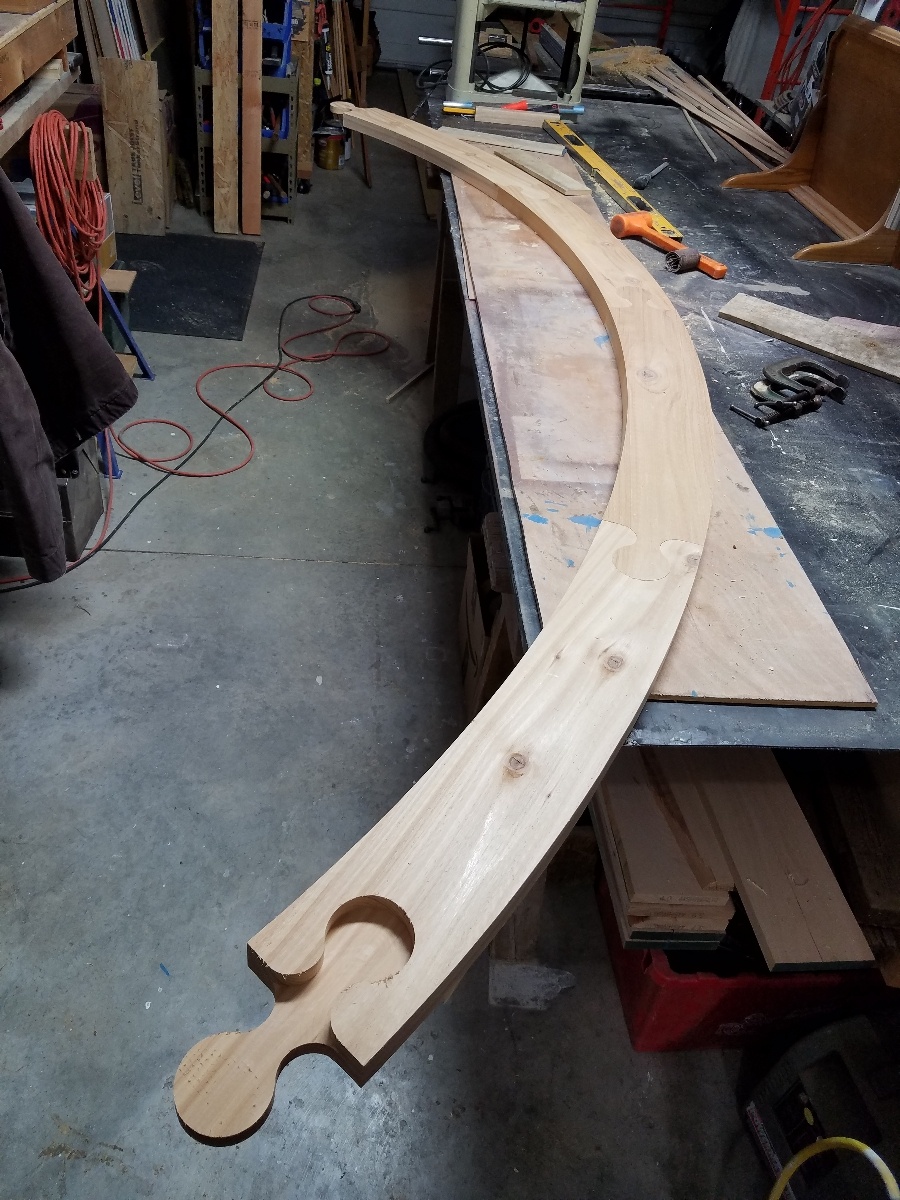

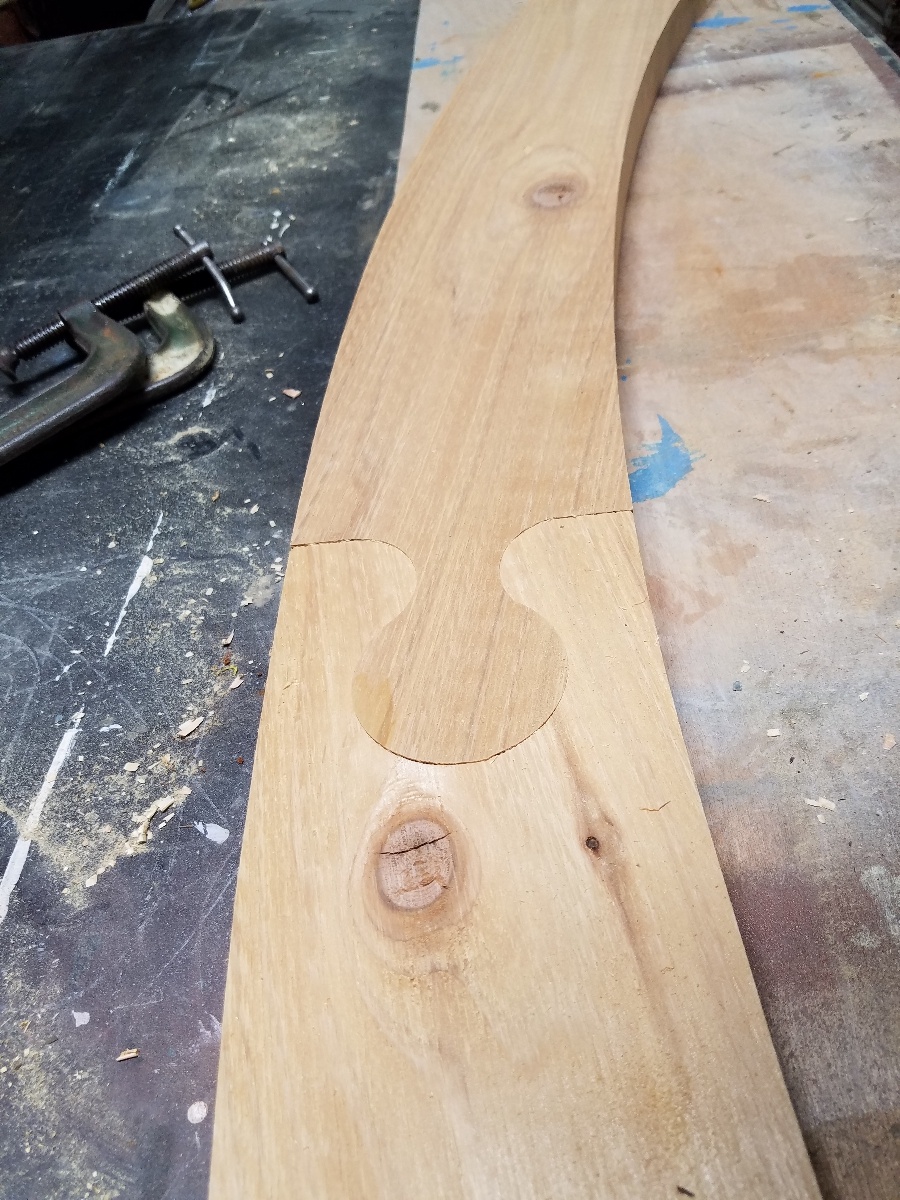

My CNC router broke down and it took two weeks to get a new spindle. I'm back at it again. Take a look at my first Barge rafter.
