TOPIC:

Swing arm mod Z1/ZZR1200 29 Nov 2015 18:56 #701174

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Posts: 20418
  • Thank you received: 2085

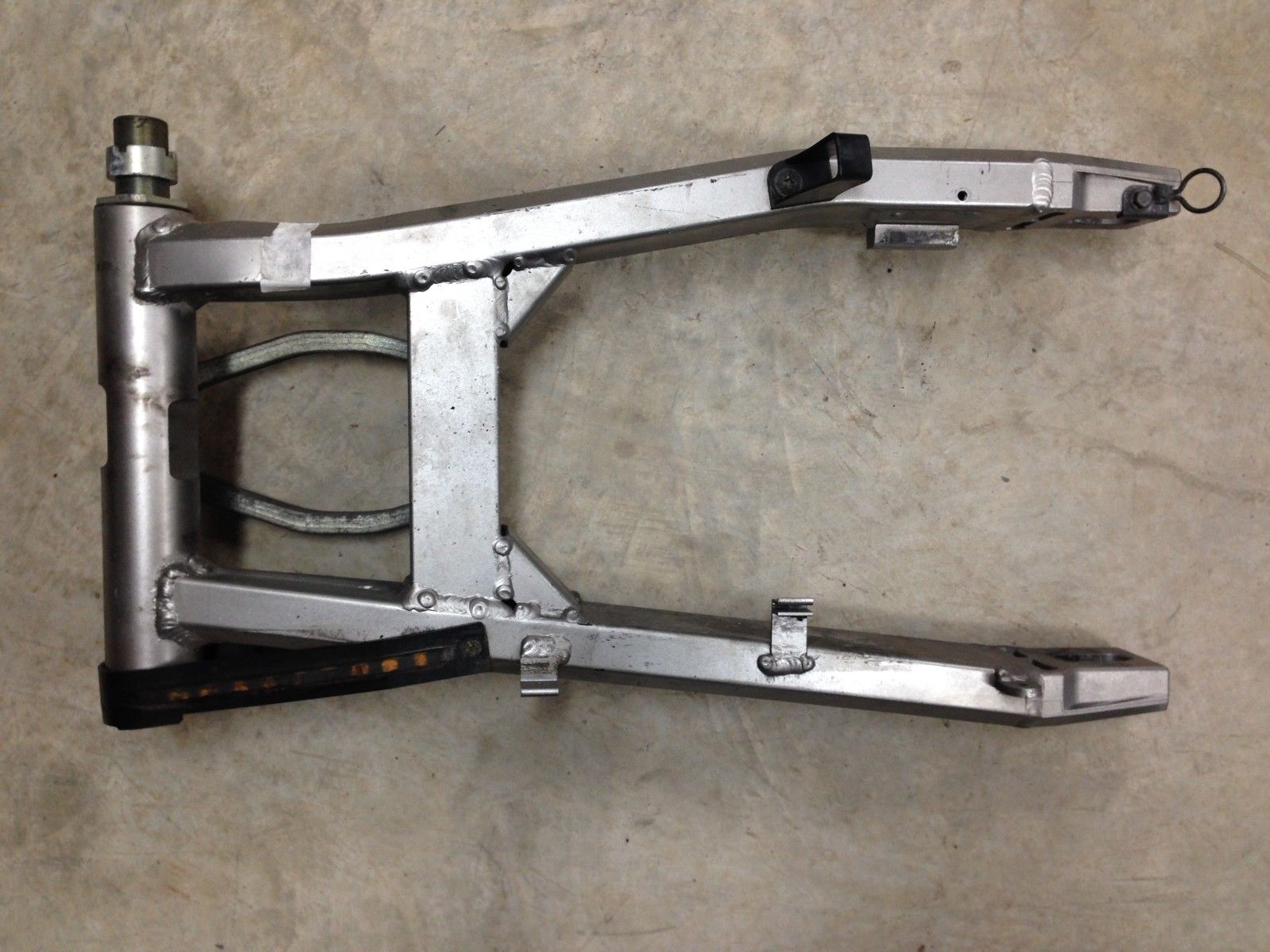

I'm thinking on using this as a swing arm mod. I have a friend that can weld on the brackets for the shocks and brake stay.
Comments?
Steve

Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 29 Nov 2015 19:43 #701180

  • kaw-a-holic
  • kaw-a-holic's Avatar
  • Offline
  • User
  • Posts: 1820
  • Thank you received: 255
looks like a nice candidate Steve. Does the pivot tube fit? Can you use the KZ pivot bolt or would you have to make modifications?
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 03:48 #701192

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Posts: 20418
  • Thank you received: 2085
I haven't heard back from the guy and there are others I'm looking at.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 04:49 #701196

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7484
  • Thank you received: 805
is that a zx6/636 swingarm?

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 05:03 #701197

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Posts: 20418
  • Thank you received: 2085
It says ZZR1200, ZX2C swing arm. It might be too short.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 05:29 #701199

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7484
  • Thank you received: 805
have em measure across the pivot tube.
kz900/1000 are 9.250"

most of the bigger than 600 kawa arms are too wide to make fit.

when going with dual shocks make sure the caliper mounting is not going to interfere with your shocks.

leon

p.s. i have modded several of these

to fit kz's if you are not wanting to go with bigger than a 180mm wide rear tire.
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Last edit: by 531blackbanshee.

Swing arm mod Z1/ZZR1200 30 Nov 2015 05:55 #701200

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Posts: 20418
  • Thank you received: 2085
Thanks Leon. I'm looking to use my stock rim and drum assy. I just want a stiffer swing arm. There are other ones I've been looking at but the one I posted is so cheap, it might be worth experimenting with.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 06:16 #701202

  • floivanus
  • floivanus's Avatar
  • Offline
  • User
  • Posts: 1093
  • Thank you received: 121
Seems like there are way too many zx6 swingarm swaps lately. Was creative at first.

Cant say i blame anyone, arms are cheap, and they're real easy to fit. And I did it too
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 09:16 #701235

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7484
  • Thank you received: 805

Seems like there are way too many zx6 swingarm swaps lately. Was creative at first.

Cant say i blame anyone, arms are cheap, and they're real easy to fit. And I did it too


prolly done 8 myself.

steve,

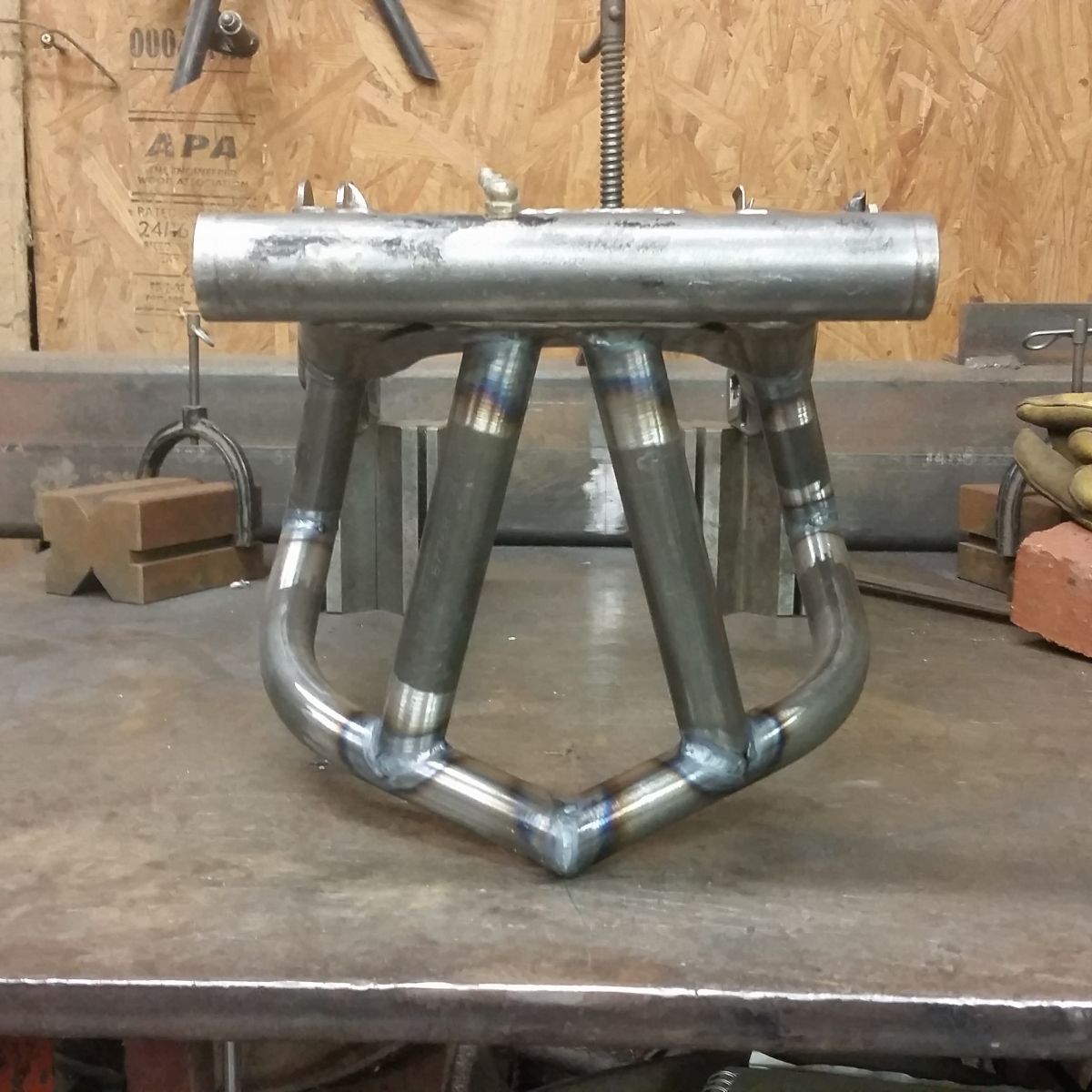

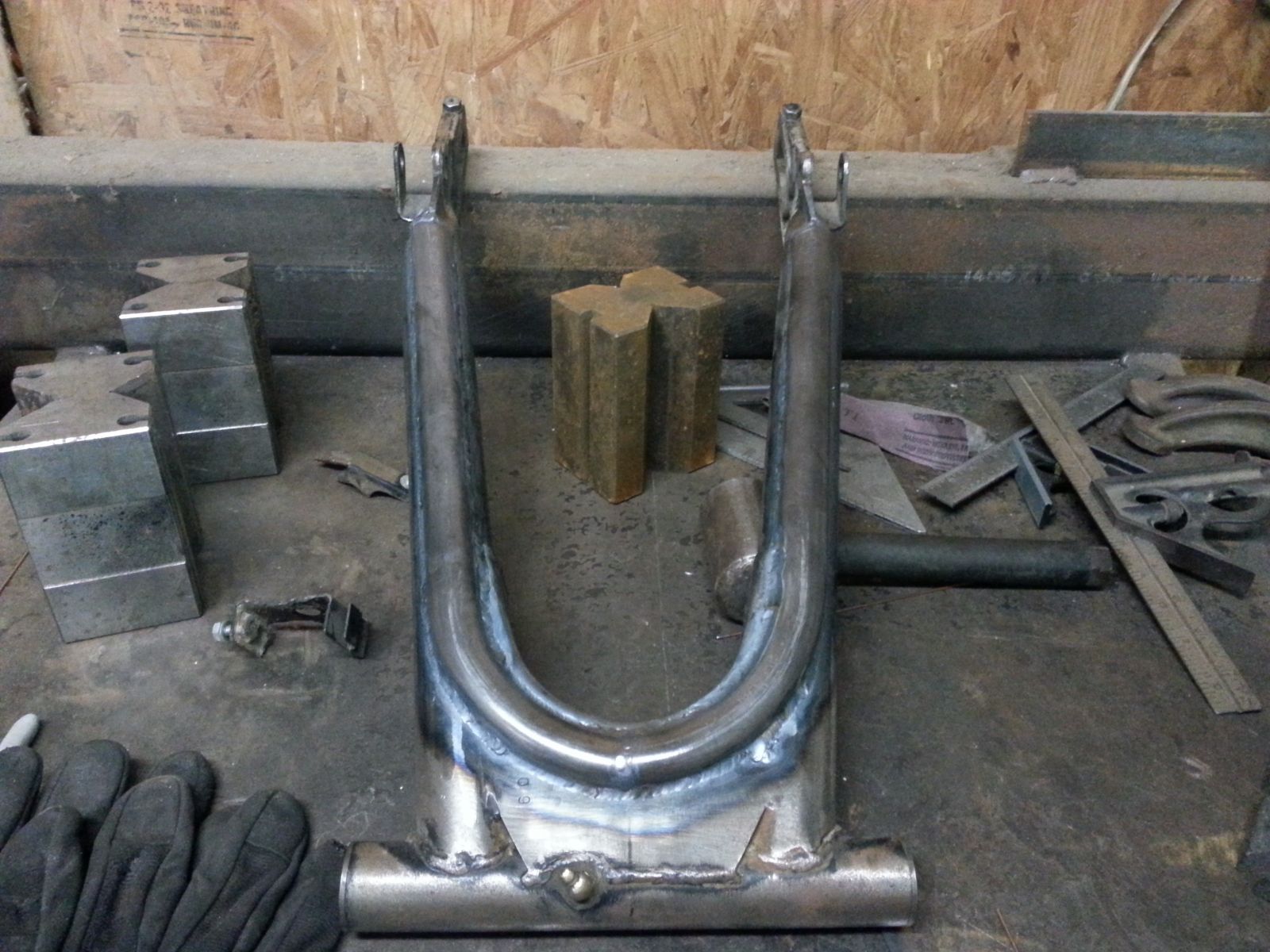

if all you want is a stiffer arm you could have a stock arm braced and achieve that goal.







cheaper than a swingarm swap.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 531blackbanshee.

Swing arm mod Z1/ZZR1200 30 Nov 2015 10:28 #701244

  • floivanus
  • floivanus's Avatar
  • Offline
  • User
  • Posts: 1093
  • Thank you received: 121

Thanks Leon. I'm looking to use my stock rim and drum assy. I just want a stiffer swing arm. There are other ones I've been looking at but the one I posted is so cheap, it might be worth experimenting with.
Steve


That's what I did to the bike in my AV, 03-04 zx6 swingarm, stock 900 rear wheel. Have a wider rim that's going to get laced to the hub if I ever feel the need. Paid $20 SHIPPED for the swingarm, had to make a bushing for the pivot bolt, use the stock zx6 axle bolt as a bushing and use I think a tt600 triumph axle (longest 20mm bike axle i could find) welded inside the end of the zx6 number.

Would I do it again? Nope. Too easy, too many out there (saw one in person this summer even) would rather do an underbrace (stock length etc) or a custom, maybe a zrx or zephyr arm? One more thing; with the 18" wheel and the longer than stock kz arm I had to ditch the rear fender, which makes the bike look naked to me
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 10:47 #701246

  • SWest
  • SWest's Avatar Topic Author
  • Offline
  • Moderator
  • Posts: 20418
  • Thank you received: 2085
If I still had my spare arm, I do that but it was destroyed in the fire. The arm I'm looking at is probably too wide. I don't want to cut off parts of the frame. I'll keep looking.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Swing arm mod Z1/ZZR1200 30 Nov 2015 11:04 #701249

  • floivanus
  • floivanus's Avatar
  • Offline
  • User
  • Posts: 1093
  • Thank you received: 121
You just reminded me, i had to jack my frame apart at the muffler mounts, swingarm was wedged in there
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew

Please Log in or Create an account to join the conversation.
