Ignition Timing

05 Jun 2017 13:04

I have looked through my service manual a dozen times and cannot find how to check timing with a light.. Am I looking for the "F" mark at idle ?

78KZ400 (sold)
78KZ1000 (sold)
82KZ1100 (sold)
76KZ900 (sold) regret
03ZRX1200R (sold) regret
83KZ1100 LTD Shaft

Please Log in or Create an account to join the conversation.

650ed
Offline
User
Posts: 15343
Thanks: 2832

Re: Ignition Timing

05 Jun 2017 14:01

#763628

There is nothing in the ignition to adjust on the 1983 KZ1100. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

76KZ900
Topic Author
Offline
User
Posts: 240
Thanks: 5

Re: Ignition Timing

05 Jun 2017 14:06

#763629

Uh yes there is... The timing can be adjusted.

78KZ400 (sold)
78KZ1000 (sold)
82KZ1100 (sold)
76KZ900 (sold) regret
03ZRX1200R (sold) regret
83KZ1100 LTD Shaft

Please Log in or Create an account to join the conversation.

650ed
Offline
User
Posts: 15343
Thanks: 2832

Re: Ignition Timing

05 Jun 2017 14:24 - 05 Jun 2017 14:25

#763631

76KZ900 wrote: Uh yes there is... The timing can be adjusted.

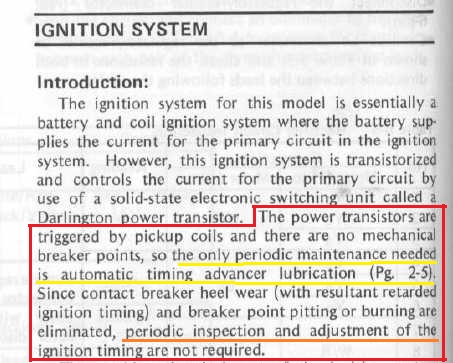

Really? You may want to contact Kawasaki and tell them that the Kawasaki Service Manual for the KZ1100 is wrong.

Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Last edit: 05 Jun 2017 14:25 by 650ed.

Please Log in or Create an account to join the conversation.

76KZ900
Topic Author
Offline
User
Posts: 240
Thanks: 5

Re: Ignition Timing

05 Jun 2017 14:41

#763632

So if I remove the three screws and turn the ignition plate it isn't going to change the timing at all ?

78KZ400 (sold)
78KZ1000 (sold)
82KZ1100 (sold)
76KZ900 (sold) regret
03ZRX1200R (sold) regret
83KZ1100 LTD Shaft

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
10 22 2014
Posts: 23357
Thanks: 2889

Re: Ignition Timing

05 Jun 2017 15:03

#763636

Yes it will. There has to be an initial timing procedure to set it up.
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

650ed
Offline
User
Posts: 15343
Thanks: 2832

Re: Ignition Timing

05 Jun 2017 15:12 - 05 Jun 2017 15:16

#763639

76KZ900 wrote: So if I remove the three screws and turn the ignition plate it isn't going to change the timing at all ?

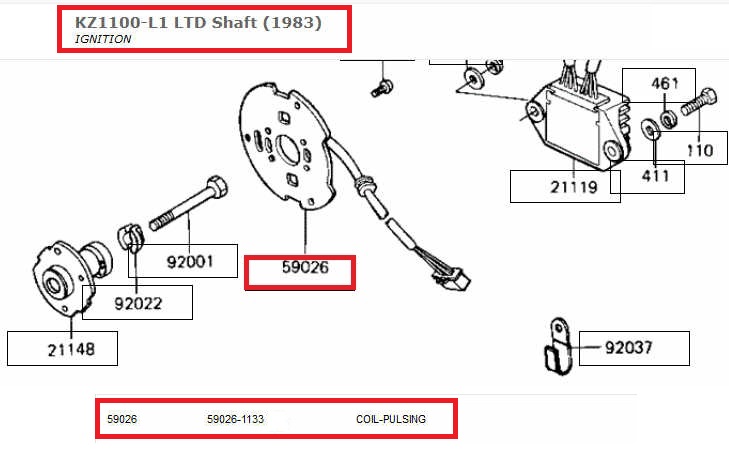

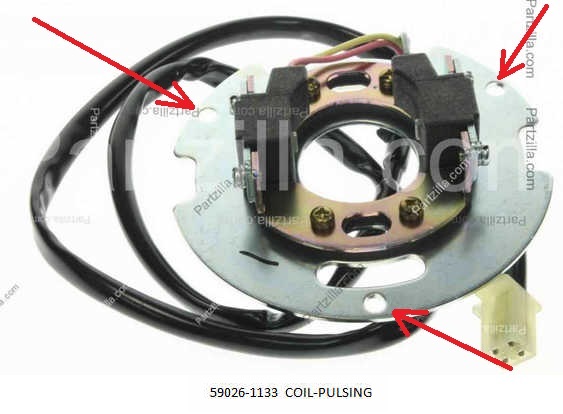

How do you propose to fasten the plate to the engine if you remove the 3 screws and turn it? The holes in the ignition plate are round; they are not slots (see images below). Are we talking about the same bike in your signature line - a 1983 KZ1100 LTD? Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Last edit: 05 Jun 2017 15:16 by 650ed.

Please Log in or Create an account to join the conversation.

TexasKZ
Offline
Platinum Member
Posts: 7861
Thanks: 2446

Re: Ignition Timing

05 Jun 2017 15:22 - 05 Jun 2017 15:24

#763641

A little farther into the fsm, is the following. It can be checked, but not adjusted.

1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Attachments:

Last edit: 05 Jun 2017 15:24 by TexasKZ.

Please Log in or Create an account to join the conversation.

76KZ900
Topic Author
Offline
User
Posts: 240
Thanks: 5

Re: Ignition Timing

05 Jun 2017 15:27 - 05 Jun 2017 15:29

#763646

I got it. It was the "F" mark at idle. I removed the ignition housing to install new chrome one. So it had to be "set" Ed my timing plate is slotted and I didn't want to guess that middle of the adjustment slot was gong to be right. I understand that there is no reason to adjust it. But if you disassemble the whole thing, there has to be a check made

78KZ400 (sold)
78KZ1000 (sold)
82KZ1100 (sold)
76KZ900 (sold) regret
03ZRX1200R (sold) regret
83KZ1100 LTD Shaft

Last edit: 05 Jun 2017 15:29 by 76KZ900.

Please Log in or Create an account to join the conversation.

650ed
Offline
User
Posts: 15343
Thanks: 2832

Re: Ignition Timing

05 Jun 2017 17:06

#763666

76KZ900 wrote: ..................Ed my timing plate is slotted and I didn't want to guess that middle of the adjustment slot was going to be right.........

Ah, that explains it. I guess someone replaced the non-slotted one at some point. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
10 22 2014
Posts: 23357
Thanks: 2889

Re: Ignition Timing

05 Jun 2017 17:33

#763669

Then it should be possible to use a timing light to set it at idle.
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Tyrell Corp
Offline
User
"You were made as well as we could make you"
Posts: 1650
Thanks: 261

Re: Ignition Timing

06 Jun 2017 06:16

#763710

Three marks : one is TDC for 1 and 4 and two for idle and advanced.

Strip and Lube the ATU with copperslip first , set the rotor /pickup gap evenly for both pick ups. Run at idle and use a strobe to rotate and line up the F mark. You should get full advance to the next mark at about 4000 rpm. Check the ATU is advancing smoothly,
