Hi loudhvx,

Could you put together a diagram for a simplification diagram for a 77 kz1000 with a dyna ignition, battery and a fuel pump (power and ground) for me please?

Thanks!

Sure, give me a day or so.

1977 KZ1000 with fuel pump for Hollywoodmx



EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1977 Kawasaki Kz1000 with Dyna S for Hollywoodmx
Kz 1000

You're the best man. Greatly appreciated.Thanks!!

New member need help please.
I have a Kz250DE engine 81' and i think most if not all of the wiring harness and controls.
My question is i plan on using the engine in a small 1 man dune buggy i am fabricating, and would like to know exactly the bare bones min. i need to start and run this engine. And how to wire it if possible. I am ok rebuilding carb and engine, but as far as electrical this will be new to me, only experience i have is with small engine, mostly recoil 6hp types.
So any advice, help would be much appreciated.
I plan on using a battery, and kill switch if possible.

We don't have that wiring diagram in the filebase for a 1981 KZ250D2 (CSR).
Do you have one I can work from?

ccording to this site this model.
zedder.com/Info/81%20KZ250-D2%20CSR.htm

I got couple pics is about all.

This one is based on a German Kz250 C2/G2 single.

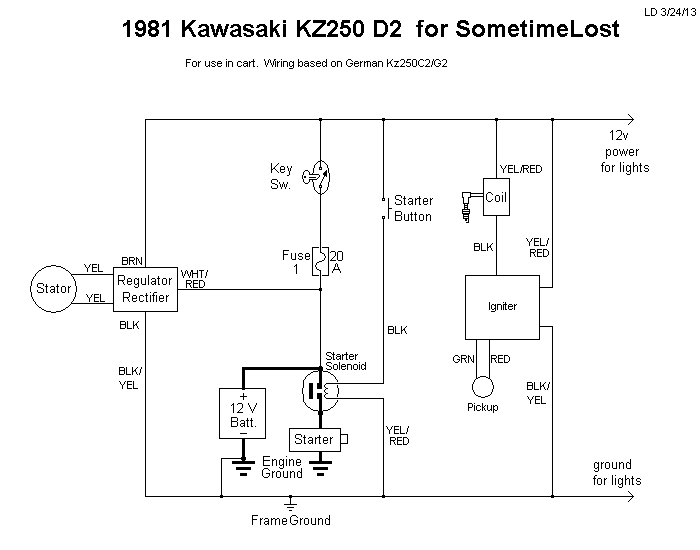

1981 KZ250 D2 single for SometimeLost


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz250D2 single for SometimeLost
Kz250D Kz250 D2 Kz 250 D 250D2 250D

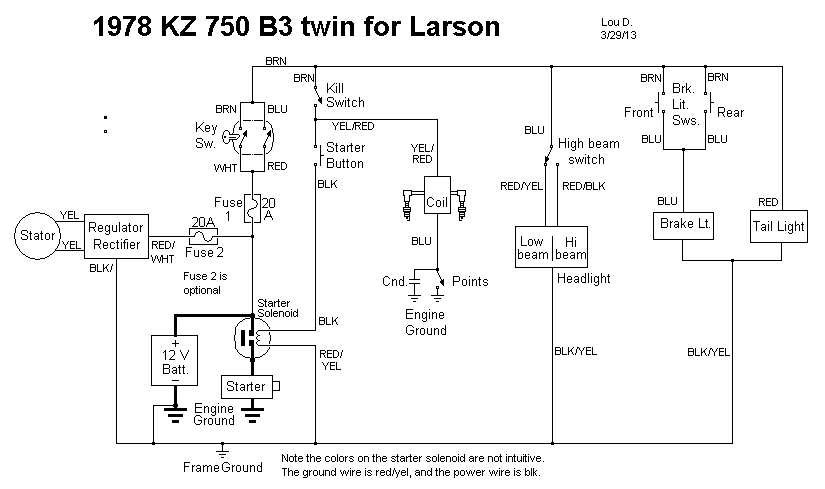

1978 KZ750B3 twin for Larson


EDIT 1/13/2019:
Mattylight Barebones Bare Bones
1978 Kawasaki Kz750B3 twin for Larson
Kz750B Kz750 B3 Kz 750 B 750B3 750B

this thread has a lot of information! can the 1978 kz1000 wiring diagram be used for a 1994 kz1000 police special? im not running anything fancy other than headlight, brake light, license plate light, and ignition. just wondering if a diagram that is already on here can be used. just looking for a basic diagram that shows where relays, if needed, fuses , grounds and terminals should be tied and ended. thanks!!!

Actually, I can't say what a 94 KZP is wired like. I assume it has electronic ignition, so that would be different from the 77-78 1000. I would need a diagram to work from to check the charging system etc. If you have a link, that would be great.
