1980 750H bare bones for mattylight

TOPIC:

1980 750H bare bones for mattylight 24 Oct 2013 12:33 #611035

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Just plain old Microsoft MSpaint. It comes on every version of Windows so it's convenient for me. I can't install programs at work, but it's already there. I'm sure any raster drawing program should be able to edit it.
The following user(s) said Thank You: Beaner242

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 27 Nov 2013 13:04 #614234

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

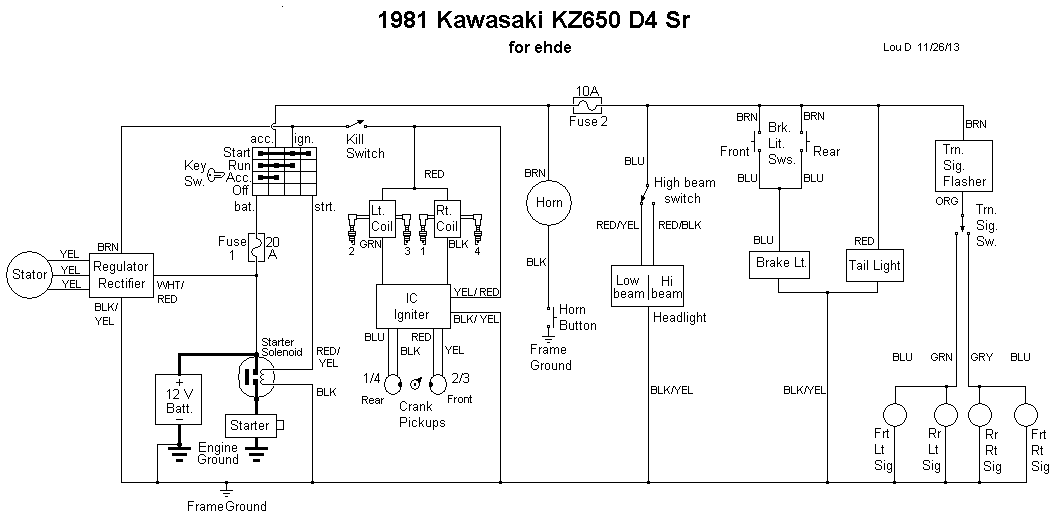

1981 Kawasaki KZ650D4 for Ehde.

with automotive ignition switch.


EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz650D4 with aftermarket ignition switch for Ehde
Kz650D Kz650 D4 Kz 650 D 650D4 650D
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 30 Nov 2013 05:59 #614440

  • ehde
  • ehde's Avatar
  • Offline
  • User
  • Posts: 1
  • Thank you received: 0
Awesome! I'm so grateful!

One question though. My ignition switch only have three positions. Off-ign-start, I suppose this will make a differene?

Thanks!

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 04 Dec 2013 11:01 #614767

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
been really busy. I'll redo it when I get some time.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 06 Dec 2013 03:25 #614894

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

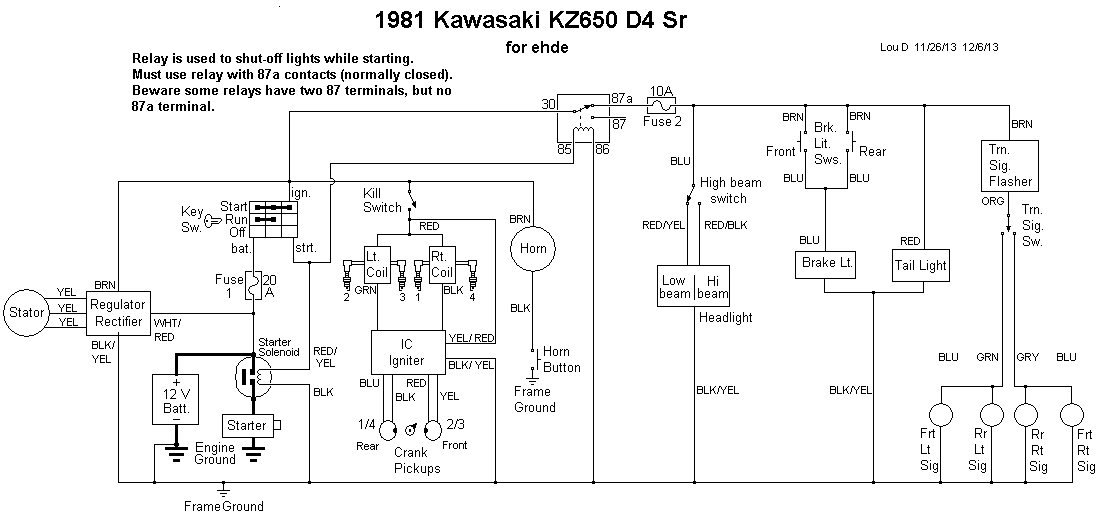

1981 Kawasaki KZ650D4 SR for Ehde.
Redone using relay instead of common car ignition switch toturnoff lights while starting.

EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz650D4 with automatic headlight dimmer for Ehde
Kz650D Kz650 D4 Kz 650 D 650D4 650D
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 21 Jan 2014 23:39 #619583

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
1981 Kawasaki KZ550C2 Ltd. for Calebjkd


EDIT 1/14/2019:
Mattylight Barebones Bare Bones
1981 Kawasaki Kz550C2 for Calebjkd
Kz550C Kz550 C2 Kz 550 C 550C2 550C
Attachments:
The following user(s) said Thank You: Calebjkd

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 22 Jan 2014 00:08 #619585

  • Calebjkd
  • Calebjkd's Avatar
  • Offline
  • User
  • Posts: 23
  • Thank you received: 0
Im a little confused, may just be inexperience.
Between the Starter button and the starter solenoid where the wire goes from blk (@ button) to red/yel (@ solenoid), is this a ground wire?
Or is it to complete the circuit?
'81 Kawasaki kz550 ltd
'71 Yamaha xs650

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 22 Jan 2014 00:49 #619586

  • Calebjkd
  • Calebjkd's Avatar
  • Offline
  • User
  • Posts: 23
  • Thank you received: 0
Nevermind, figured it out!
Thanks for the time and effort loudvhx.
My bike thanks you too!!
'81 Kawasaki kz550 ltd
'71 Yamaha xs650

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 22 Jan 2014 08:04 #619609

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
No prob. THe factory originally had the red/yel as ground, and black as hot on the coil (and black as hot on the start button), but the two small wires on the solenoid can be interchanged. I thought red/yel would make more sense as hot, even though the start button uses black. Feel free to wire it whichever way makes more sense to you. I think the factory flubbed it, so either way it will still have some confusion.
The following user(s) said Thank You: Calebjkd

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 26 Jan 2014 08:09 #620094

  • Lazyman06
  • Lazyman06's Avatar
  • Offline
  • User
  • Posts: 257
  • Thank you received: 3
I have one for you if you don't mind drawing one up for me. 79' KZ1000 MKII bare bones with the regulator/rectifier combo, aftermarket ignition panel, no turn signals, no speedo/tach, no handlebar switches.
1979 KZ1000 MK II frame
1980 KZ1000 C3 police engine

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 27 Jan 2014 00:21 #620191

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

Lazyman06 wrote: I have one for you if you don't mind drawing one up for me. 79' KZ1000 MKII bare bones with the regulator/rectifier combo, aftermarket ignition panel, no turn signals, no speedo/tach, no handlebar switches.


Can you describe the ignition switch in more detail?
How will you control high/low beam?

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 27 Jan 2014 06:03 #620212

  • Lazyman06
  • Lazyman06's Avatar
  • Offline
  • User
  • Posts: 257
  • Thank you received: 3
something like this. Just a lgnition panla for like a drag car
www.google.com/shopping/product/2968344550277015213?
q=ignition+panel&rlz=1C1CHMO_enUS566US567&es_sm=93&biw=1097&bih=541&dpr=1.75&ei=O2bmUojSBKvfsASL7YDwCw&ved=0COYCEKYrMA0

The high\low beam: I was wanting to run like just the high beam, but if I have to use a switch than I'll work it in somehow
1979 KZ1000 MK II frame
1980 KZ1000 C3 police engine

Please Log in or Create an account to join the conversation.
