1980 750H bare bones for mattylight

TOPIC:

1980 750H bare bones for mattylight 25 Oct 2011 01:05 #485190

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

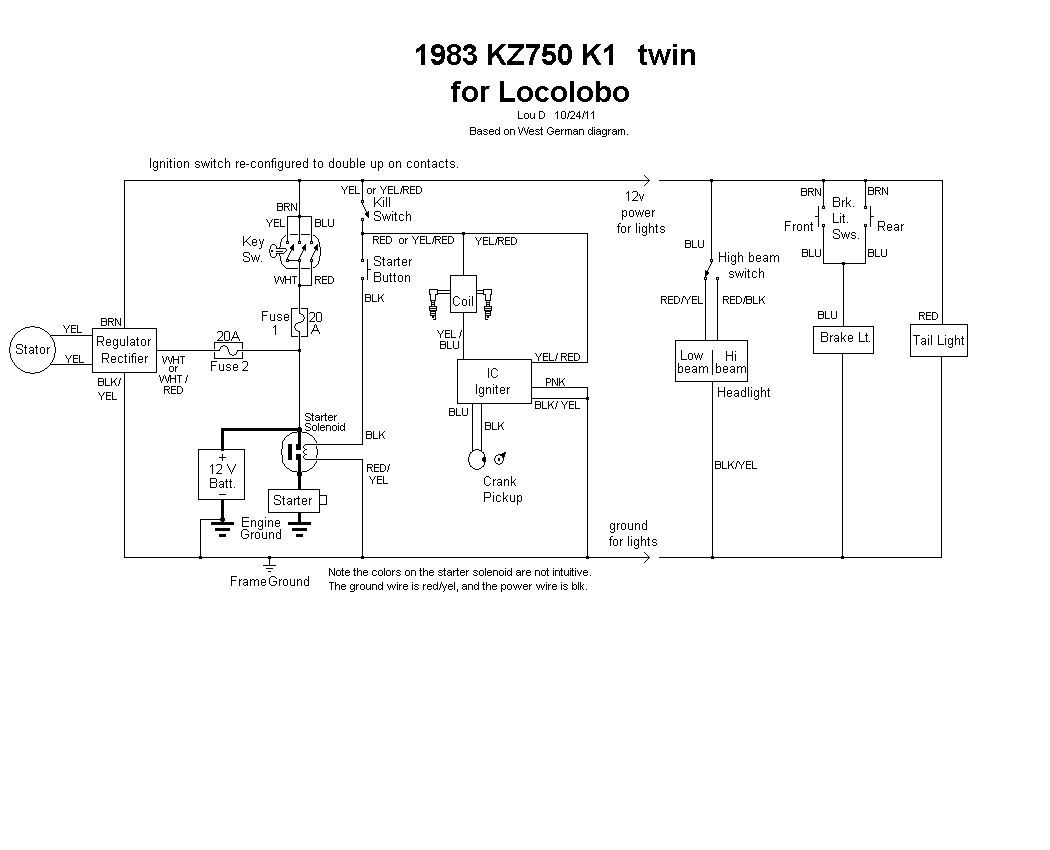

1983 KZ750 K1, KZ750K1, twin.

I don't have a U.S. K1 diagram, so this one is based on a West German diagram.


EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1983 Kawasaki Kz750K1 twin for
Kz750K Kz750 K1 Kz 750 K 750K1 750K
Attachments:
The following user(s) said Thank You: locolobo

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 25 Oct 2011 02:23 #485205

  • clutch
  • clutch's Avatar
  • Offline
  • User
  • I wish I had a tad more patience to do it better!
  • Posts: 1051
  • Thank you received: 12
Hey Loudhvx, I got a tricky one for you if you want the challenge. I could use one for the '66 A1 Samurai ;)
Southern Maryland, USA

1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)

Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 25 Oct 2011 11:27 #485260

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Yeah, that's a tough one. I haven't been able to locate a diagram for that, yet.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 25 Oct 2011 13:28 #485276

  • clutch
  • clutch's Avatar
  • Offline
  • User
  • I wish I had a tad more patience to do it better!
  • Posts: 1051
  • Thank you received: 12

loudhvx wrote: Yeah, that's a tough one. I haven't been able to locate a diagram for that, yet.


That's my issue too! The manual I have has individual wiring diagrams for specific circuits (charging system, ignition, etc), but not one with everything. I like the ones that show it all...it's easier for me that way, and I really don't like having to flip through different pages to find what I'm looking for. I can wing it, if you can't locate one for me (don't drive yourself crazy looking for it lol), but just thought it was worth a shot.
Southern Maryland, USA

1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)

Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 25 Oct 2011 13:47 #485281

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
If you have the individual circuits, we could probably piece a complete diagram from that.

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 25 Oct 2011 14:55 #485291

  • clutch
  • clutch's Avatar
  • Offline
  • User
  • I wish I had a tad more patience to do it better!
  • Posts: 1051
  • Thank you received: 12
Nice! I will flip through and scan them later :)
Southern Maryland, USA

1980 KZ250 LTD (traded, but still missed)
1982 KZ750 E3 (Cafe Project) (Dyna-S, Dyna Coils, V&H 4-1, K&N Pods, 6 Sigma Jet Kit, Acewell Computer, Woodcraft Clip-ons, Custom Rewire)
1966 A1 Samurai (Restoration Project)

Wish List:
KZ1000 P (For a "touring" bike)
Z1 (need I...

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 07 Nov 2011 11:50 #487407

  • 750steve
  • 750steve's Avatar
  • Offline
  • User
  • Posts: 584
  • Thank you received: 3

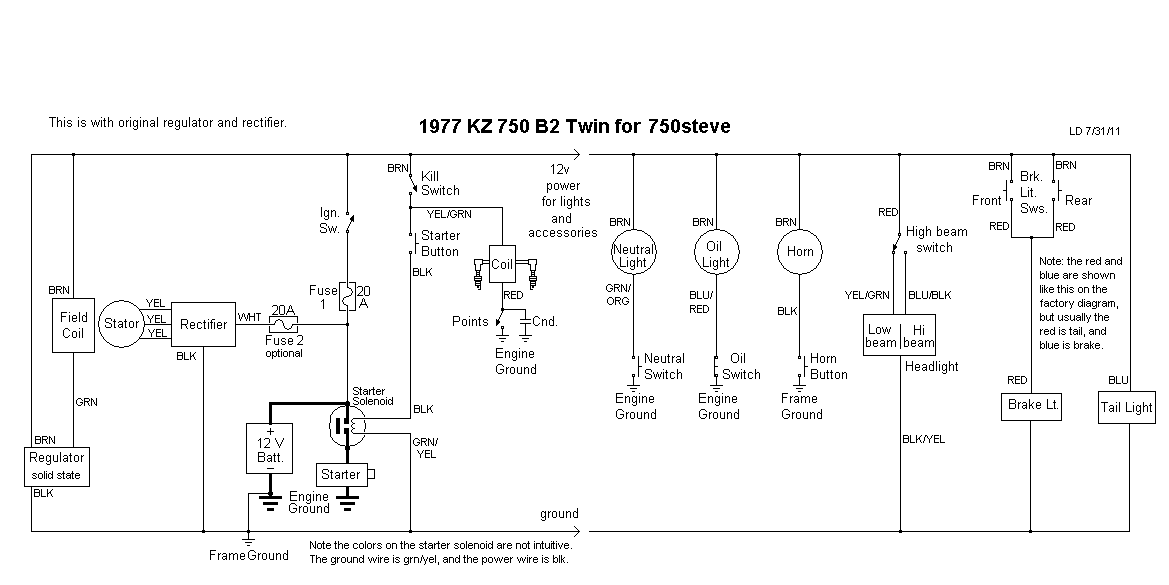

loudhvx wrote: 77 KZ750 B2, with original reg and rec, for 750steve.


Thank you very much Lou! Would it be difficult for you to substitute my new combo reg/rectifier (7 wires, 3xWhite, 1xBlack, 1xRed, 1xGreen, 1xBrown) for the original parts in the diagram & also to substitute an electronic ignition for my points. (the one off the Twins Forum if it makes any difference).

No rush on it whatsoever.
07 ZX6R Race Bike
1977 Z750 B2 Twin
1976 Z650 B1

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 07 Nov 2011 13:41 #487422

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615



I don't have any details on the ignition being sold on the twins website. The author, Jim, does not really seem to know much about ignitions in general, so I think you'd have to get the information from the literature supplied with it.

EDIT 1/10/2019:
Mattylight Barebones Bare Bones

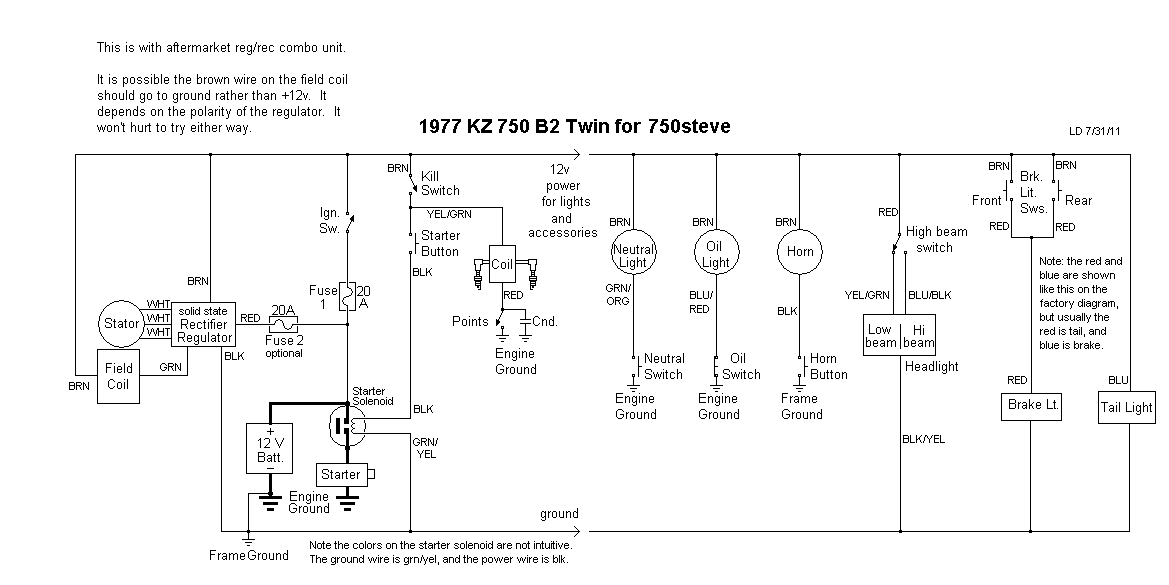

1977 Kawasaki Kz750B2 twin withe combo regulator/rectifier for 750steve
Kz750B Kz750 B2 Kz 750 B 750B2 750B
Attachments:
The following user(s) said Thank You: 750steve

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 07 Nov 2011 14:17 #487430

  • 750steve
  • 750steve's Avatar
  • Offline
  • User
  • Posts: 584
  • Thank you received: 3
Thank you so much Lou, you're an absolute genius.
07 ZX6R Race Bike
1977 Z750 B2 Twin
1976 Z650 B1

Please Log in or Create an account to join the conversation.

1980 750H bare bones for mattylight 02 Jan 2012 15:07 #495859

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1980 750H bare bones for mattylight 07 Jan 2012 22:56 #496983

  • KZHardtail
  • KZHardtail's Avatar
  • Offline
  • User
  • Posts: 2
  • Thank you received: 0
Have you done an 80 kz440a yet? if not I have one that is badly in need of rewiring with just the basic tail/stop, headlight, battery (no kickstart that year) Thanks!
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by KZHardtail.

1980 750H bare bones for mattylight 09 Jan 2012 01:39 #497169

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

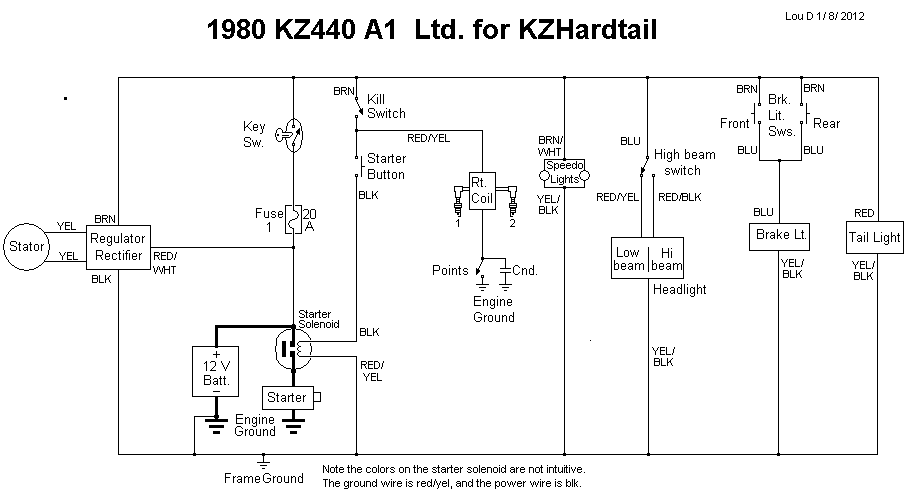

1980 KZ440 A1 Ltd. for KZHardtail.

It looks like you have a speedo on there so I included the lights for that as well.



EDIT 1/10/2019:
Mattylight Barebones Bare Bones
1980 Kawasaki Kz440A1 Ltd. for KZHardtail
Kz440A Kz440 A1 Kz 440 A 440A1 440A
Attachments:
The following user(s) said Thank You: KZHardtail

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.
