Connecting vacuum gauges to each other?

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1126
  • Thanks: 406

Re: Connecting vacuum gauges to each other?

19 Apr 2025 21:20 - 19 Apr 2025 21:34
#911511
I use just one gauge for a twin cylinder.
I used a Y connector to join both carbs to one gauge.
I then pinch off one hose with a clamp so I'm only seeing the other carb's vacuum signal.
I then switch the hose clamp to see the other carb's signal.
I adjust the carb sync screw till they are the same.
It's easier with multiple gauges but i'm cheap.

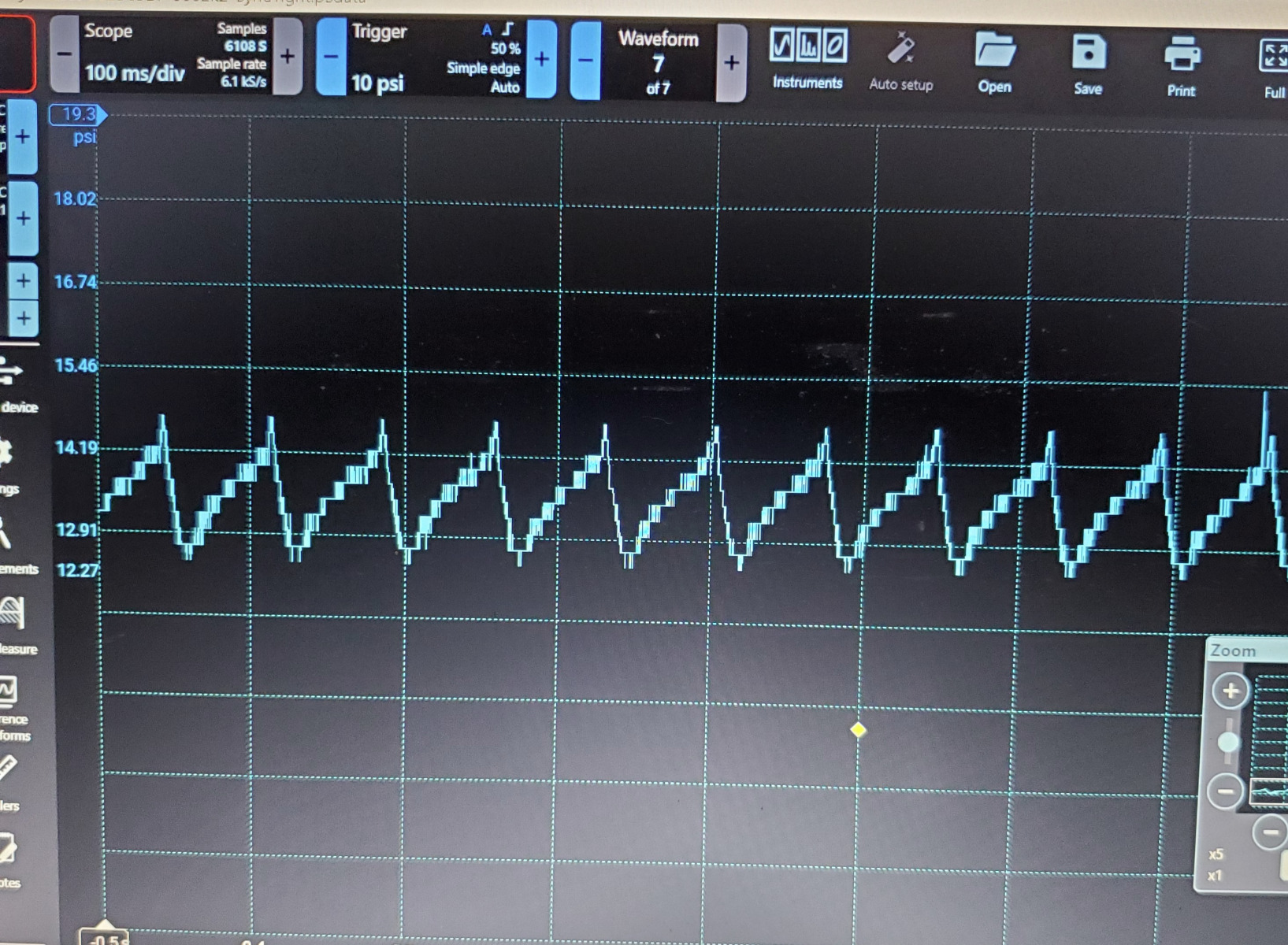

Well, kinda cheap--I use a single pressure transducer and an oscilloscope now.
Which makes it harder to read as you see the reversion signal as well.



With 4 carbs you would use 3 clamps.


81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Last edit: 19 Apr 2025 21:34 by F64.
The following user(s) said Thank You: howardhb, kimchella

Please Log in or Create an account to join the conversation.

  • saltroni
  • saltroni's Avatar
  • Offline
  • User
  • Posts: 36
  • Thanks: 10

Re: Connecting vacuum gauges to each other?

21 Apr 2025 08:52
#911553
BRILLIANT!

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7819
  • Thanks: 2416

Re: Connecting vacuum gauges to each other?

21 Apr 2025 14:48
#911569
Do the reversion waves also come into synchronization?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1126
  • Thanks: 406

Re: Connecting vacuum gauges to each other?

21 Apr 2025 20:40
#911576
Texas,
I'd probably need a second pressure transducer to see what they do during a sync.
If they are on the same channel they may fight each other (which may be interesting)
It's already interesting watching the fuel climb up the clear tubing up to the gauge(i had to use the gauge on Sunday as my laptop battery died).
I'll hook up the scope maybe this weekend and see what happens.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
