vm26ss fuel tee 30 May 2021 14:42 #849280

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thank you received: 8

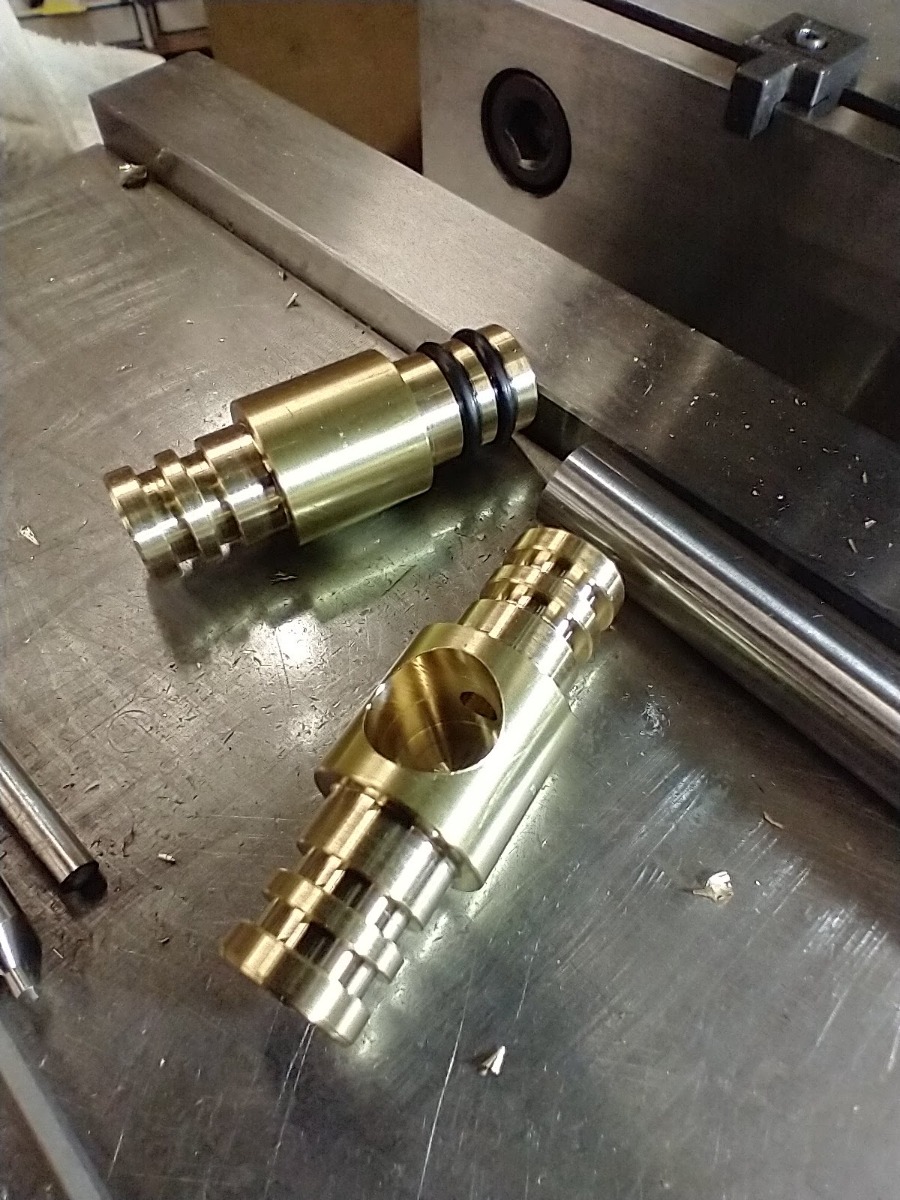

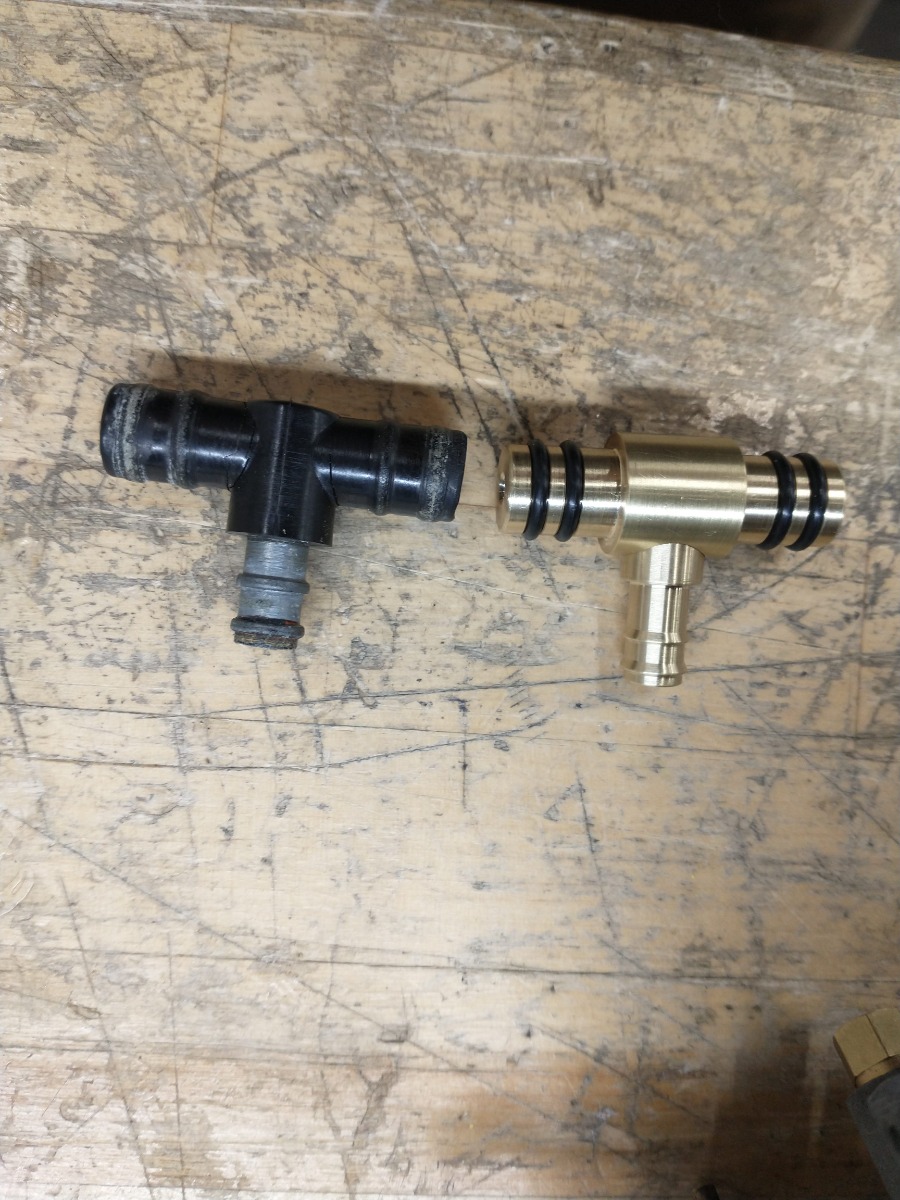

The fuel tees on my carbs were completely dried out and cracked. so decided to make some nice serviceable brass fittings. Here is how I did it.

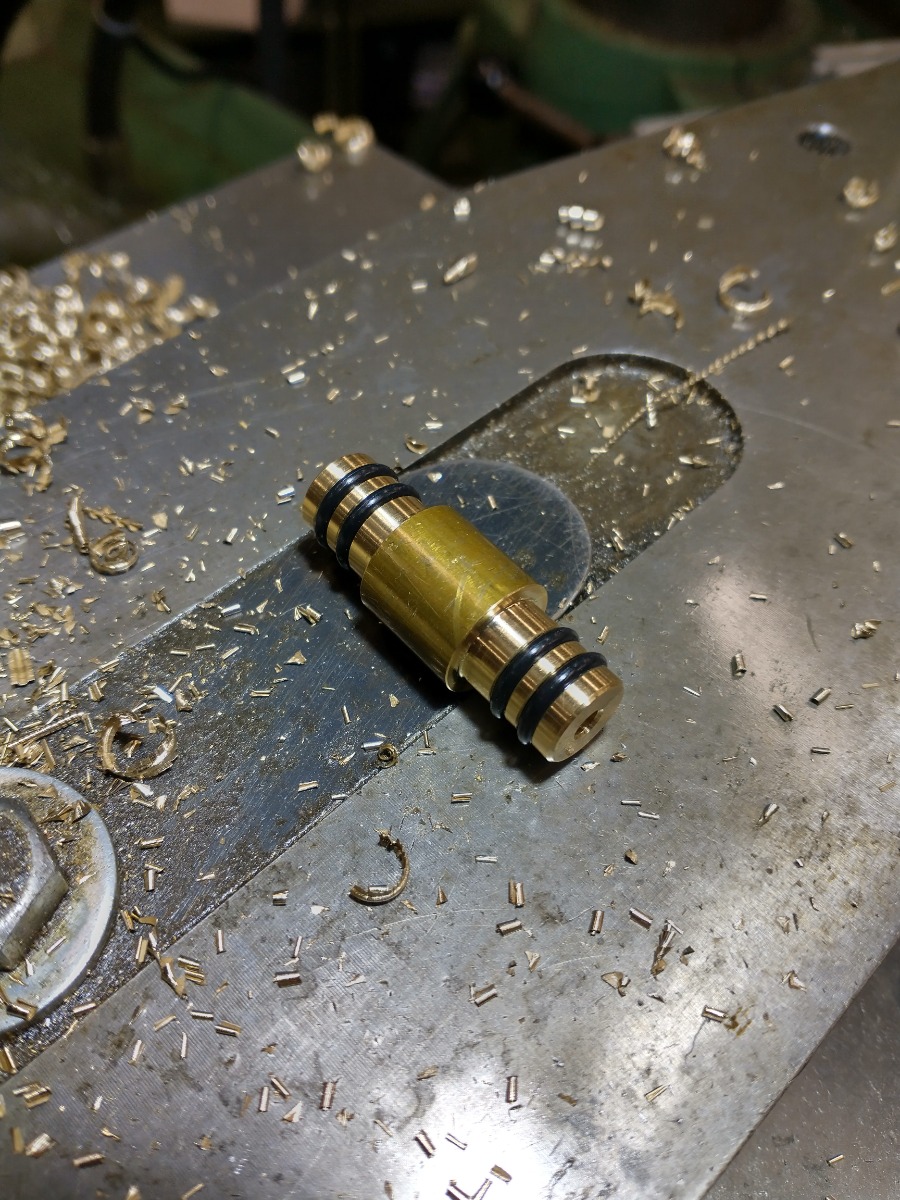

Took some 9/16" brass and cut it to 1.5" long , then turned both ends down to about .39" dia x .5 deep. Put two grooves on both sides 2mm wide to a dia that would allow the 7/16" OD o-ring to be around .460" after installed. The ID of the carb bore is .435ish so that gave me just the right amount of o-ring compression.





Then I bored a .375" hole into the side to a depth of about .410" from the top



After that I turned the barbed fitting side. Made the OD of the press a few thou over the .375" bore in the main body for a nice press fit.




Next I pressed the two together until the barb side bottomed out .



After that I had to drill through the main body side.

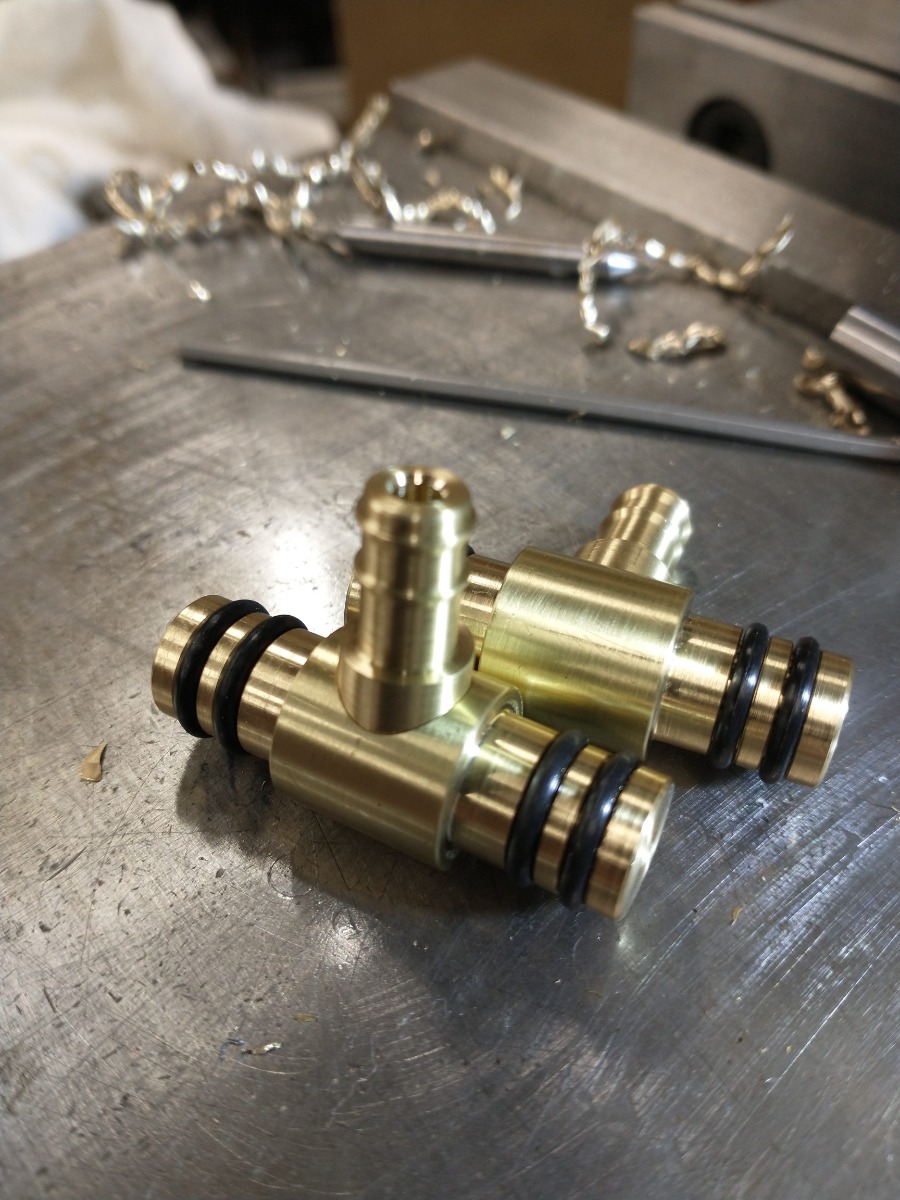

Finished !! I had to grease up the O-rings with lucas assembly lube so that they slid into the carbs without a fight.



1976 KZ900
Attachments:
The following user(s) said Thank You: willemZ900, slmjim+Z1BEBE, Nessism

Please Log in or Create an account to join the conversation.

Last edit: by motoaddict.

vm26ss fuel tee 30 May 2021 15:11 #849282

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
Beautiful.  I've made a few but they don't look quite that nice.  When I make them I braze the cross tube.  How did you make the hole?  Mill it?  Milling will make a more rounded hole than drilling (which is what I'm limited to.)

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

vm26ss fuel tee 30 May 2021 15:42 #849283

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Really nice. Two creative comments. How do you seal Tee section. Isn’t the barb on the Tee facing the wrong direction.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 30 May 2021 15:51 #849285

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441
Very nice job although your barb tapers appear to the orientated in the wrong direction.
That's how i make mine but i prefer aluminium and the barbs the other way round for ease of hose install and to anchor the hoses.

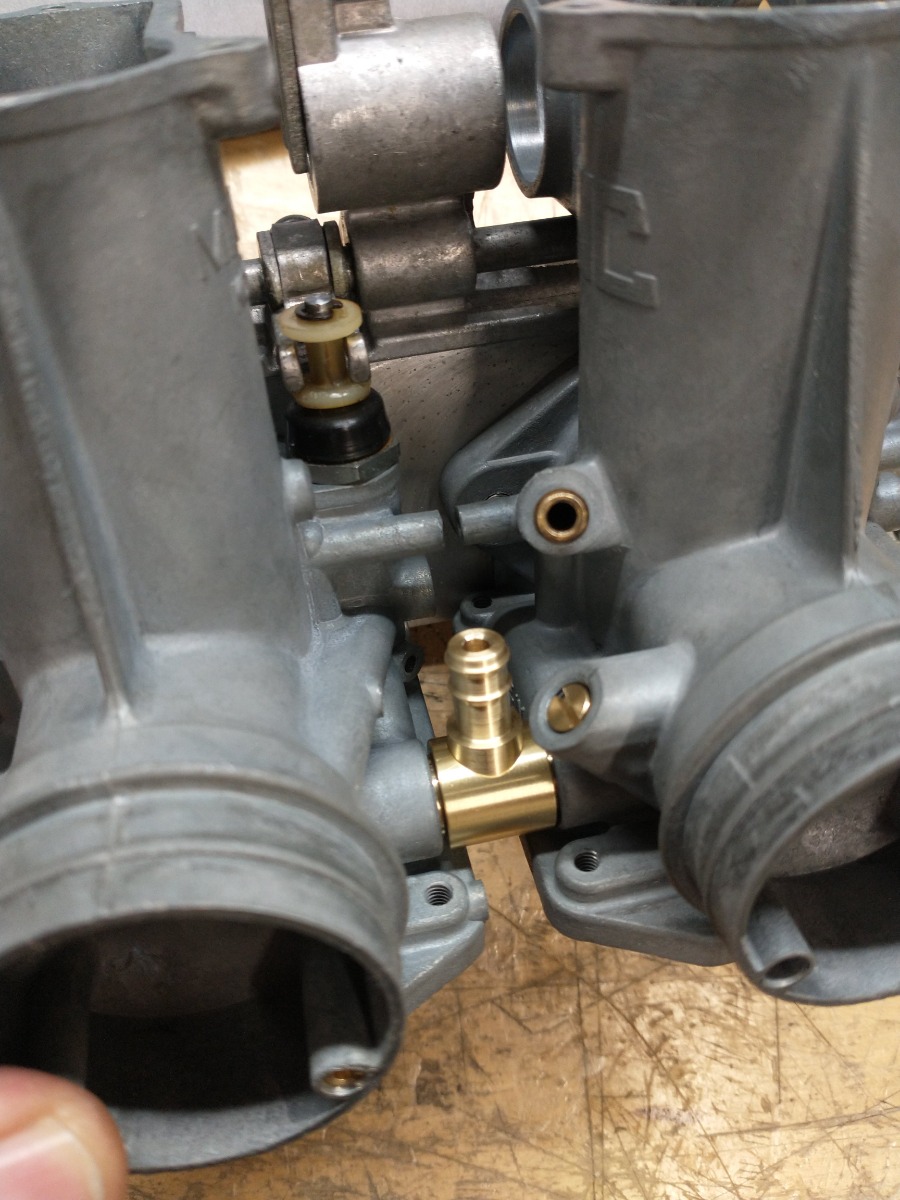

What's going on with the brass carb breather tube in this pic ?
Unless it's the angle of the pic it looks like it's been shortened so that it can't take a breather tube and is just open to atmosphere.
If that's the case it isn't a good idea as it will allow airborne particles etc to enter the float chamber and possibly contaminate the jets etc.
At the minimum those should have a short tube attached hanging vertically between the carb bodies to prevent heavier than air contaminants entering the float chamber.




AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

vm26ss fuel tee 31 May 2021 06:07 #849311

  • motoaddict
  • motoaddict's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thank you received: 8
haha Yes indeed the barb direction is wrong and I realized this as I was making it.  It is the result of the turning tool relief angle as I was plunging it into the diameter. If you take a look at the picture of the original there is no directional barb at all , just two bumps. I test fitted the fuel line and its nice and tight and with a hose clamp it wont fall off. I thought about silver soldering the cross piece on but I felt that the bore was true enough and with a tight press fit it will not leak especially since there is no fuel pressure at all, just gravity. The aluminum aftermarket ones appear to be just pressed as well.

Brass carb breather tube is there I just inadvertently angled the camera so that It looks like it's cut off.

Speaking of hose clamps, where can I get small fuel fitting clamps for these hoses? I don't want to use traditional hose clamps that you use a screwdriver to tighten.


1976 KZ900

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 31 May 2021 06:14 #849312

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 852
  • Thank you received: 254
I got my clamps at a place called Belmetric.com

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 31 May 2021 06:37 #849314

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583
That's some really clean work.  Kudos!

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 31 May 2021 10:09 #849327

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
I agree that it is only gravity feed. Still there is fuel in the tee 100% of the time. When the floats close the fuel will stay in the tee. Even when the tank petcock is off fuel will be captured in the tee. Temp changes could result in pressure build up. I’d error on the safe side and at least set up a test and observe it. Fuel on a hot engine is not something you want. JMO.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 31 May 2021 11:35 #849337

  • kevski
  • kevski's Avatar
  • Offline
  • User
  • Posts: 415
  • Thank you received: 154
Nice work, i also make mine the same way, but i do use solder on them as a precaution,

Please Log in or Create an account to join the conversation.

vm26ss fuel tee 08 Jun 2021 08:44 #849819

  • Mr. E
  • Mr. E's Avatar
  • Offline
  • User
  • Posts: 85
  • Thank you received: 14
M2C... I actually purchased a set off Ebay done the same way with a press fit in the T. What I found was that the T would pull out when removing the fuel lines and pulling straight up on them. Seller replaced and all was good, but that was my experience with that style.
1981 KZ750 Chopper, 1975 KZ400 , 1984 GPZ750 track build , Res 1977 kz1000a ,1977 kz1000a ...ect.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.
