TOPIC: Z1-Z1A-Z1B 28mm carb slide linkage improvement.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 19 Jan 2020 07:23 #817427

  • z1kzonly
  • z1kzonly's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2390
  • Thank you received: 280

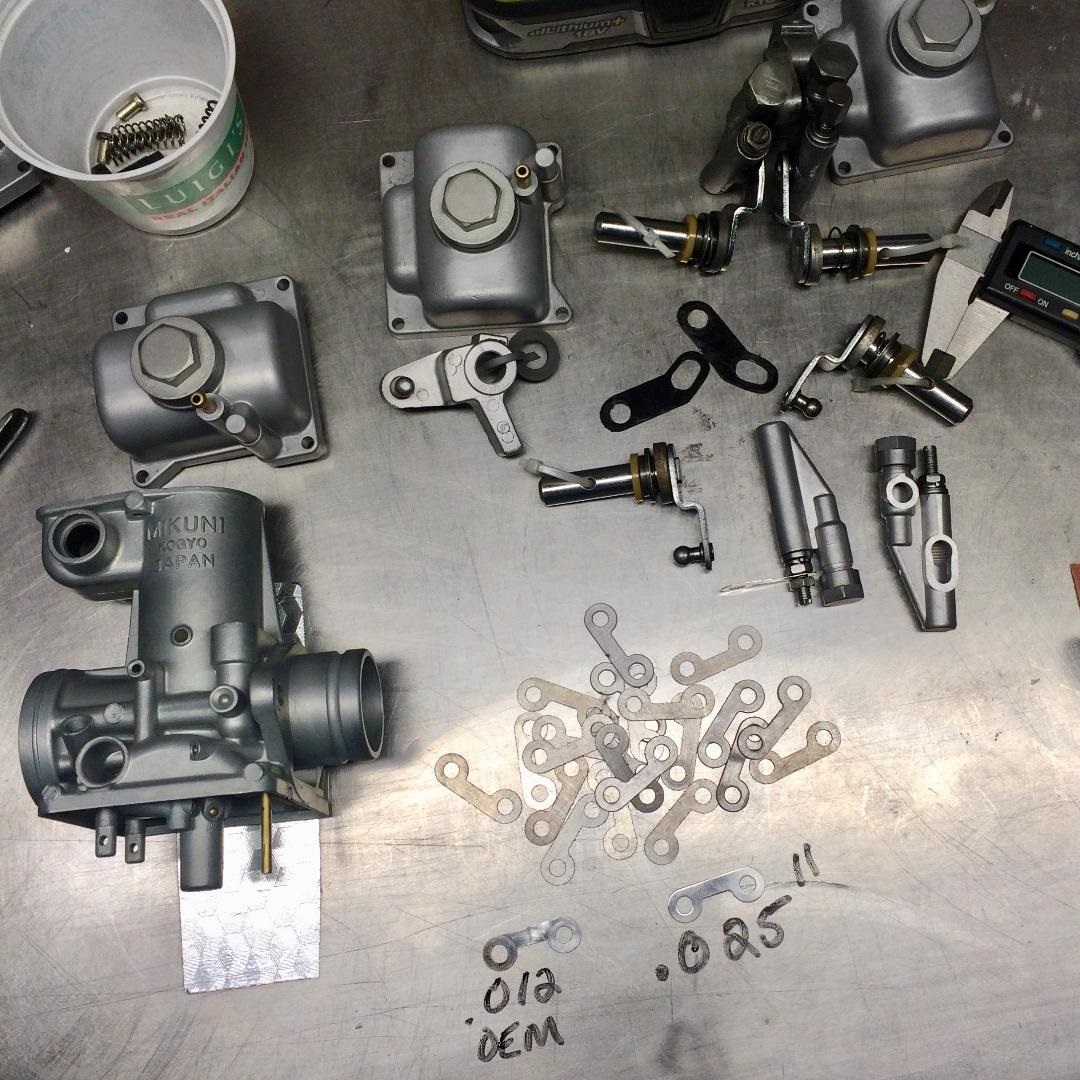

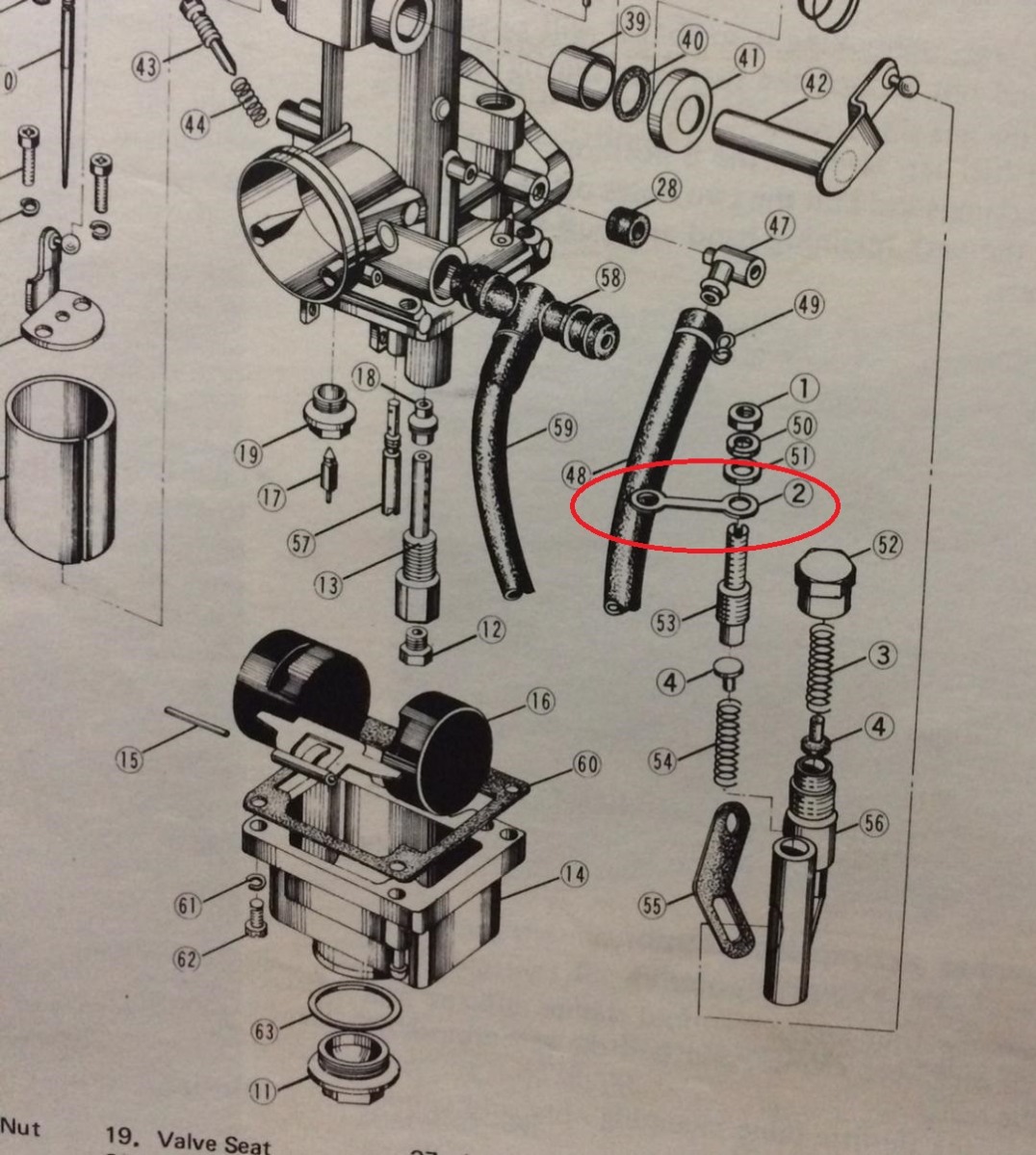

Got a fresh idea here. Z1 28 Mikuni's. After buying Zed's air corrector jets. I dug out an early set of carbs to redo and sell.

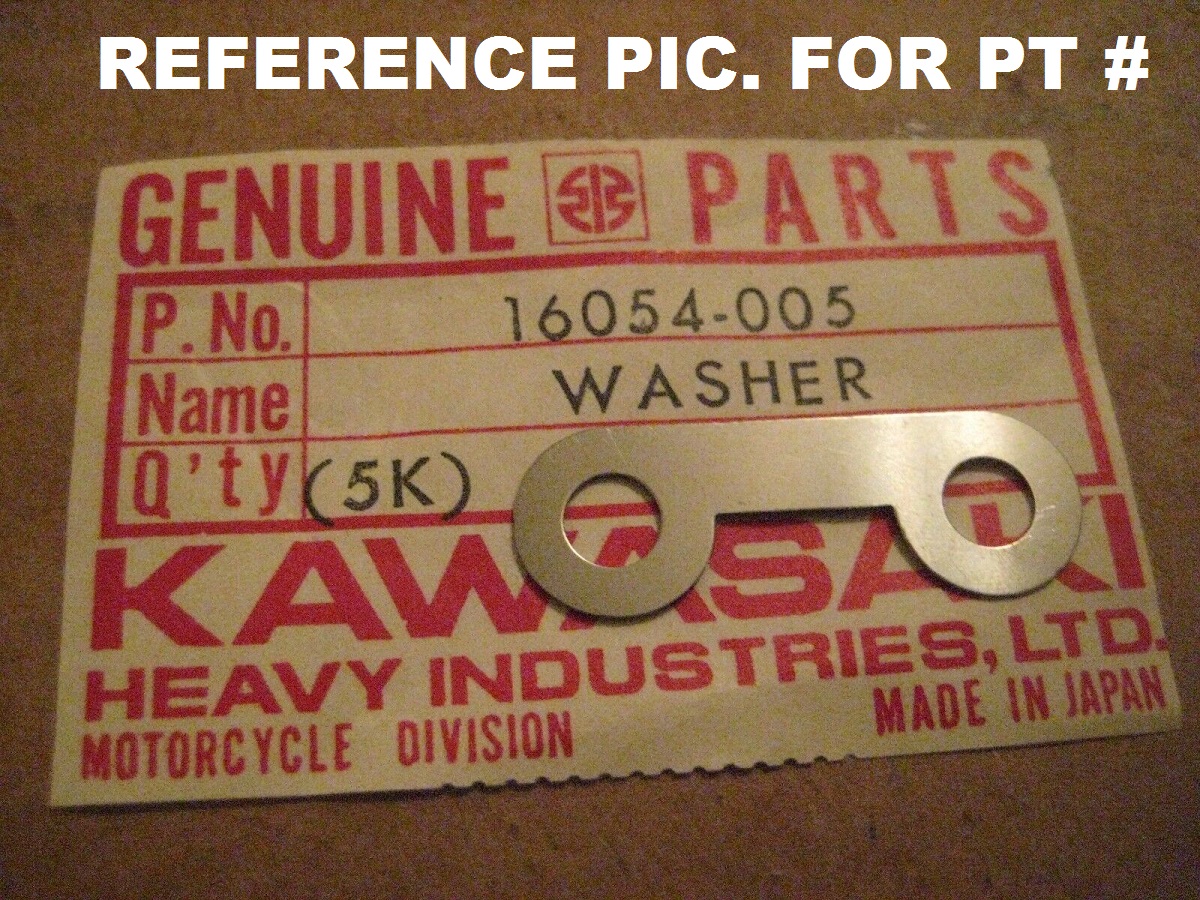

Over the yrs. I sold about 4 or 5 sets of these. And I always doubled these stainless double washer tabs for the slide linkage. Anyone with an original Z1 knows about this!
Worst carbs to work and tune! That's why the factory changed them every year. from the beginning and all thru to the late 70's.

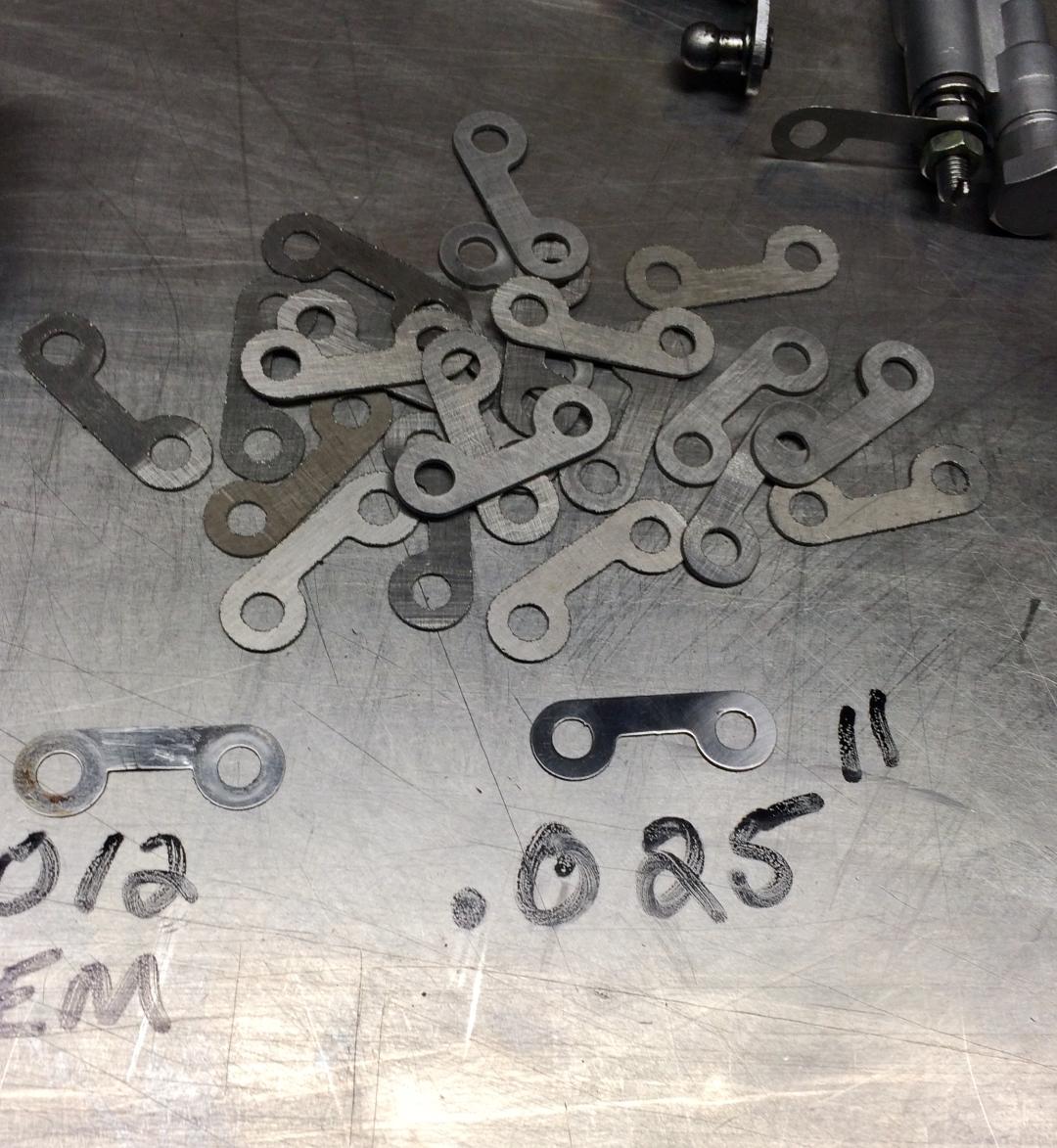

So I went to a local Business that did water jet cutting on a whim, to see if they could do such a small part? And they did! I supplied the stainless material. Now I have to finish them up with a de-burr and slight polish. I already sent one zingin' off the buffer, still can't find it! :laugh: :laugh:
When I get them ready, I'll have 10 sets to sell. Of course I still sell on ebay and FB. This is not an ad yet Steve, so you don't have to move it. Just looking for opinions and after thoughts.
Thanks.
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 19 Jan 2020 09:45 #817441

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 887
  • Thank you received: 263
Great idea! The OEM ones are so thin that they bend when the adjusting nut is tightened. Every time I pull them off I have to straighten them flat again. I would be interested in a dozen if you have that many.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 19 Jan 2020 10:40 #817450

  • zed1015
  • zed1015's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1763
  • Thank you received: 666
Any practical improvement is a good idea.
Especially for those who actually use the bikes.
Those tabs were always too thin and twist just at the mention of a spanner .
I'm sure you will sell a few especially if you list them on ebay too.

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 20 Jan 2020 19:33 #817524

  • z1kzonly
  • z1kzonly's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2390
  • Thank you received: 280

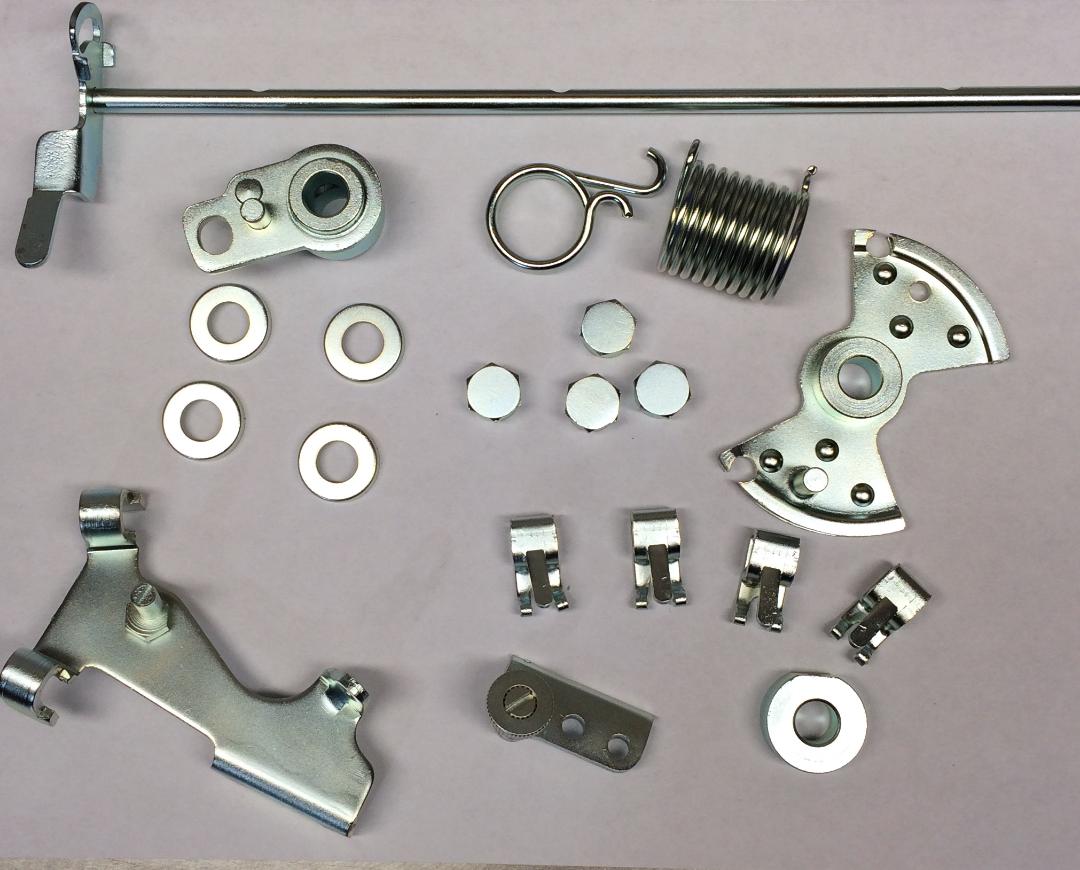

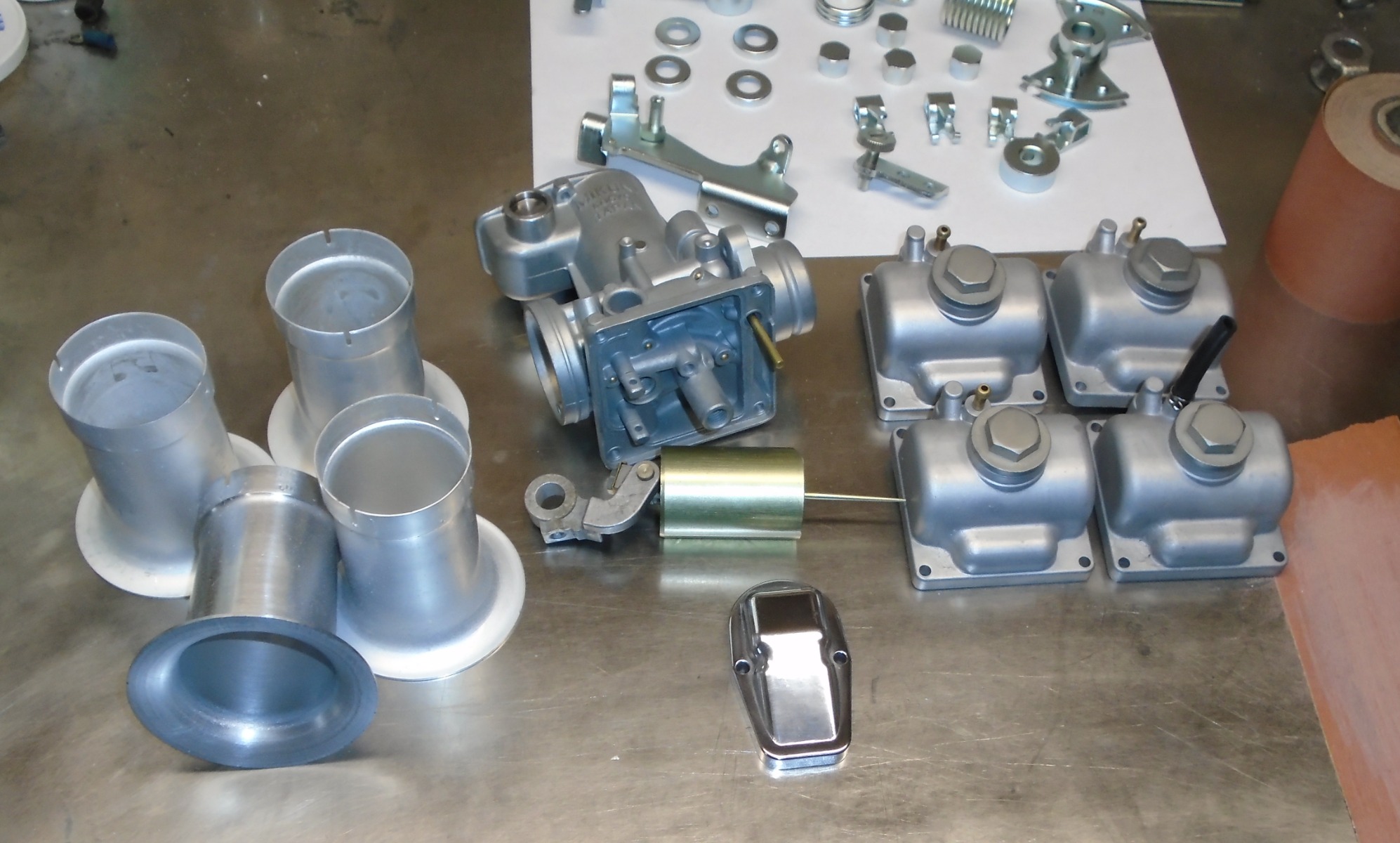

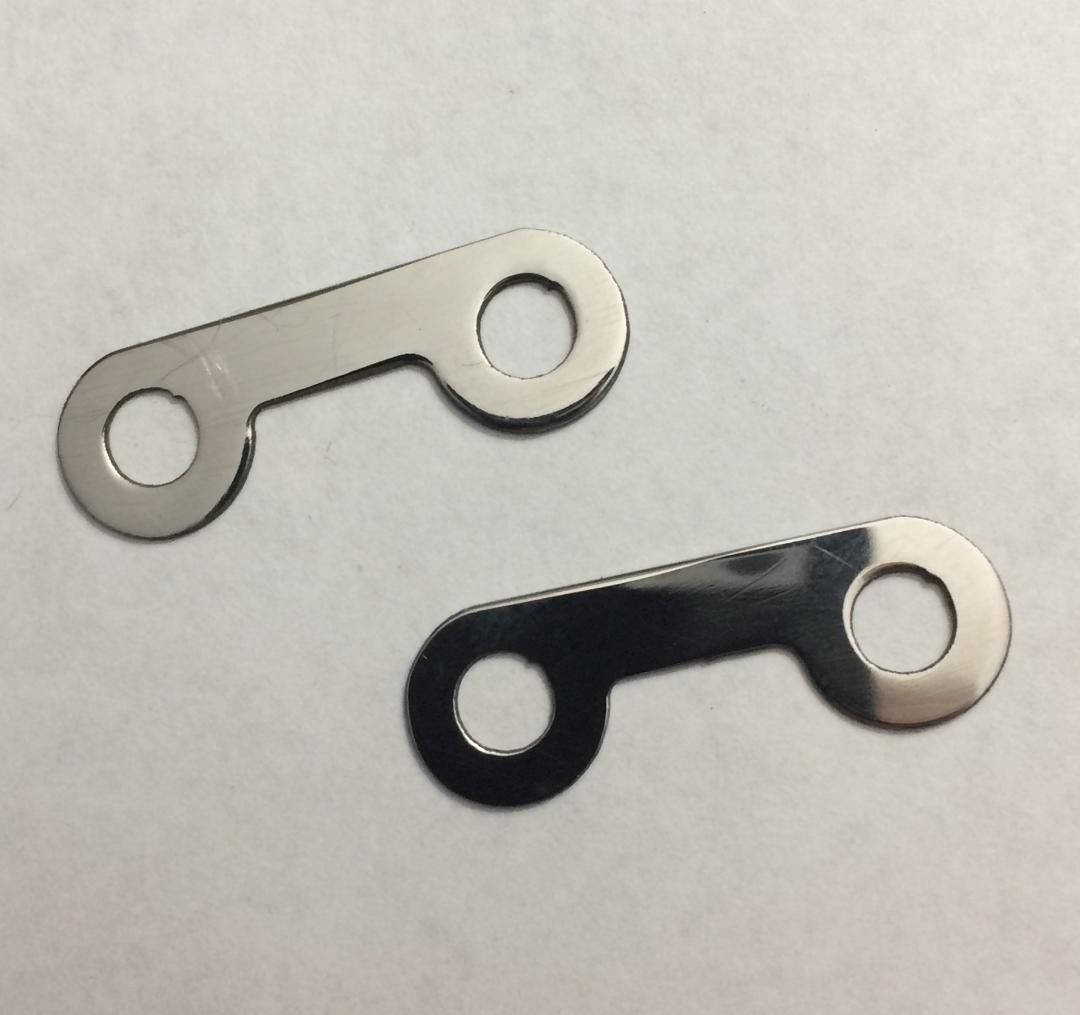

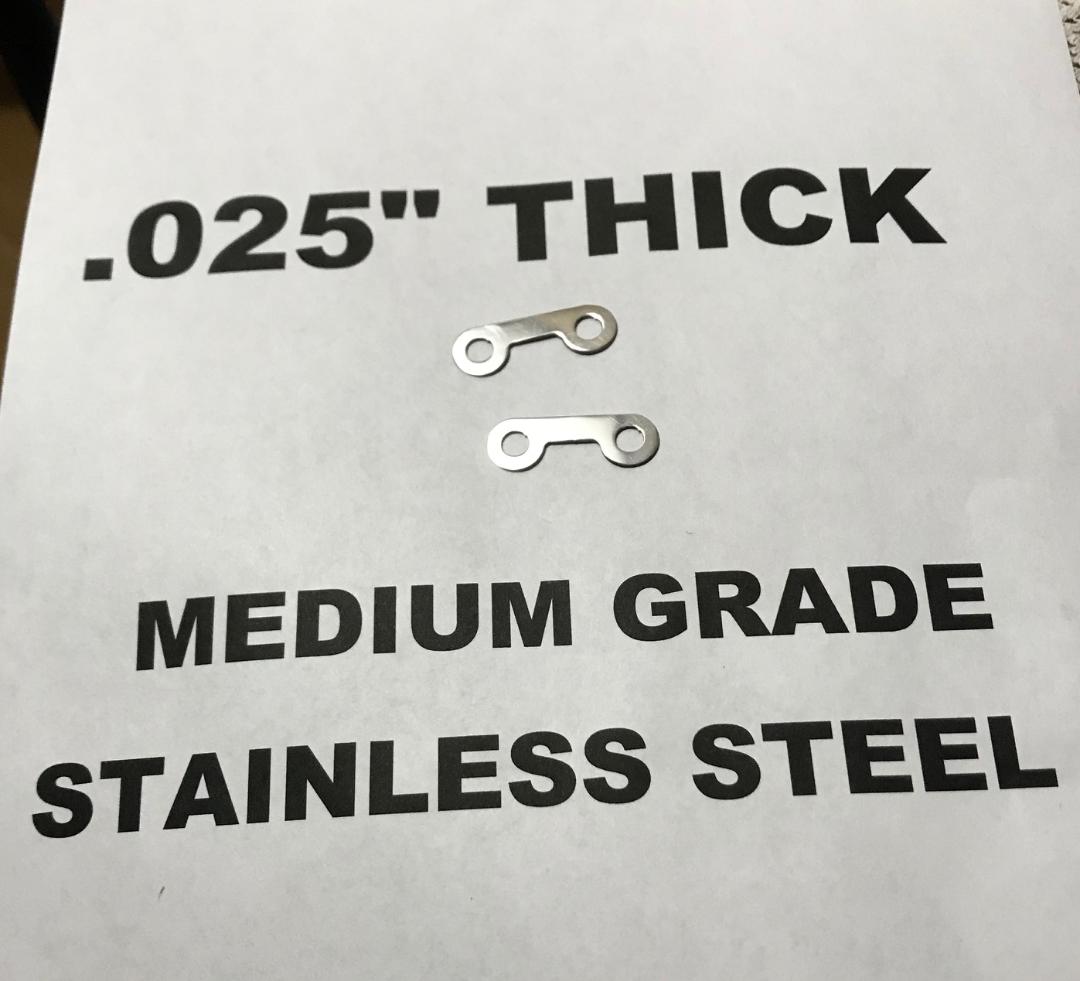

HERE THEY ARE CLEANED UP.
THEY ARE LISTED.
HERE IS AN UPDATED PICTURE.
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:
The following user(s) said Thank You: hardrockminer, Rick H.

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 08 Feb 2020 07:16 #818808

  • z1kzonly
  • z1kzonly's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2390
  • Thank you received: 280

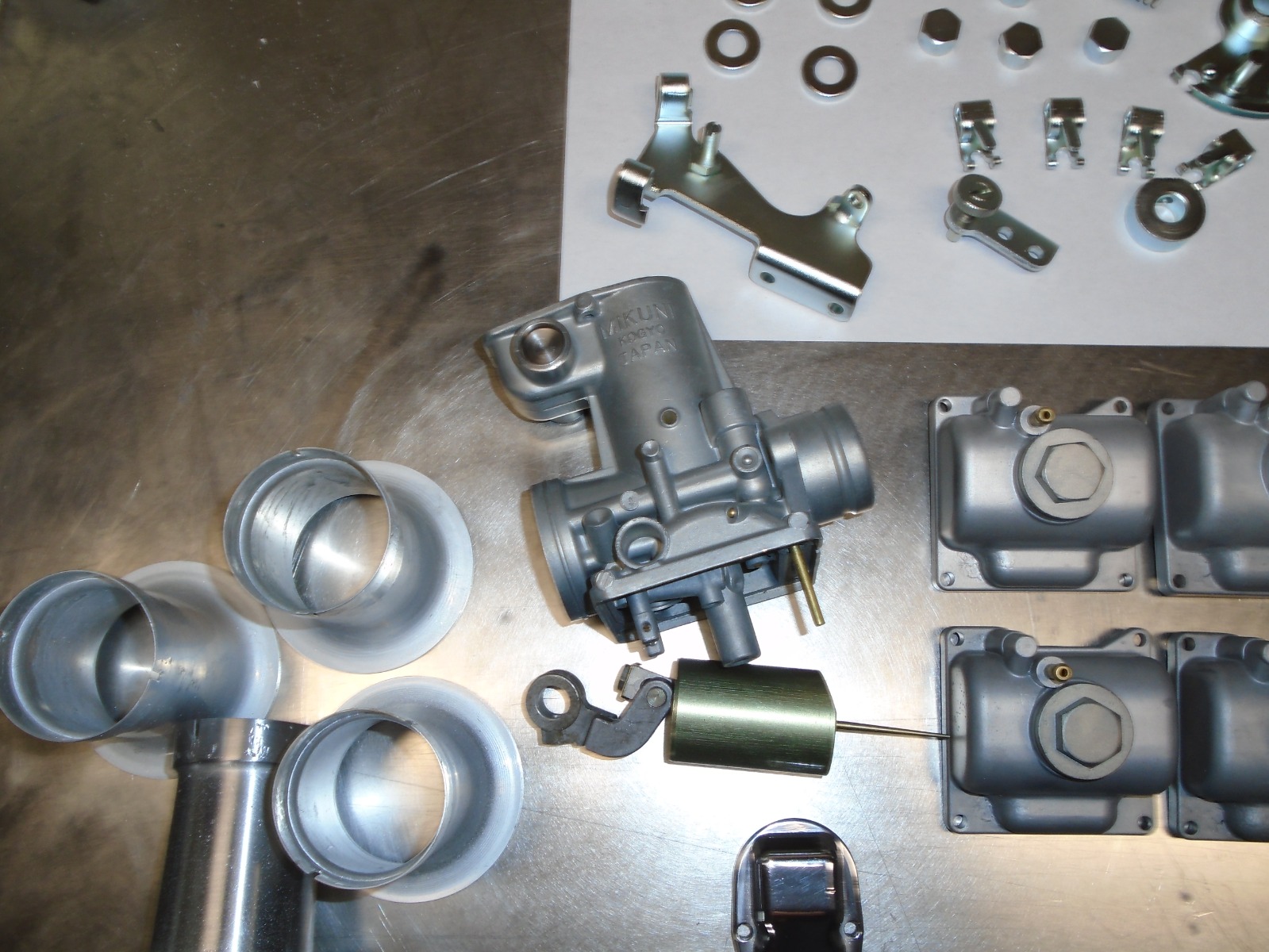

Close topic 28mm Z1 carbs.

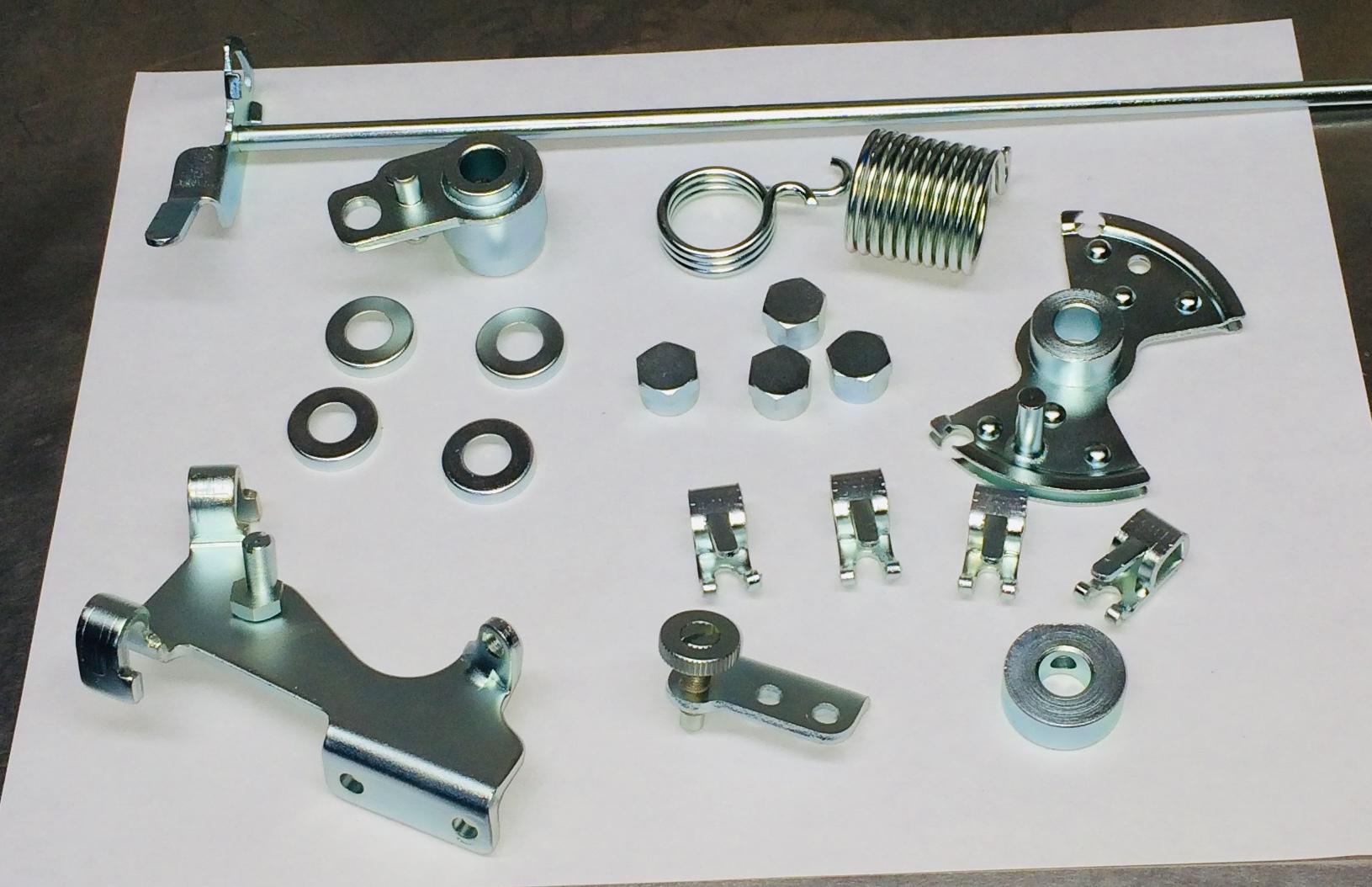

Had the metal parts Zinc plated for these old carbs.
It is hard to find platers nowadays, Ain't cheap either! Too many regulations, EPA, DEC, "The New Green TAX (next year)" :woohoo: :woohoo:

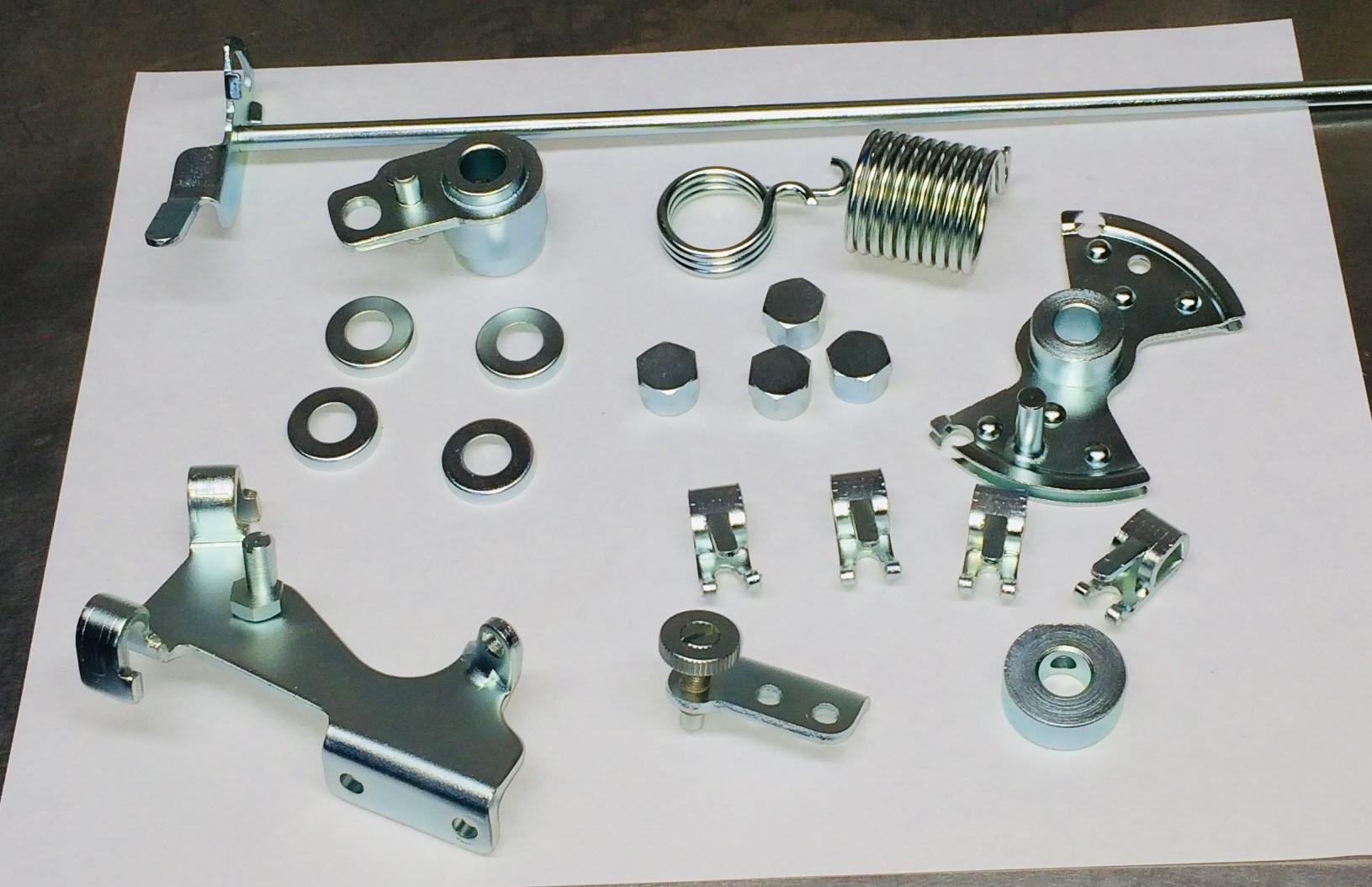

Slim Jim, here they are, I can't send pictures through the IM.
I'll use the thicker ss washer tabs for these carbs of course.
Should look good when done.
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 08 Feb 2020 07:32 #818809

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • Member
  • Member
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 662
  • Thank you received: 292

z1kzonly wrote: Close topic 28mm Z1 carbs.
Had the metal parts Zinc plated for these old carbs.
It is hard to find platers nowadays, Ain't cheap either! Too many regulations, EPA, DEC, "The New Green TAX (next year)" :woohoo: :woohoo:
Slim Jim, here they are, I can't send pictures through the IM.
I'll use the thicker ss washer tabs for these carbs of course.
Should look good when done.


Mmmm... those puppies look NICE! B)

Now to get the carb bodies looking as good to match. No pressure there... :dry:

Looking forward to pics of the finished rack!

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 Z1 x2
1973 Z1 "The Wounded Z" Resto project
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 08 Feb 2020 08:31 #818814

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 887
  • Thank you received: 263

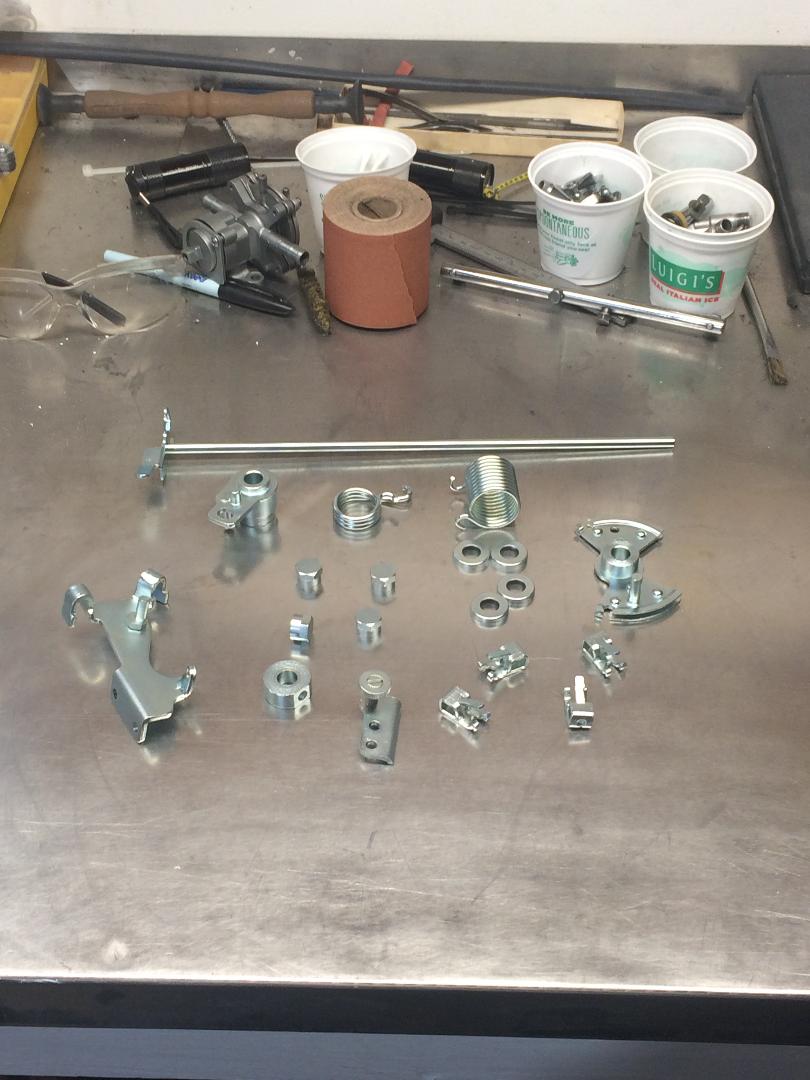

Those look really good! You're right about it being expensive. Last winter I decided to try plating myself and bought a kit from Caswells. Results varied from quite good to not so good. I learned that the plated material needs to be absolutely clean and smooth for best results. I figured a vapour blaster would be the best way to clean stuff up but I don't have one. I looked at maybe getting a micro blaster but the company doesn't ship to Canada so that plan is stalled out.

I also bought some new OEM carb clamps in an attempt to coat them with that drab olive green from back in the day. I had a friend blast the black paint off and then zinc coated it. Next step was the colour, but it didn't work very well for some reason.

This year I'm almost ready to go back at it again but I have to take a trip down to Chilliwack to have my buddy do some vapour blasting on some parts.

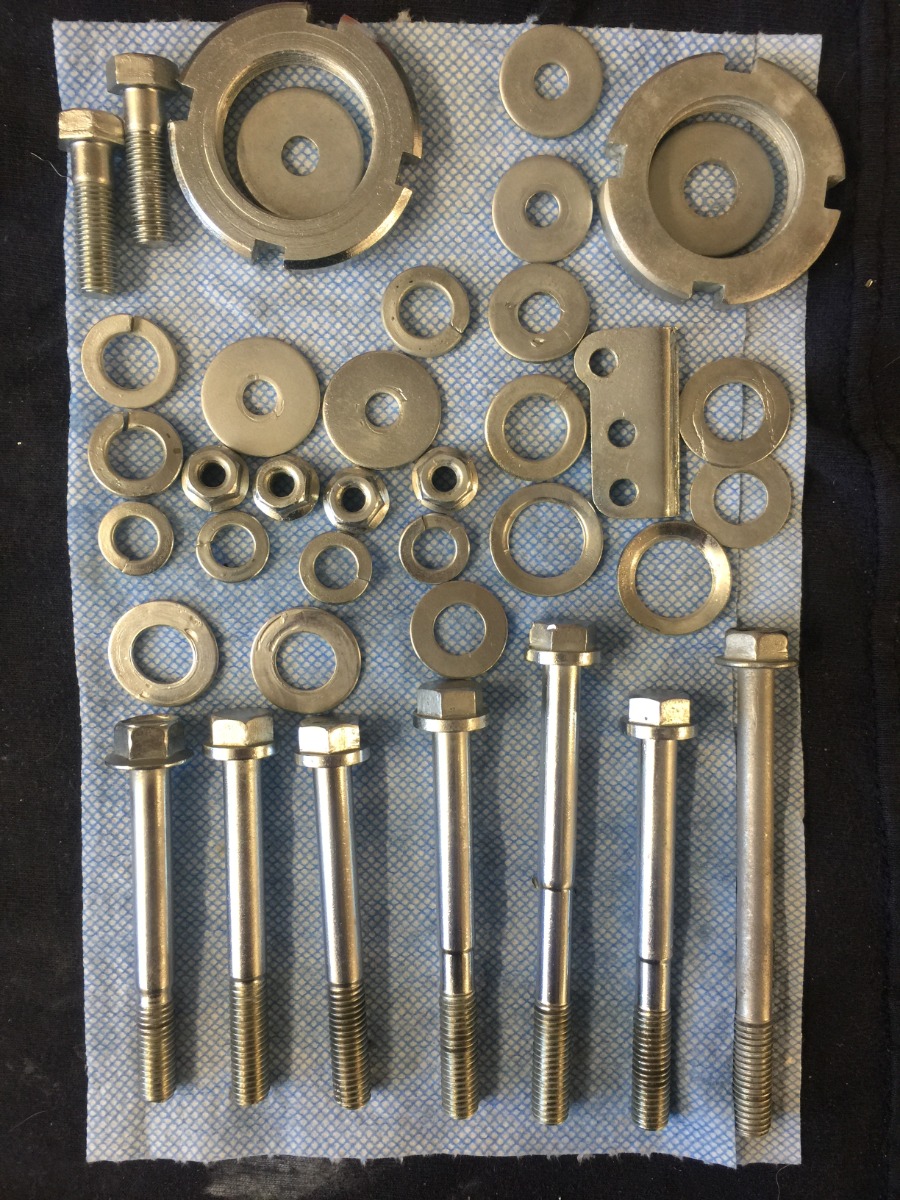

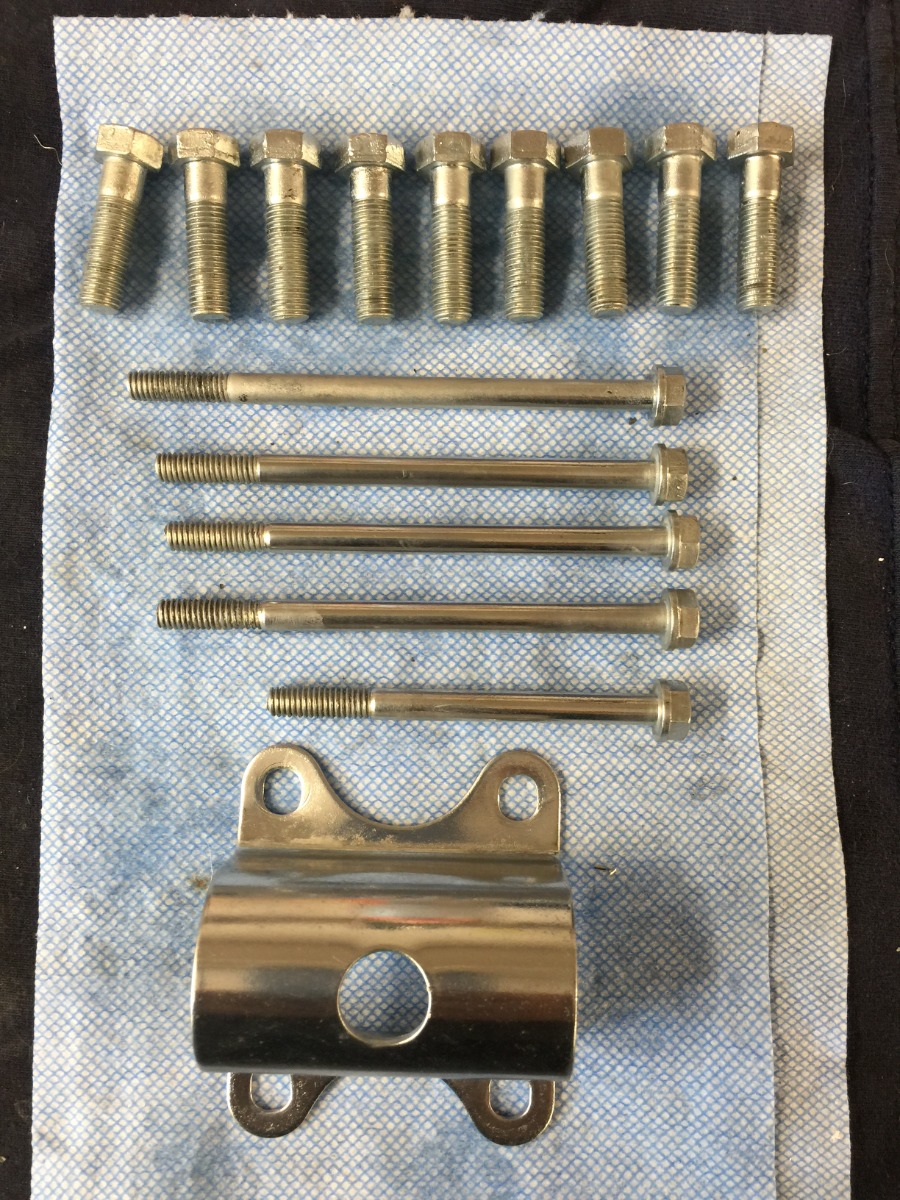

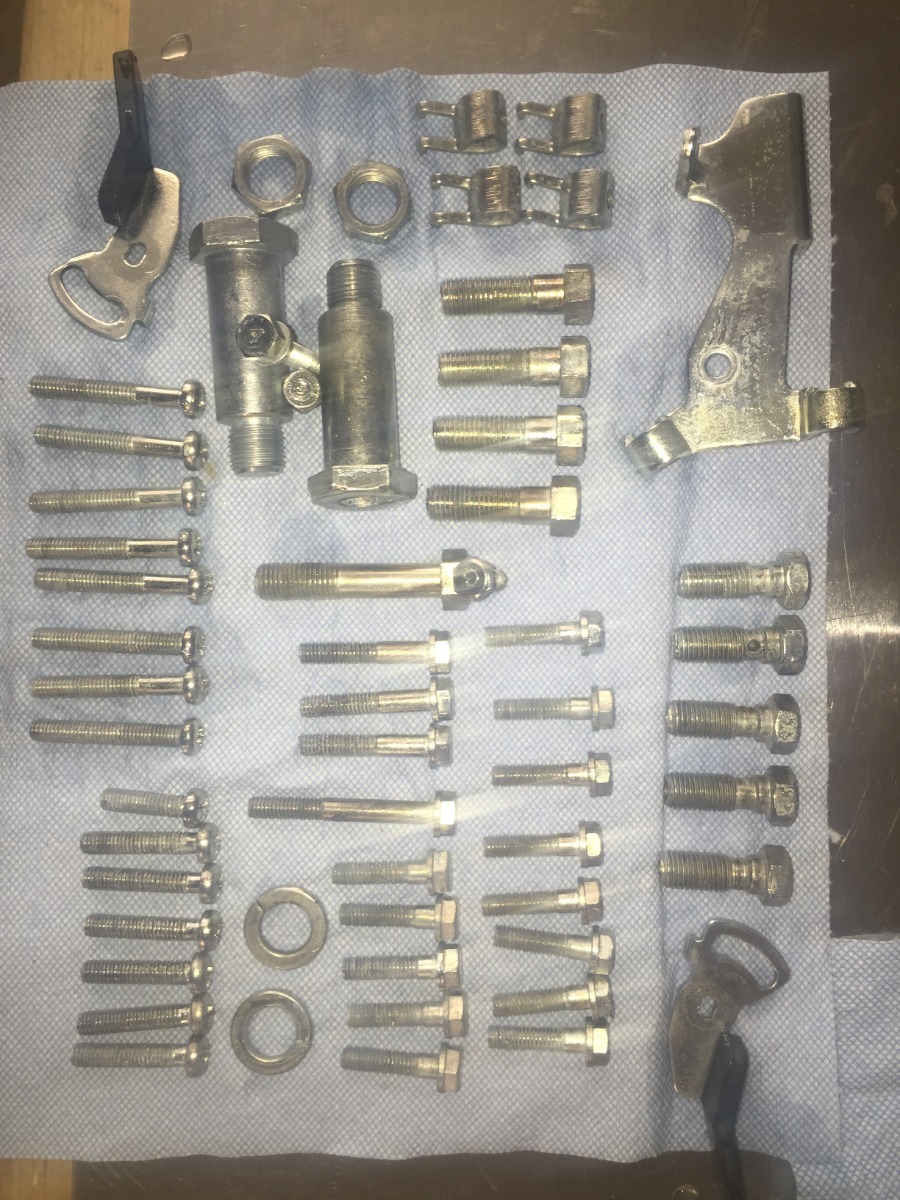

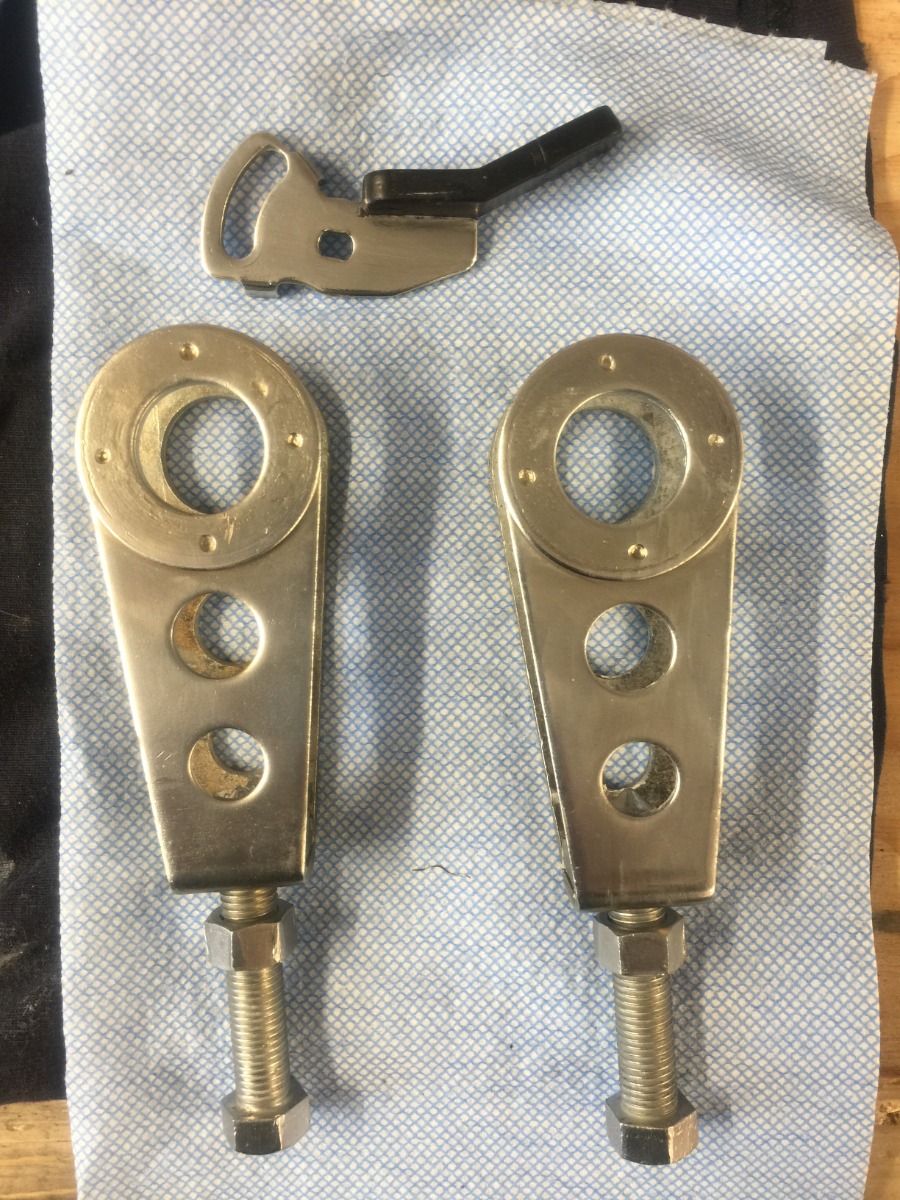

Here are some photos of stuff from last year.

I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:
The following user(s) said Thank You: z1kzonly

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 08 Feb 2020 10:21 #818817

  • z1kzonly
  • z1kzonly's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2390
  • Thank you received: 280

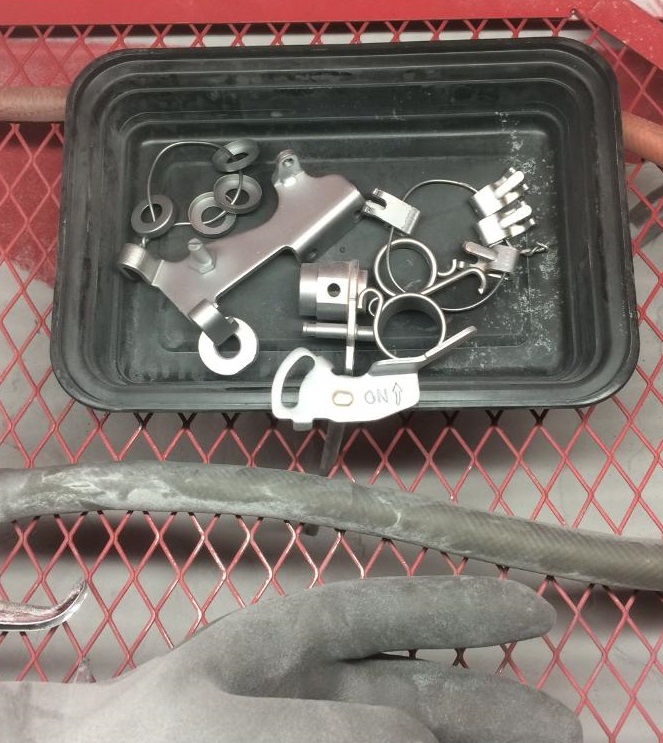

Hi Bill, yes! Over the years, I have learned from having this stuff done. I 1st. blast the parts with an aggressive media. Then I soak in muriatic acid to take the old coatings off. It will look scary black, Fumes are bad! Always do this acid dip outside. And you think you ruined the parts. But then I fine glass bead again. Wrap in paper towels to keep moisture off. Then give it to the plater. Zinc uses an electrical charge as chrome. But the Zinc mixture can be re-used. Prep is the key!
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

Z1-Z1A-Z1B 28mm carb slide linkage improvement. 08 Feb 2020 10:31 #818818

  • z1kzonly
  • z1kzonly's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Sustaining Member
  • Posts: 2390
  • Thank you received: 280

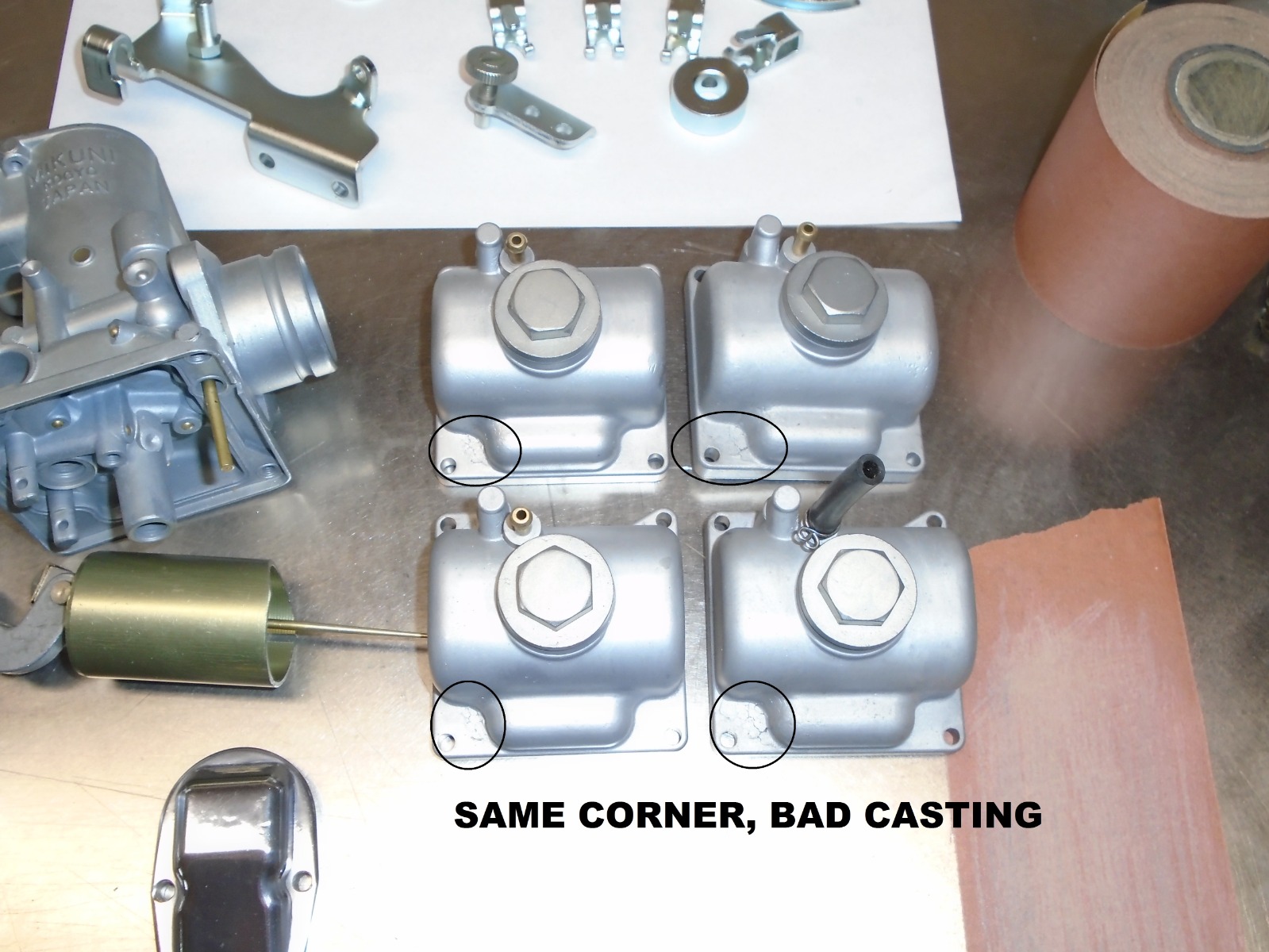

Here is something I have noticed with early Z1 carbs. 1 corner of the bowl. Same corner has a bad casting process during the of making them. I seen it a lot over the years researching and looking at pictures of carbs for sale etc. I am afraid to touch these bowls! I would never try and polish them! I polished the tops only.
