So my 76 Z900 came without an airbox fitted and 28 mm carbs. Taking the advise to fit a Z1 air box to heart I ordered one, and received it today. In three parts.
So I've got a rubber part , a plastic box with a lid and a steel U shaped part with some holes in it. So the plastic bit and the rubber part is easy.

But where does the metal part go?

Any help and or pictures would be greatly appreciated

Thanks in advance!

Please Log in or Create an account to join the conversation.

Airbox Z1 30 Oct 2019 15:31 #813290

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Without any pic of the U shaped part i would say it belongs into bottom of the air box between carb air intake tube# 2 and 3.
The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Airbox Z1 30 Oct 2019 16:24 #813294

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008

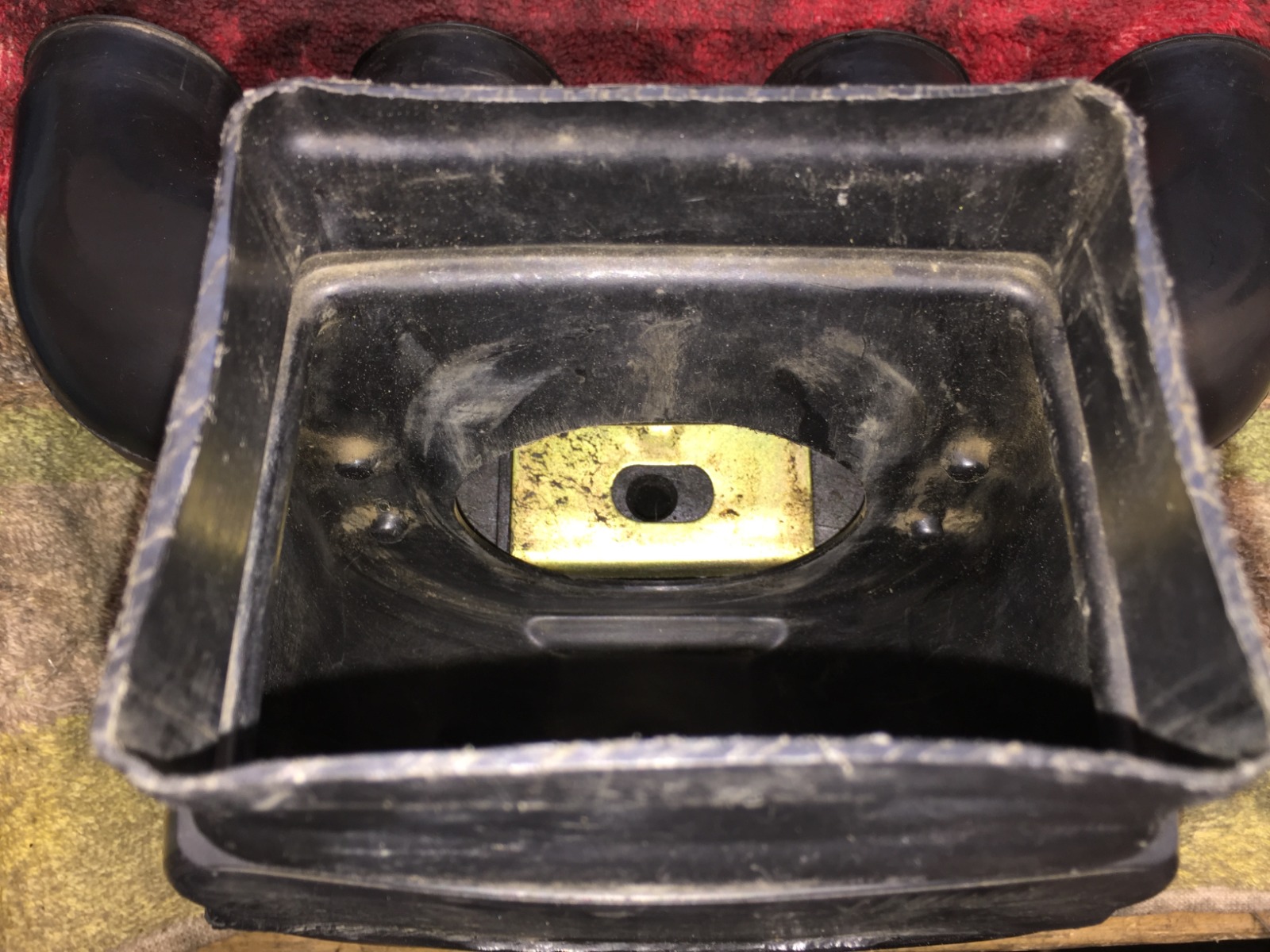

Sirocco is right. Here is a photo looking from back to front. You can see the hole in the plate sits over top of the hole in the bottom of the airbox. The rest of the metal extends upwards.

I'm not sure what the metal is intended to do. Maybe stiffen up the intake? It seems to block intake to #2 & 3 carbs. Thinking back to the '70's I don't remember ever seeing this on my bike, but I've forgotten a heck of a lot of things since then so maybe it was there and I just don't remember. I don't have it on either of my Z1's but I have a spare with the metal piece inside. I also put a Z1 airbox on my 1980 KZ1000 and didn't use the metal piece.

I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:
The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Airbox Z1 31 Oct 2019 06:06 #813312

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583

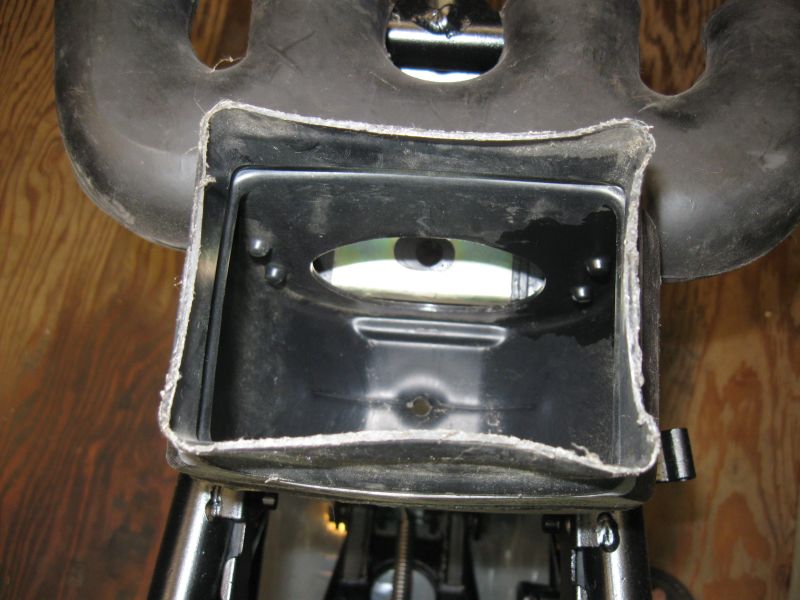

We've never seen an unmolested OEM Z1 airbox that didn't have the metal stiffener inside. We do see lots of loose brackets sans airboxes at swap meets for some reason. It can be a PITA to finagle one back inside the airbox plenum once removed. It helps if the airbox is heated to make it more pliable. Immersing the airbox in hot water while inserting the bracket works well. The yellow arrows in the second pic below shows how the bracket partially intrudes into the #2 and #3 carb boots in the plenum. We've wondered if that was intentional, in an a crude attempt at balancing intake pulses across all four carbs from the plenum, not unlike the much more sophisticated unequal-length intakes from the plenum on modern sportbikes. Or maybe it was just cheaper to not trim the bracket for clearance, which is more likely.




Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Attachments:
The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Last edit: by slmjim+Z1BEBE. Reason: Typos

Airbox Z1 31 Oct 2019 10:41 #813328

  • hvdm
  • hvdm's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 2
Thanks guys, thats cleared it up. The rubber part is still so plyable i can slip in de inner parts without any trouble.
It's almost too soft.

So how do I secure it once I've mounted it to the carbs? Just tiewrap it into place ?

Please Log in or Create an account to join the conversation.

Airbox Z1 31 Oct 2019 12:41 #813332

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
It should stay in place by itself.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Airbox Z1 31 Oct 2019 13:45 #813334

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

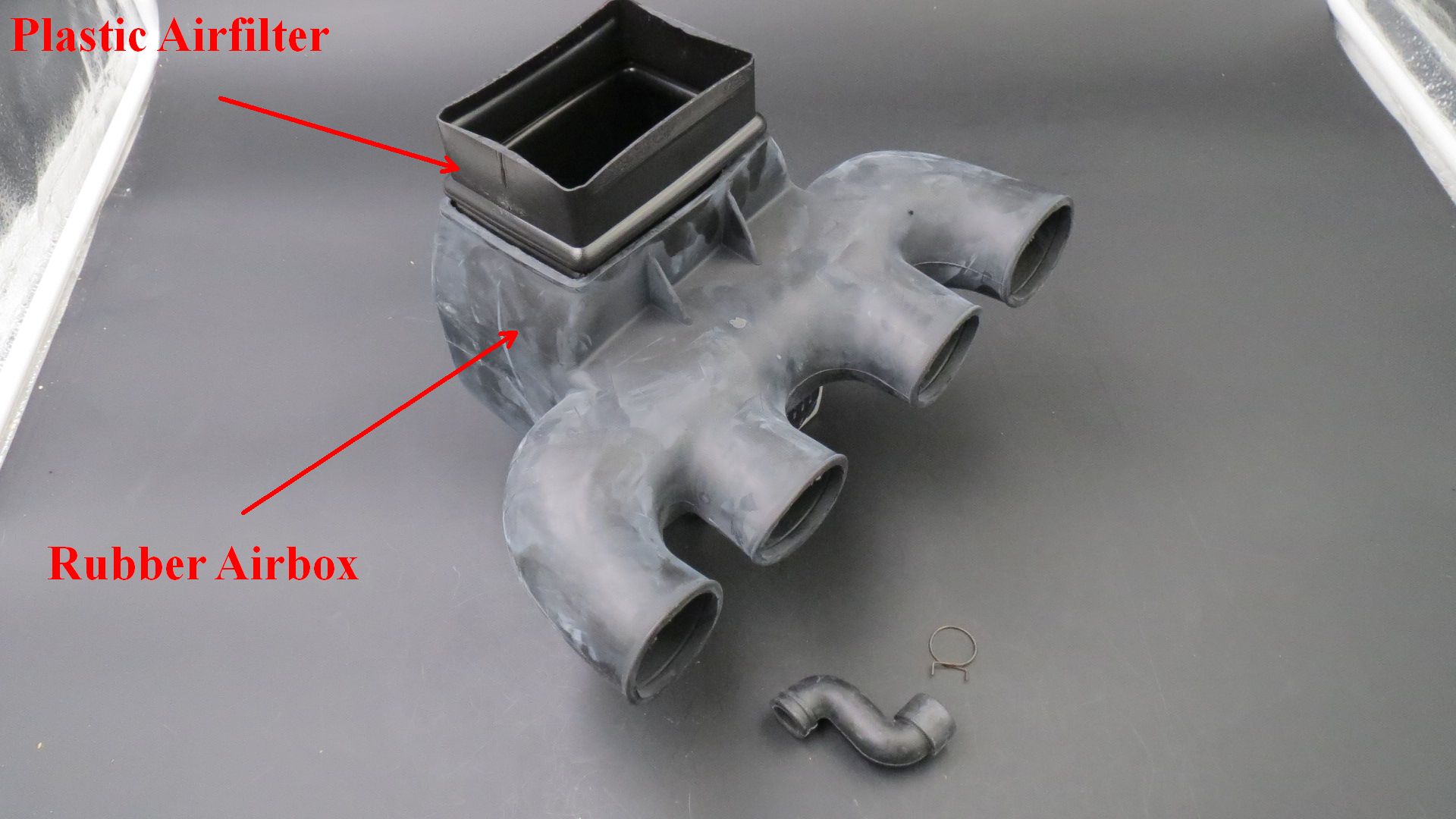

Did you have the plastic air filter insert put into the rubber part of the air box???

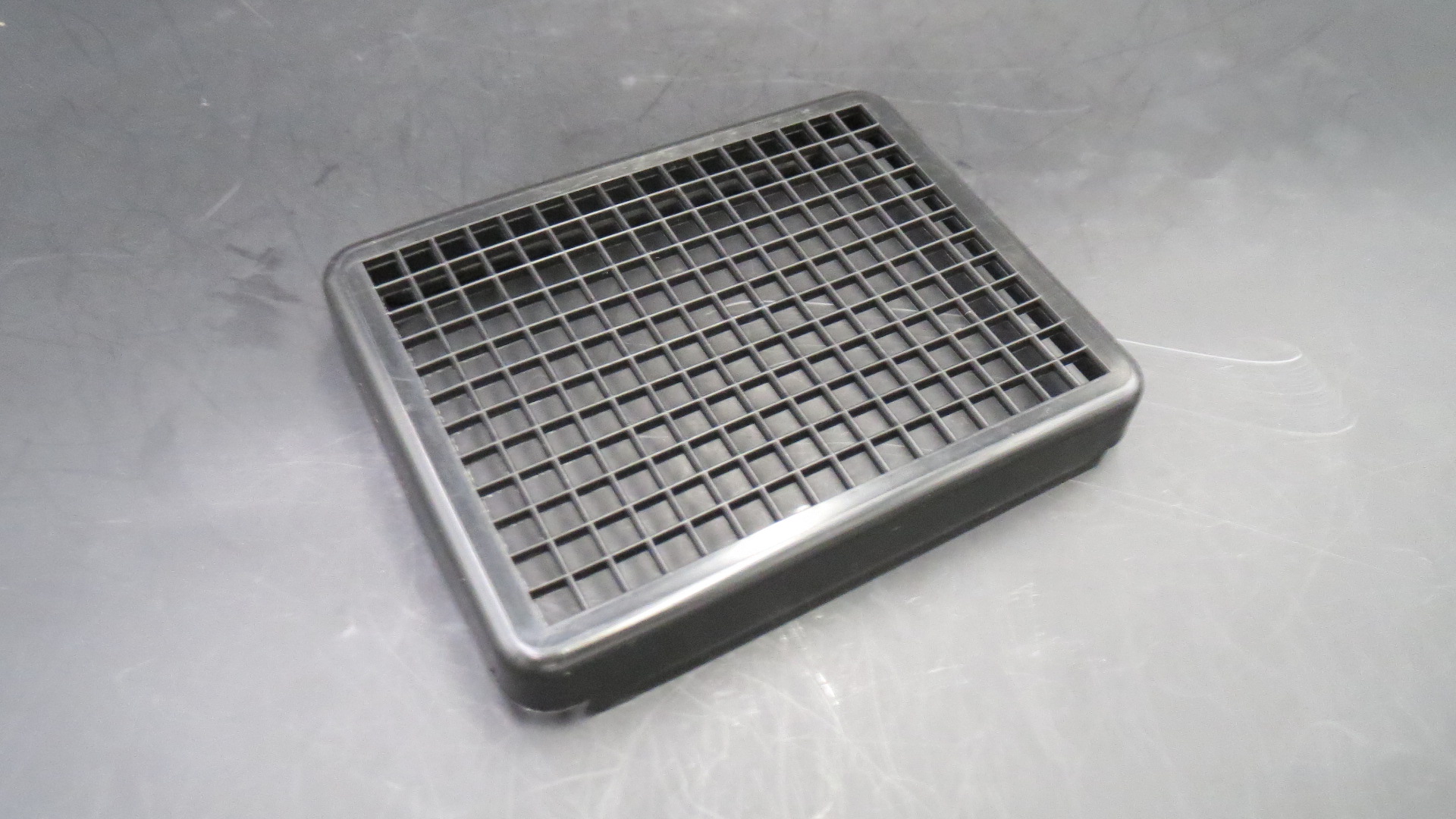

Air inlet cover on top of the air box

Attachments:
The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

Airbox Z1 01 Nov 2019 04:46 #813358

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583

hvdm wrote: ... So how do I secure it once I've mounted it to the carbs? Just tiewrap it into place ?

On Z1's there's a forked bracket bolted to the bottom of the battery box that supports the weight of the airbox assy. at the rear. The forked end of the bracket straddles the filter cavity drain, which is the short, hard nipple directly below the air filter, not the nipple for the rubber elbow at the bottom of the plenum.
Left unsupported, the weight of the rack of carbs, airbox & filter assys. bouncing when the bike is in motion stresses the carb boots, mostly downward, hastening splits developing across the top of the carb boots as everything rearward tends to sag.
We're unfamiliar with the chassis/battery box configuration of KZ900's in the airbox area. If existing bracketry does not lend itself to supporting the weight at the rear of a Z1 airbox when installed in a KZ900 frame, we'd suggest tie wraps or other means of support.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Airbox Z1 01 Nov 2019 12:59 #813392

  • hvdm
  • hvdm's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 2
Thanks guys, that's clear.
Is it worth it to use a bit of hot glue to secure the metal insert in place? to secure i t? It seems to met it can slide out of place quite easily and block te drain holes and intake both? Or maybe use a hollow bolt to secure it through the rubber nipple?

Please Log in or Create an account to join the conversation.

Airbox Z1 01 Nov 2019 13:02 #813393

  • hvdm
  • hvdm's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 2

Scirocco wrote: Did you have the plastic air filter insert put into the rubber part of the air box???



Air inlet cover on top of the air box


Yes it was complete . Luckily I double checked because the top was stuffed in with a piece of paper which i'd trow away otherwise.

Please Log in or Create an account to join the conversation.

Airbox Z1 02 Nov 2019 08:22 #813436

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583

hvdm wrote: ... Is it worth it to use a bit of hot glue to secure the metal insert in place?...

Unless the metal brace is seriously misshapen, it should be pretty firmly held in place by the surrounding plenum rubber.
Note that the hard plastic filter housing is separate from the rubber plenum, and the metal bracket lives in the plenum itself.
The hard plastic filter housing extends from the screened opening all the way down to include the filter cavity drain nipple, so that the filter is surrounded by hard plastic, with a large opening into the plenum. The filter housing is simply pressed into place, surrounded by rubber with only the top 2" or so of the neck exposed.. Examine your airbox closely & you should see what we're describing. The plastic filter housing will just pull out of the surrounding plenum rubber. The metal bracket cannot be easily inserted into the plenum with the filter housing installed. Immersing the entire airbox assy. into hot water long enough to heat & soften the rubber will ease removing & installing the filter housing significantly.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

The following user(s) said Thank You: hvdm

Please Log in or Create an account to join the conversation.

Airbox Z1 17 Nov 2019 12:16 #814099

  • hvdm
  • hvdm's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 2
Thank you . With you're explanation it makes sense.
