cam cap threads/bolts

When the engine is old and bolts is old, I guess Its a possibility to damage the threads or twist off the bolts...?

what is the best upgrade to avoid these problem?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 17 Apr 2021 01:04 by gordone.

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 2979
  • Thanks: 1153

Re: Cam cap threads threads upgrade

17 Apr 2021 04:52
#846915
A good torque wrench!
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • hugo
  • hugo's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • '92 Zephyr 750
  • Posts: 288
  • Thanks: 78

Re: Cam cap threads threads upgrade

17 Apr 2021 04:59 - 17 Apr 2021 05:00
#846916
Is steel on aluminum.   It is not because is old, but how many times has been retorqued. ..how many cycles..  Inevitably, aluminum wears against steel.   But in this case, the cam caps bolt take little torque.   Barely more than on oil sealing gasket.    I good sensitive torque wrench should be enough.

...here torque is so low, I use the dial and bending-arm type, rather than the 'clicking' one.   I prefer to see the dial
Last edit: 17 Apr 2021 05:00 by hugo.
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7748
  • Thanks: 3138

Re: Cam cap threads threads upgrade

17 Apr 2021 05:21
#846917

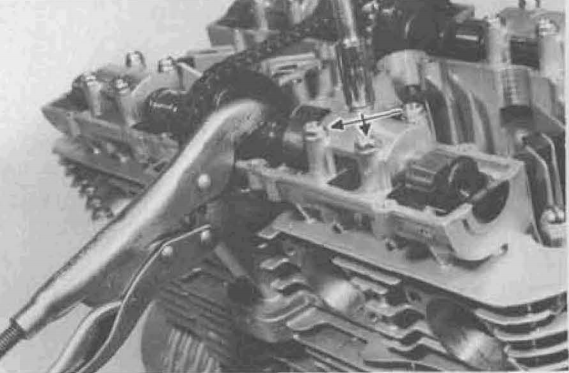

There is a lot of stress on the threads when installing the cams because you are fighting against the valve springs.  I like to clamp the cams down into the bearing journals using a pair of vice grips before installing the caps like shown in the Suzuki GS manual.




Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • ghostdive
  • ghostdive's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 388
  • Thanks: 120

Re: Cam cap threads threads upgrade

17 Apr 2021 09:03
#846925
Along with Nessism's suggestion, I clean the threads of the bolts, and I only torque to 96 in/lbs, as opposed to what the manual suggests (in my case, I believe it's 144 in/lbs).

If you want peace of mind, you could have steel threaded inserts installed, but I think of that as a "when it's necessary" modification.

I remember seeing someone use studs and nuts instead of the bolts, and while some pointed out that the nuts would cause damage if they ever came off, it may be okay if you match the stud heights to the valve cover. I'm not sure what torque value this arrangement would need, though.
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel

2001 ZX-6R
The following user(s) said Thank You: gordone

Please Log in or Create an account to join the conversation.

  • ThatGPzGuy
  • ThatGPzGuy's Avatar
  • Away
  • Sustaining Member
  • Sustaining Member
    Registered
  • More Sparky than Speed Racer
  • Posts: 1495
  • Thanks: 394

Re: Cam cap threads threads upgrade

17 Apr 2021 09:15
#846927
I've used barrel inserts to repair some pulled threads. Hard to do on the bike but if the head is off it's pretty easy. The best thing to do is be very careful and don't use the bolts to pull the cam down.
Jim
North GA
2016 Yamaha FJR1300ES
1982 GPz750 R1
1974 Kawasaki H1
1976 Kawasaki KZ400
1979 Yamaha XS650 cafe'
2001 KZ1000P
2001 Yamaha YZ426
1981 Honda XR200 stroked in an '89 CR125 chassis
1965 Mustang
1967 Triumph GT6
1976 Bronco
"If you didn't build it, it's not really yours"

Please Log in or Create an account to join the conversation.

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2576
  • Thanks: 732

Re: Cam cap threads threads upgrade

17 Apr 2021 10:47
#846931
Whole thread on the subject here .  kzrider.com/forum/2-engine/607517-stripp...nder-buckets?start=0
'78 1000 Long Term Project
 '80 750G
 750 Twin Big Bore Track Bike

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 1505
  • Thanks: 87

Re: Cam cap threads threads upgrade

17 Apr 2021 14:44
#846945
wrote:
Along with Nessism's suggestion, I clean the threads of the bolts, and I only torque to 96 in/lbs, as opposed to what the manual suggests (in my case, I believe it's 144 in/lbs).

If you want peace of mind, you could have steel threaded inserts installed, but I think of that as a "when it's necessary" modification.

I remember seeing someone use studs and nuts instead of the bolts, and while some pointed out that the nuts would cause damage if they ever came off, it may be okay if you match the stud heights to the valve cover. I'm not sure what torque value this arrangement would need, though.



You only clean the bolts, not the wholes?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 1505
  • Thanks: 87

Re: Cam cap threads threads upgrade

17 Apr 2021 14:48
#846946
thank you all!

correct summary?:
1. clean the bolts (and whole?)
2. Push the cam down as  Nessism  advise
3. don’t torque to service manual spec, do 50 in/lbs lower then spec.

These shall avoid any issues then?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.
