Re: 1973 Z1 Maui
19 Oct 2021 15:01

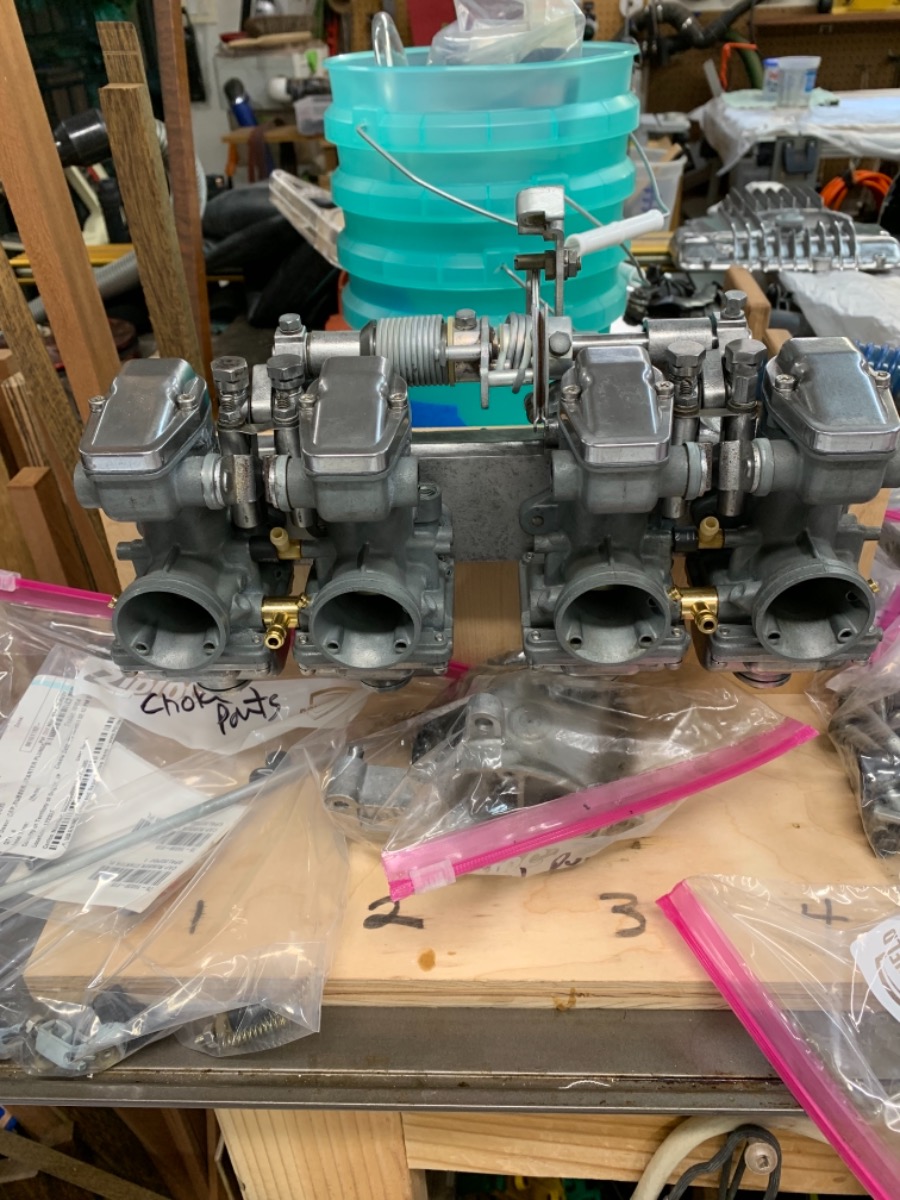

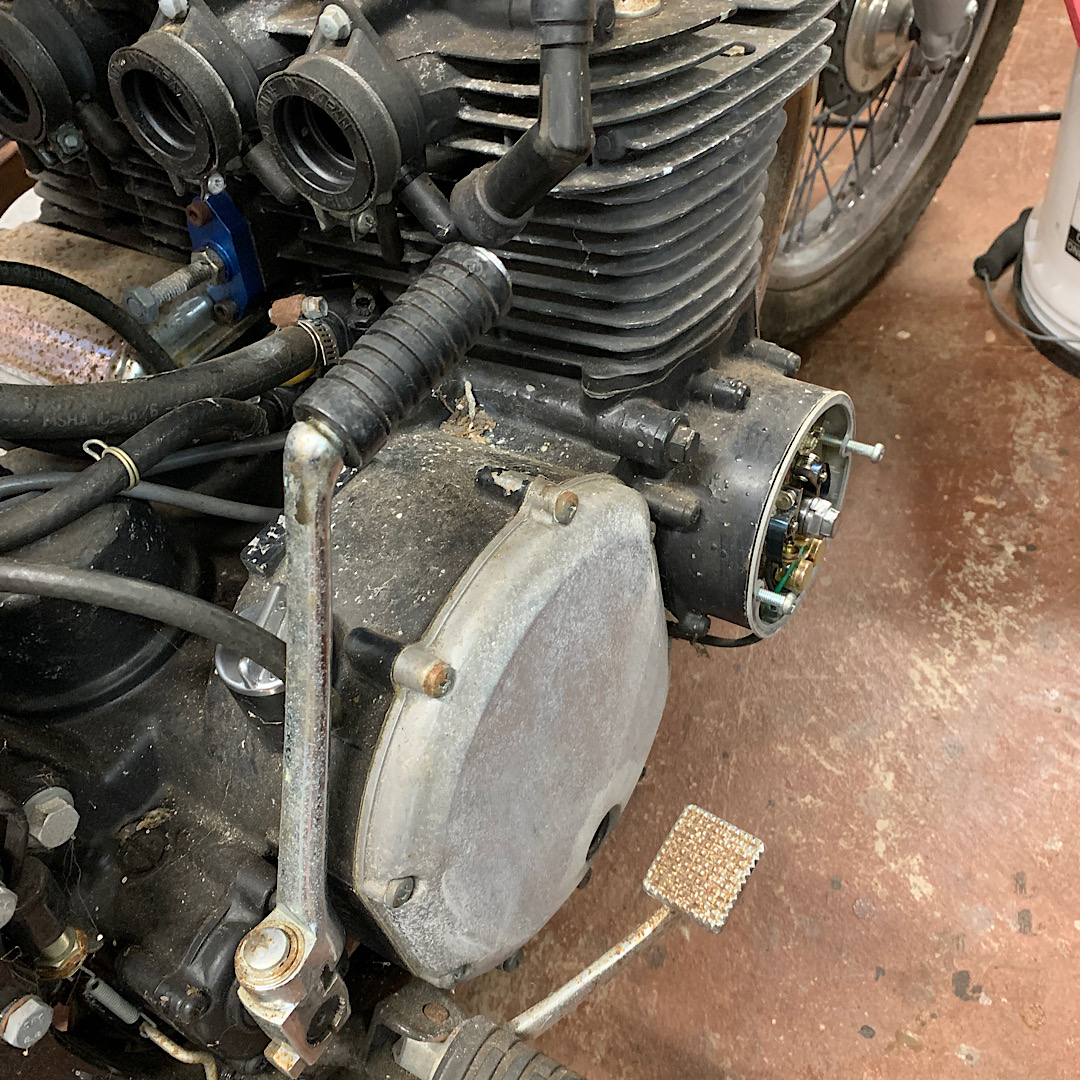

I was going through some photos to check out some “as found” conditions and it’s a wonder I took this bike on, it was pretty ugly, as I imagine many here have encountered.
Please Log in or Create an account to join the conversation.
- MauiZ1
-
Topic Author
- Offline
- User
- Posts: 232
- Thanks: 19
Re: 1973 Z1 Maui
21 Oct 2021 20:20

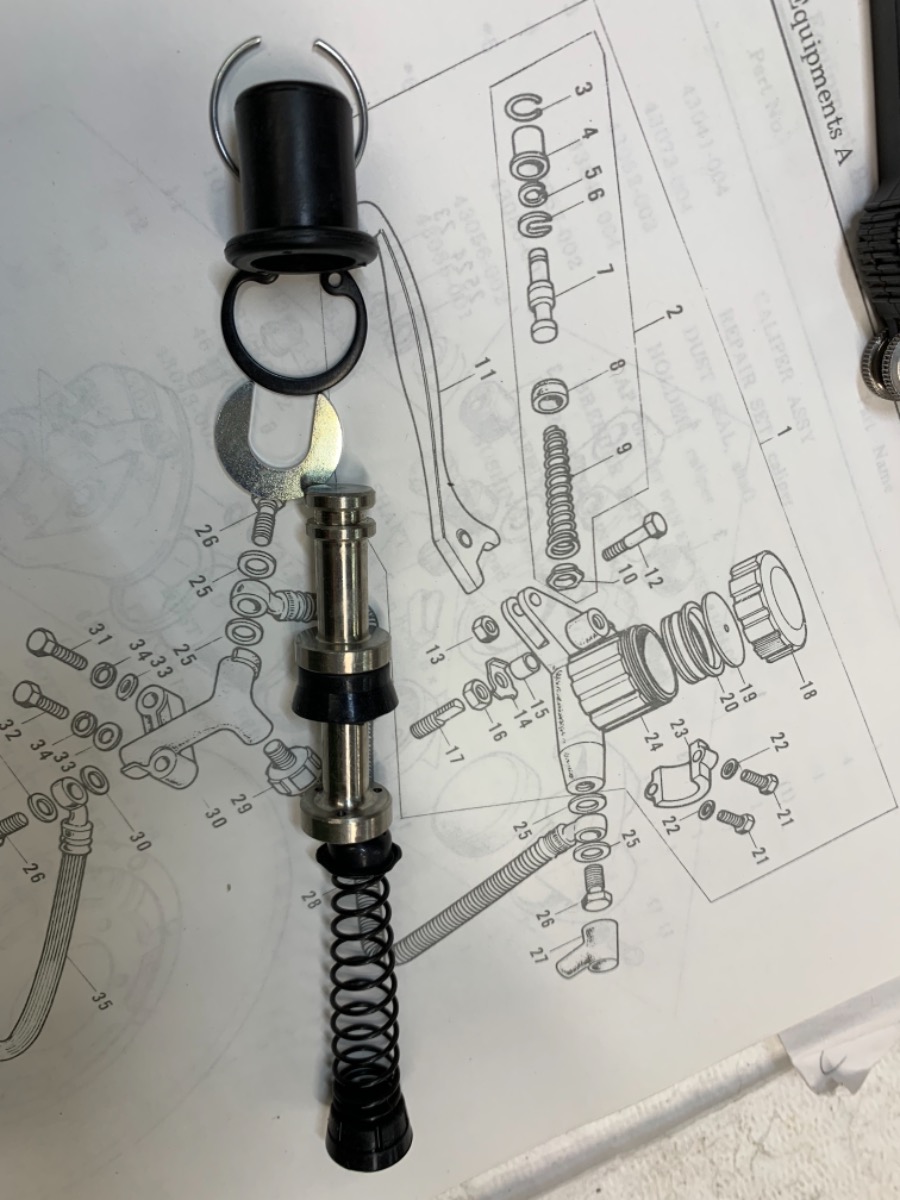

Working on my master cylinder and I’d like to verify the assembly order and orientation. Does this look correct?
the manual and parts manual are a little vague.
thank you
the manual and parts manual are a little vague.
thank you
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Offline
- Premium Member
- Never change a running system
- Posts: 4408
- Thanks: 2259
Re: 1973 Z1 Maui
21 Oct 2021 20:56

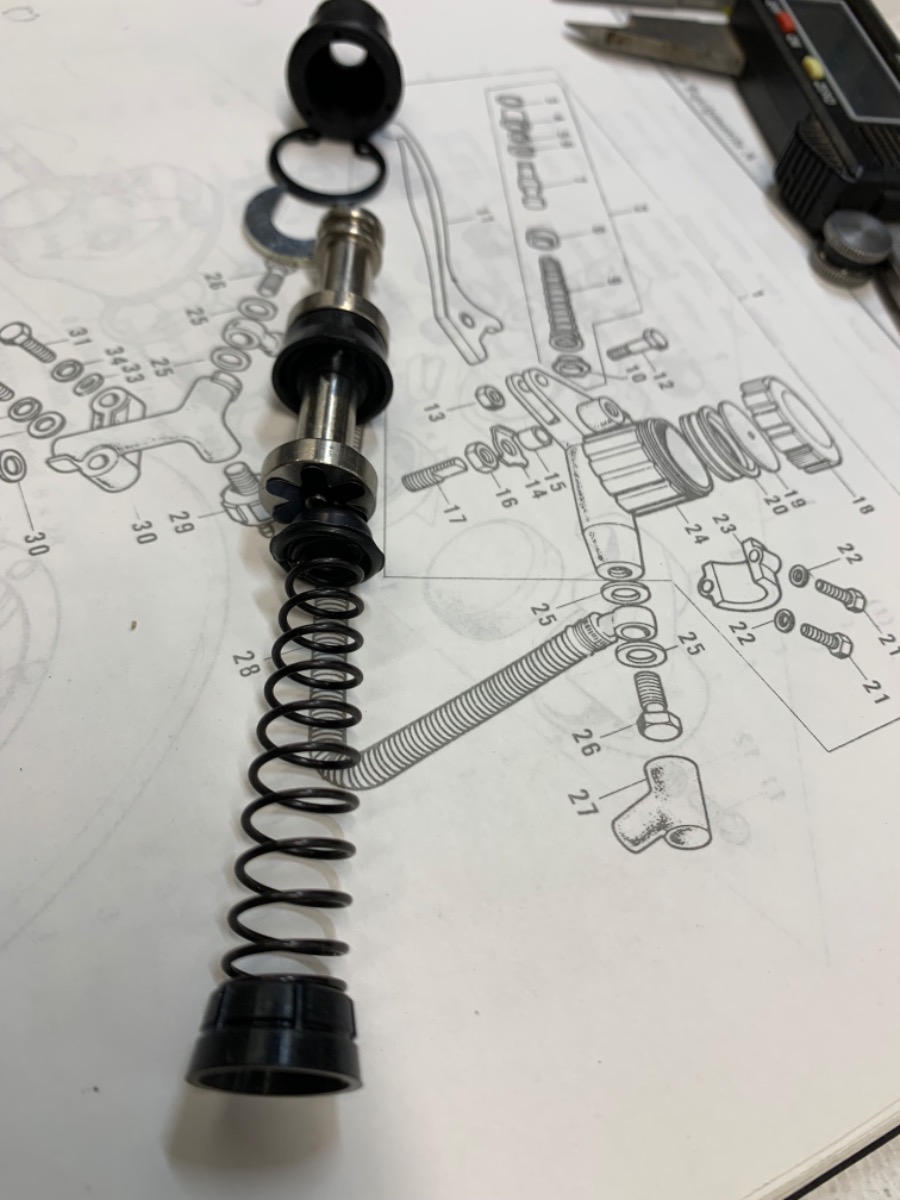

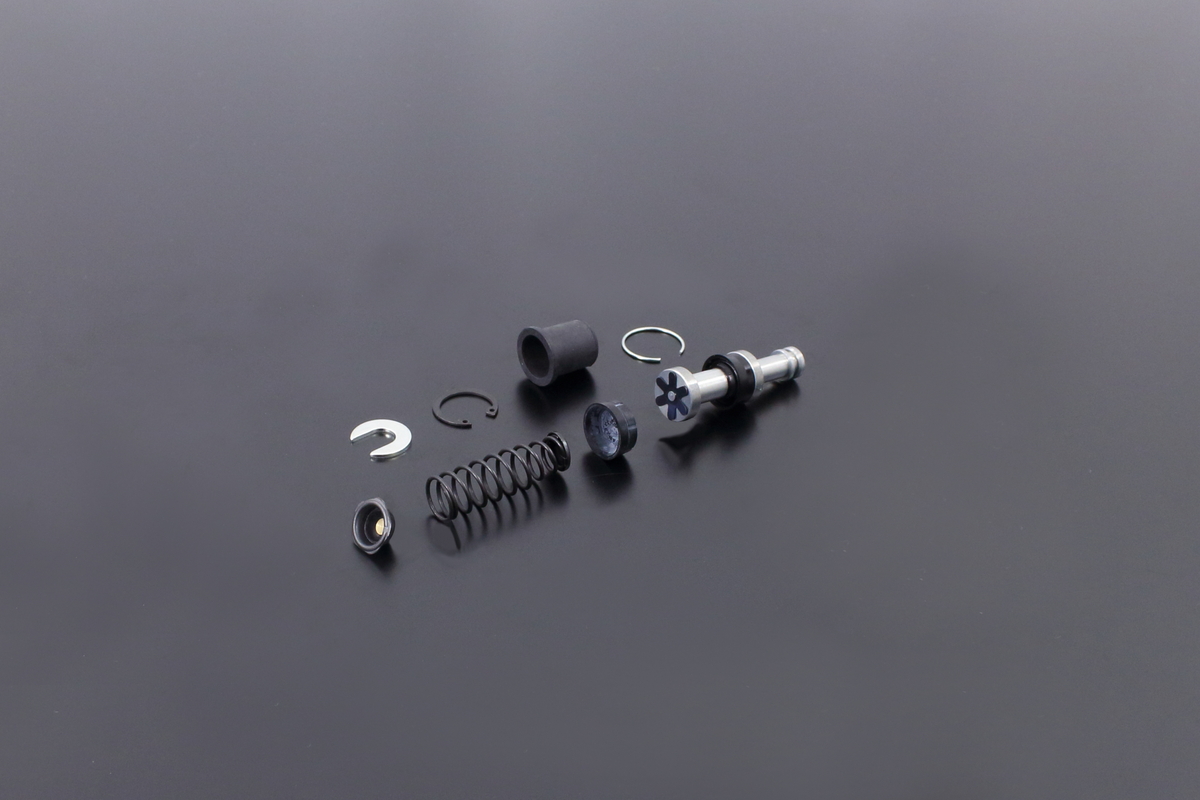

You have to swap the rubber parts # 8 primary cup to piston and #10 check valve cup to spring end.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- MauiZ1
-
Topic Author
- Offline
- User
- Posts: 232
- Thanks: 19
- slmjim+Z1BEBE
-
- Offline
- User
- Enjoy Life! IT HAS AN EXPIRATION DATE!
- Posts: 1324
- Thanks: 809
Re: 1973 Z1 Maui
24 Oct 2021 08:08Sorry it took this long. The prints were buried in a manual we haven't had out for over two years. The pics were taken for our reference only & printed low-res on a B&W printer without ever planning to be made public.This is slmjim.
That looks maddeningly familiar.

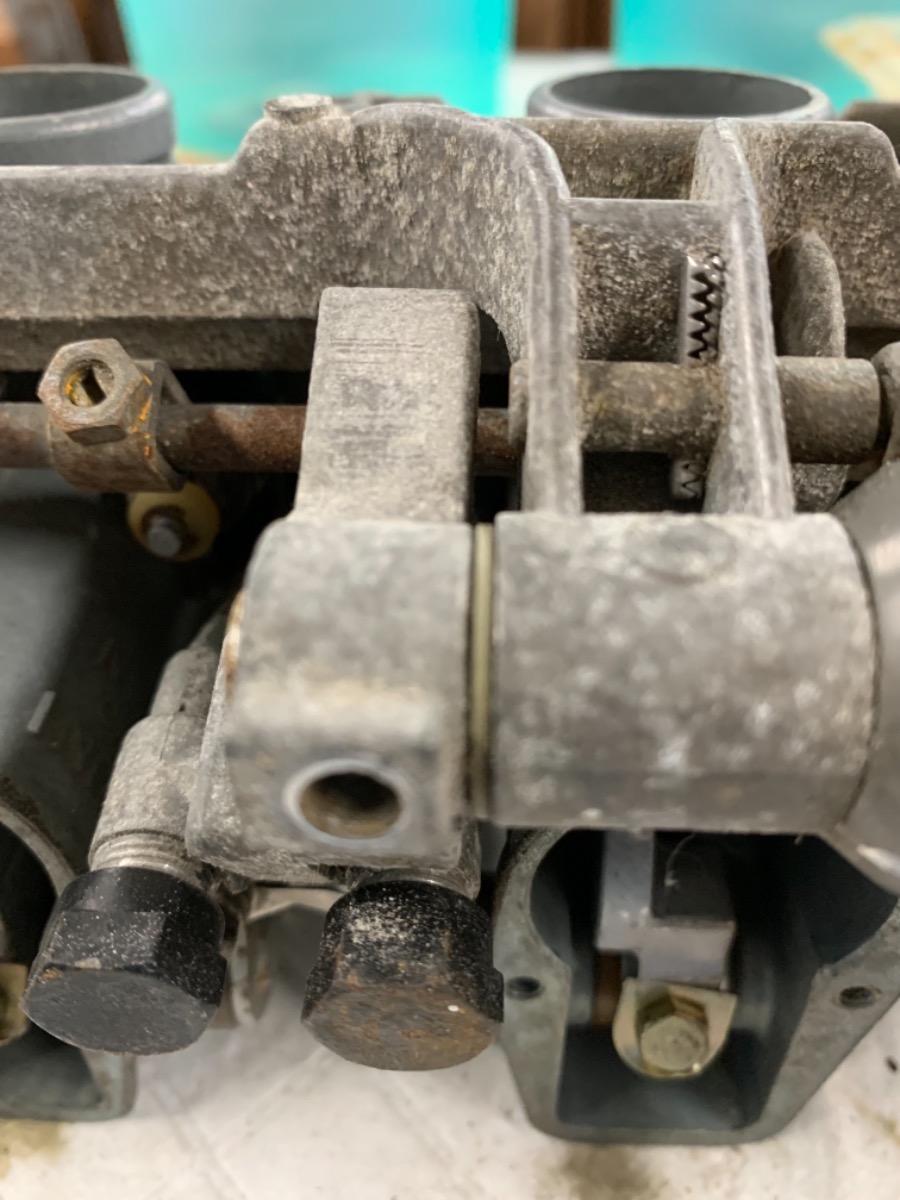

Is the ID the same as the long shaft (16041-004), #83 in the parts manual? Does the OD match the bore where the shaft passes through the carb holder (16065-019) #88 in the parts manual? Hard plastic or stiff-ish rubber (be gentle! It's old.)?

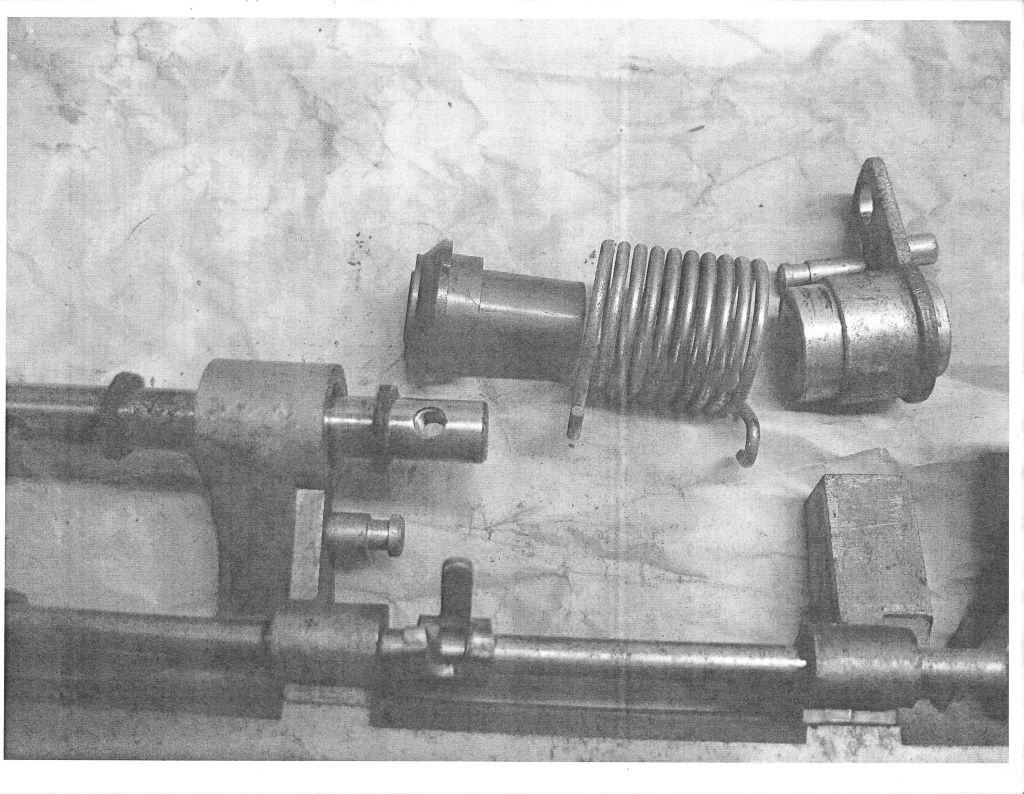

The only ribless carbs we have are installed & running on our 'The Seven Year _itch' early '72 Z1. When I went through them after stumbling across them at Mid-Ohio, I noticed differences in the small parts on the shaft assy. that didn't precisely match the parts manual, a standalone parts sheet from an old OEM Z1 carb kit or, John's book. I took pics during disassembly for use during reassembly. I may still have them. It'll be later today before I can look & will post tomorrow if located.
Good Ridin'
slmjim & Z1BEBE

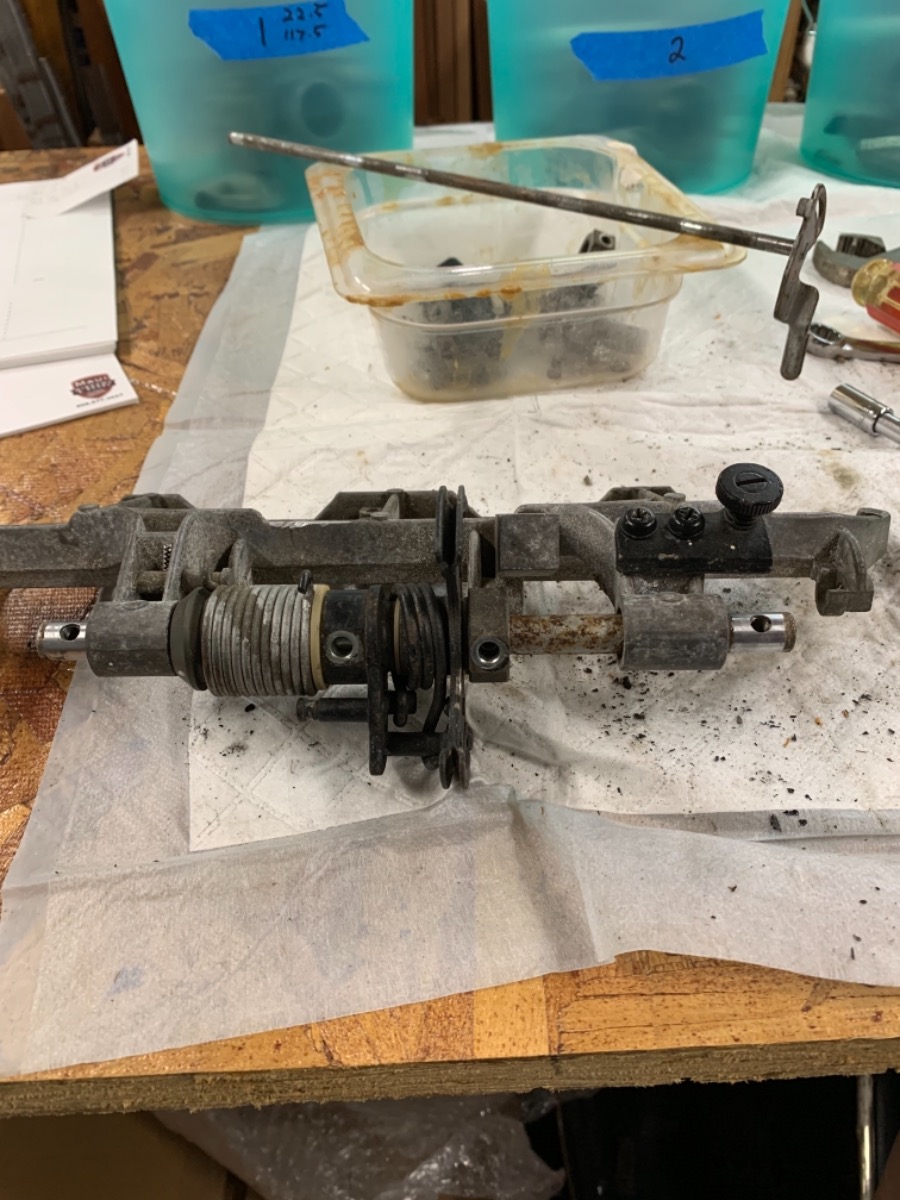

In the parts manual we see #76 'COLLAR D' next to the long spring #75. Below that is the carb rack itself, #88, and also #84 'COLLAR F'. There is no collar shown between the rack's left boss bore and #76 'COLLAR D'. We believe the mystery collar is located between (inside) the boss and 'COLLAR D'. Without disassembling the rack that's on our bike now, that's as close as we can come to recommending where the mystery collar belongs. See pic below.
Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com/index.html/
A Forum tightly focused on all things Z1 and Z2.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com/index.html/
A Forum tightly focused on all things Z1 and Z2.
Please Log in or Create an account to join the conversation.
- gd4now
-
- Offline
- User
- Denco where did you go?
- Posts: 1479
- Thanks: 512
Re: 1973 Z1 Maui
24 Oct 2021 13:03

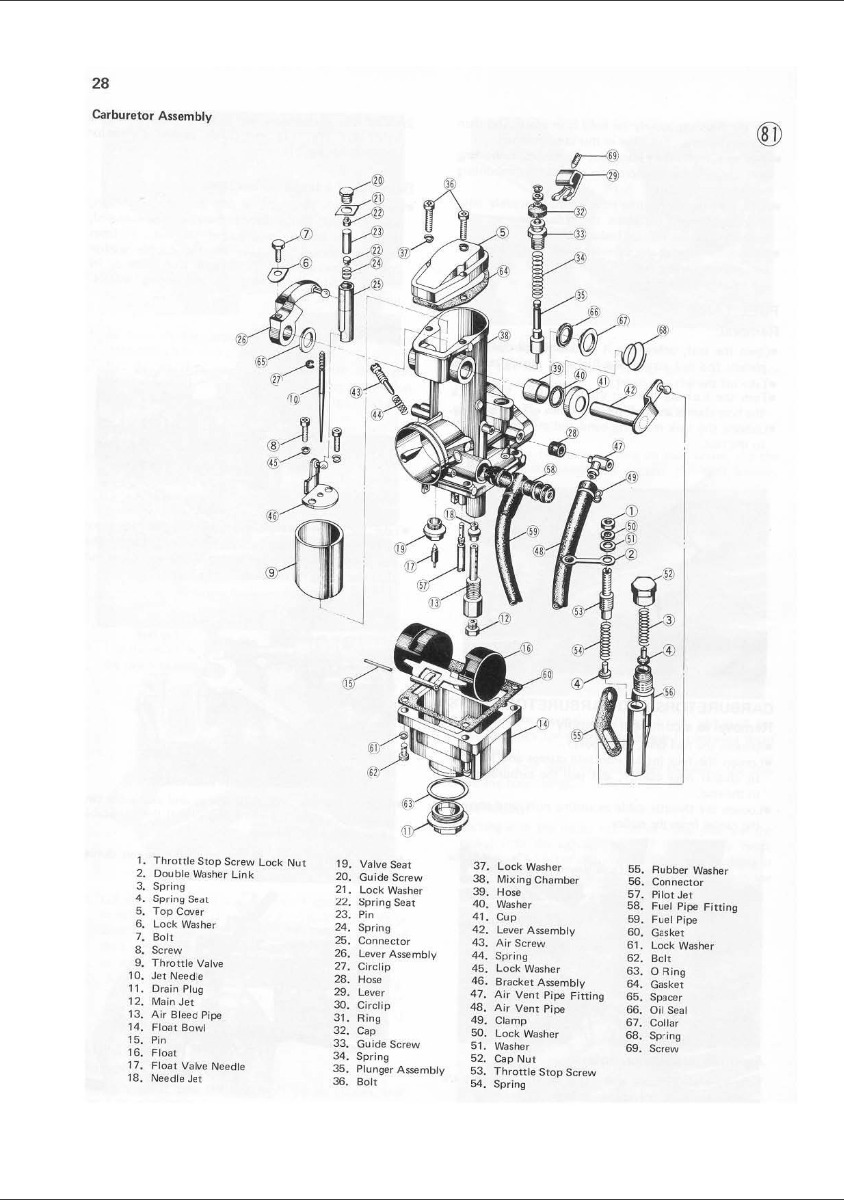

I do not know that this will be of any help but that part sort of looks like #66 in this pic from a Z1 manual?
