77 KZ650B Restoration/Build 12 Oct 2019 17:30 #812332

  • lakshan
  • lakshan's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 82
  • Thank you received: 7
Hey! I have a thread in the New Members section but now that I'm actually starting to work on my bike, I figured I start a build thread.

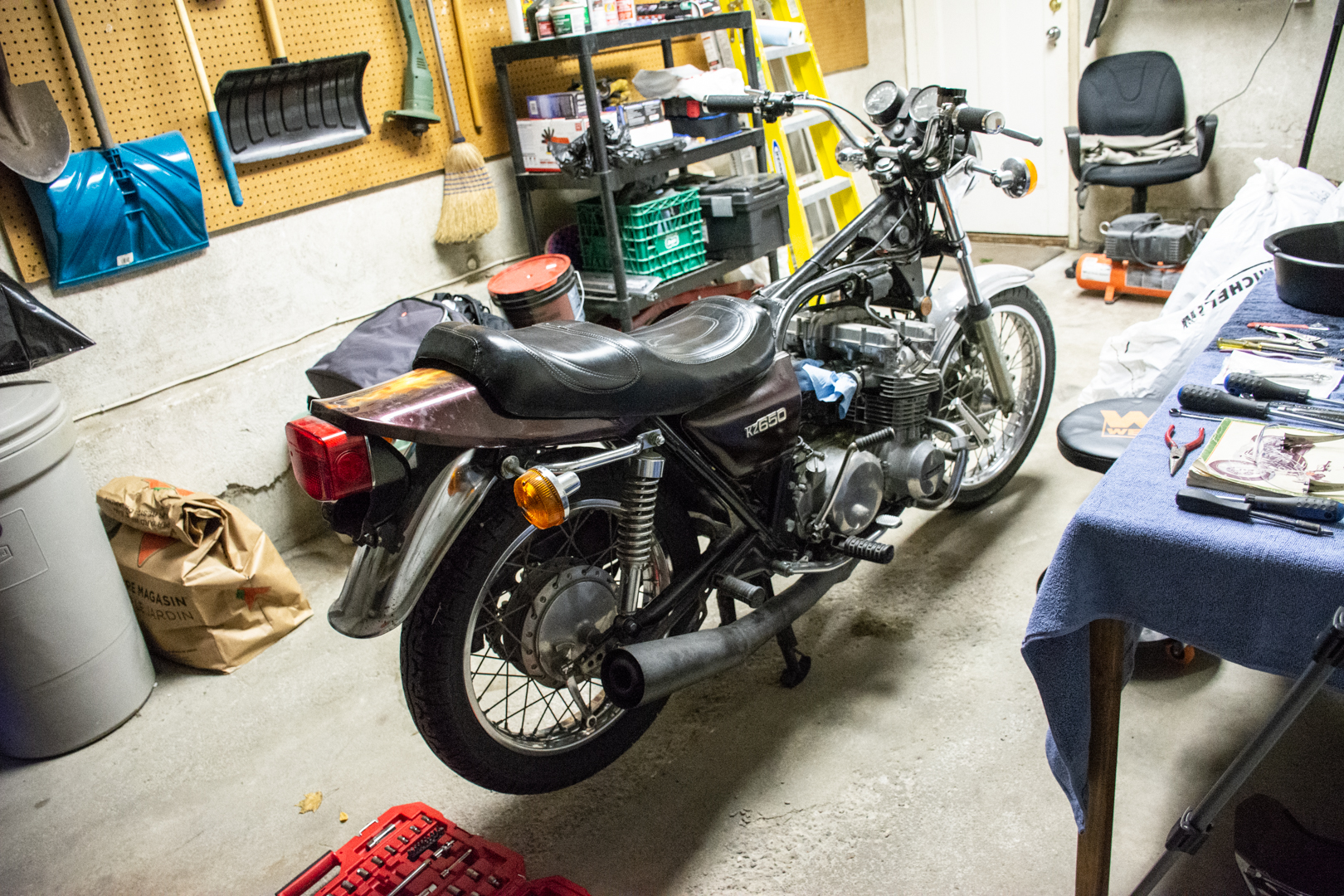

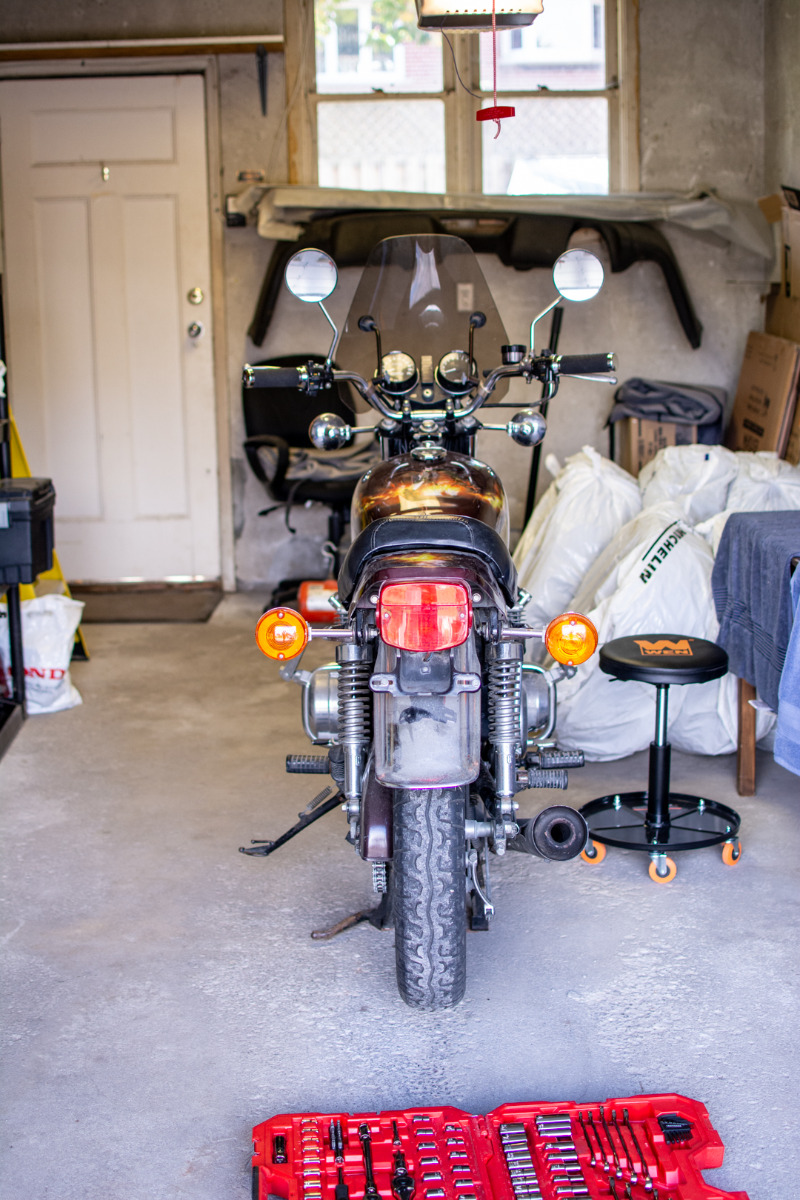

Official Before Pics:

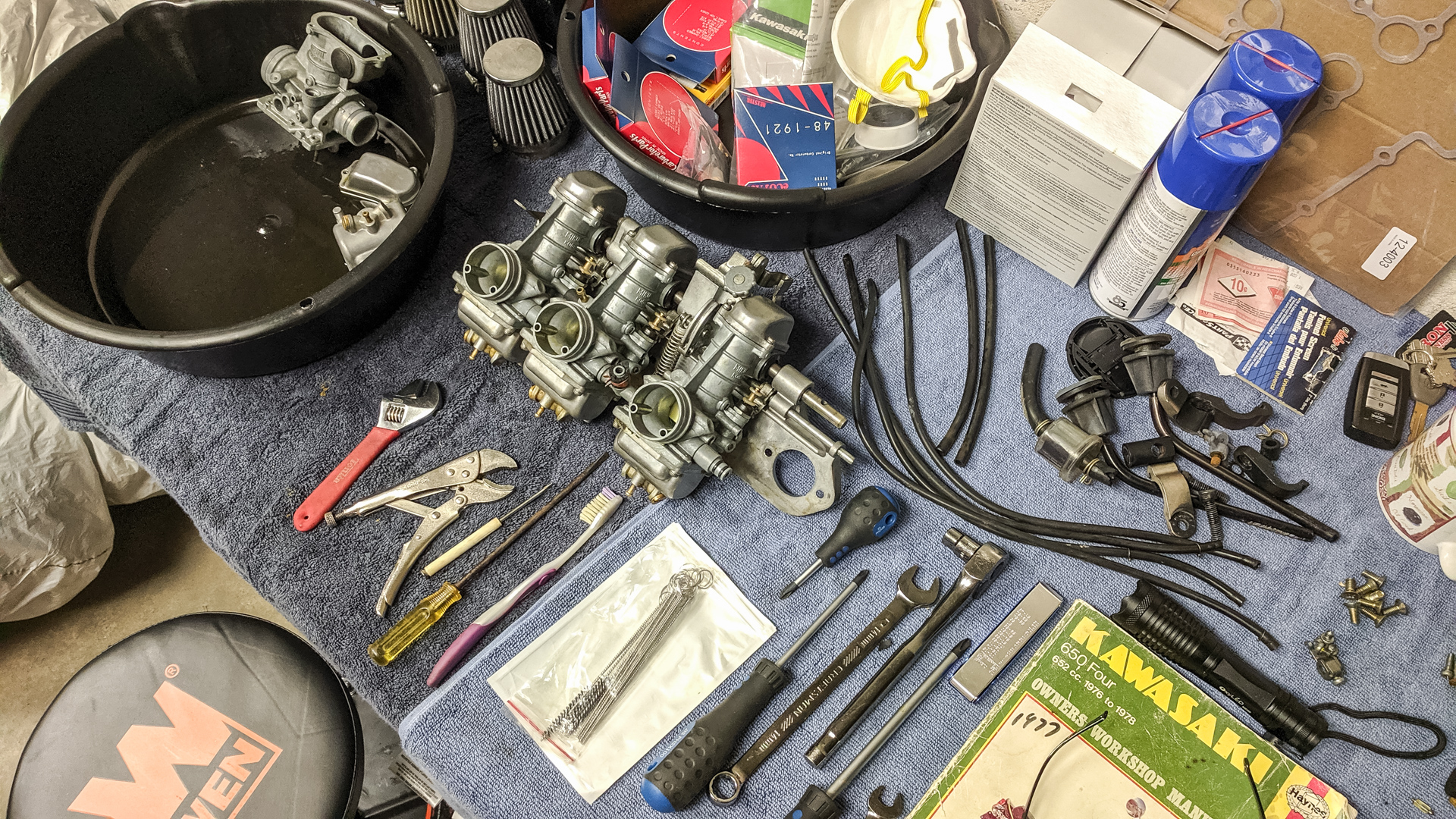

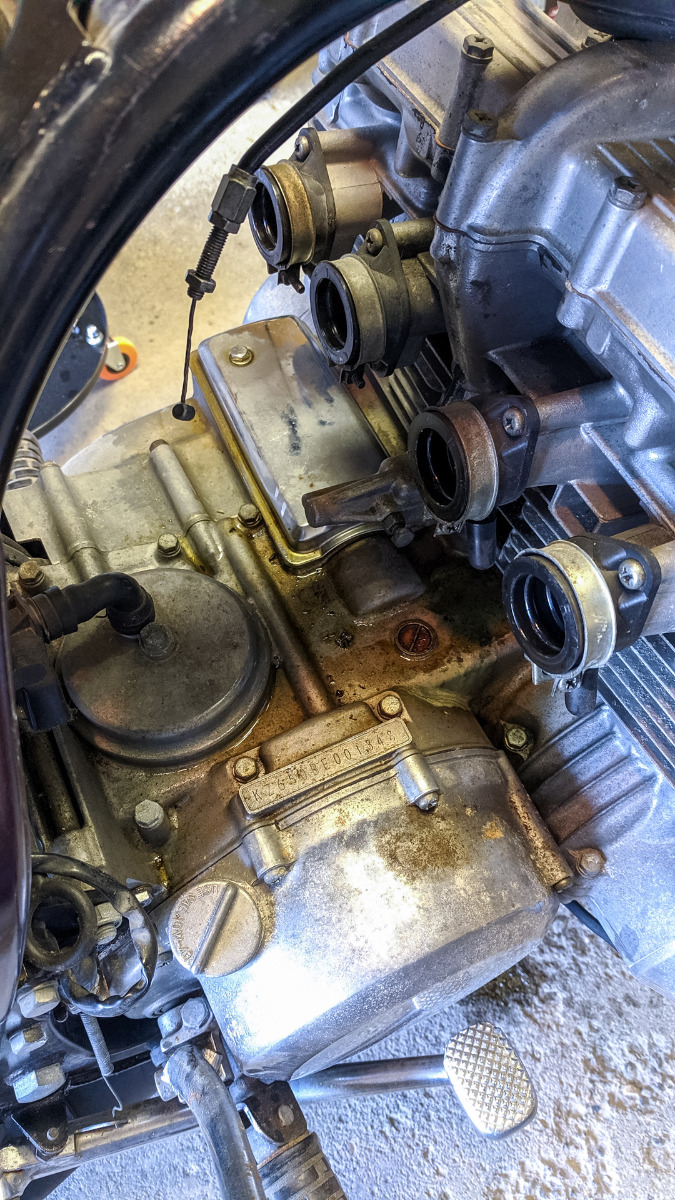

Carbs Out:




Disassembled pieces:




End of my night
- removed visor and mirrors
- removed carbs, disassembled and cleaned first carb



Couple questions for the wise folk of KZRider...

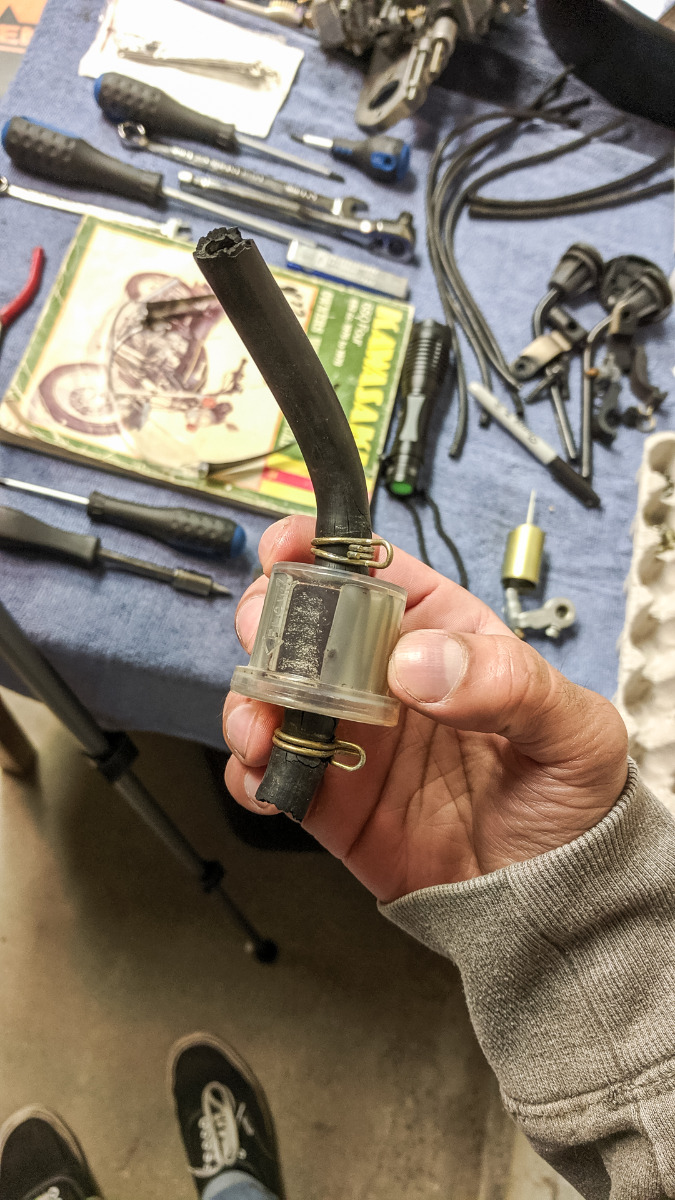

1. I got some nasty cracked gas lines that I found out about. Do you guys just find generic hoses or do I get specific ones from Kawasaki?



2. For the above fuel filter, is a Kawasaki replacement good or should I get something aftermarket?

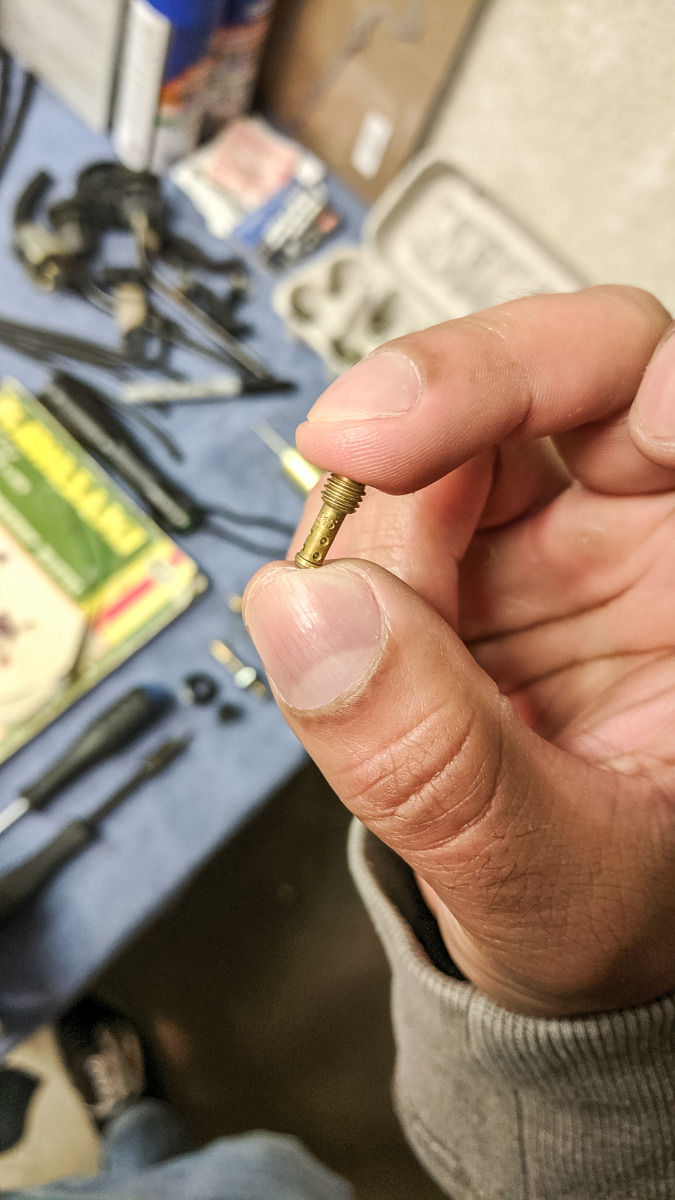

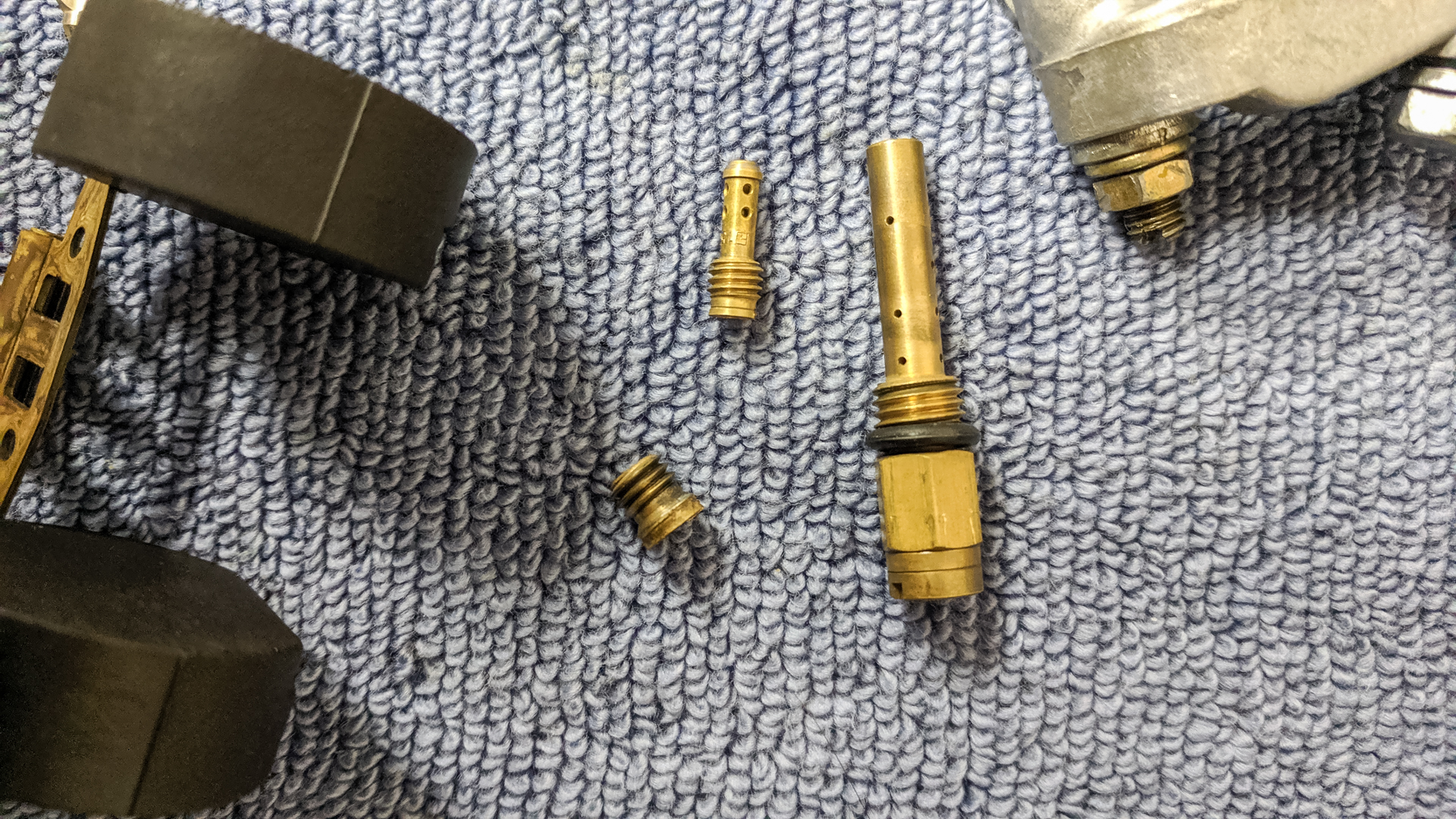

These are my jets:





3. The how-to video I was watching didn't have 2 parts to the pilot jet, it was just one. Maybe I missed something in the video, but does my set look normal?

It says 112.5 on the main jet and 15 on the pilot. What do most people like running here?

Also, how clear do the passages get for the jets? For the main jet, it was like a pinhole and I used some wire and now looks like this:

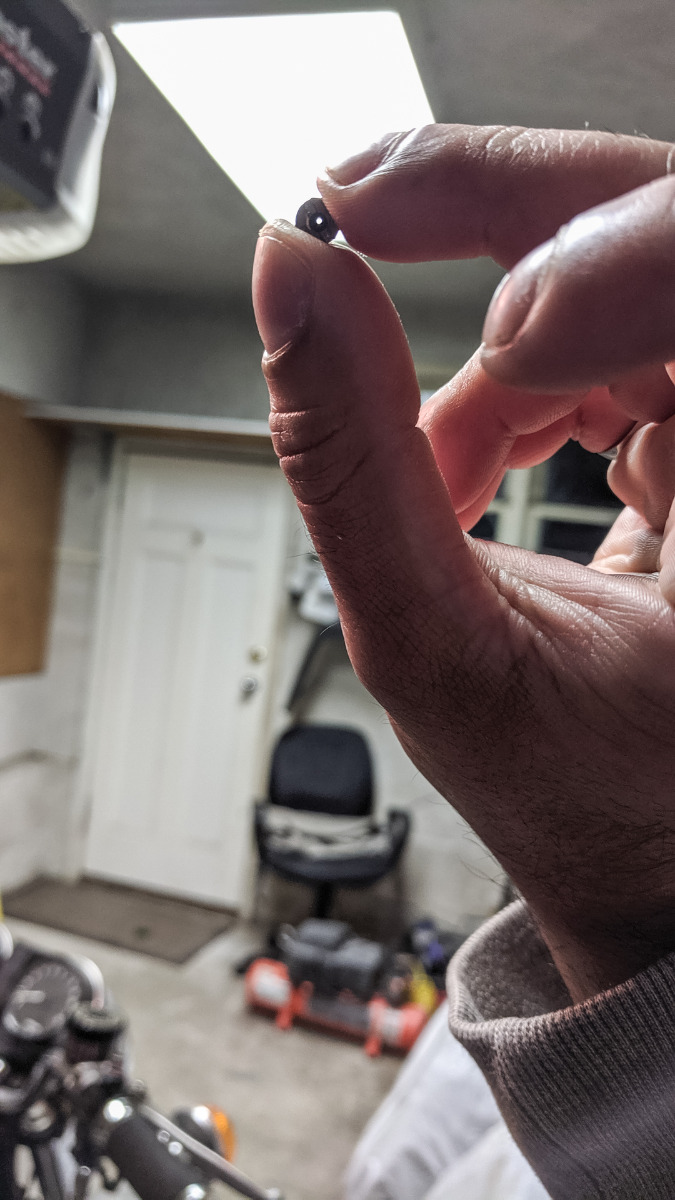

The jet on-top of the pilot jet (un-marked, stubby) looks like this after cleaning:

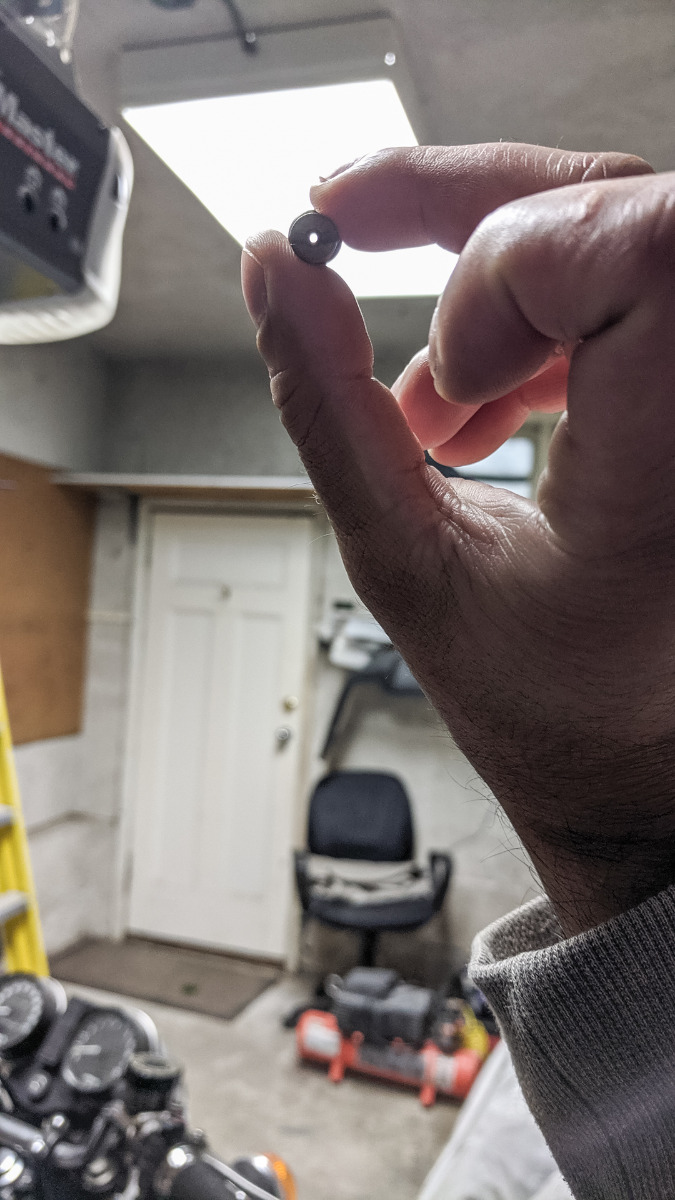

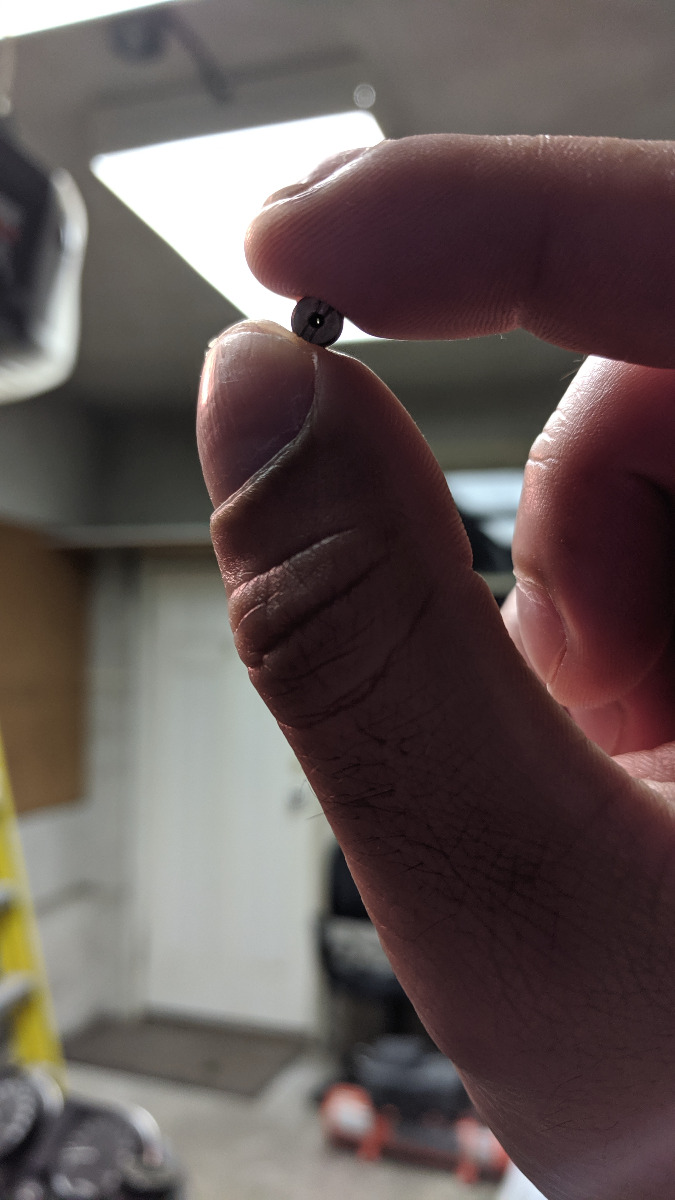

But my pilot jet still looks like a pinhole:



4. I can't even get my thinnest wire through. Now I'm trying very lightly, as to not damage anything. Is the pinhole light I'm seeing here normal or should I keep at it?

Thanks for viewing and help in advance! Will get to carb 2-4 tomorrow...
'77 KZ650B1 in progress...

Please Log in or Create an account to join the conversation.

Last edit: by lakshan.

77 KZ650B Restoration/Build 12 Oct 2019 17:45 #812333

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 5371
  • Thank you received: 1544
One bristle from a wire brush works well to clear jets. And that pilot jet hole is very small. Good job checking them against a light.
You should replace the carb O-rings with new. Cycleorings.com sells a VM kit that will help.

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

77 KZ650B Restoration/Build 12 Oct 2019 18:24 #812334

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 5558
  • Thank you received: 1292
Here is one of the best filters available, and they are reusable.

golanproducts.com/product-category/filters/super-mini-filters/
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

77 KZ650B Restoration/Build 12 Oct 2019 19:14 #812338

  • 650ed
  • 650ed's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 15296
  • Thank you received: 2782
I use the Golan Super Mini fuel filter that TexasKZ recommends - it is perfect. Regarding the fuel hose, I have tried a number of different ones over the past 42+ years and found that the GoodYear 5/16" Fuel Hose SAE 30R7 is absolutely the best. The link below has more info. Ed

www.kzrider.com/forum/3-carburetor/60653...dles-terribly#767480
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

77 KZ650B Restoration/Build 12 Oct 2019 21:16 #812340

  • gd4now
  • gd4now's Avatar
  • Offline
  • New Member
  • New Member
  • Denco where did you go?
  • Posts: 744
  • Thank you received: 144
It appears you have a set of vm24ss carbs that only have a pilot air screw. To the best of my knowledge all of the carbs (VM22 and vm24)that came stock on the 650s in the US market only those with the pilot screw have the additional #50 jet over, or under depending upon who you want to look/explain it , the the pilot jet.

I removed my years ago and the bike runs fine. I am not really sure why this additional jet was added, but feel that the engineers and designers thought it was needed to to provide a rather logical power band.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

Last edit: by gd4now.

77 KZ650B Restoration/Build 13 Oct 2019 06:29 #812347

  • lakshan
  • lakshan's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 82
  • Thank you received: 7
Thanks guys! Yes I'm going to replace all o rings and gaskets, I picked up 4 carb kits. I want to clean and reuse the Jets instead of using the ones that came with the kit. But I was curious to see what other jet sizes you guys are running now that I have the option of changing it.
'77 KZ650B1 in progress...

Please Log in or Create an account to join the conversation.

77 KZ650B Restoration/Build 13 Oct 2019 13:14 #812369

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Premium Member
  • Never change a running system
  • Posts: 2987
  • Thank you received: 1307
The stock jeting on a 77 KZ650 B1 (VM24) is #16 Pilot and #100 main Jet.

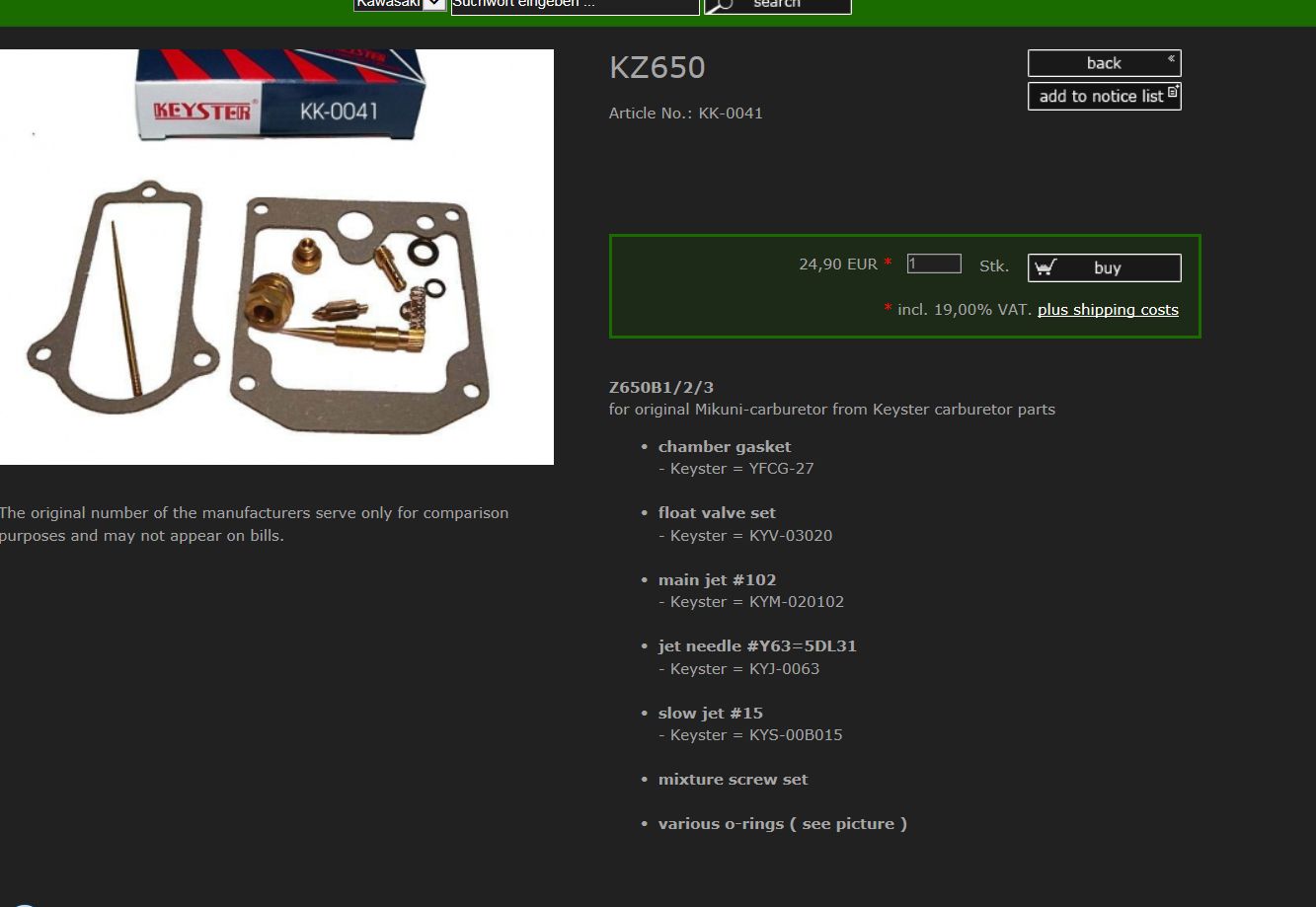

Keyster No.: KK-0041 kit offer a #15 and #102 jets
So with your #112,5 main Jet you are a little rich on a stock air box. Your main jets ( #112,5) is more like for runing pot filter.


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

77 KZ650B Restoration/Build 13 Oct 2019 17:41 #812391

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 5371
  • Thank you received: 1544
The best fuel hose I've found is that sold by Suzuki www.partzilla.com/product/suzuki/09352-70103-00B
Order this PN and they send you about 5' of the stuff. Enough to do several bikes. It's 7mm and stretchy, just like the OEM Kawasaki line. You don't need to use clamps, just slip the line over the nipple fittings.

Car fuel line is much thicker and has a braided inner core to resist high pressure (which KZ's don't have.) 1/4" line is very tight and hard to install and 5/16's is looser than stock and you will have to use clamps too or it may leak.

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

77 KZ650B Restoration/Build 13 Oct 2019 22:52 #812398

  • lakshan
  • lakshan's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 82
  • Thank you received: 7
Thanks, I left the 112.5 jets, makes sense they were purposely changed when changing to pod filters.

Thanks for the hose suggestions! I'm going to order some tomorrow morning.

The only hitch I had was with the pilot needle. I didn't check on the first two carbs how far from fully seated the settting was. I noted on carb 3/4 it was about 2.75 turns from fully seated. I got them snug before measuring.

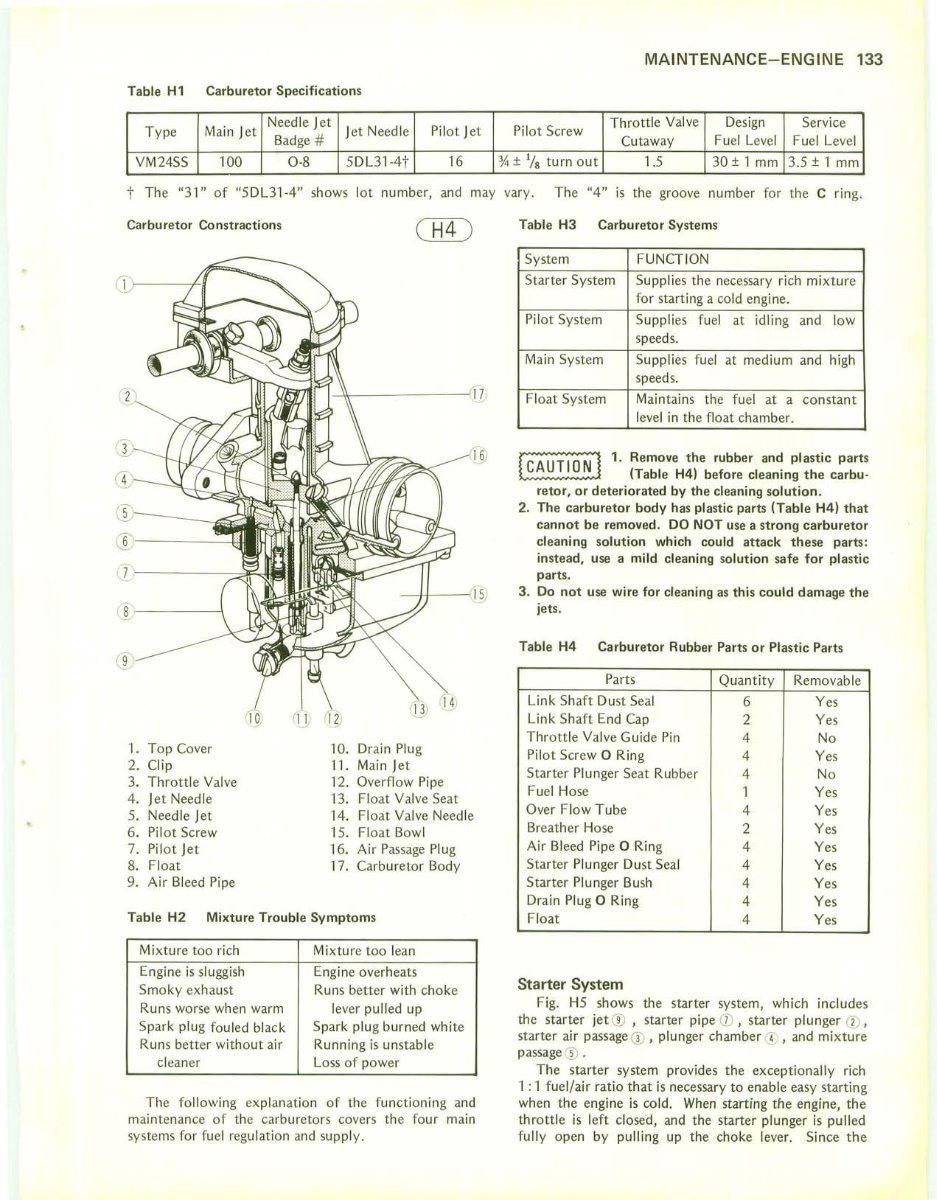

The manual (like to page in the post above) say it should be set to just 3/4 turns from fully seated... So I guess they were way off before? Going to set them all to 3/4 turn and see how that goes
'77 KZ650B1 in progress...

Please Log in or Create an account to join the conversation.

77 KZ650B Restoration/Build 14 Oct 2019 05:13 #812406

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 5371
  • Thank you received: 1544
Be extremely careful with the pilot screws since the tips love to jam in the orifice and break off. This typically happens when someone is trying to bottom out the screw before resetting them. Be sure to spray carb cleaner through all the passages and verify you are getting flow through the small hole and into the carb body. If the pilot screw doesn't turn easily buy a tap and clean the threads. I think it's 6 x .5 but measure for yourself to verify.
The following user(s) said Thank You: lakshan

Please Log in or Create an account to join the conversation.

77 KZ650B Restoration/Build 14 Oct 2019 06:35 #812415

  • lakshan
  • lakshan's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 82
  • Thank you received: 7
Thanks, my threads seem clear I can seat it all the way as far as the o ring let's me. I'll take em out and make sure fluid goes through, didn't check that before.

Also, can someone confirm if that pin hole light I'm seeing through the pilot jet is normal? Should it be any more than that? What have you guys experienced in pilot jet difference after cleaning?
'77 KZ650B1 in progress...

Please Log in or Create an account to join the conversation.

77 KZ650B Restoration/Build 14 Oct 2019 07:48 #812425

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 10765
  • Thank you received: 1567
I think 7mm fuel hose might be a bit loose on the Kz650. The 7mm would be perfect for the 550 and probably the 750, but I think the 650 uses the same size as the 400 which is closer to 1/4".

From researching the parts over the summer, in the fiche, the 550 hose is labeled "7 x 12 x 180 " which I think is ID x OD x length in mm. So 7mm hose is exactly right for the 550.

The 400 hose is labeled "5.3 x 10.5 x 200" in the fiche. I think that is 5.3mm ID. The petcock outlet pipe OD measures 5.8mm on the shaft and the barb OD measures 6.9mm. So if the Kz650 petcock measures similarly, the 7mm hose will probably be too loose. Of course, you can always clamp it down to make it work.

EDIT: I looked up the part on the Kawasaki site, but the page for 1977 B1 and C1 does not list the hose.
I found the 1979 Kz650 lists two hoses. I think the smaller one is the older of the two and may be what is on the 1977 Kz650.

"92059-1443 TUBE,5.8X10.8X180". Presume 5.8mm ID, 10.8mm OD, 180mm long.
"92059-1044 HOSE,FEL,6.5X11.5X160". Presume 6.5mm ID, 11.5mm OD, 160mm long.

So that makes at least 4 different size fuel lines used on Kz's, and I haven't even looked at the 900/1000/1100 yet. Ugh.
But we can probably narrow it all down to two sizes.

I have been trying to get some hose from McMaster, but they are still back-ordered on all non-reinforced hose that I think will match, or at least be close to, the Kawasaki factory hoses.
