Re: Phoenix Fighter

30 Nov 2015 06:46
#701204
Figured out part of the running rich problem. Took the carbs back off to readjust the float levels. The stock pilot jets for RS36's is supposed to be 17.5 the PO had 22.5s. The cool thing abut Mikuni is the Jets from my VMs are the same and I had a set laying around. Mains are 120 stock but has 122.5s, I will leave those for the time being. Needle jet stock position is -3 he had them set for -5 all the way down at the bottom.

As soon as I get done with the DMV I can get a quick tune in, some plates on and go for a ride. Since it is only 48° outside I'm in no hurry.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23325
  • Thanks: 2871

Re: Phoenix Fighter

30 Nov 2015 06:51
#701206
Good for you. It will get warmer this week. Still colder than a Siberian witches titty in the high desert. :unsure:
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • davido
  • davido's Avatar
  • Offline
  • User
  • Posts: 1582
  • Thanks: 291

Re: Phoenix Fighter

30 Nov 2015 07:23
#701209
It sounds like youer making things too complicated for yourself with the brake problem (challenge). Could you not just get the master cylinder that originally went with the calipers (Gsxr?) and take it from there.? Same with the clutch.
This stuff about the weight of the bike and the size of the discs etc sounds a bit excessive. Maybe its important for a high spec race bike but
the matching caliper/master seems like the place to start. A base line. Chances are itll be the best combo youll get.You can always fiddle with it later.

Best thing to do is try this combination,aim for a solid brick wall,go as fast as you can,then hit the anchors. If they dont work then you can be assured that the wall will stop you!! (Remember. Safety first!!!)
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

30 Nov 2015 07:44
#701211
davido wrote: It sounds like youer making things too complicated for yourself with the brake problem (challenge). Could you not just get the master cylinder that originally went with the calipers (Gsxr?) and take it from there.? Same with the clutch.
This stuff about the weight of the bike and the size of the discs etc sounds a bit excessive. Maybe its important for a high spec race bike but
the matching caliper/master seems like the place to start. A base line. Chances are itll be the best combo youll get.You can always fiddle with it later.

Best thing to do is try this combination,aim for a solid brick wall,go as fast as you can,then hit the anchors. If they dont work then you can be assured that the wall will stop you!! (Remember. Safety first!!!)

That would have been easier, unfortunately the OEM master for the front end I bought had a fixed reservoir and would suck air had I uses it on my bar set-up. I have found one that will work for the brakes. I am still searching for one for the clutch but am not in a hurry for it as I had the option to go back to cable.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

30 Nov 2015 17:35
#701284
Test ride today went pretty well. I still have somethings to address. The carbs ran much better today. Unfortunately I ordered the wrong tachometer lead for the Trail Tech gauge so I didn't have a tach. Idle to 1/2 throttle was pretty good. I may play with the jet needle position again. I am pretty sure that the main jet needs to drop down to from 122.5 to 120 which would be stock.

I found my oil leak and thought that I had it fixed but it is still leaking a bit at the base of the lower oil cooler adapter. I replaced the o-rings but there wasn't a gasket. Is there supposed to be?
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23325
  • Thanks: 2871

Re: Phoenix Fighter

30 Nov 2015 17:48
#701285
Did the surface have paint on it? My old ones had gaskets.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • 79MKII
  • 79MKII's Avatar
  • Offline
  • User
  • Love Them Kaws!
  • Posts: 2494
  • Thanks: 43

Re: Phoenix Fighter

30 Nov 2015 18:30
#701290
I've never seen gaskets on those myself, only o-rings. The adapter housings can crack easily if the barbed fitting is overtightened...maybe there is a crack instead of a leak at the bottom? (ask me how I know how easily they crack :whistle: )
The Kaw List:
Current: 79 KZ1000 A3 MKII, 78 KZ1000 A2, 78 KZ1000 Z1-R, 78 KZ650 SR, 80 KE175
Former: 03 KLX400SR, 99 ZRX1000, 82 KZ750 LTD, 80 KZ1000 A4 MKII, 80 KZ1000 LTD, 78 KZ1000 A2, 74 H-2 750 Triple, 78 KL250

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

30 Nov 2015 18:34
#701291
swest wrote: Did the surface have paint on it? My old ones had gaskets.
Steve

No paint, I masked them off when I painted the block.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23325
  • Thanks: 2871

Re: Phoenix Fighter

30 Nov 2015 18:37
#701292
79 might be right about leaking at the fitting. Maybe sealer all around.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

30 Nov 2015 18:43
#701293
79MKII wrote: I've never seen gaskets on those myself, only o-rings. The adapter housings can crack easily if the barbed fitting is overtightened...maybe there is a crack instead of a leak at the bottom? (ask me how I know how easily they crack :whistle: )

I will have to look at them again. I did not see any oil coming from the fitting.The o=rings are brand new.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • davido
  • davido's Avatar
  • Offline
  • User
  • Posts: 1582
  • Thanks: 291

Re: Phoenix Fighter

03 Dec 2015 10:53
#701736

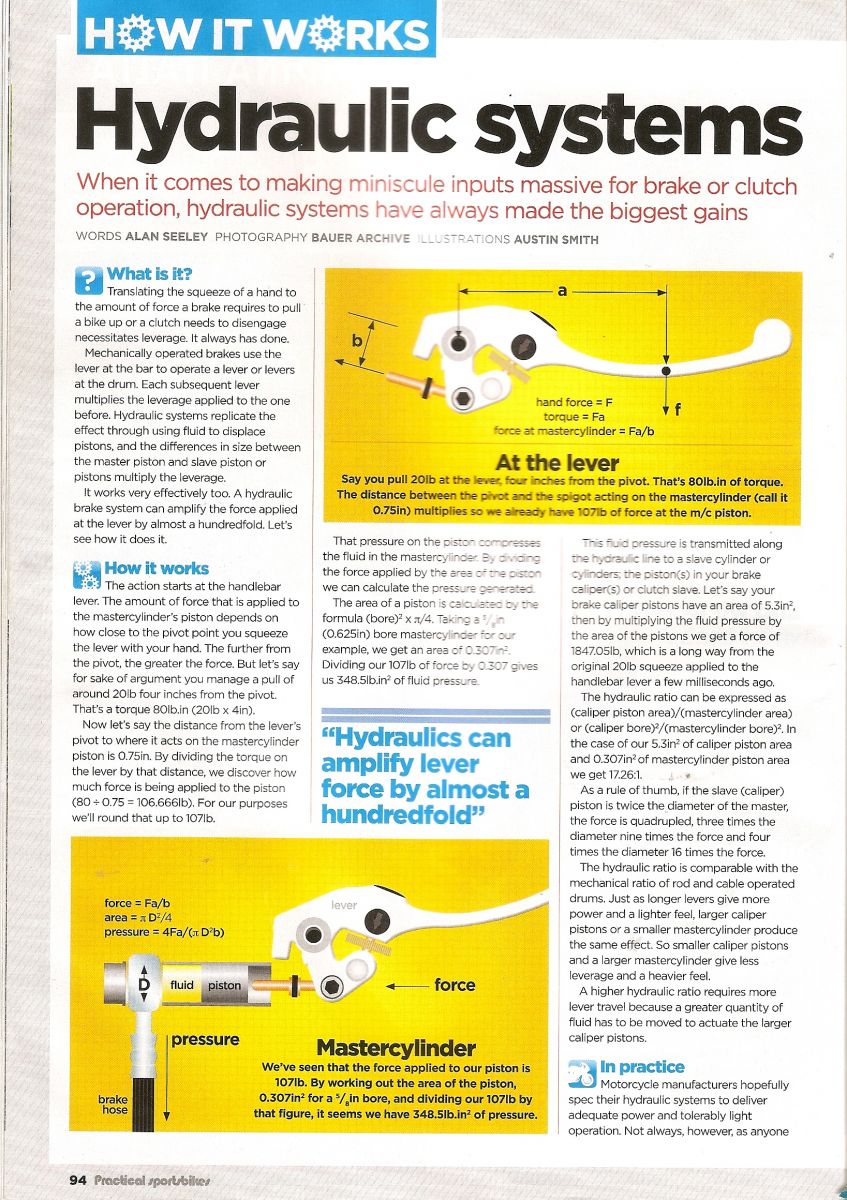

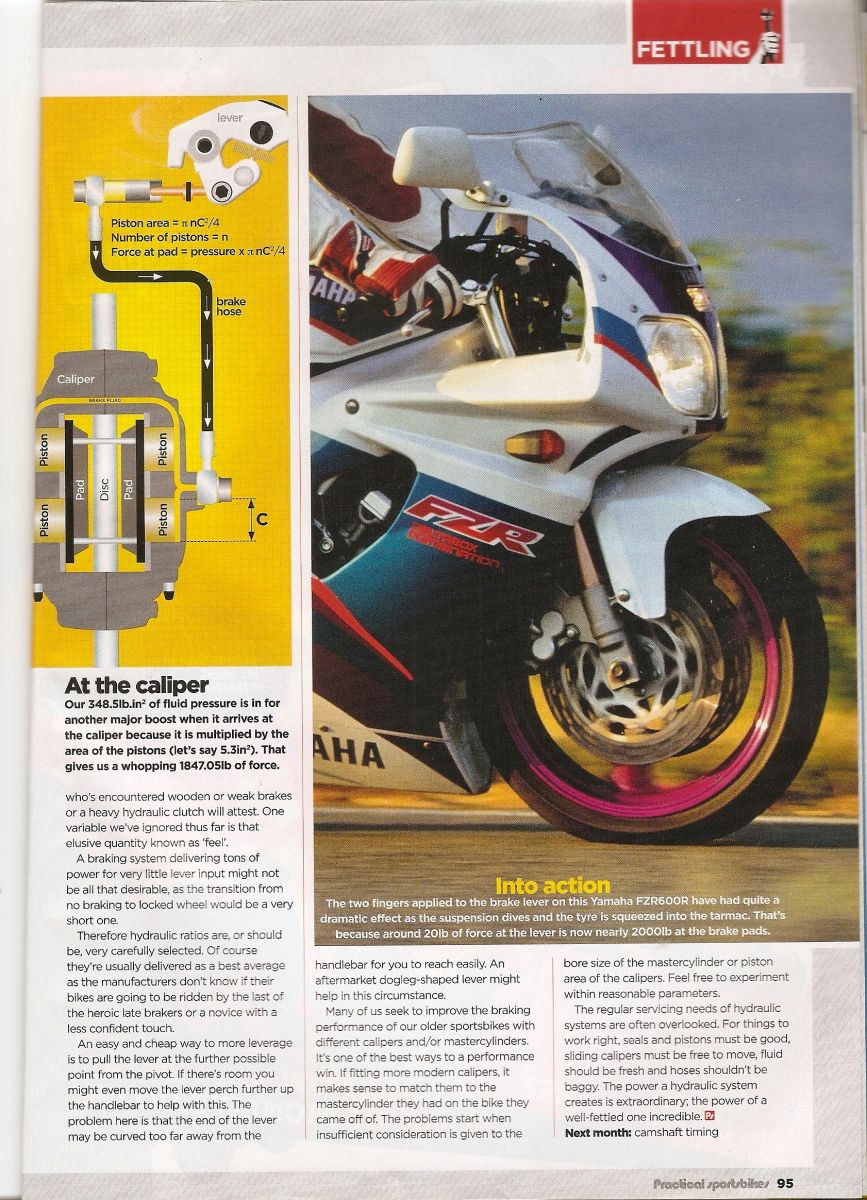

I found this today.Thought it might be interesting for you.




Practicle Sportsbike No.54 (April2015)
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Attachments:

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

04 Dec 2015 03:07
#701826
davido wrote: I found this today.Thought it might be interesting for you.




Praocticle Sportsbike No.54 (April2015)

Thanks Davido, that means I have been slacking on my reading as I have a digital subscription to Practical Sportsbike. Thank you for the article. Matching the M.C. to the front brakes made a world of difference.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project
