Re: Phoenix Fighter

21 Jun 2015 21:03
#677672
When heli-coils are done properly, they are as strong or stronger than the original aluminum. The inserts are very good too but the installation kit is expensive. I've used both with great success.
The Kaw List:
Current: 79 KZ1000 A3 MKII, 78 KZ1000 A2, 78 KZ1000 Z1-R, 78 KZ650 SR, 80 KE175
Former: 03 KLX400SR, 99 ZRX1000, 82 KZ750 LTD, 80 KZ1000 A4 MKII, 80 KZ1000 LTD, 78 KZ1000 A2, 74 H-2 750 Triple, 78 KL250
The following user(s) said Thank You: 531blackbanshee

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

21 Jun 2015 22:54 - 21 Jun 2015 22:55
#677679

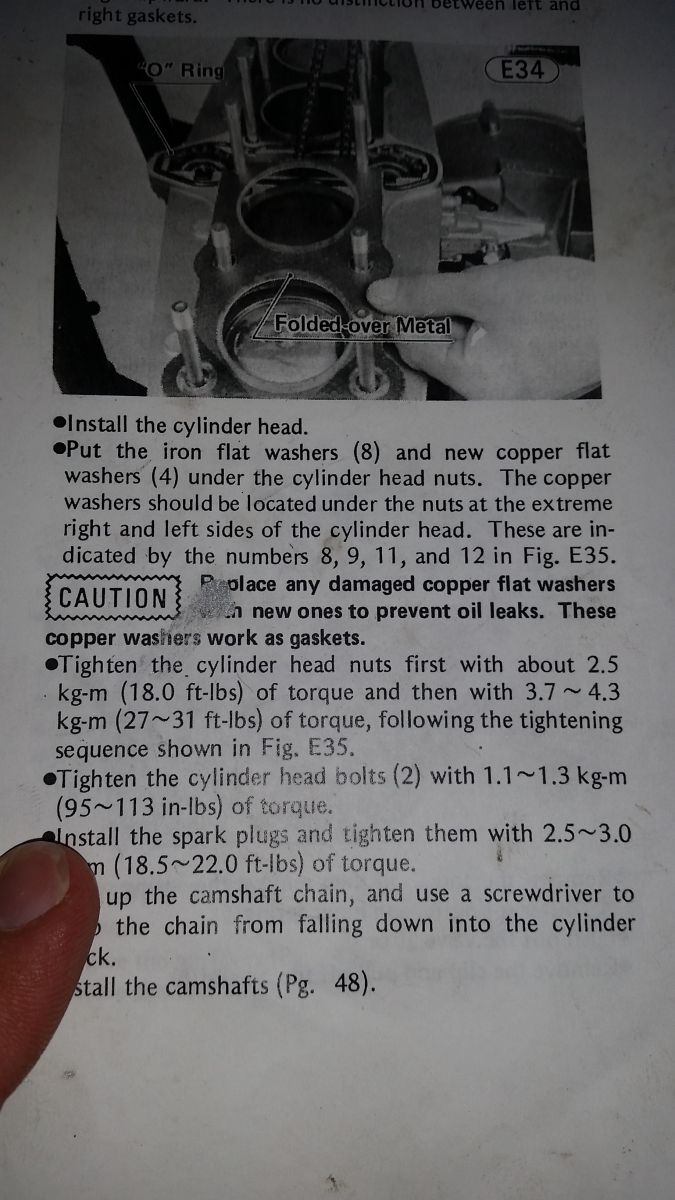

swest wrote: That's 104 inch pounds.
Steve

Oops, that was cylinder nuts.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Attachments:

Last edit: 21 Jun 2015 22:55 by kaw-a-holic.

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

21 Jun 2015 23:02
#677681
Wham bam thank you ma'am. Issue resolved.

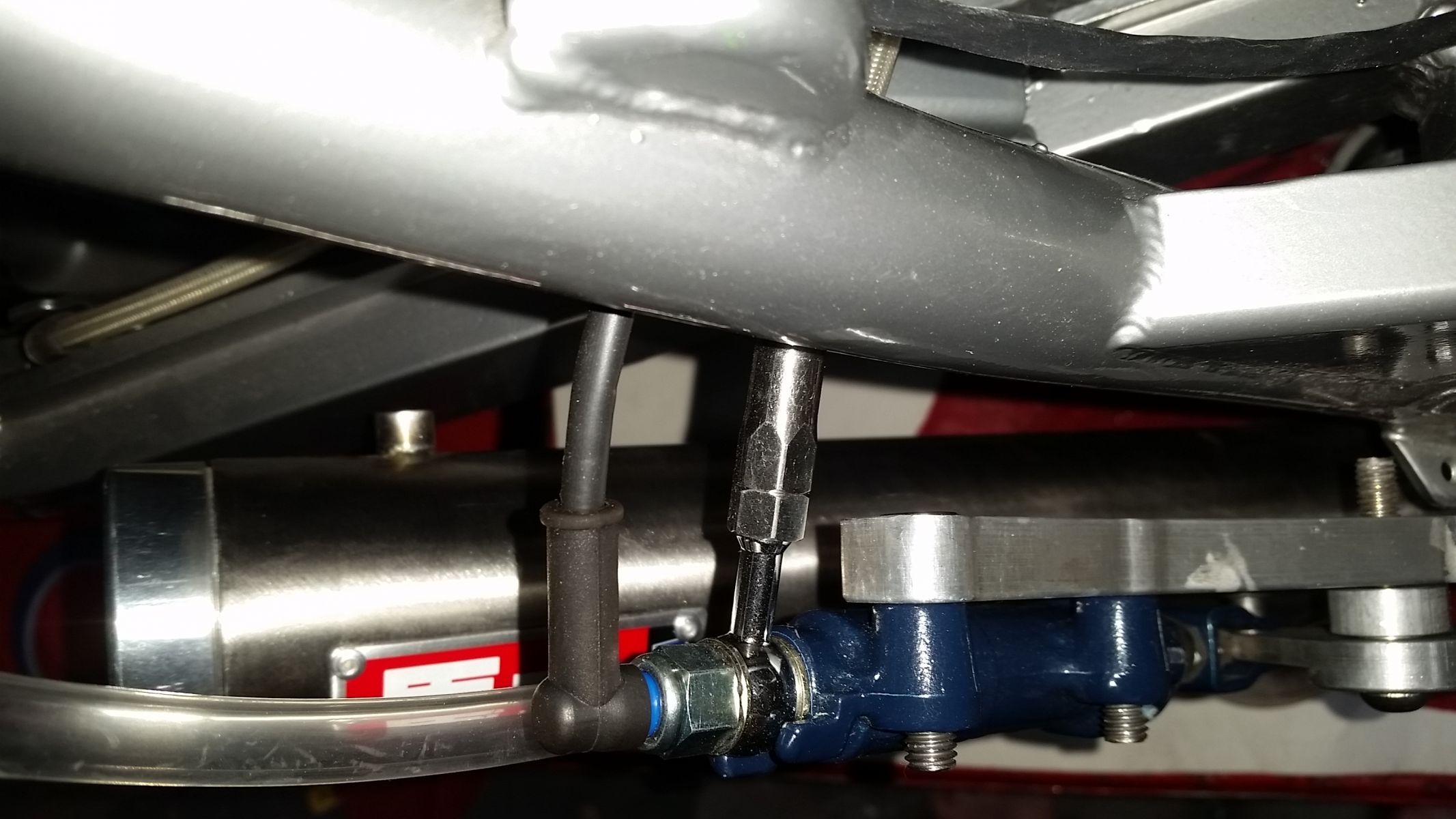

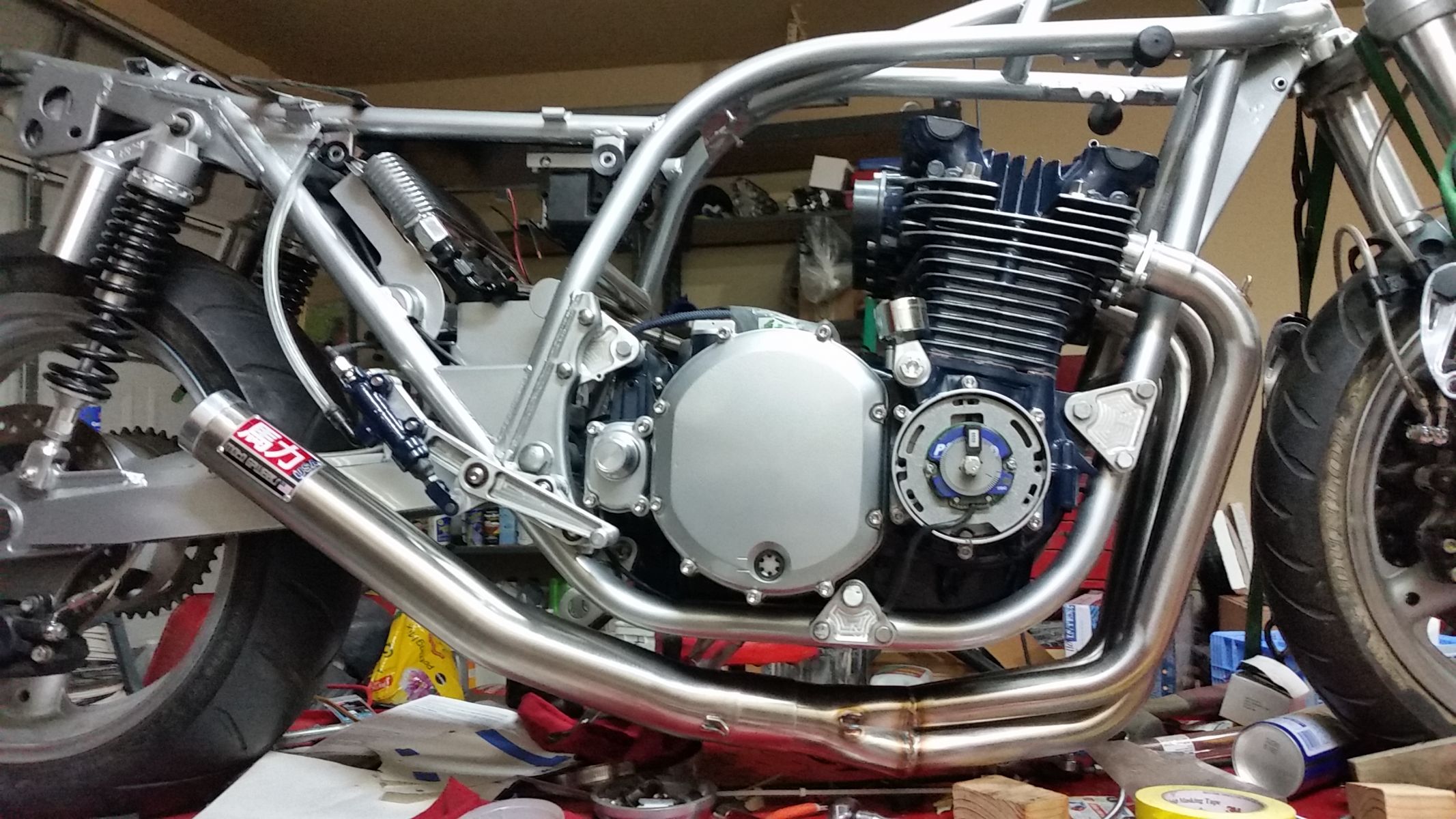

A sneak peek of the exhaust on.




Will make a bracket that goes from the back of my rear set to the bung on the slip-on.


Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Attachments:

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23371
  • Thanks: 2902

Re: Phoenix Fighter

22 Jun 2015 08:16
#677726
Where did you buy the kit and how much? Get it done Reb, I want to nominate it for BOTM. :woohoo:
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 1808
  • Thanks: 249

Re: Phoenix Fighter

22 Jun 2015 08:25
#677730
swest wrote: Where did you buy the kit and how much? Get it done Reb, I want to nominate it for BOTM. :woohoo:
Steve

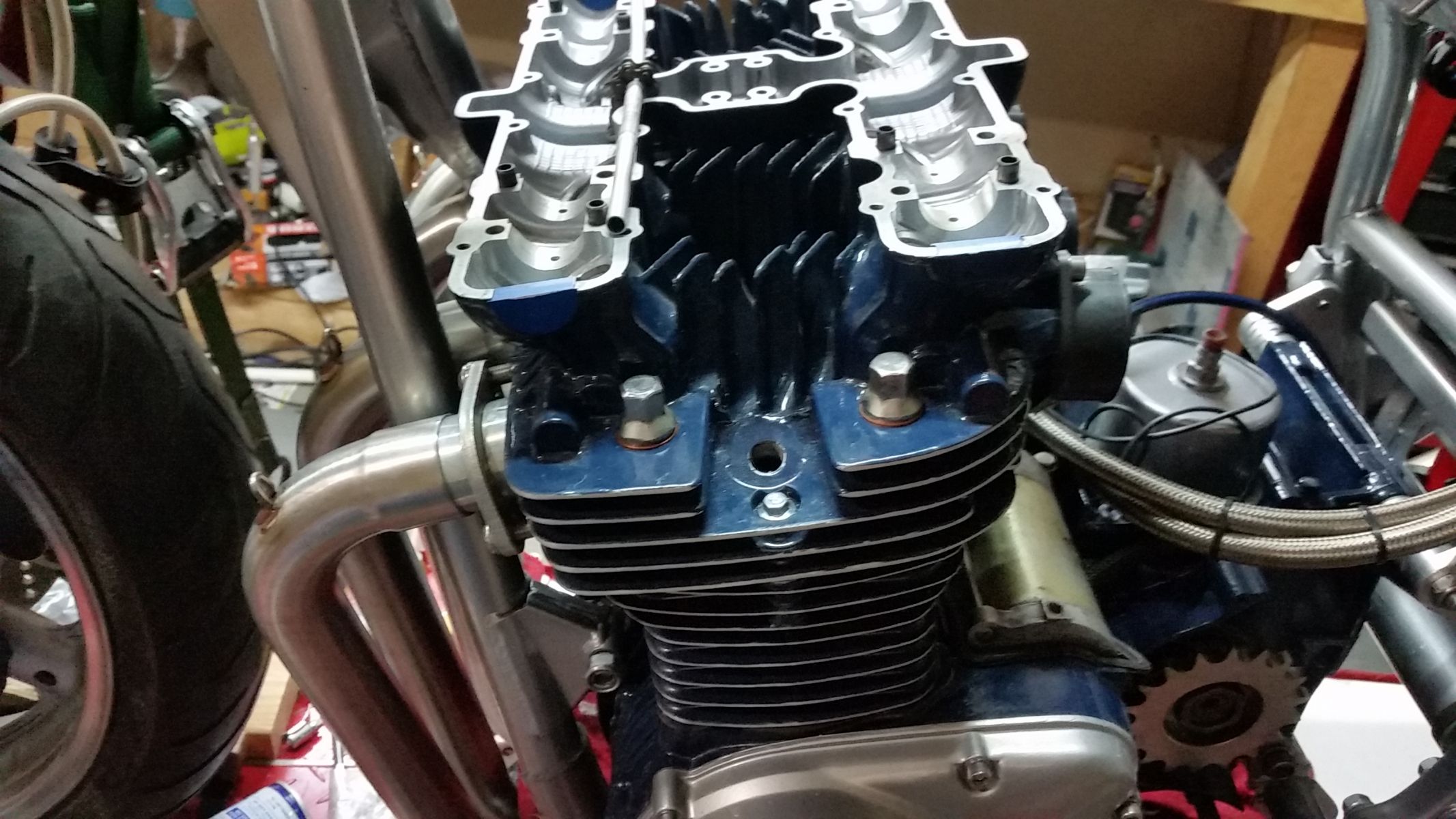

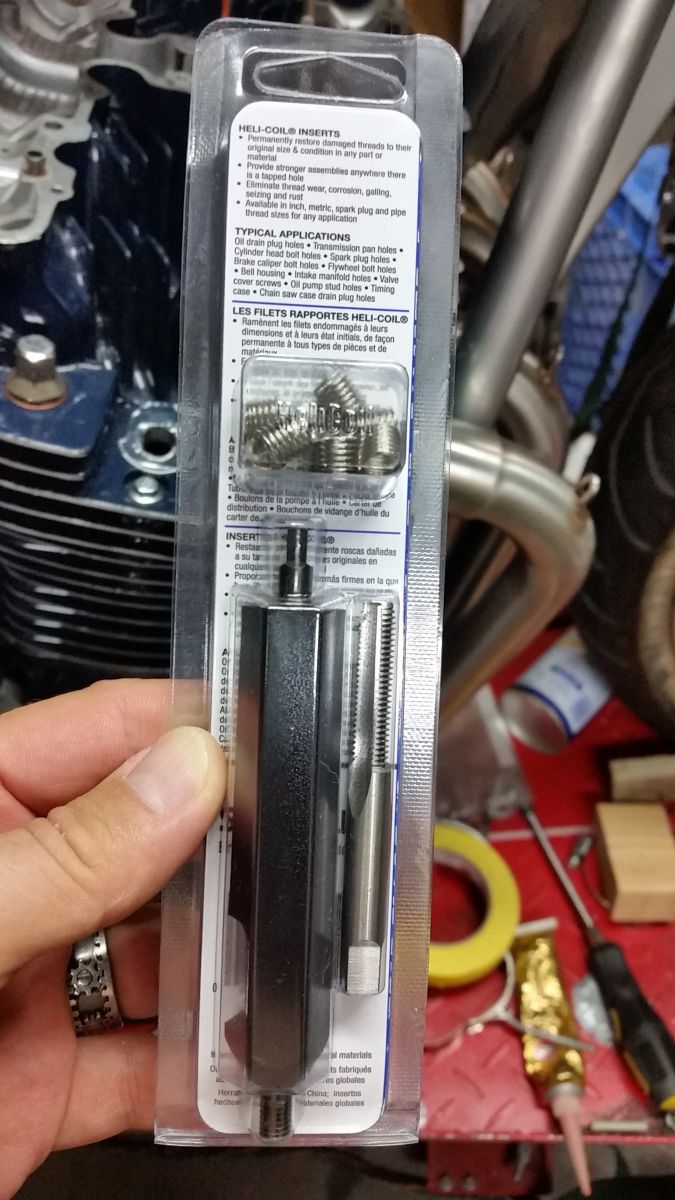

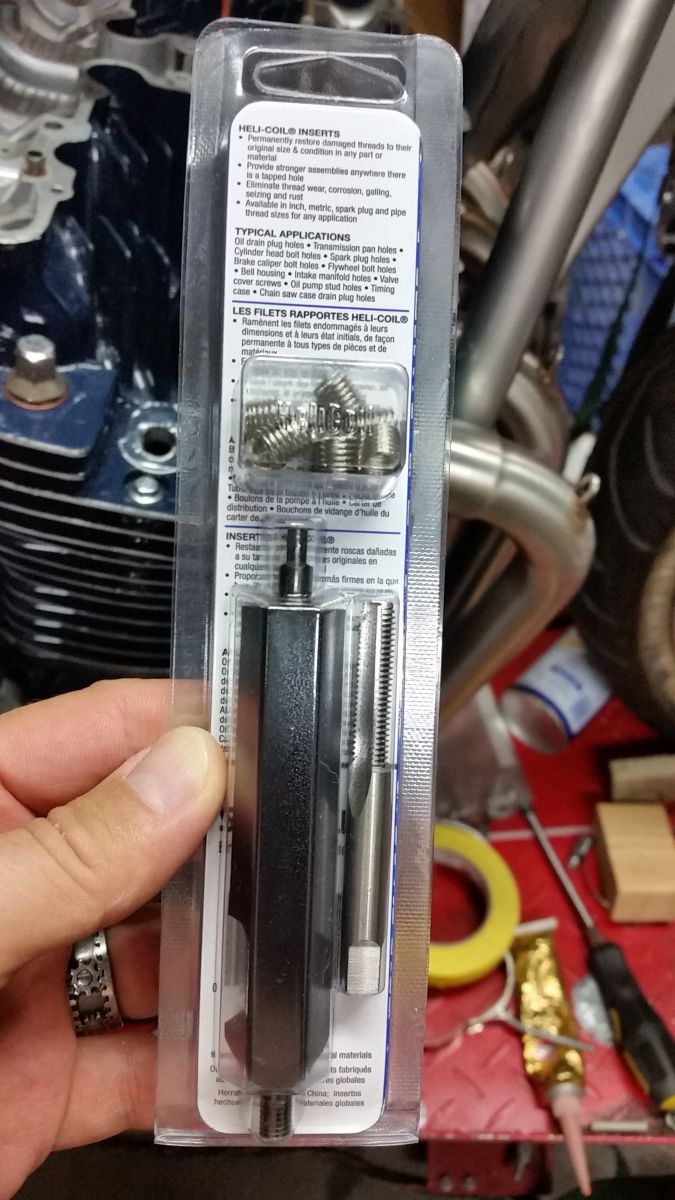

The kit was $40 at O'Rielly Auto Parts. It was really easy. was concerned about it working at since I couldn't use the applicator to get the Helicoil in the hole due to the shoulder. Just like you said Steve.

She is a distant beauty Steve, not sure she is worthy of BOTM. There are so many phenomenal bikes built on this site. I am building it to be a daily rider no trailer queens in my garage. B)

Enough chit chat I need to go get to work!
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23371
  • Thanks: 2902

Re: Phoenix Fighter

22 Jun 2015 08:33
#677733
Let us be the judge on that. Time and effort counts too.
I've fixed other bolts like the pinch bolt on my top triple tree. No meat for time certs.
Good job.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Vendor
    Vendors
  • Posts: 7446
  • Thanks: 798

Re: Phoenix Fighter

22 Jun 2015 08:58
#677737
fwiw here is the way i determine how to repair stripped threads.

freshly stripped= helicoil
helicoil stripped= stepped stud or timesert
timesert/stepped stud stripped=weld and remachine

hth someone,
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: kaw-a-holic

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23371
  • Thanks: 2902

Re: Phoenix Fighter

22 Jun 2015 09:06
#677741
Looks right to me. It's unfortunate new bike owners make these mistakes but how is one to learn? I've done it and can again. Mistakes happen.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • 79MKII
  • 79MKII's Avatar
  • Offline
  • User
  • User
    Registered
  • Love Them Kaws!
  • Posts: 2487
  • Thanks: 43

Re: Phoenix Fighter

22 Jun 2015 09:33 - 22 Jun 2015 09:42
#677747
kaw-a-holic wrote: ... It was really easy. was concerned about it working at since I couldn't use the applicator to get the Helicoil in the hole due to the shoulder. Just like you said Steve. ...
I'm having this same concern right now myself. I have an M6 thread that I'd like to heli-coil but fine thread heli-coils are supposed to use that pre-coiler or whatever they call it. The hole is where a knock pin goes, so it's basically countersunk....can't get that tool in there. These can be wound in by hand? Is that what you guys are saying? I wanted to try it but once it's drilled, there's no turning back. You weren't able to install the heli-coil without removing the head, were you?
The Kaw List:
Current: 79 KZ1000 A3 MKII, 78 KZ1000 A2, 78 KZ1000 Z1-R, 78 KZ650 SR, 80 KE175
Former: 03 KLX400SR, 99 ZRX1000, 82 KZ750 LTD, 80 KZ1000 A4 MKII, 80 KZ1000 LTD, 78 KZ1000 A2, 74 H-2 750 Triple, 78 KL250
Last edit: 22 Jun 2015 09:42 by 79MKII.

Please Log in or Create an account to join the conversation.

  • davido
  • davido's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1582
  • Thanks: 291

Re: Phoenix Fighter

22 Jun 2015 10:10
#677754
531blackbanshee wrote: fwiw here is the way i determine how to repair stripped threads.

freshly stripped= helicoil
helicoil stripped= stepped stud or timesert
timesert/stepped stud stripped=weld and remachine

hth someone,
leon

So whats the difference twixt a Helicoil and a Timesert?
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15333
  • Thanks: 2833

Re: Phoenix Fighter

22 Jun 2015 10:23 - 22 Jun 2015 10:23
#677757
A Helicoil is a spring-like device that threads into the hole and receives the bolt. A Time-Sert is a solid bushing that threads into the hole and receives the bolt. Here's a Helicoil (upper piece) compared to a Time-Sert (lower piece). Ed

Attachment 00003s.jpg not found

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Last edit: 22 Jun 2015 10:23 by 650ed.
The following user(s) said Thank You: davido

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23371
  • Thanks: 2902

Re: Phoenix Fighter

22 Jun 2015 10:49
#677759
79MKII wrote:
kaw-a-holic wrote: ... It was really easy. was concerned about it working at since I couldn't use the applicator to get the Helicoil in the hole due to the shoulder. Just like you said Steve. ...
I'm having this same concern right now myself. I have an M6 thread that I'd like to heli-coil but fine thread heli-coils are supposed to use that pre-coiler or whatever they call it. The hole is where a knock pin goes, so it's basically countersunk....can't get that tool in there. These can be wound in by hand? Is that what you guys are saying? I wanted to try it but once it's drilled, there's no turning back. You weren't able to install the heli-coil without removing the head, were you?

I don't use the drill bit. The hole is large enough. Getting the tap past the insert (pin) is a problem. On my triple clamp I had to drill where the non threaded part is slightly to get the tap in there and the coil. It was tricky and I munged up one but I did it. Yes you can just use a ling small screw driver going back and forth little by little until set. Try not to bust the little tang off.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.
