New project.1428 turbo or supercharged, Who knows? 02 Feb 2013 21:33 #570452

  • wireman
  • wireman's Avatar
  • Offline
  • User
  • The most interesting prick in the world
  • Posts: 4761
  • Thank you received: 299
I like it!
We need to find you an english wheel with really small rollers for those tight contours B)
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 03 Feb 2013 19:35 #570604

  • racer54
  • racer54's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1903
  • Thank you received: 114
Having never done this...I've seen a fender made like you did it but how did you get from the rough texture to the smooth finish. Sanding couldn't have smoothed it out that much. Was that the english wheel wireman is talking about. Never seen one, is it just a steel roller used under pressure to flatten out the rough texture that gets to the final finish you have?
1980 LTD (changed over the years), 1979 LTD (being rebuilt), 1977 KZ turbo and various KZ's in various states of build. KLX110

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 03 Feb 2013 20:24 #570615

  • zed1015
  • zed1015's Avatar Topic Author
  • Offline
  • User
  • Posts: 2900
  • Thank you received: 1461
Yes! the english wheel uses a pair of rollers to help smooth and curve the metal after the main planishing is done.
I didn't use one
The alloy is 3mm thick and ALL hand planished and hand smoothed.
It took 14 hours over two days to get the shape and another three or four hours to get it smoothed.
I got the rough texture down to around 1/3rd of a millimeter surface variance between the peaks and troughs before sanding.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

New project.1428 turbo or supercharged, Who knows? 03 Feb 2013 21:15 #570619

  • LarryC
  • LarryC's Avatar
  • Offline
  • User
  • Posts: 1241
  • Thank you received: 309

wireman wrote: I vote for the first one,but it comes down to what you want B)


I second that vote. Cleaner look IMO
Larry C.
The following user(s) said Thank You: wireman

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 04 Feb 2013 11:47 #570712

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
awesome job on the hand "made in england" front fender sir :evil: !

tipa the hat to ya sir

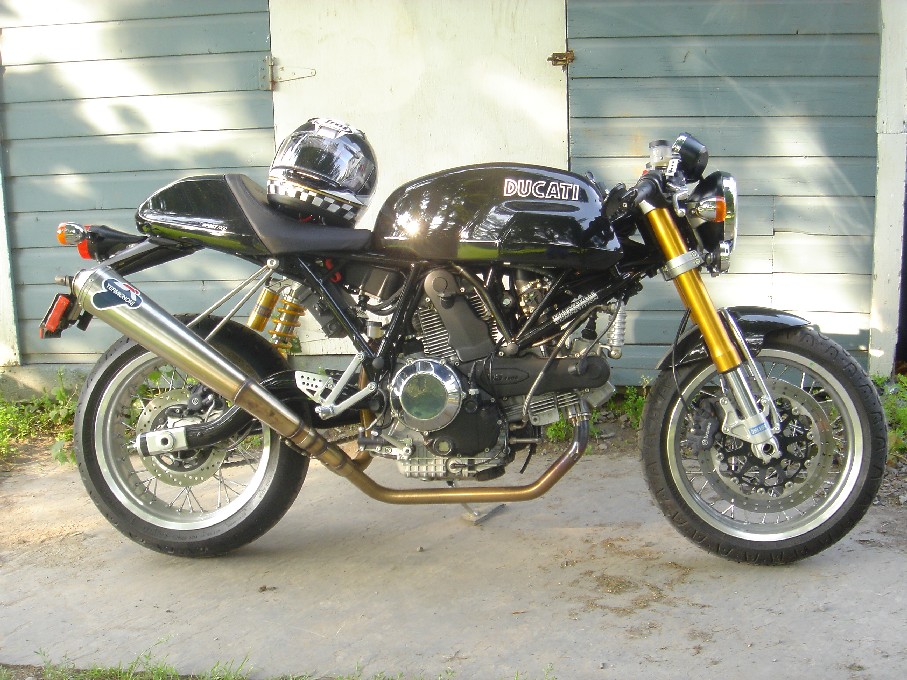

my vote for front fender mounting goes to the style for the ducati sport classic front fender mounting.






leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 06 Feb 2013 16:56 #571097

  • zed1015
  • zed1015's Avatar Topic Author
  • Offline
  • User
  • Posts: 2900
  • Thank you received: 1461
Mudguard mounted.
Not a lot of scope with the forks only having mounts on the front of the legs so some alloy 'Y' brackets are the best solution.
I plan to paint them black so they blend in and the polished guard will float above the tyre.



A quick mock up with the bodywork back on and a look out in the daylight to check the lines are right


Decided the bare ally looks good so the planned KR paint job is out and lots of polishing is in.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 06 Feb 2013 17:40 #571105

  • les holt
  • les holt's Avatar
  • Offline
  • Vendor
  • Posts: 1635
  • Thank you received: 288
That thing is RIGHT! Love it.

Les

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 06 Feb 2013 19:06 #571117

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
mounts look nice.

bike looks real nice.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 07 Feb 2013 20:25 #571349

  • Puffin
  • Puffin's Avatar
  • Offline
  • User
  • Posts: 184
  • Thank you received: 32
:evil: Looks awesome Zed, nice solution with the fender mount.
KZ1000 J Long Term Owner

KZ1100

KZ1100 Spectre project

Please Log in or Create an account to join the conversation.

New project.1428 turbo or supercharged, Who knows? 07 Mar 2013 17:33 #575825

  • zed1015
  • zed1015's Avatar Topic Author
  • Offline
  • User
  • Posts: 2900
  • Thank you received: 1461
In a rare fit of extravagance i bought a PMFR clutch release mount (it was cheap) as the offset sprocket and chain fouled the original sprocket cover and i didn't want to cut it about as it's a 72 jobbie without the 1n2345 cast in to it.




Trouble was the zx10r clutch cable wasn't long enough to go the normal route under the alt cover but would easily reach under the carbs to here.


A chance to redeem myself for my frivolous spending saw this collection of alloy offcuts and bits from the scrap bin heading for a new life.
Along with the ally, an old exhaust valve , a guide, 10mm stainless bolt, ball bearing and a bit of brass bar were attacked with the lathe for a couple of days


To produce these
The short lump of ally combined with the old valve guide forms the main body.
The bar stock and brass offcut create the arm with pivot bush.
The turned down valve serves as a hardened pusher and the modified bolt with ball bearing pressed in the end provides the adjuster.


A bit of offset turning creates the arm mounting and the 7mm valve guide bore just happens to match the size of the clutch push rod.


Modded valve slides in here


And adjustment screw here




Then the arm slots on to the mount.
Ball bearing runs on the hardened valve pad for a smooth action.
The valve stem was trimmed down to meet the clutch pushrod midway in the guide with a ball bearing between them



And viola. One fulcrum arm clutch actuator ;)


Just got to finish off with the outer cable mount and job done. :)
