MC dust cover KZ650-H1

  • 82KZ305Belt
  • 82KZ305Belt's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 542
  • Thanks: 54

MC dust cover KZ650-H1

27 Aug 2025 21:32
#916479
Partzilla shows the master cylinder dust cover as 49016-1010. But when I click on that part it says this does not fit your bike, and my bike does not appear in the list of fitments.
www.partzilla.com/catalog/kawasaki/motor...cylinder-81-82-h1-h2

So what the heck?

81 KZ650 CSR
82 KZ305 CSR

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7852
  • Thanks: 3227

Re: MC dust cover KZ650-H1

28 Aug 2025 05:01
#916483
That's the correct part.  Check Kawasaki.com
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 8021
  • Thanks: 2559

Re: MC dust cover KZ650-H1

28 Aug 2025 05:30
#916486
If you are on the H1 parts page, the H1 will not show up on the Fitment list because it is showing the OTHER models that the part also fits.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: Nessism, 82KZ305Belt

Please Log in or Create an account to join the conversation.

  • 82KZ305Belt
  • 82KZ305Belt's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 542
  • Thanks: 54

Re: MC dust cover KZ650-H1

28 Aug 2025 06:09
#916489
Nessism wrote:
That's the correct part.  Check Kawasaki.com


How did you find it there? 81 650 doesn't even show up in their dropdown menu and they don't find my VIN (hopefully because its too old?). I'm going to call Kawasaki but they don't open for another hour.
81 KZ650 CSR
82 KZ305 CSR

Please Log in or Create an account to join the conversation.

  • 82KZ305Belt
  • 82KZ305Belt's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 542
  • Thanks: 54

Re: MC dust cover KZ650-H1

28 Aug 2025 06:09
#916490
TexasKZ wrote:
If you are on the H1 parts page, the H1 will not show up on the Fitment list because it is showing the OTHER models that the part also fits.


I thought that might be the case but when I click on the part number it brings up a new window and screams in all caps: "DOES NOT FIT YOUR 1981 KAWASAKI KZ650H CSR" and when I look up the same part under another bike it also does not appear on that other bike's fitment list.
81 KZ650 CSR
82 KZ305 CSR

Please Log in or Create an account to join the conversation.

  • H1Vindicator
  • H1Vindicator's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 771
  • Thanks: 122

Re: MC dust cover KZ650-H1

28 Aug 2025 06:35 - 28 Aug 2025 06:43
#916492
49016-1010 is the correct part. the 83 H3 uses the same dust cover which is listed as the correct part for the H3. so the x-ref has a little error. the part is listed as unavailable.
Last edit: 28 Aug 2025 06:43 by H1Vindicator.
The following user(s) said Thank You: Nessism, 82KZ305Belt

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7852
  • Thanks: 3227

Re: MC dust cover KZ650-H1

28 Aug 2025 06:49
#916493
Master cylinders are the type of parts that both wear, and corrode.  After 40+ years, it's almost a surprise if they are working.

Unless the bore is particularly clean, and free of corrosion, I'd scrap the thing and get something newer.  Not to mention, old rebuild kits and so forth, are expensive.


Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: 82KZ305Belt

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • User
    Registered
  • Denco where did you go?
  • Posts: 1588
  • Thanks: 614

Re: MC dust cover KZ650-H1

28 Aug 2025 07:14
#916496
Not sure this will be of help or not. There is a PDF parts list for the H1, H2 and H3 650s you can down load for here  jarlef.no/Kawasaki/Series/Z/650/z650files.htm

It shows that all 3 of them use the same part#.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: 82KZ305Belt

Please Log in or Create an account to join the conversation.

  • 82KZ305Belt
  • 82KZ305Belt's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 542
  • Thanks: 54

Re: MC dust cover KZ650-H1

28 Aug 2025 07:47
#916497
H1Vindicator wrote:
49016-1010 is the correct part. the 83 H3 uses the same dust cover which is listed as the correct part for the H3. so the x-ref has a little error. the part is listed as unavailable.


Kawasaki confirmed that it is the right part, but surprisingly they say it IS available.
81 KZ650 CSR
82 KZ305 CSR

Please Log in or Create an account to join the conversation.

  • 82KZ305Belt
  • 82KZ305Belt's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 542
  • Thanks: 54

Re: MC dust cover KZ650-H1

28 Aug 2025 07:52
#916498
Nessism wrote:
Master cylinders are the type of parts that both wear, and corrode.  After 40+ years, it's almost a surprise if they are working.

Unless the bore is particularly clean, and free of corrosion, I'd scrap the thing and get something newer.  Not to mention, old rebuild kits and so forth, are expensive.





I will definitely inspect it carefully. Only 8000 miles on the bike so corrosion is probably the bigger concern.

81 KZ650 CSR
82 KZ305 CSR

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Moderator
    Registered
  • Posts: 5397
  • Thanks: 3303

Re: MC dust cover KZ650-H1

28 Aug 2025 08:56
#916500
82KZ305Belt wrote:
Nessism wrote:
Master cylinders are the type of parts that both wear, and corrode.  After 40+ years, it's almost a surprise if they are working.

Unless the bore is particularly clean, and free of corrosion, I'd scrap the thing and get something newer.  Not to mention, old rebuild kits and so forth, are expensive.






I will definitely inspect it carefully. Only 8000 miles on the bike so corrosion is probably the bigger concern.


Ultimately brake fluid is hydroscopic so regardless of mileage unless the fluid has been replaced regularly the absorbed moisture will cause corrosion
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: 82KZ305Belt

Please Log in or Create an account to join the conversation.

  • jwfels
  • jwfels's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 111
  • Thanks: 47

Re: MC dust cover KZ650-H1

28 Aug 2025 17:43
#916515

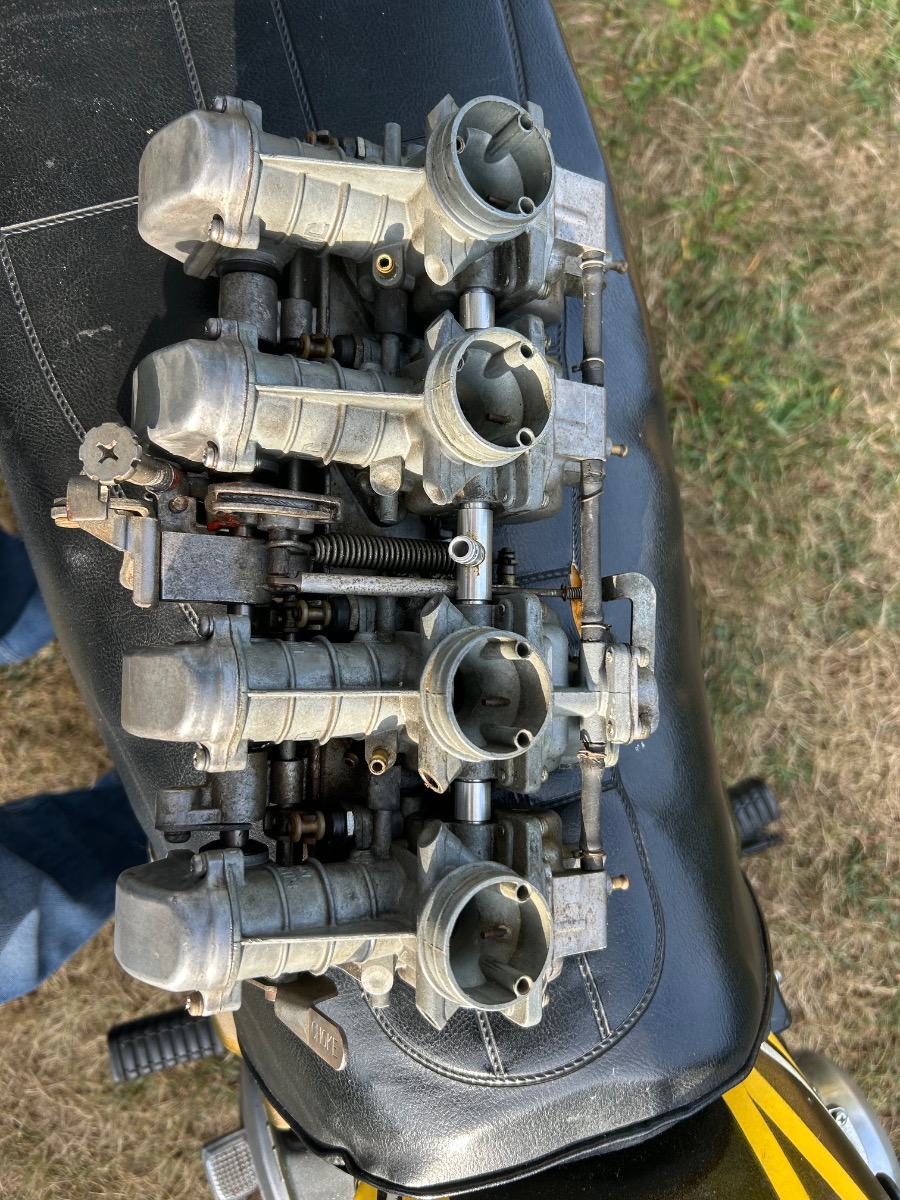

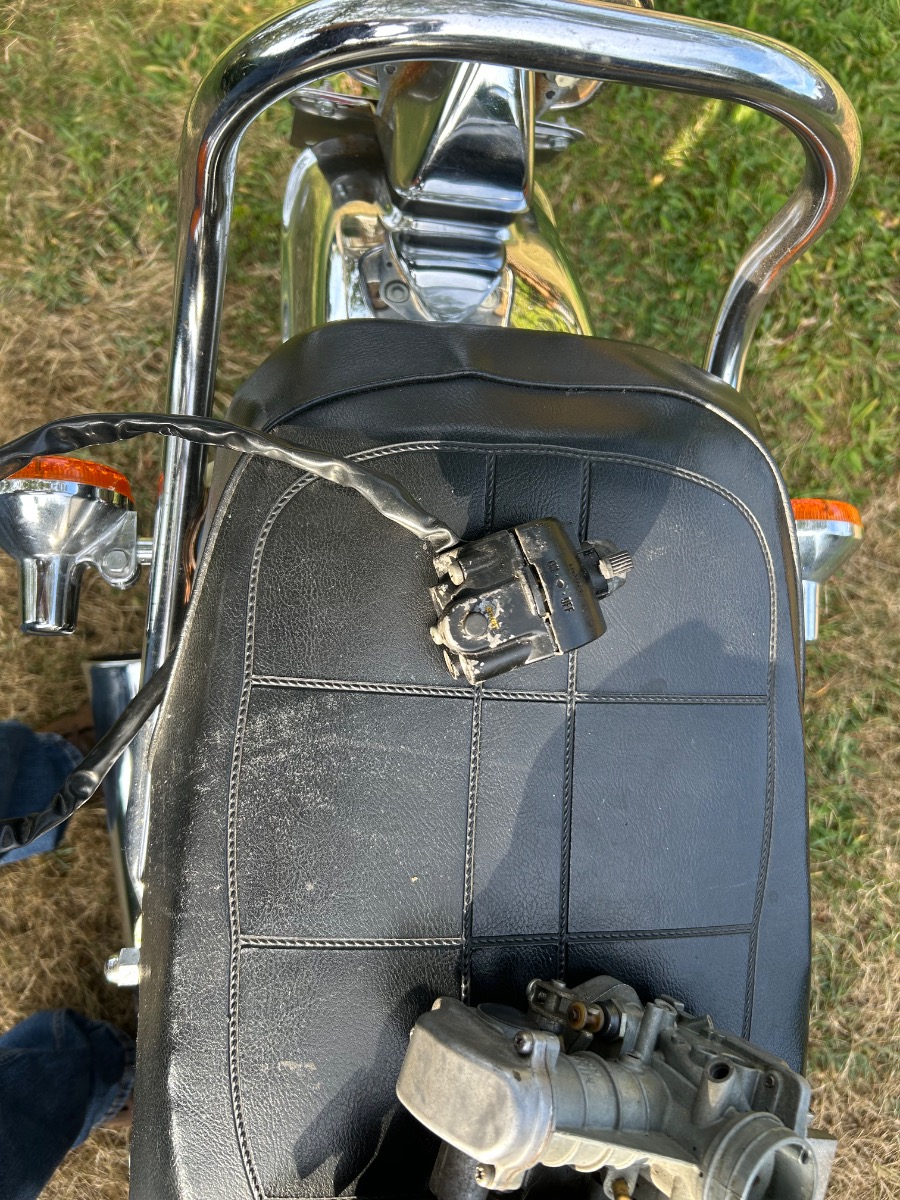

Hey Mr. Belt, changing subject a bit here ,but this is your thread, a few things you might be interested in right side control with button, from my 650, and a breathing device, all for the price of a shipping label, and a donation to the club of your choice, have other stuff too, have fun with the bike
Z1A AND 81 650
