Fitting a 6 pot caliper to KZ440
- Sdaniels2010
-
Topic Author
- Offline
- User
-
Registered
- Posts: 91
- Thanks: 6
Re: Fitting a 6 pot caliper to KZ440
14 Jun 2022 14:55
First, there is more coverage than what your diagram shows (covers to the middle holes) & second, how does the area a pad won't contact make it an unsafe condition?
1981 KZ440 A2 LTD
Please Log in or Create an account to join the conversation.
- DOHC
-
- Offline
- Sustaining Member
-
Registered
- Those Doe-Hawks really go!
- Posts: 1270
- Thanks: 593
Re: Fitting a 6 pot caliper to KZ440
14 Jun 2022 15:06
Is there any part of the pad face that is not contacting the disk? Asked a different way, does the pad extend beyond the outside edge of the disk?
'78 Z1-R in blue
, '78 Z1-R in black,
'78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- Sdaniels2010
-
Topic Author
- Offline
- User
-
Registered
- Posts: 91
- Thanks: 6
Re: Fitting a 6 pot caliper to KZ440
14 Jun 2022 15:56No...you can't see the top of the pads because it's a sliding pin caliper so I had to remove the pads first, place one with the top edge sits at the top of the rotor & mark where the bottom edge comes to. Then it's just a matter of putting them back in the caliper, positioning back to where it's marked & taking measurements on bolt hole spacing. It's a bit easier on opposed piston calipers because you can see the top of the pads without having to remove from the caliper. That's why I wanted to fit an opposed piston caliper...a 6 piston caliper with those wide pads give more braking action & almost all sliding pin designs only have 1 or 2 pistons.Is there any part of the pad face that is not contacting the disk? Asked a different way, does the pad extend beyond the outside edge of the disk?
1981 KZ440 A2 LTD
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Offline
- Premium Member
-
Registered
- Never change a running system
- Posts: 4420
- Thanks: 2268
Re: Fitting a 6 pot caliper to KZ440

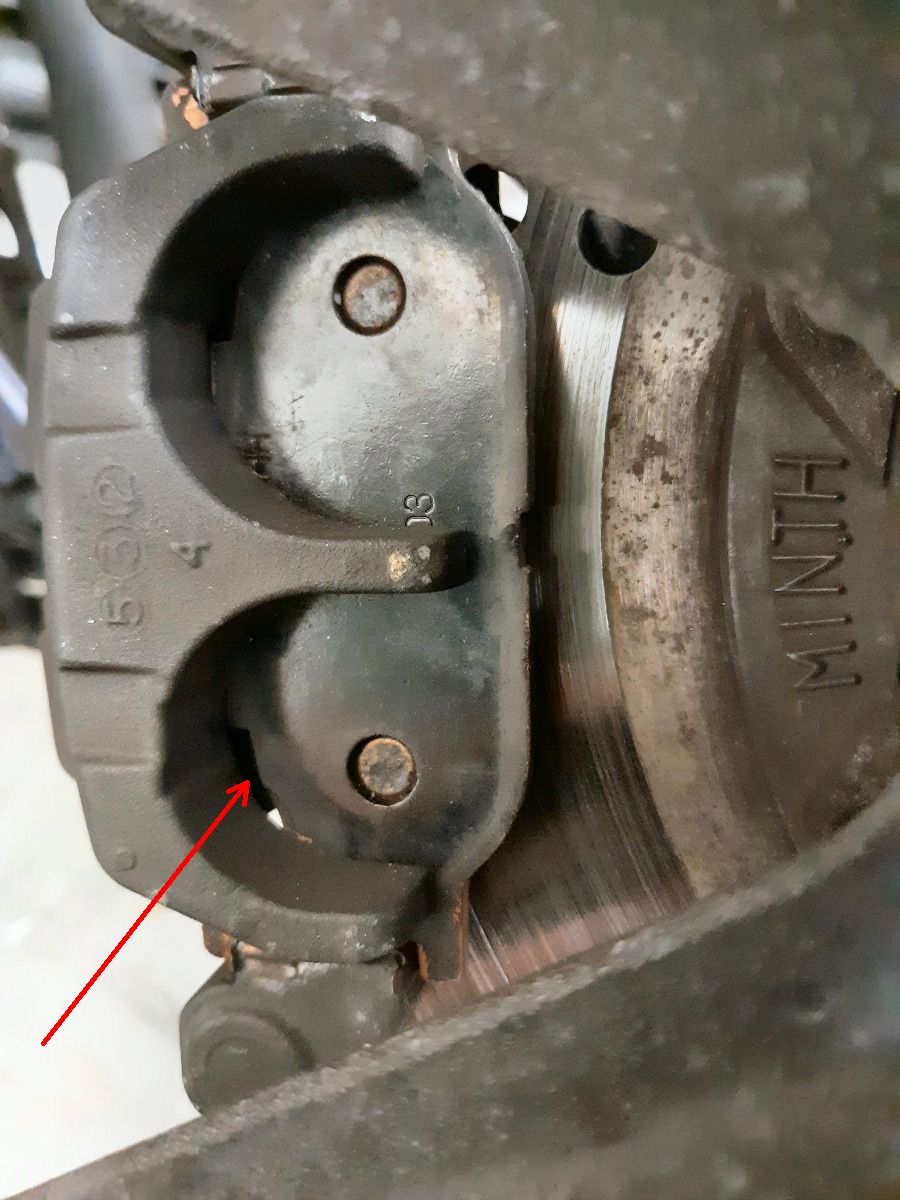

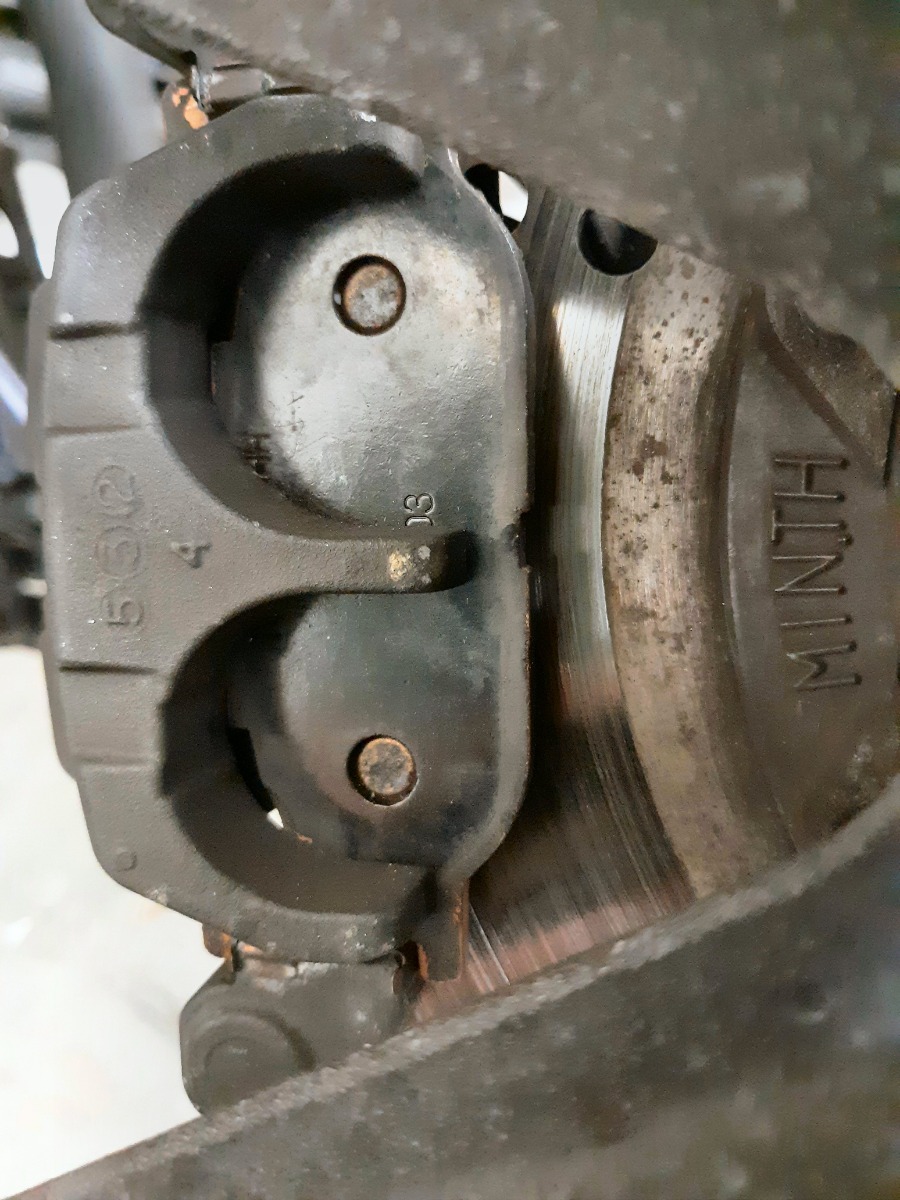

14 Jun 2022 16:52I didn´t see any outside edge of the disk. The pads won´t fully seated to the disk surface.Is there any part of the pad face that is not contacting the disk? Asked a different way, does the pad extend beyond the outside edge of the disk?
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Sdaniels2010
-
Topic Author
- Offline
- User
-
Registered
- Posts: 91
- Thanks: 6
Re: Fitting a 6 pot caliper to KZ440
15 Jun 2022 03:27 - 15 Jun 2022 04:19

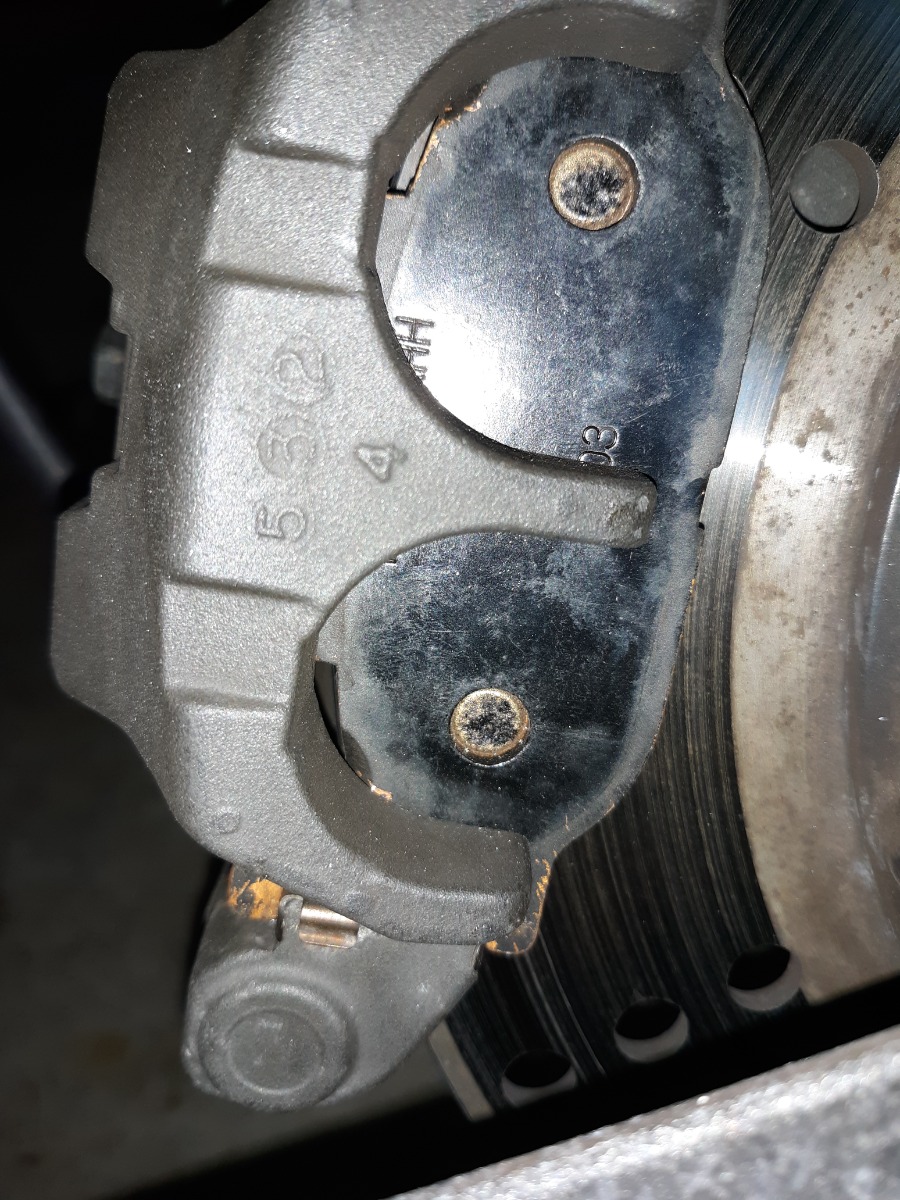

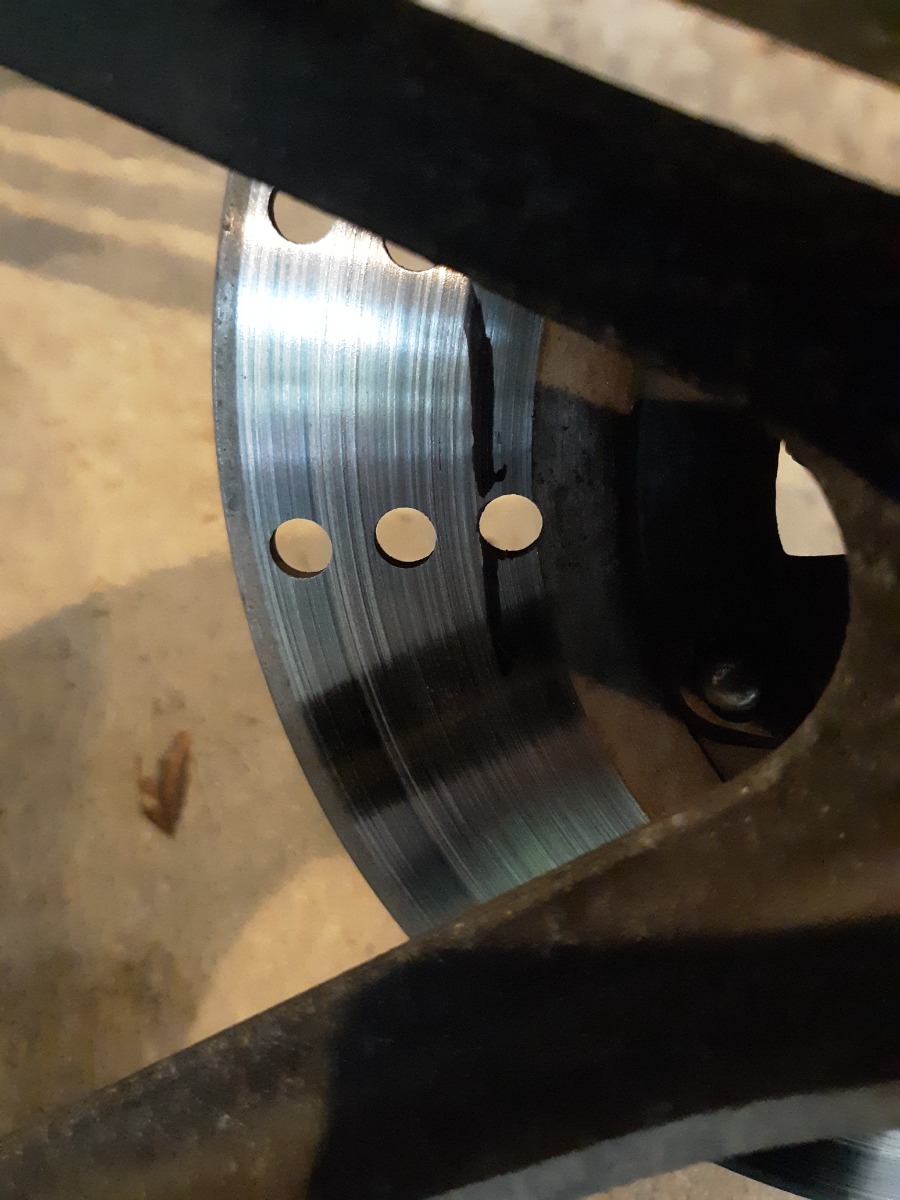

That shot is angled...but thanks for pointing this out. I didn't think there was a way to see the top of the pads on sliding pin calipers. Here's a better one & you can see the outer edge of the rotor. The other thing to consider is the backing plate on the pad is taller than the friction material. What you can also see with this shot is the outside edge of the rotor showing no wear so the pads aren't outside the rotor edge. It also shows the line I made to align the pads to. The entire friction material is contacting rotor surface.
1981 KZ440 A2 LTD
Last edit: 15 Jun 2022 04:19 by Sdaniels2010.
Please Log in or Create an account to join the conversation.
