Which ignition coil leads go where? - 1990 zephyr 550
30 May 2025 19:38
I just put in some new rings on a zr550 parts bike I have trying to bring it back to life. I don't remember which way the leads to the ignition coils go and the manual is no help. Each coil has a green and black input. There are two sets of wires that go to the coils, a green and red wire go to the right coil which feeds cylinders 2&3 and a black and red wire go to the left coil which feeds cylinders 1&4. But which way do the wires plug in? Do I plug the red wires into the green or black inputs on the coils? Does it matter?

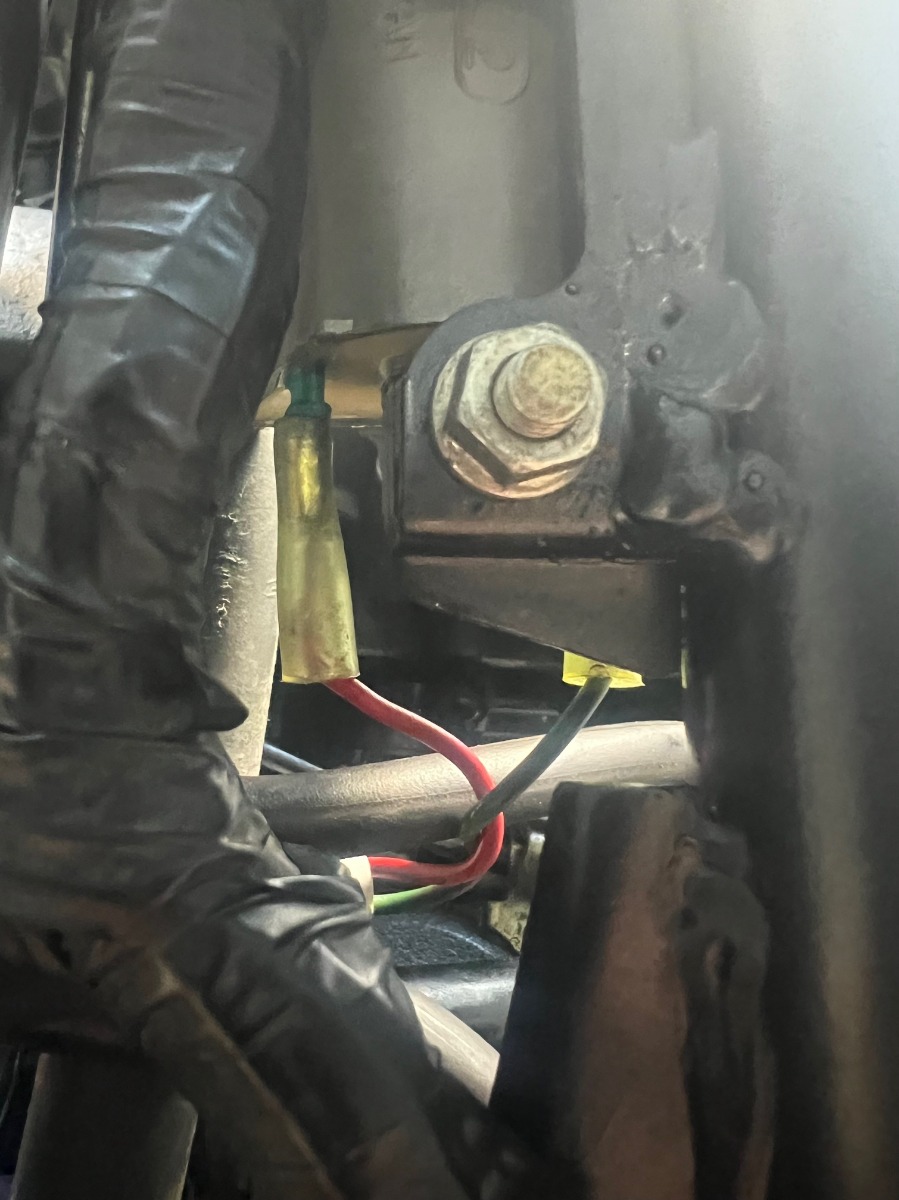

Right coil -

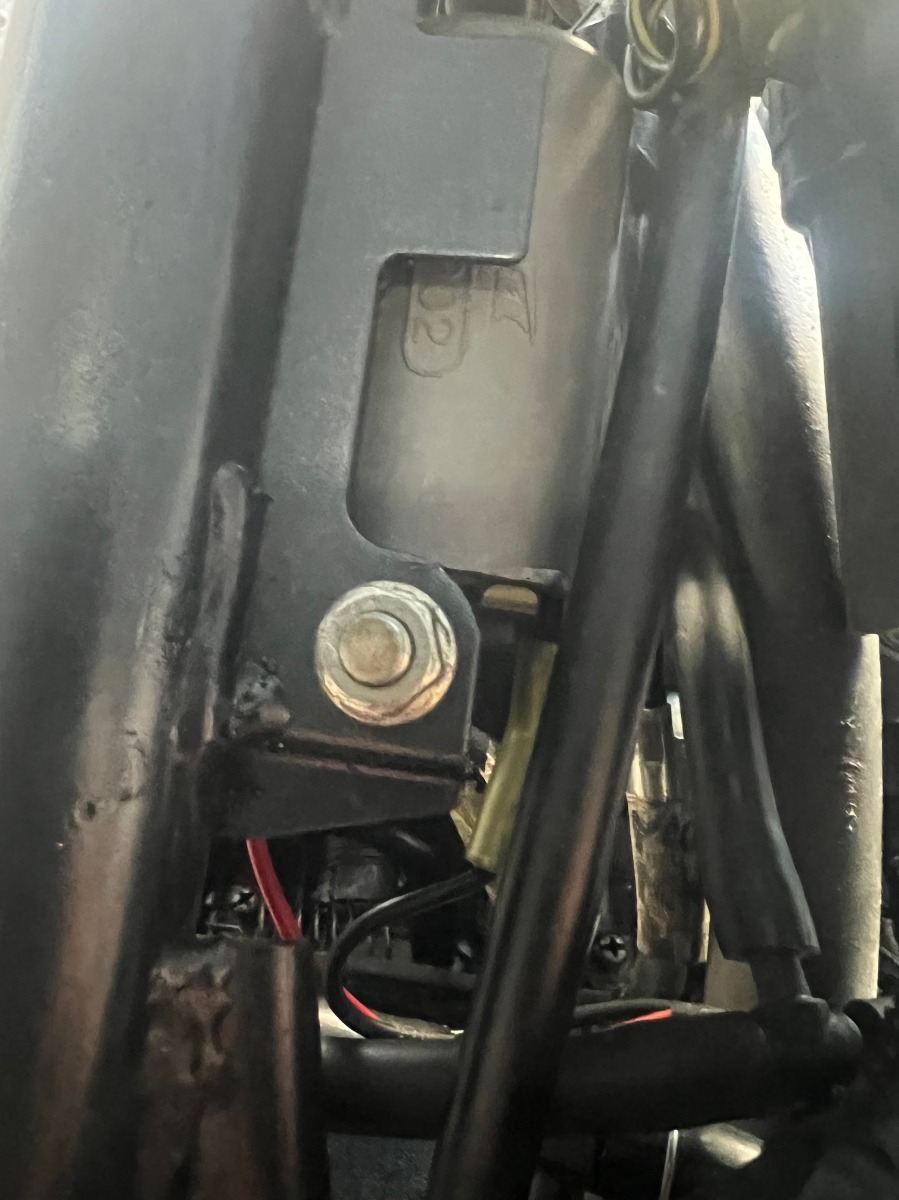

Left coil -
Thank you!
Right coil -
Left coil -
Thank you!
1990 Zephyr zr550 B1
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
-
Registered
- Posts: 5023
- Thanks: 3075
Re: Which ignition coil leads go where? - 1990 zephyr 550
30 May 2025 23:57
Multi output coils aren't usually polarity sensitive so it shouldn't matter
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Zaddict
Please Log in or Create an account to join the conversation.
- hugo
-
- Offline
- Sustaining Member
-
Registered
- '92 Zephyr 750
- Posts: 288
- Thanks: 78
Re: Which ignition coil leads go where? - 1990 zephyr 550
31 May 2025 02:36 - 31 May 2025 02:37
All it does is change the direction of the current traveling from spark plug to spark plug. .......still sparks are produced at both ends, and as Wookie said,...it does not matter.
Last edit: 31 May 2025 02:37 by hugo.
The following user(s) said Thank You: Zaddict, Wookie58
