Factory plug and boot resistance

Hi everyone! I am working on a ‘85 Kawasaki 750 Turbo that won’t idle, it’ll start and run for a couple seconds but then die out. Progressive attempts to start the bike result it in not running at all. Seems to only run with the starter button engaged. I have no throttle response and throttle has no effect.

This was a project that was supposed to be limited to a quick cosmetic upgrade that quickly evolved into a engine out project, not for mechanical reasons but because I wanted to powder coat the frame and other bits.

I’m ready to fire the parts cannon, but started to focus on anything and everything I might have changed. One item I changed were the coils. I should have left the dyna coils on, but was able to get a set of NOS coils for free from a friend. I picked up stock boots as well and a set of plugs (BR9ES).

I wonder if my issue is related to too much resistance in the boot, as it is a stock resistor type, coupled with the resistor in the plugs. I am not sure what type of wires came stick with this bike, but why would Kawasaki from the factory recommend resistor plugs and resistor caps?

it seems to be a big no-no from what I’ve read.


Resistor plugs and caps will give you a weak spark, I would suggest before you delve too deeply into the issue you have replace the plugs with "non-resistor" type and see how you go. If that doesn't sort it then I can help you with electrical testing of the fuel and ignition system

And put the dyna coils back on. What color are they?

Thanks everyone!

The coils preciously on the bike were gray dyna coils.

I forgot to mention that I’ve tested ECU, fuel pump relay, and IC igniter on a working bike and they were fine. Also, I’ve done the tests per the supplemental manual and they’ve checked out fine. Computer is throwing no codes and TPS is responsive.

i tested the magnetic ignition pickups and the resistance was within spec and the coil primaries seemed fine. I used a heat gun to test the pickups but not the coils, so I might check that.

also, I tested compression and it was okay-ish. 145/145/145 and 120. C4 seemed low as Kawasaki says that any cylinder with a 14 psi difference is suspect, but I think it’ll come around with proper running.

it shouldn’t cause the problem I’m currently experiencing.

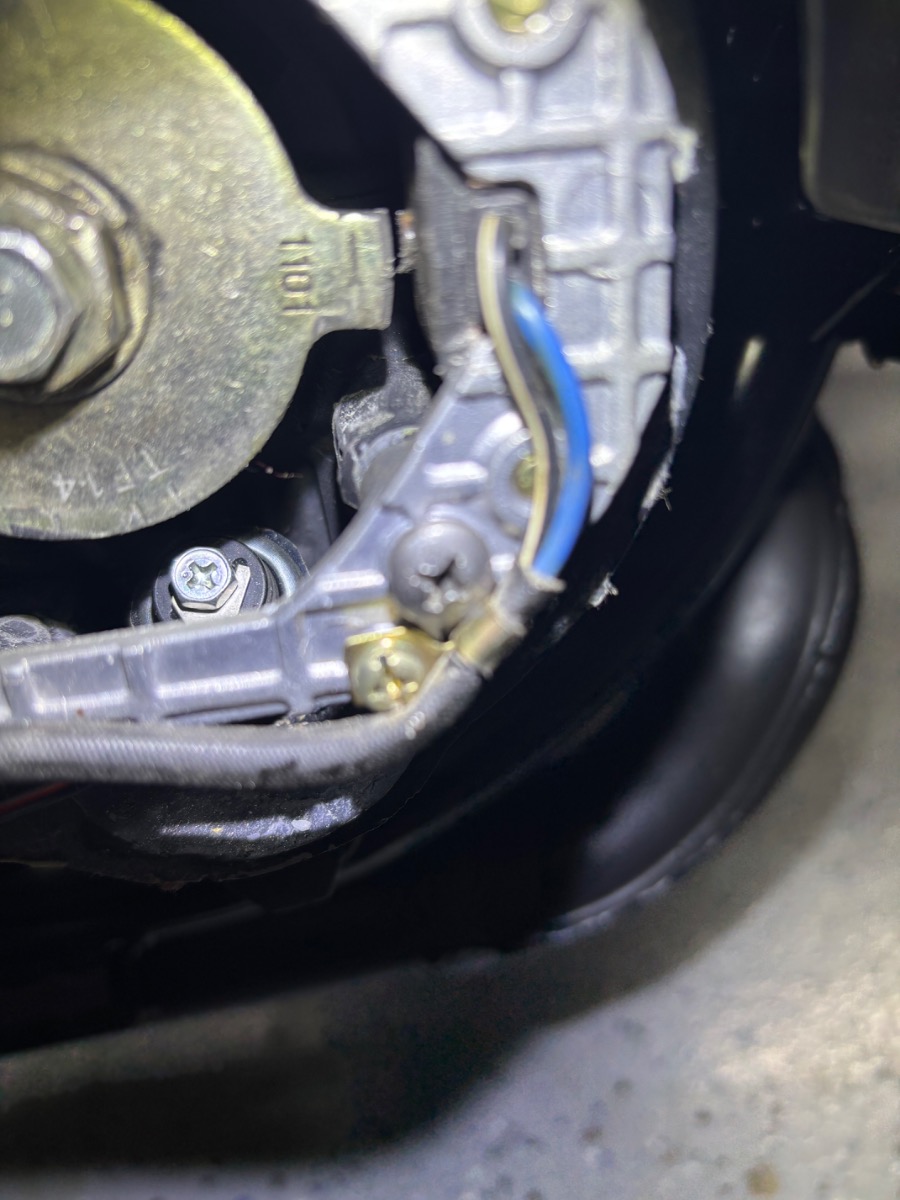

Could this be the source of my frustration? There’s like negative gap with the left pickup coil magnet and it’s been gouging it out, leaving metal shavings on the right magnet.

bike is missing on 2/3, causing rough idle and stalling. No throttle response either.

I have spark but the pipes are cool to the touch while 1/4 are scorching. Spark looked a little funny though, like off in color. Plugs on 2/3 were wet and sooty.

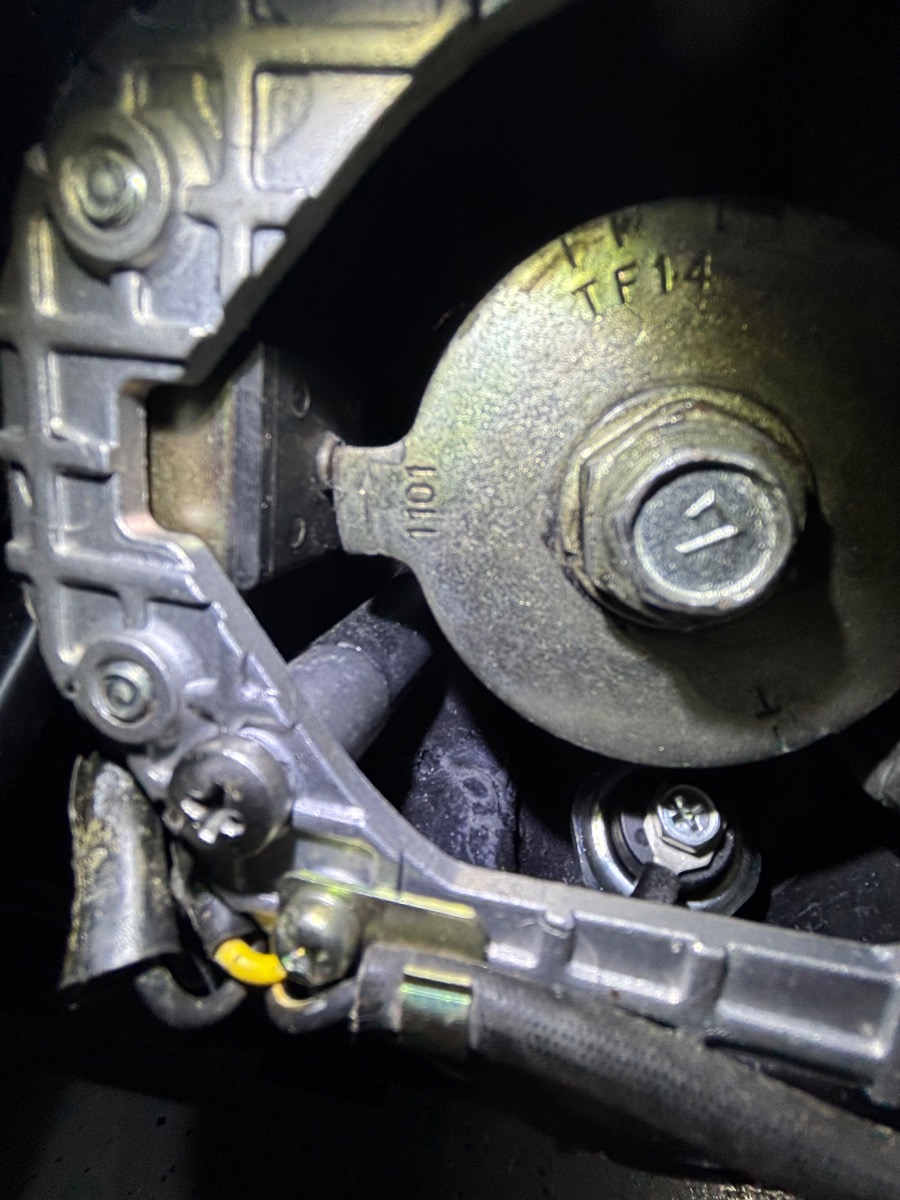

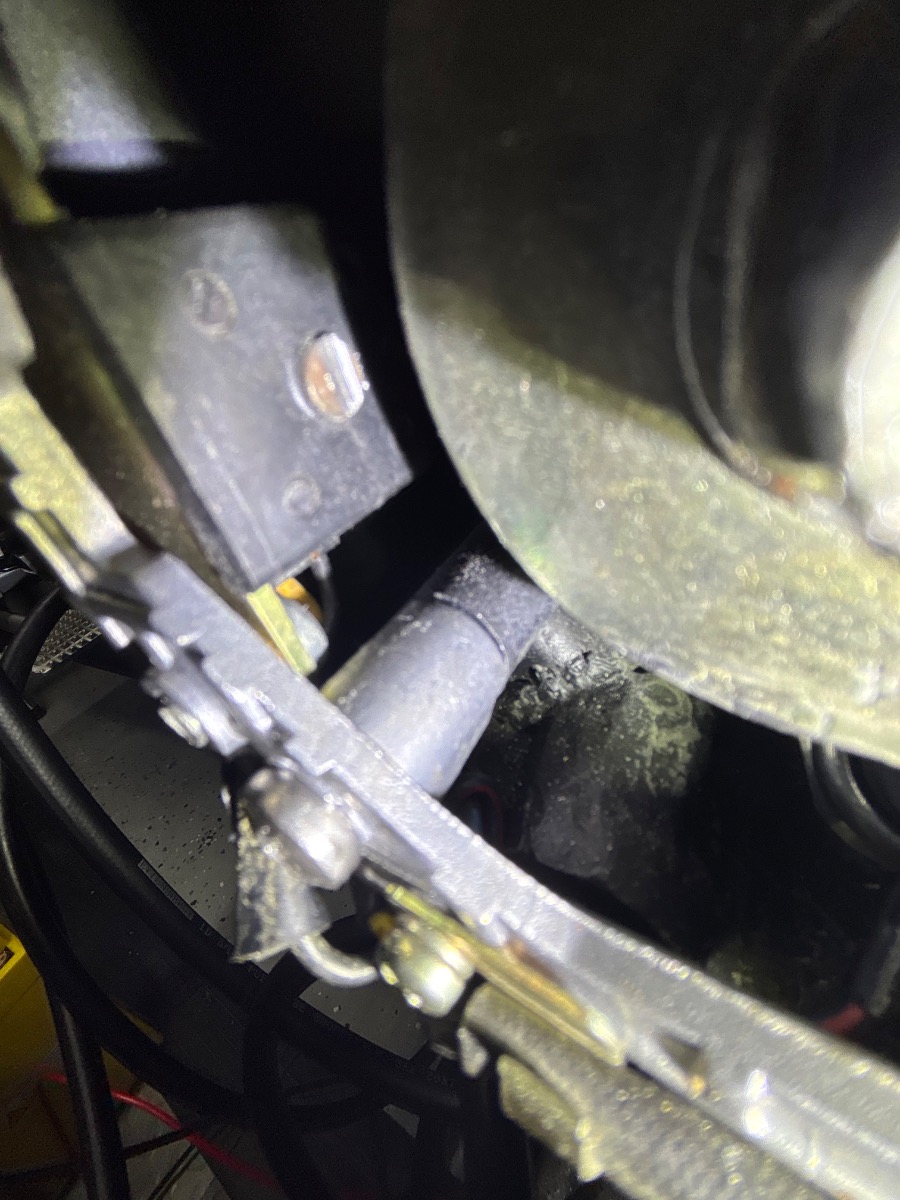

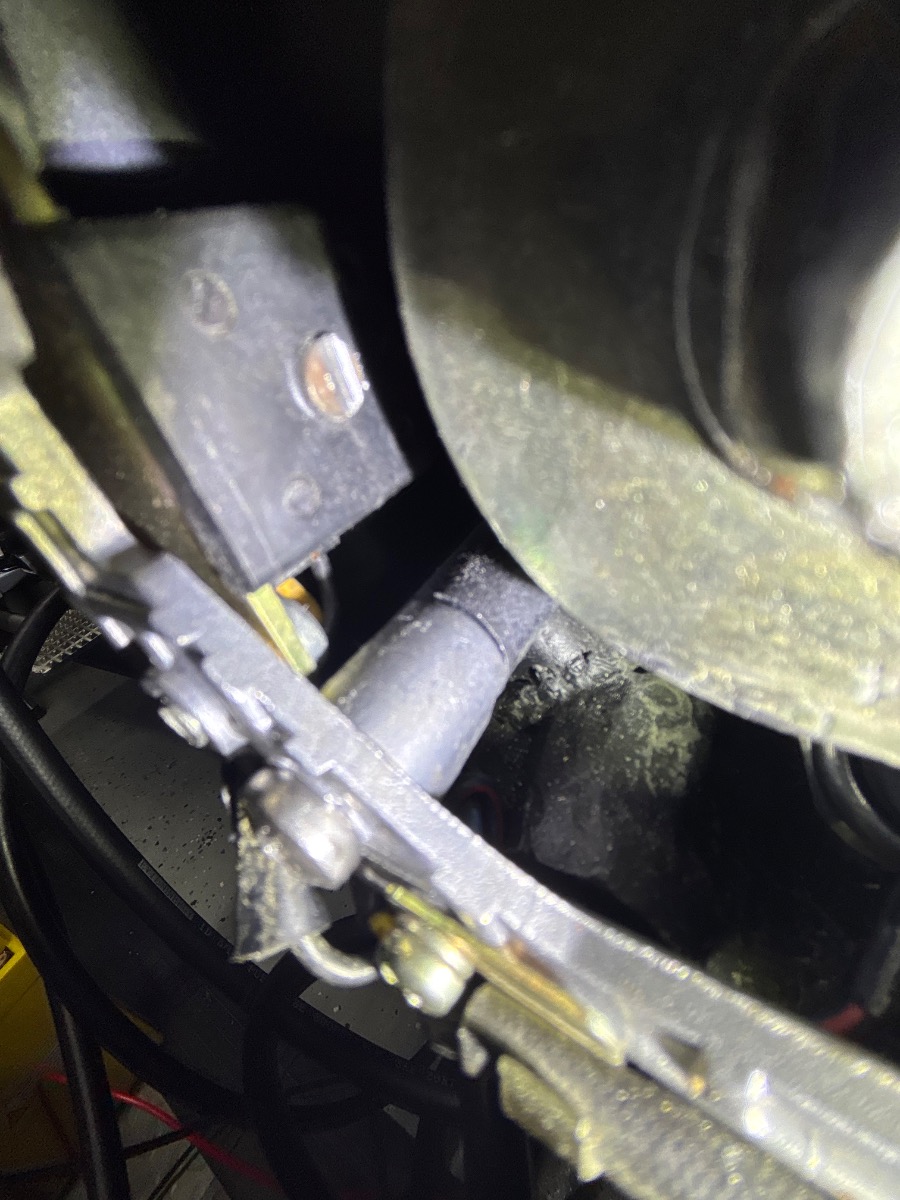

As far as i can see on the first view in your pics, the rotor grinded into one of the pic-ups ferrit cores (scar marks)!
Could be a woobling rotor or dis-alignment pic-up postion on the mounting plate.
Grinded metal flakes on the, (catch up by the magnetic pic-ups), can disturb the firing timing.
On modern engines it´s a common problem with the crank OT sensor unit on the clutch flywheel gearbox housing side .
You get no ingnition release signal from the ECU on e-start
Just my first thoughts due to your pics.......

It certainly isn't helping - there should be no physical contact with this type of sensor !!

I'm with wookie on this, resistor plug caps & plugs not a good mix, try pulling caps off plugs so spark has to jump across a little & again that ignition rotor should not be touching anything as it spins, good luck hope it works out

Just wanted to close the loop, the pickup coils and the gap between the rotor were indeed the problem. I removed the damaged coil that had been impacted by the rotor and soldered in a replacement. The turbo pickup coils are difficult to find so I used what I had. I then paid careful attention to evenly screw down the plate and checked to make sure the gap was somewhat even.

Some more fine tuning and small things to chase, but all four pipes on the manifold are heating up evenly and the bike idles and responds to throttle. It has a high idle that likes to run away, but I remember I had adjusted the idle screw all the way out to ritchen it up. I initially had thought my problem was a lean condition. So I’ll get that back down.

I will chase down the remaining issues and get some pictures of the bike from my first ride, probably sometime this weekend!

Thanks everyone, I’ve become more than a pain with some very generous folks on this forum. Thanks again!
