Can anyone ID this connector?

  • chopper1963
  • chopper1963's Avatar Topic Author
  • Offline
  • User
  • Posts: 228
  • Thanks: 40

Can anyone ID this connector?

30 Jun 2024 12:18
#901546

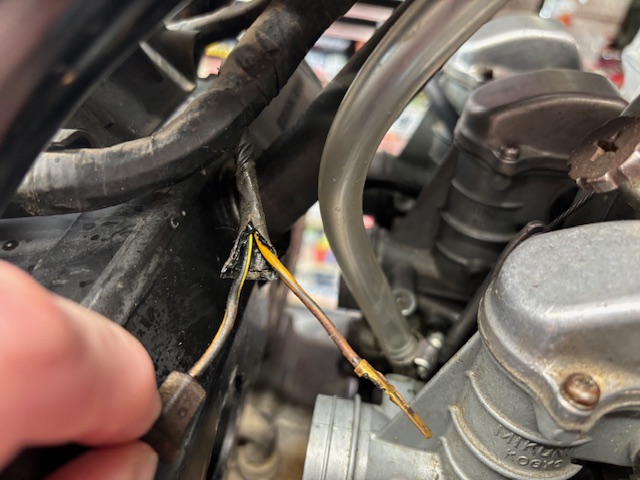

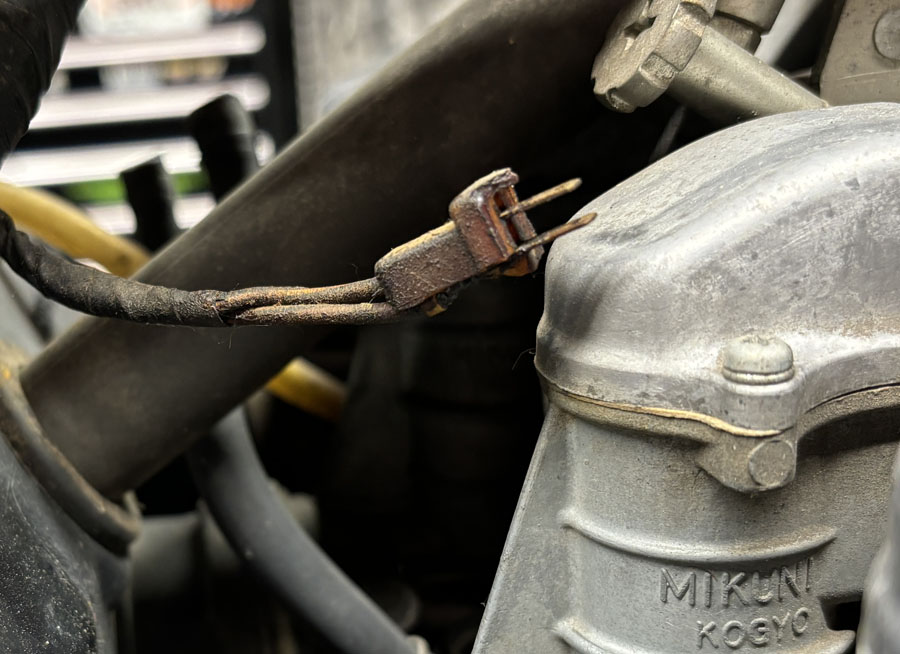

1978 KZ650SR.

I knew I should have taken more photos when I took it apart.







Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7819
  • Thanks: 2416

Re: Can anyone ID this connector?

30 Jun 2024 12:40
#901547
Toaster?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1474
  • Thanks: 507

Re: Can anyone ID this connector?

30 Jun 2024 12:48
#901548
Clean it up some before anything. I do not know what it is but in looking at the stock wiring diagram there are a couple of connections that have 2 connections. From the location of it in the pic I would guess it is part of the fuel level sensor, but it is just a guess.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

  • Moose1800
  • Moose1800's Avatar
  • Offline
  • Sustaining Member
  • Posts: 303
  • Thanks: 286

Re: Can anyone ID this connector?

30 Jun 2024 12:48
#901549
TexasKZ wrote:
Toaster?

I agree with Tex you can see the tape just past the plug . That’s a Bob cobb repair.

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 4810
  • Thanks: 2888

Re: Can anyone ID this connector?

30 Jun 2024 13:05
#901551
The colour of the wires would be helpful
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

  • chopper1963
  • chopper1963's Avatar Topic Author
  • Offline
  • User
  • Posts: 228
  • Thanks: 40

Re: Can anyone ID this connector?

30 Jun 2024 13:37
#901558
Hi Wook

I hope you are well. Thanks as always.




Please Log in or Create an account to join the conversation.

  • chopper1963
  • chopper1963's Avatar Topic Author
  • Offline
  • User
  • Posts: 228
  • Thanks: 40

Re: Can anyone ID this connector?

30 Jun 2024 13:40
#901559
<<<That’s a Bob cobb repair>>

Well, this is a 46 year old motorcycle that I'm working on. Things happen over 46 years I'm told.

Bike came out of very rural Iowa so who knows?

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4402
  • Thanks: 2245

Re: Can anyone ID this connector?

30 Jun 2024 14:26
#901561
AFAIK non of the KZ650 ever had a fuel level sender unit.

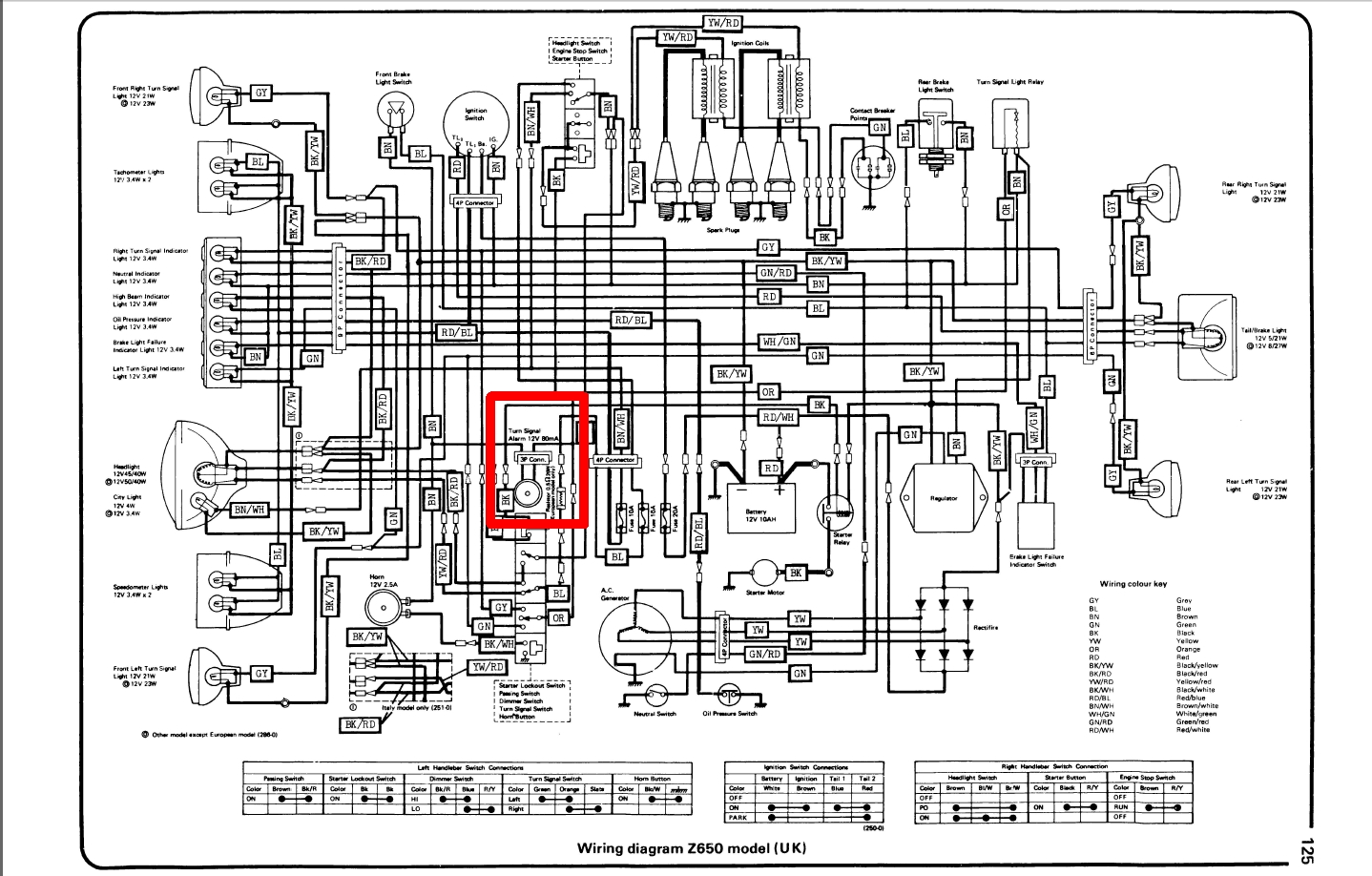

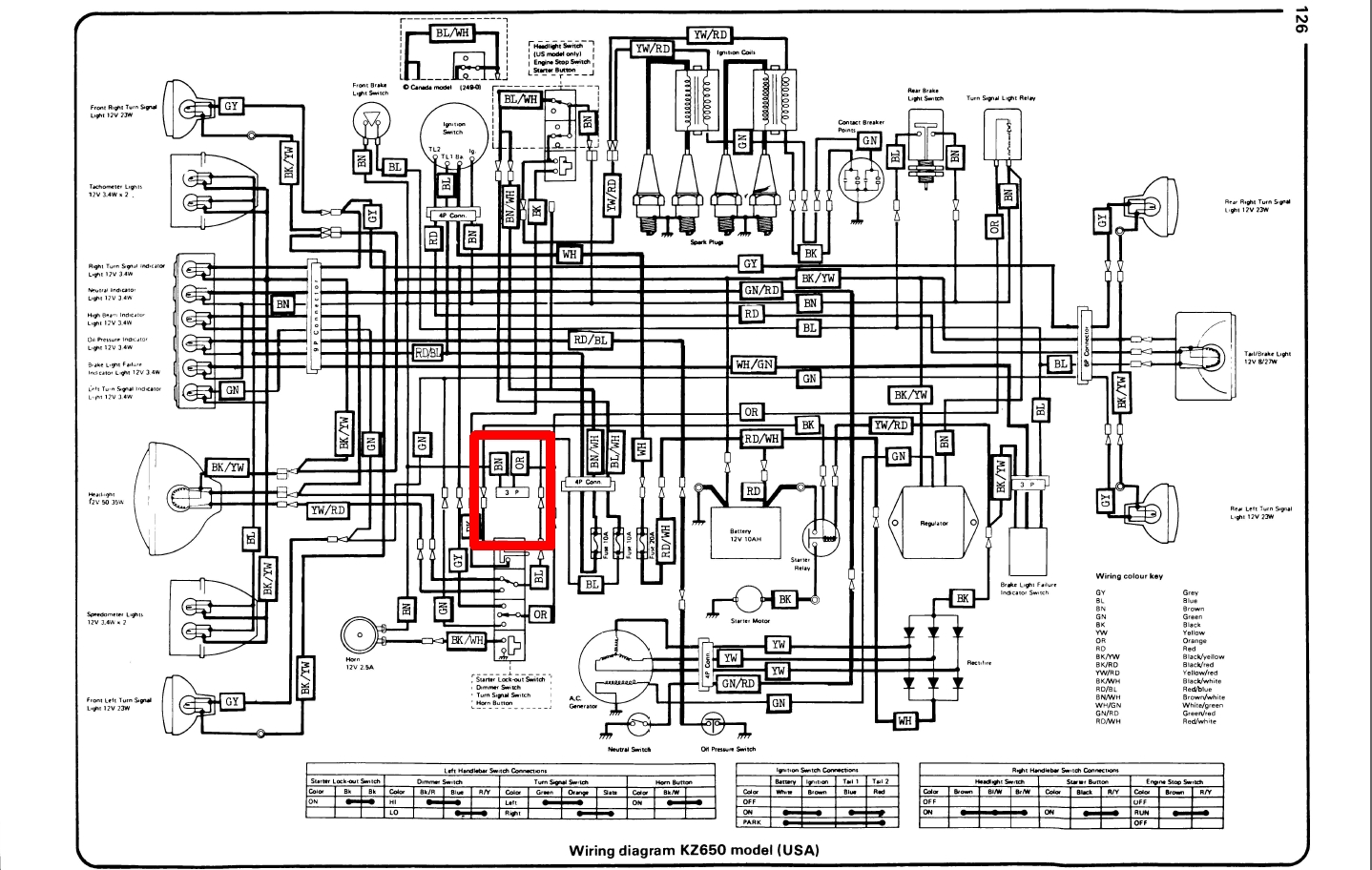

It looks like more like the disintegrated leftover of a 3 spade connector plug for the turn signal alarm beeper, just my guess.



My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1474
  • Thanks: 507

Re: Can anyone ID this connector?

30 Jun 2024 17:08
#901565

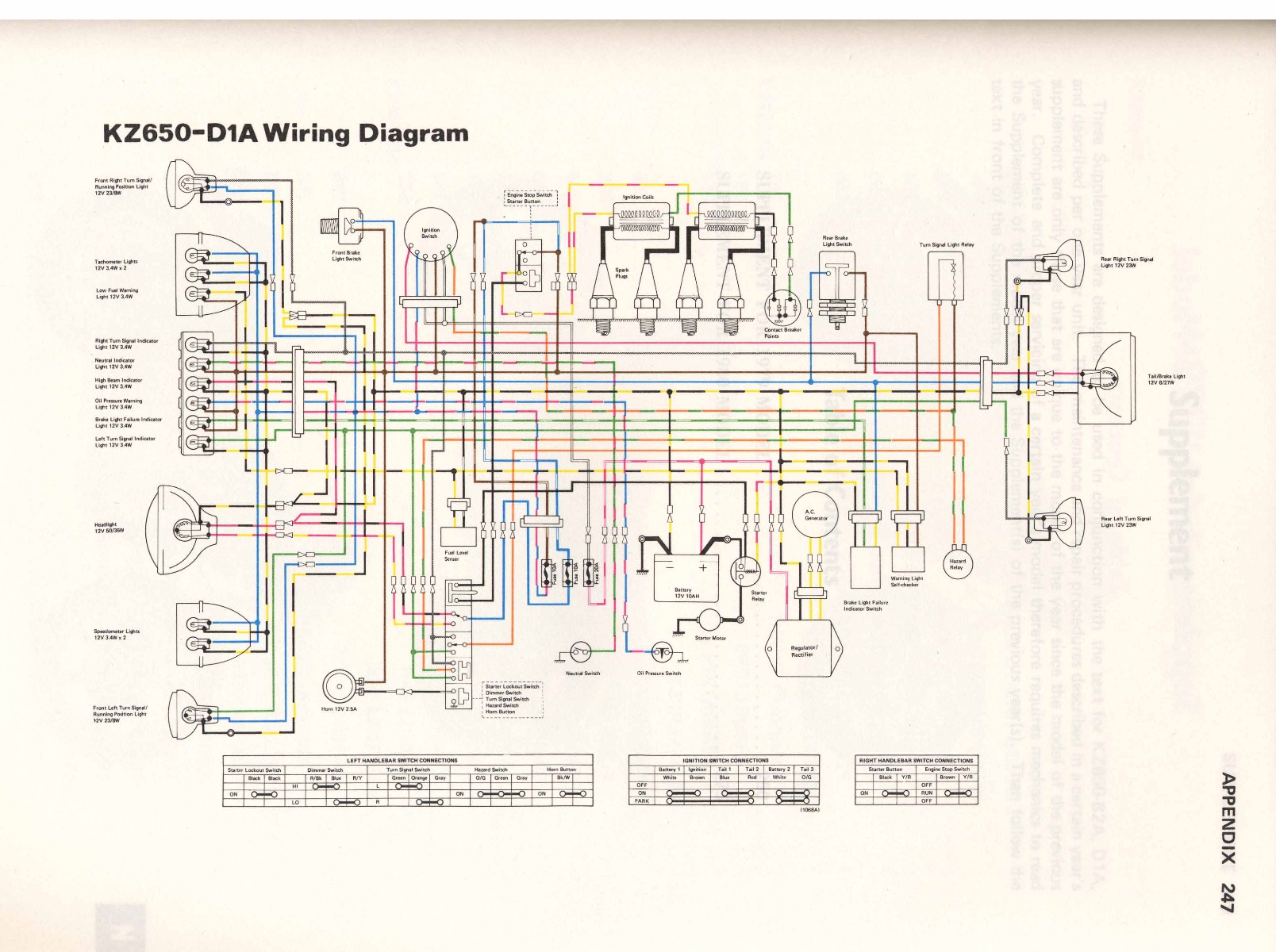

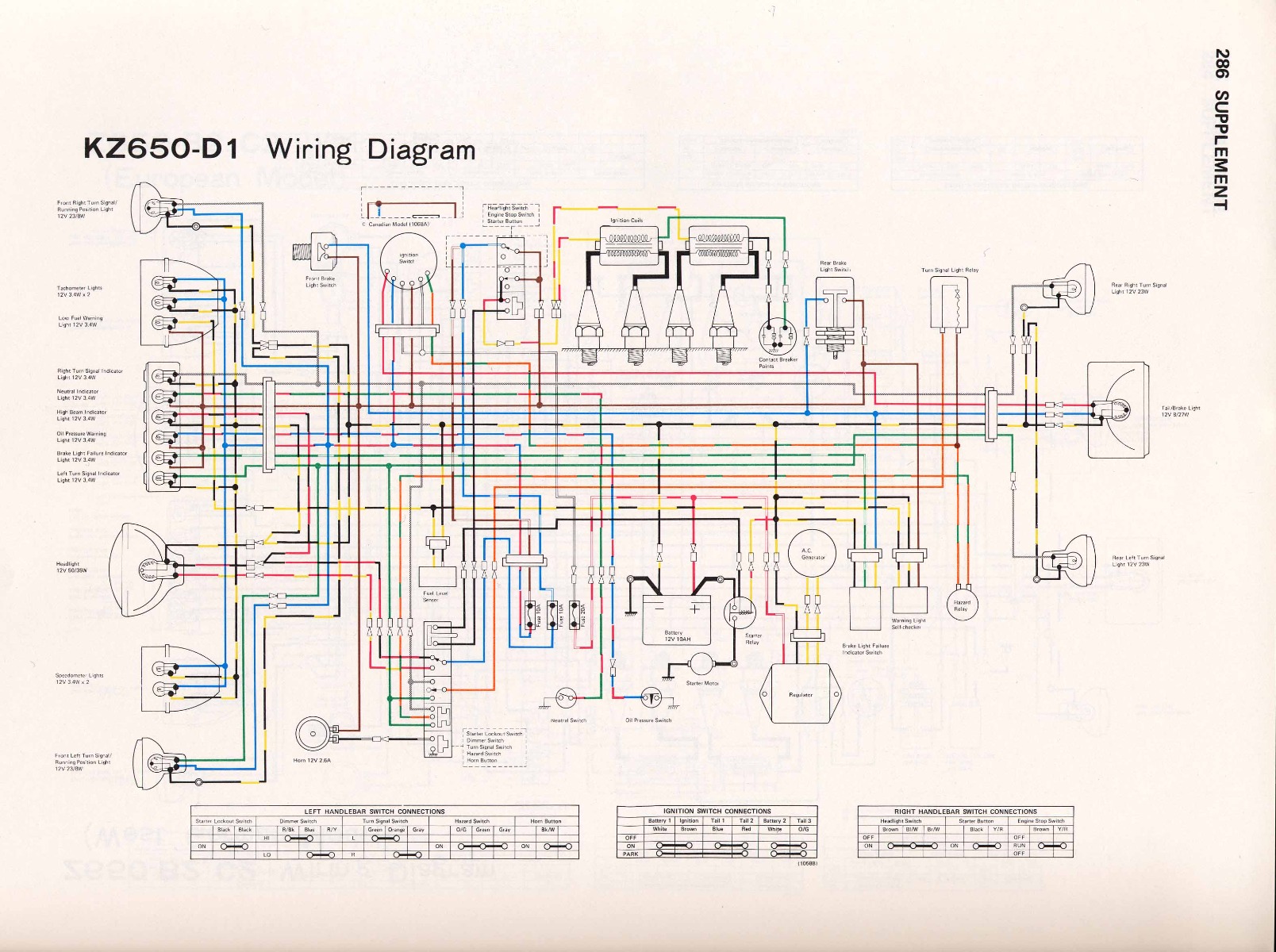

The 78 SR is a D1 or D1a and they did have the mentioned device.Here are wiring diagram for both
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: chopper1963, Scirocco

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1474
  • Thanks: 507

Re: Can anyone ID this connector?

01 Jul 2024 10:01
#901599
This topic has made me do some more looking at this and to the best of my knowledge it appears that all of the (K)Z650 SR (D models) and all of the CSR (H models) and well as the one and only LTD (E model) all have this sensor device that lights a light in the tach when the fuel level is low. This appears to be true of all the models intended for US and the rest of the world.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: chopper1963

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 4810
  • Thanks: 2888

Re: Can anyone ID this connector?

01 Jul 2024 10:09
#901601
gd4now wrote:
This topic has made me do some more looking at this and to the best of my knowledge it appears that all of the (K)Z650 SR (D models) and all of the CSR (H models) and well as the one and only LTD (E model) all have this sensor device that lights a light in the tach when the fuel level is low. This appears to be true of all the models intended for US and the rest of the world.
I'm with you on this one
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: gd4now, chopper1963

Please Log in or Create an account to join the conversation.
