Crimp replacements 08 Nov 2023 13:36 #891476

  • skinnyZED
  • skinnyZED's Avatar Topic Author
  • Offline
  • User
  • Posts: 4
  • Thank you received: 0
Hi all,
Rather than solder or splice wires together, I want to use the new higher capacity wires that came with a replacement combined  rect/reg going to the blue plug, would anyone know what is the ref or size or name of the male crimp terminals and any source in the UK that clip into the original plugs?
I’ve been searching through pages of terminals and can’t quite find something  that looks right,
Thanks for any help, Stuart
1978 Z1000A2
Z1000A2 1978

Please Log in or Create an account to join the conversation.

Crimp replacements 08 Nov 2023 23:24 #891503

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 2915
  • Thank you received: 1590
Hi Stuart, can you add pictures of what you have and what you are trying to do. You will need to measure what you want, the below can supply most of the pin contacts to use original plugs

Nickel Pin (Male) Contacts Crimp Automotive Connectors – Mouser United Kingdom
The following user(s) said Thank You: skinnyZED

Please Log in or Create an account to join the conversation.

Last edit: by Wookie58.

Crimp replacements 09 Nov 2023 07:16 #891513

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7956
  • Thank you received: 1613
Most if not all KZs have open barrel terminals which require an open barrel crimper for proper crimps. If your reg-rec terminals are the same, you might be able to find a crimper for around $30 or so.  I already had a ratcheting crimper from HarborFreight but the dies were wrong, so I got a set of open barrel dies from AircraftToolSupply on amazon.  I know you're in the UK, but I get most of my wire harness items from CycleTerminal. Z1Enterprises & VintageConnections have some of the same stuff plus color wire. cycleterminal

From cycleterminal. crimp tools page.
The following user(s) said Thank You: ThatGPzGuy, skinnyZED

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Crimp replacements 09 Nov 2023 08:29 #891516

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4866
  • Thank you received: 1830

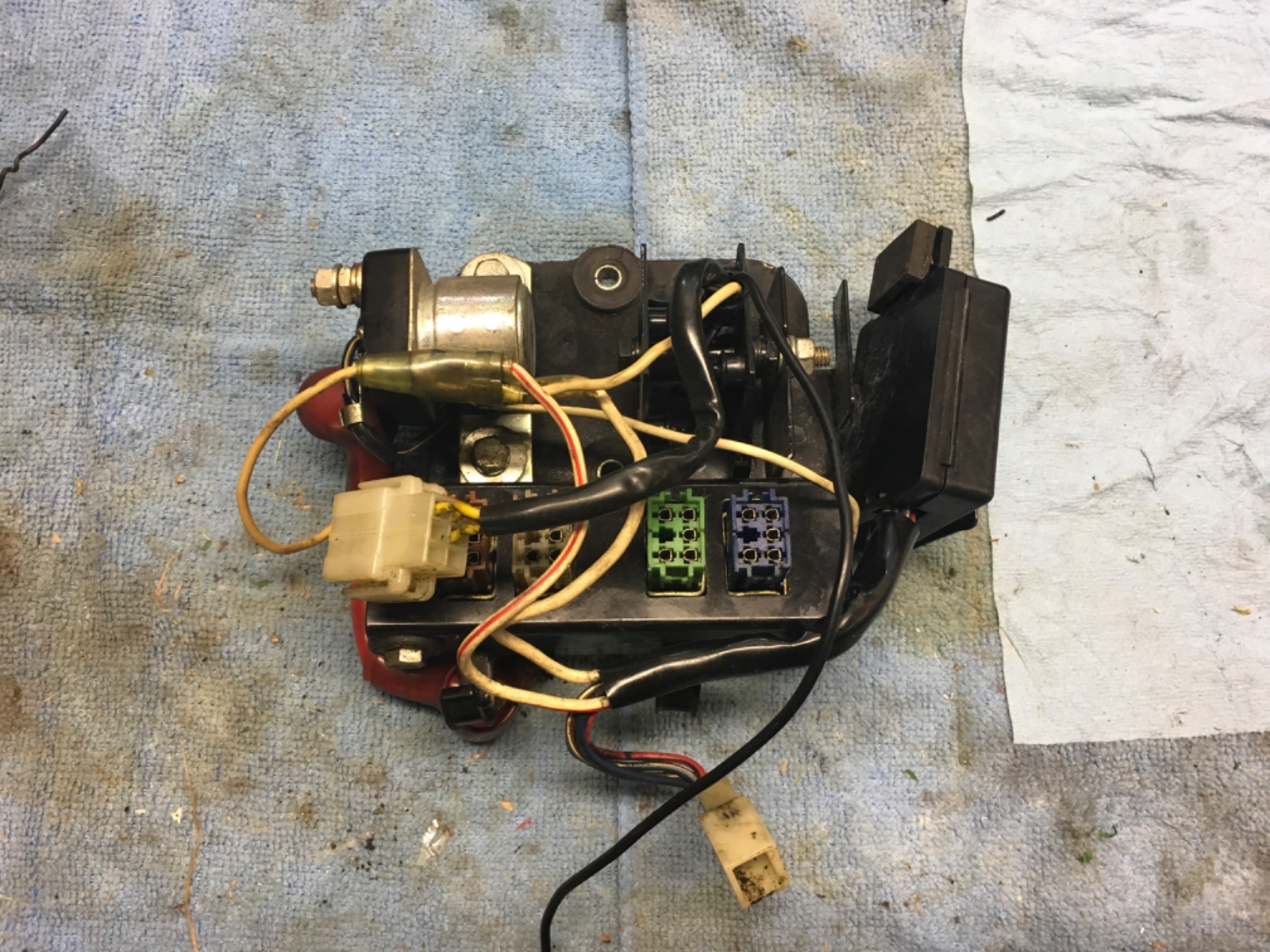

Here is what you need, not the connector but the terminals, if the blue terminal pictured is what you are referring to. They don’t list them separately but possibly contact Vintage Connections and ask the size and if they sell terminals separately.

 www.vintageconnections.com/products/yamaha-control-connector


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: skinnyZED

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

Crimp replacements 27 Nov 2023 00:38 #892114

  • skinnyZED
  • skinnyZED's Avatar Topic Author
  • Offline
  • User
  • Posts: 4
  • Thank you received: 0
Hi all, as per mikaw’s photo, I’m after a source for male terminals/crimps that go on wires that go into the blue plug shown. Do these have a name or spec?

apologies for not replying, but I have been unable to post anything due to the reCAPTCHA not working for a while, no idea why !!!! Very frustrating, tried different browsers & iPad/laptop etc
But anyway, thanks very much for any replies,
stuart
Z1000A2 1978

Please Log in or Create an account to join the conversation.

Crimp replacements 27 Nov 2023 05:04 #892119

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1088
  • Thank you received: 570
OEM pins were Sumitomo.  When Jeff still owned Z1Enterprises, he was researching replacement pins.  Don't know what became of his efforts.

We gratefully acknowledge our German friend & legendary Z1 restorer Achim for his willingness to share the following info on re-using the OEM Sumitomo pins, and his explorations of alternative connectors..  We must also gratefully acknowledge kawasaki-z-classik for hosting the following images.

The notes are in German. Our German-fu is very weak. A translation service can be used for clarity.

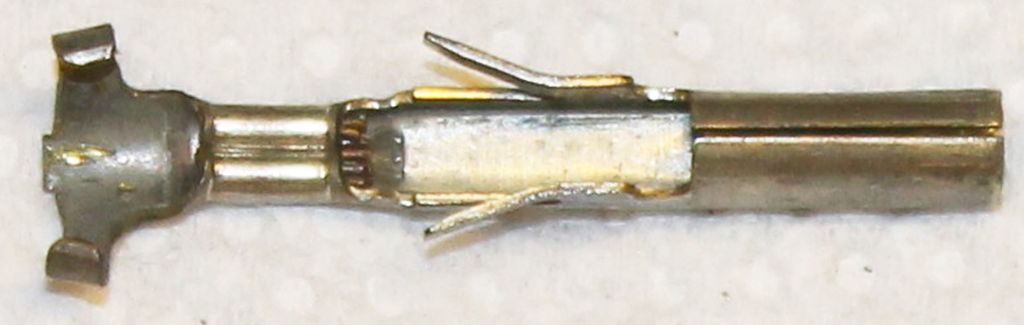

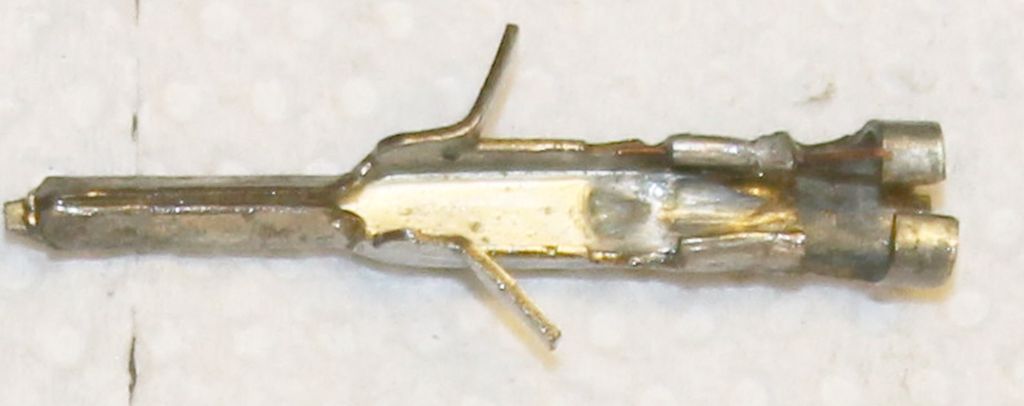

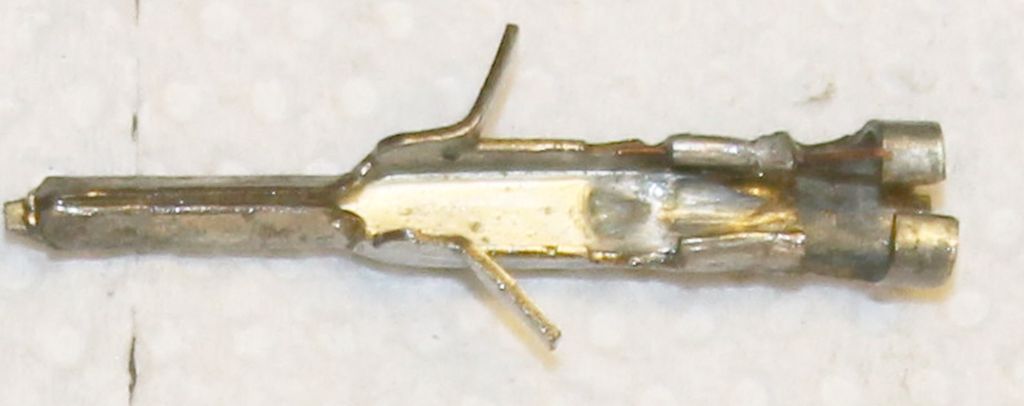

Closeup of Sumitomo pin & socket removed. Pin is completely prepped for re-use.  Socket is not; it still has to have the conductor crimp spread & copper strands removed. You'll see below that Achim recommends soldering the free ends of the new conductor strands to the (cleaned) pin body.

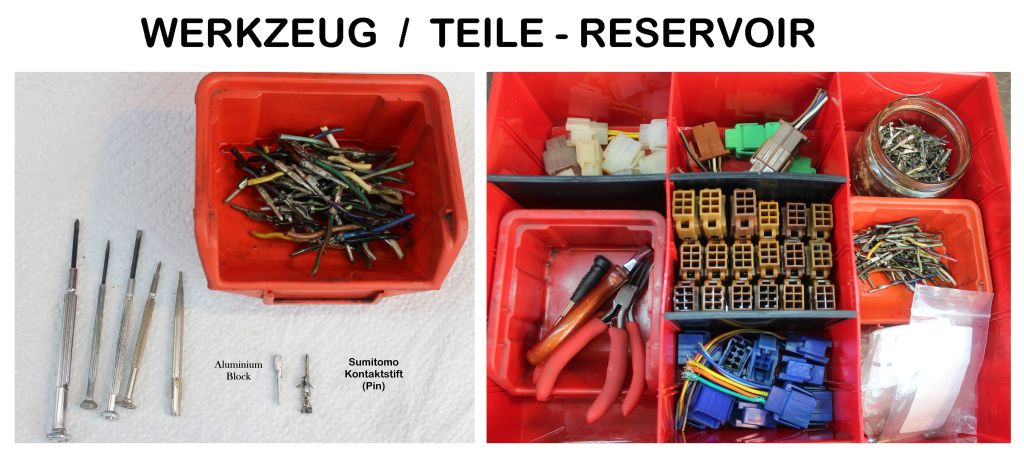

Achim's basic tool & supply setup.  The 'aluminum block' is used to support the OEM pin in a vise without crushing it while the crimps are formed* away from the insulation & conductor.

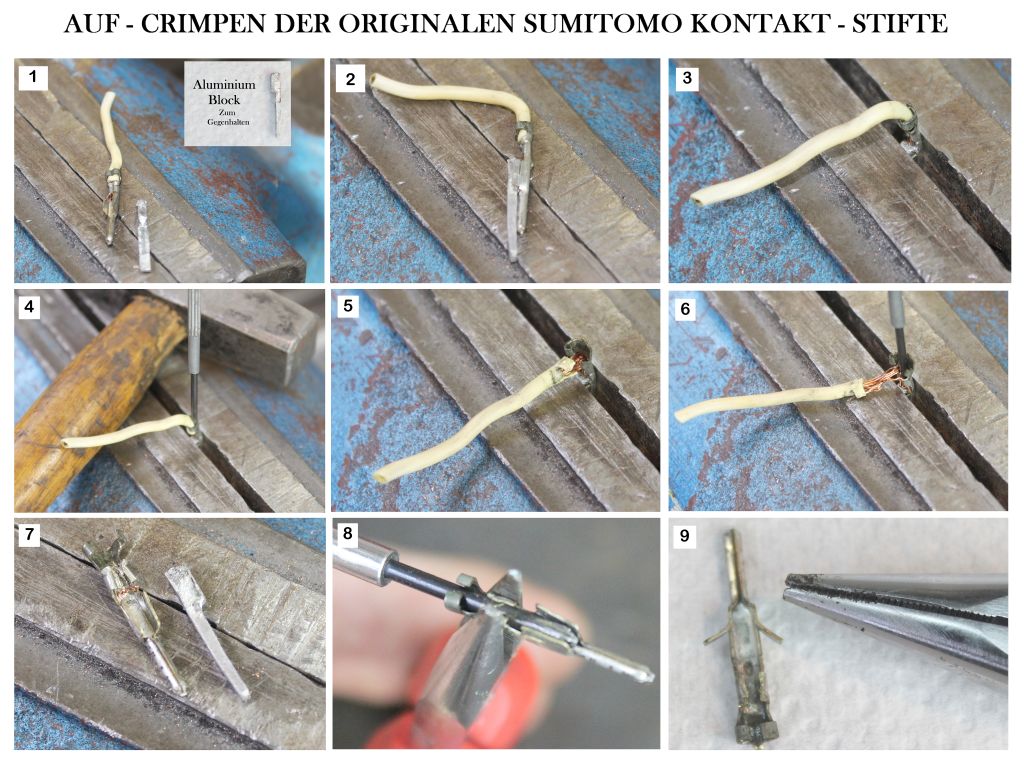

Removing the pin & prepping for re-use.  Note how the 'aluminum block' is used.

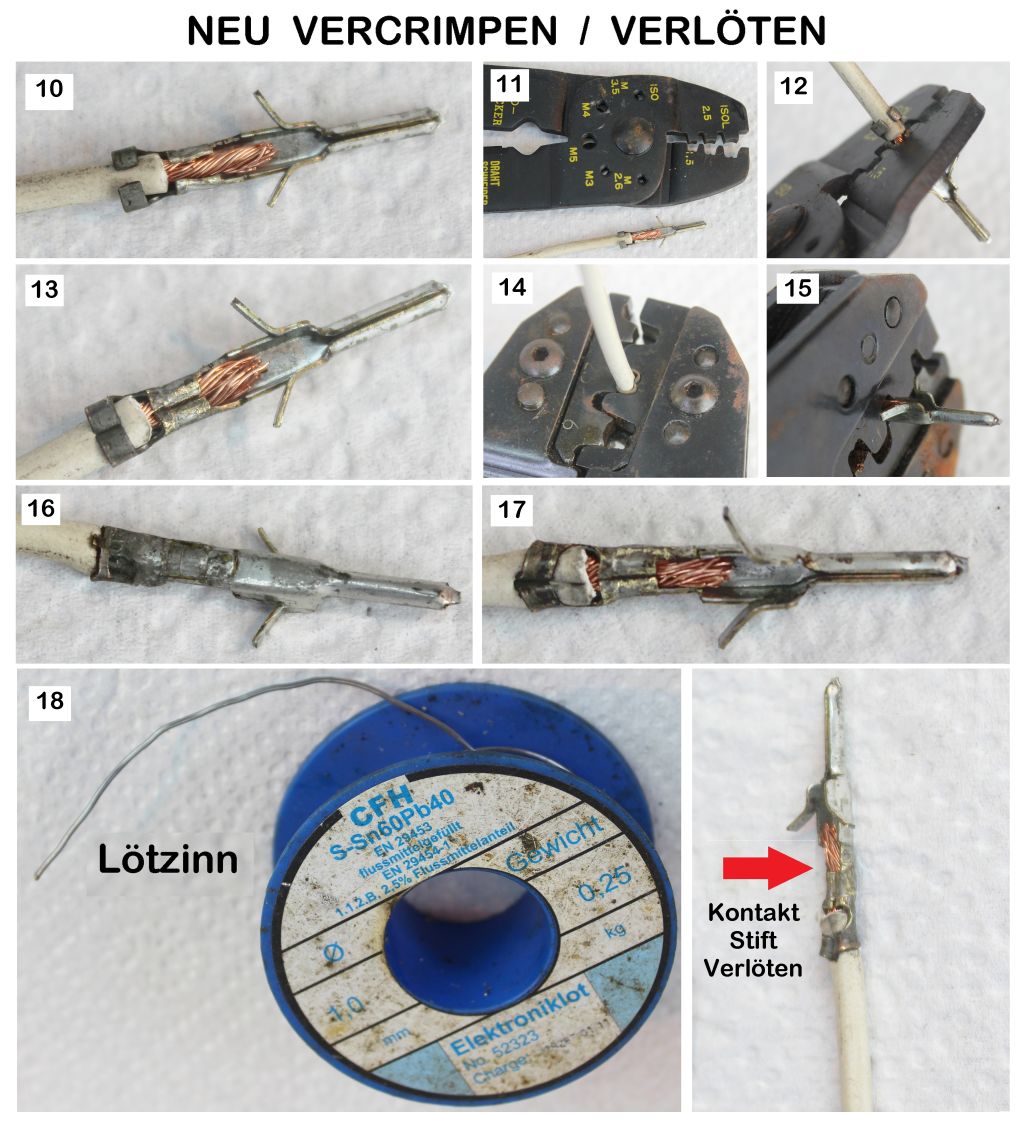

Re-crimping & soldering.  Achim shows both a ratcheting crimper and a pliers-type crimper being used.  We far & away prefer a quality pliers-type crimper,  Can't go wrong with the Japanese Engineer brand.

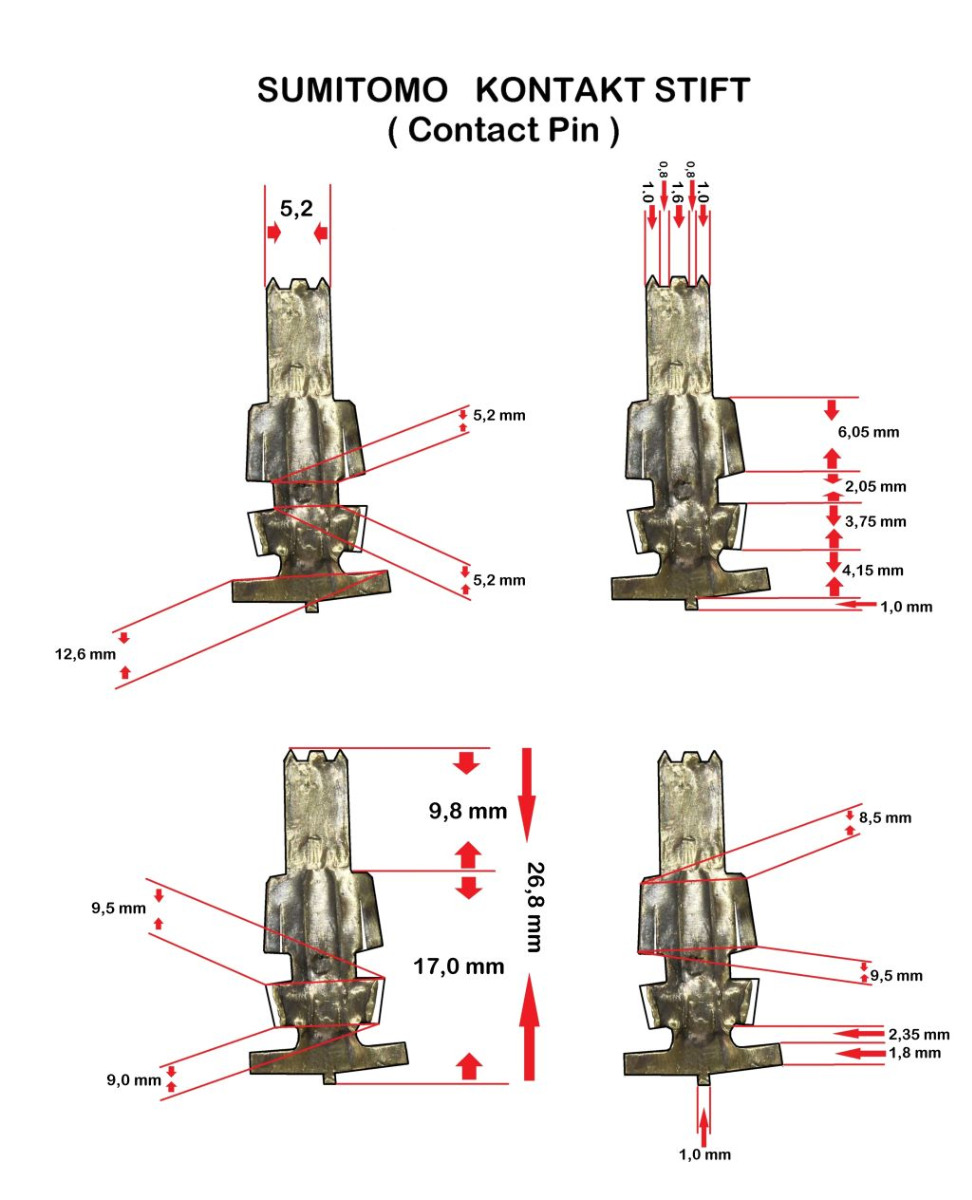

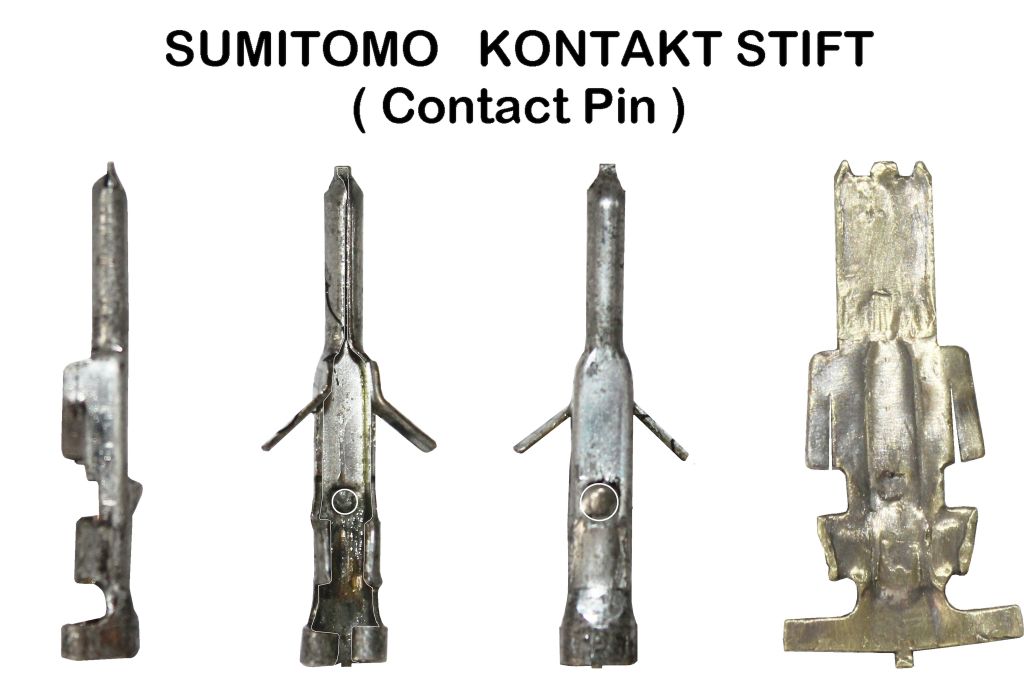

Sumitomo pin image & dimensions.  Achim apparently didn't make a similar evaluation of Sumitomo sockets.

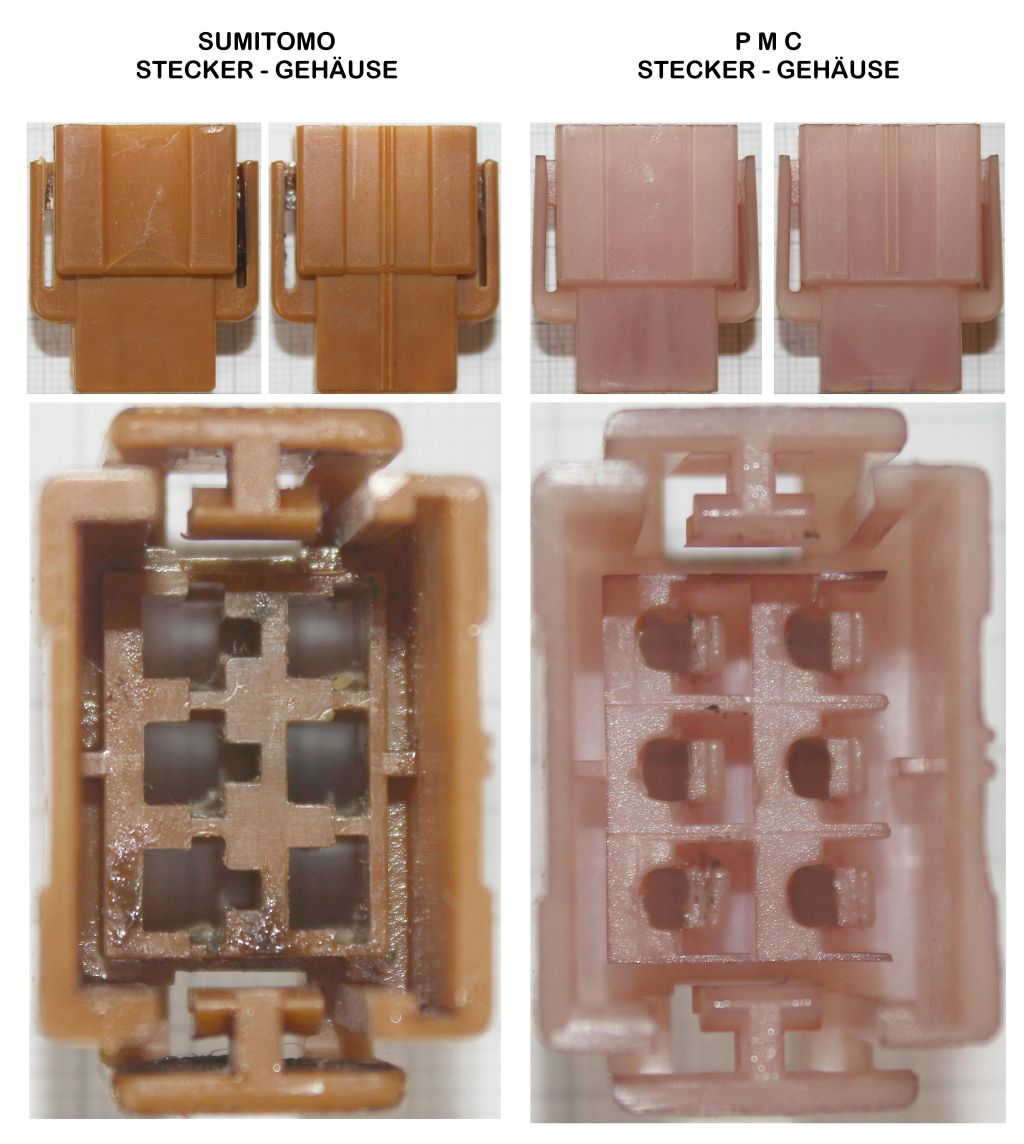

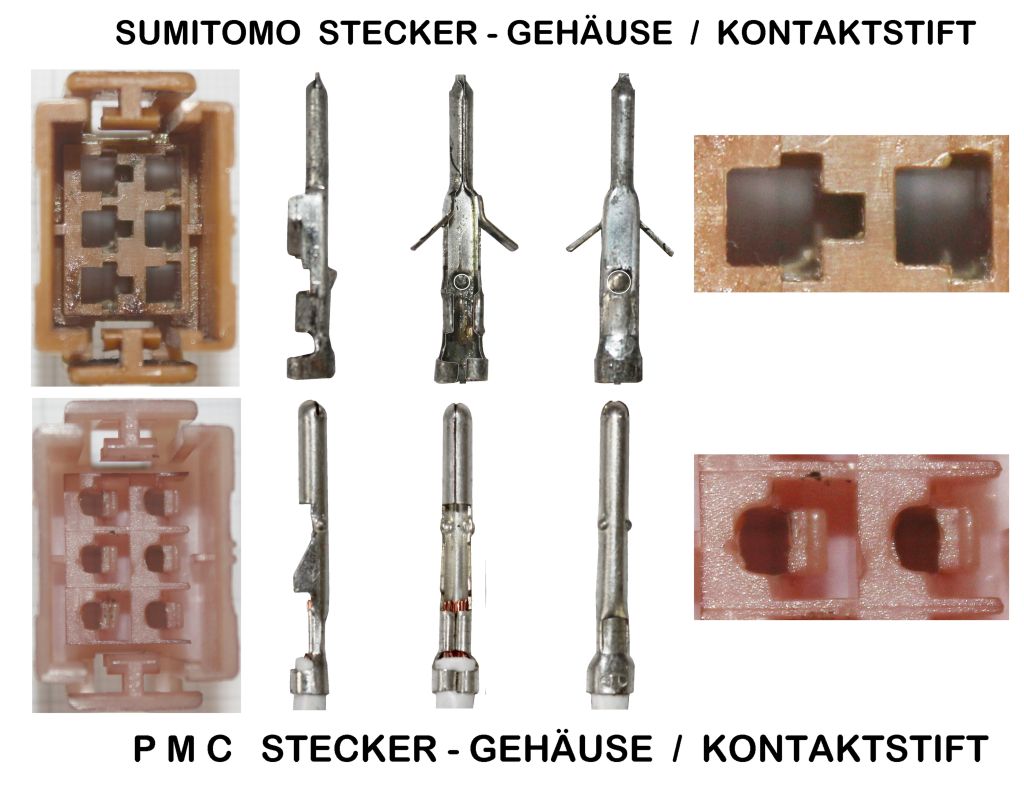

Comparison of Sumitomo & PMC pins & pin  housings.  We've not personally explored the PMC offerings at all.



Closeups.

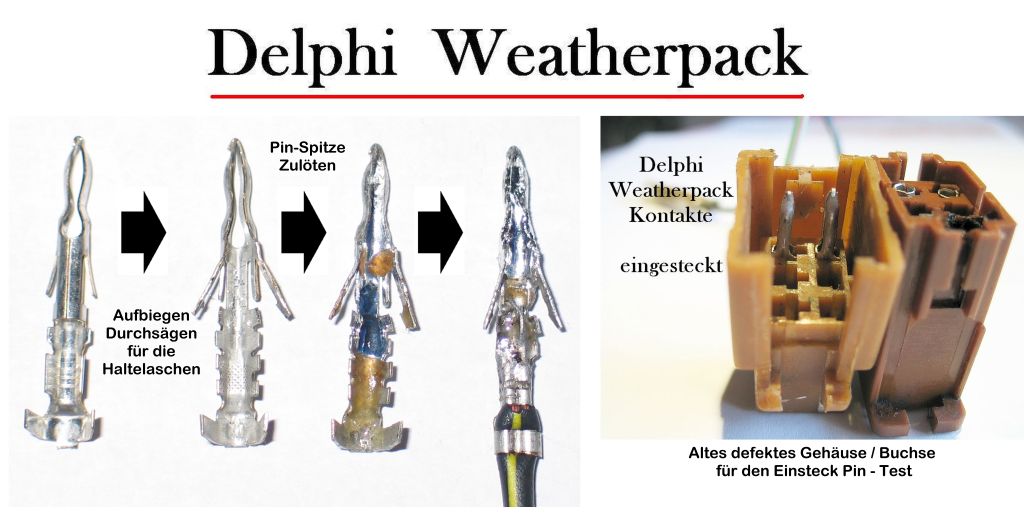

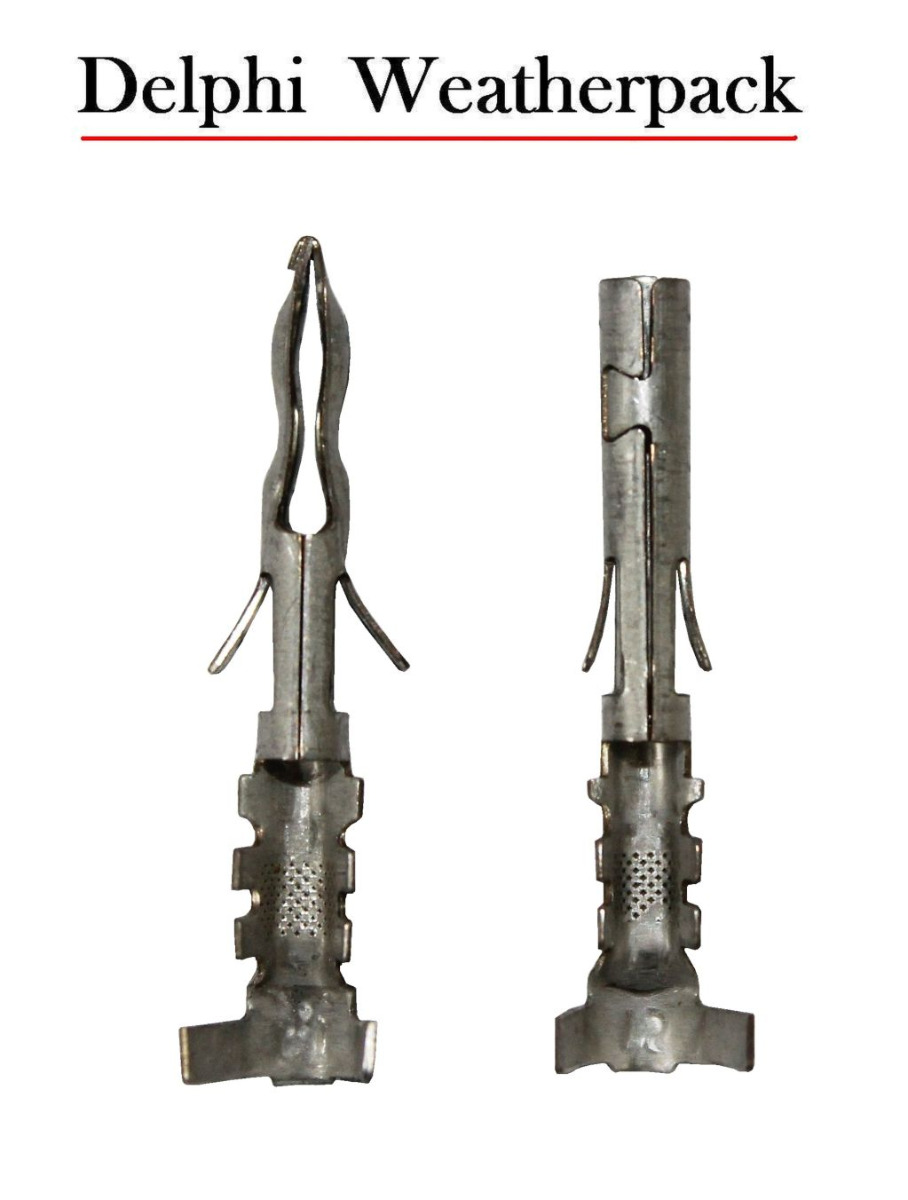

Achim also explored Delphi Weather Pack pins & sockets.

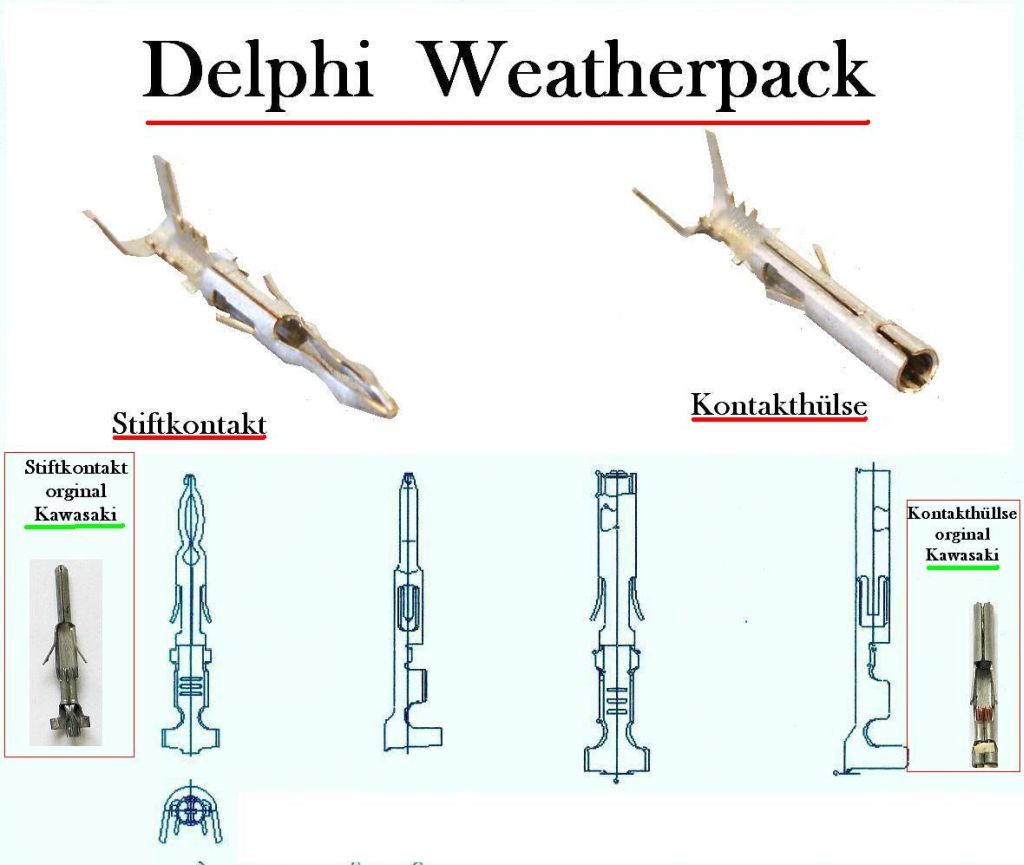

The pins must be slightly modified to work in Sumitomo housings.  No info on the sockets.



That's all the info we have.

* A good Technician never bends  anything.  If need be, it is formed.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Attachments:
The following user(s) said Thank You: ThatGPzGuy, Mikaw, Nerdy, hardrockminer, howardhb, Wookie58, skinnyZED

Please Log in or Create an account to join the conversation.

Last edit: by slmjim+Z1BEBE. Reason: Various corrections

Crimp replacements 13 Feb 2024 19:50 #895228

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7136
  • Thank you received: 2023
Why do you prefer the pliers type to the ratcheting crimper?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Crimp replacements 13 Feb 2024 20:11 #895232

  • sf4t7
  • sf4t7's Avatar
  • Offline
  • Sustaining Member
  • Posts: 334
  • Thank you received: 196
I guess I'm in the other camp, for bullet type (male and female) connectors I prefer the ratcheting type. But whichever one you are most comfortable with is the type you should use.

Slmjim and Z1BEBE: after over 30 years as a draftsman in the fabricating industry, I agree - bending implies damage, forming is intentional.
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
The following user(s) said Thank You: slmjim+Z1BEBE

Please Log in or Create an account to join the conversation.

Last edit: by sf4t7.

Crimp replacements 14 Feb 2024 07:08 #895242

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1088
  • Thank you received: 570

Why do you prefer the pliers type to the ratcheting crimper?



The dies in ratchet crimpers make two, separate, one-size-fits-all crimps, the conductor crimp & the insulation retention crimp simultaneously, without any real ability to monitor both crimp processes visually, as they are fairly hidden within the die.  Our experience is, ratchet crimpers work better with fresh wires & new connectors, but when re-using OEM pins as illustrated above, too often result in failed crimps that are too loose & fail the tug test or, over compressing the insulation leaves, puncturing the insulation, even with very good brand-name ratchet crimpers & their own dies.  Once a reused OEM pin is rendered unusable from a failed crimp in a ratchet tool, it must once more be prepped to try again, if doing so is even possible due to metal fatigue.  Too, ratchet dies have only three die sizes vs the many more sizes available on one plier tool.  If the conductor crimp needs to be further conpressed, it can't be done in ratchet dies without compromising the pin elsewhere.

The plier-type crimpers we've come to trust make the conductor & insulation-retention crimps individually, and it's easy to observe & contorl the process from either side of the jaws.  The wide range of crimp die sizing on most plier crimp tools also make tickling the die size selection easier, a necessity sometimes when OEM pins aren't consistently their virgin dimensions after opening the leaves for re-use.

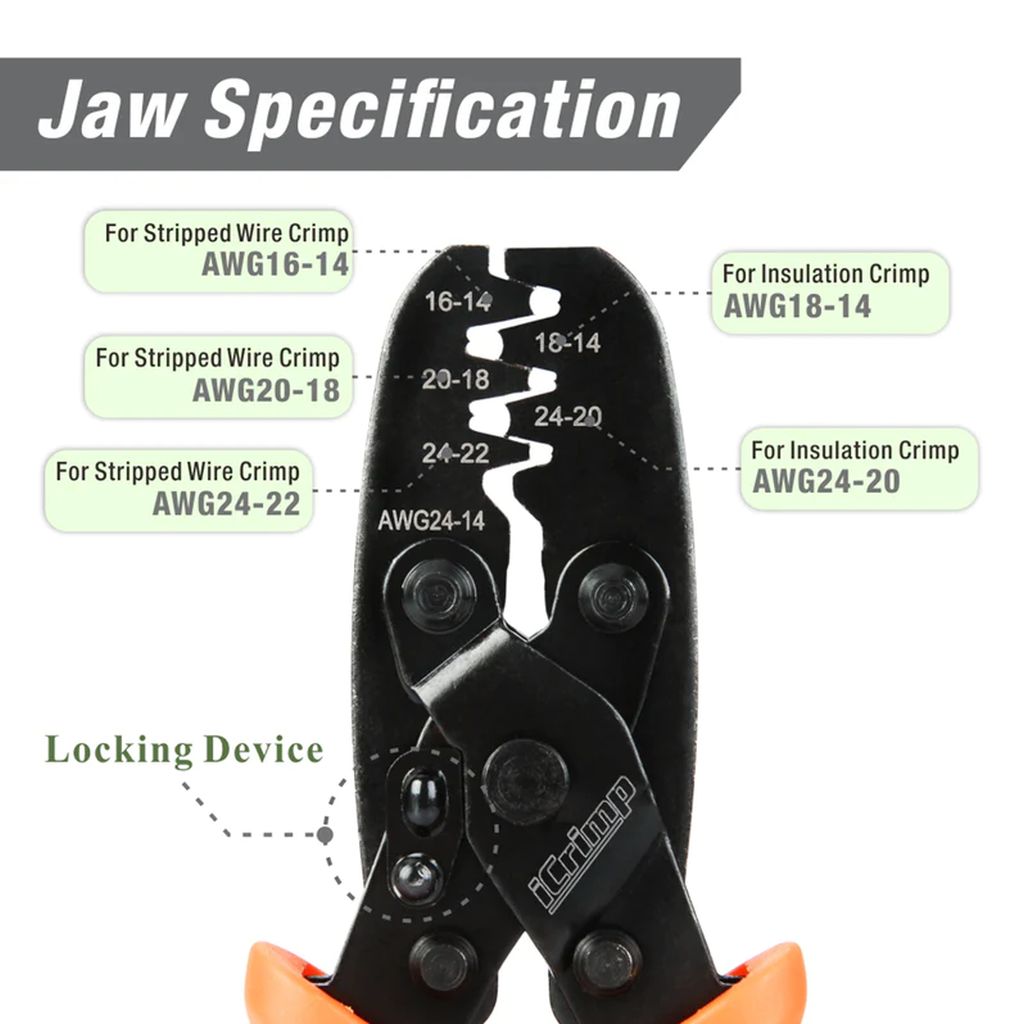

The Iwiss brand IWS-1424A plier crimper will cover every new & re-used OEM open barrel connector we've seen on vintage Kaw & Honda bikes.  It's an unmitigated bargain as well at $10.00 - $15.00.  It's our go-to tool for new & used open barrel pins.

The Hozan P-707 covers a much larger range of pin sizes that most of us will ever need in addition to the sizes common on our vintage bikes, but at five times the price of the the Iwis IWS-1424A.  Can't go wrong with this one for electronics use.

If one absolutely, positively, must have a quality ratchet crimper, The Pro'sKit CP-3006 parallel-jaw ratchet tool with the correct open barrel dies is the best we've found for new, open barrel bullet connectors.  Not to be used on butt connectors for obvious reasons.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

The following user(s) said Thank You: TexasKZ

Please Log in or Create an account to join the conversation.

Last edit: by slmjim+Z1BEBE.

Crimp replacements 14 Feb 2024 10:59 #895250

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 2915
  • Thank you received: 1590
I personally pref the flexibility of "plier" crimpers however when I worked for VWG dealers had to use a (very expensive) wiring repair kit sourced through the manufacturer. These kits included "ratchet" crimpers which left a distinctive imprint from the dies. If the correct crimpers weren't used subsequent failure of the repair would not be covered under warranty (a failed crimp rejected under warranty doesn't seem like a "big deal" but the repair could have required several hours labour for diagnosis and access so the financial penalty could be significant)

Please Log in or Create an account to join the conversation.

Crimp replacements 14 Feb 2024 19:29 #895265

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2881
  • Thank you received: 999
I used the pliers style for a couple of years and then switched to a ratchet style crimper and won't go back.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

Crimp replacements 15 Feb 2024 05:49 #895276

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1088
  • Thank you received: 570

I used the pliers style for a couple of years and then switched to a ratchet style crimper and won't go back.


Interesting.  Was the plier design single-pivot, or compound pivot like these?


We've never been satisfied with the two single-pivot open barrel tools we've tried. They only had three crimp stations.  Ended up selling them.   But that was early on in our search for crimpers to use with recovered OEM pins as well as new open barrel bullet pins.

Good Ridin
slmjim & Z1BEBE

A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Attachments:
