KZ650SR Ignition Points - Screws

21 Aug 2020 02:02
#833382
Hi, I am trying to sort a 1978 KZ650SR non-runner. The screws holding the points on are pretty chewed up. i would like new ones before removing the old.

Anyone know what size screws are needed? Any help or advice would be welcome.

Thanks guys

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4411
  • Thanks: 2263

Re: KZ650SR Ignition Points - Screws

21 Aug 2020 02:40
#833383
Metric M4 x 8 mm (length)
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: KZ650SR Ignition Points - Screws

21 Aug 2020 05:48 - 21 Aug 2020 07:19
#833386
For future reference many fastener sizes are listed in the parts diagrams.

Kawasaki.com. Cmsnl.com. or Partzilla which is the easiest to use.
1981 KZ650 Competition Sports and Road
Last edit: 21 Aug 2020 07:19 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Evobobber
  • Evobobber's Avatar Topic Author
  • Offline
  • User
  • Posts: 19
  • Thanks: 2

Re: KZ650SR Ignition Points - Screws

21 Aug 2020 06:08
#833390
Never seen Partzilla before. Very impressed.

Thank you

Please Log in or Create an account to join the conversation.

  • Evobobber
  • Evobobber's Avatar Topic Author
  • Offline
  • User
  • Posts: 19
  • Thanks: 2

Re: KZ650SR Ignition Points - Screws

21 Aug 2020 06:09
#833391
Brill, just ordered some.

Thank you

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15343
  • Thanks: 2830

Re: KZ650SR Ignition Points - Screws

21 Aug 2020 08:21 - 21 Aug 2020 08:21
#833396

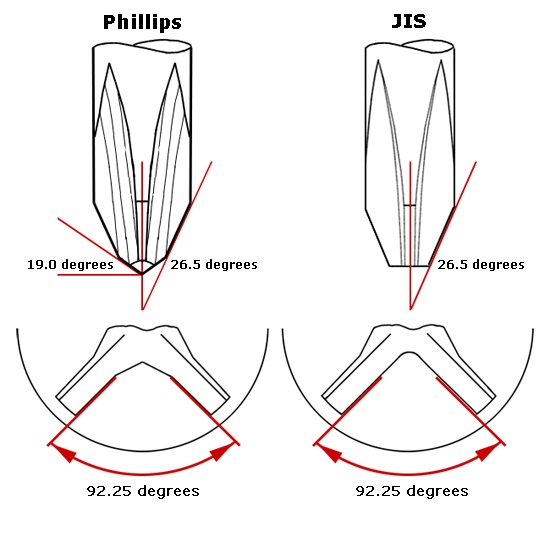

Just in case you are not aware of it - there are no phillips screws on any KZ. Those cross headed screws that look like phillips are actually Japanese Industrial Standard (JIS) and using a phillips screwdriver on them will damage them becasue the screwdriver will not seat properly in the screw. You can very easily make JIS screwdriver tips from phillips tips - just ask if you need any instructions on how to do it. Ed

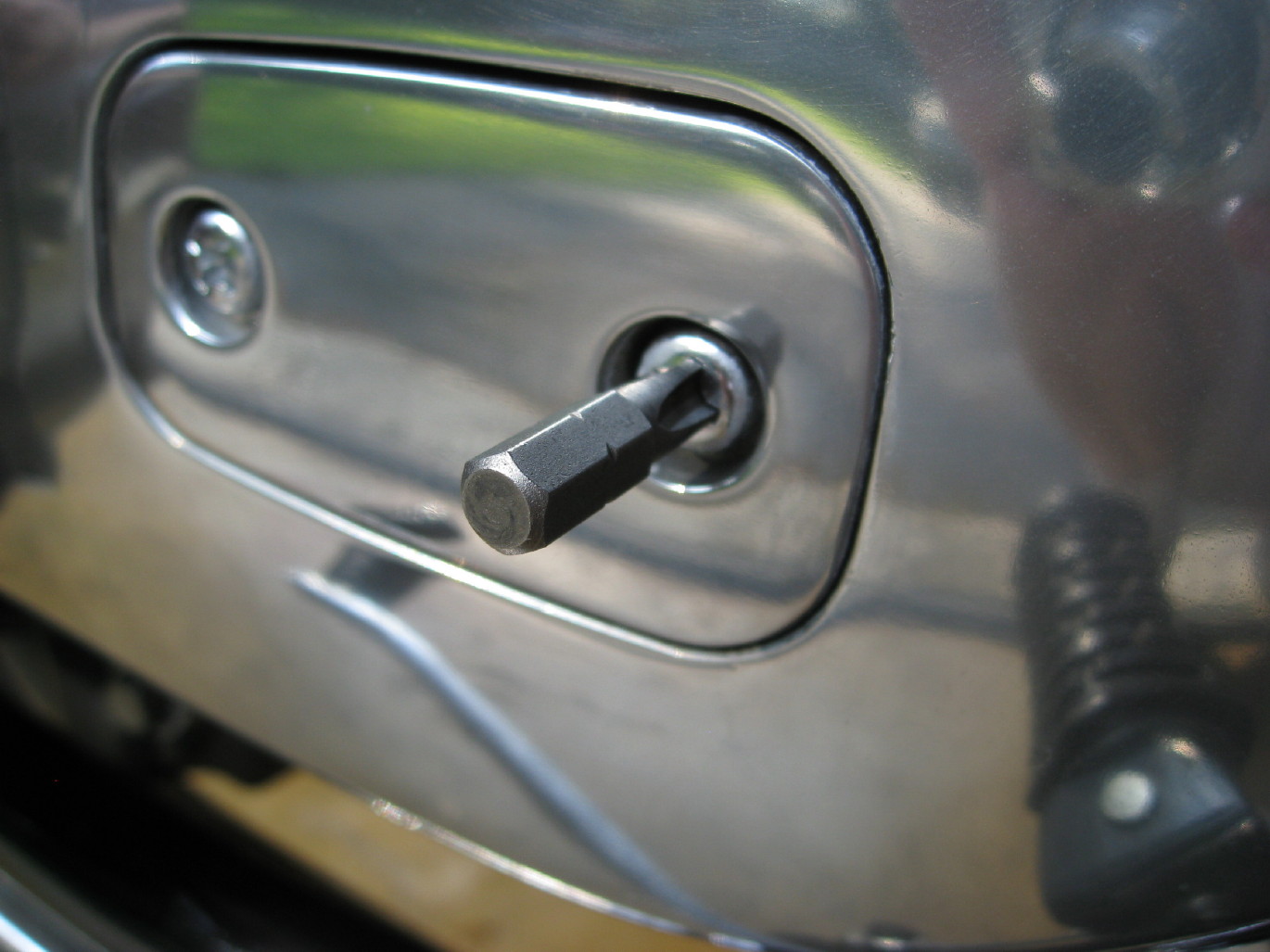

HOME MADE JIS BIT
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Last edit: 21 Aug 2020 08:21 by 650ed.
