Trying to figure out what this is?
- Firewind75
-
Topic Author
- Offline
- User
- Posts: 2
- Thanks: 0
Trying to figure out what this is?
07 May 2019 10:13 - 07 May 2019 10:16
I was going through the bike looking for any bad or corroded connections, and I found this little sucker tucked up behind the fuse box.
What caught my eye was that it looked melted at the time. It was actually covered in black sticky insulation tape that was in very bad shape.
It has 3 wires coming out of it. (Green w/ white stripe. Black and Yellow)
It plugs into what looks like the harness into a plug with 3 wires. (Blue, Green w/ white stripe, and Black with a yellow stripe)
I have been having charging issues, and while I do not think this is a cause, I am curious as to what it is.
Thanks for taking the time to look at my post.
This is on a 80 KZ750 H1
What caught my eye was that it looked melted at the time. It was actually covered in black sticky insulation tape that was in very bad shape.
It has 3 wires coming out of it. (Green w/ white stripe. Black and Yellow)
It plugs into what looks like the harness into a plug with 3 wires. (Blue, Green w/ white stripe, and Black with a yellow stripe)
I have been having charging issues, and while I do not think this is a cause, I am curious as to what it is.
Thanks for taking the time to look at my post.
This is on a 80 KZ750 H1
Last edit: 07 May 2019 10:16 by Firewind75.
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
- Posts: 1570
- Thanks: 792
Re: Trying to figure out what this is?
07 May 2019 10:21 - 07 May 2019 10:22
Brake light outage indicator by the looks of it. It makes your idiot stop light flash if the tail light blows.
Last edit: 07 May 2019 10:22 by Warren3200gt.
The following user(s) said Thank You: Firewind75
Please Log in or Create an account to join the conversation.
- Firewind75
-
Topic Author
- Offline
- User
- Posts: 2
- Thanks: 0
Re: Trying to figure out what this is?
07 May 2019 10:26
That makes sense. I actually unhooked it and started the bike up but found everything was working as before.
The PO took all the meters and lights off and only replaced with speedo and tach. Which is probably why I didn't notice anything was off while it was out.
The PO took all the meters and lights off and only replaced with speedo and tach. Which is probably why I didn't notice anything was off while it was out.
Please Log in or Create an account to join the conversation.
- gazzz
-
- Offline
- Sustaining Member
- Posts: 563
- Thanks: 318
Re: Trying to figure out what this is?
07 May 2019 14:36
Looks like typical diode unit. Usually it connects igniter and clutch/neutral/side-stand switches and is used in safety circuits like: do not crank engine while gear is on and clutch not pulled in, kill engine when try to ride with side-stand still down (counting that side-stand switch is present).
Kawasaki KZ650 cafe-racer: in progress
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer
www.gazzz-garage.com
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Away
- Premium Member
- Never change a running system
- Posts: 4414
- Thanks: 2264
Re: Trying to figure out what this is?
07 May 2019 17:39

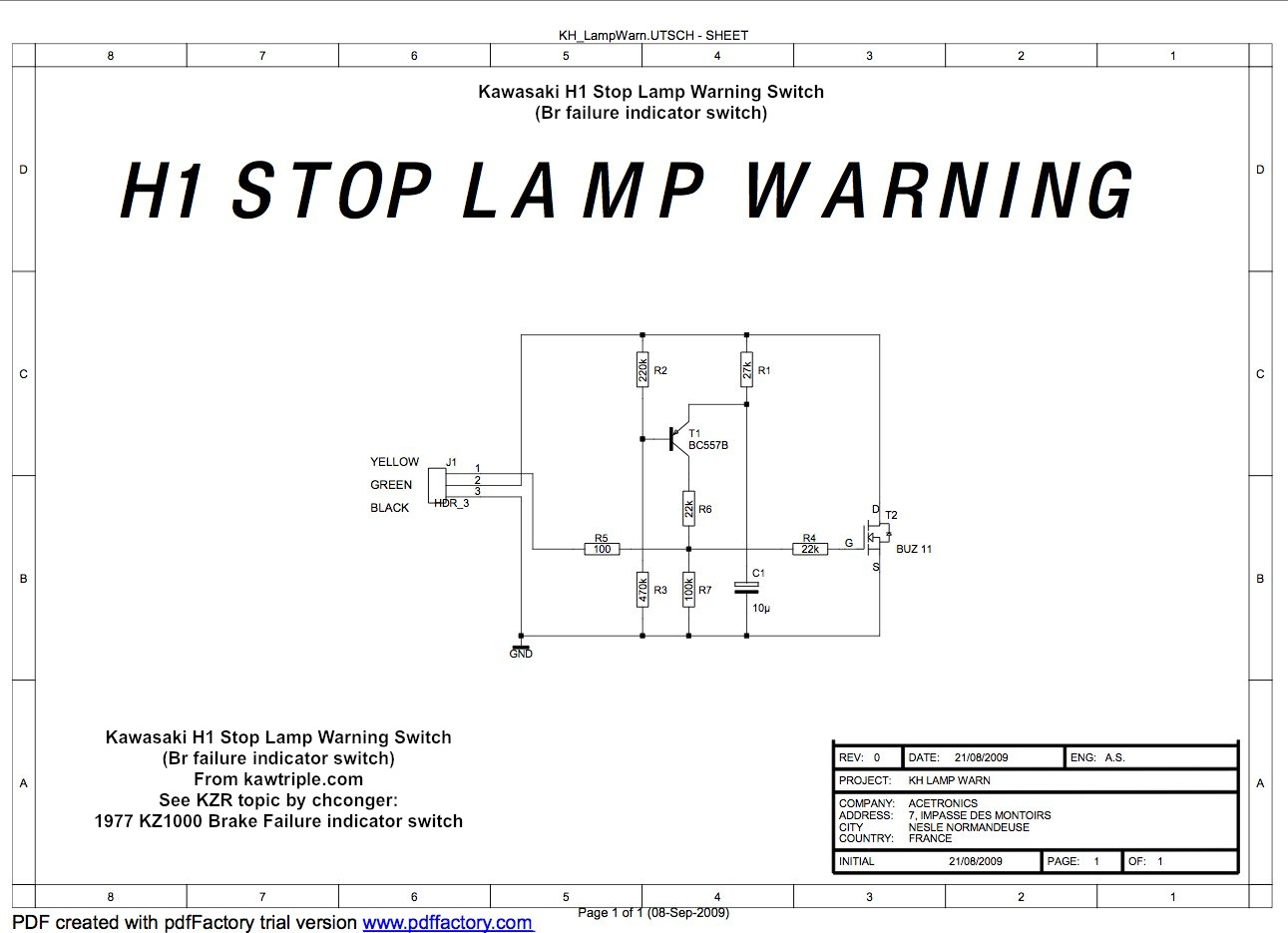

Sorry gazzz it´s only a rear light failure indicator switch circuit. It works indipendent of the side stand safety circuits.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Firewind75
Please Log in or Create an account to join the conversation.
- gazzz
-
- Offline
- Sustaining Member
- Posts: 563
- Thanks: 318
Re: Trying to figure out what this is?
08 May 2019 10:46
Sorry, used to such usage of similar looking diodes in Yamaha wiring.
