ic ignitor question

20 Apr 2019 23:41
#802512
what exactly am I plugging the ignitor to? the battery and the coils?
1981 kz 650 csr

Please Log in or Create an account to join the conversation.

  • Nebr_Rex
  • Nebr_Rex's Avatar
  • Offline
  • User
  • Posts: 1887
  • Thanks: 295

Re: ic ignitor question

21 Apr 2019 04:55
#802515
And the pickup coils. What bike are you working on?


.
2002 ZRX1200R
81 GPz1100
79 KZ1000st daily ride
79 KZ1000mk2 prodject
78 KZ650sr
78 KZ650b
81 KZ750e
80 KZ750ltd
77 KZ400/440 cafe project
76 KZ400/440 Fuel Injected

www.dotheton.com/forum/index.php?topic=39120.0


.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 7676
  • Thanks: 3051

Re: ic ignitor question

21 Apr 2019 04:58
#802516

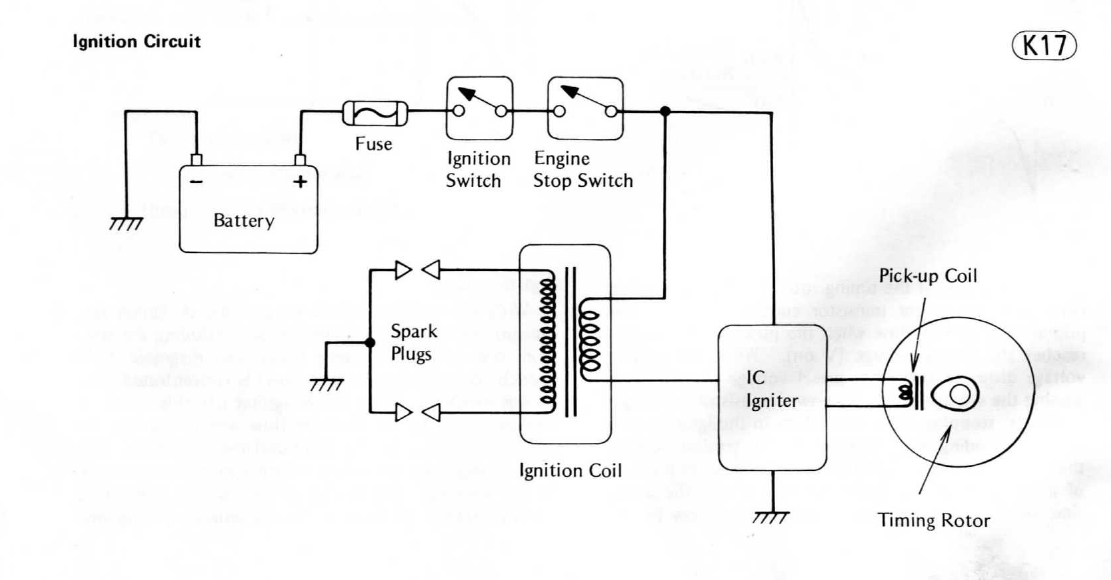

A simplified diagram is shown below. Check your service manual for a proper wiring diagram. This site has an archive of manuals for free download if you don't already have one.

Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Attachments:

The following user(s) said Thank You: rudof88

Please Log in or Create an account to join the conversation.

  • rudof88
  • rudof88's Avatar Topic Author
  • Offline
  • User
  • Posts: 5
  • Thanks: 0

Re: ic ignitor question

21 Apr 2019 20:48 - 21 Apr 2019 21:06
#802591
1981 kz650 csr. I am in the process of wiring the whole thing from using the m unit
1981 kz 650 csr
Last edit: 21 Apr 2019 21:06 by rudof88.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: ic ignitor question

22 Apr 2019 07:28
#802605
1981 KZ650-H1 wiring diagram.
Open the image in a new window to enlarge it, then click again to enlarge some more. It's big.
[img


ps: do you have the pdf manual? there is one available.
....
1981 KZ650 Competition Sports and Road

Please Log in or Create an account to join the conversation.

  • rudof88
  • rudof88's Avatar Topic Author
  • Offline
  • User
  • Posts: 5
  • Thanks: 0

Re: ic ignitor question

22 Apr 2019 13:01
#802626
very much appreciated. I actually have the manual but it was just a lot to look at all at one time
1981 kz 650 csr

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: ic ignitor question

22 Apr 2019 13:47
#802631
If you're going to do a simplified wiring diagram, check out the bare bones for mattylight topic by loudhvx. There's a diagram for the 650-H1 CSR.


....
1981 KZ650 Competition Sports and Road
