KZ 1000 1979

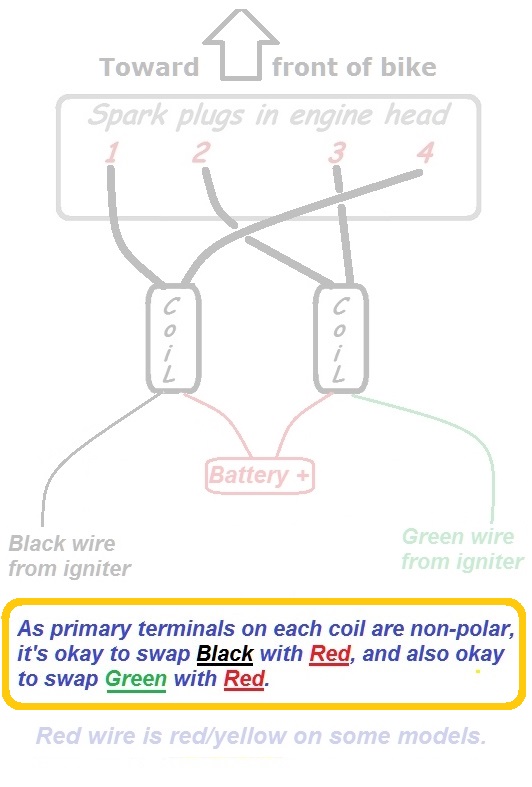

JPAULOCOUPE wrote: left side
1 - red
2 - black

right side
1 - red
2 - green

That's the stock connections.

Good Fortune!

hi make a test today

in the left coil
red on top, black down

in the right
red on top (change to down), green on down (change do top)

the position in try to 1-4, 2-3 but sends bursts
in the position 2-3, 4-1 will started

today i make more test includ the carburator.

For further testing and tuning and restoring optimal engine performance, I would strongly suggest leaving the left coil plug wires connected to outside plugs #1 and #4 and the right coil plug wires connected to inside plugs #2 and #3.

Good Fortune!
