Wiring diagram for E2, european model.

22 Jul 2018 05:46
#787382
Hi all! Thanks for letting me in here!
I discovered a blue/brown wire inside the main light bucket today. It has a female round connector at the end. What is it for?
Does anybody have a wiring diagram, or a similar bike to tell me?

Z1000ST E2 1980, Windjammer fairing, saddlebags and top box.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 8012
  • Thanks: 3395

Re: Wiring diagram for E2, european model.

22 Jul 2018 12:37 - 22 Jul 2018 12:38
#787415

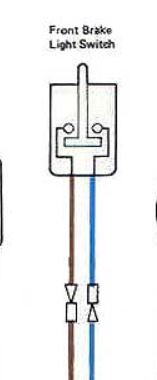

Sounds like the brake light connector.  There should be a jumper that connects the front master cylinder switch to that connector.  This guess is based off reviewing some other KZ manuals.  Kawasaki standardized the wiring colors across various bikes.

Ed
Carb O-ring Kits : www.kzrider.com/forum/14-vendor-forum/62...rburetor-o-ring-kits

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 22 Jul 2018 12:38 by Nessism.
The following user(s) said Thank You: ErlingW
