Not sure what this is called 05 Oct 2017 12:28 #772392

  • tomsbadkz
  • tomsbadkz's Avatar Topic Author
  • Offline
  • User
  • Posts: 235
  • Thank you received: 38

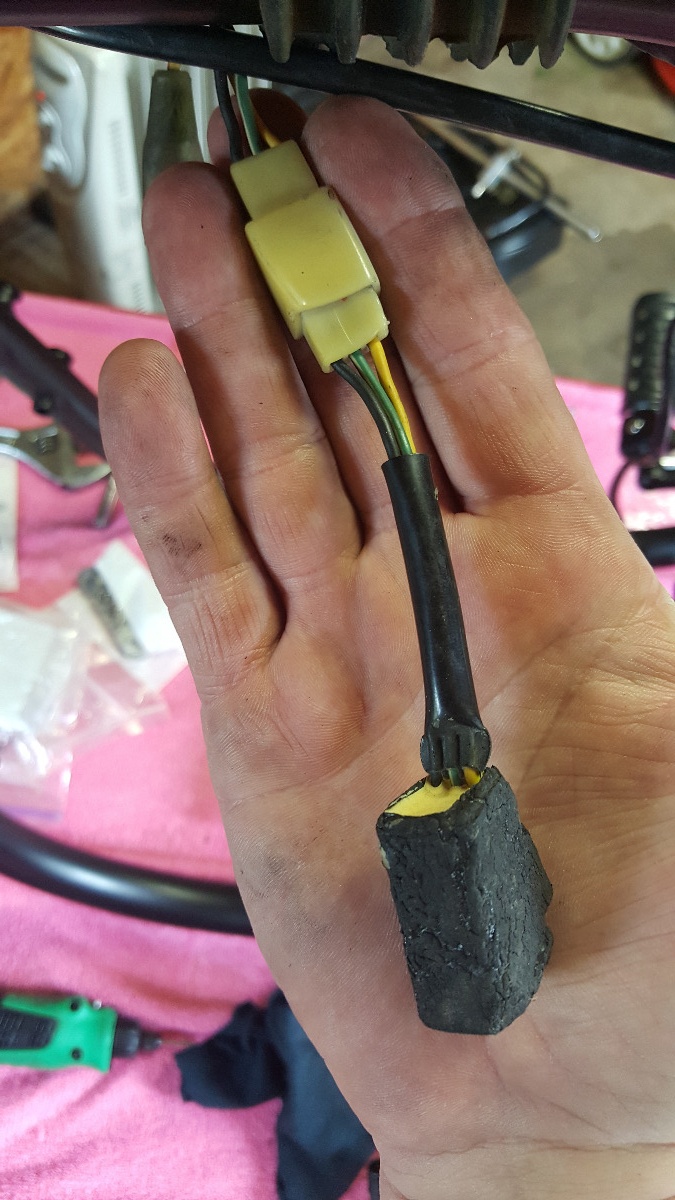

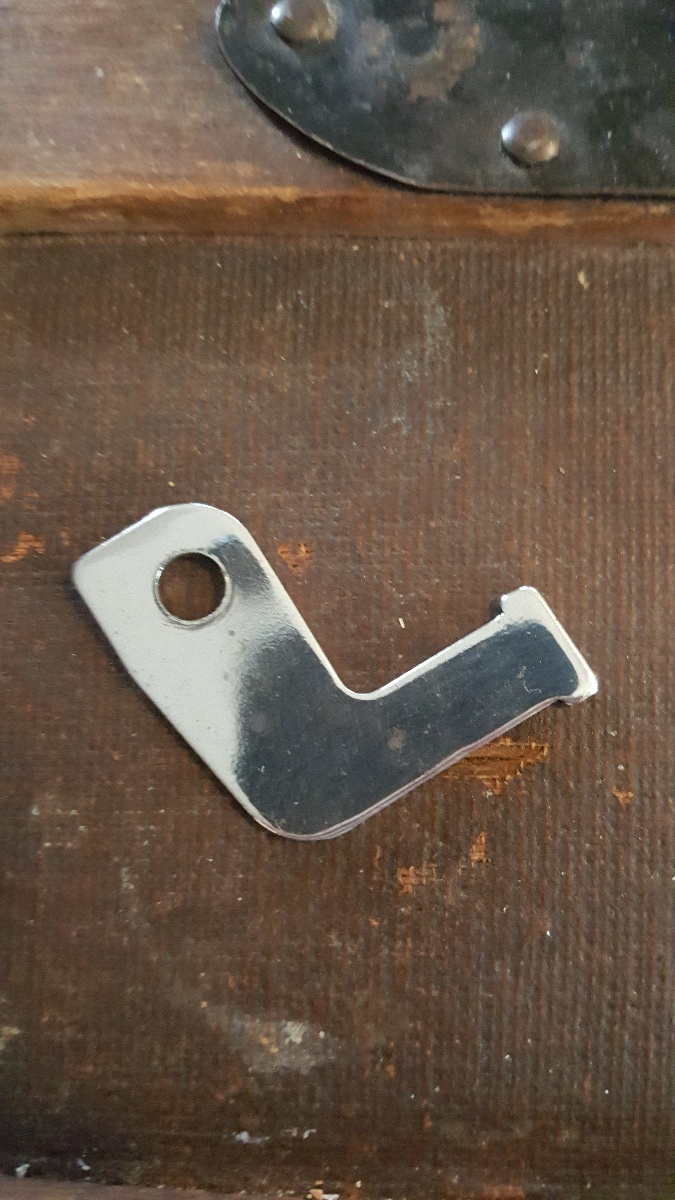

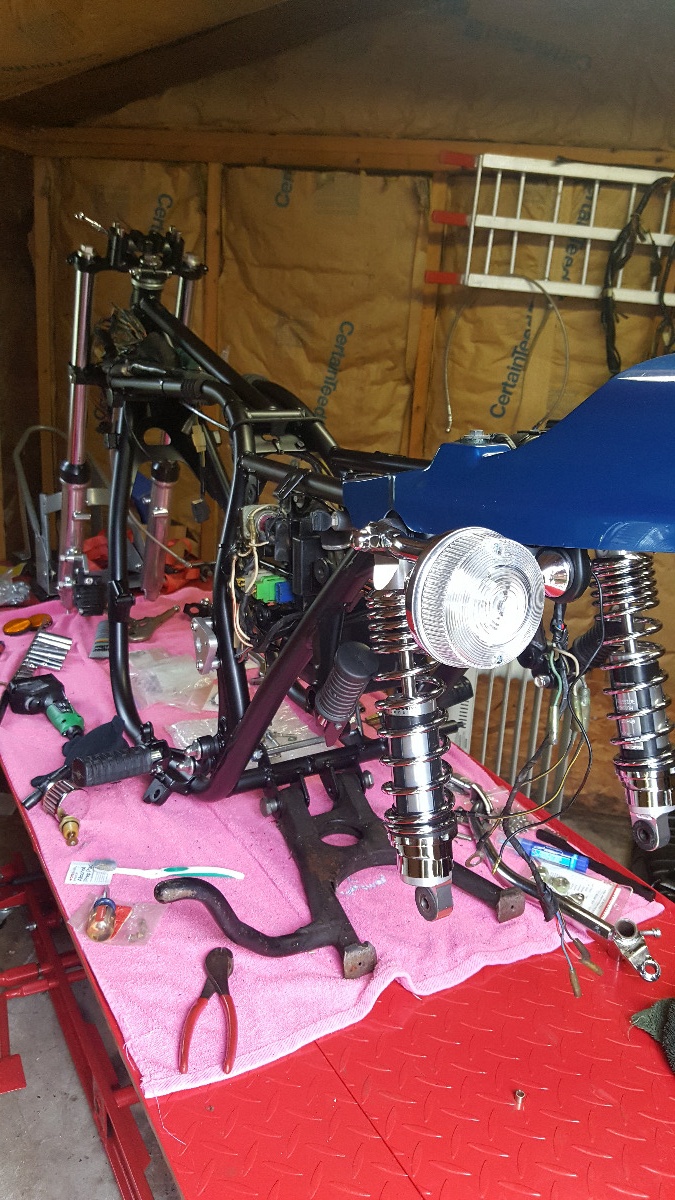

Doing my total restoration. Money spent on kid's car and job eliminating my position, Im actually getting it together. Putting the wiring harness on and and looking over all connections. This piece attaches to a small bracket that is mounted to the back of the coil. Looks very dried and cracked and was thinking of replacing. Not sure what it is actually called. Can you Brainiacs help me here? As you can see it is starting to come together.
1977 kz1327
Cavanaugh Head 38.6/33
38mm Flatslides
MRE racecut trans
300mm rear tire
Web Cams 435/465

1984 GPZ1100
Cavanaugh Head
1170cc
Web 415 cams
RC Hp Inj.
Bored throttle bodies
Attachments:

Please Log in or Create an account to join the conversation.

Not sure what this is called 05 Oct 2017 14:50 #772394

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7983
  • Thank you received: 1621
Maybe a fuel check switch or outage indicator switch.

outage indicator switch = brake light failure indicator switch. The former term is used in the parts diagram for the 81 650-H1, but the latter is used in the wiring diagram.

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Not sure what this is called 05 Oct 2017 15:25 #772395

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
Could examine the color wire diagram for the particular year and model.

Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

Not sure what this is called 05 Oct 2017 16:02 #772397

  • tomsbadkz
  • tomsbadkz's Avatar Topic Author
  • Offline
  • User
  • Posts: 235
  • Thank you received: 38
Hey Patton. I just got an assembly manual from an ebayer yesterday. Big electrical schematic in it. I found it. Its the brake light failure indicator switch. Thank you so much for the advice. That's why I come here. Tom
1977 kz1327
Cavanaugh Head 38.6/33
38mm Flatslides
MRE racecut trans
300mm rear tire
Web Cams 435/465

1984 GPZ1100
Cavanaugh Head
1170cc
Web 415 cams
RC Hp Inj.
Bored throttle bodies

Please Log in or Create an account to join the conversation.

Not sure what this is called 05 Oct 2017 21:10 #772412

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22400
  • Thank you received: 2609
Correct
Steve

Please Log in or Create an account to join the conversation.

Not sure what this is called 01 Apr 2018 01:06 #781094

  • Pumpper79
  • Pumpper79's Avatar
  • Offline
  • User
  • I'm a crazy pollock with a 1979 kz650sr
  • Posts: 2
  • Thank you received: 0
It's a brake light failure switch

Please Log in or Create an account to join the conversation.

Not sure what this is called 01 Apr 2018 08:24 #781099

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
If while just cruising along without applying any brakes the dash brake light warning indicator is blinking, it's telling you that the rear brake light won't come on when the brakes are next applied.
