Digital Tach & Speedo
13 May 2016 19:32
The ebay item id given is invalid, no result has been sentNo eBay APP ID and/or Cert ID defined in Kunena configurationI was wondering if anyone has had any luck with this Gauge? I have gotten the fuel and Speedo to work, but can't get the Tach to work according to the Chinese directions. I have a 1980 KZ1000 with ZRX coils. I have tried gauge tach wire direct to pick up wires , to Coil wires [Both} and wrapping around spark plug wire.
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
- Posts: 8019
- Thanks: 1645
- kzspartan
-
Topic Author
- Offline
- User
- Posts: 28
- Thanks: 3
- SWest
-
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 23331
- Thanks: 2875
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2100
Re: Digital Tach & Speedo
14 May 2016 07:51 - 14 May 2016 08:02kzspartan wrote: They did not provided a wiring diagram. I tried connecting what I think is the tach wire to the black coil wire with no success. I have the gauge working for the Speedometer, Fuel , High/ low beam and Neutral.

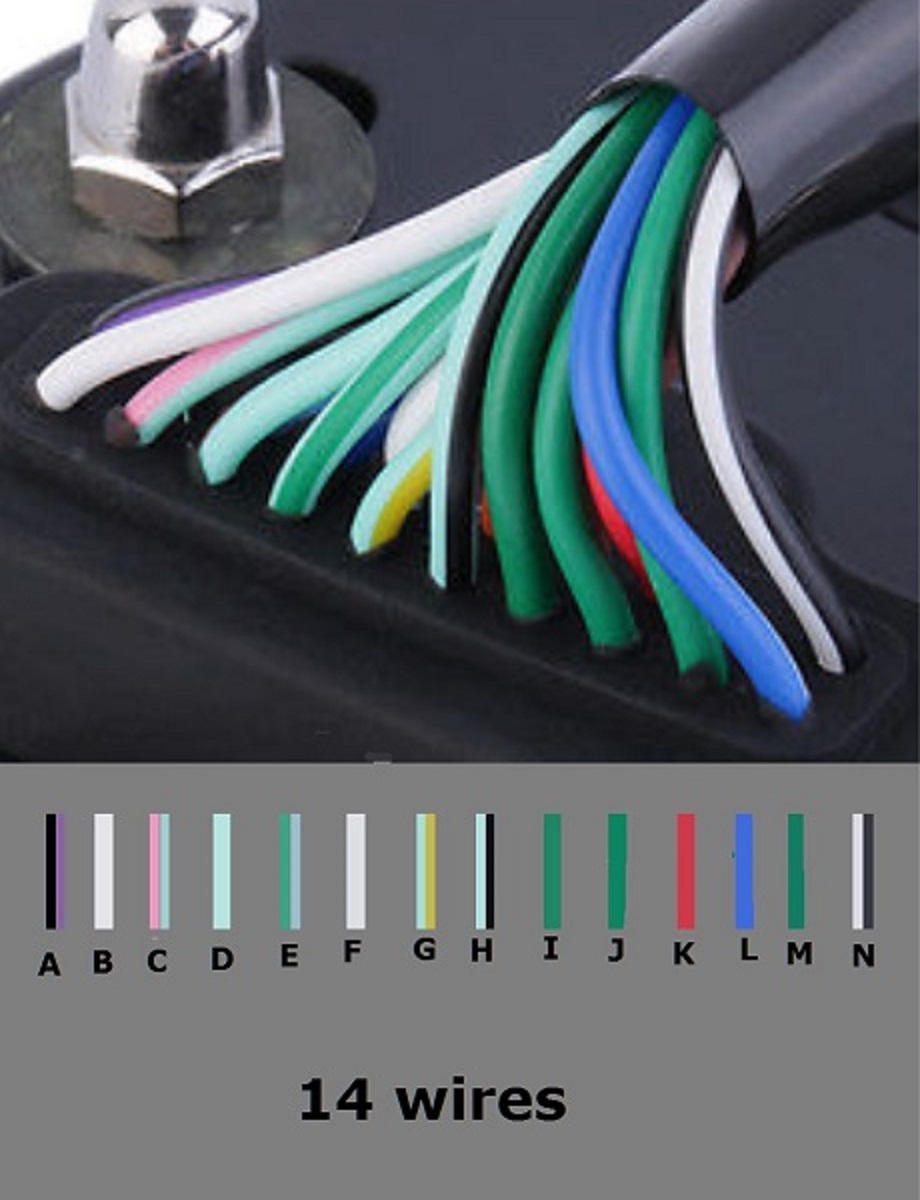

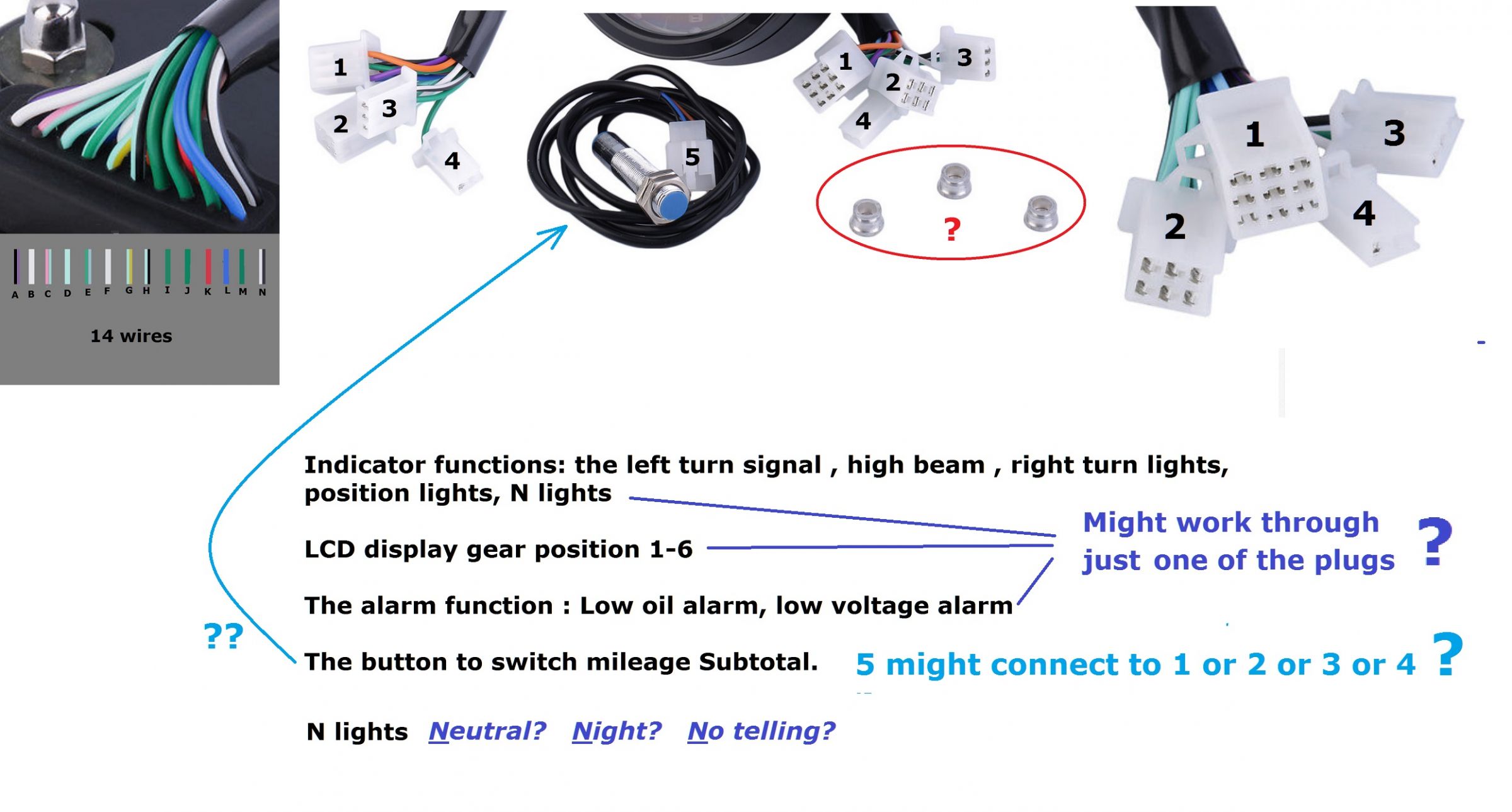

Here's some wild-guess-work to hopefully help identify the different wires and connectors.
Which color wires to which connector(s) were used for the Speedometer, Fuel , High/ low beam and Neutral ?
Is the odometer also working?
Please confirm what color wires go into each of the other connectors.
Was the stock tach mechanical (cable-driven) or electrical?
tried connecting what I think is the tach wire to the black coil wire with no success. -- which color was thought to be the gauge's tach wire?
As noted by martin_csr, the gauge's tach may need three wires, being power, ground and signal wire that connects to an ignition coil's primary wiring terminal.
Good Fortune!
1973 Z1
KZ900 LTD
KZ900 LTD
Last edit: 14 May 2016 08:02 by Patton.
Please Log in or Create an account to join the conversation.
- kzspartan
-
Topic Author
- Offline
- User
- Posts: 28
- Thanks: 3
Re: Digital Tach & Speedo
14 May 2016 11:43Patton wrote:kzspartan wrote: They did not provided a wiring diagram. I tried connecting what I think is the tach wire to the black coil wire with no success. I have the gauge working for the Speedometer, Fuel , High/ low beam and Neutral.
Here's some wild-guess-work to hopefully help identify the different wires and connectors.
Which color wires to which connector(s) were used for the Speedometer, Fuel , High/ low beam and Neutral ?
Is the odometer also working?
Please confirm what color wires go into each of the other connectors.
Was the stock tach mechanical (cable-driven) or electrical?
tried connecting what I think is the tach wire to the black coil wire with no success. -- which color was thought to be the gauge's tach wire?
As noted by martin_csr, the gauge's tach may need three wires, being power, ground and signal wire that connects to an ignition coil's primary wiring terminal.
Good Fortune!
Thanks for the help. I have identified all the connections. For this Gauge the Yellow/Black is for the Tach. I have everything else working.
My Bike is a 1980 KZ1000ST E with a mechanical Tach. I have upgraded the Coils with a 2001 ZRX coils.
NOt sure if the tach works or Signal from the Black wired points is strong enough?
The Gauge in its self is relatively nice , until I can afford a better unit.
Please Log in or Create an account to join the conversation.
