1977 KZ650 wiring diagram 01 Nov 2013 06:09 #611786

  • scott s
  • scott s's Avatar Topic Author
  • Offline
  • User
  • Posts: 169
  • Thank you received: 2
I'm helping a buddy with his 1977 KZ650. The P.O. got...."creative"...with the wiring harness and controls. A quick internet image search turned up lots of wiring diagrams, but how do we tell what model he has? C1, C2, D1, D2, etc.?

I know it's not a CSR. I think it's just the "standard" KZ650 from 1977.

Or, does anyone have a link to a good, clear wiring diagram? Color, preferably.

Please Log in or Create an account to join the conversation.

1977 KZ650 wiring diagram 01 Nov 2013 06:21 #611788

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828

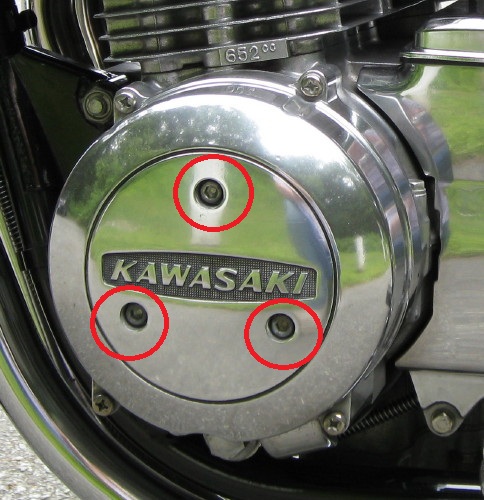

Take a look at the VIN stamped into the steering neck. If it begins with KZ650C it is a "C" model, if it begins with KZ650B it is a "B" model. Also, to verify that it is a 1977 model take a look at the generator cover. If it has the 3 allen screws as circled below it is a 1977 model which would be a KZ650-B1 or KZ650-C1. If it doesn't have those screws it is a later model unless someone swapped engines or generators. Using the VIN from the steering neck and the engine serial number on the right side of the engine near the oil filler cap you can look up the year of the bike and engine at the link below. Let me know which model you have and I will provide a wiring diagram. Ed

models.kz650.info/index.htm

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

1977 KZ650 wiring diagram 01 Nov 2013 07:14 #611796

  • scott s
  • scott s's Avatar Topic Author
  • Offline
  • User
  • Posts: 169
  • Thank you received: 2
Took a look at the VIN today and it's a 650B, manufactured 10-77.
I didn't see your post about the alternator cover until I got back home.

So, I guess what we need is the B1 diagram?

Please Log in or Create an account to join the conversation.

1977 KZ650 wiring diagram 01 Nov 2013 08:29 #611803

  • scott s
  • scott s's Avatar Topic Author
  • Offline
  • User
  • Posts: 169
  • Thank you received: 2
Vin is: kz650b-511042

Awaiting word on the alternator cover.
Still not sure if that makes it a '77 or '78.

EDIT: no screws in alt cover. Engine number is KZ650BF051518

Please Log in or Create an account to join the conversation.

Last edit: by scott s.

1977 KZ650 wiring diagram 01 Nov 2013 09:07 #611811

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
Sounds like it is a 1978 KZ650-B2 that was build in late 1977. Production of the B2 started in the second half of 1977, but they are still considered a 1978 model. Here's the wiring diagram. Ed

diagrams.kz650.info/wiring/images/KZ650-B2,C2.jpg
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
