need wiring diagrams for a 1979 kz1000 29 Mar 2011 19:08 #441266

  • 79kz1000
  • 79kz1000's Avatar Topic Author
  • Offline
  • User
  • Posts: 8
  • Thank you received: 0
wiring is all cut and what to redo all the bikes wiring and put back the horn and turn signals. if anyone has them it would be great if you can post them.

Please Log in or Create an account to join the conversation.

need wiring diagrams for a 1979 kz1000 29 Mar 2011 19:36 #441276

  • MFolks
  • MFolks's Avatar
  • Offline
  • User
  • Posts: 6650
  • Thank you received: 540
Take your cursor up to the right hand corner of the page and look under "Filebase", if no luck here, www.wgcarbs.com has a similar forum with bike wiring information on his website.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)

Please Log in or Create an account to join the conversation.

need wiring diagrams for a 1979 kz1000 29 Mar 2011 20:13 #441284

  • Old Man Rock
  • Old Man Rock's Avatar
  • Offline
  • User
  • Posts: 6224
  • Thank you received: 225
If the info is correct, 1979 (K)Z1000-B3-LTD for the model number.

About the closest I have anyways.... Crap copy at this size...



I just added to the file base...

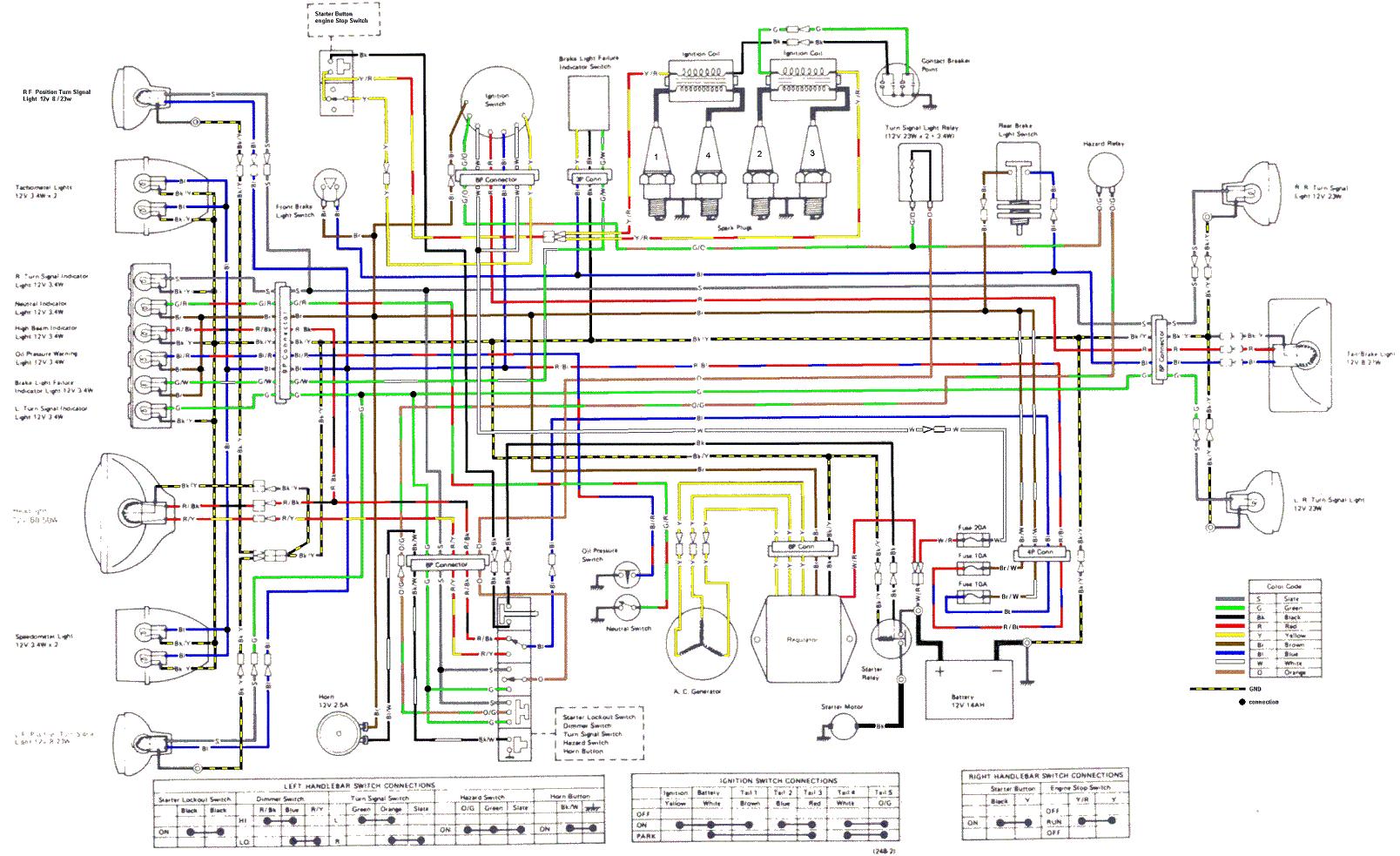

1979 KZ1000-B3 Wiring Diagram
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Old Man Rock.

need wiring diagrams for a 1979 kz1000 29 Mar 2011 21:24 #441307

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
No eBay APP ID and/or Cert ID defined in Kunena configurationIf...



Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

need wiring diagrams for a 1979 kz1000 29 Mar 2011 23:50 #441343

  • 79kz1000
  • 79kz1000's Avatar Topic Author
  • Offline
  • User
  • Posts: 8
  • Thank you received: 0
Anyway you can make that bigger without it getting blurry.i printed it and cant see crap.and im gonna build my harness because I want to hide as much wires as possible.

Please Log in or Create an account to join the conversation.

need wiring diagrams for a 1979 kz1000 30 Mar 2011 00:03 #441351

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
Click > www.kzrider.com/filebase/doc_download/280-z1000b3

Click > www.kzrider.com/filebase/doc_download/485-kz1000b3colorized

The above links are found by using the FILEBASE function.

Attachment filebasekzr.jpg not found



Good Fortune! :)
1973 Z1
KZ900 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Patton.
