Kz900/1000 Engine Stand
- StreetfighterKz
- Topic Author
- Offline
- User
I needed to order some metal for another project so I went ahead and ordered two 4' sections of 1" x .065" square tubing. I could have ordered a 5' section but they were going to charge me oversized shipping so it was about the same $$ to order two 4' section with regular shipping.
Anyways, I started with two 4" sections of the square tubing and a piece of 1" x .25" flat bar scrap I had laying around...
I started by laying a level across the oil filter cover and measured the length of the mounts that would be needed to go from the engine mounts to the stand's frame.
I added 1/4" to the length so that everything would have plenty of clearance. I cut two rear tabs and drilled out the mounting holes and did the same for the side mounting tabs...
Once the tabs are fabbed and bolted to the engine case, the frame dimension can be worked out. I made my base 14" long by 13.5" wide. Looking back at it the base should really be 2-3" longer to make the engine more stable. I may have to redo the stand later.
Anyways, I cut the tubing to two pieces 11.5" long and two pieces 14" long...
Next, I used my welding table (OK, it's really a bench grinder stand but the height is really nice) to clamp the tubing down and started welding it together...
After the frame was created, I placed the rear tabs and welded them so they were close to putting the engine in the middle of the frame. Once they were welded into place, I could determine the locations of the other two mounting tabs...
I welded on the one side, checked fitment and then located the other side and welded it on...
The finished product...
I still have casters I want to add but I left that for another day.
Total price (with casters and hardware).... Less than $25.
Total time so far.... ~1.5 hours
Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Please Log in or Create an account to join the conversation.
- Mcdroid
- Offline
- User
- Gone Kwackers
- Posts: 6635
- Thank you received: 317
Michael
Victoria, Texas
1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A
Please Log in or Create an account to join the conversation.
- StreetfighterKz
- Topic Author
- Offline
- User
- Posts: 1510
- Thank you received: 117

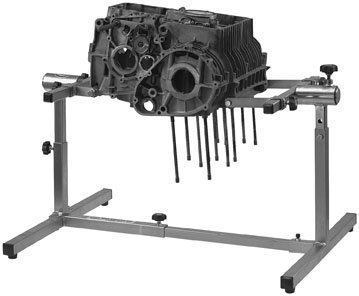

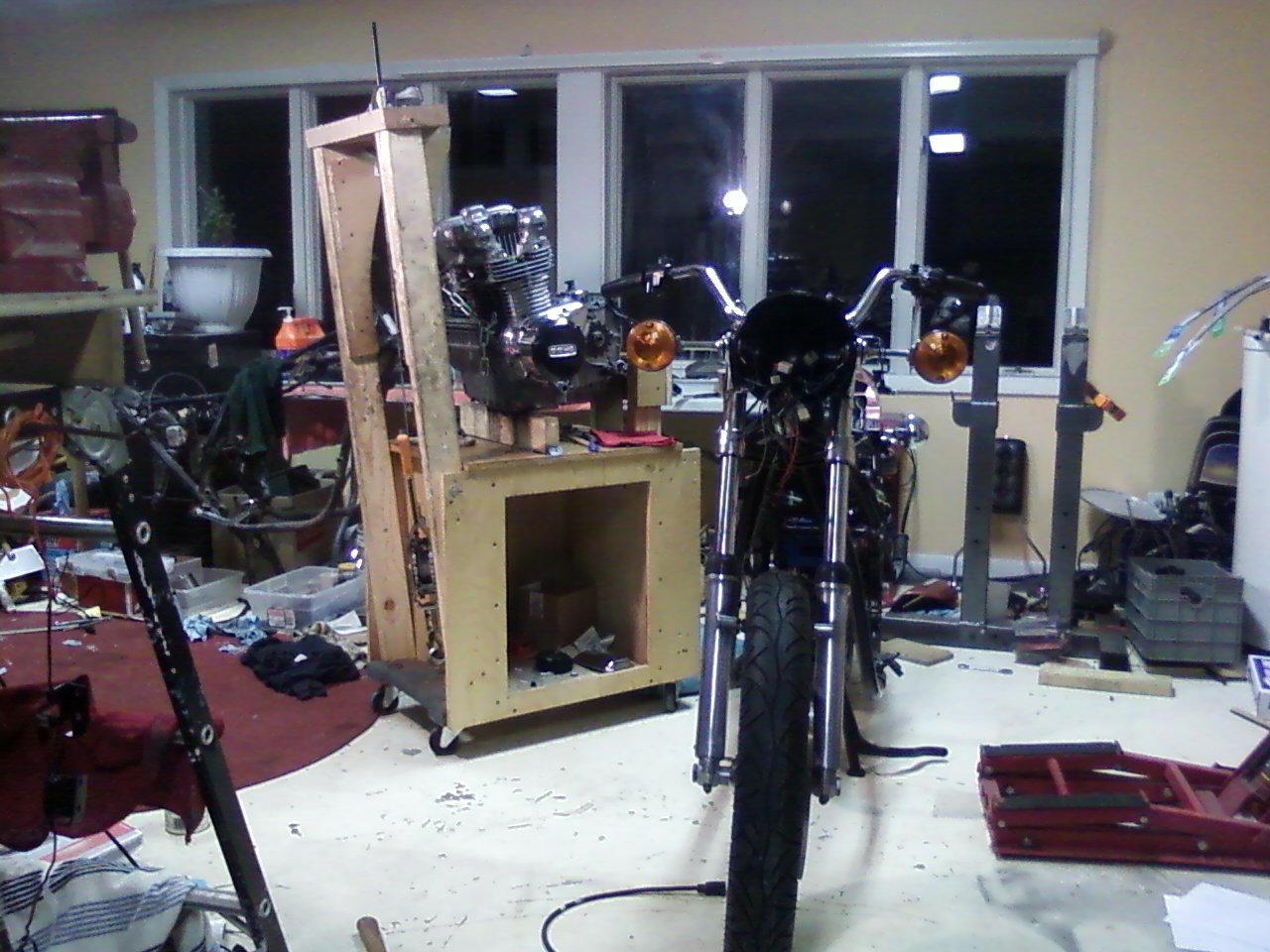

But I think it takes up too much room just for storing the engine. Works great if you're working on one though.
Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- mtbspeedfreak
- Offline
- User
- Posts: 1413
- Thank you received: 36
2000 ZRX 1100
1976 KZ 900- Daily Driver
1980 LTD 550- Dalton Highway survivor!
If it has tits or tires, it'll give you problems!
Please Log in or Create an account to join the conversation.
- bluej58
- Offline
- Sustaining Member
- The chrome don't get you home
- Posts: 2484
- Thank you received: 511
78 KZ1000 A2A
Please Log in or Create an account to join the conversation.
- StreetfighterKz
- Topic Author
- Offline
- User
- Posts: 1510
- Thank you received: 117
mtbspeedfreak wrote: Hey Doug, would you consider making another one for me to purchase?
I was wondering how long before someone asked that question.
I respond with a question: How soon do you want it? I'm getting into the crunch time for my last semester in college so time is becoming more precious. However, by middle of May I should have all kinds of time if you can wait that long.
Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Please Log in or Create an account to join the conversation.
- mtbspeedfreak
- Offline
- User
- Posts: 1413
- Thank you received: 36
StreetfighterKz wrote:
mtbspeedfreak wrote: Hey Doug, would you consider making another one for me to purchase?
I was wondering how long before someone asked that question.
I respond with a question: How soon do you want it? I'm getting into the crunch time for my last semester in college so time is becoming more precious. However, by middle of May I should have all kinds of time if you can wait that long.
Later, Doug
I can definitely wait that long. Might not hurt to get shipping quotes too... I feel like those might not be cheap. Unless the stand breaks down on purpose?
2000 ZRX 1100
1976 KZ 900- Daily Driver
1980 LTD 550- Dalton Highway survivor!
If it has tits or tires, it'll give you problems!
Please Log in or Create an account to join the conversation.
- les holt
- Offline
- Vendor
- Posts: 1635
- Thank you received: 288
Les
Please Log in or Create an account to join the conversation.
- StreetfighterKz
- Topic Author
- Offline
- User
- Posts: 1510
- Thank you received: 117
mtbspeedfreak wrote: I can definitely wait that long. Might not hurt to get shipping quotes too... I feel like those might not be cheap. Unless the stand breaks down on purpose?
The stand isn't that heavy, actually. I calculated the weight to be less than 5lbs. I can get a shipping quote if you PM me your zip code.
les holt wrote: It looks good painted in hammerton rustoleum.
I still have some welding to do to add the casters and then I'll paint it with REAL Hammertone. LOL
Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
Please Log in or Create an account to join the conversation.
- jonnybravo
- Offline
- Banned
- Posts: 573
- Thank you received: 18
Please Log in or Create an account to join the conversation.
- BlackZ1R
- Offline
- User
- Kawasaki in my blood
- Posts: 702
- Thank you received: 47
Kawasaki
Someone once told me to marry that motorcycle I was riding ......there's times I wish I hadda listened .
